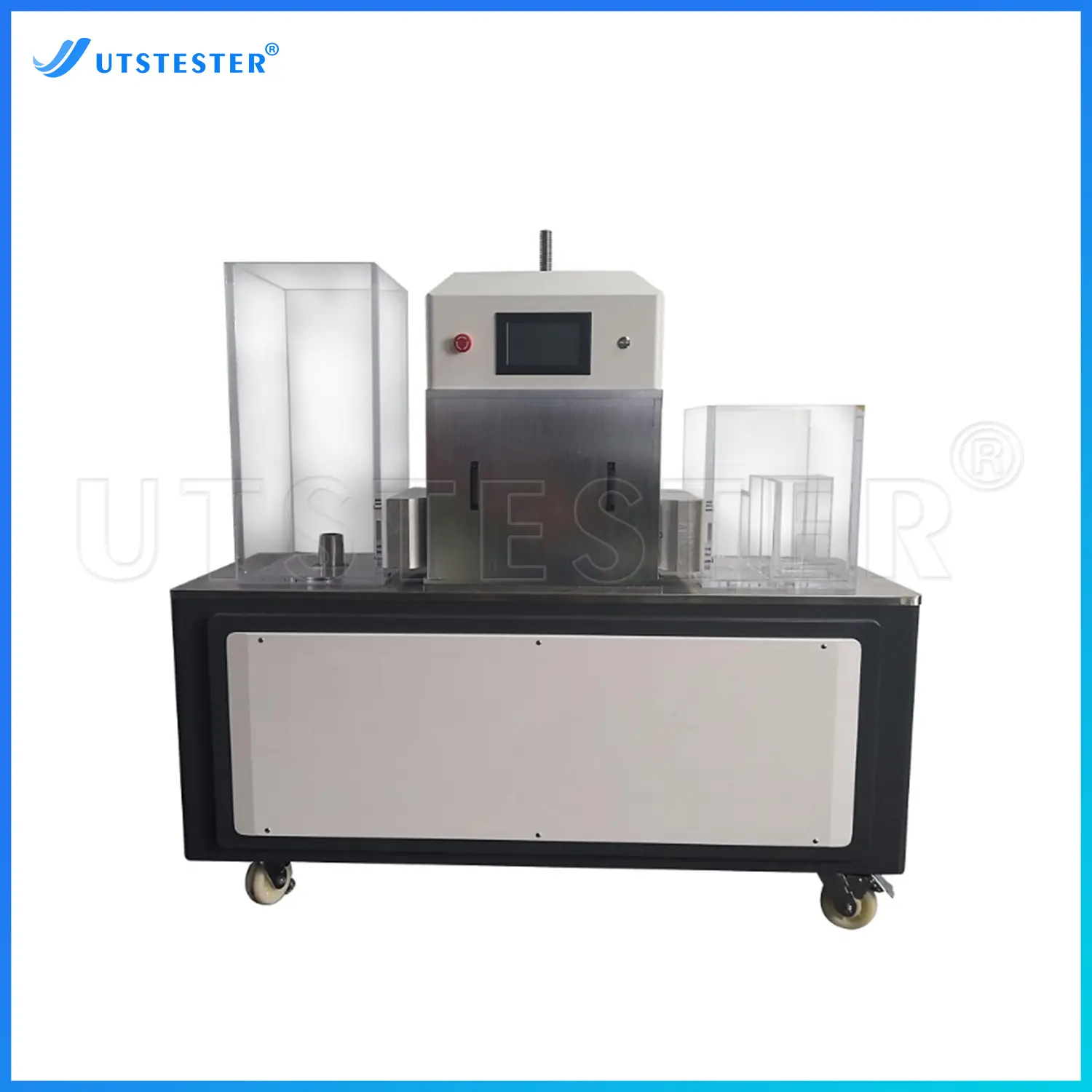

Textile Testing Equipment Geosynthetics Horizontal Penetrometer MA09N
Overview
For the determination of the in-plane water flow of geotextiles and their related products at different normal pressures and standard hydraulic gradients.
Application

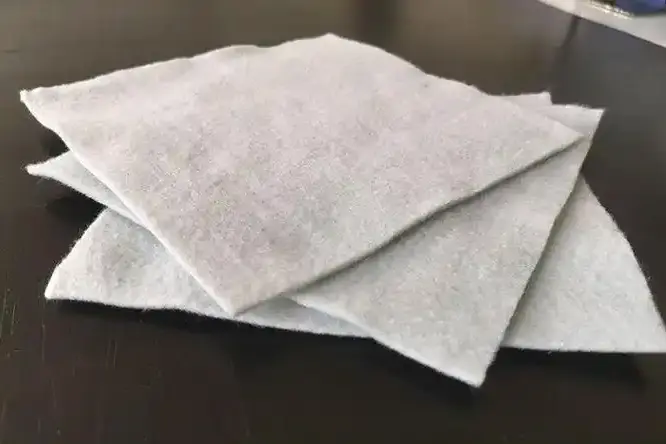

Geotextile
Geotextile
Geotextile
Standards
ASTM D4716, ASTM D6574
Key Parameters
|
Model |
MA09N |
|
Display |
7.0-inch true color touch screen, English menu operation |
|
hydraulic gradient measurement |
0-300mm, laser measurement, digital feedback |
|
Gradient selection |
1.0, 0.50, 0.25 and 0.10 |
|
Sample length |
300mm |
|
Thermometer range |
0-50℃±0.2℃ |
|
Time controller |
0 -999.9 seconds arbitrary setting, control accuracy 0.1S |
|
Timing mode |
seconds, minutes, hours (optional) |
|
Head difference adjustment range |
0 ~ 400mm |
|
Normal load range |
0~800kPa |
|
Load selection setting |
5, 10, 25, 50kPa |
|
Normal pressure accuracy |
± 1% |
|
Calculation of hydraulic conductivity |
program calculation, printout |
|
Power supply |
AC 220V 50Hz |
|
Outside dimension |
1600×600×1750mm |
|
Weight |
260kg |
Product Details
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
