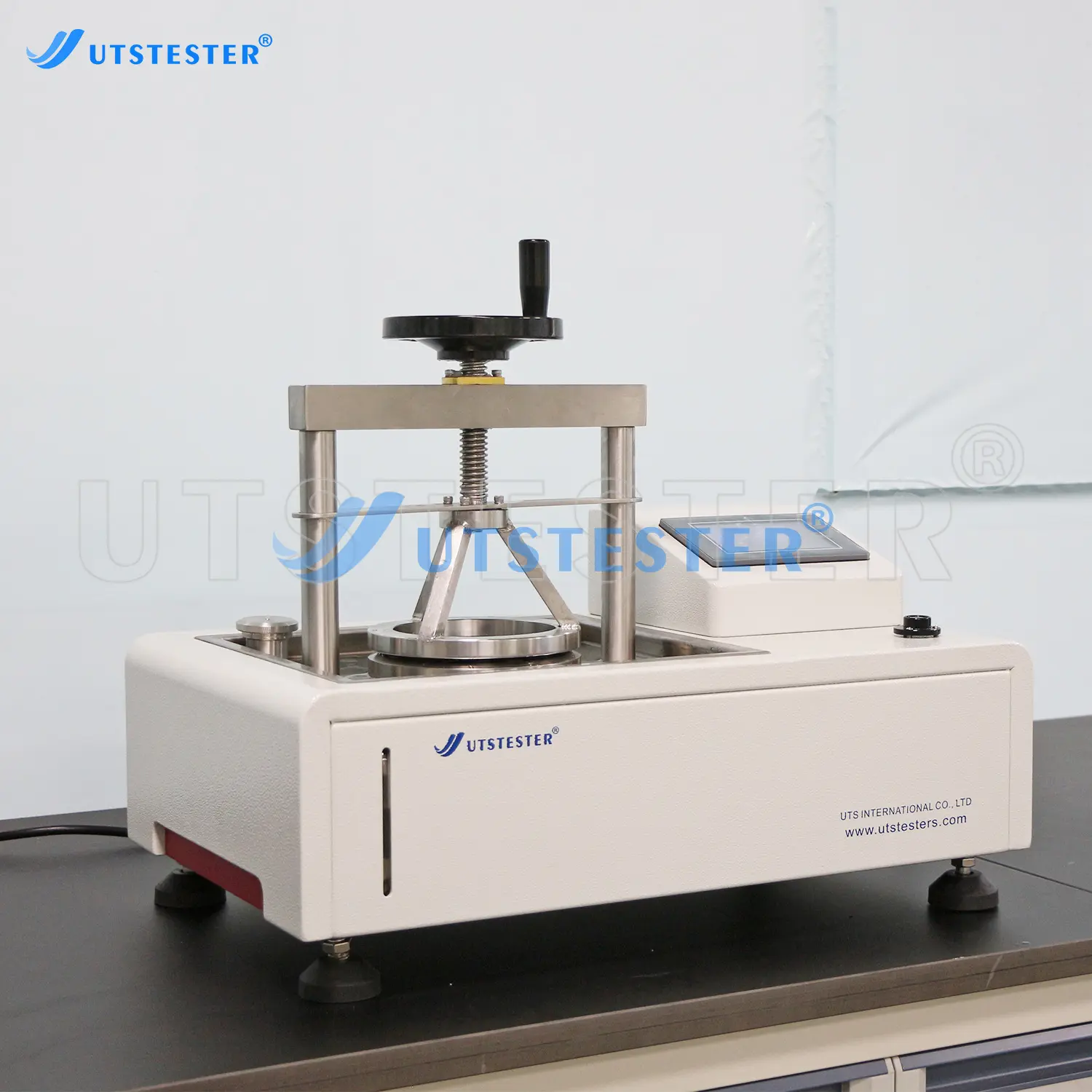

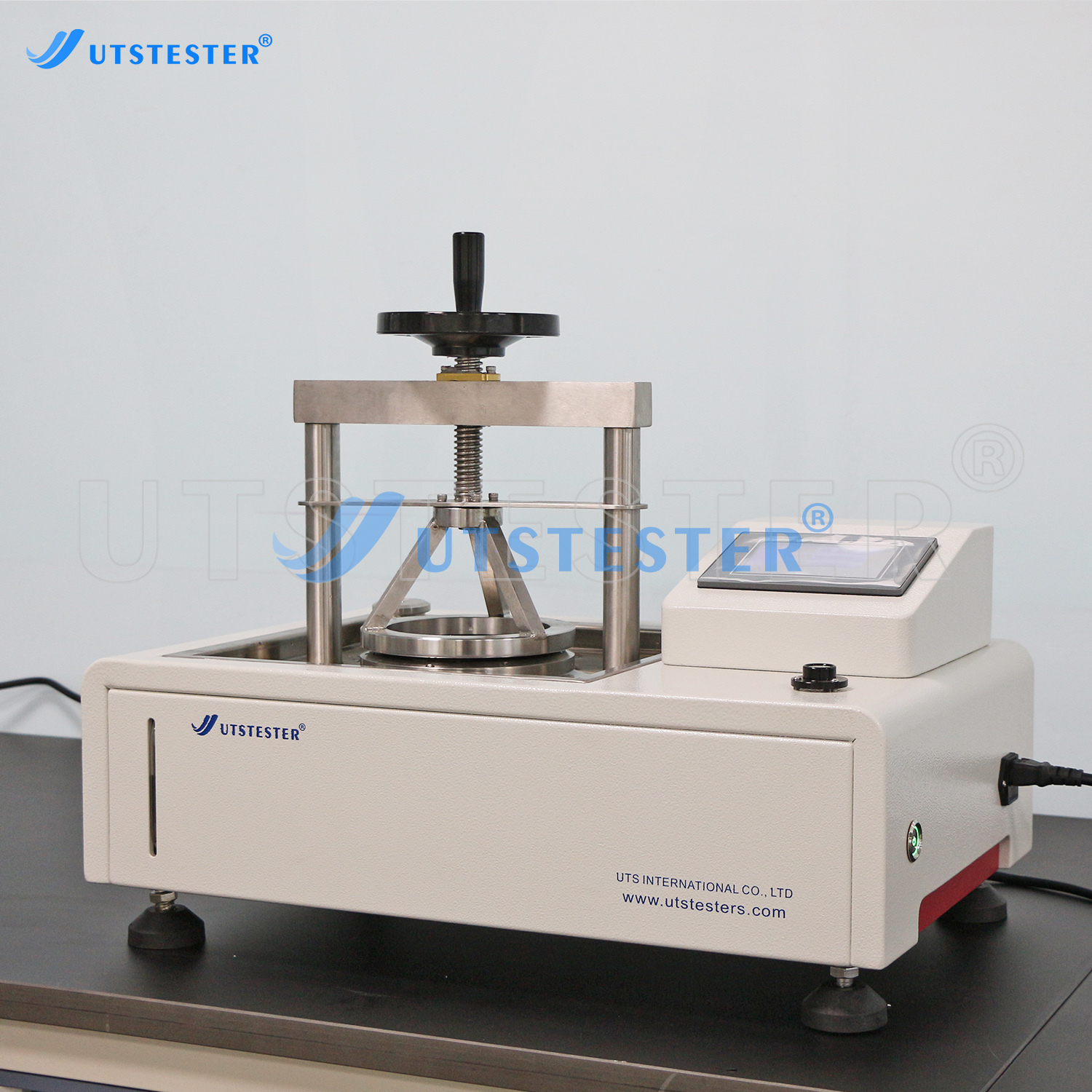

Textile Machinery Hydrostatic Head Tester Fabric Hydrostatic Pressure Tester for Textile M023D
Overview
Used for testing the anti-seepage property of various fabrics (such as canvas, coated cloth, tent cloth, tarpaulin, waterproof clothing cloth and geotextile material, etc.) treated with waterproof.
Application
Tent cloth
Mask
Geosynthetic
Canvas
Medical non-woven
Rainproof cloth
Standards
GB/T 4744, AATCC 127
Key Parameters
|
Model |
M023D |
|
Testing Range |
0-100kpa |
|
Pressure display resolution |
0.01kPa |
|
Sensor test accuracy |
1% (5% to 100% within the full range of a single sensor) |
|
Experimental area |
100cm |
|
Pressure rate |
1KPa/min, 6KPa/min, 10KPa/min |
|
Working mode |
Pressurization |
|
Display mode |
Color screen in Chinese and English |
|
Power supply |
AC 220V 10% 50Hz 500W |
|
External size |
500 320 450 mm |
|
Weight |
25kg |
Product Details
![渗水性测试仪操作视频[00-00-58][20241101-111428972]](https://ecdn6.globalso.com/upload/p/256/image_other/2024-11/water-permeability-tester-operation-video-00-00-58-20241101-111428972.jpg)

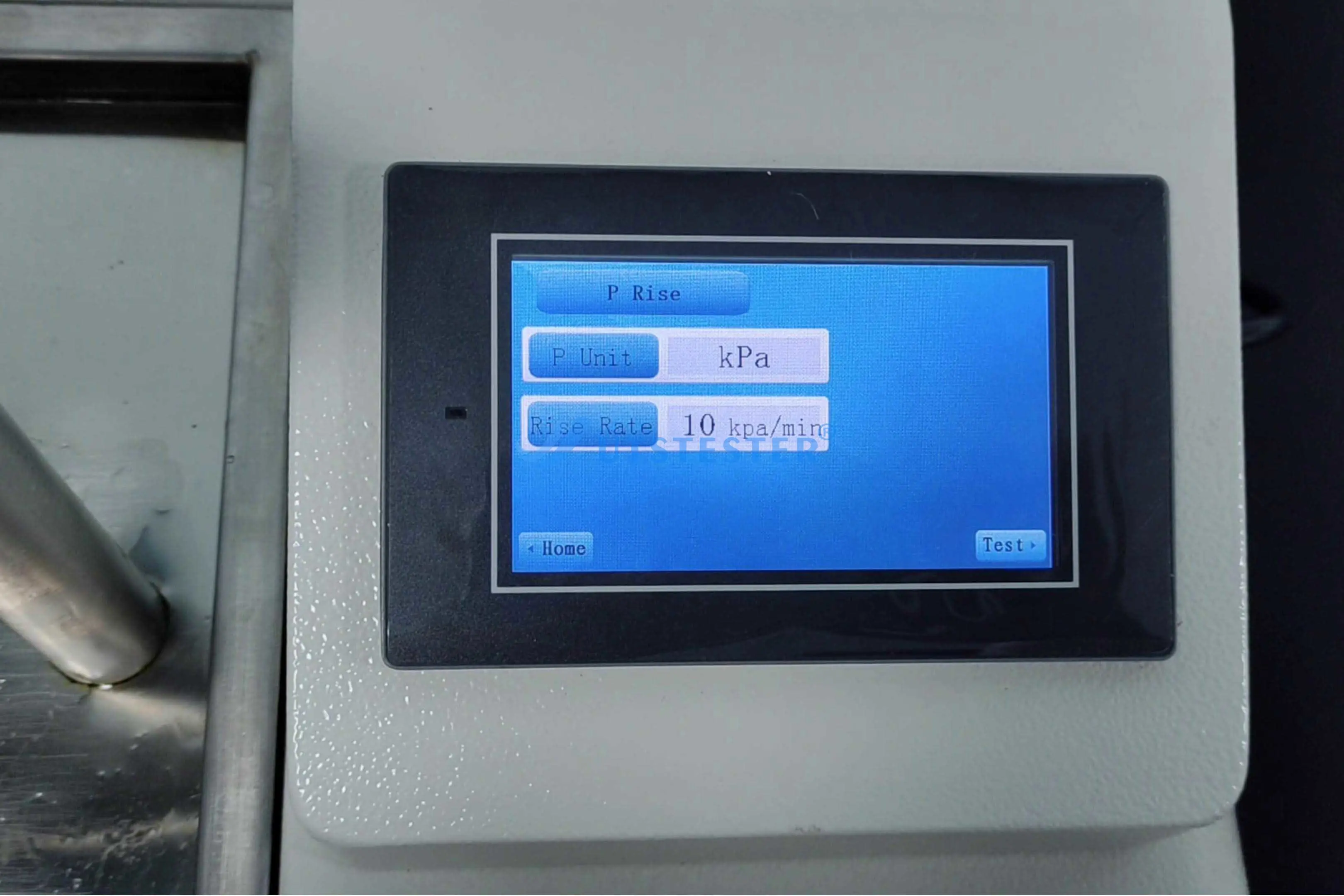

Color touch screen

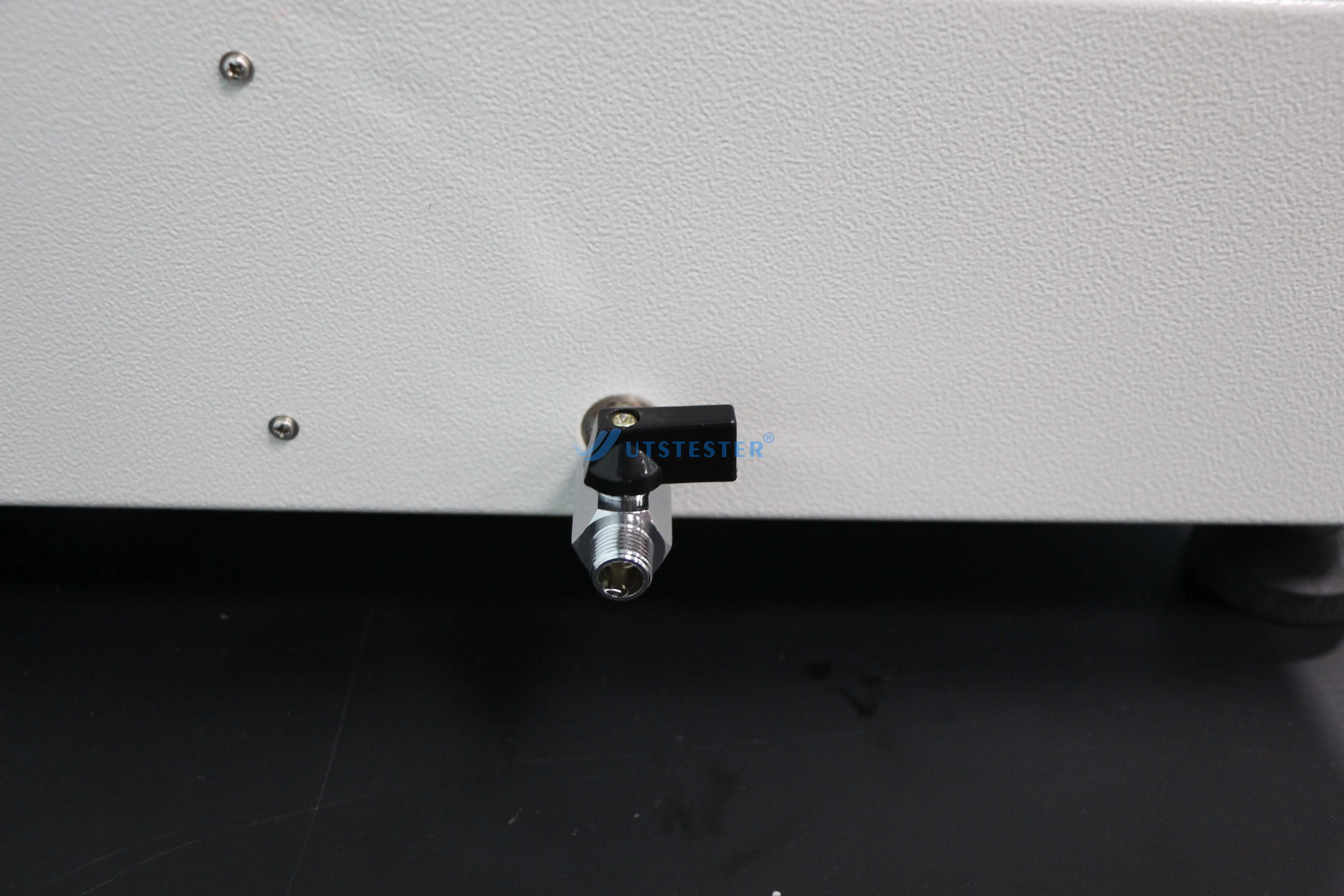

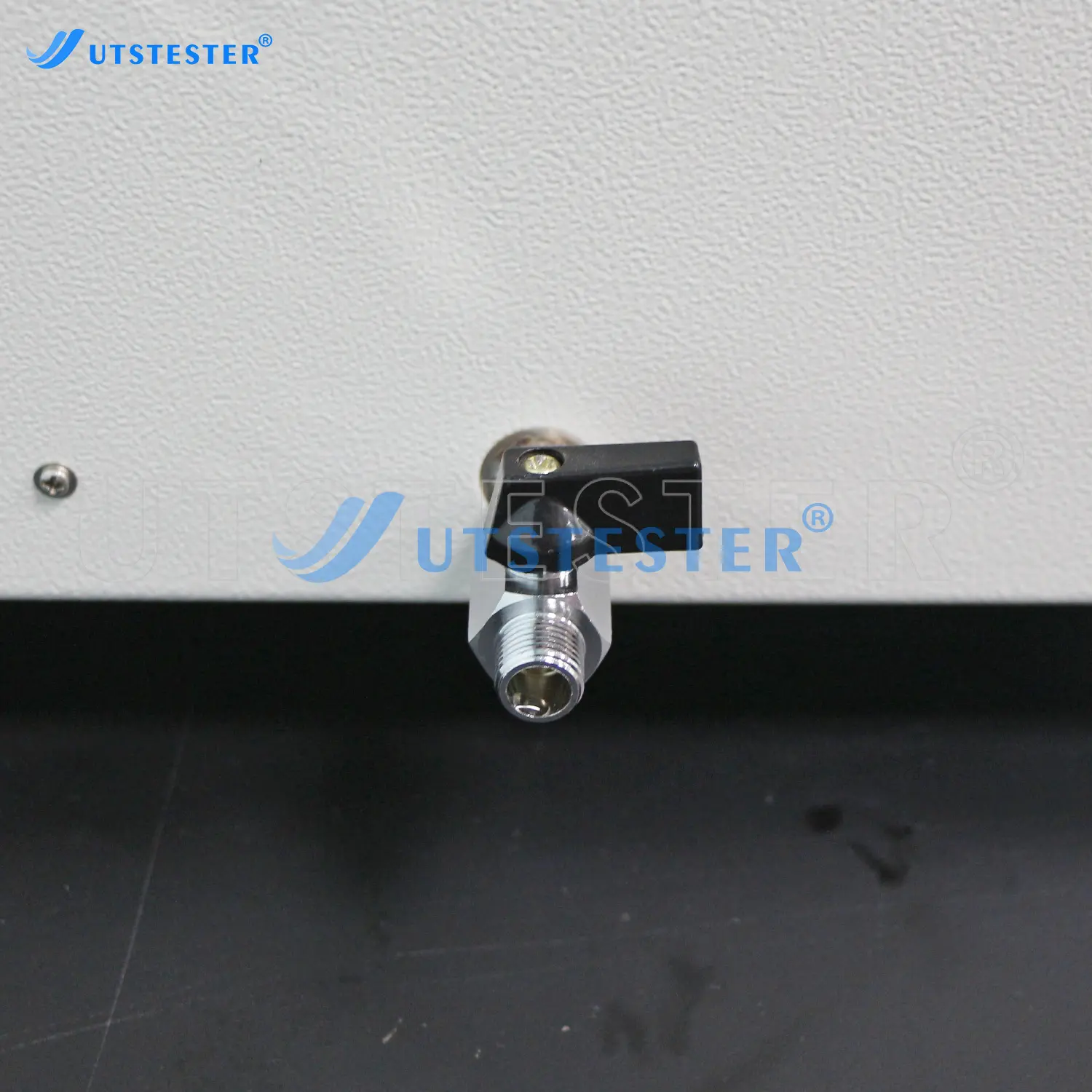

Water tank drain valve
![渗水性测试仪操作视频[00-01-46][20241101-111600522]](https://ecdn6.globalso.com/upload/p/256/image_other/2024-11/water-permeability-tester-operation-video-00-01-46-20241101-111600522.jpg)

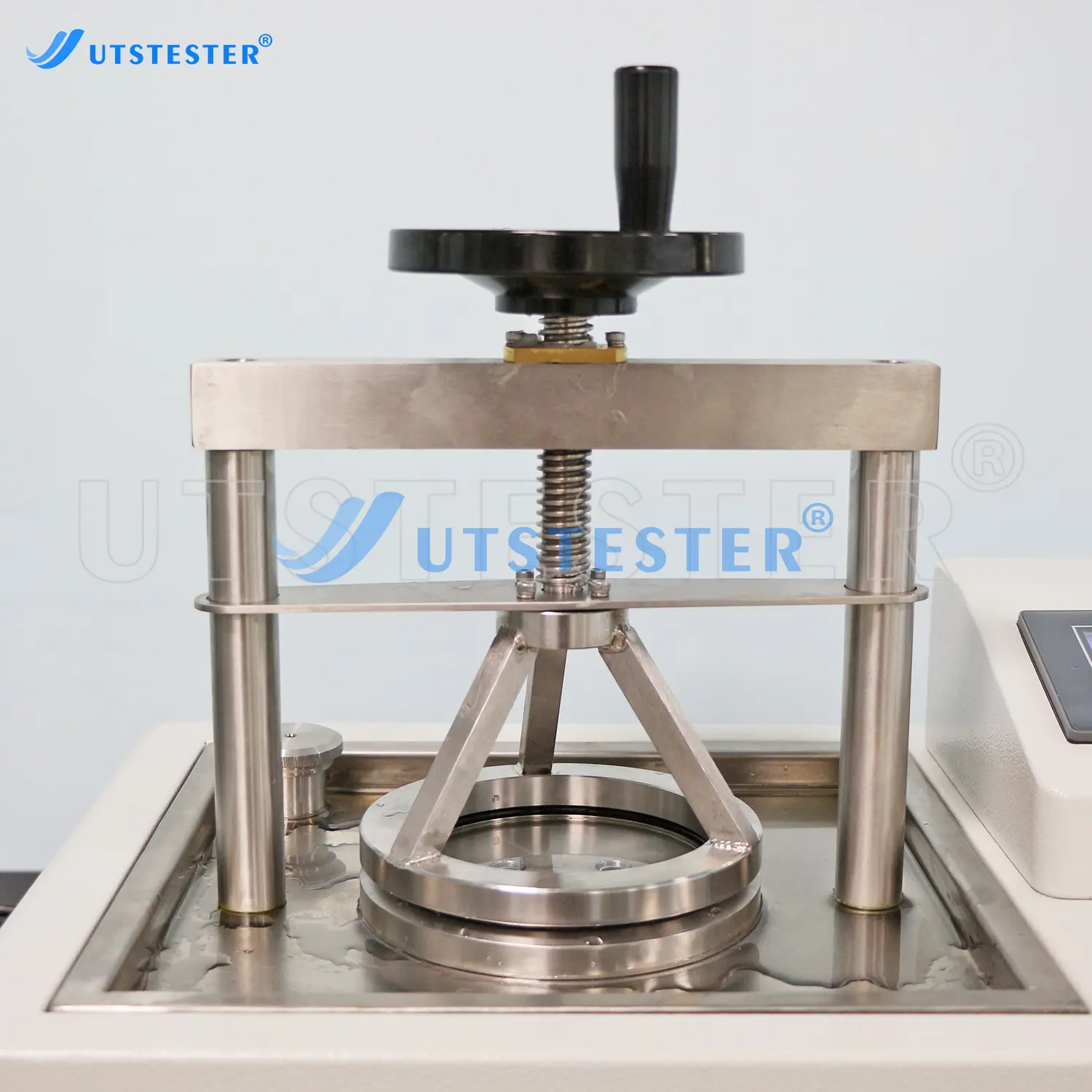

Lower grip
Inlet and outlet

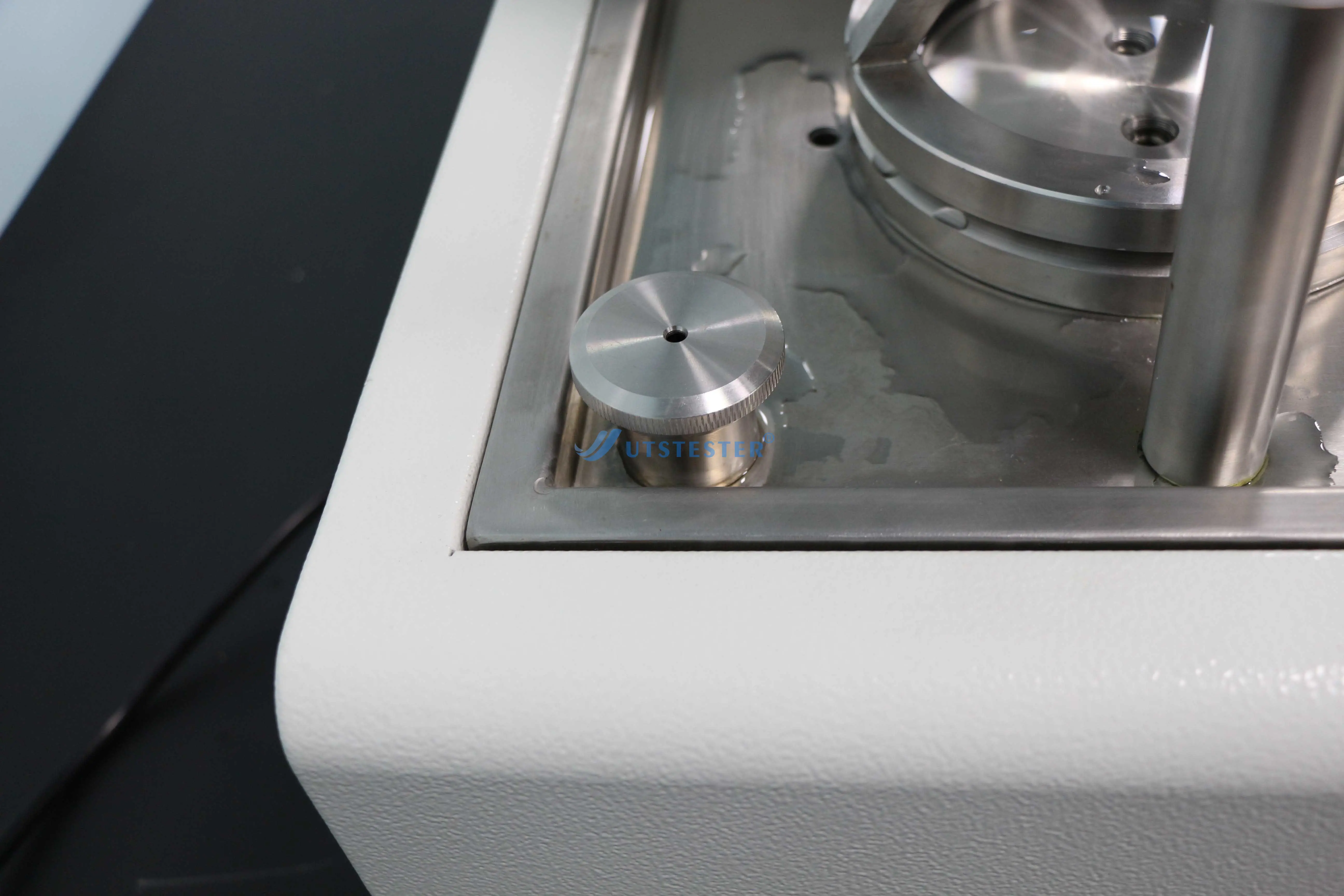

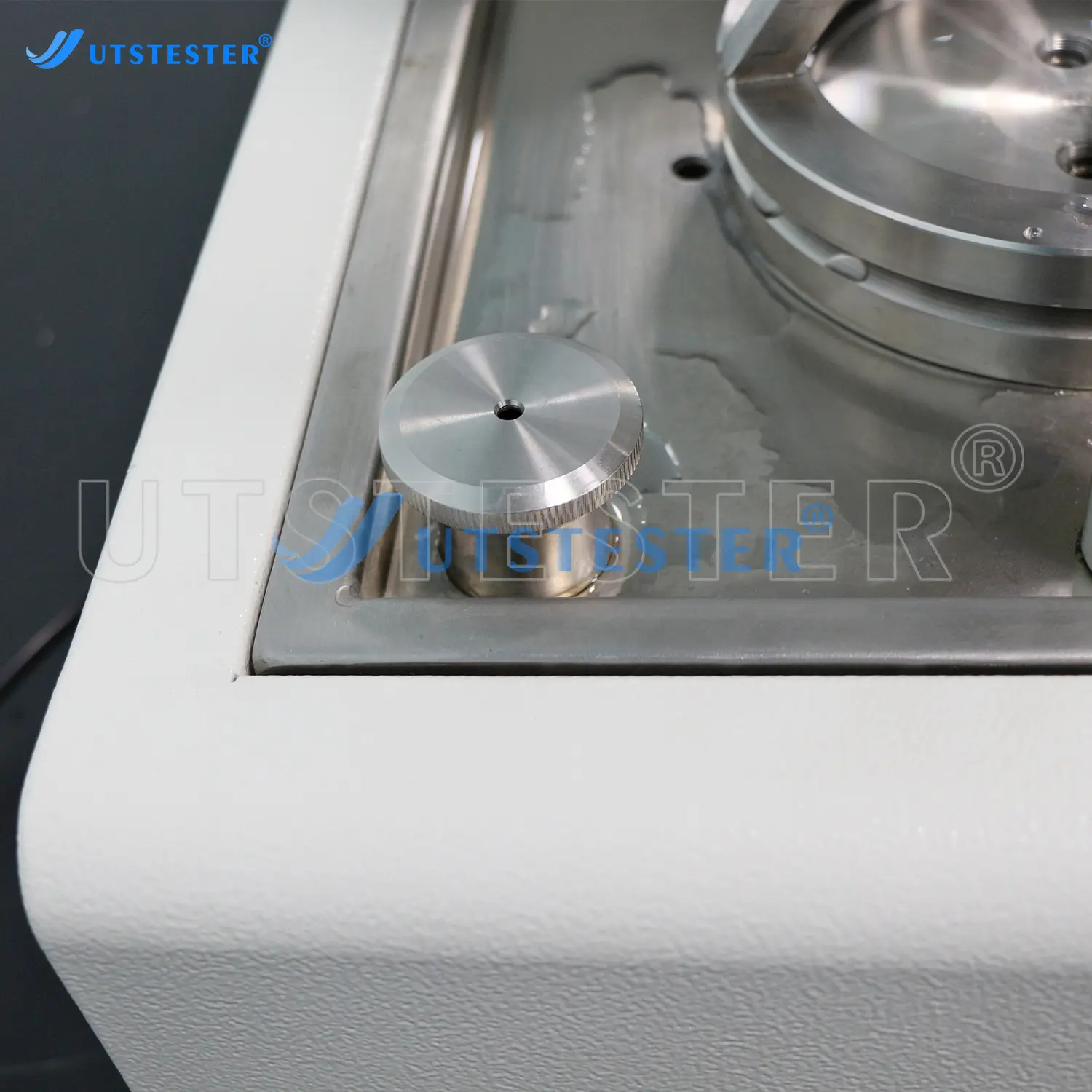

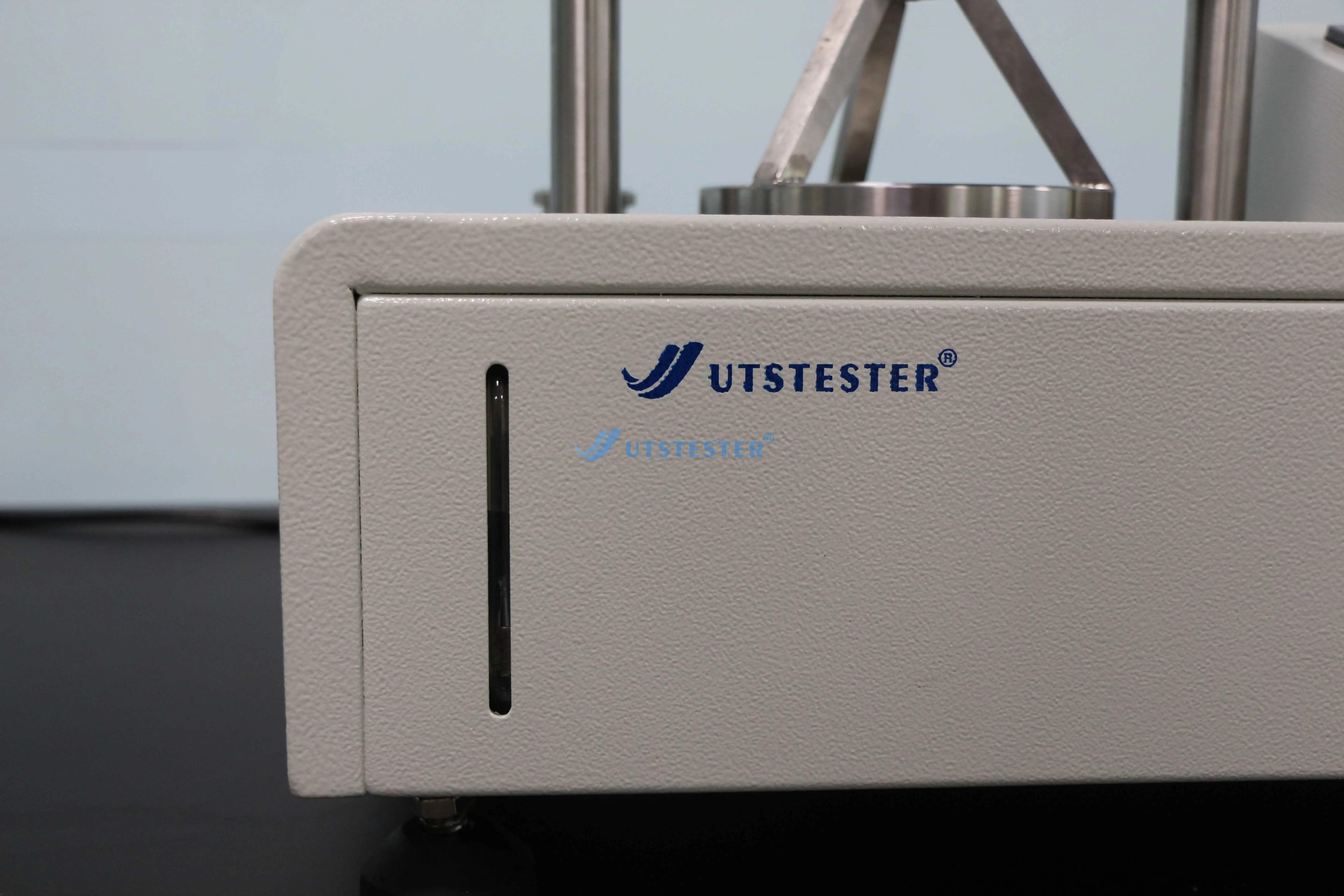

Water level observation port
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
