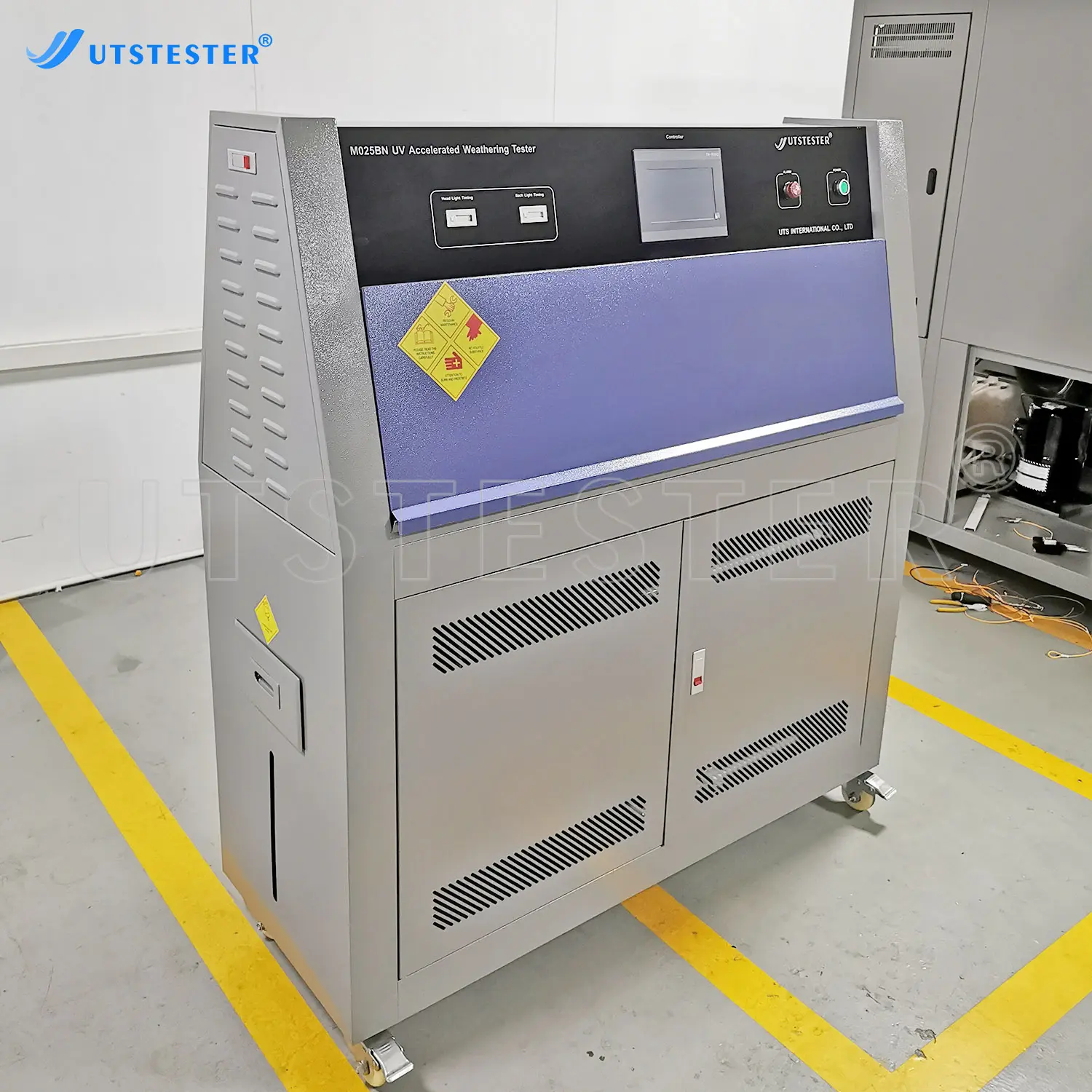

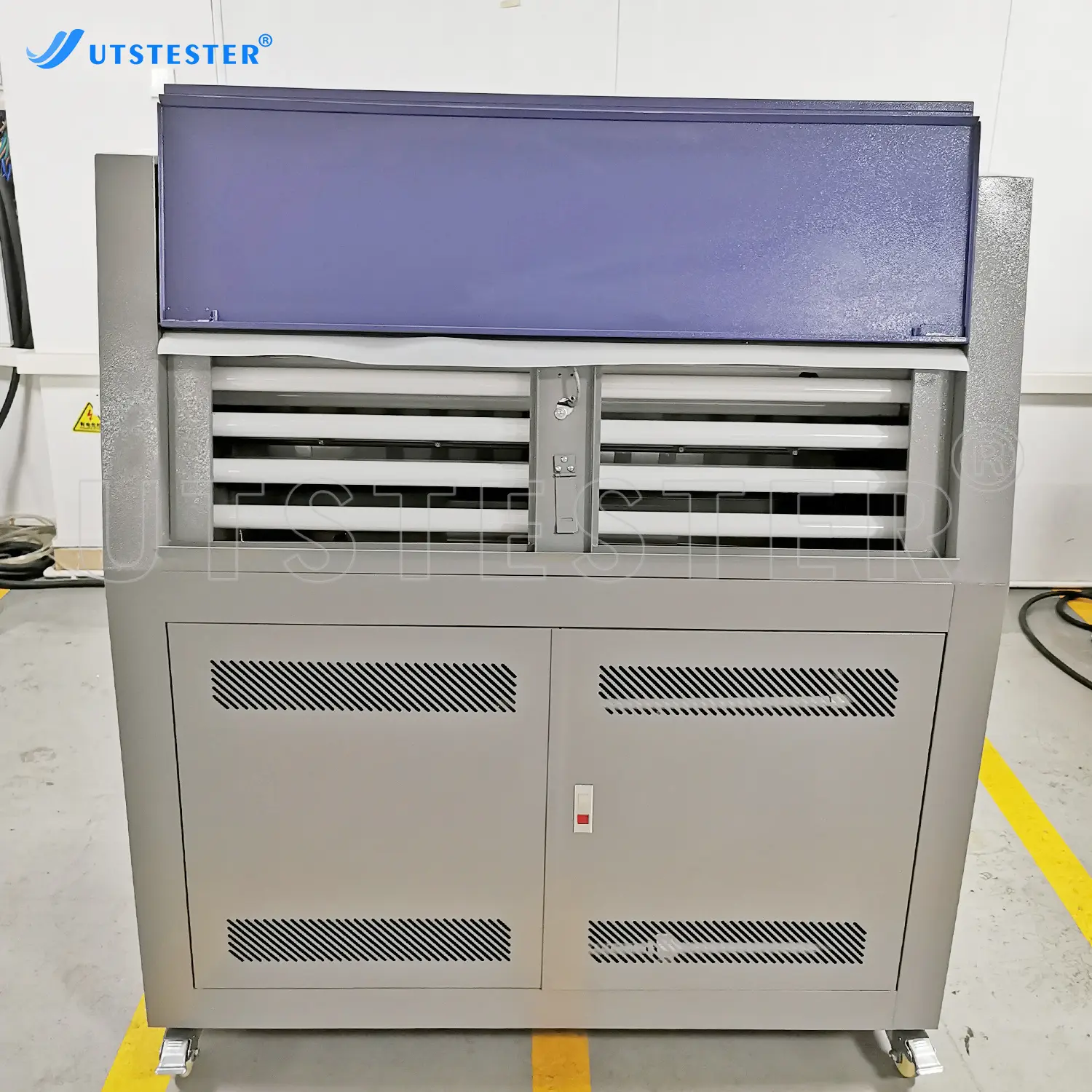

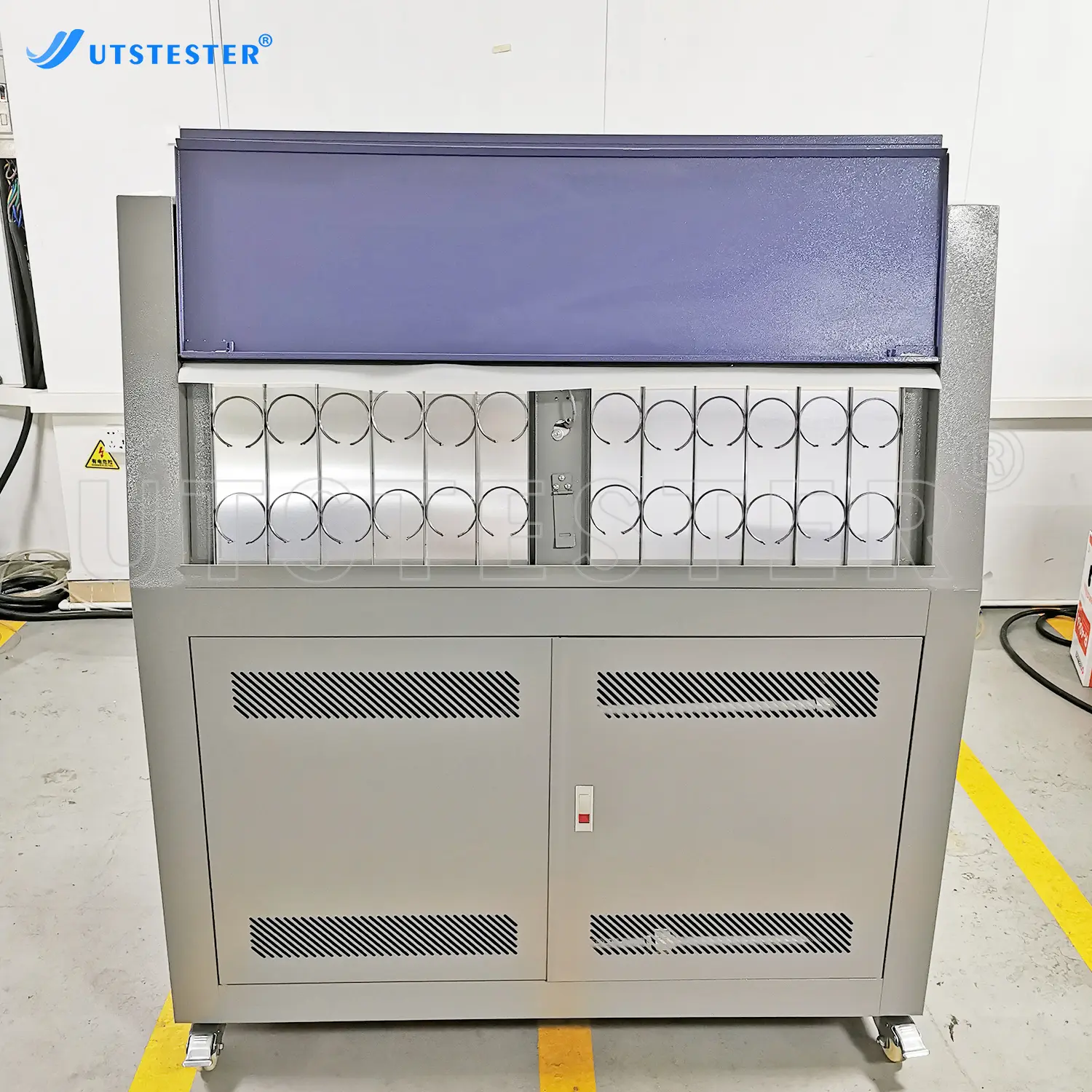

UV Light Accelerated Weathering Tester UV Weathering Aging Tester M025BN

1. The inner and outer boxes are made of 304 stainless steel with external baking paint.
2. The lamp adopts Q-LAB lamp imported from the USA.
3. Irradiation intensity control, using irradiation intensity sensor precision control, non-virtual type.
4. The equipment has automatic water filling function. Over-temperature protection function. Water shortage protection.

product details

Production Processes

Packing System

Overview

Applicable to ASTMG154, GBT16422.3, GBT14522, GBT5170.9, GBT16776 and other standards. Wide range of application industries, such as: coatings, inks, paints, resins, plastics, plastics, printing and packaging, adhesives, automobile and motorcycle industry, building materials, communication products, cosmetics, metals, electronics, electroplating, medicine, etc.

Application

Fabric

paints

metals

plastics

medicine

printing and packaging

Standards

ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799,ASTM D 4587, SAE J2020, ISO 4892, ASTM D1148

Key Parameters

Model	M025BN
Temperature range	RT+10℃~75℃
Humidity range	>95%RH
Temperature uniformity	±2℃
Temperature fluctuation	±2℃
The distance between the center of the lamp tube	70±3mm
The distance between the test object and the center of the lamp	50±3mm
Irradiance	adjustable within 1.0W/m2
Function	The test cycle of illumination, condensation and spraying can be adjusted
Features	The unit has automatic spraying function
Lamp	L=1200/40W, 8 pieces (A service life is more than 1800h)
Controller	color touch screen Korea
Temperature control mode	PID self-tuning SSR control
Standard specimen size	15x75x290mm (special specifications need to be specified in the contract)
Water depth of sink	25mm automatic control
Effective irradiation area	900×290mm
Ultraviolet wavelength	A range is 315-400nm; B range is 280-315nm
Test time	0~999H (adjustable)
Irradiation blackboard temperature	50℃~70℃
Standard sample rack	24 pairs
Safety	Power leakage circuit breaker control circuit overload short circuit alarm, over temperature alarm, water shortage protection
Ultraviolet Wavelength	UVA 340	315-400nm
	UVB 313	280-315nm
Power Supply	AC 220V 50/60HZ 5KW

Product Details

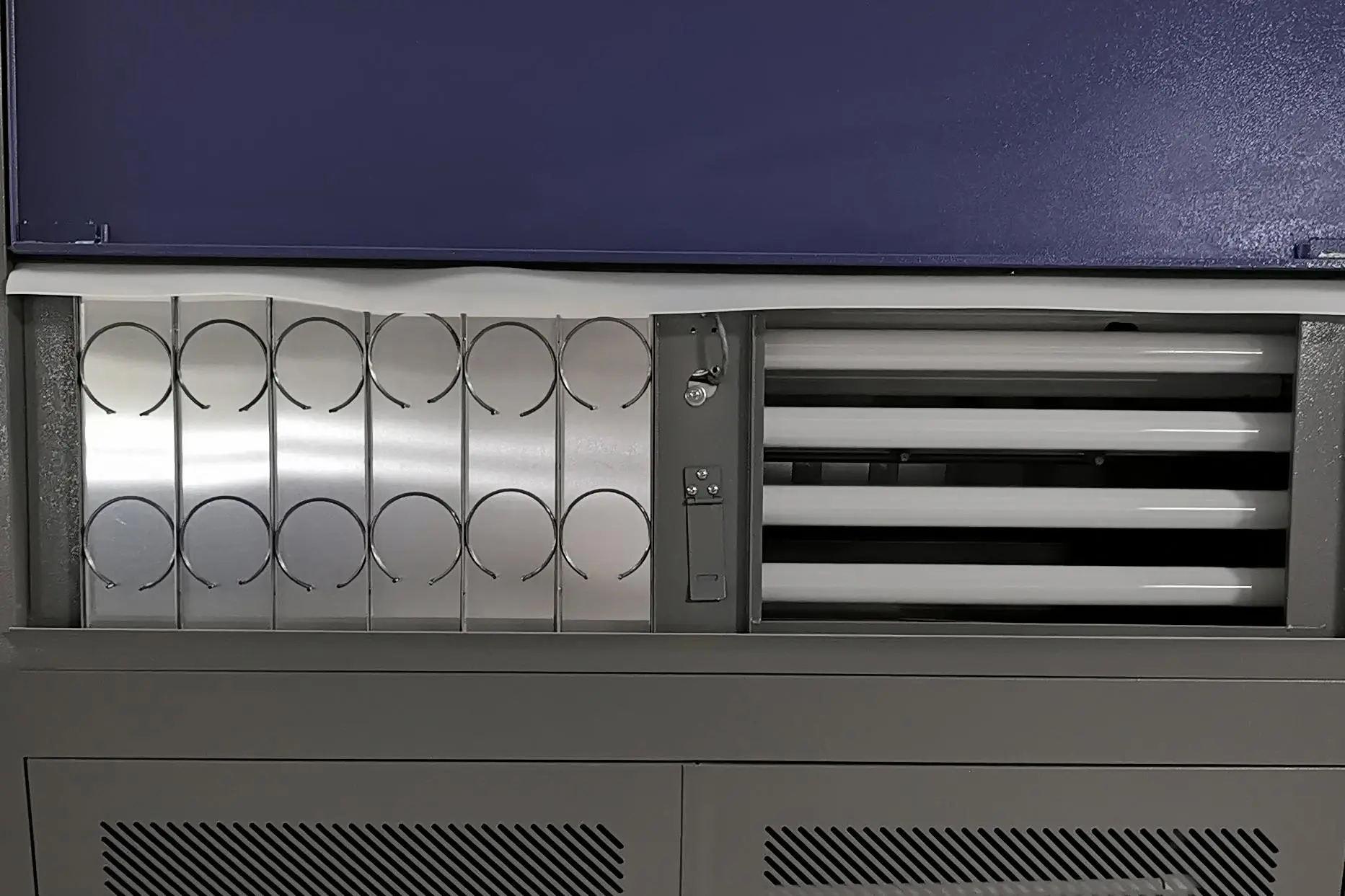

UV lamps

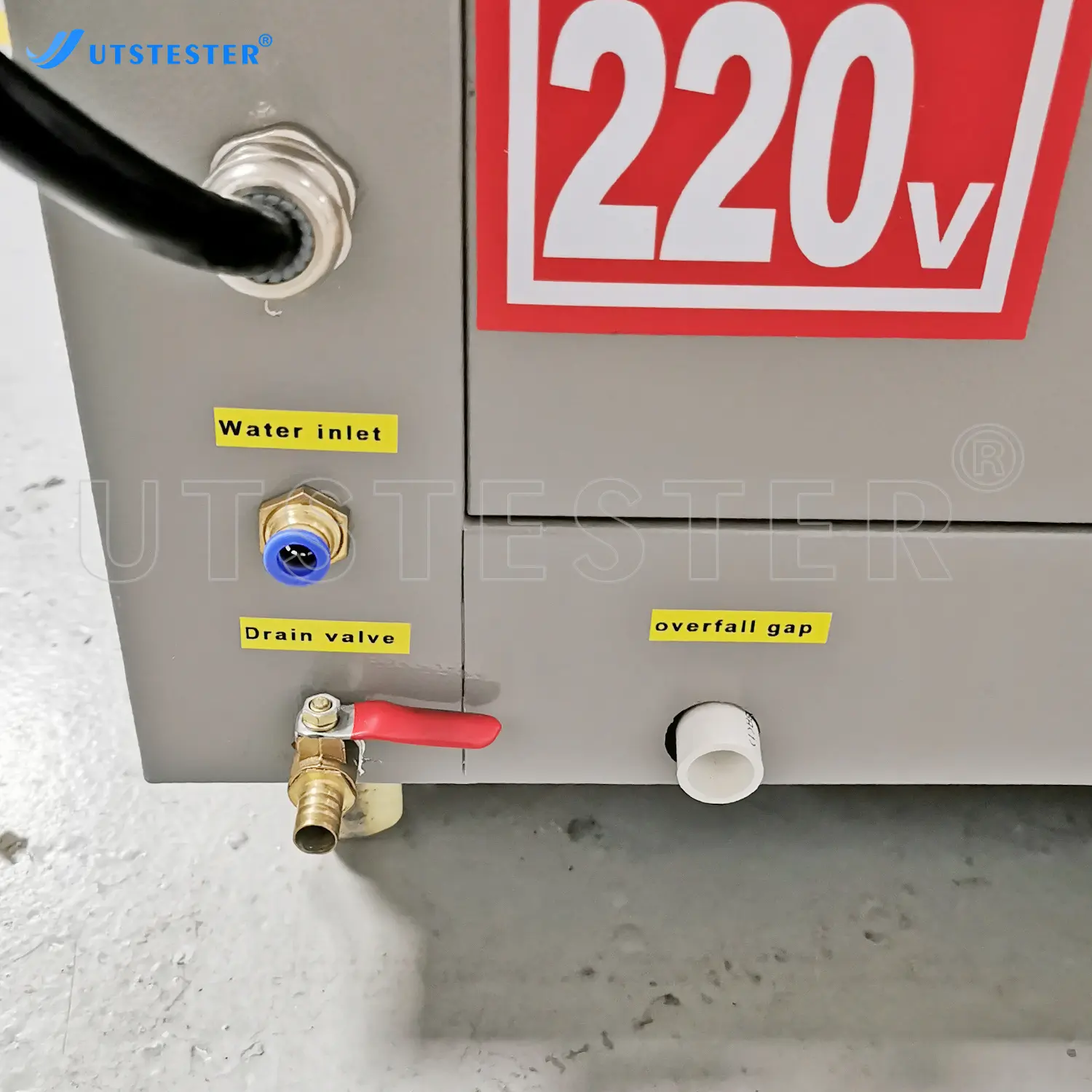

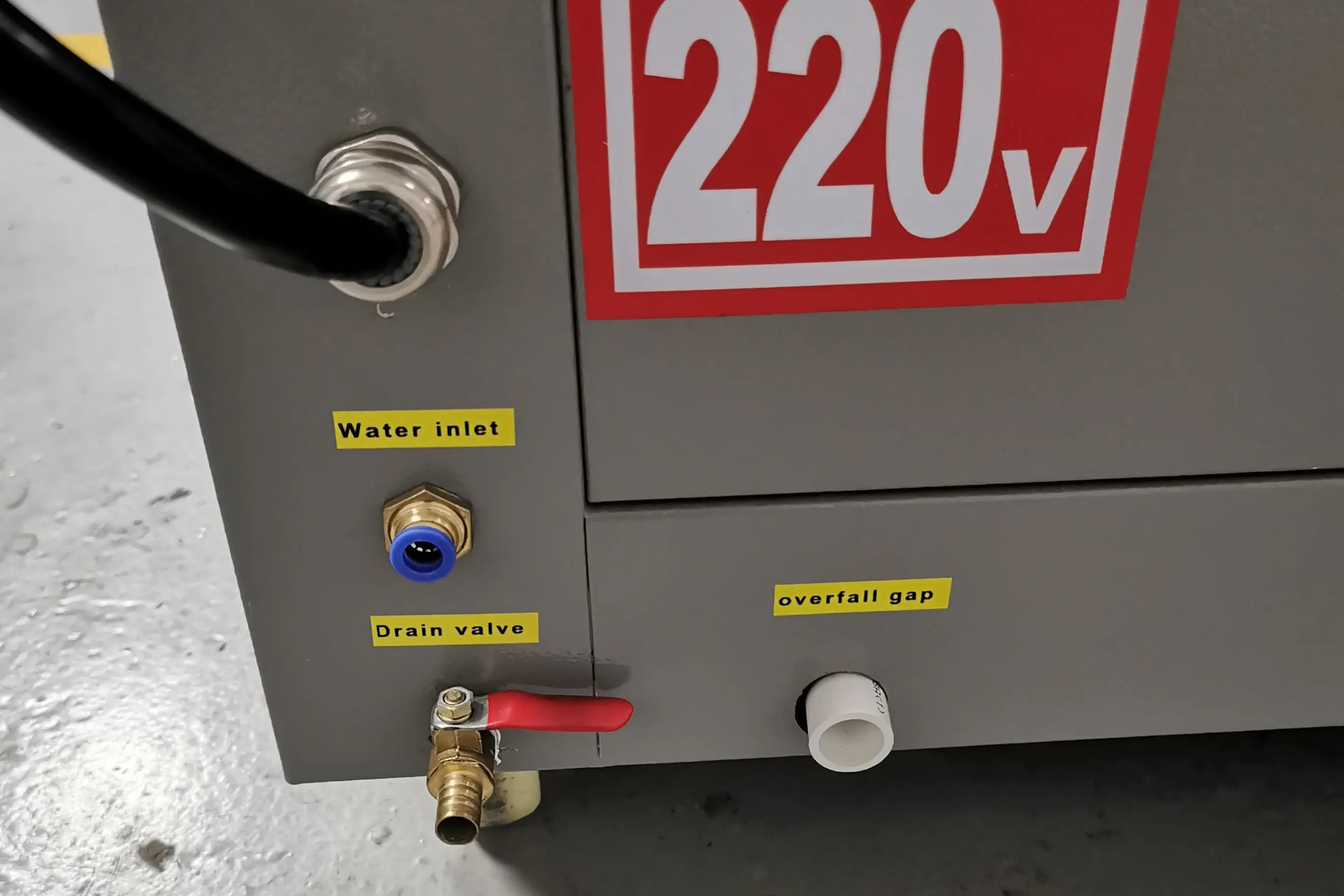

inlet and outlet

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
