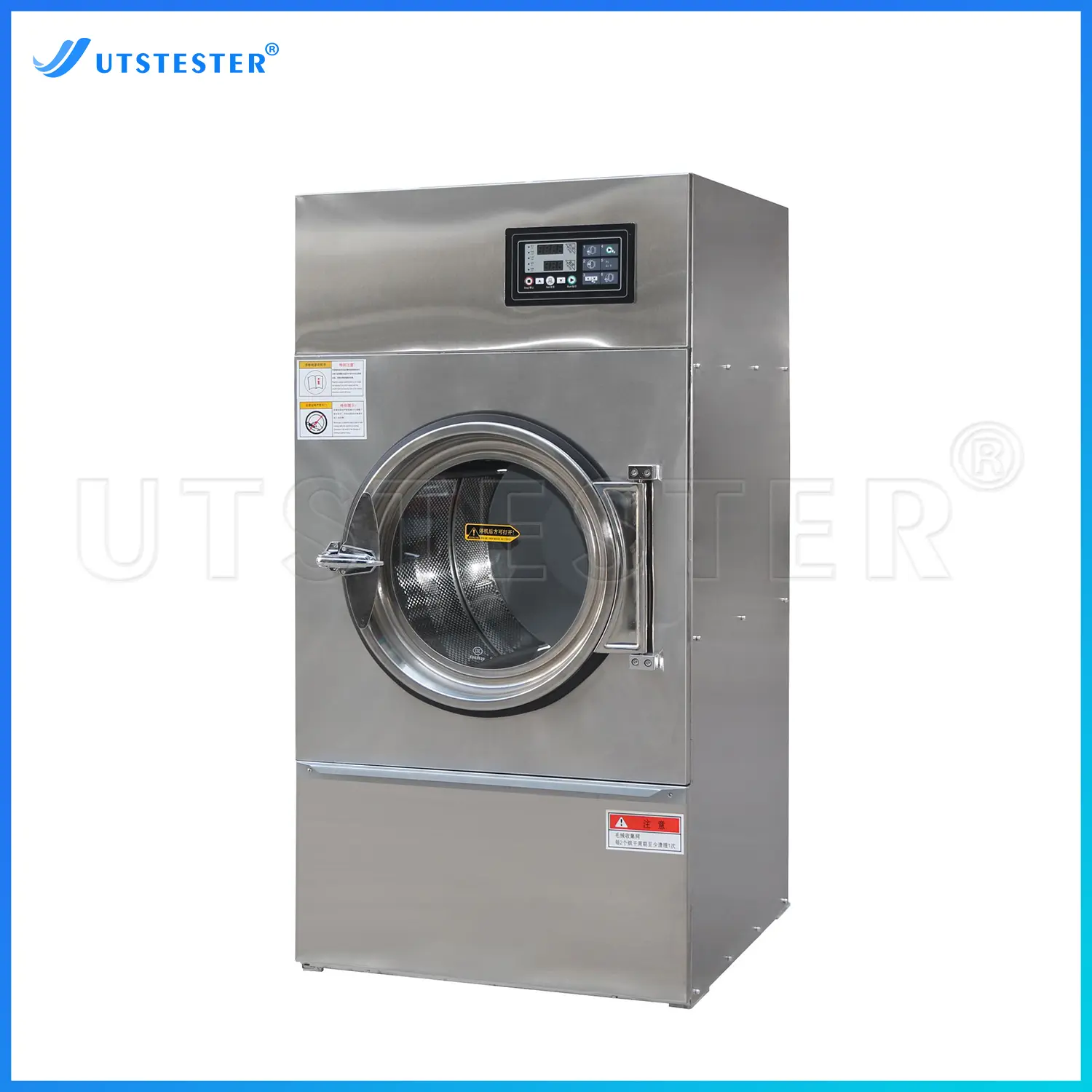

Tumble Dryer for Tumble Drying of Fabrics D014C
Textile Testing Equipment

Tumble Dryer for Tumble Drying of Fabrics D014C

1. The drum is made of stainless steel plate, which is durable and does not damage the material.
2. Electronic program control, automatic temperature control, low noise, fast heat exchange, and low energy consumption.
3. High-power heater, and an insulation layer is added to the outer cylinder, which heats up quickly and has high efficiency.
4. The delivery door is large, which is very convenient for throwing or taking things. The door is equipped with transparent glass, which can observe the drying of the internal fabric at any time, and is convenient for loading and unloading linens.
5. It adopts two-level triangular belt transmission, which runs smoothly, without vibration and noise.
6. The optimized transmission structure design not only ensures the durability of the machine, but also facilitates the maintenance of users.

    Overview

    For tumble drying of fabrics, garments or other textiles after shrinkage testing

    Standard

    GB/T 8629、 ISO 6330 etc.

    Application

    棉

    Fabrics

    Garment

    Garment

    Key Parameters

    Model

    D014C

    Upper capacity

    15KG

    Rated voltage

    220V/380V

    Main motor power

    0.37KW (fan power): 0.55KW

    Front power

    9/12Kw

    Drum size

    700mm×670mm (depth)

    Lifting pieces

    4 pieces (height 80mm)

    Inner barrel material

    stainless steel

    Casing material

    stainless steel on the front of the painted shell

    Machine weight

    150KG

    Product size

    760×1160×1460mm

    Product Details

    D014C - 副本

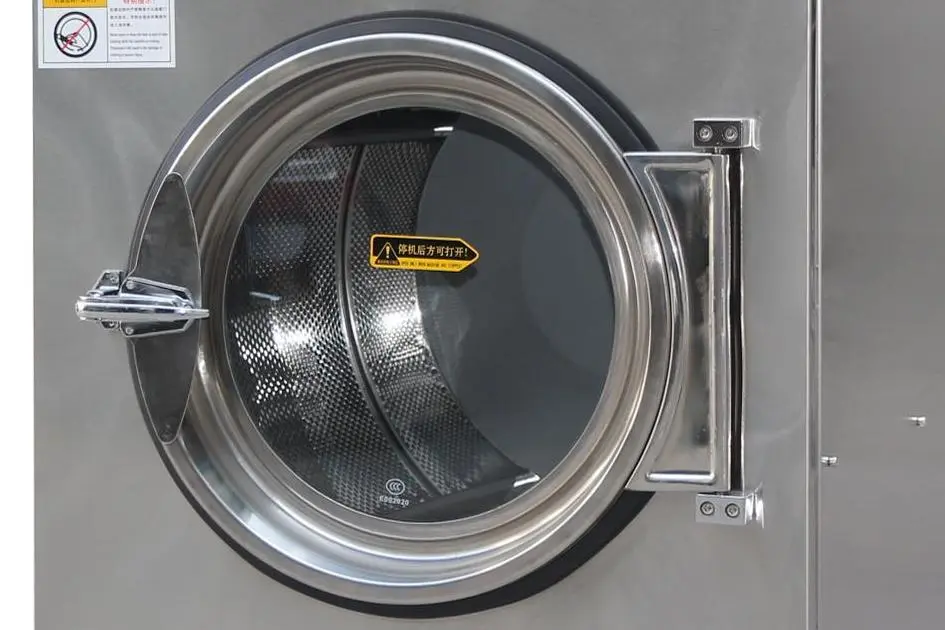

    Sample Testing Area

    D014C

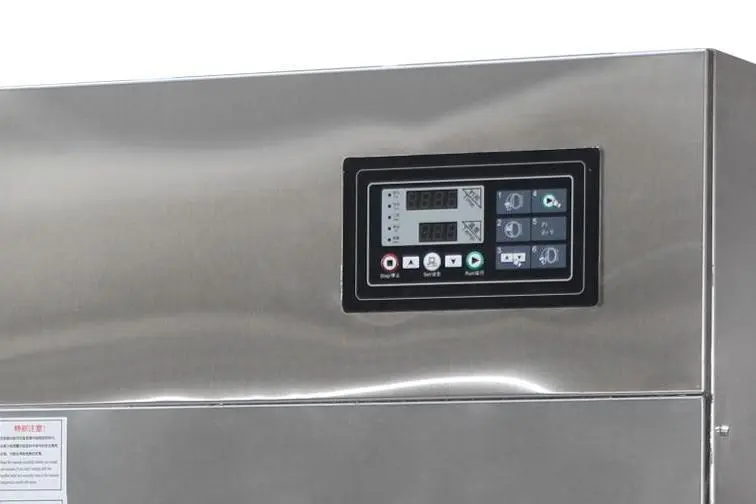

    Control Panel

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

    Transportation

    image071evh

    Packing System

    1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
    2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
    3. Packing materials selected accorded with economic and safety requirements
    4. Compliance with environmental requirements.

    For Metal Box Package

    image07470y
    image075gi2

    For Carton Package

    image078n3e
    image07703l
    image079bsv

    For Wooden Case

    image082szo
    image0800r6
