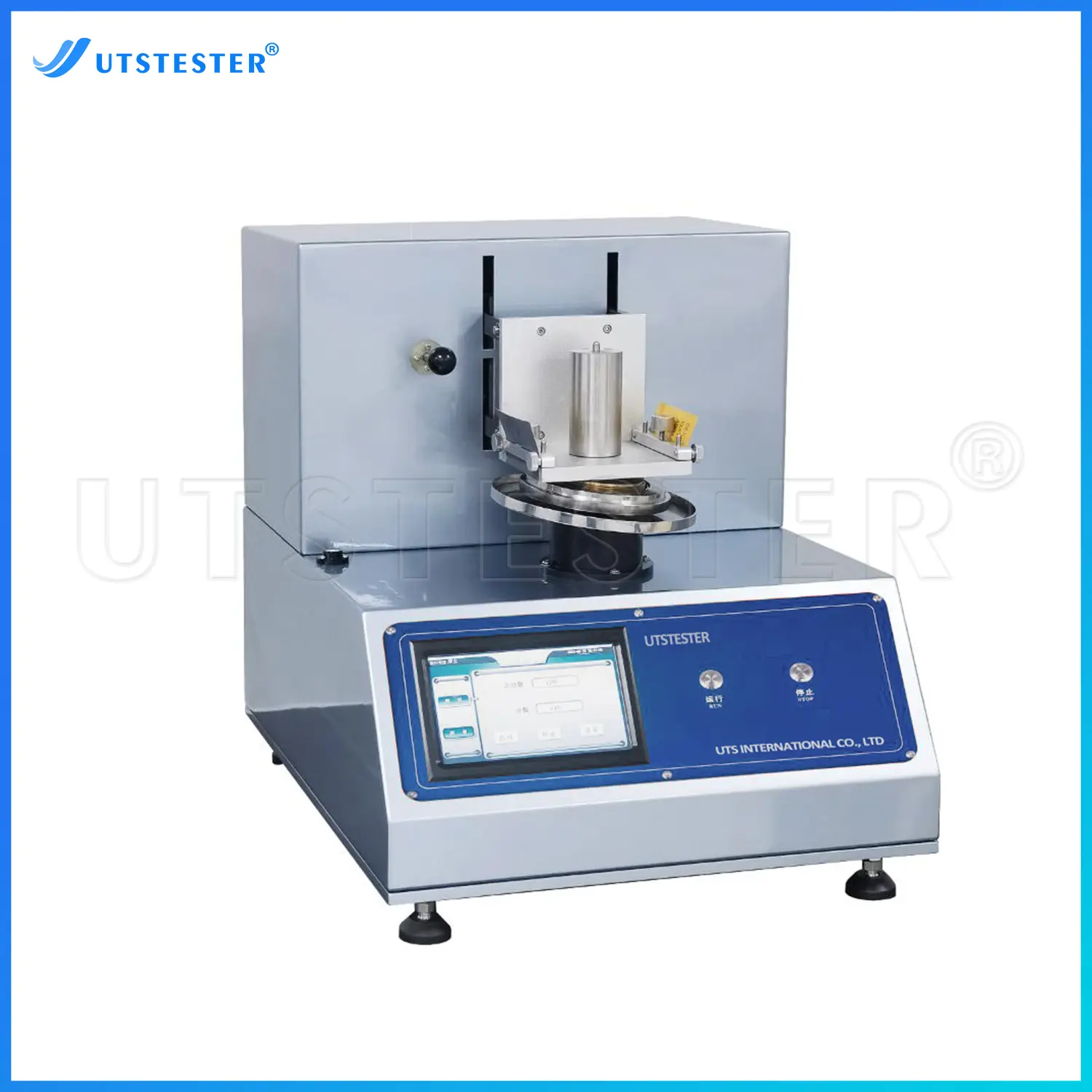

Textile Testing Equipment Schopper Abrasion Meter M128
Overview
It is used to test the abrasion resistance of fabrics, mostly for testing automotive interior materials. The compact and robust design of the instrument consists of a clamping device with an obtuse conical collet, a loading table for fixing the friction head, and a control and drive unit. All components are well designed and easy to operate. To facilitate the preparation and light clamping of the specimen, the instrument is equipped with an adjustable graduated ring spanner to test the expansion height. During the test, the specimen is placed in the plane of the friction head and a rotating action is applied to perform the friction.
Application
Car interior
Standards
1、DIN53863.2《Abrasion test of textile surfaces (rotational abrasion test)
2、GME standard 60345- GMW standard 3283- Audi-Volkswagen PV 3908 PV3907 and other standards.
Key Parameters
|
Model |
M128 Schopper Abrasion Meter |
|
Test surface |
50cm2 |
|
Test procedure |
Automatic |
|
Obtuse cone |
(opening angle 166 degrees) |
|
Rotation speed |
75min / turn ± 1 |
|
Instrument external dimensions |
460mm × 560mm × 510mm (L × W × H) |
|
Weight |
80kg |
|
Power supply |
AC 220V 50Hz |
Product Details

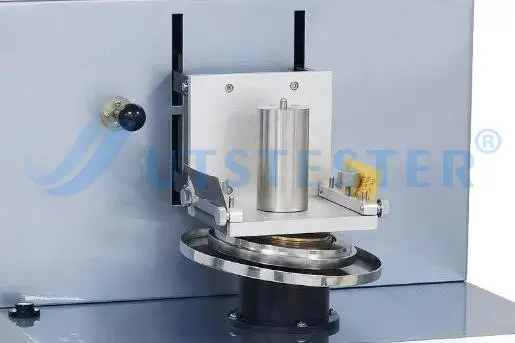

Sample test area

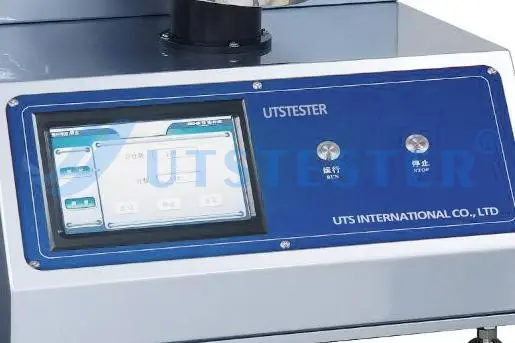

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
