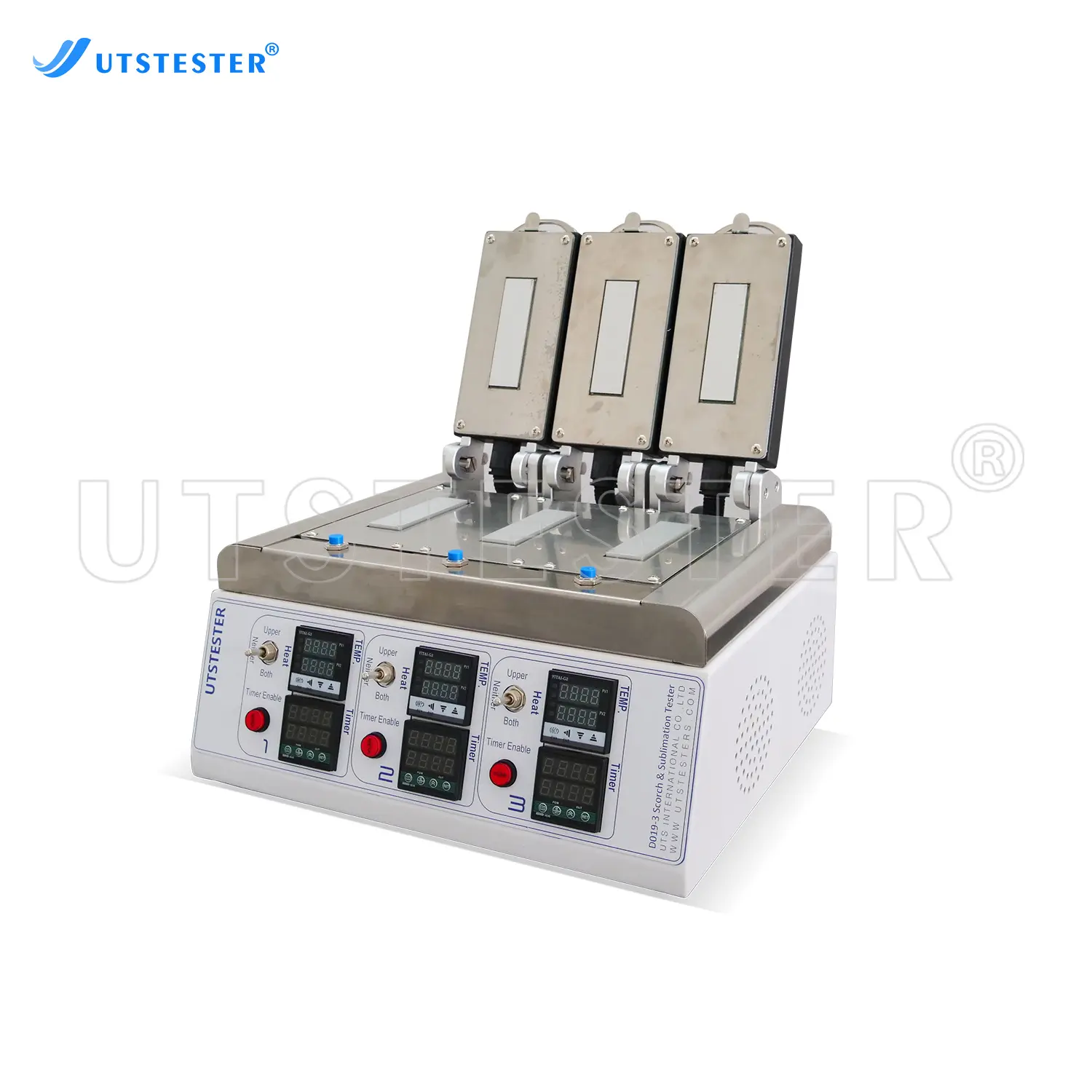

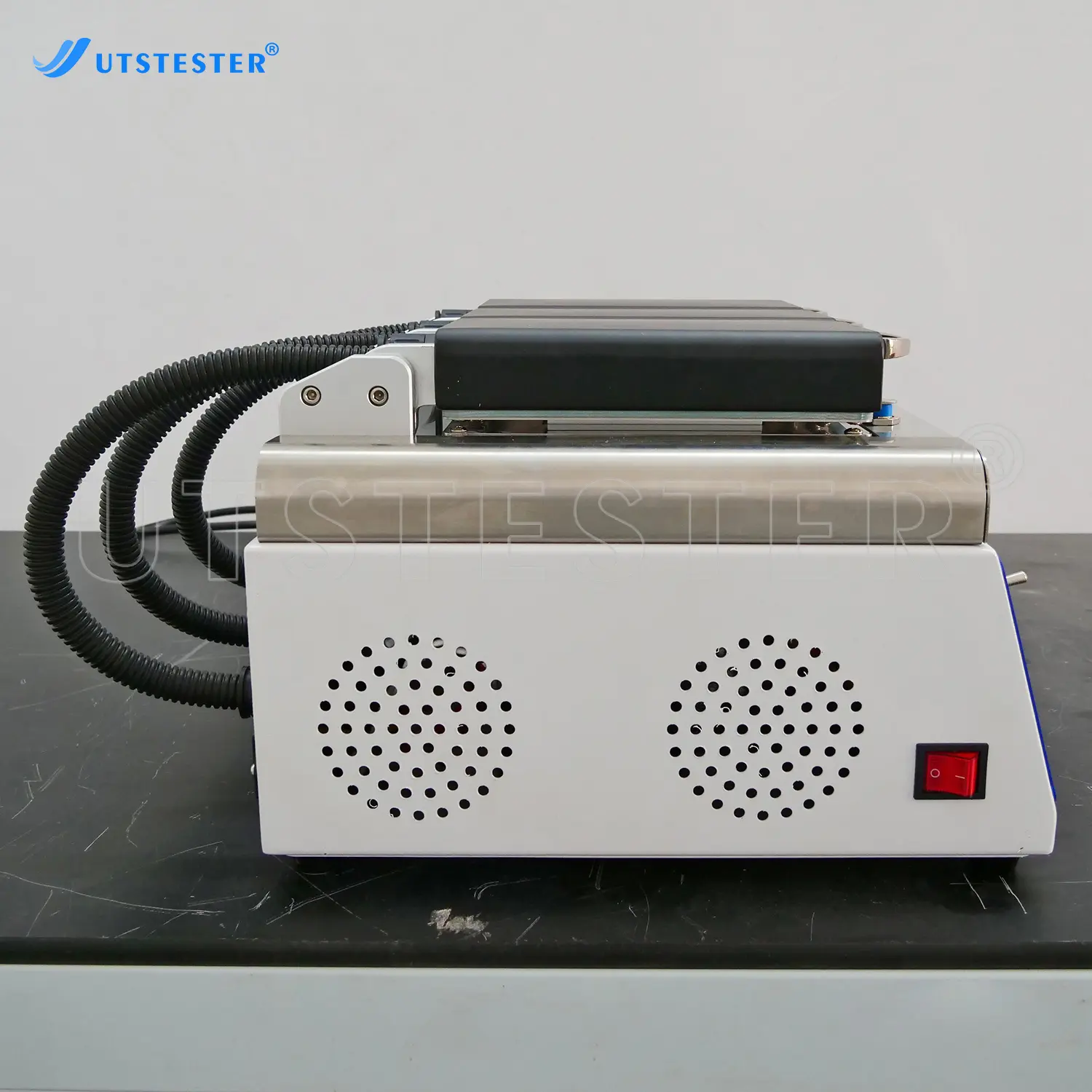

Textile Testing Equipment Manufacturers Sublimation Fastness Tester Scorch and Sublimation Tester D019-3
Overview
Used to test the color change or transfer ability for textiles on the condition of heating. Simulate textiles under the condition of being ironing and high temperature & humidity in daily life, and to check the grade of dyeing color fastness to sublimation.
Application
Fabric
Fabric
Fabric
Standards
ISO 105-P01, X11; AATCC 92 114, 117, 133; M&S C13; DIN 54022/54060; BS 1006; GB/T 5718; GB/T6152
Key Parameters
|
Model |
D019-1 |
D019-2 |
D019-3 |
|
Working positions |
1 or customized |
||
|
Up and lower pressing plate area |
4”x1.13”(102x29mm) (customized) |
||
|
Test pressure |
4±1Kpa(40±10g/cm^2) |
||
|
Test temperature |
RT to (200±2)℃ |
||
|
Specimen size |
120mmX40mm |
||
|
Counter |
0~9999min adjustable |
||
|
Temperature controller |
To set temperature, automatic constant temperature control |
||
|
Power supply |
1∮AC 220V 50/60HZ 1000W |
||
|
Dimensions ( L x W x H ) |
38 x 31 x 17cm |
49 x 28 x 21cm |
49 x 32 x 21cm |
|
Weight |
10kg |
14kg |
16kg |
Product Details

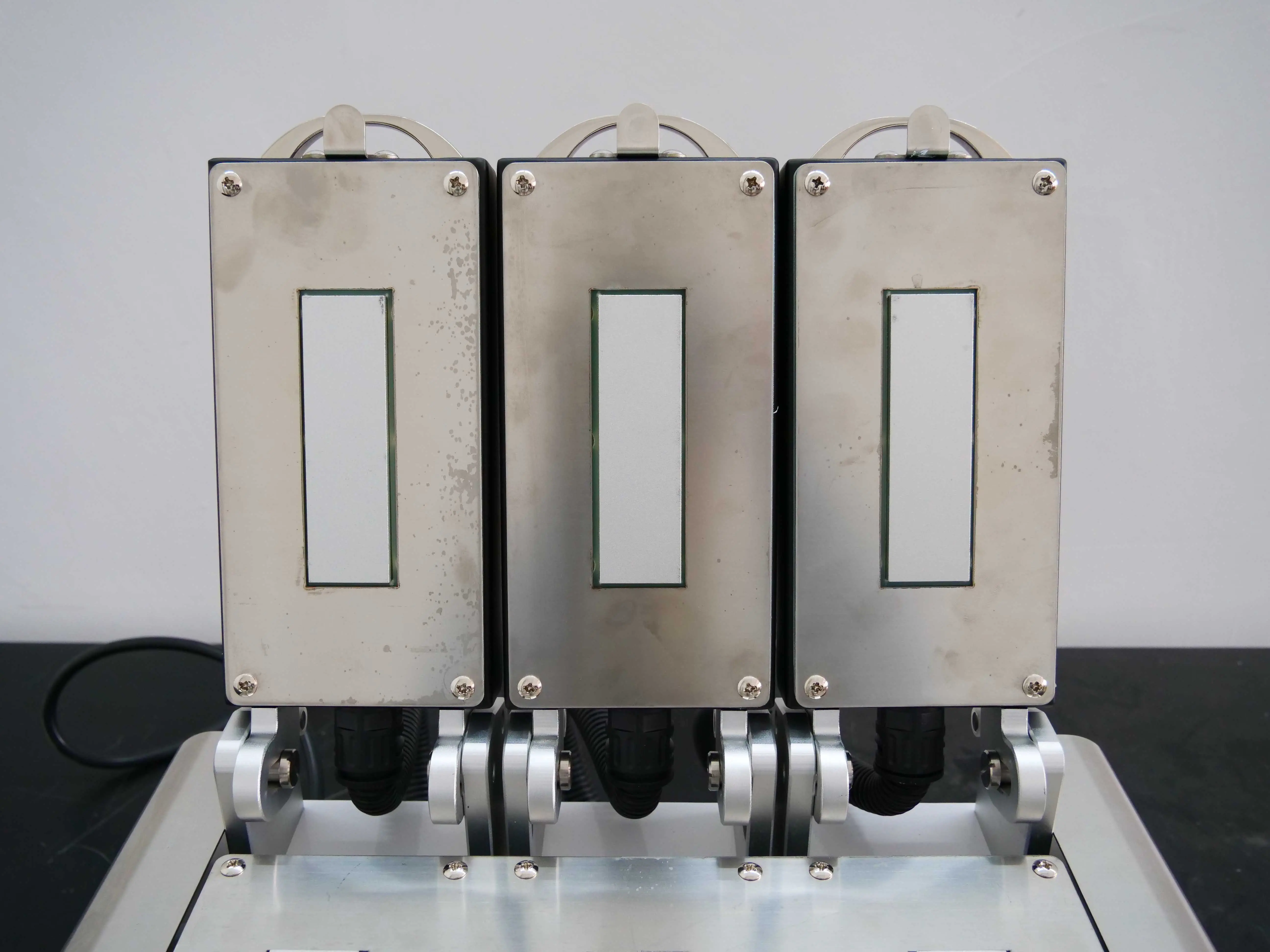

Upper heating plate

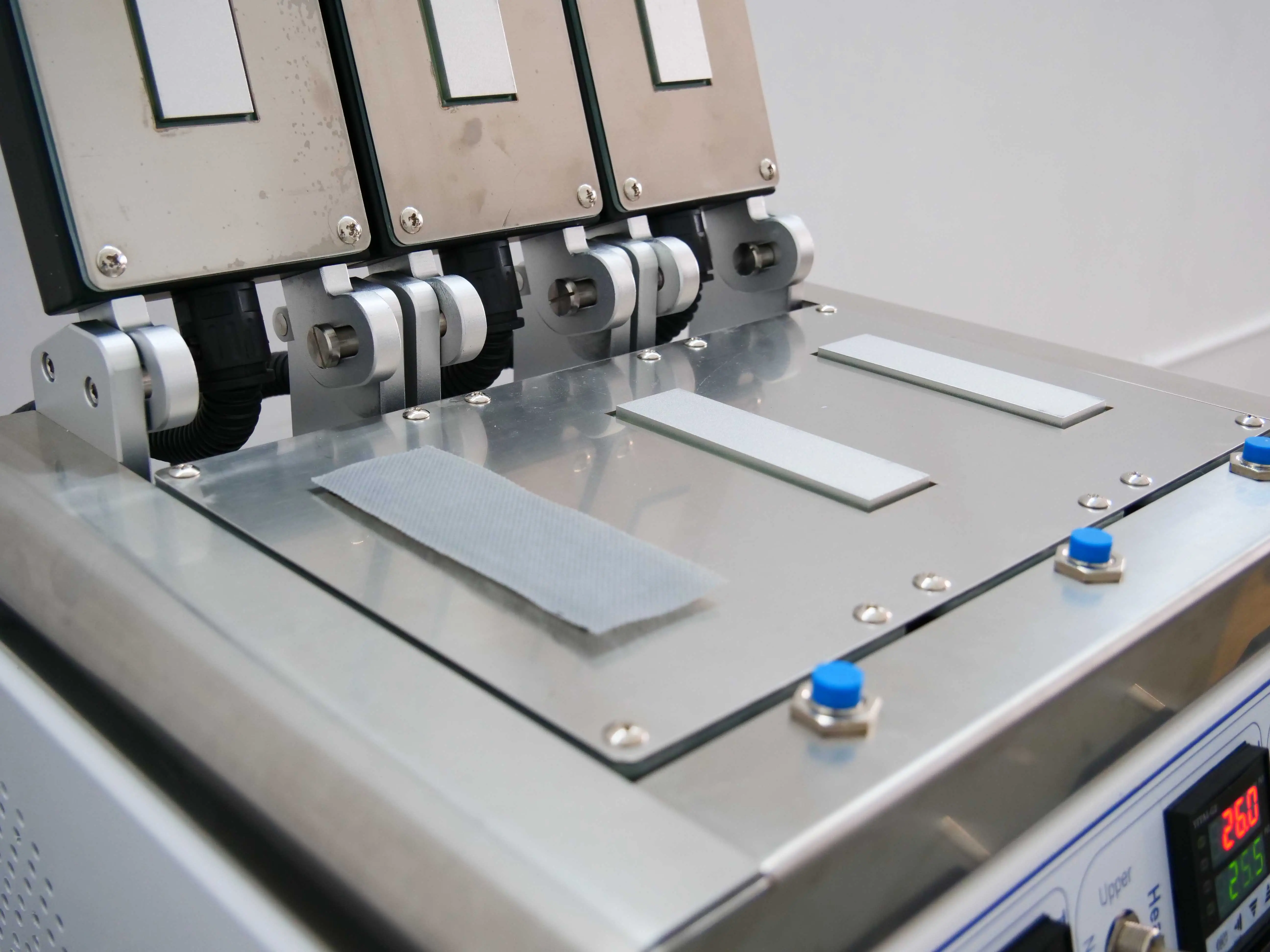

Lower heating plate

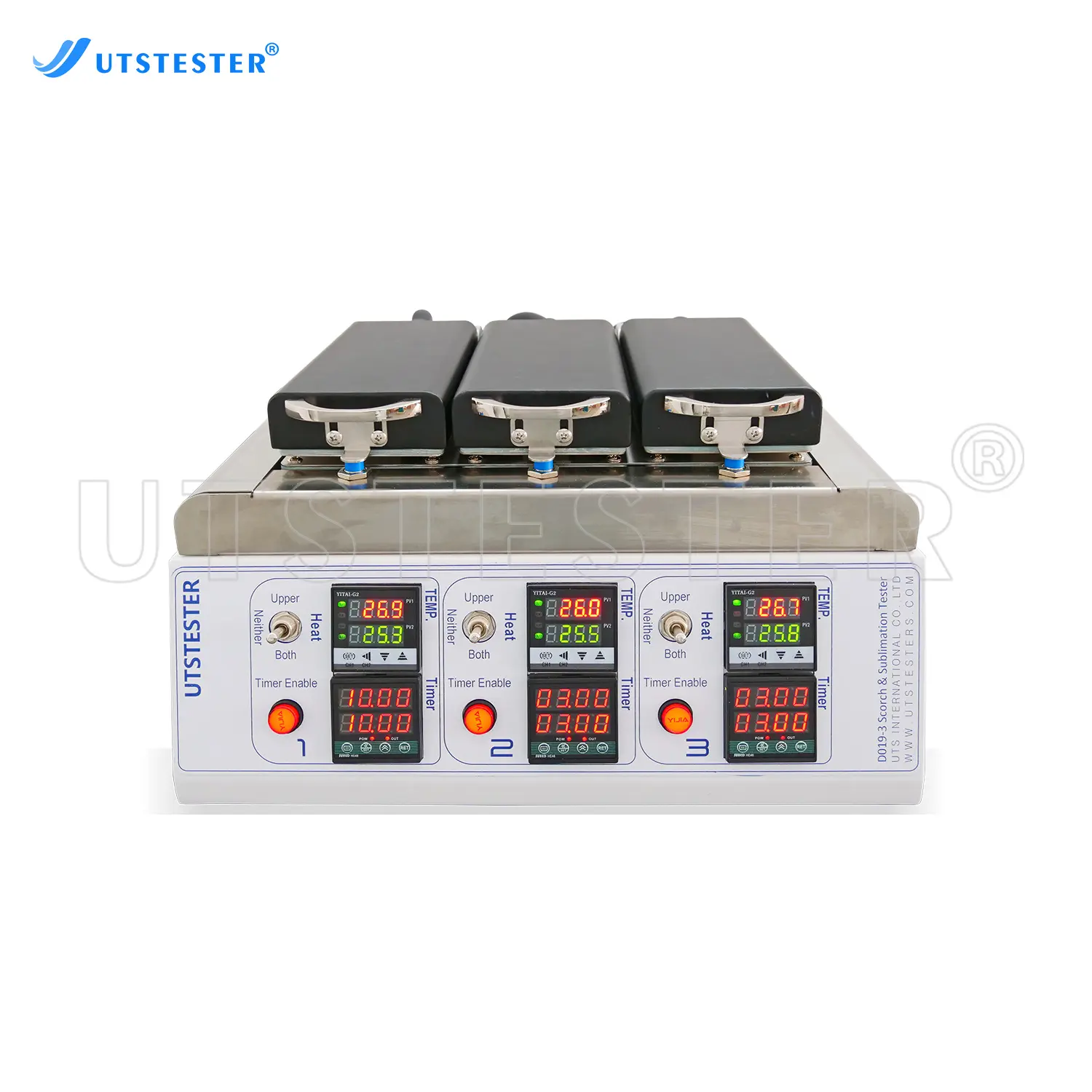

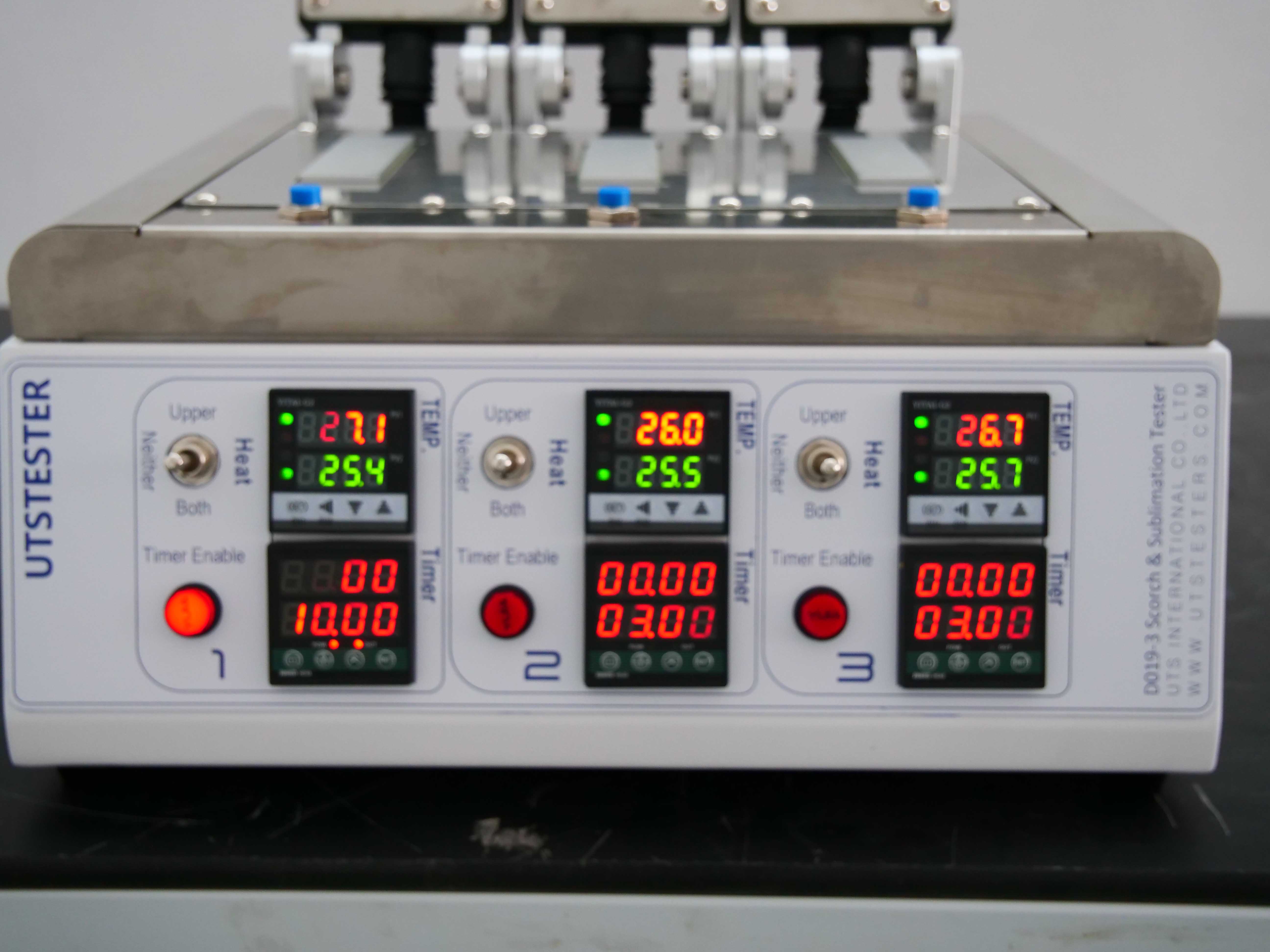

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
