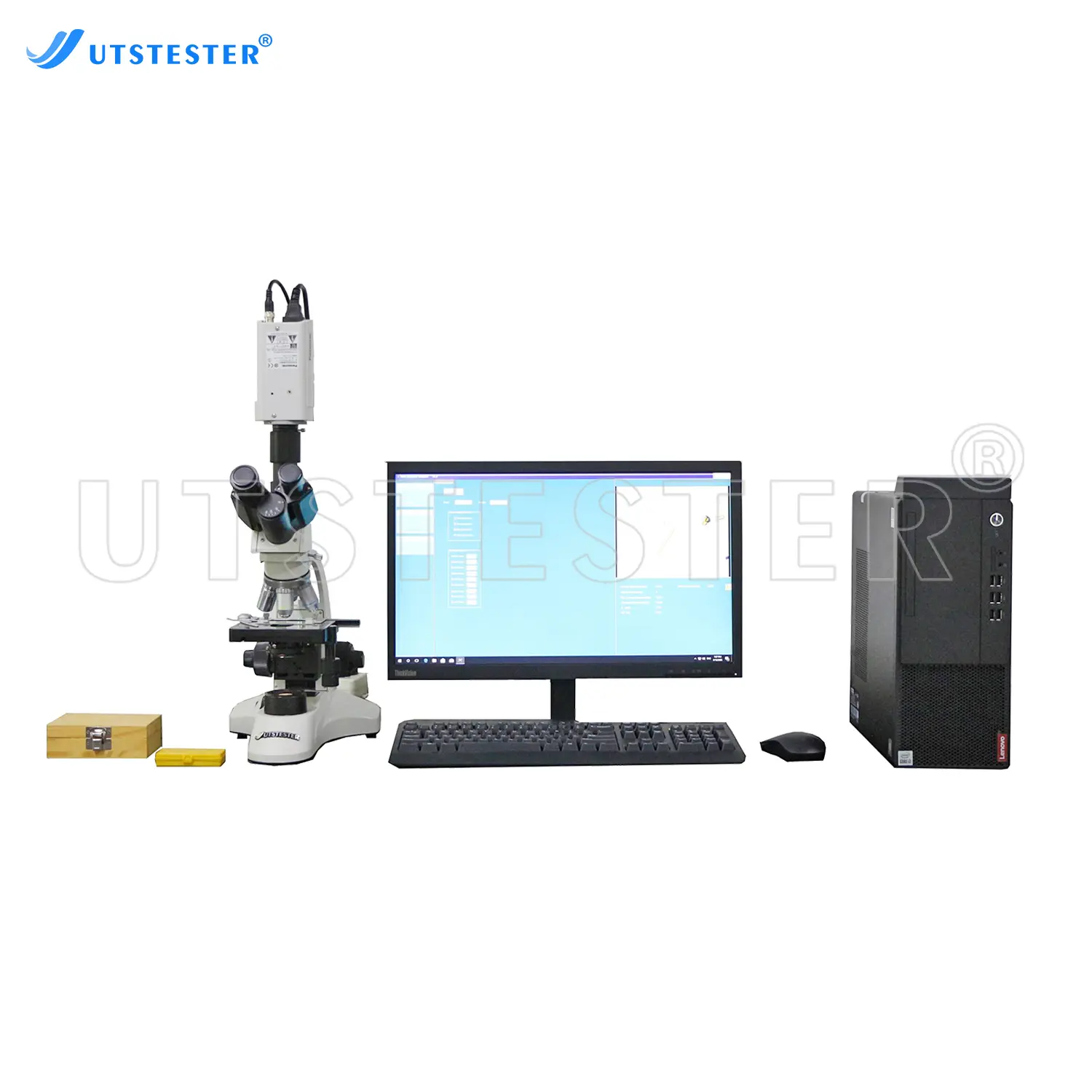

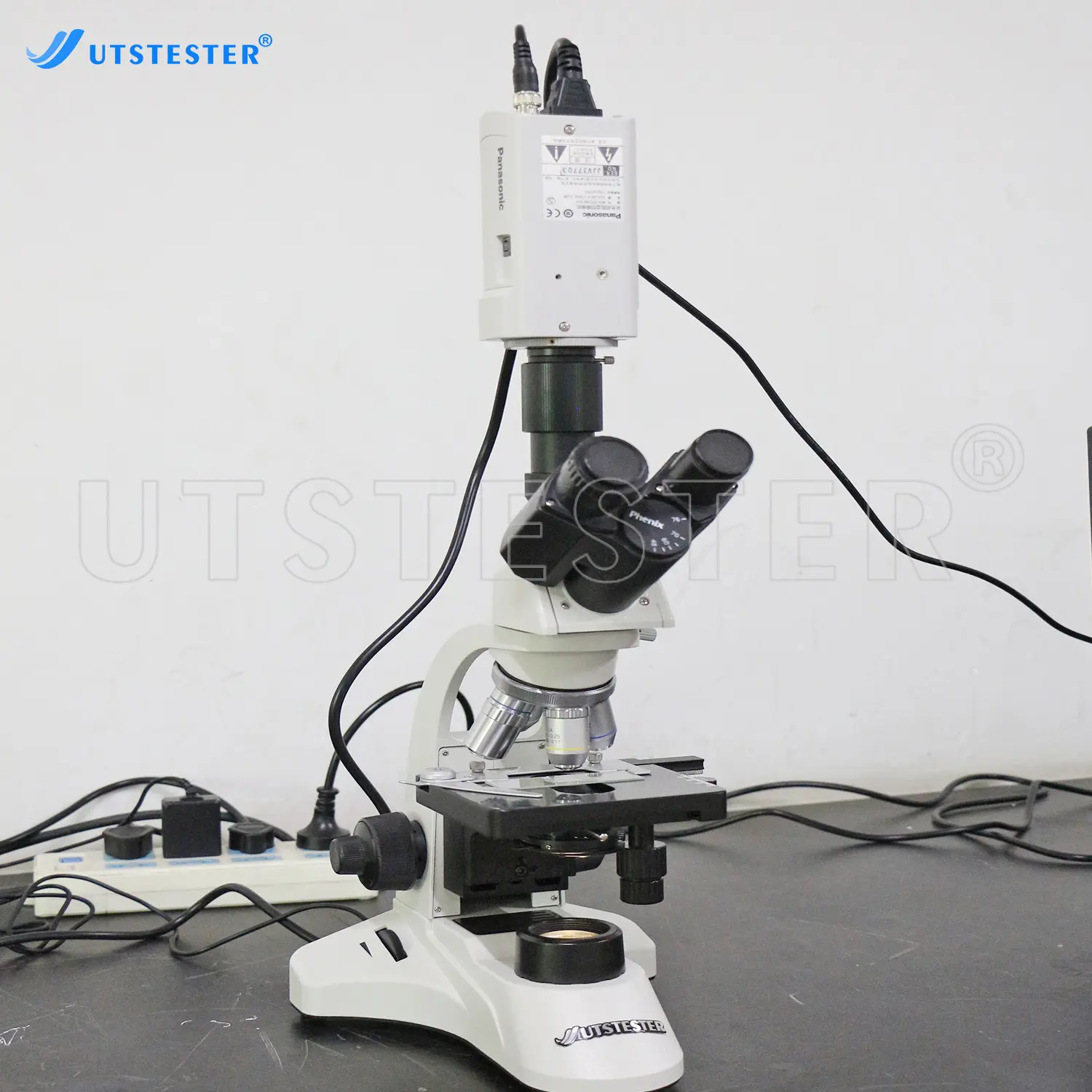

Textile Machinery Intelligent Fiber Measurement Instrument Optical Microscope Fibre Fineness Tester F002
Overview
By high-resolution industrial camera and computer connected to the optical microscope, relying on professional analysis software to complete the fiber diameter and sectional area of the test, etc., and can measure mixed fiber content of each fiber.
Application
Animal Fiber
Fibers
Cotton and linen
Standards
ISO 137, ASTM D2130, ISO 17751. GB/T10685, 116988 FZ/T30003 SN/T0756 AATCC 20A
Key Parameters
|
Model |
F002 |
|
Measuring range |
2~200μm±0.5μm |
|
Measurement repeatability |
±0.1μm |
|
Measurement speed |
50μm/min |
|
Magnification |
1000X |
|
Dimension |
1200×500×600cm |
|
Weight |
25kg |
Product Details

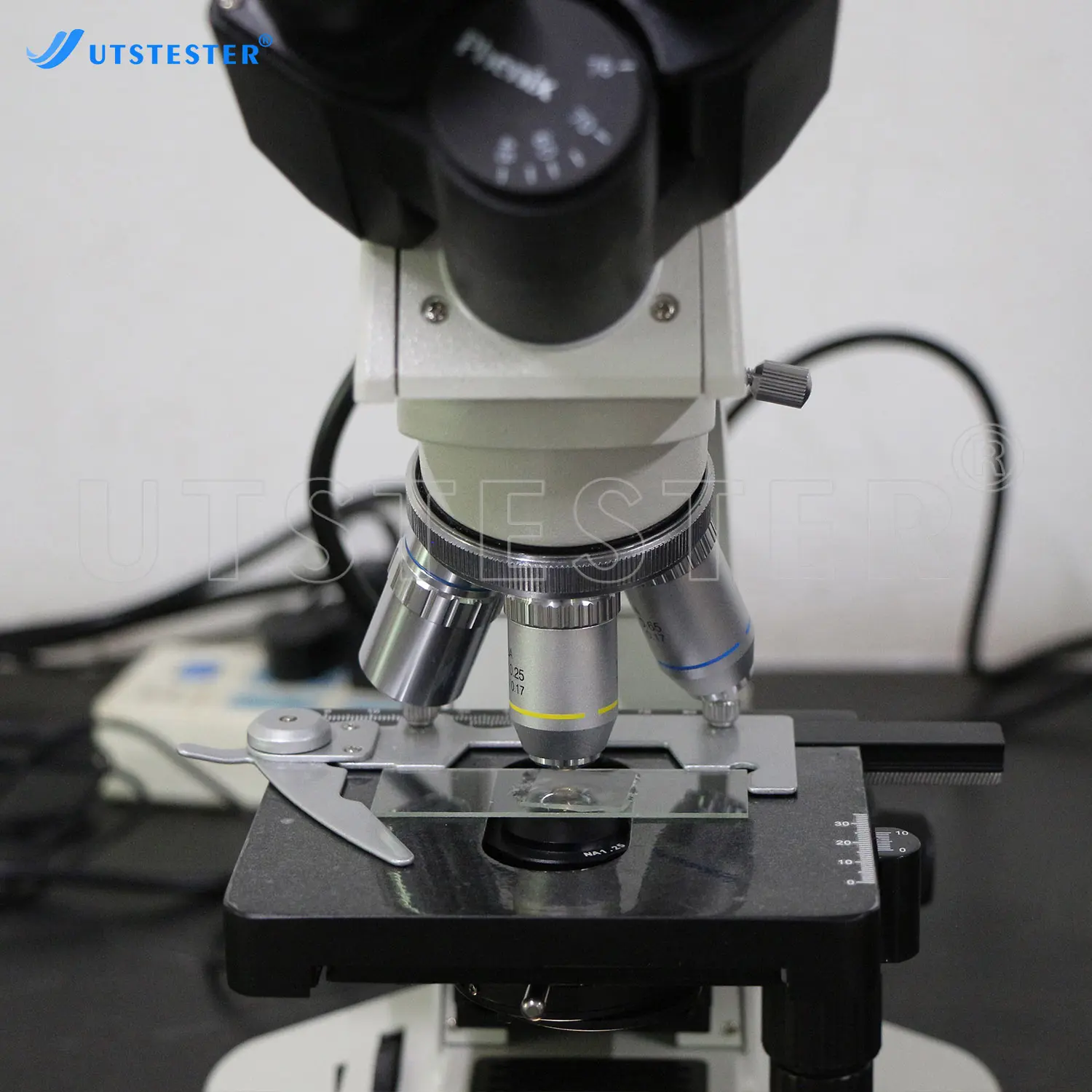

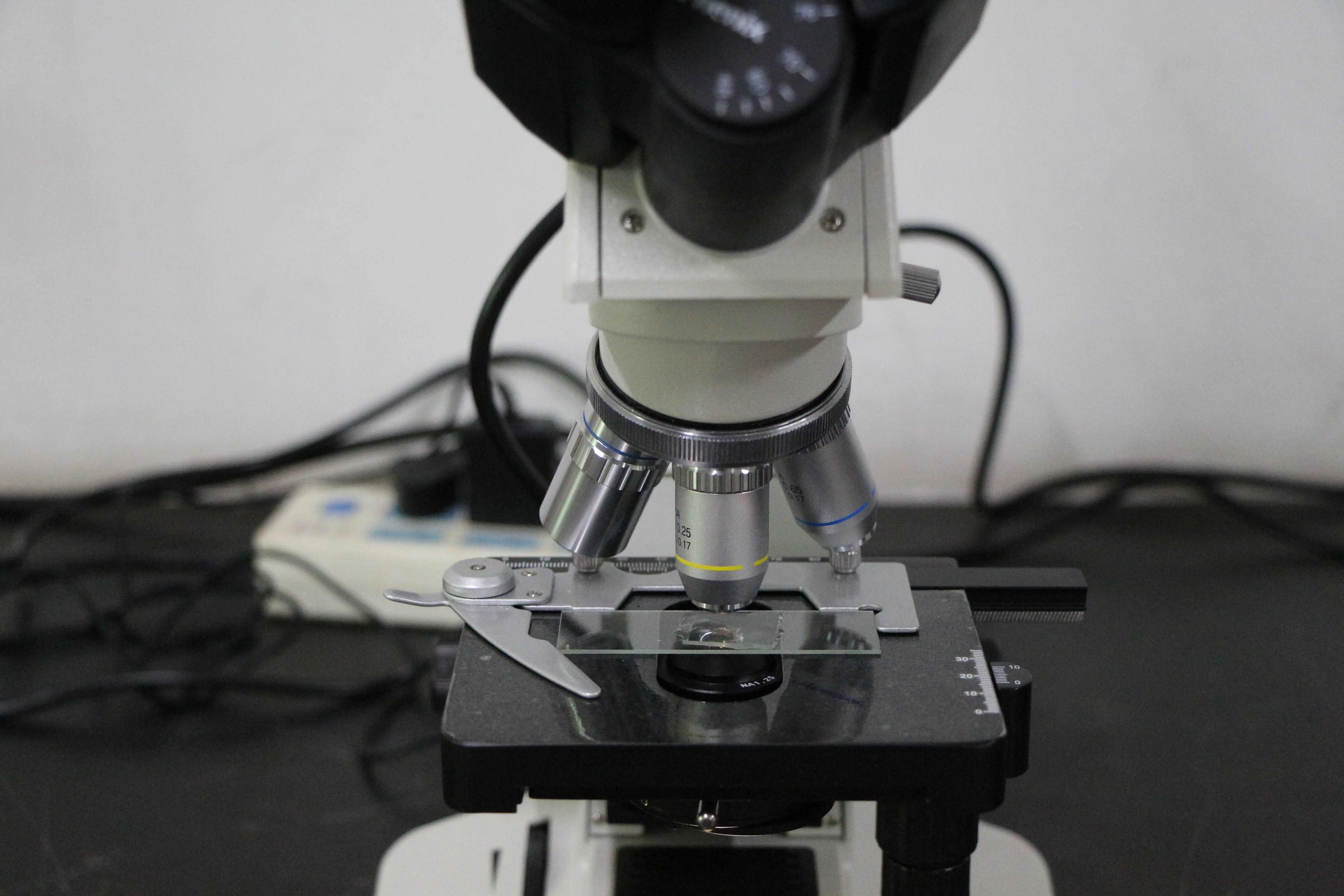

Objective Lenses

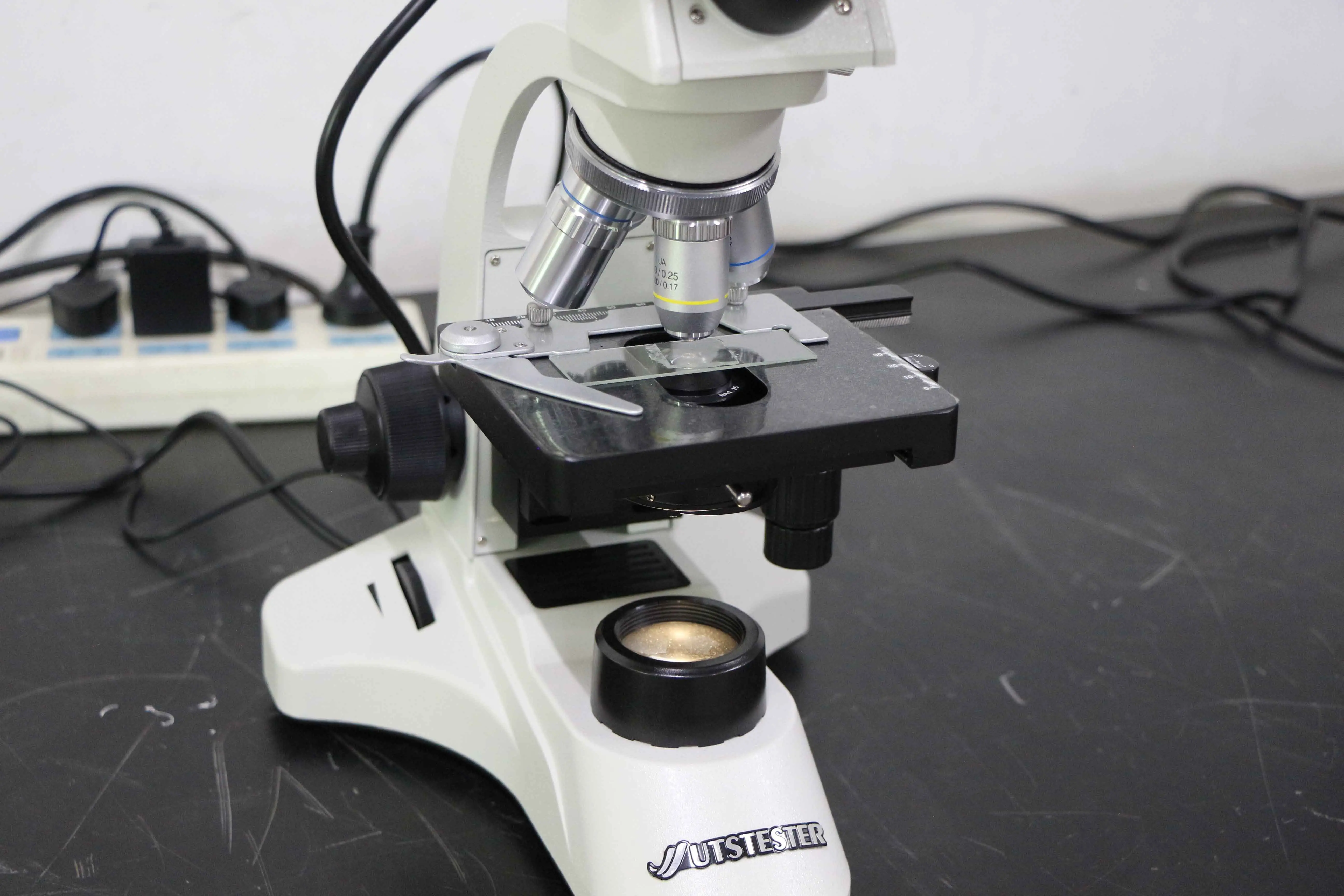

Carrier Stage

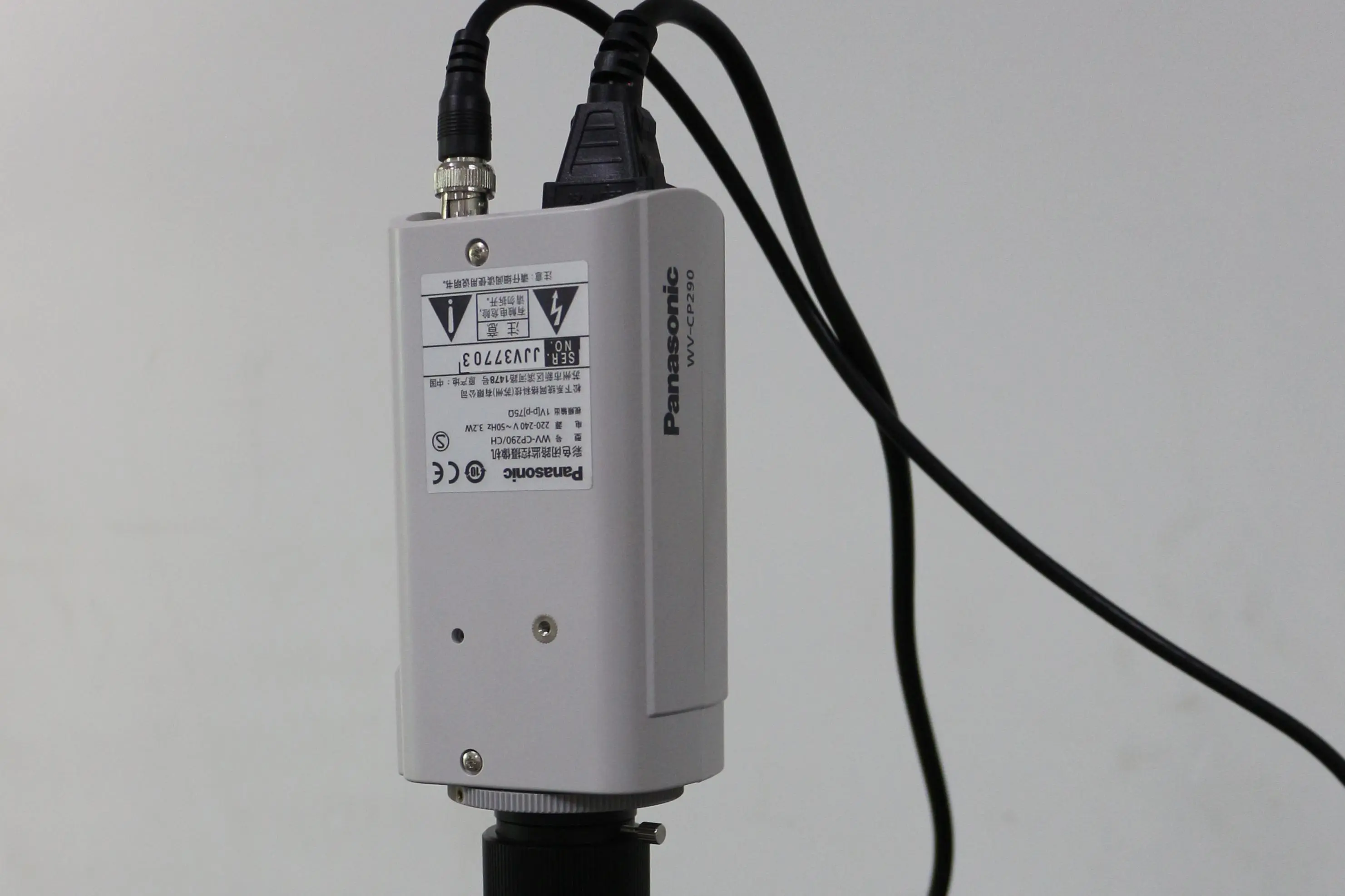

Digital camera

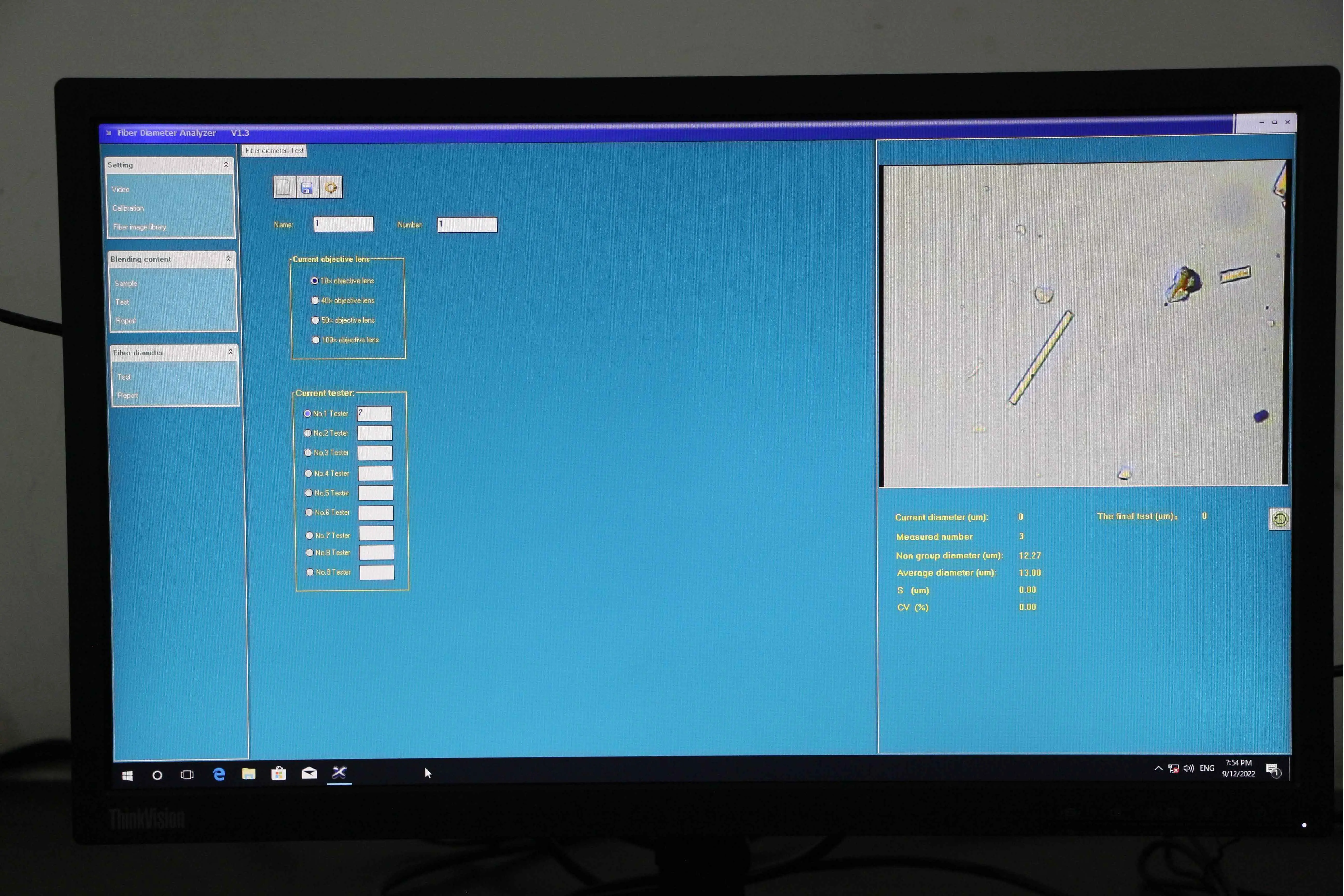

Display screen
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use

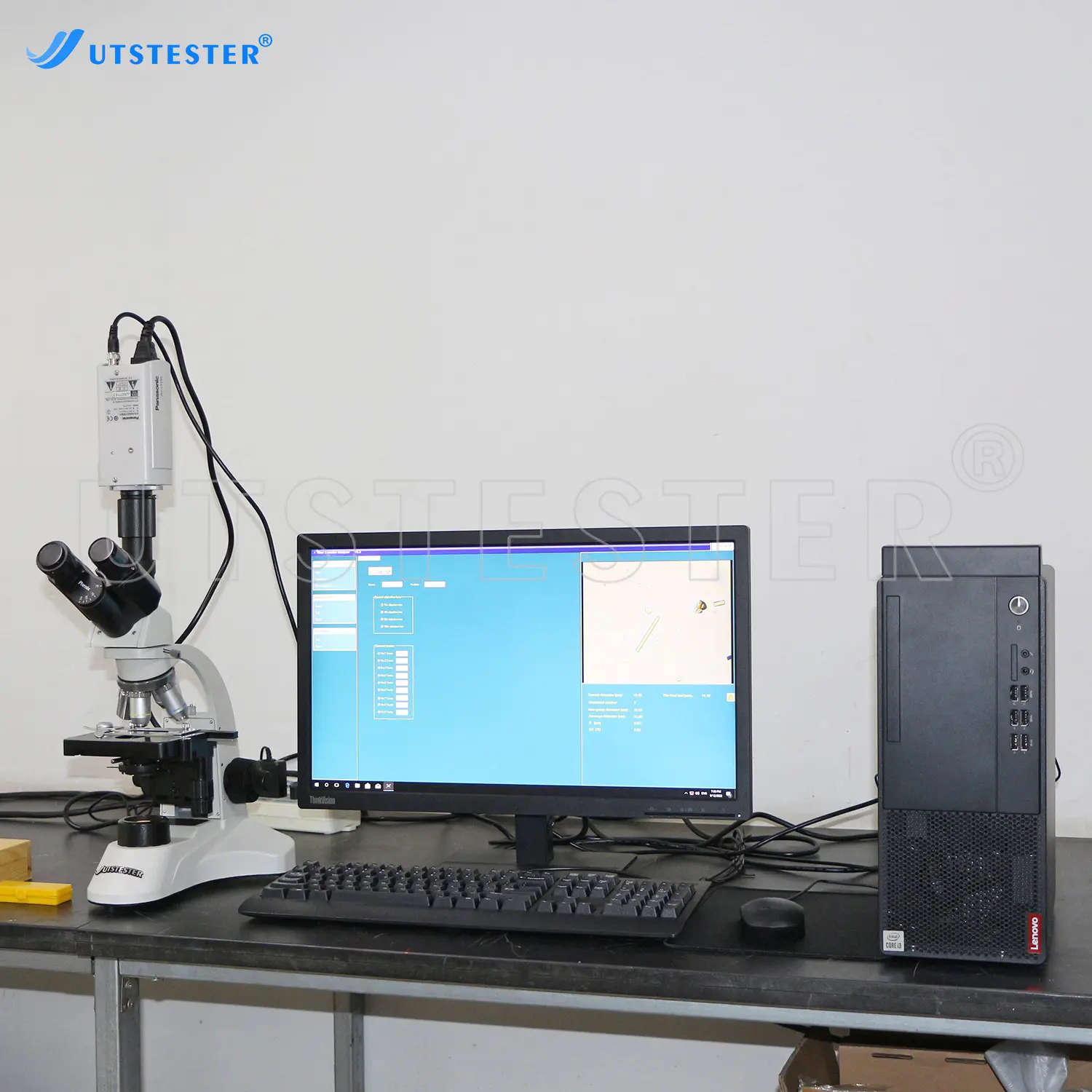

Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
