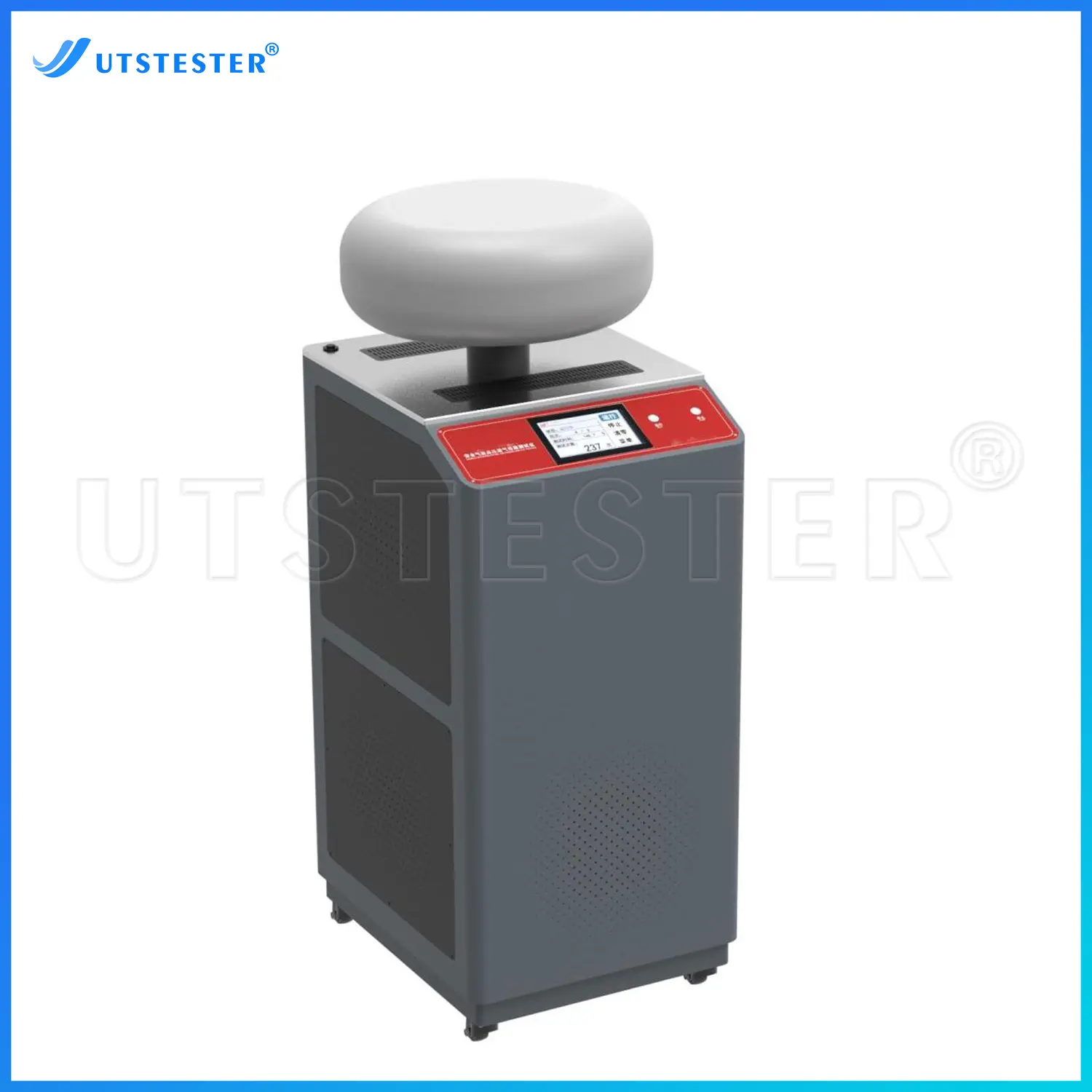

Textile TesTextile Machinery Airbag High Pressure Air Permeability Tester M113
Overview
It is used to determine the high pressure ventilation performance of airbags
Application
Airbag
Standards
AK-LV02:2005 4.3
Key Parameters
|
Model |
M113 |
|
Measure the inner and outer diameter of the orifice plate |
Inner diameter φ50mm, outer diameter φ100mm |
|
Range of differential pressure sensor |
≤50kpa |
|
Pressure sensor accuracy |
5Pa |
|
Thermometer accuracy |
±0.1℃ |
|
Data processing capacity |
Each batch can be added up to 3200 times |
|
Data output |
Touch screen, A4 Chinese and English printing, reports |
|
Power supply |
AC 220V, 50Hz, 1500W |
|
Dimension |
880mm×600mm×1800mm (L×W×H) |
|
Weight |
80Kg |
Product Details

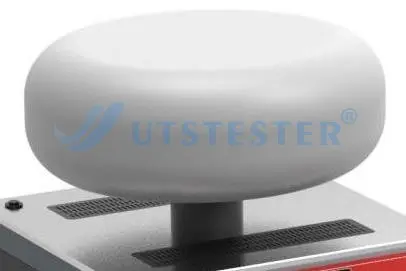

Sample test area

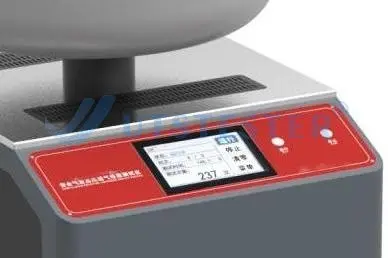

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
