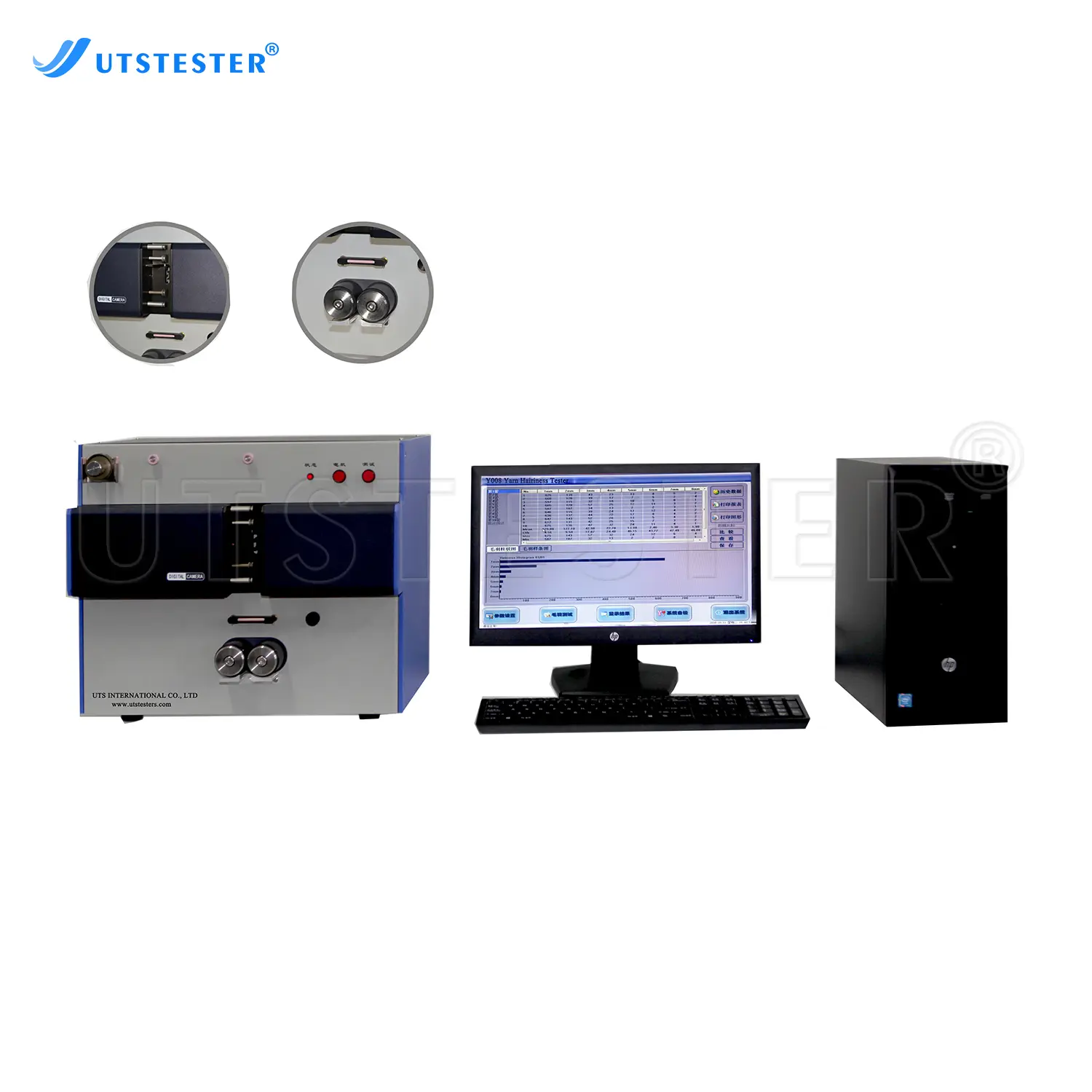

Textile Laboratory Testing Equipment Yarn Hairiness Tester Y008A
Overview
Used for measuring and analyzing yarn hairiness indexes, automatic test and statistical analysis on the length, quantity and distribution of feathers.
Application
Yarn
Yarn
Standards
Standards
Key Parameters
|
Model |
Y008A |
|
Applicable yarn type |
Cotton, wool, hemp, silk, chemical fiber pure spinning and its blended short fiber yarn. |
|
Measuring hairiness length |
Test hairiness index for 8 feather length 1 mm～8 mm at one times |
|
Hairiness length setting accuracy |
0.03 mm |
|
Hairiness length test accuracy |
0.03 mm |
|
Hairiness resolution |
0.5 mm |
|
Test speed |
30 m/min ±1% (15m/min, 30m/min, 60m/min±5%(Optional 10m/min, 100m/min) |
|
Yarn test section length |
1 ~100m, can be set randomly |
|
Continuous testing times |
1 ~ 100 times, can be set randomly |
|
Data statistics |
Data mean of single tube and multi - tube yarn, CV%, extreme difference, hairiness index and histogram. |
Product Details

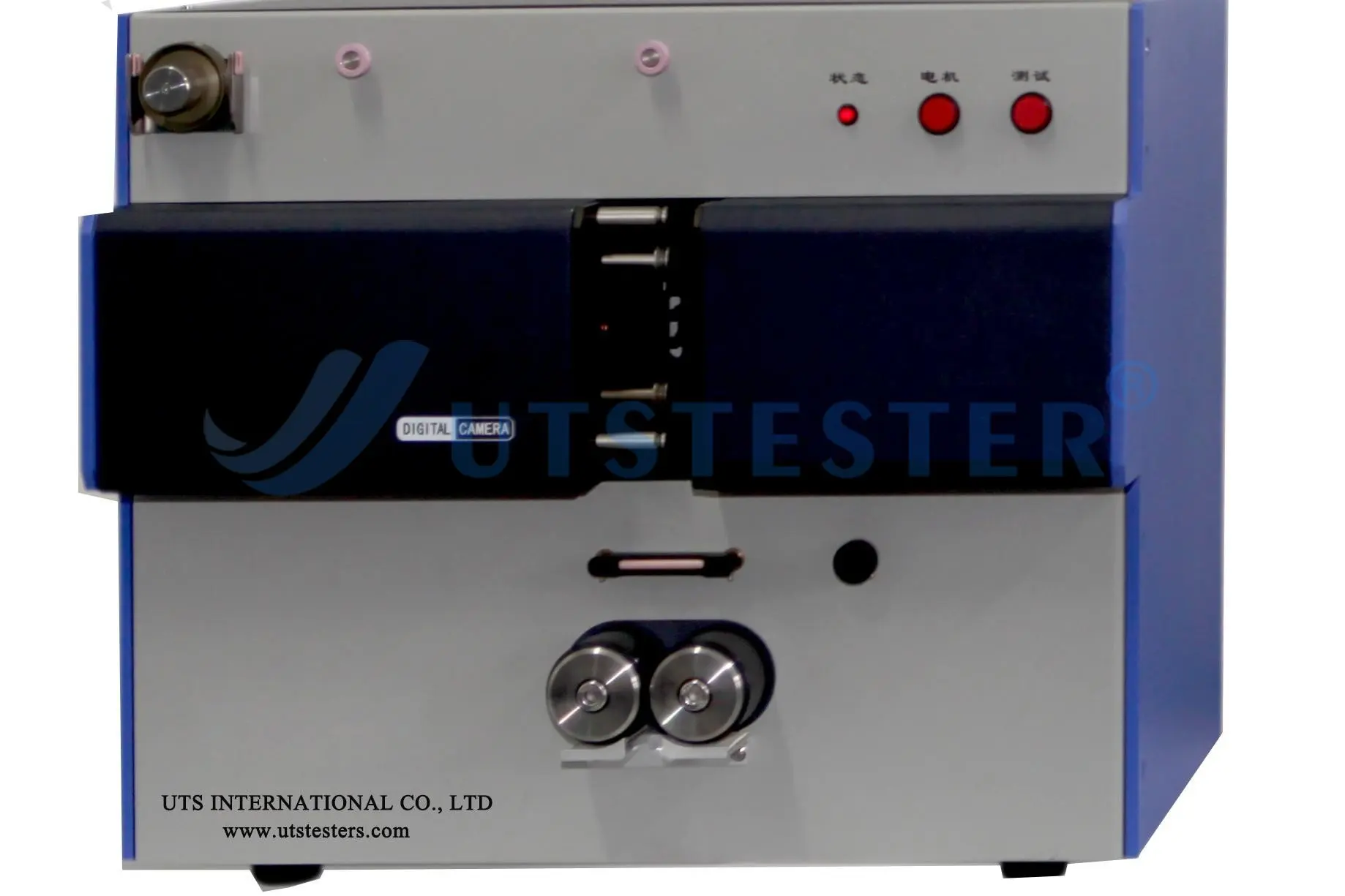

Grips

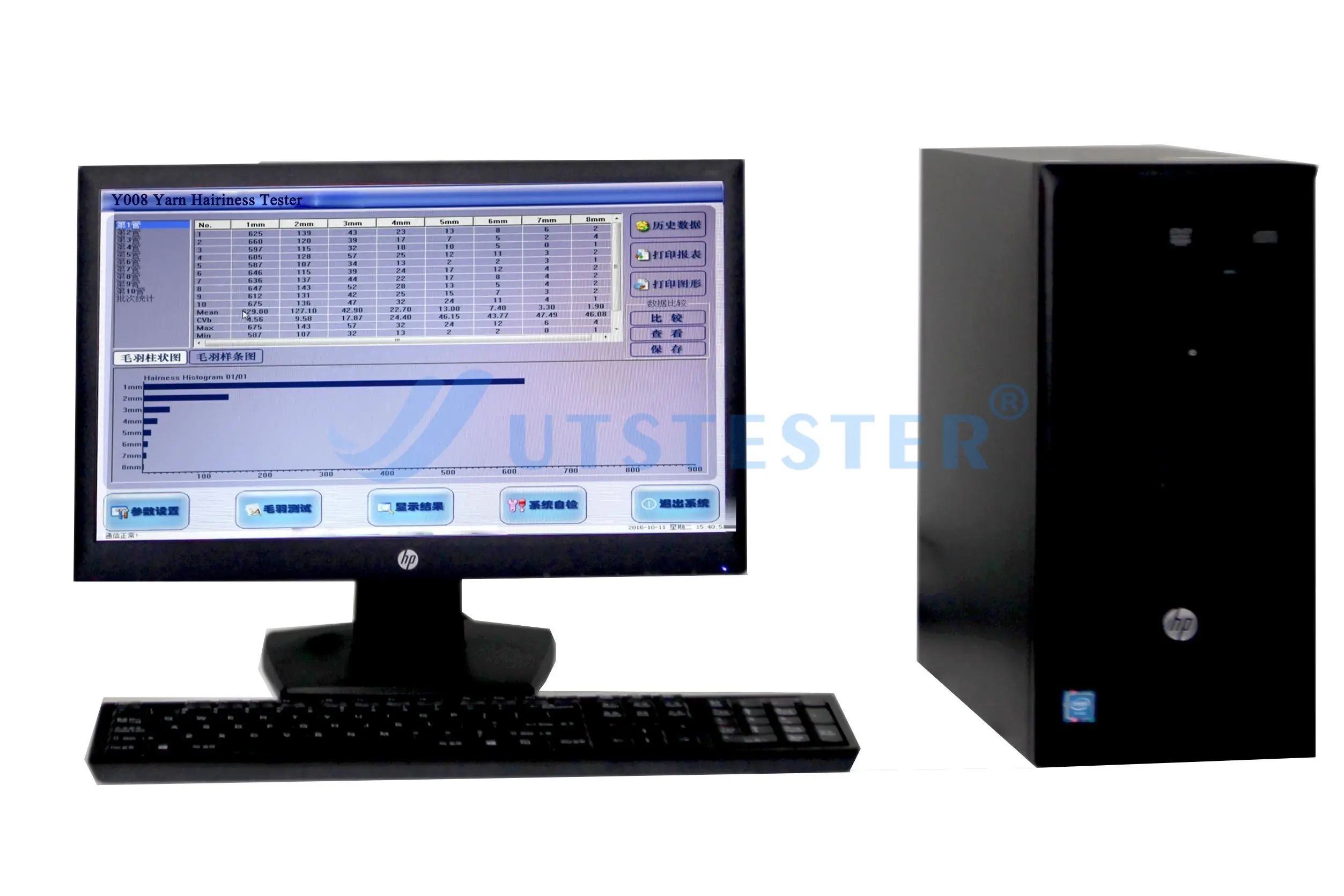

Touch screen panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
