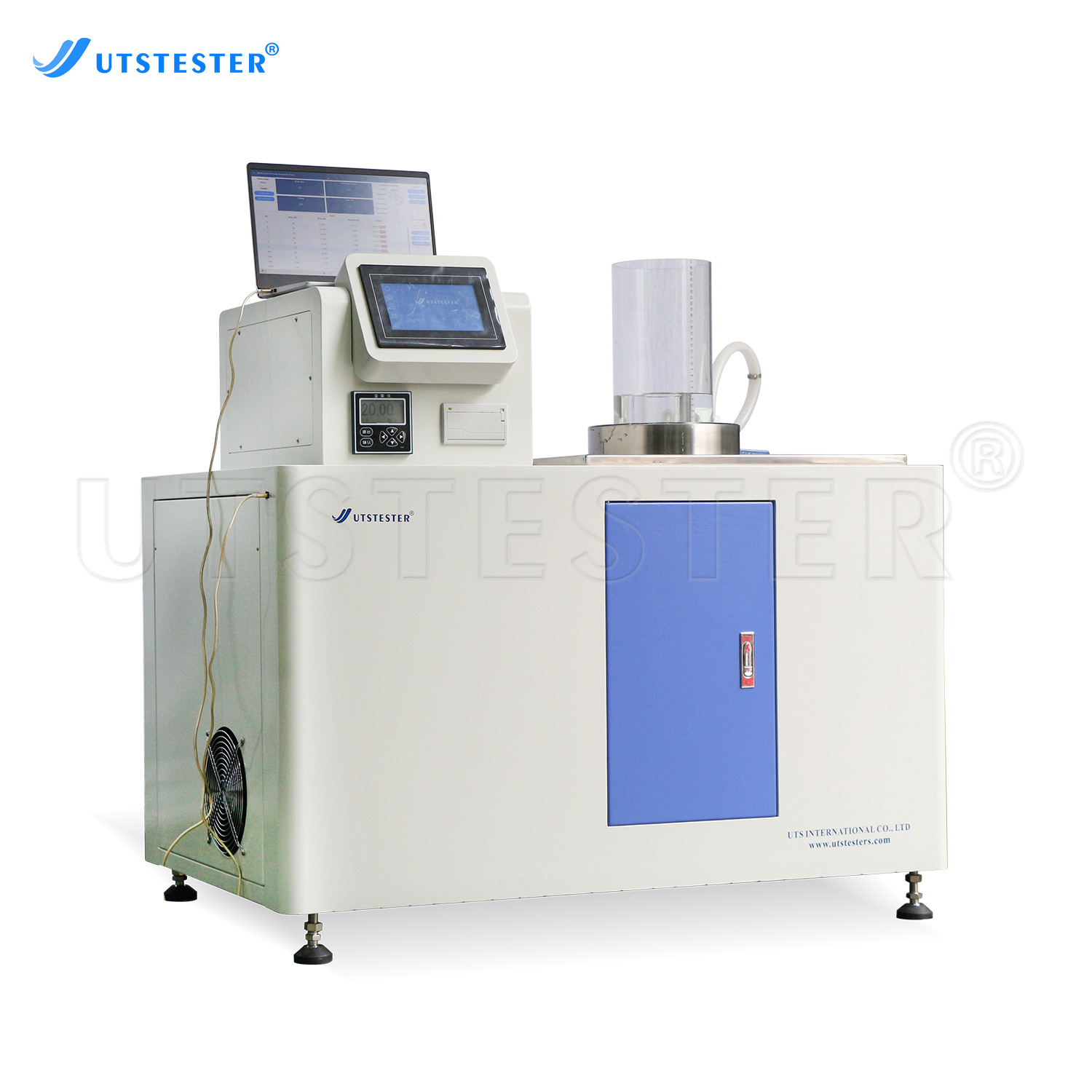

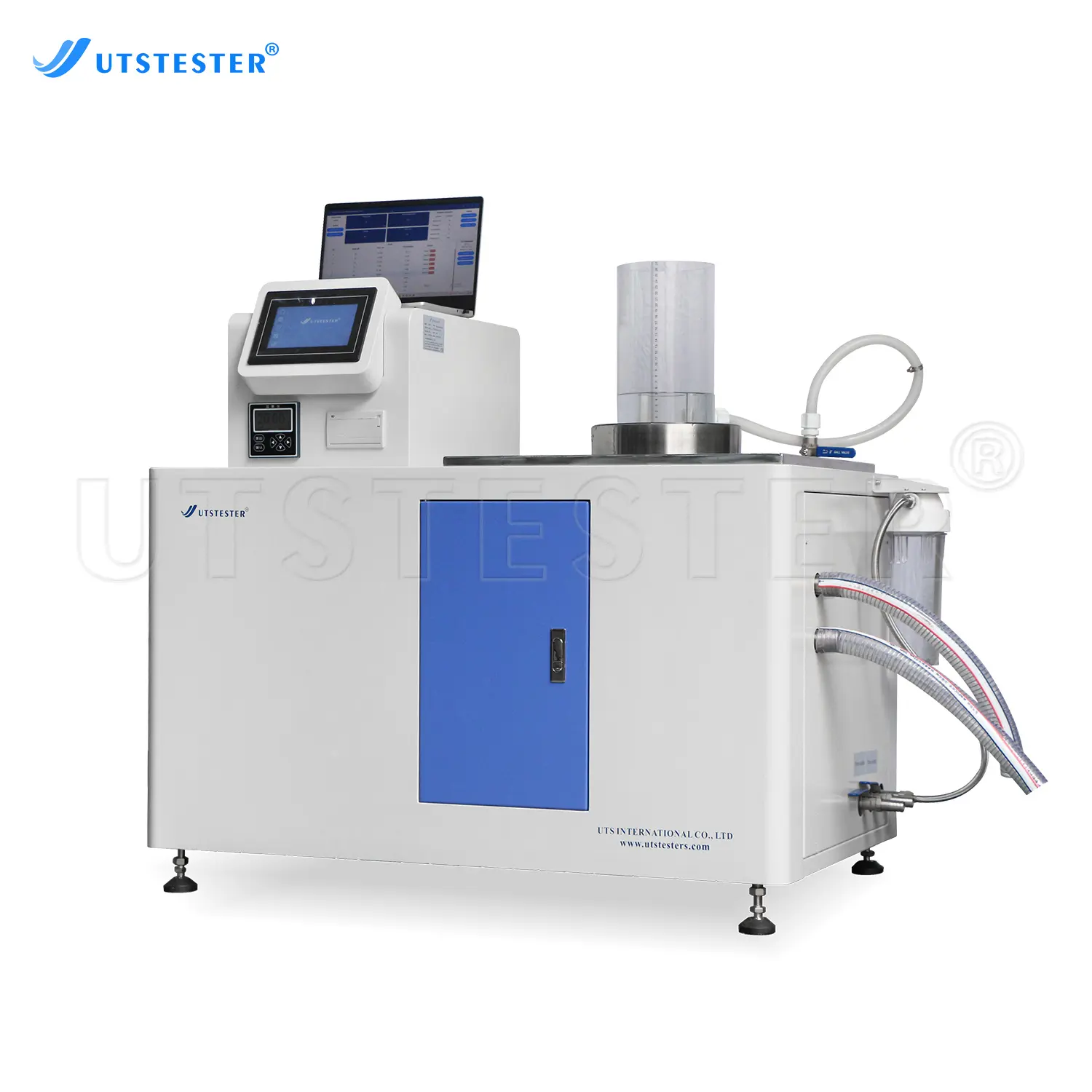

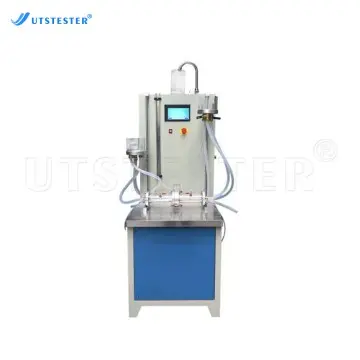

Textil Laboratory Equipment From China Geotextile Water Permeability Tester MA05A

Model

MA05A

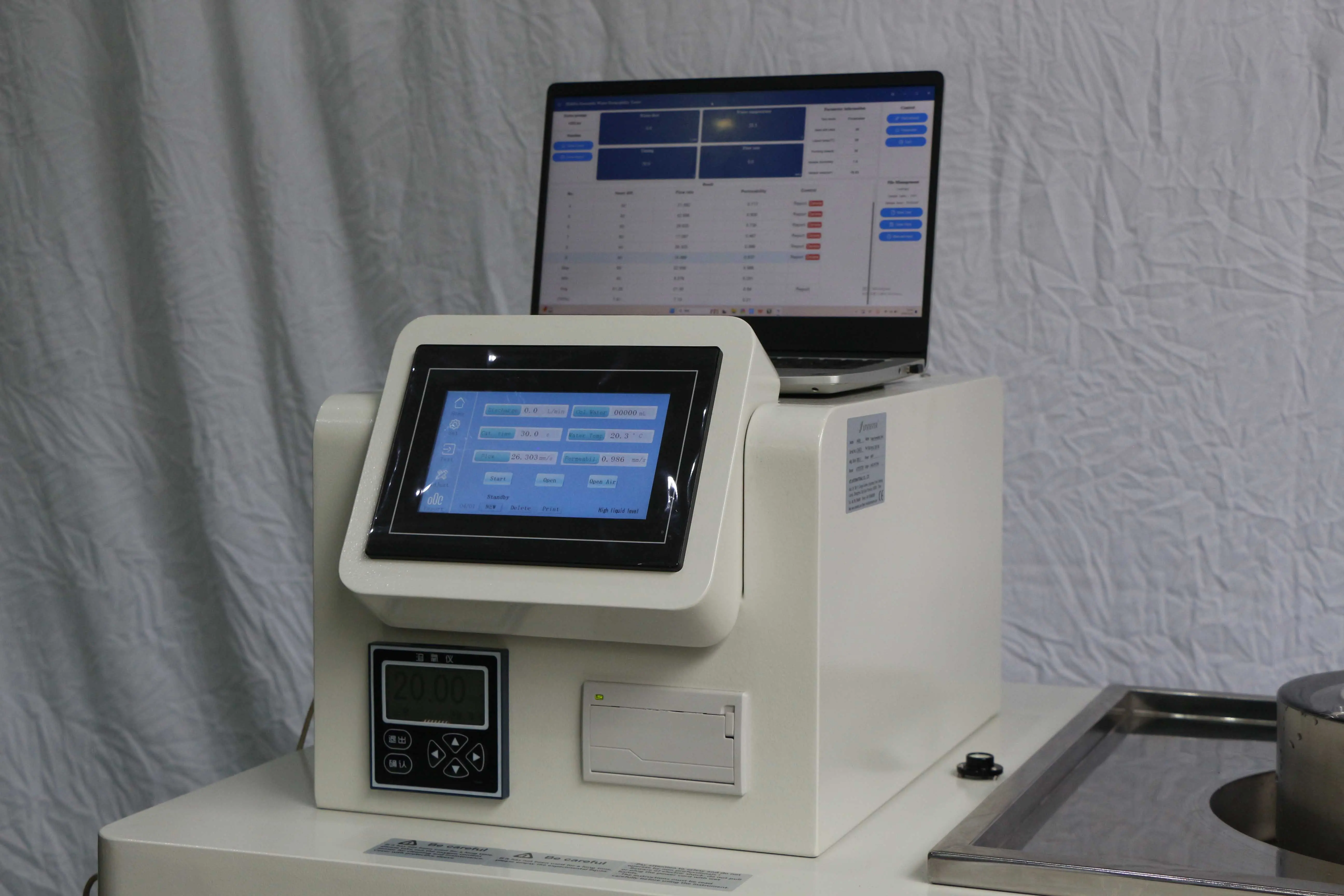

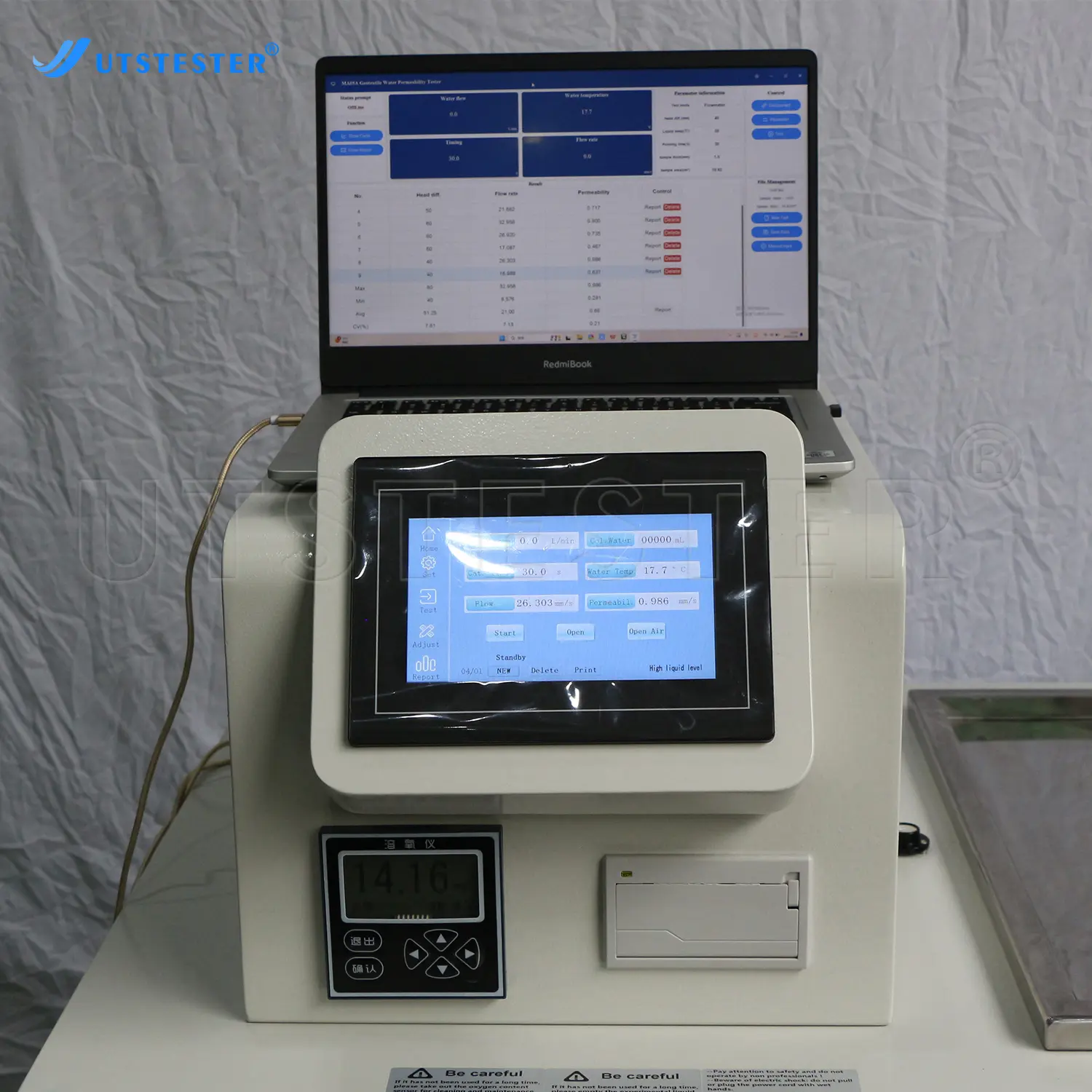

Operation interface

7.8-inch color screen Chinese interface

Head difference

0-250mm digital setting, automatic positioning

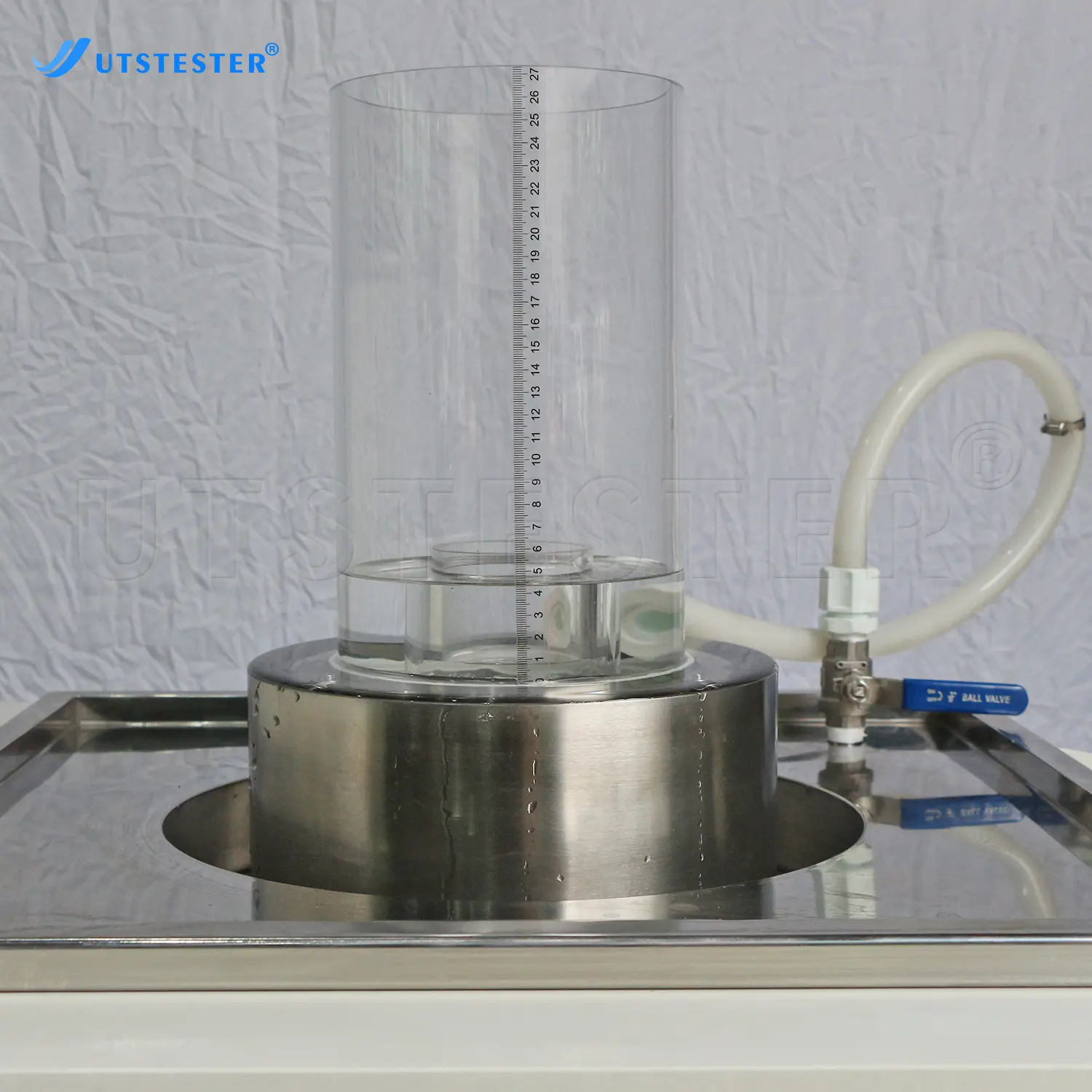

Inner diameter of the holder

50mm±0.2mm

clamping mode

Vertical type

thermometer range

0-50℃±0.2℃

time controller

0-999.9 seconds arbitrary setting, control accuracy 0.1S

Timing

seconds, minutes, hours (optional)

Accuracy of head measurement

0.2 mm

head adjustment stroke

0-300mm

Flow rate unit

m/s and mm/s

Test chamber size

490*500*510mm

Water collection

0-3000ml laser method

water level measurement accuracy

0.03mm

Data acquisition

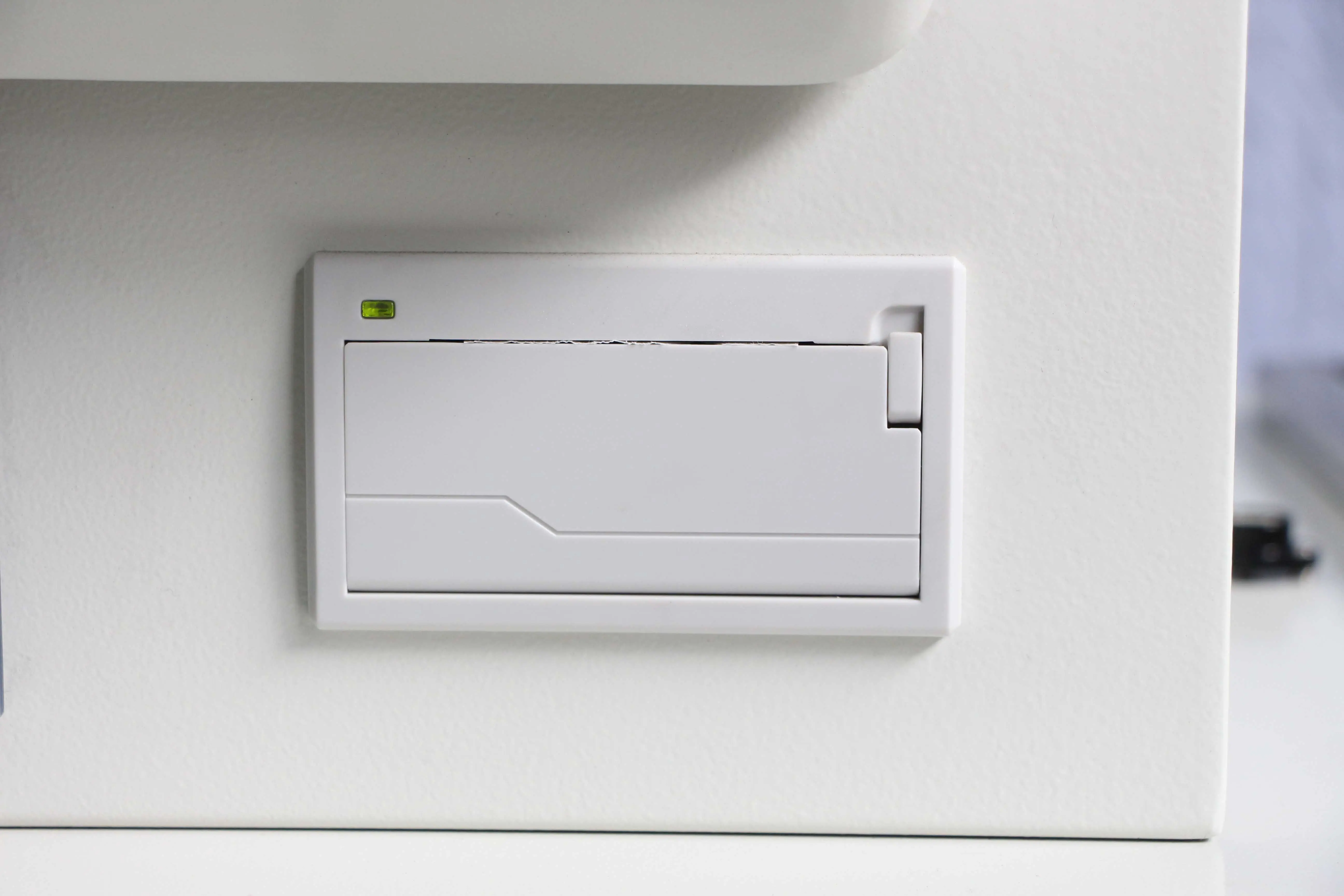

Two-way control of host and PC (optional), automatic calculation of permeability coefficient, printing results

Sample clamping method

Water sample loading, force rod clamping sample loading or pneumatic fixture loading (optional)

Dimensions

800×650×1920mm

Weight

150kg
