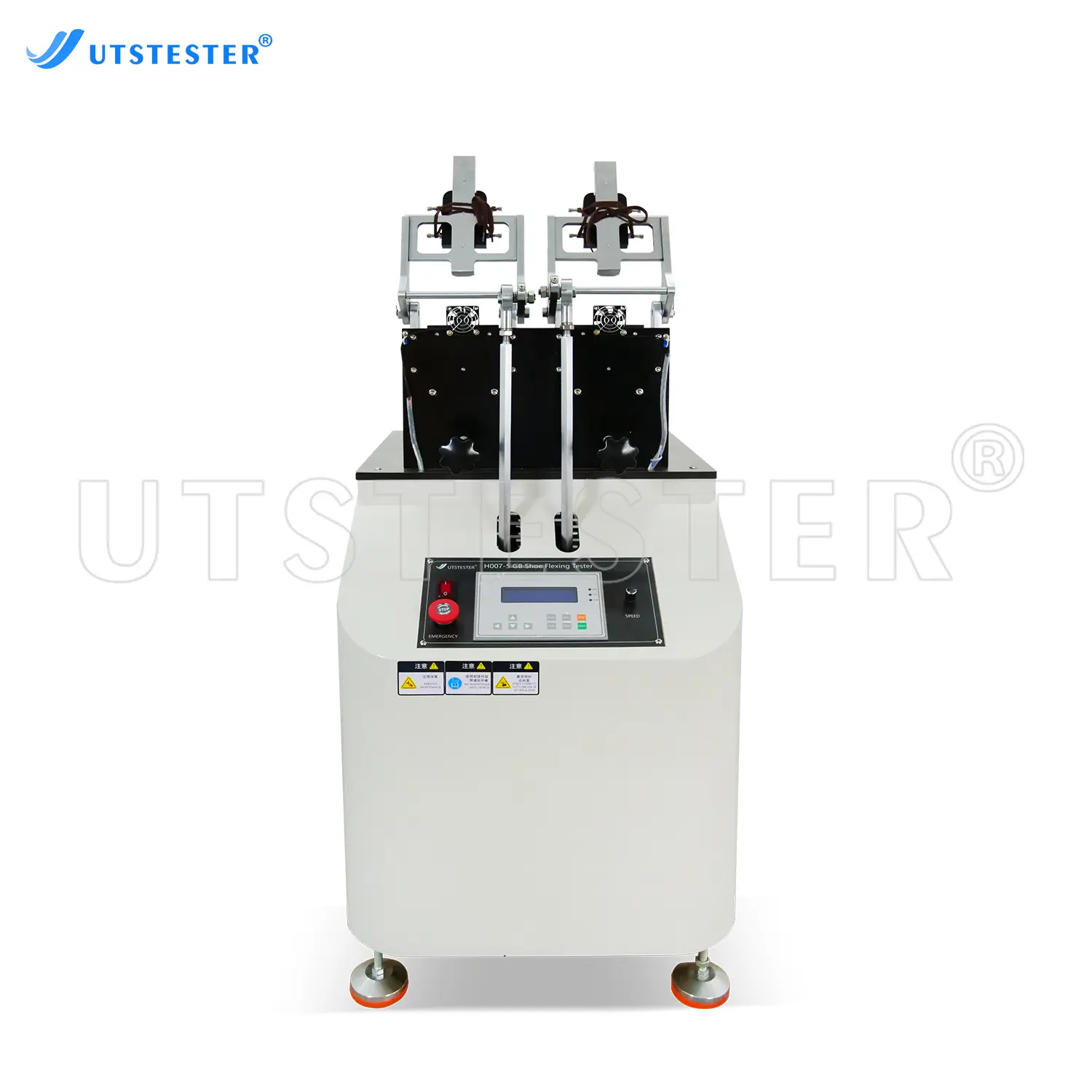

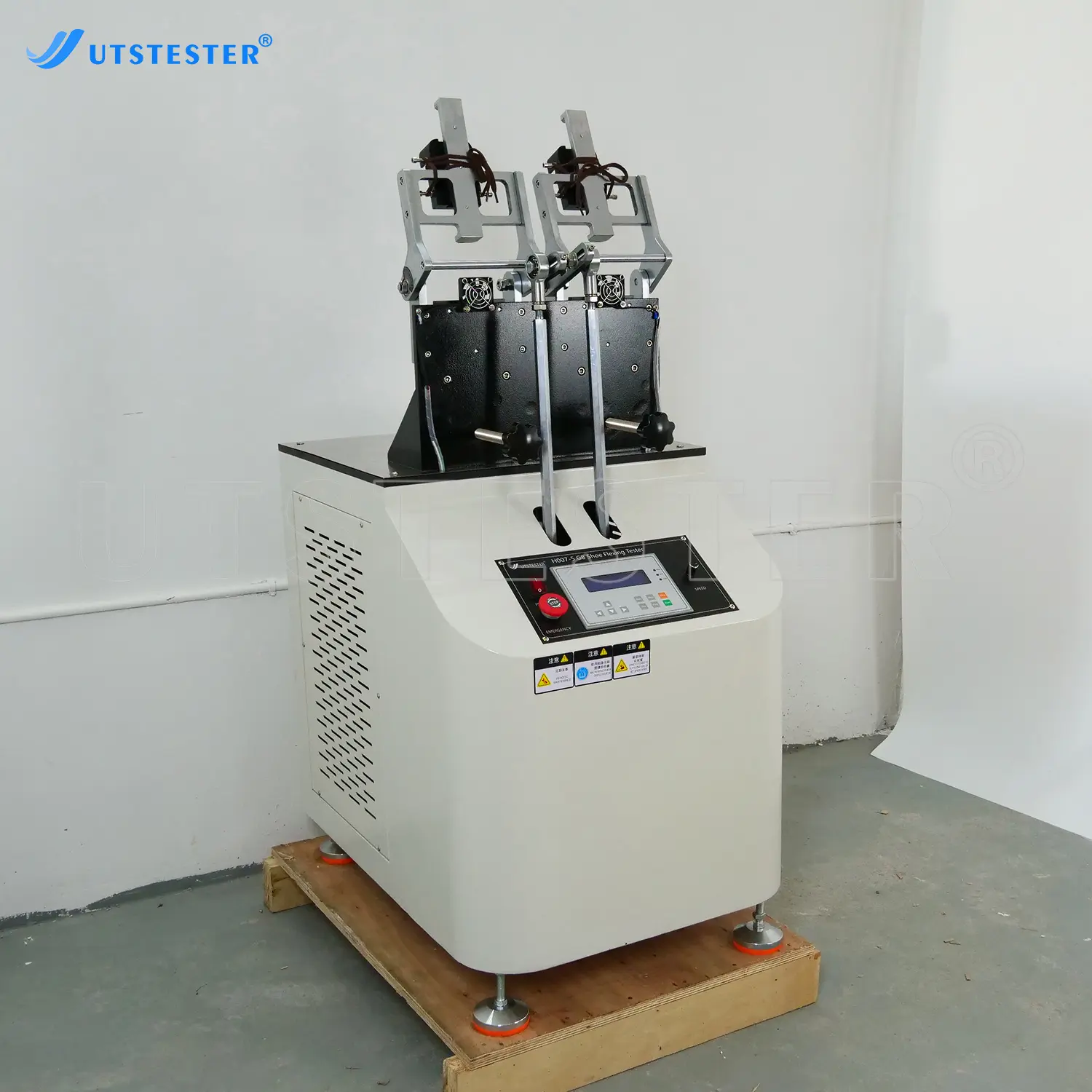

Shoes Material Test Equipment GB Shoe Flexing Tester Shoes Bending Testing Machine H007-5
Overview
The national standard shoe bending tester is specially designed to test the finished shoes and soles, after a long period of time, fixed frequency, fixed angle of the continuous reciprocating bending to assess its bending resistance or to check the degree of cracking.
Application
shoes
shoes
shoes
Standards
GB/T 15107, GB/T 22756, GB/T 19706, QB/T 1002, QB/T 2955, QB/T 2977, QB/T 2880, GB/T 3903.1, HG/T2871-2022(Method A)
Key Parameters
|
Model |
H007-5 |
|
Test piece |
A pair of shoes(2 pieces), at the same time. |
|
Bending angle |
10-50︒adjustable |
|
Speed |
5 ~ 300cpm adjustable |
|
Counter |
LCD,0-999,999 |
|
Power supply |
1PHASE AC 220V 3A |
|
Size |
450×650×1500mm |
|
Weight |
214kg |
Product Details

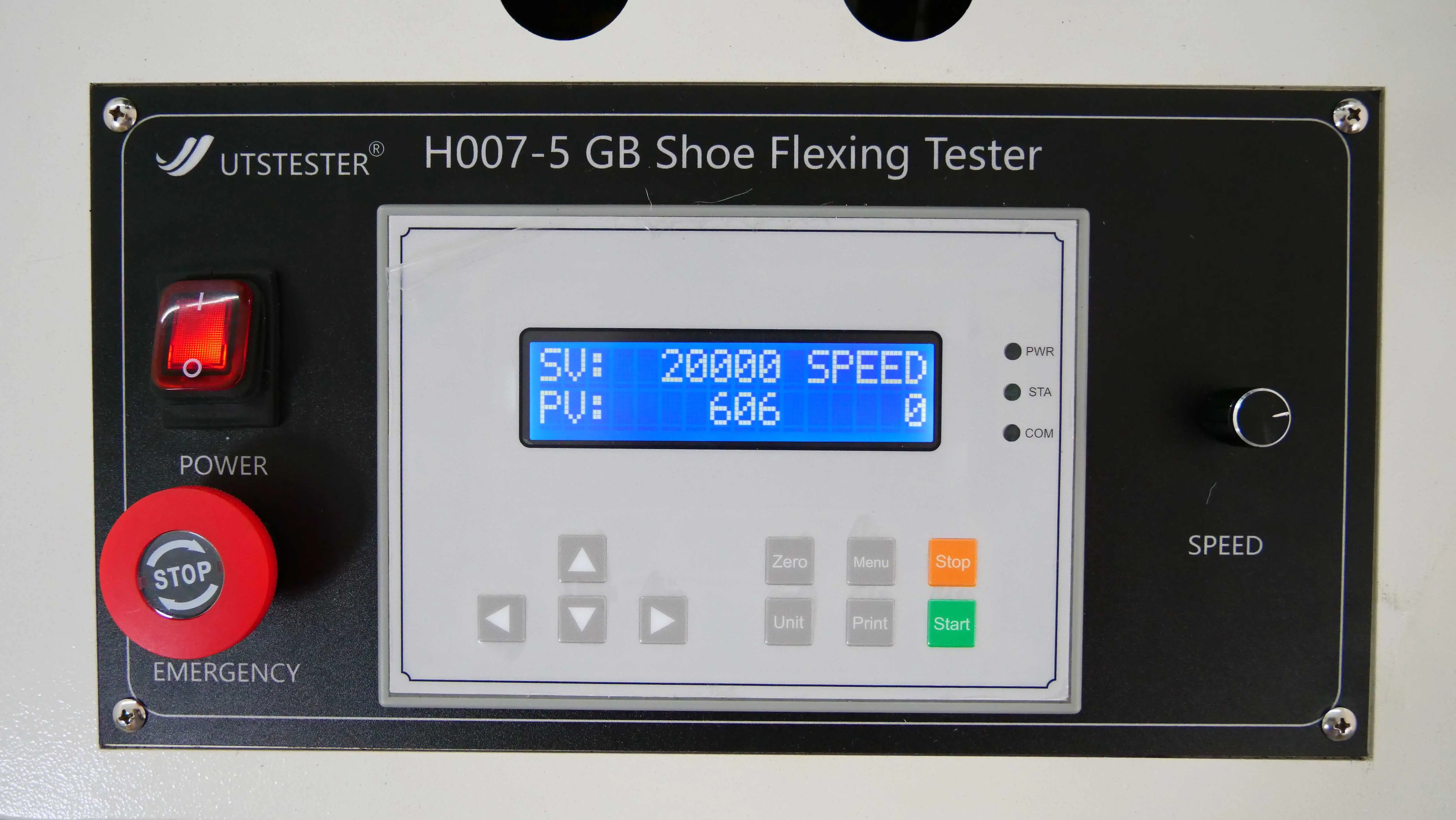

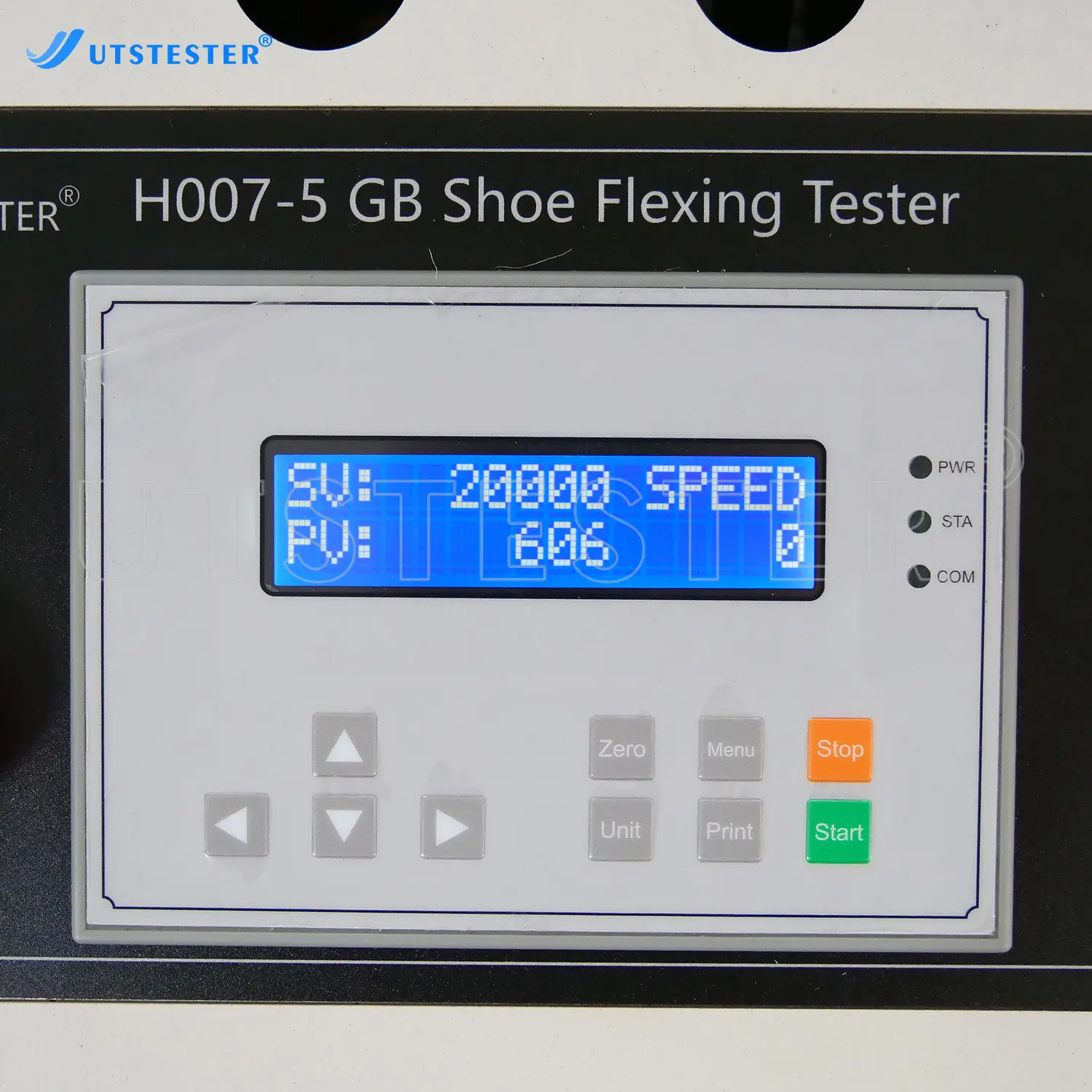

Control panel

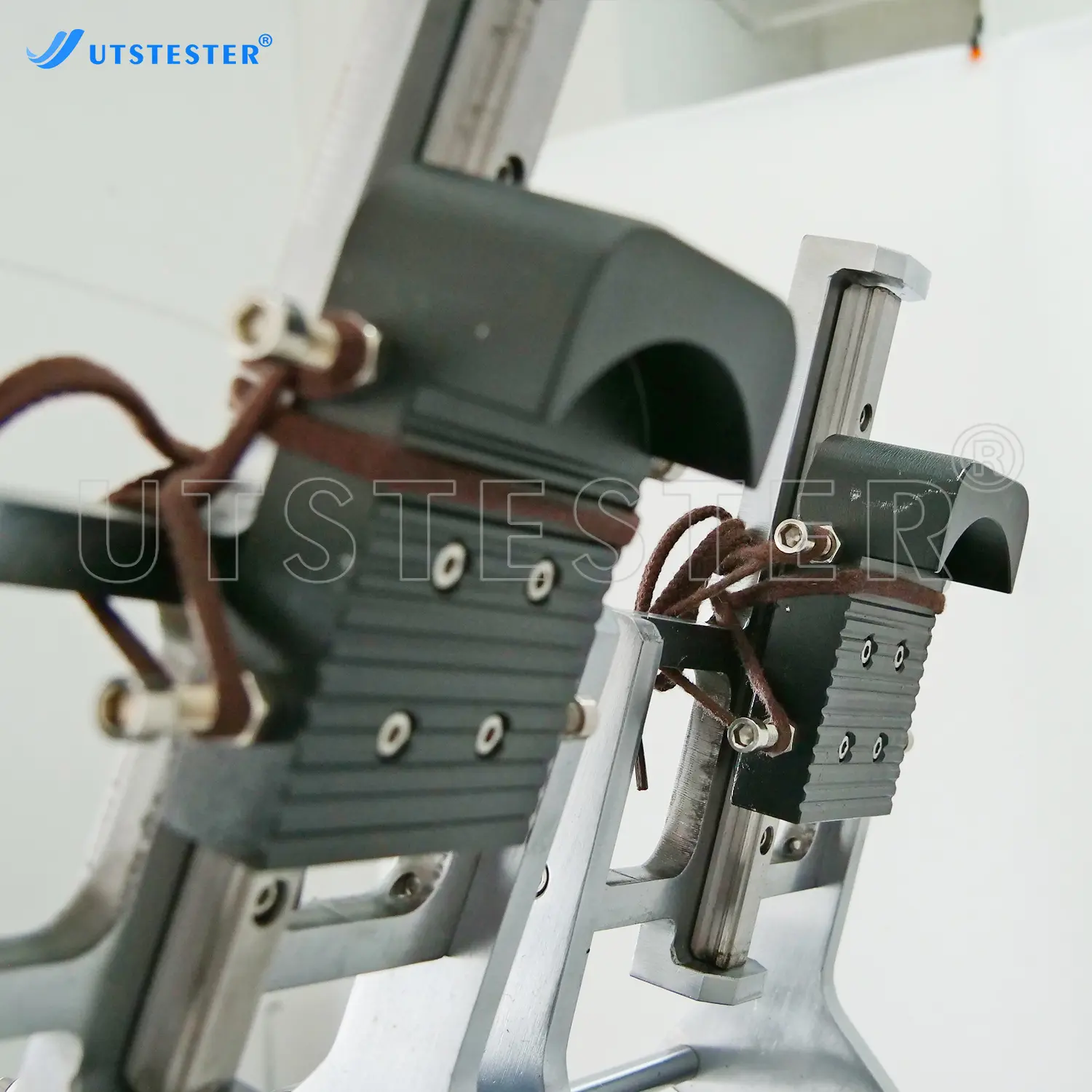

Movable bracket

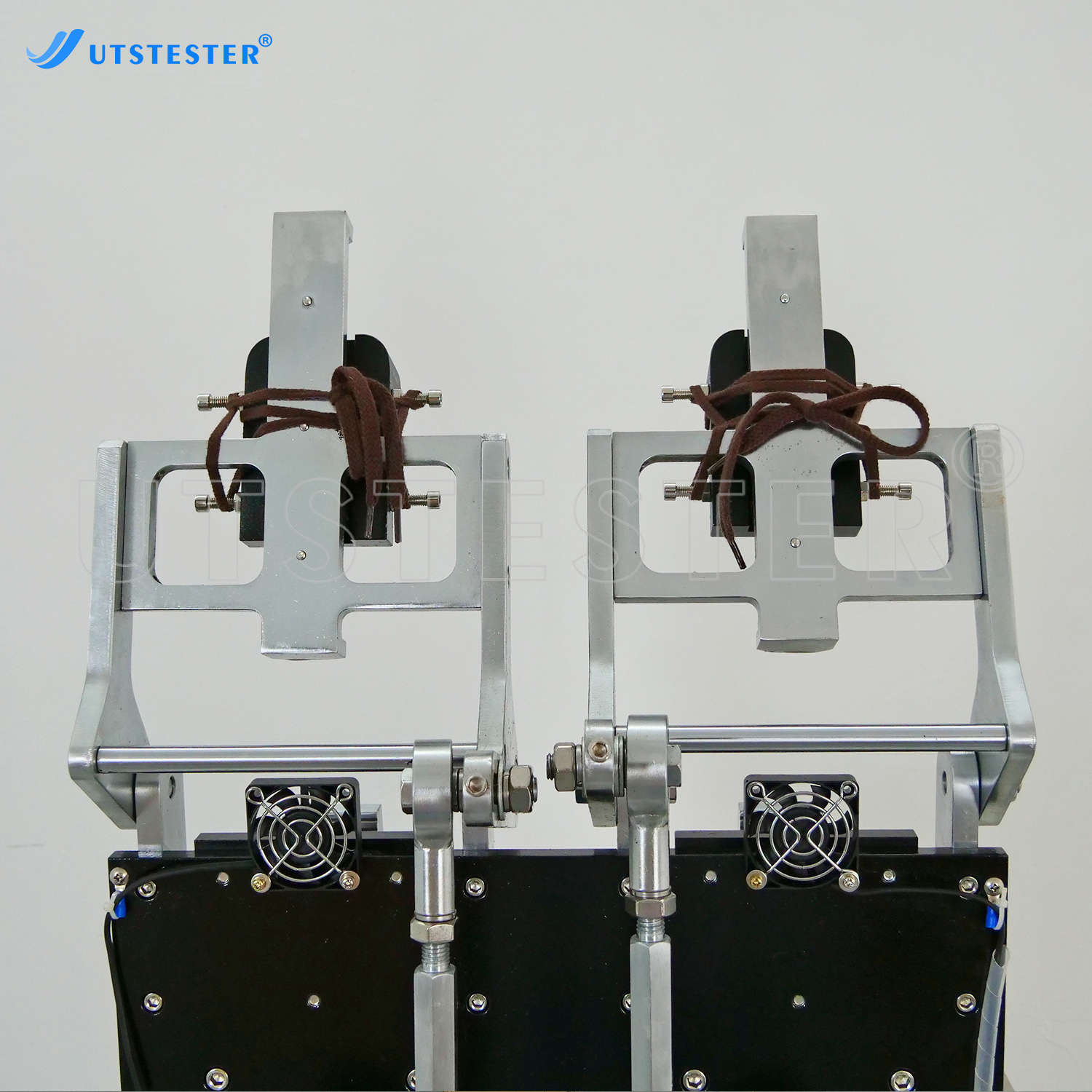

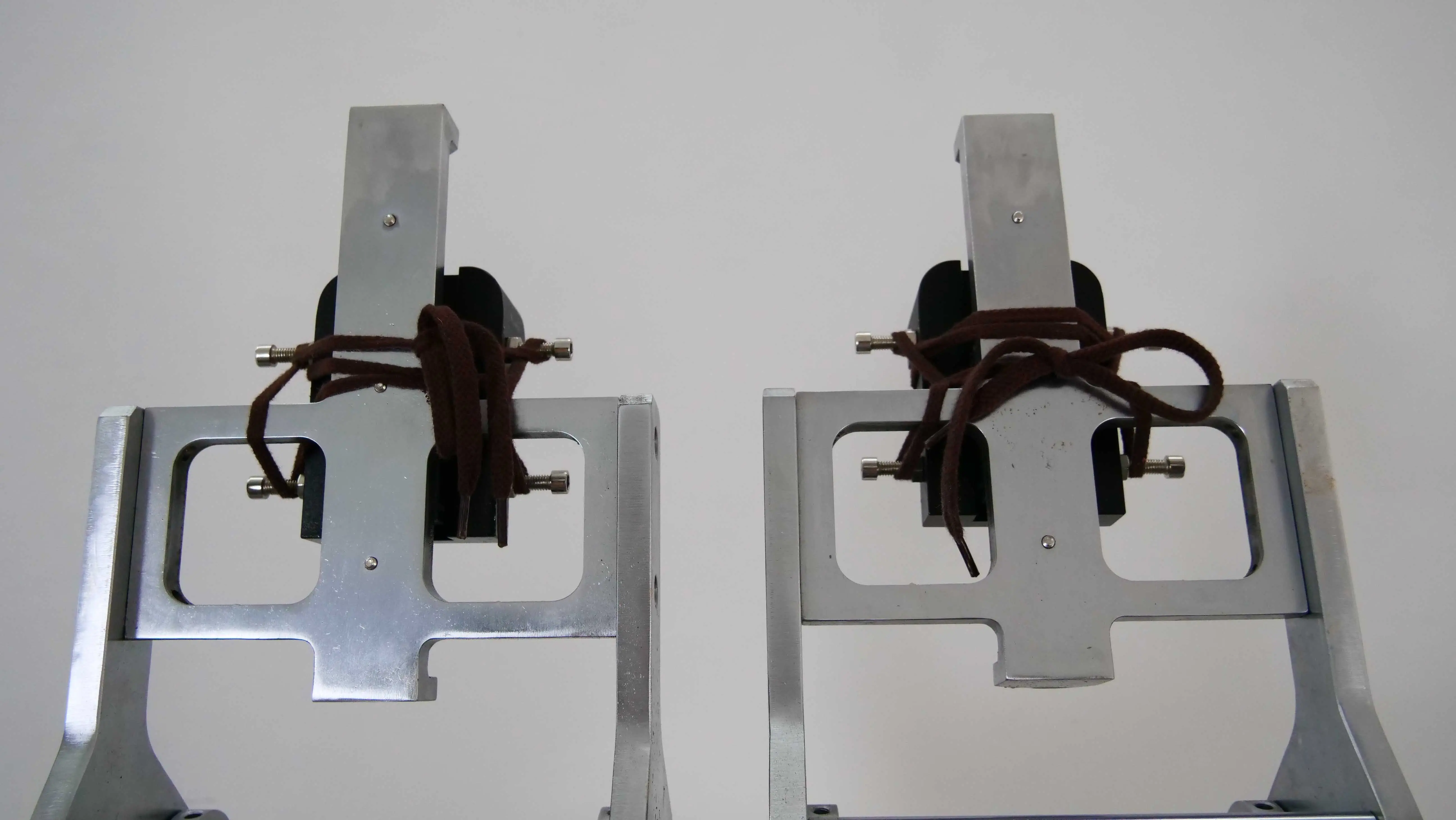

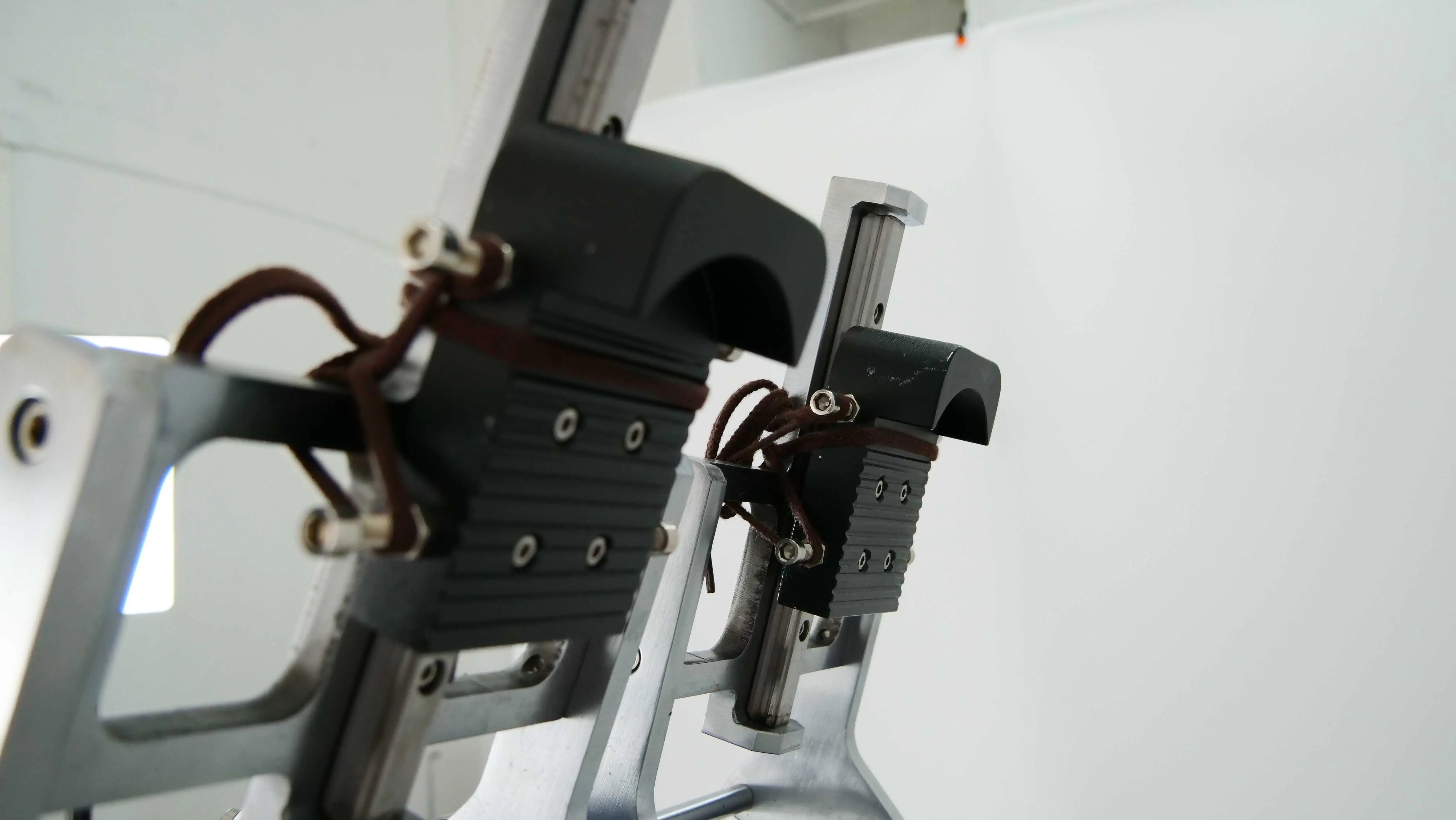

Heel fixing block

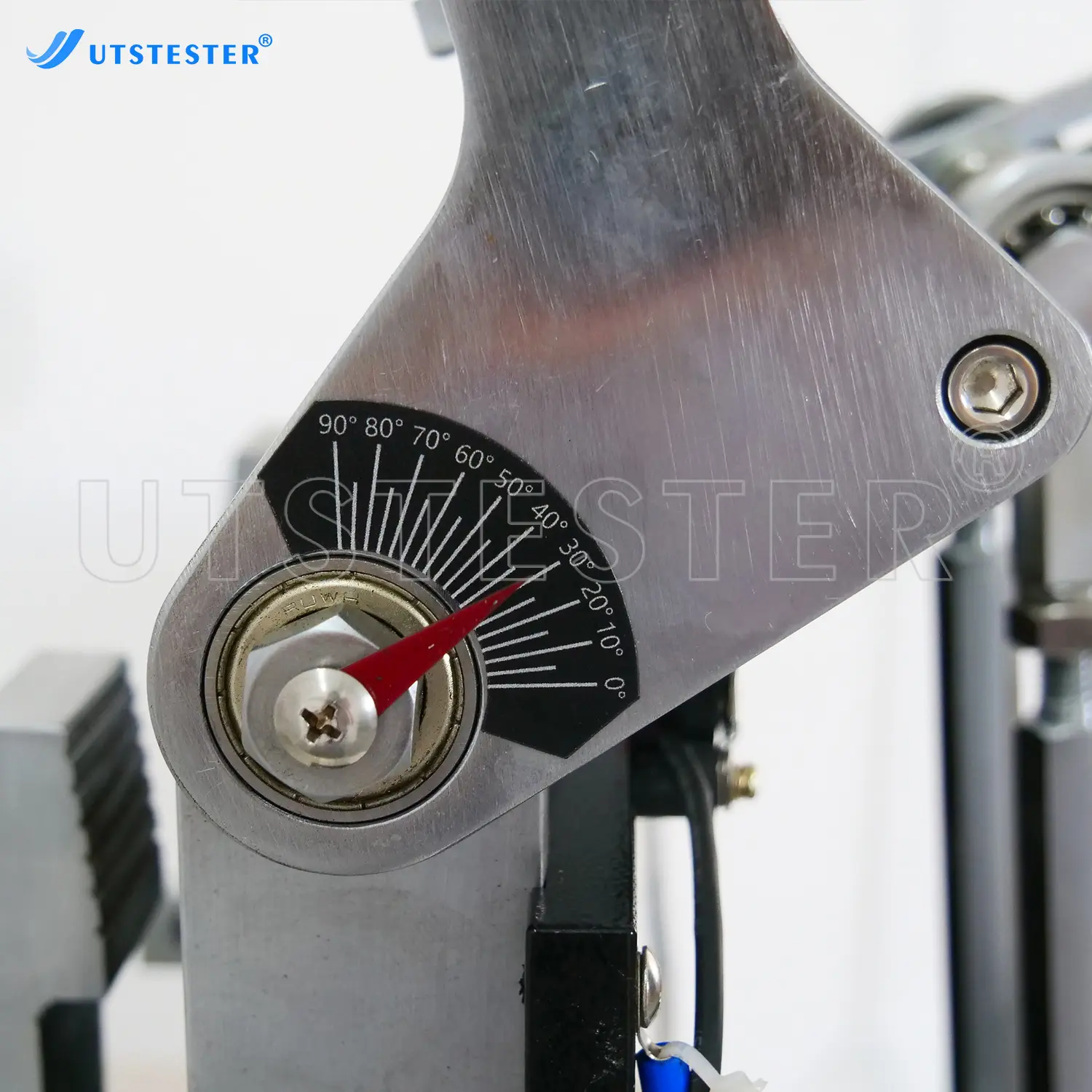

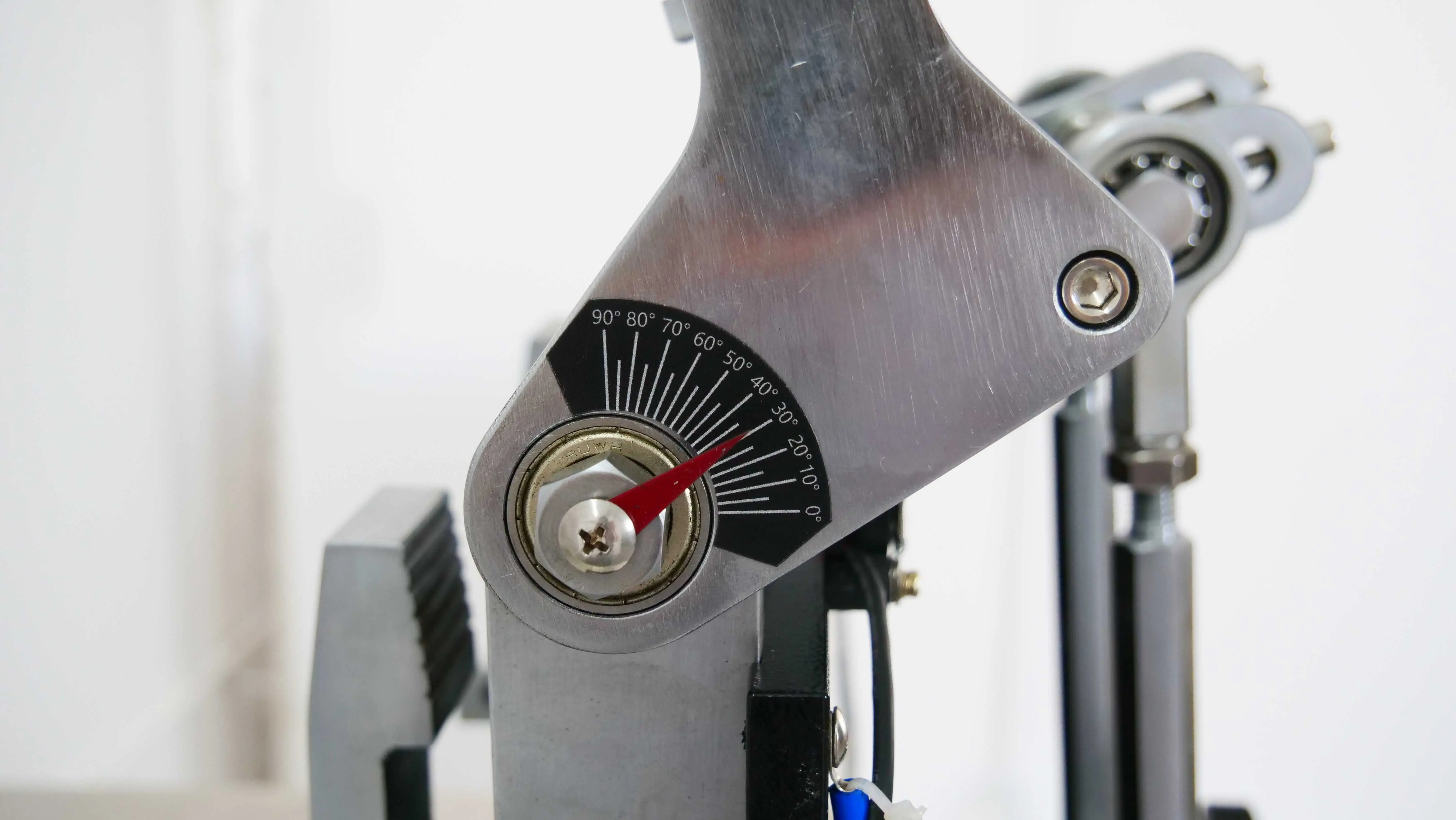

Angle meter
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
