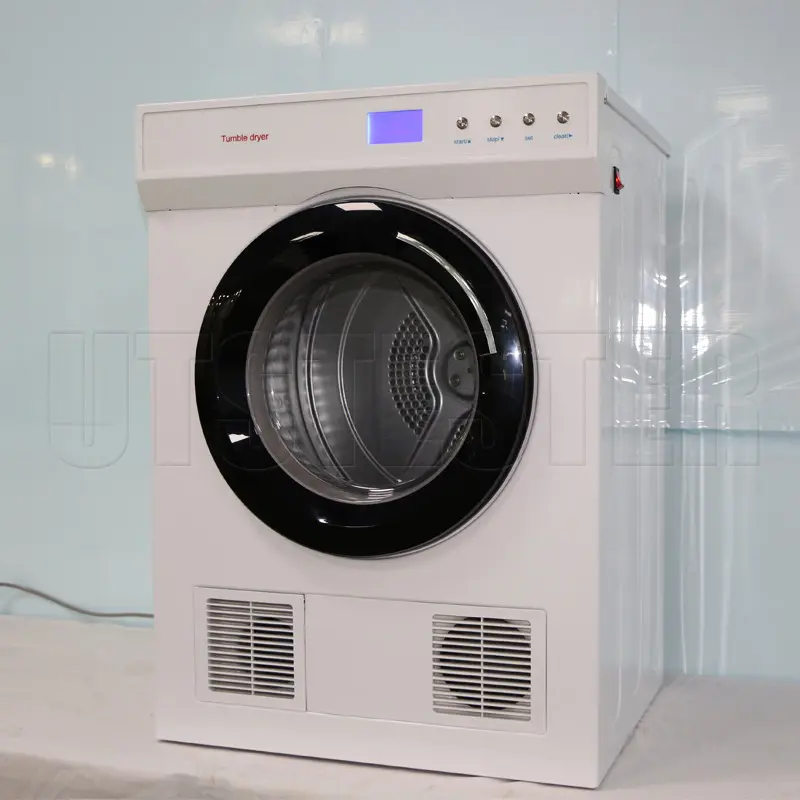

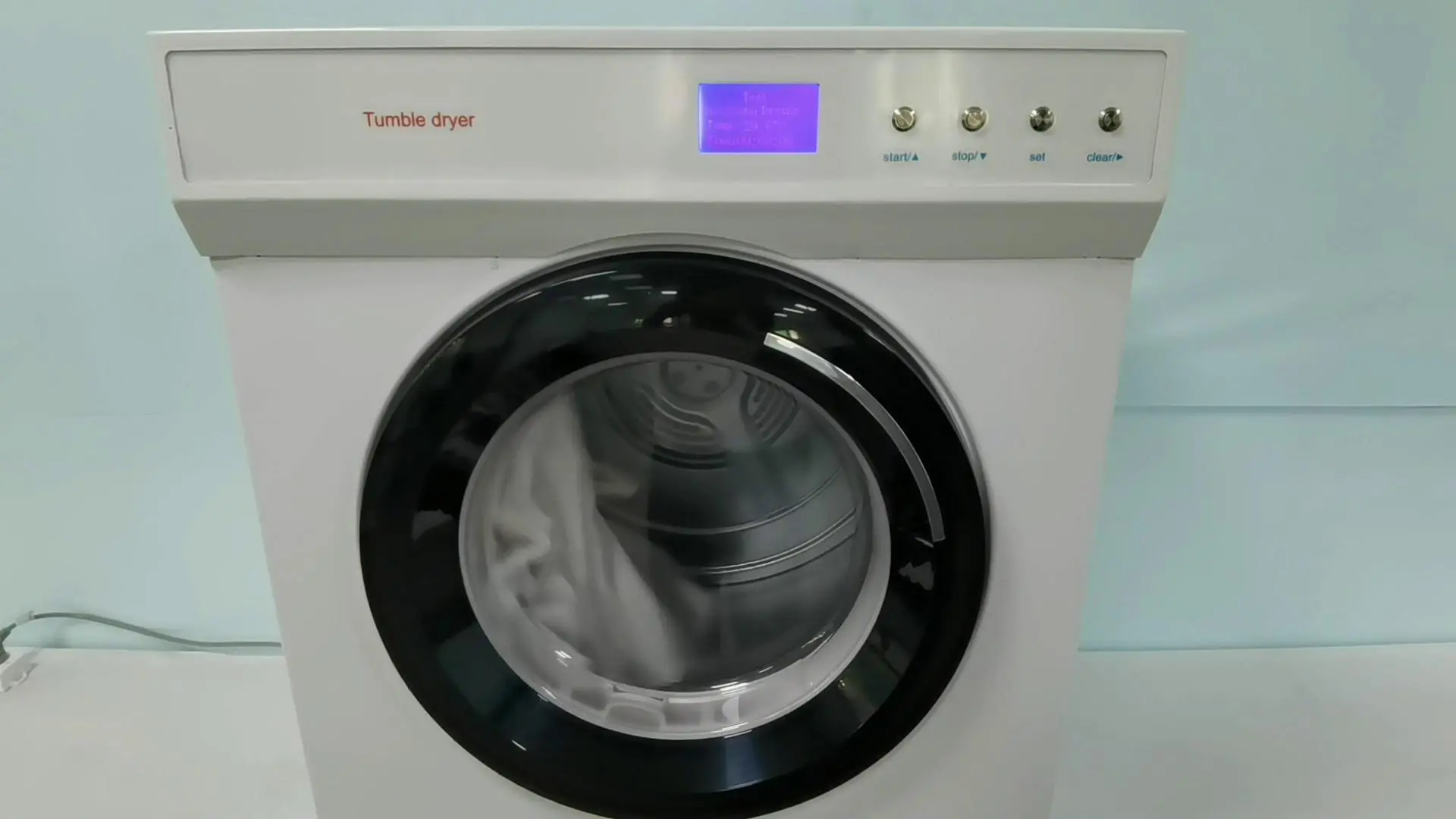

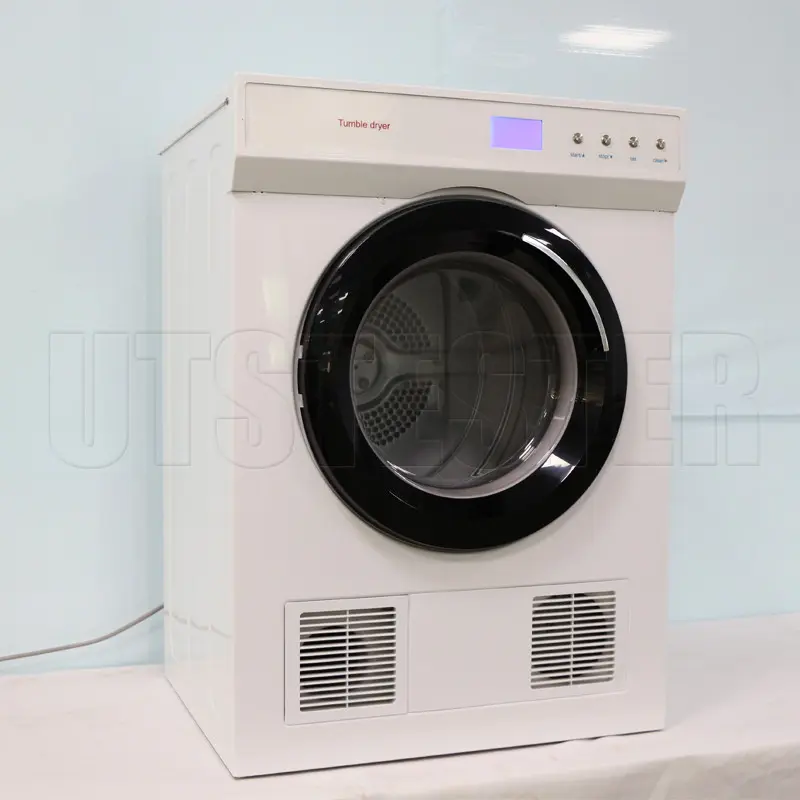

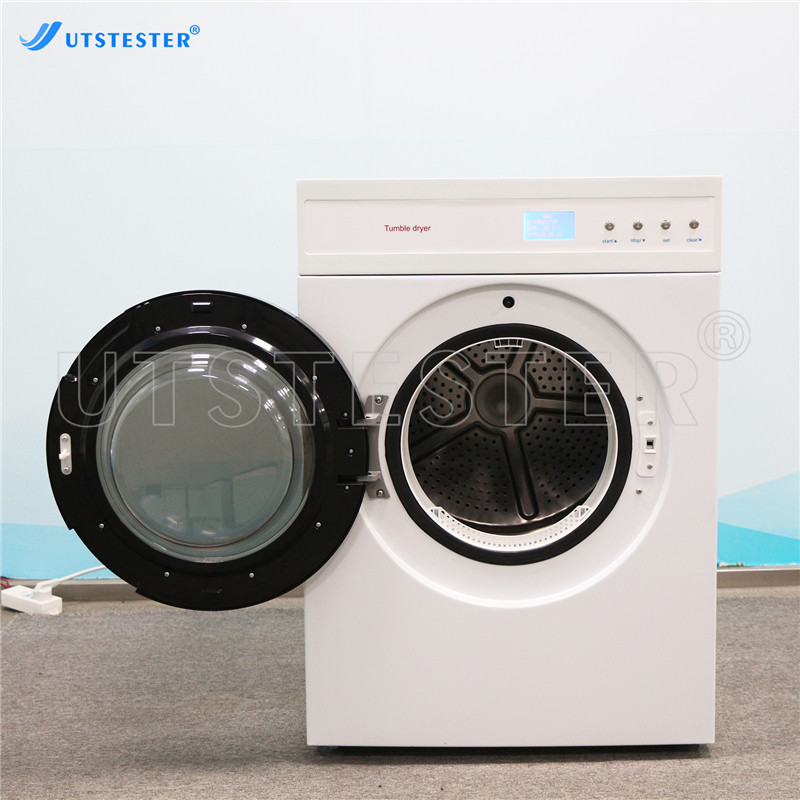

Rotary Tumble Dryer Rotary Tumble Dry Textile Garment Dry Machine
Overview
To rotary tumble dry textile, apparel or other fabrics after shrinkage test.
Application
FABRICS
GARMENT
TEXTILES
SOCKS
Standards
GB/T8629 ISO 6330
Key Parameters
|
Model |
D014B |
|
Roller diameter |
(580±10)mm |
|
Roller volume |
100L |
|
Roller capacity |
6kg |
|
Roller rotary speed |
50 r/min 25r/min |
|
Lifter quantity |
3 pieces ( Each piece distance 120°) |
|
Air outlet temperature |
＜70℃ |
|
Power |
Ac 220V 50Hz 3KW |
|
Dimension |
595×580×860mm |
|
Weight |
38Kg |
Product Details

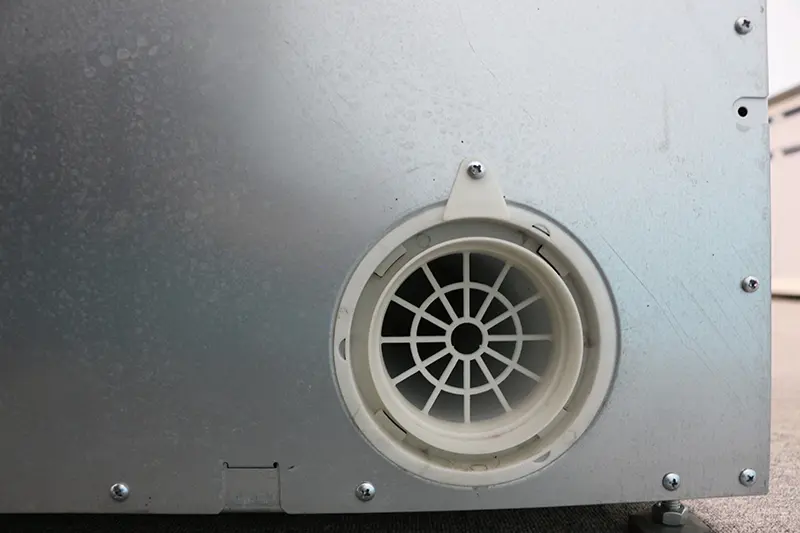

Air outlet

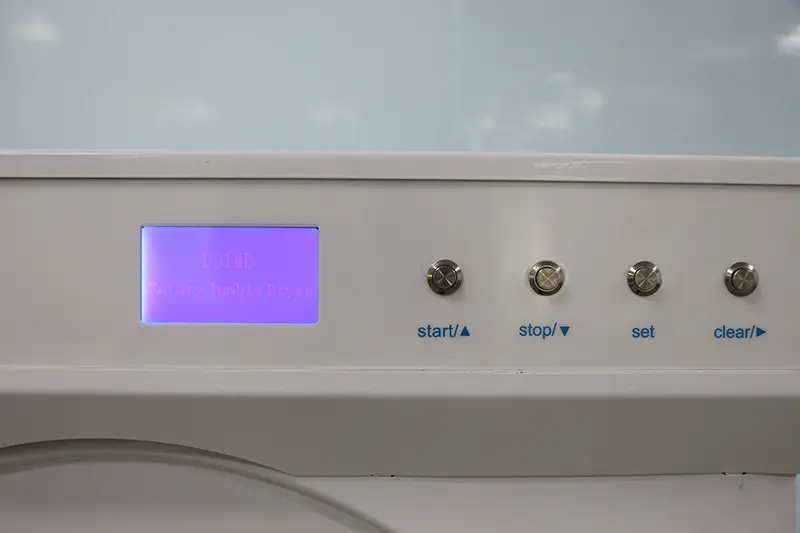

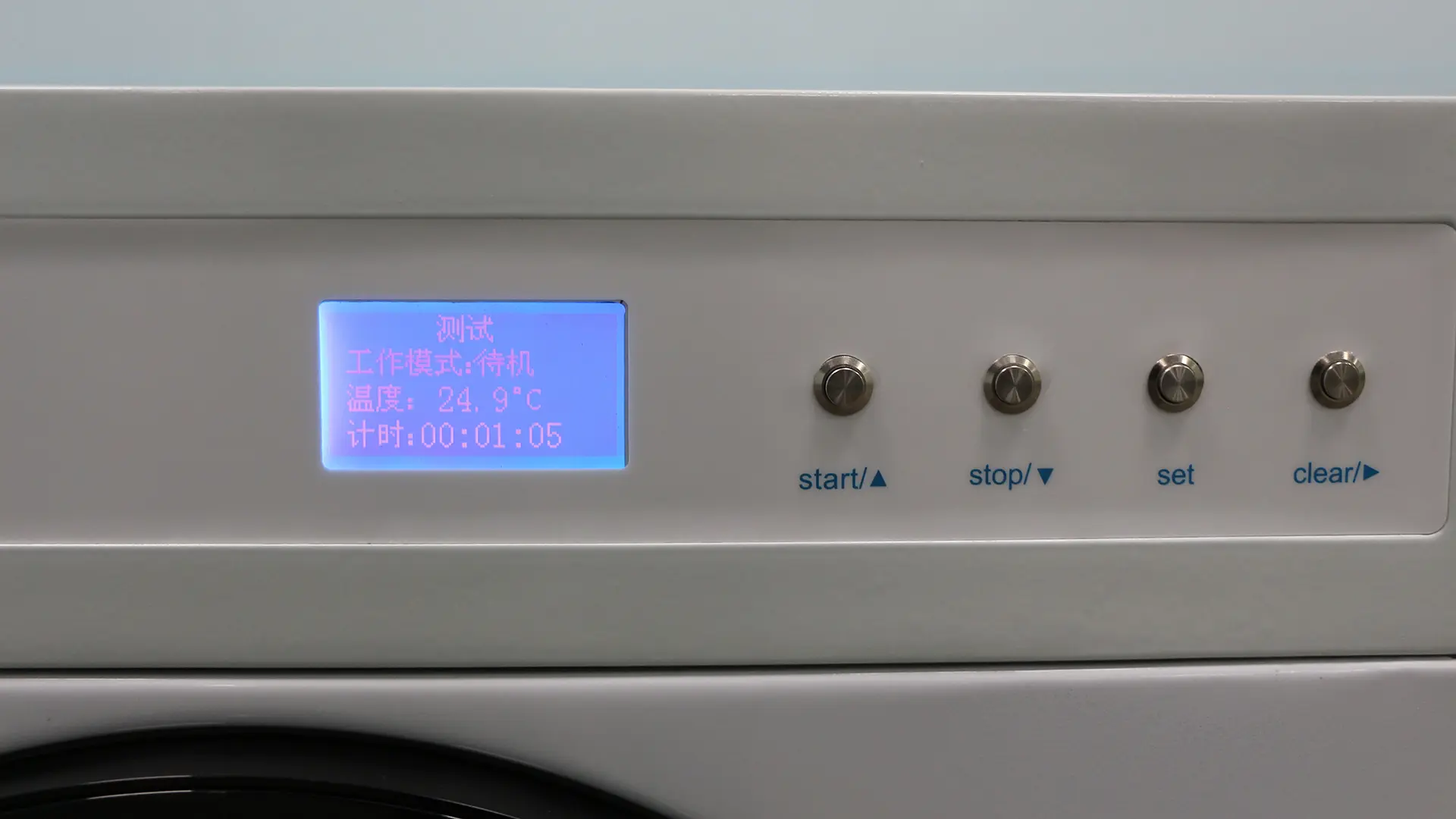

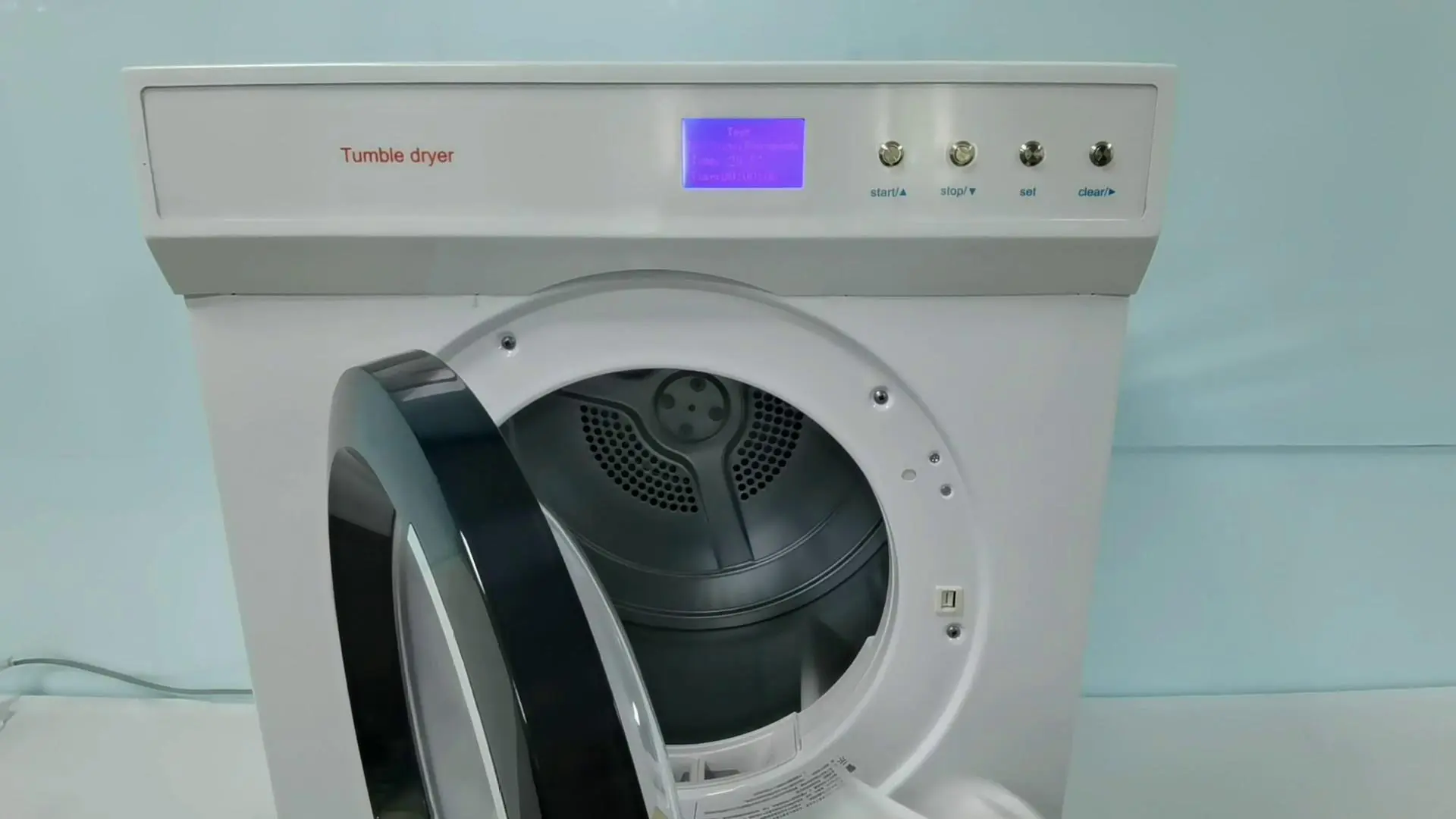

Control panel

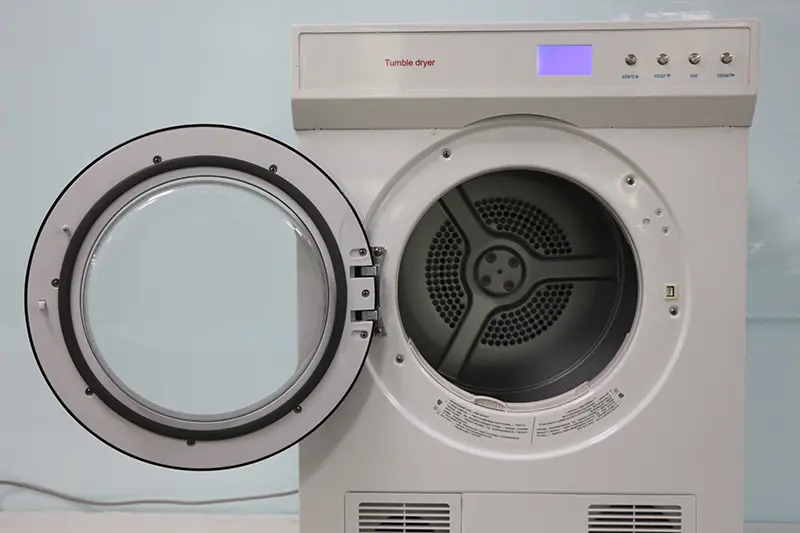

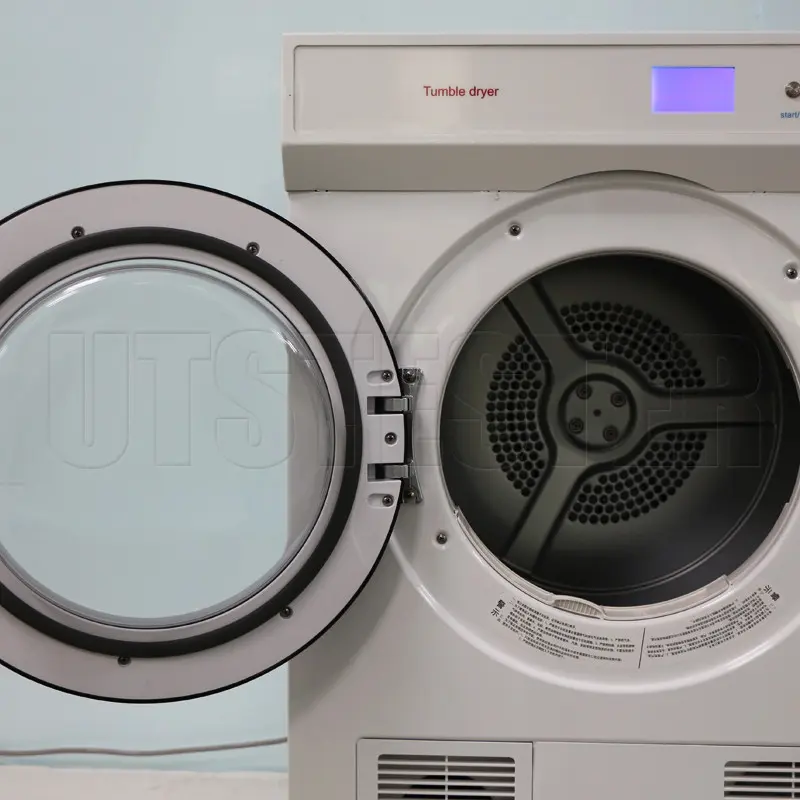

Dryer door

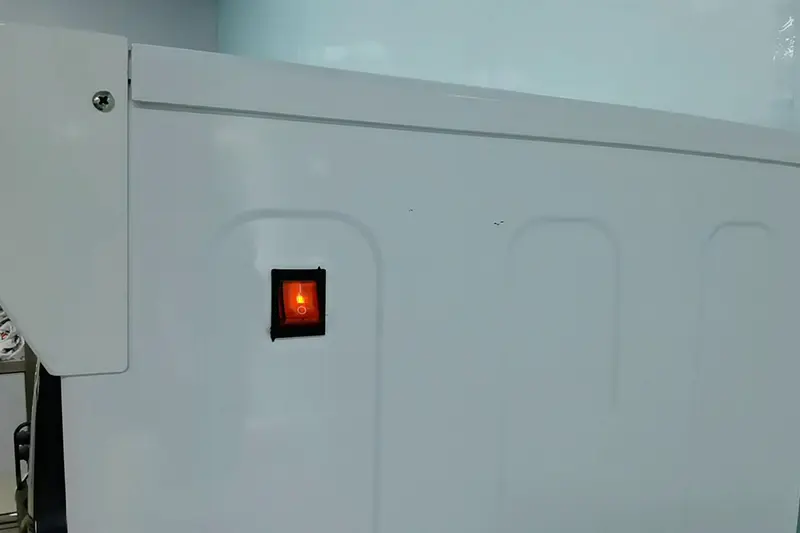

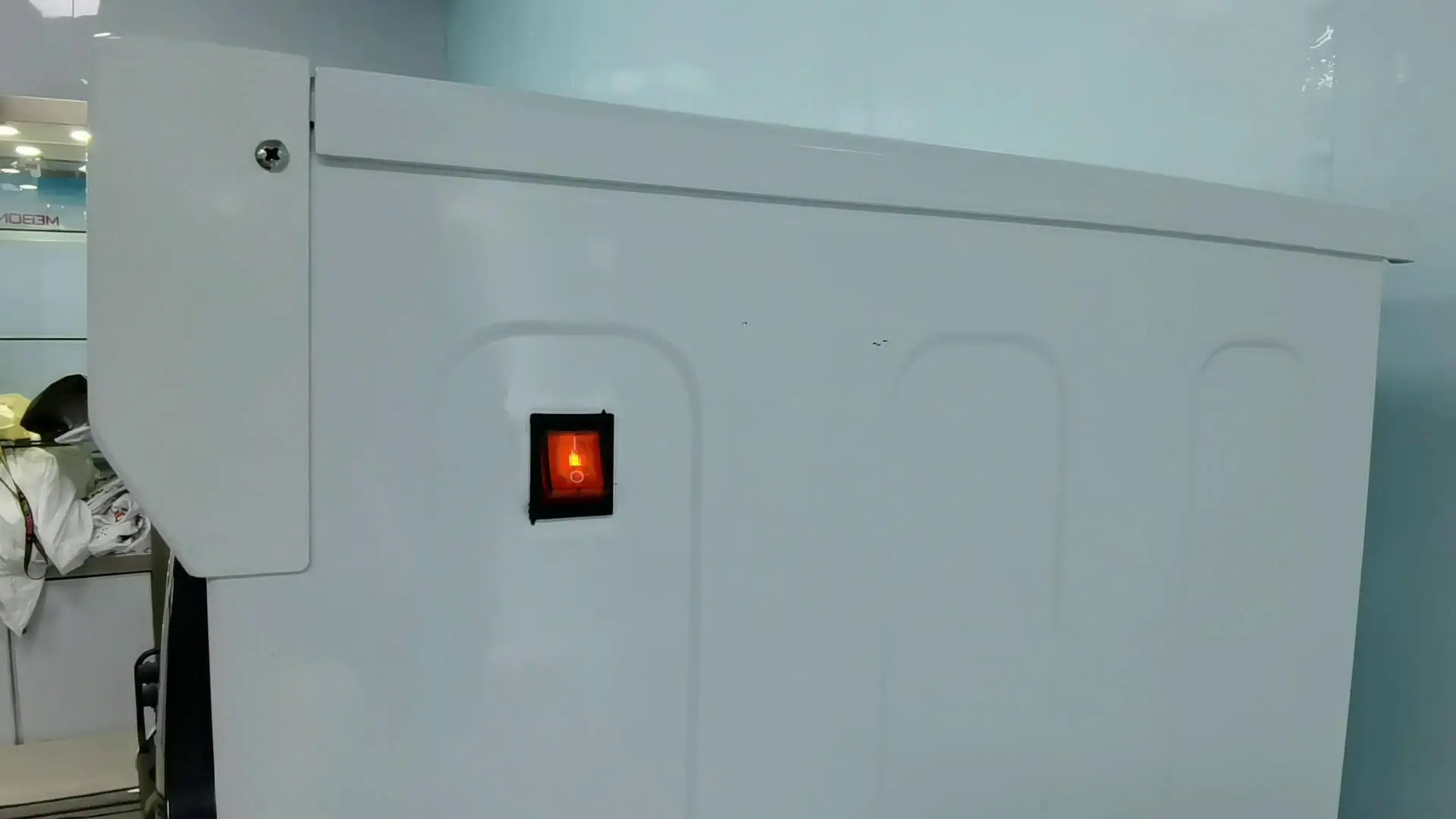

Power switch

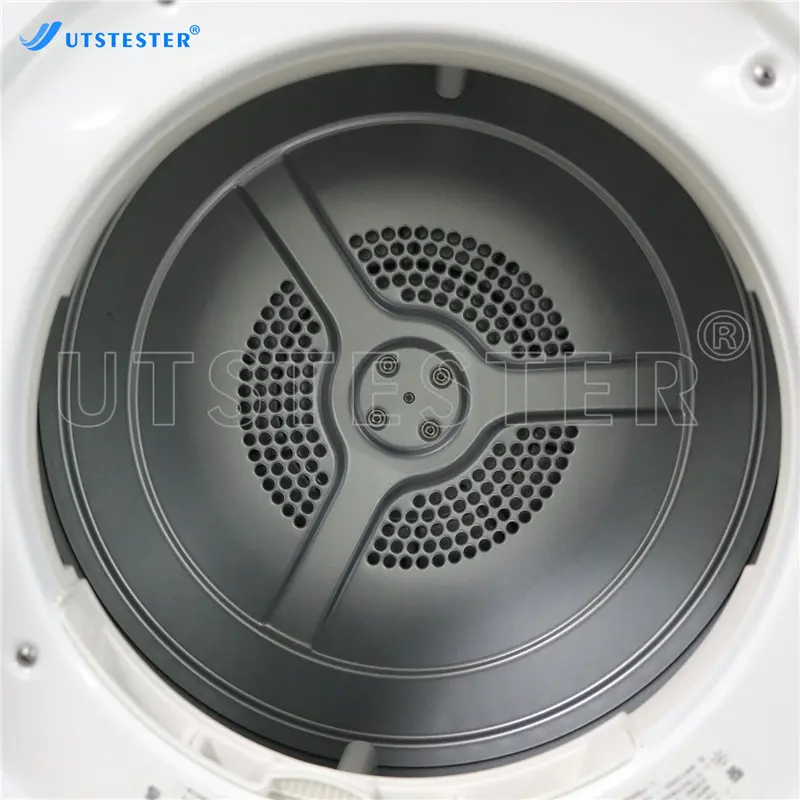

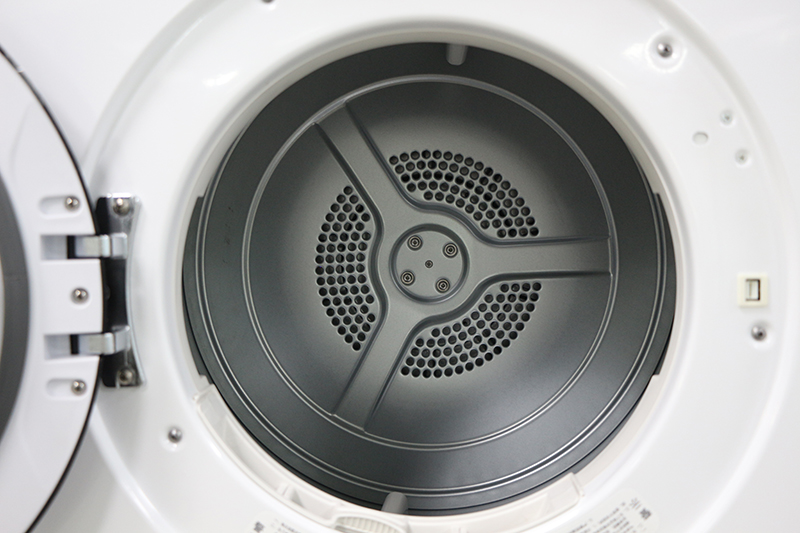

Stainless steel inner cylinder
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Turn on the power
Before the test, put the tumbling dryer on the weighing platform to measure the quality of the dryer and make a good record.Then plug in the power supply to preheat for 5 minutes and start working.
Set parameters
Entering the Settings screen，can be set drying time, cooling time, forward rotation time (1-999min).
Sample weighing
weigh and record the washed and dehydrated samples and washing products.
Set parameters
Select the standard program according to the test requirements and set the corresponding parameter values.

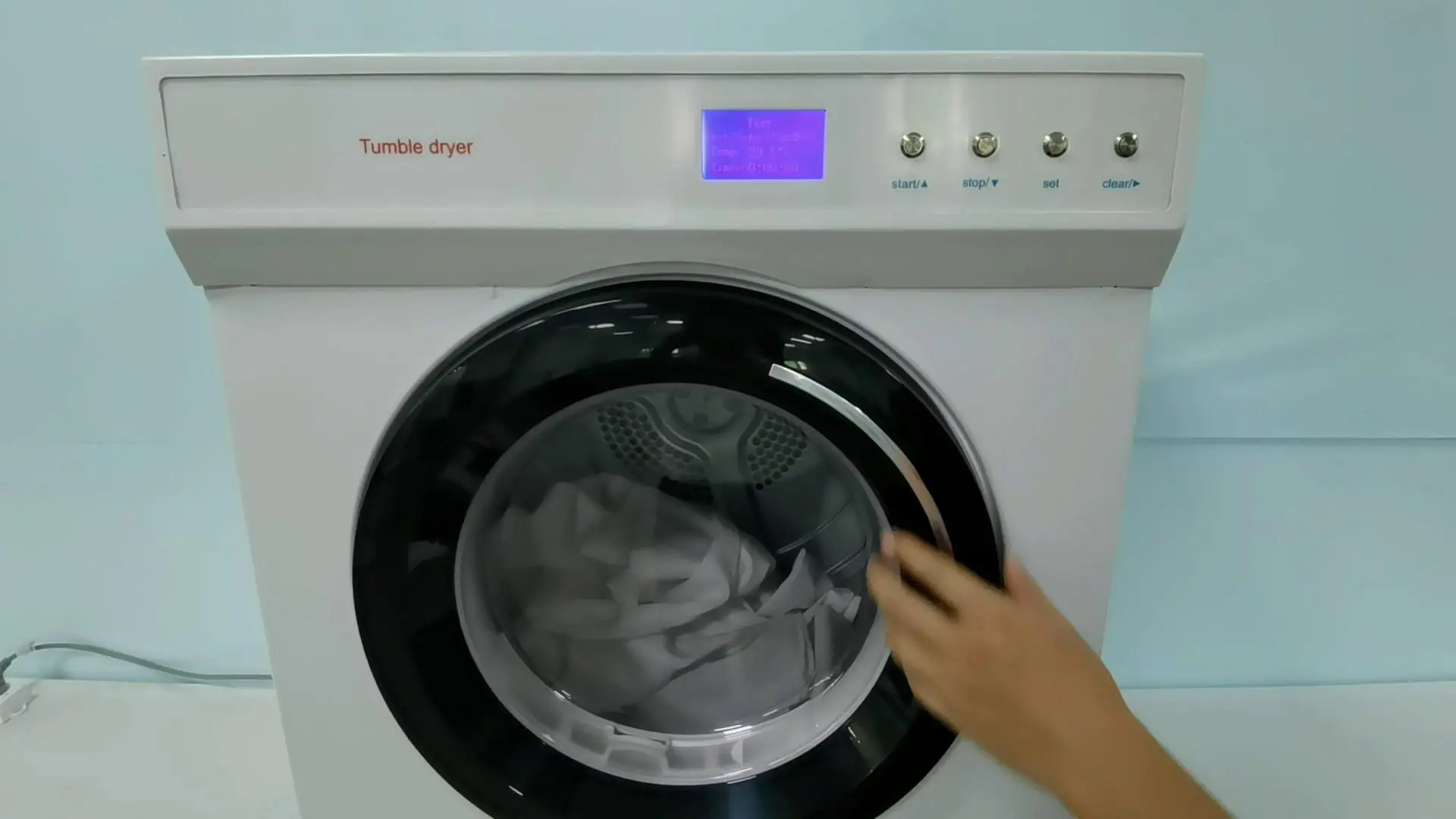

Place sample
Open the dryer door, the sample and wash into the dryer drum, close the door.

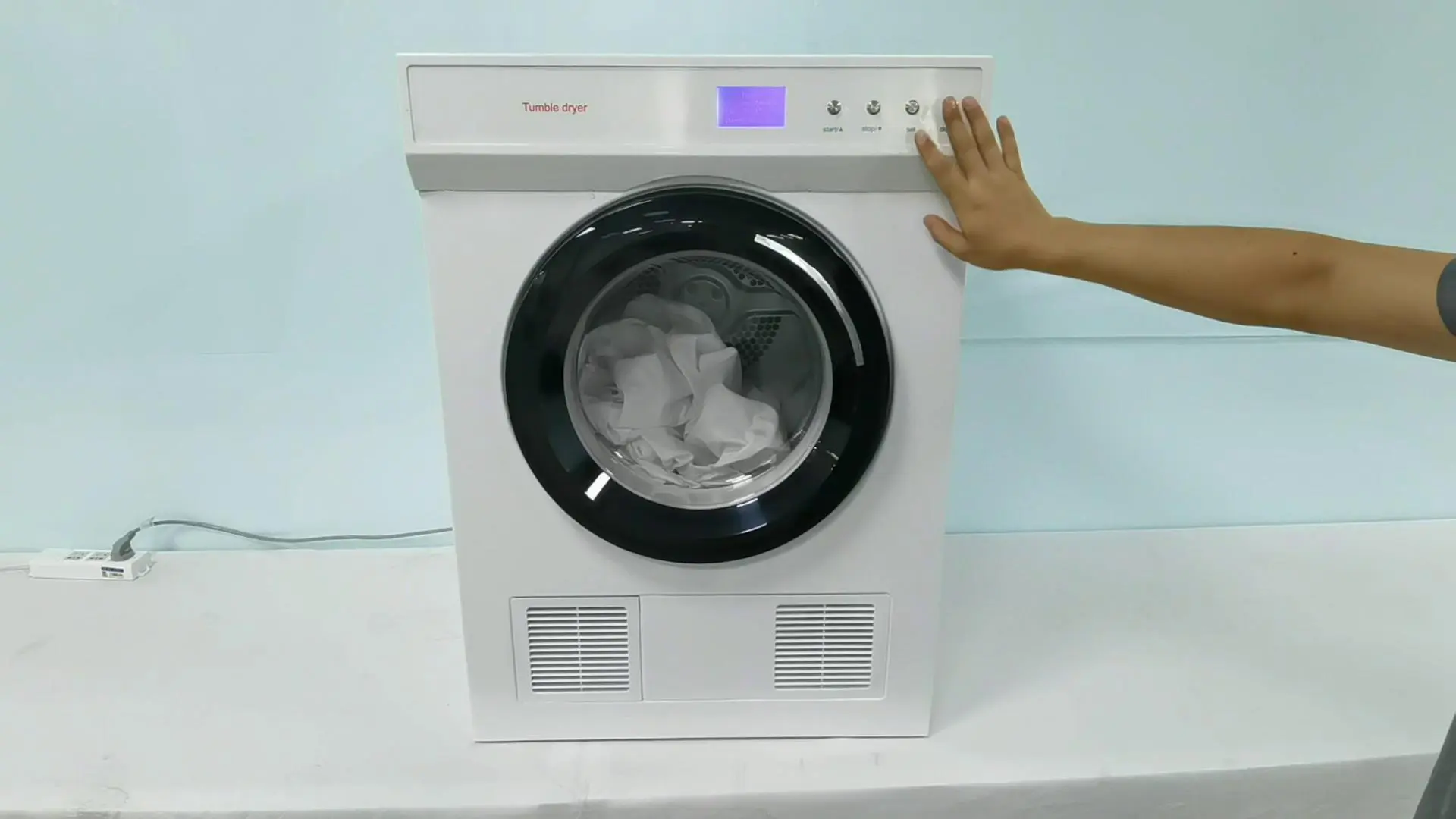

Start testing
Activate the button and the dryer automatically tumbles dry. At the end of the test, open the dryer door to remove the specimen.
