Pilling and Snagging Machine ICI Pilling Tester Random Tumble Tester M010A
Textile Testing Equipment

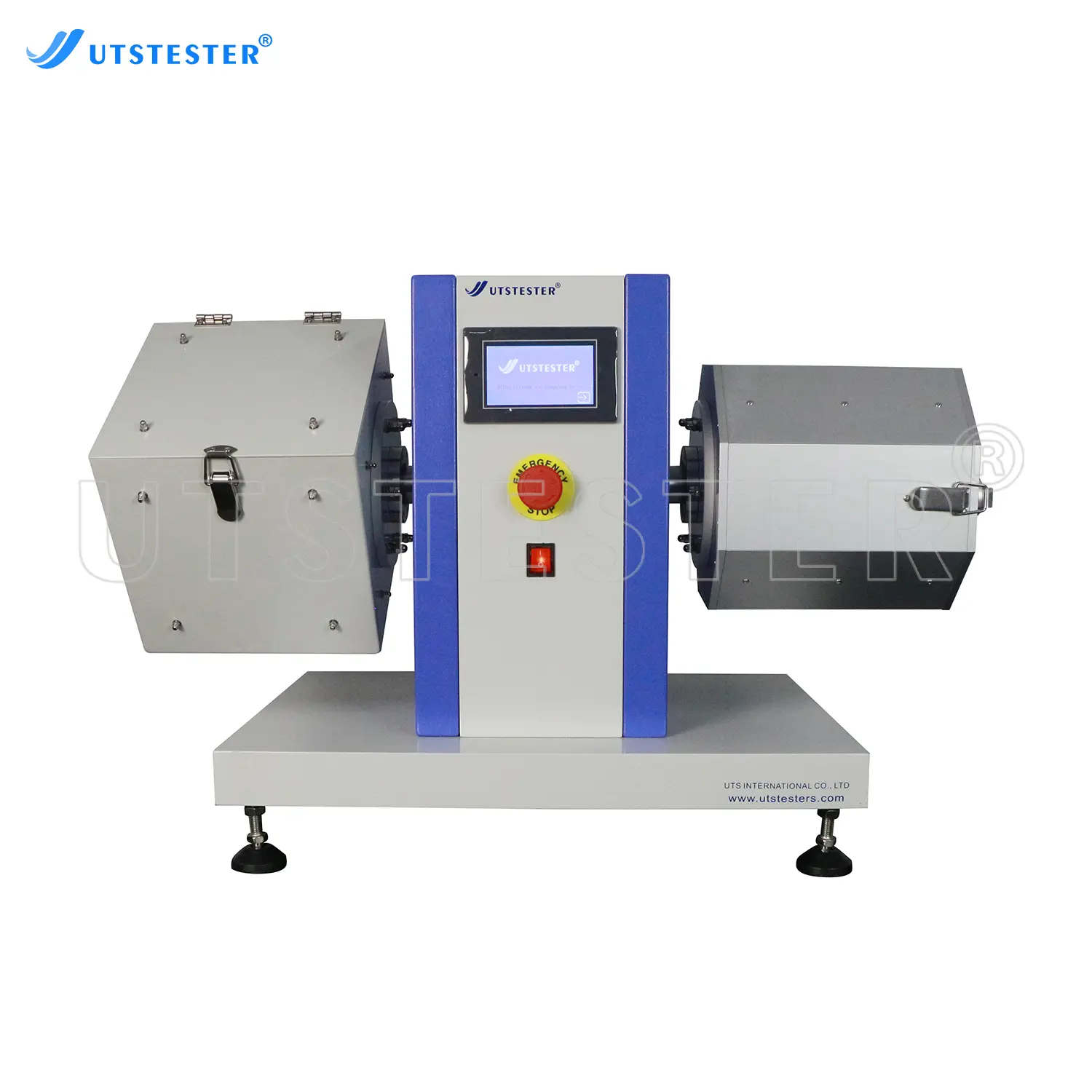

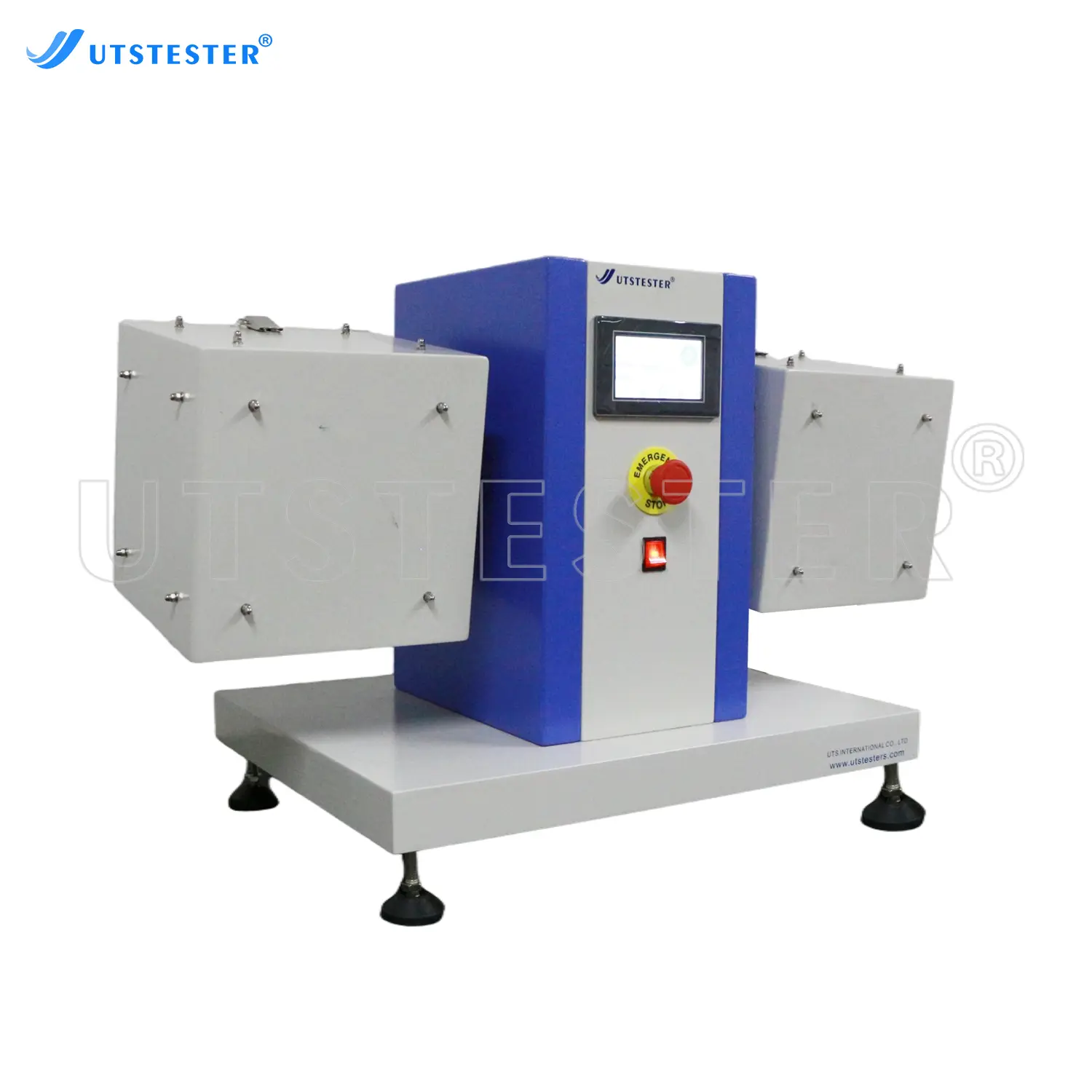

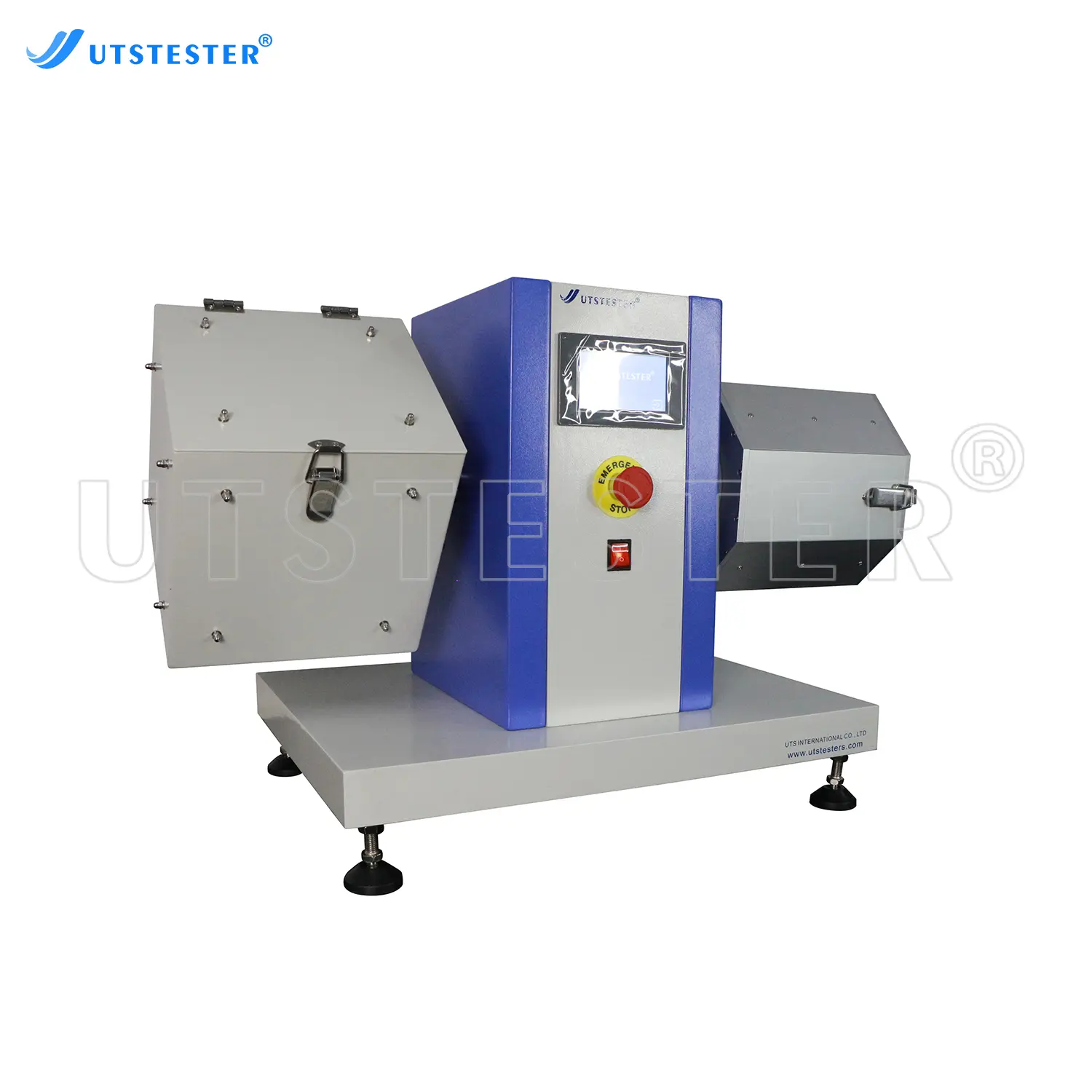

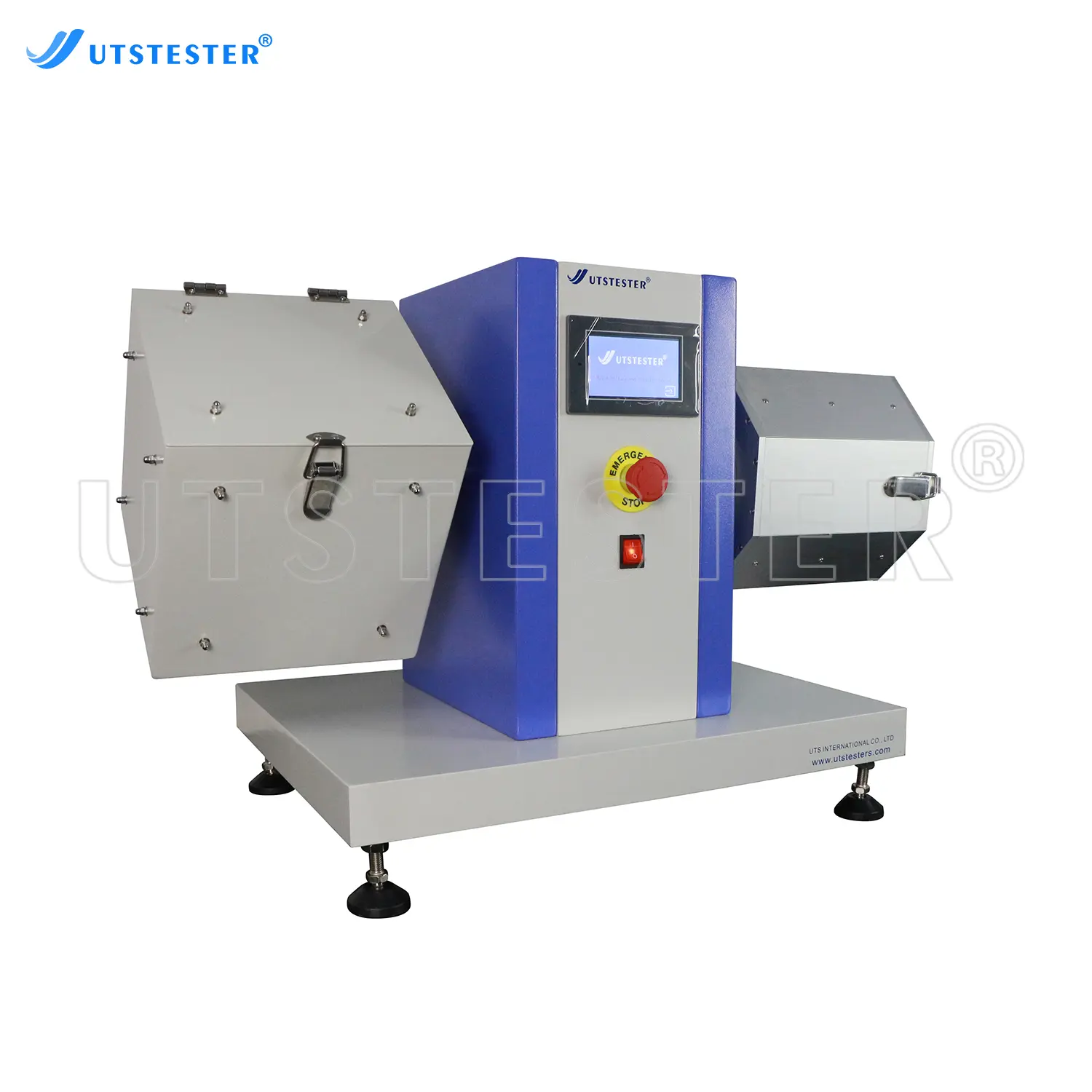

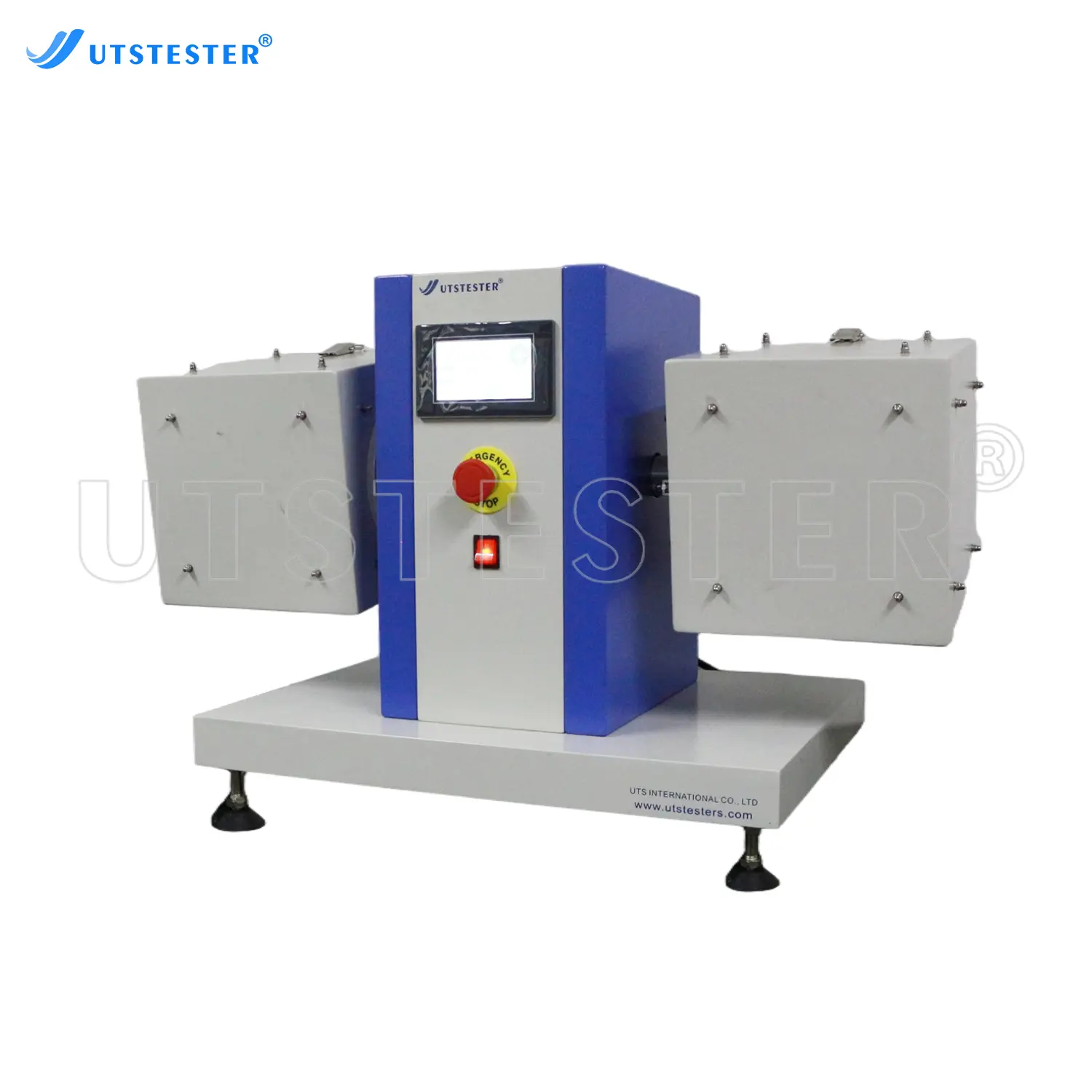

Pilling and Snagging Machine ICI Pilling Tester Random Tumble Tester M010A

1. Three modes available with 2, 4, 9 pilling boxes.
2. Drives can operate different boxes and drums simultaneously.
3. Snagging points can be mounted in the pilling boxes - no need for different boxes.
4. Touch screen controller has standard tests preloaded.
5. Count down timer lets operator know when test will finish.
6. Cork liners held by magnets for easy changing – no need to remove boxes.

    Overview

    M010 ICI Pilling Tester is used to assess surface pilling degree for fabrics particularly wool knitted fabric.

    The color touchscreen controller has all the standard tests preloaded so tests can be started with just a couple of touches. Magnetic backed cork liners make cork changes easy without the need tow remove the box from the drive.

    Application

    IMITATION WOOLEN KNIT

    IMITATION WOOLEN KNIT

    WOOLEN KNIT

    WOOLEN KNIT

    Standards

    GB/T4802.3, ISO 12945.1, BS5811, JIS L1076, IWS TM152

    Key Parameters

    Model M010A M010B M010C M010D
    Pilling boxes quantity 2 Boxes 4 Boxes 6 Boxes 9 Boxes
    Interior box size 235×235×235mm
    Rotational speed 30-70 rpm, adjustable
    Rotational direction positive and negative rotation, optional
    Counter range 1-99999 times
    Polyurethane sample tubes External: Φ31.5×140 mm 4 Pieces per box
    Power supply AC 220V 50/60HZ 120W
    Dimensions (L x W x H) 1200x 500x 500 mm 1200x 500x 800mm 900×500×1100mm 1400x500x1600mm
    Weight 40kg 60kg 120kg 180kg

    Product Details

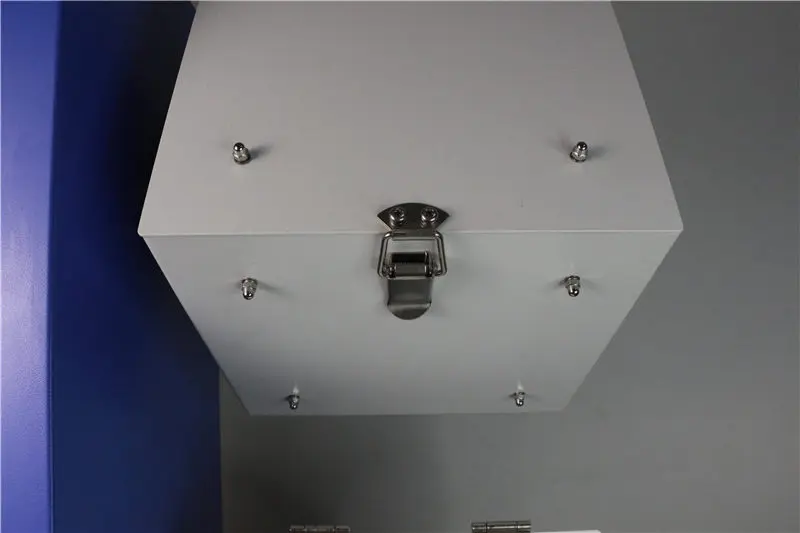

    box lid

    box lid

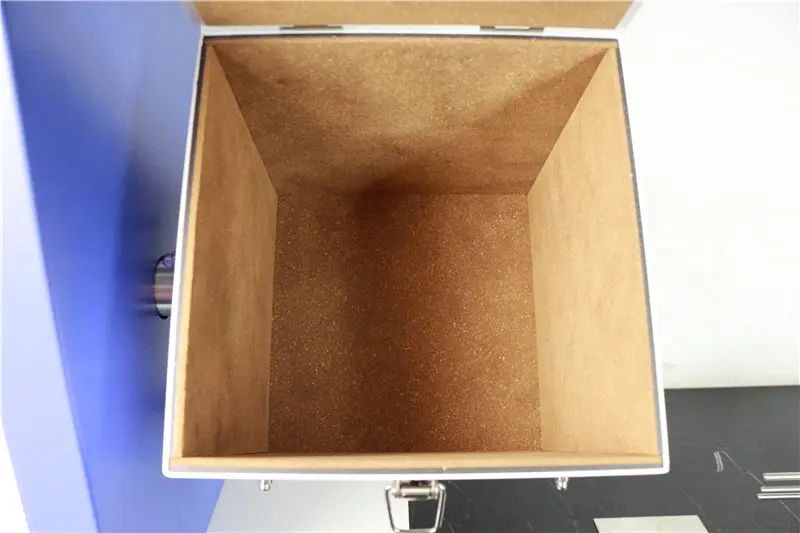

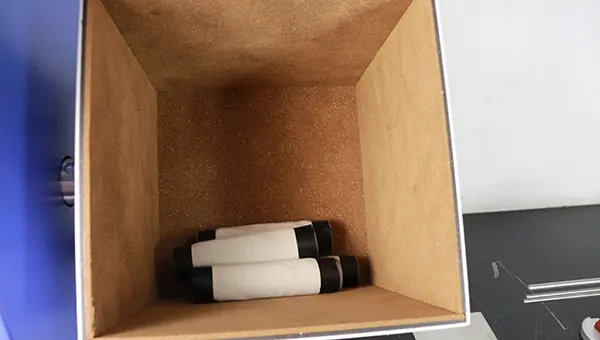

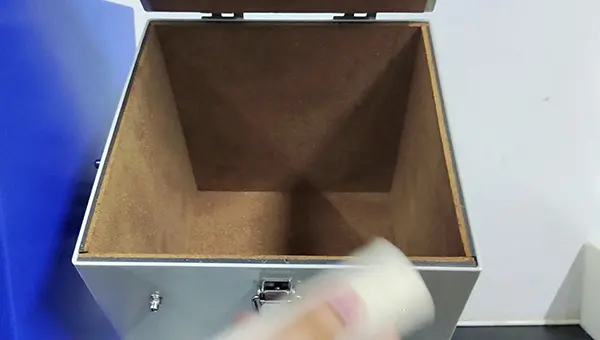

    box(placing sample)

    box(placing sample)

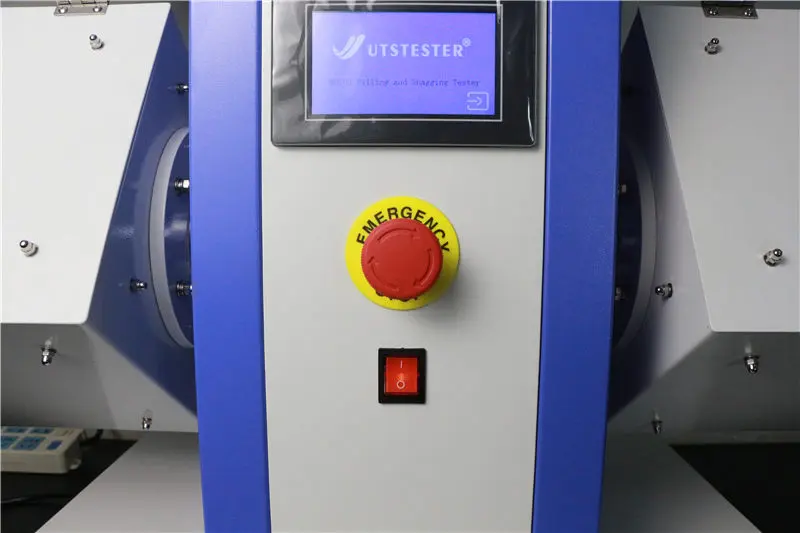

    screen

    screen

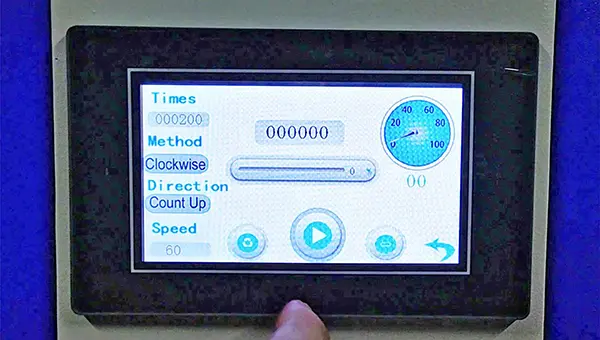

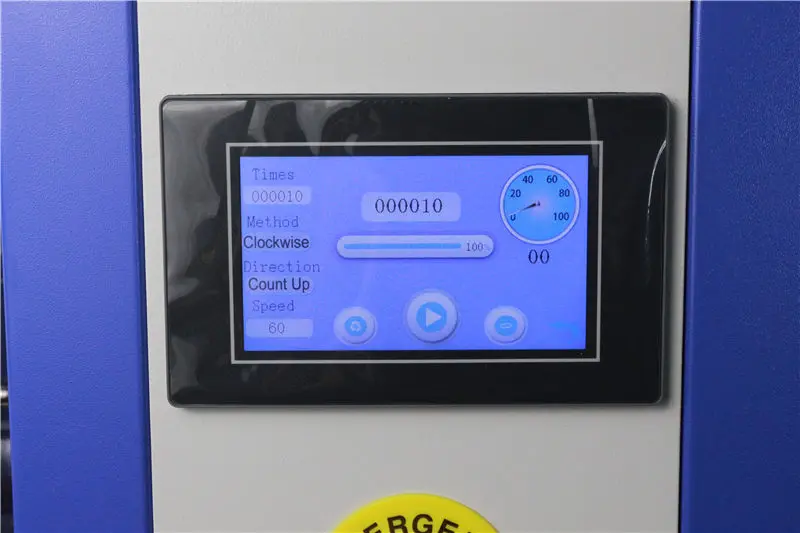

    test interface screen

    test interface screen

    Production Processes

    image02816o

    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

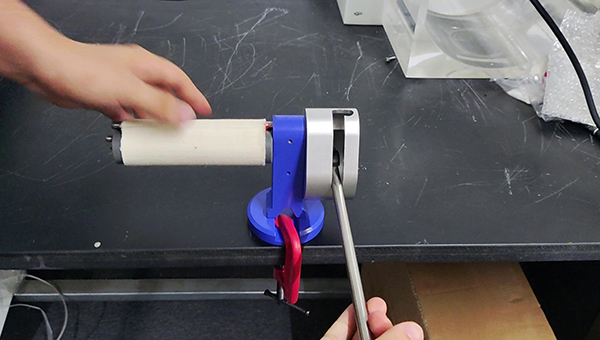

    Cut samples to standard

    Cut the sample and make it according to GB/T4802.3-1997 national standard.
    2

    Check the pilling box

    Check the pilling box, the box must be clean, without any wool fiber.
    3

    Put in sample

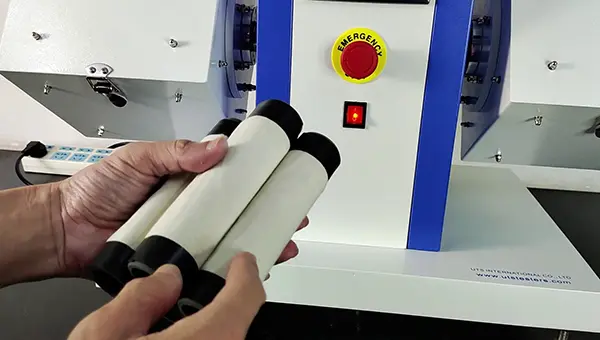

    Put the sample carrying tube with the sample set into the box.close the box cover and buckle the lock box.
    4

    Preset parameter

    Plug in the power plug to turn on the power switch, preset the speed and times.
    5

    Start testing

    press the start button, after the completion of the experiment, the instrument will automatically stop.
    6

    Observe sample

    take out the sample for observation.
