Lab Equipment Fabric Water Vapor Transmission Tester Wvtr Test Machine M029-B1
Overview
To determine water vapor permeability (waterproofing and moisture-penetration performances) for various fabrics (including moisture permeable coated fabrics) and Non-woven fabric for garment usage including bat wool, space cotton, etc.
Application
Fabrics
Non-woven fabric
Standards
GB/T12704 ASTM E96 JIS L1099 B1 & A1 BS 7209 ISO 17699 ISO15496
Key Parameters
|
Model |
M029-1 |
M029-3 |
M029-B1 |
|
Moisture permeance layer |
1 |
3 |
1 |
|
Measuring glass |
8pcs |
8pcs x 3 layers |
8pcs |
|
Temperature range & resolution |
18~50℃; / 0.1℃ |
20 ~ 50℃; / ±1℃ |
|
|
Interior chamber air flow speed |
0.1~0.8 m/s |
0.3 ~ 0.8 m/s |
0.1~0.8 m/s |
|
Temperature accuracy |
±5℃ |
||
|
Humidity range & resolution |
40%RH ~ 95%RH±1%RH |
||
|
Display |
Color touch screen |
||
|
Power supply |
AC220V 50Hz 3500W |
||
|
Dimension |
740×670×1185mm |
1058 x 630 x 1600 mm |
1058 x 630 x 1600 mm |
|
Weight |
150kg |
200kg |
250kg |
Product Details

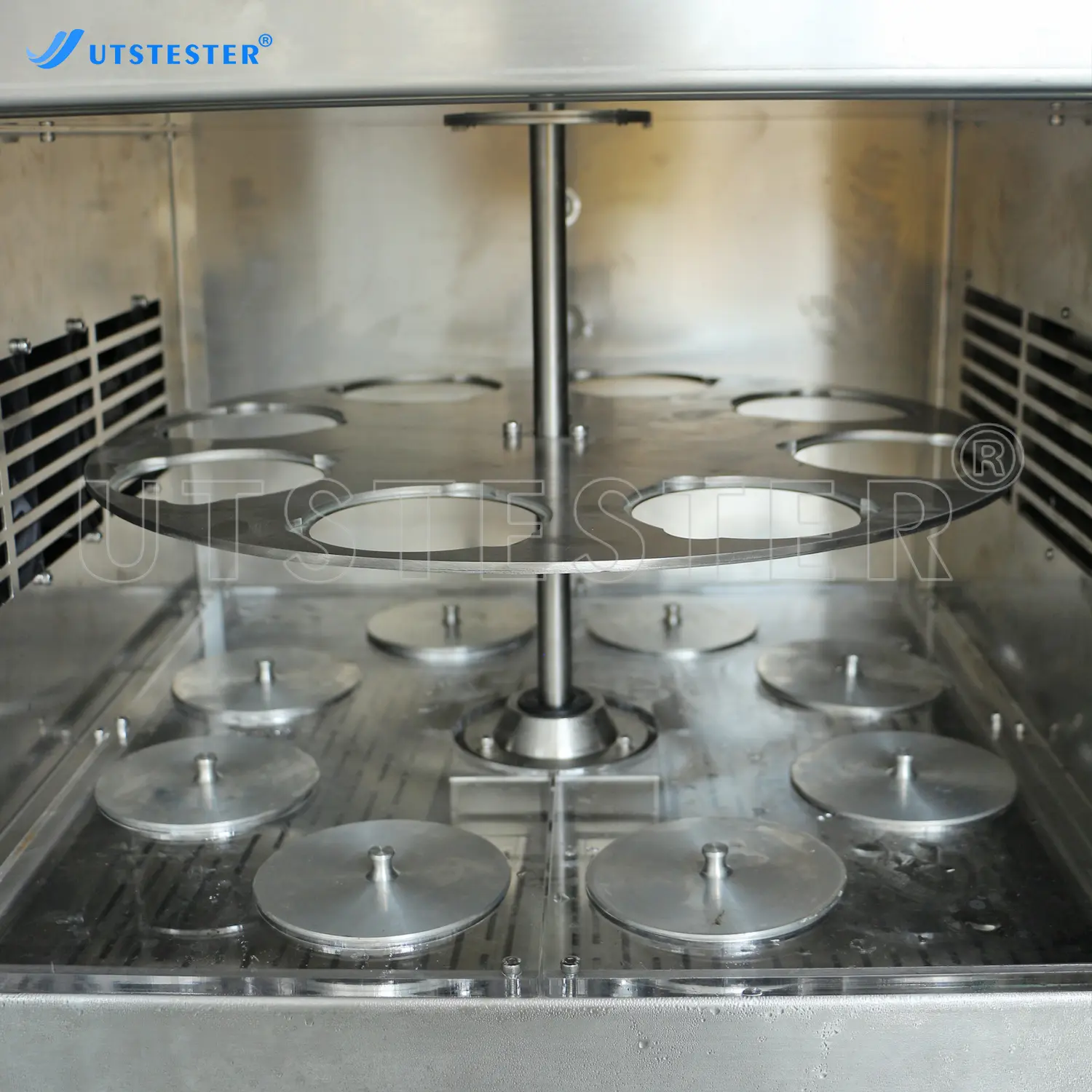

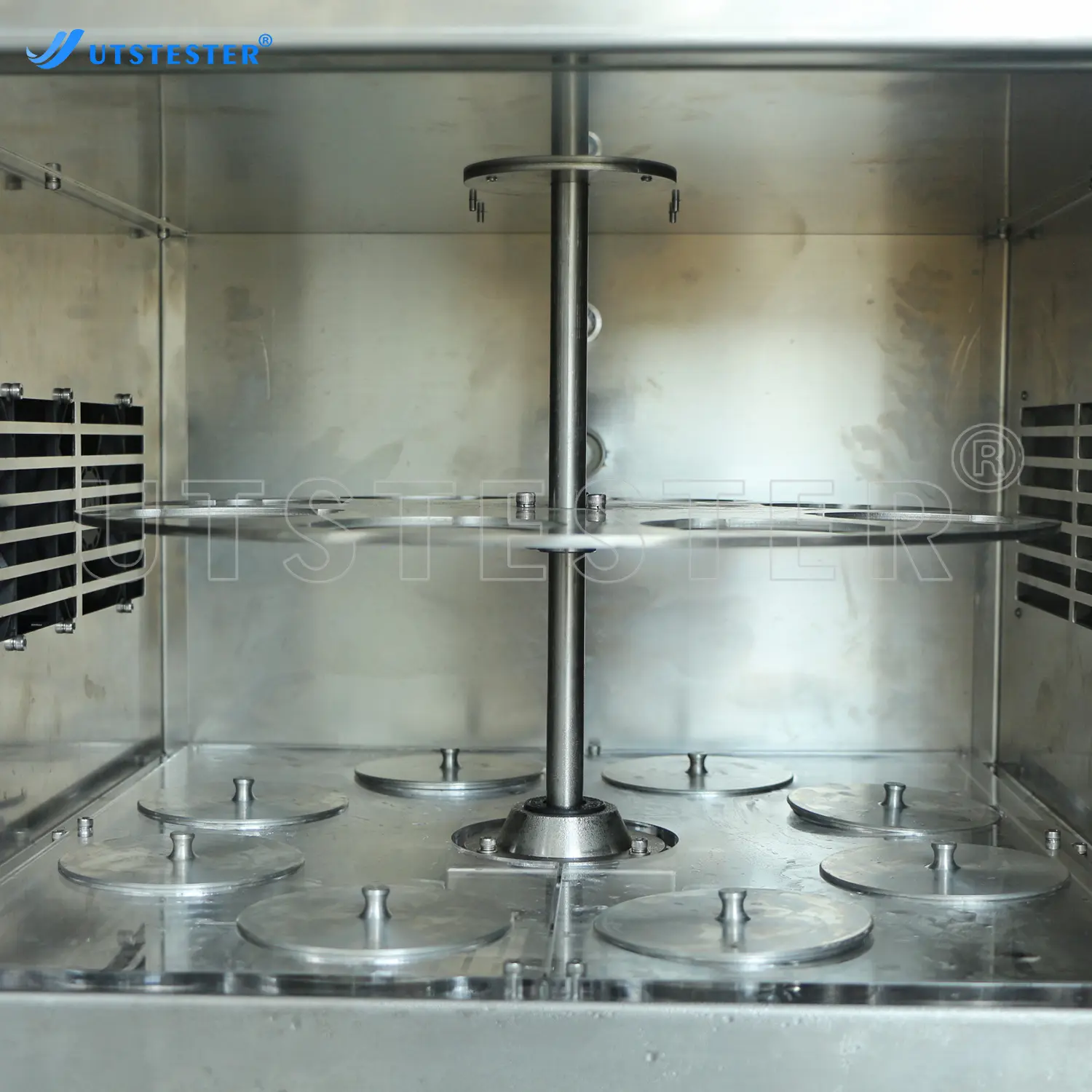

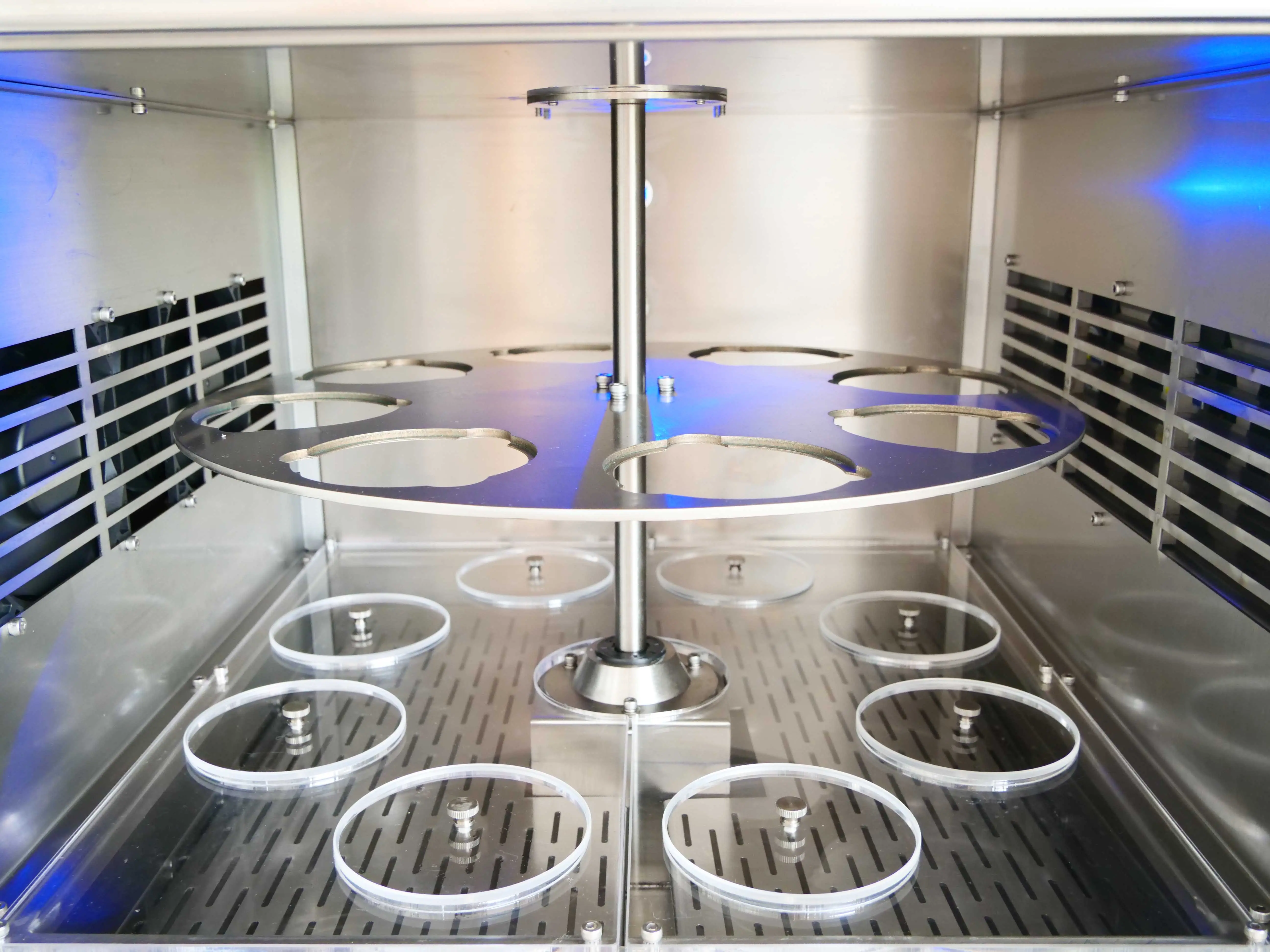

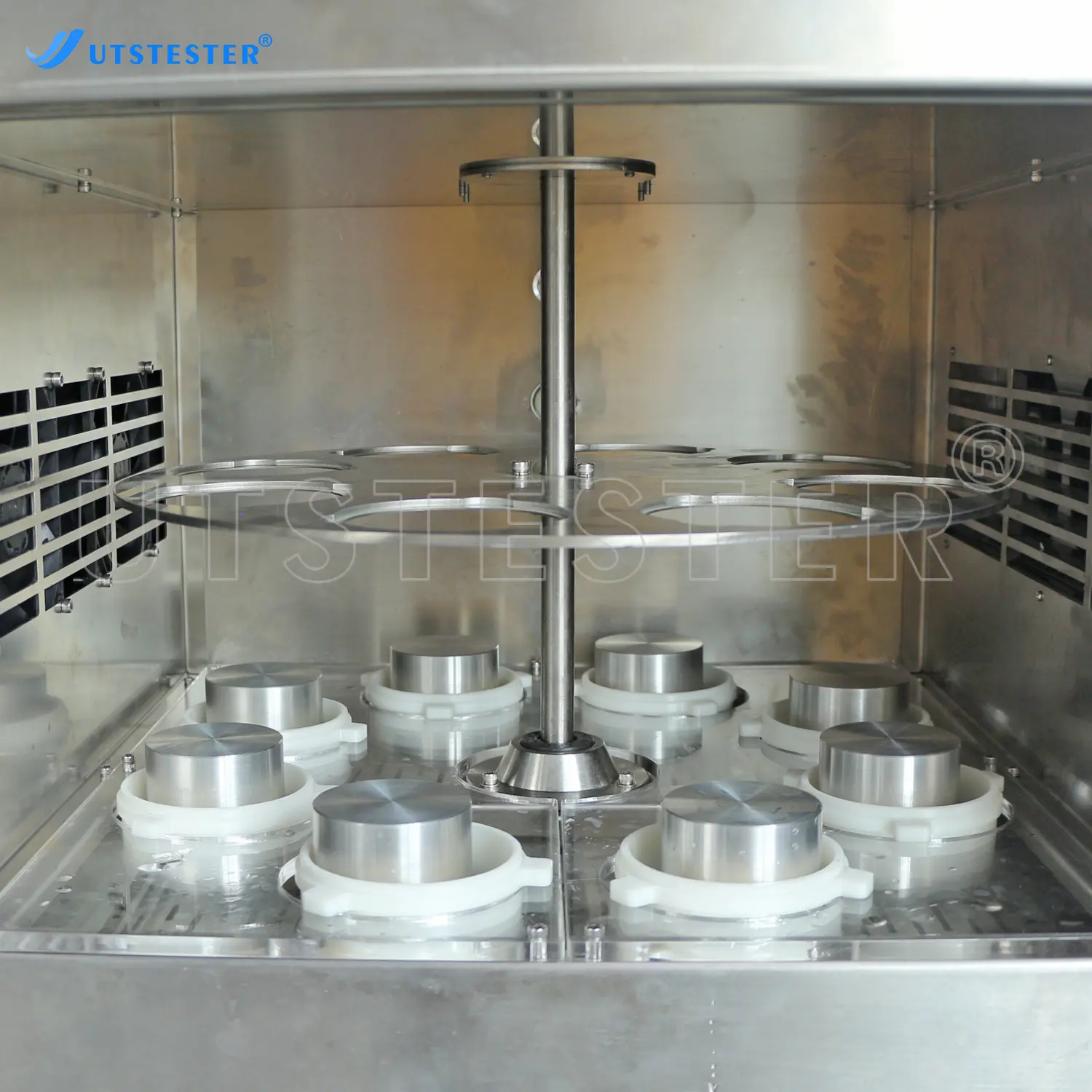

Test chamber

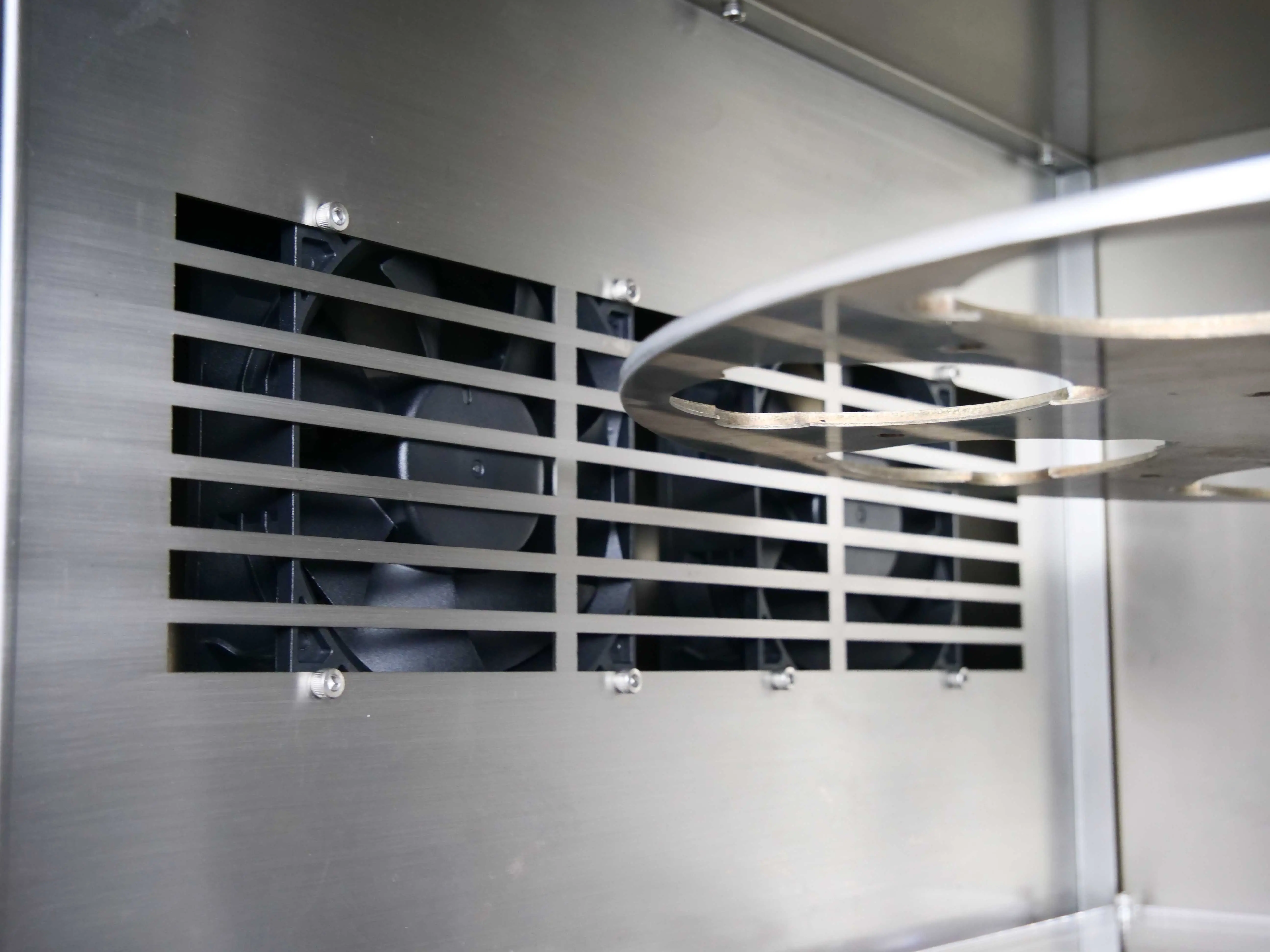

Internal circulation device

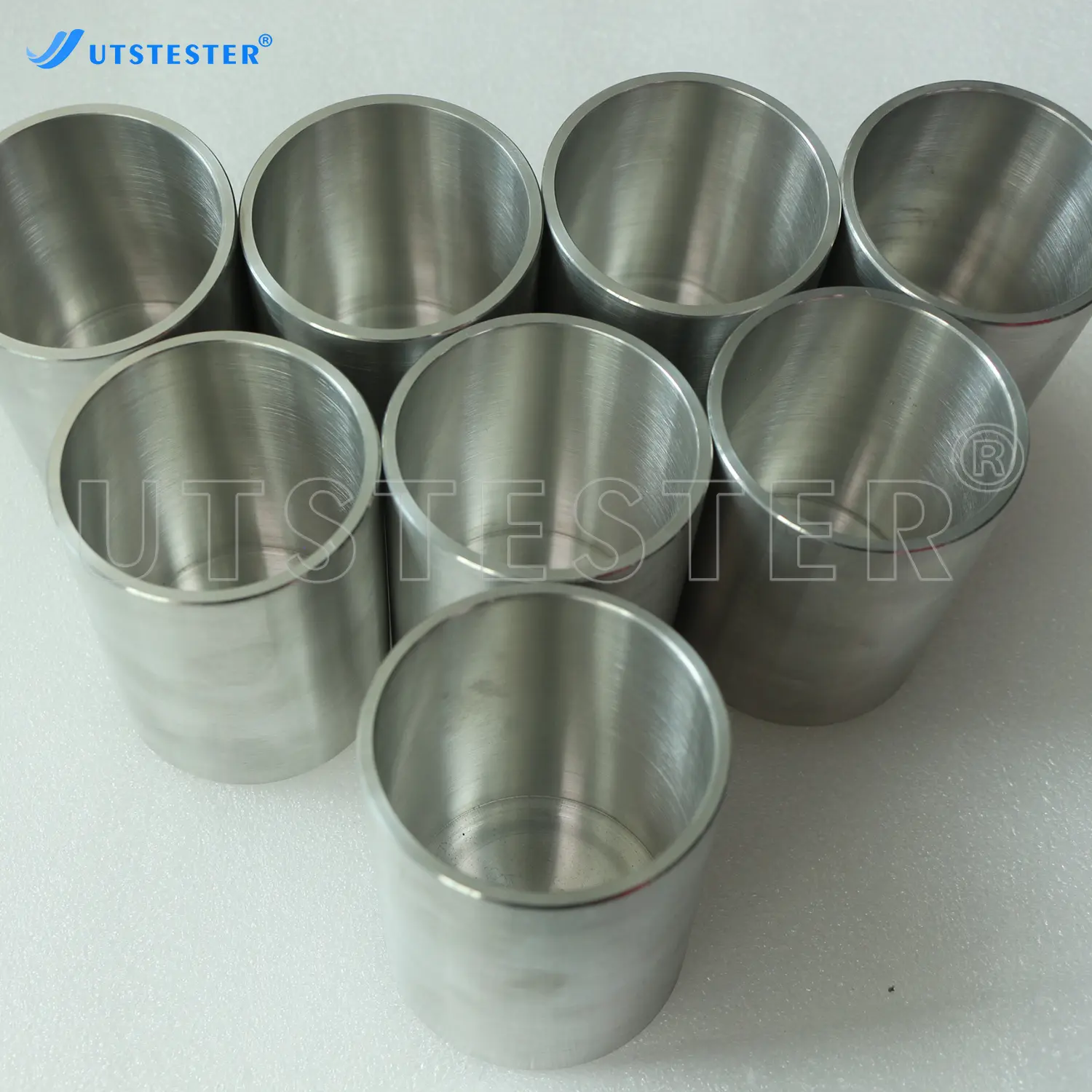

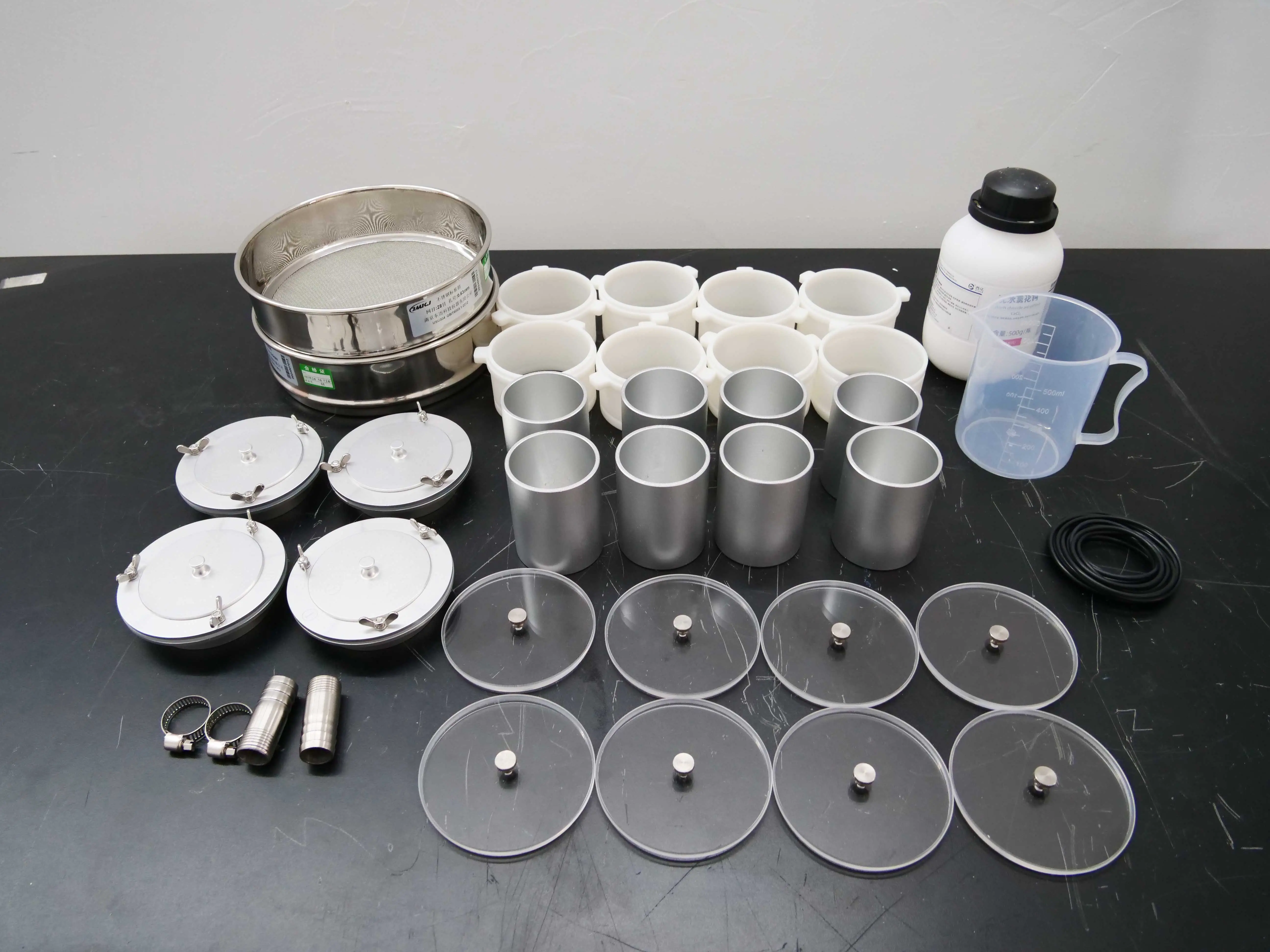

Test dishes
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
