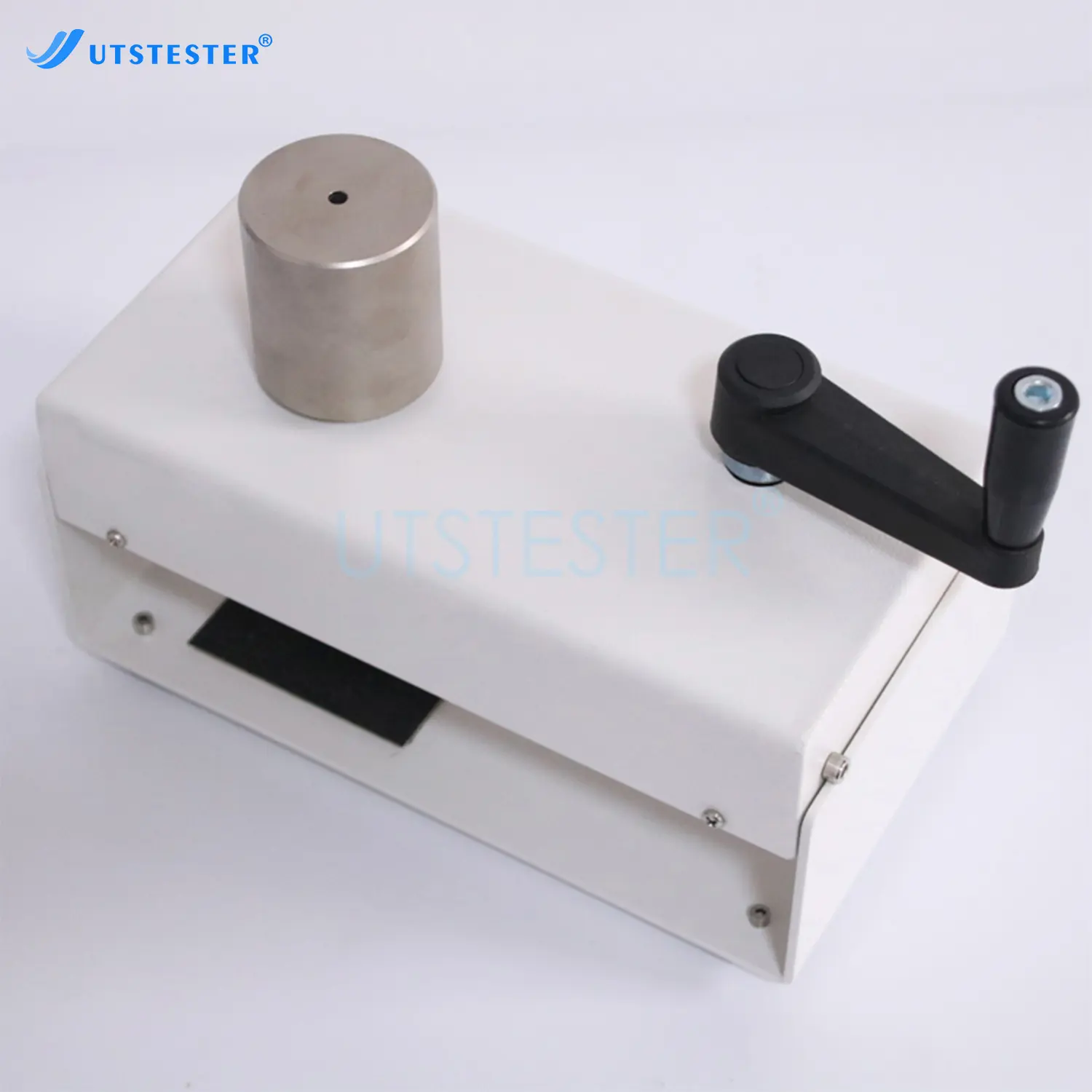

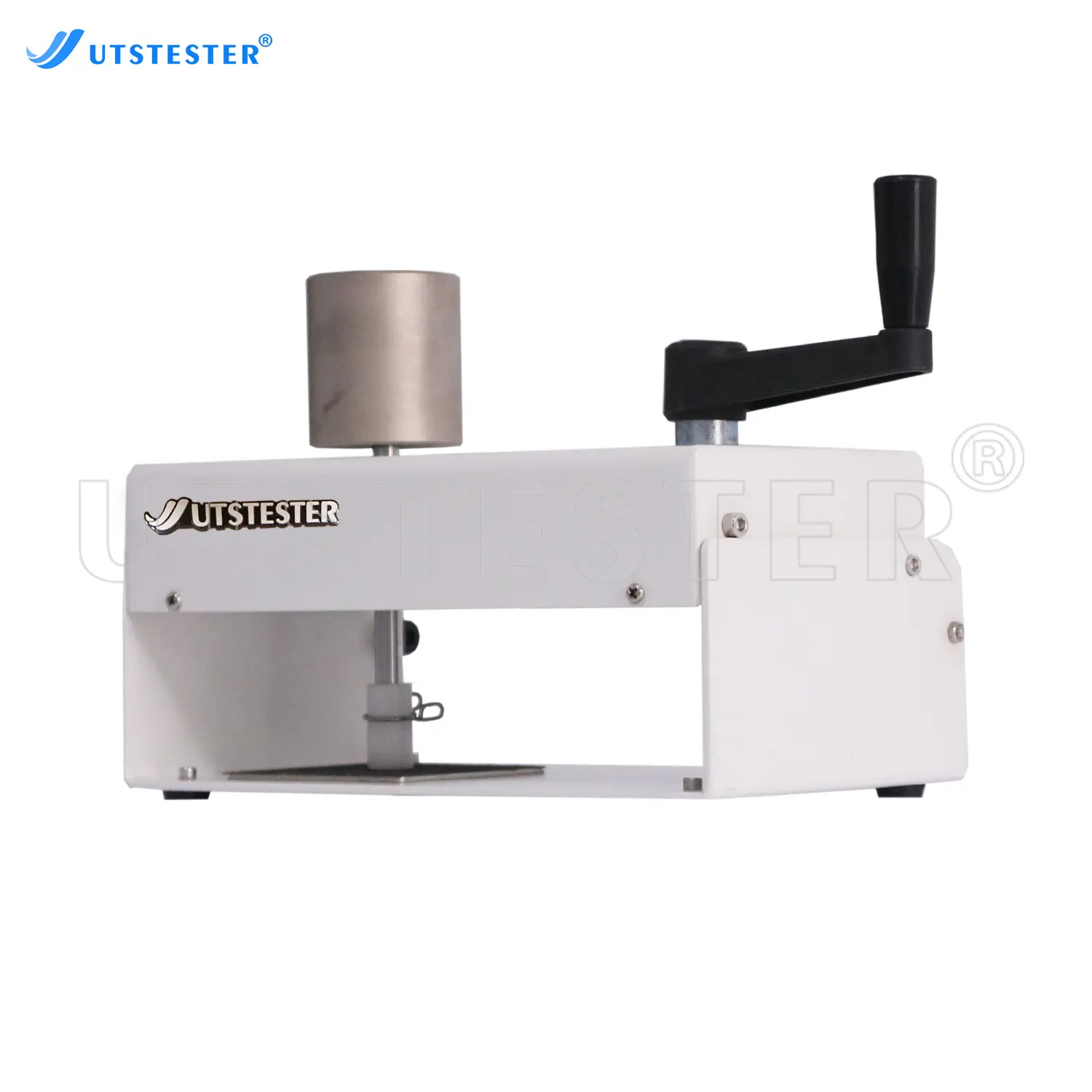

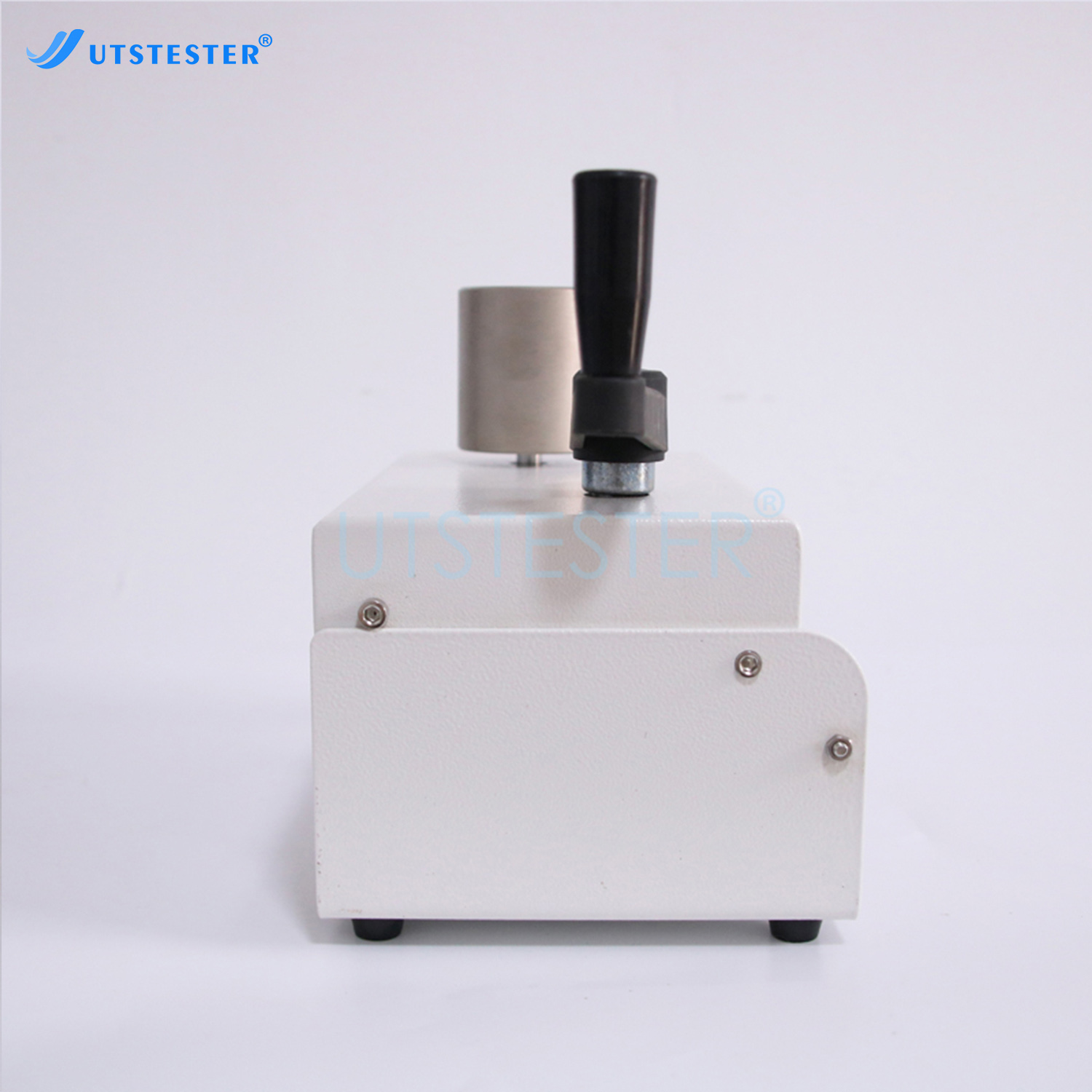

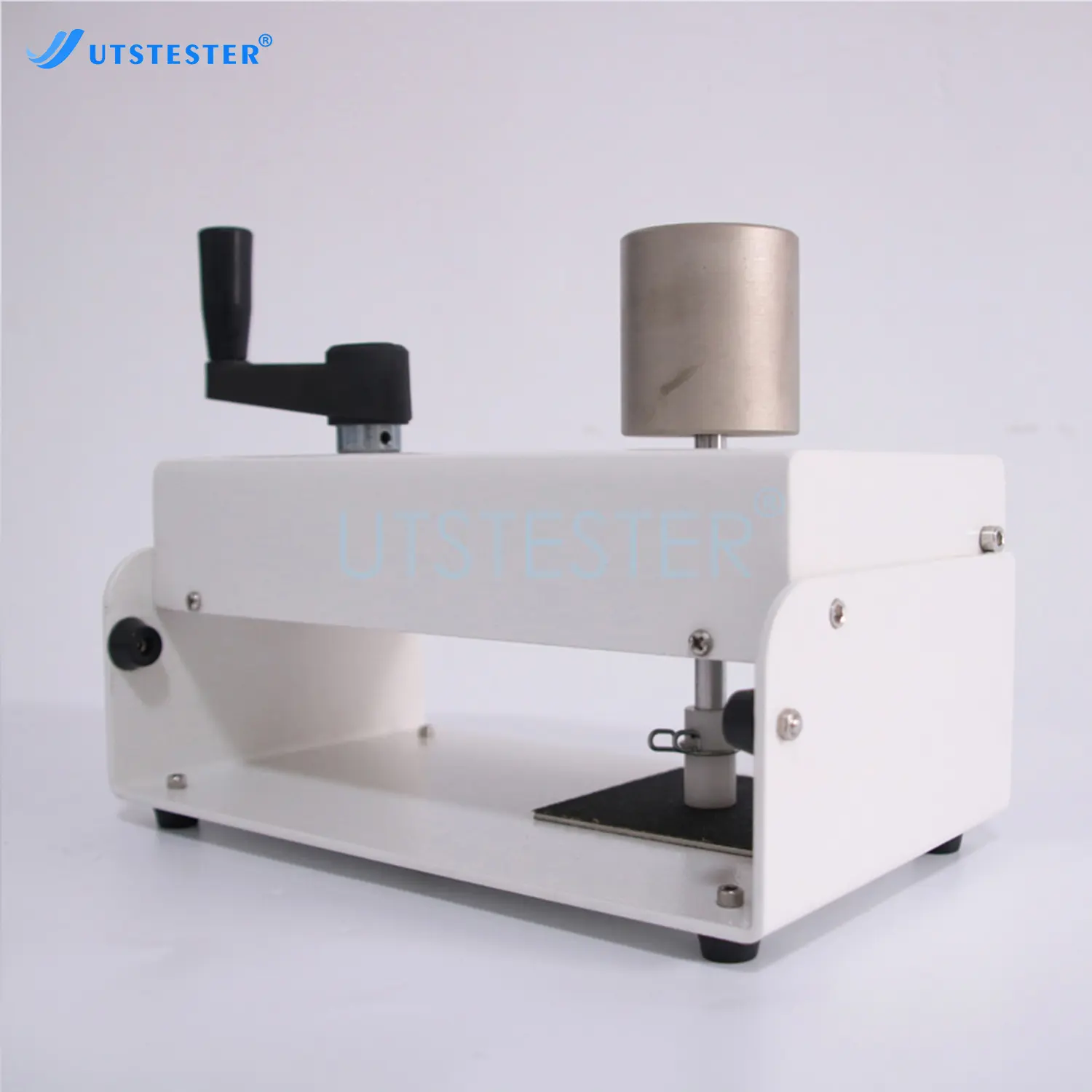

Dry or Wet Rubbing Method Rotary Vertical Crockmeter by AATCC D005
Overview

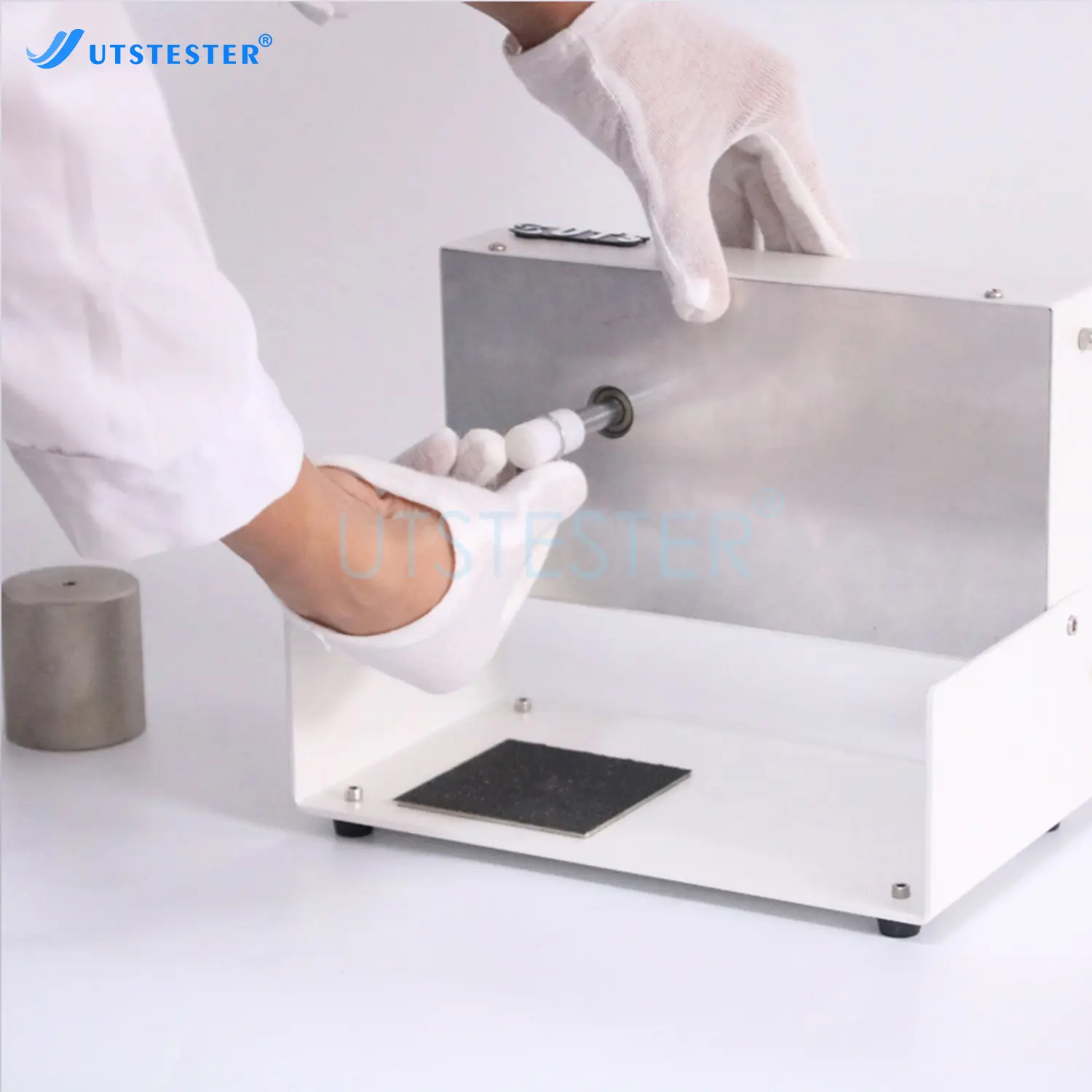

Crockmeter is used to determine colour fastness to wet and dry rubbing. Apart from textiles, also can be applicable for carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces. Provided with a steel specimen holder and 16mm diameter test finger.
This device is manual style and equipped with digital counter for counting.
Application
Nonwoven
Leather
Fabric/Graments
Carper
Standards
ISO 105X16 AATCC 116
Key Parameters
|
Model |
D005 |
|
Rotate angle |
(405±3)°alternately positive and reverse rotation |
|
Rubbing head |
Diameter 16mm |
|
Load |
(11.1±0.5)N/40oz±10% |
|
Sample size |
Not less than 25mmx25mm |
|
Cotton rubbing cloth |
50±2mm x 50±2mm |
|
Testing times |
20 cycles (one times of positive and reverse rotation as a cycle) |
|
Rubbing method |
Dry or Wet rubbing |
|
Operation mode |
Manual |
|
Dimensions (L x W x H) |
260×150×210mm |
|
Weight |
6kg |
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
