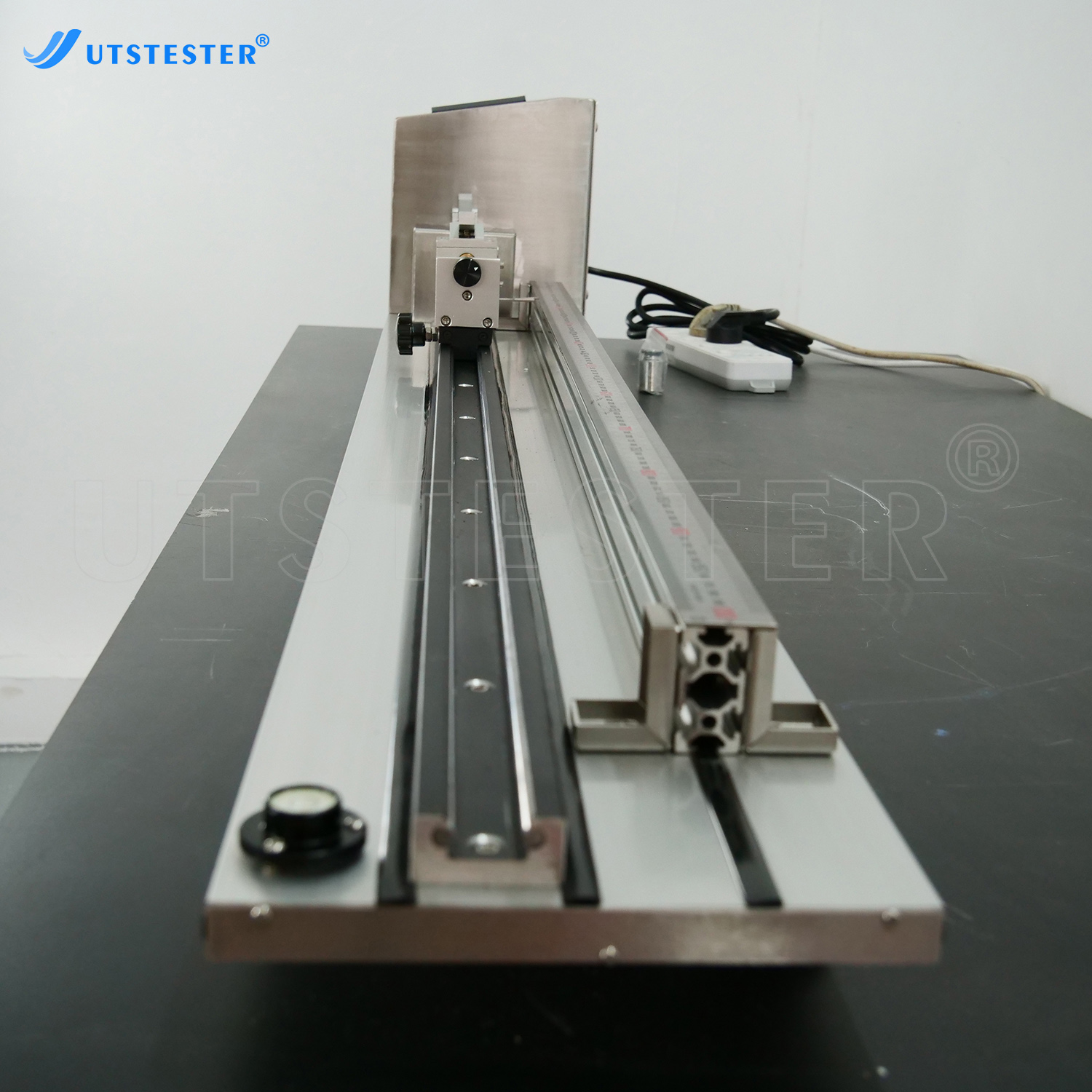

Digital Yarn Crimp Tester Yarn Length Testing Machine Yarn Curl Measuring Instrument Y016
Overview
This instrument is mainly used to measure the length of wool woven fabric, wool knitted fabric and yarn before knitting, so as to calculate its linear density and knitting density coefficient.And measuring the elasticity of elastic yarn and bulk yarn.
Application
wool woven fabric
yarn
Standards
ASTM D3883, GB/T 29256.3, ISO 7211-5, ISO 7211-3
Key Parameters
|
Model |
Y016 |
|
Sample length |
1000mm |
|
Capacity |
200 cN |
|
Display value resolution |
0.1cN |
|
Length sensor accuracy |
1mm |
|
Left and right gripper clamping distance |
10mm ~ 1000mm |
|
Force measuring error |
±0.5% |
|
Force value calibration weight |
200cN |
|

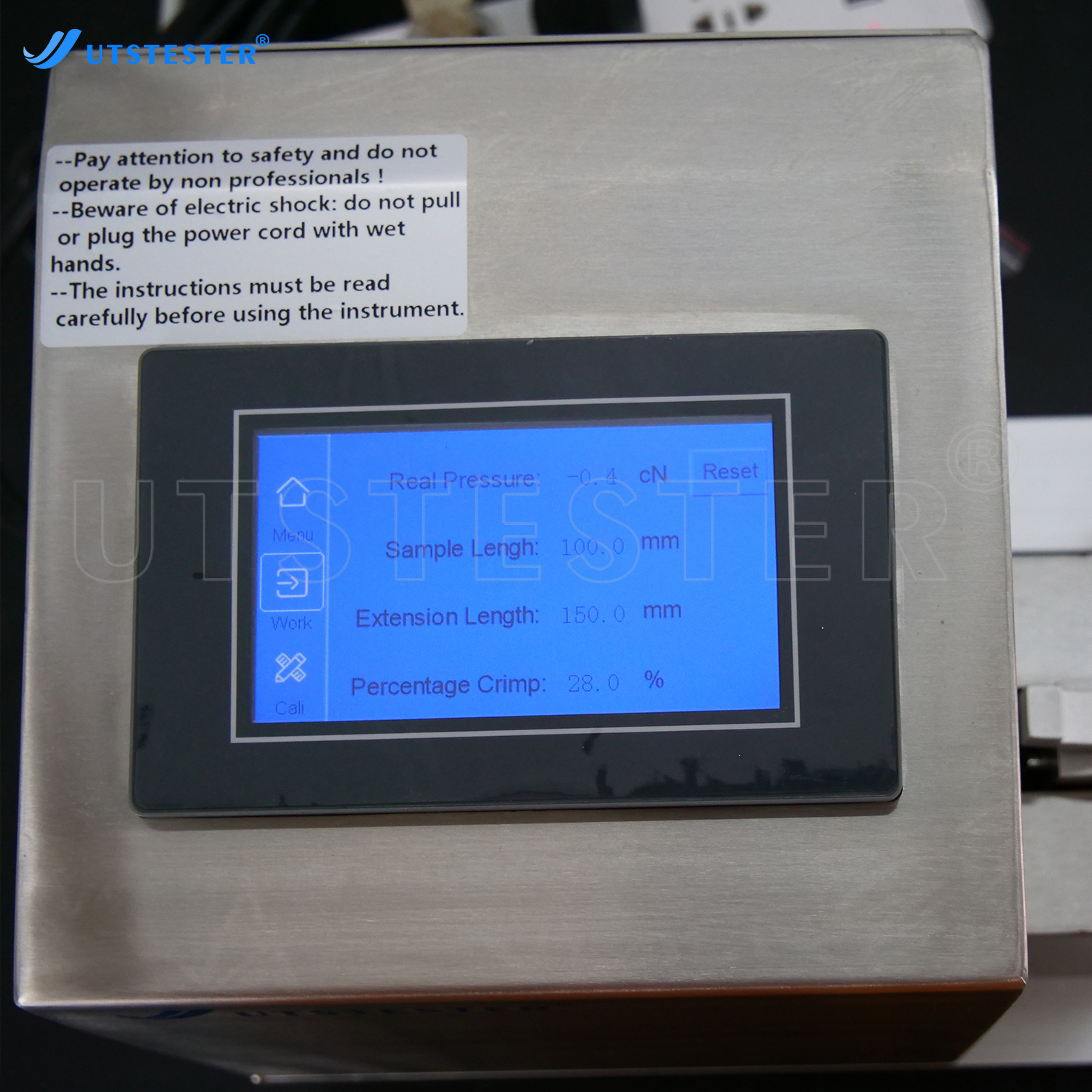

Display |
Touch screen panel |
|
Power supply |
AC 220V±10% 50Hz 60W |
|
Dimension (WxDxH) |
1250*180*250mm |
|
Weight |
20Kg |
Product Details

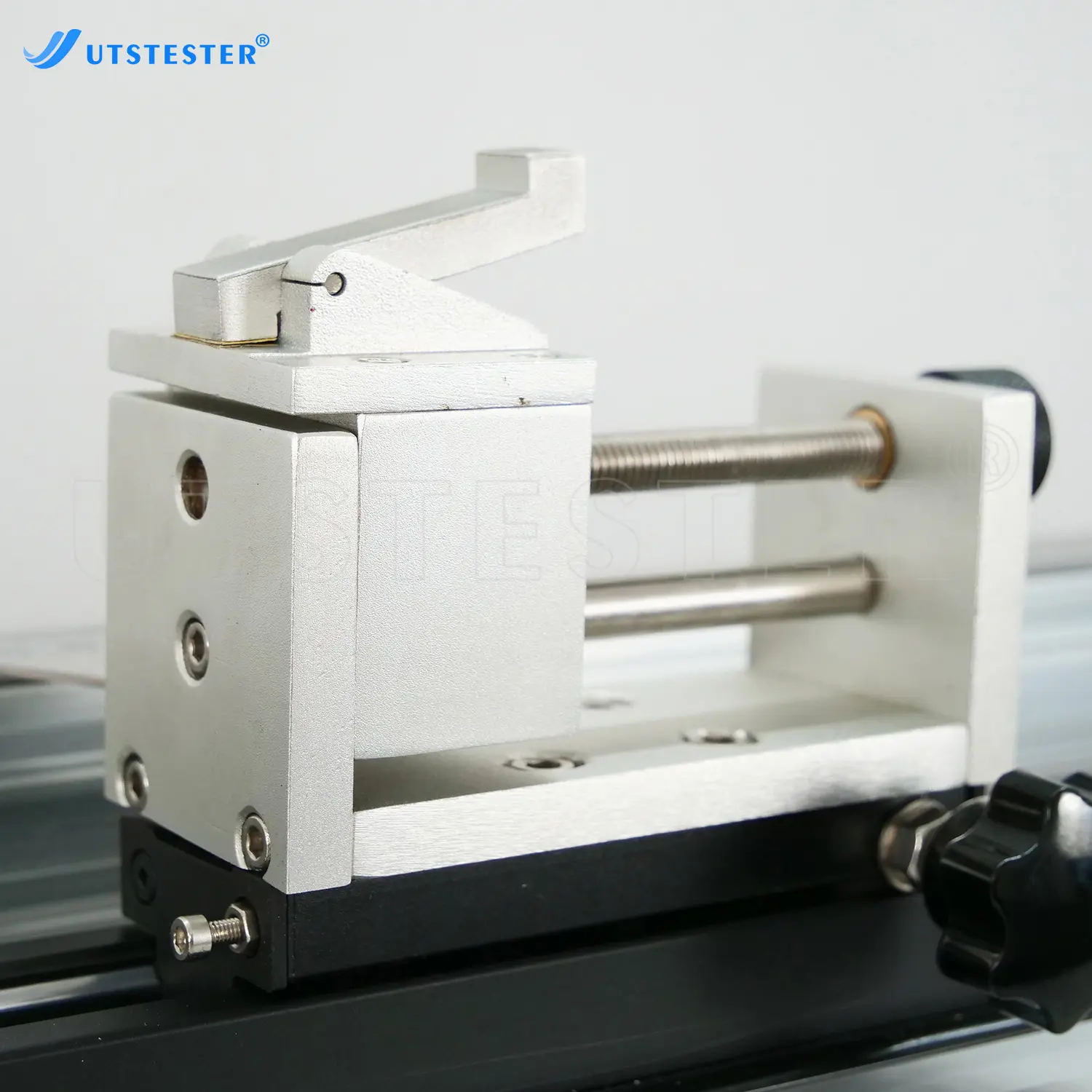

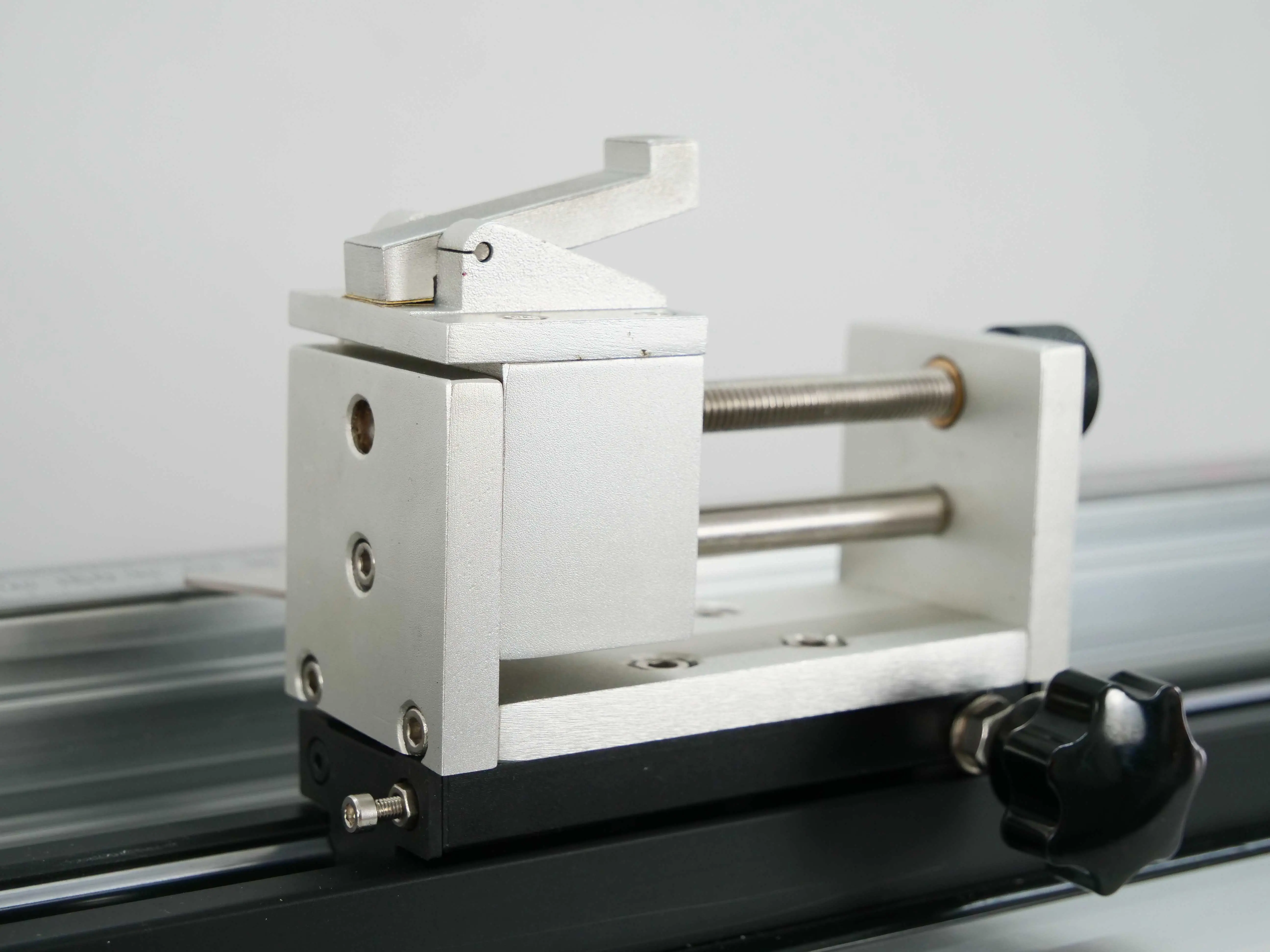

Left clamp and sensor

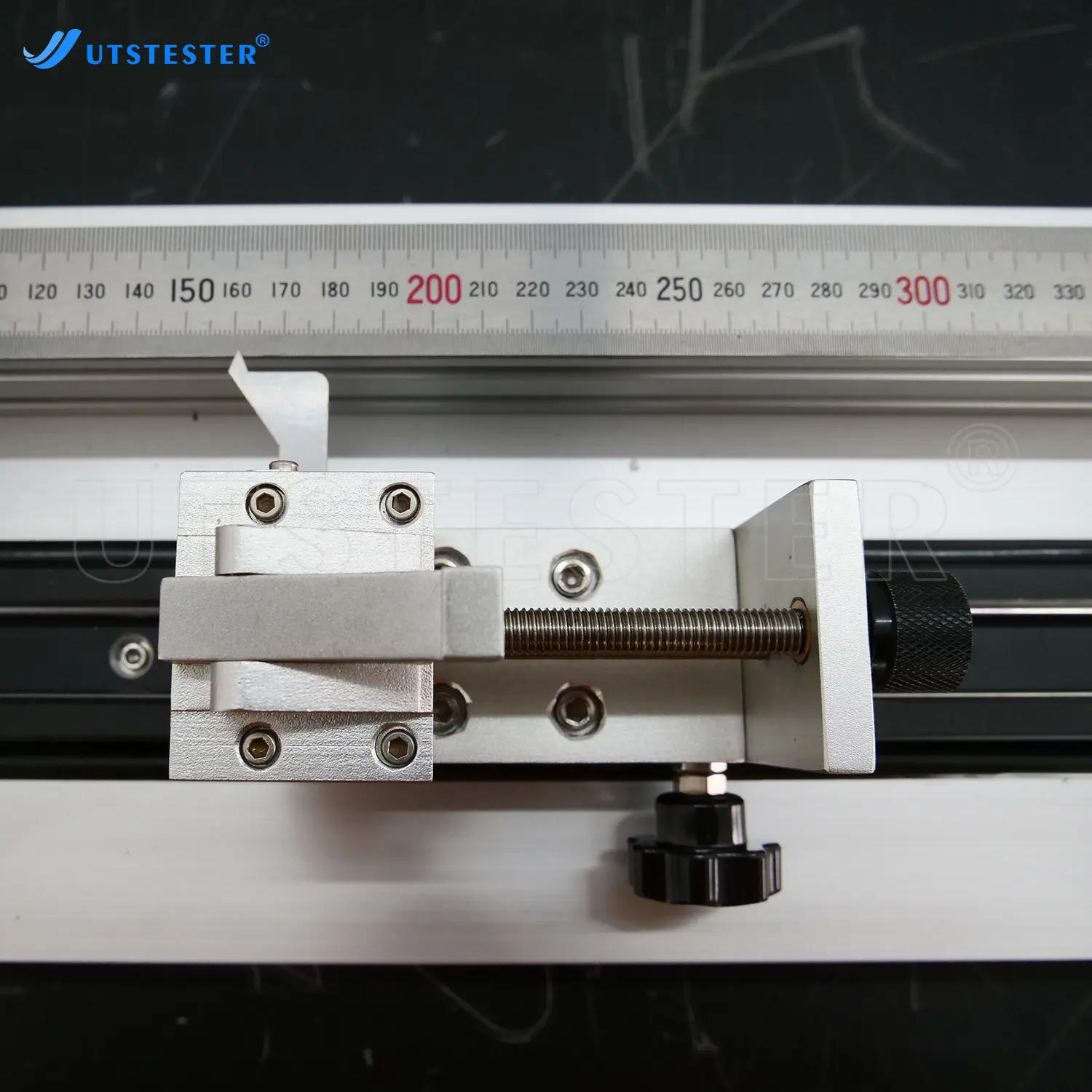

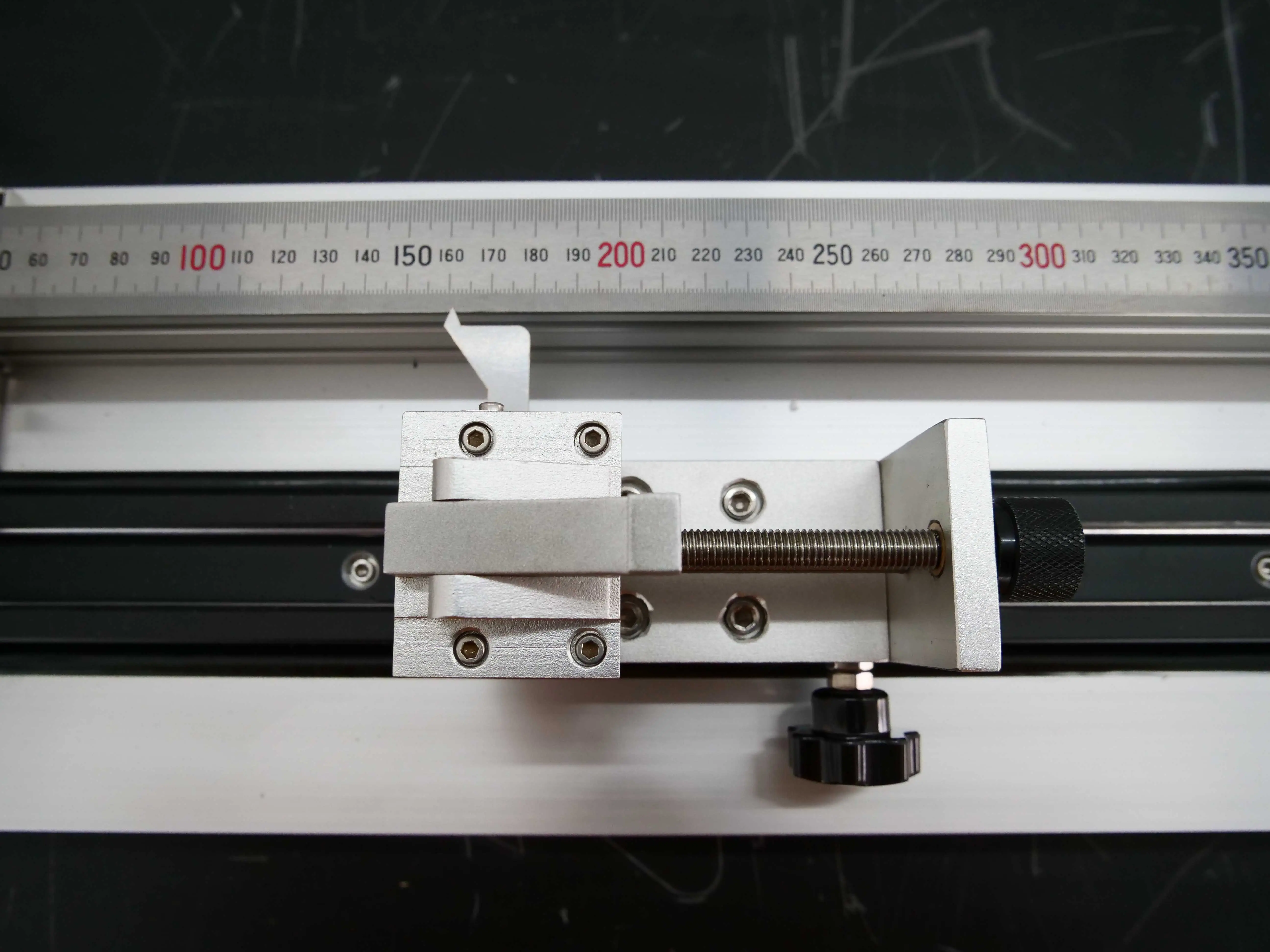

Ruler

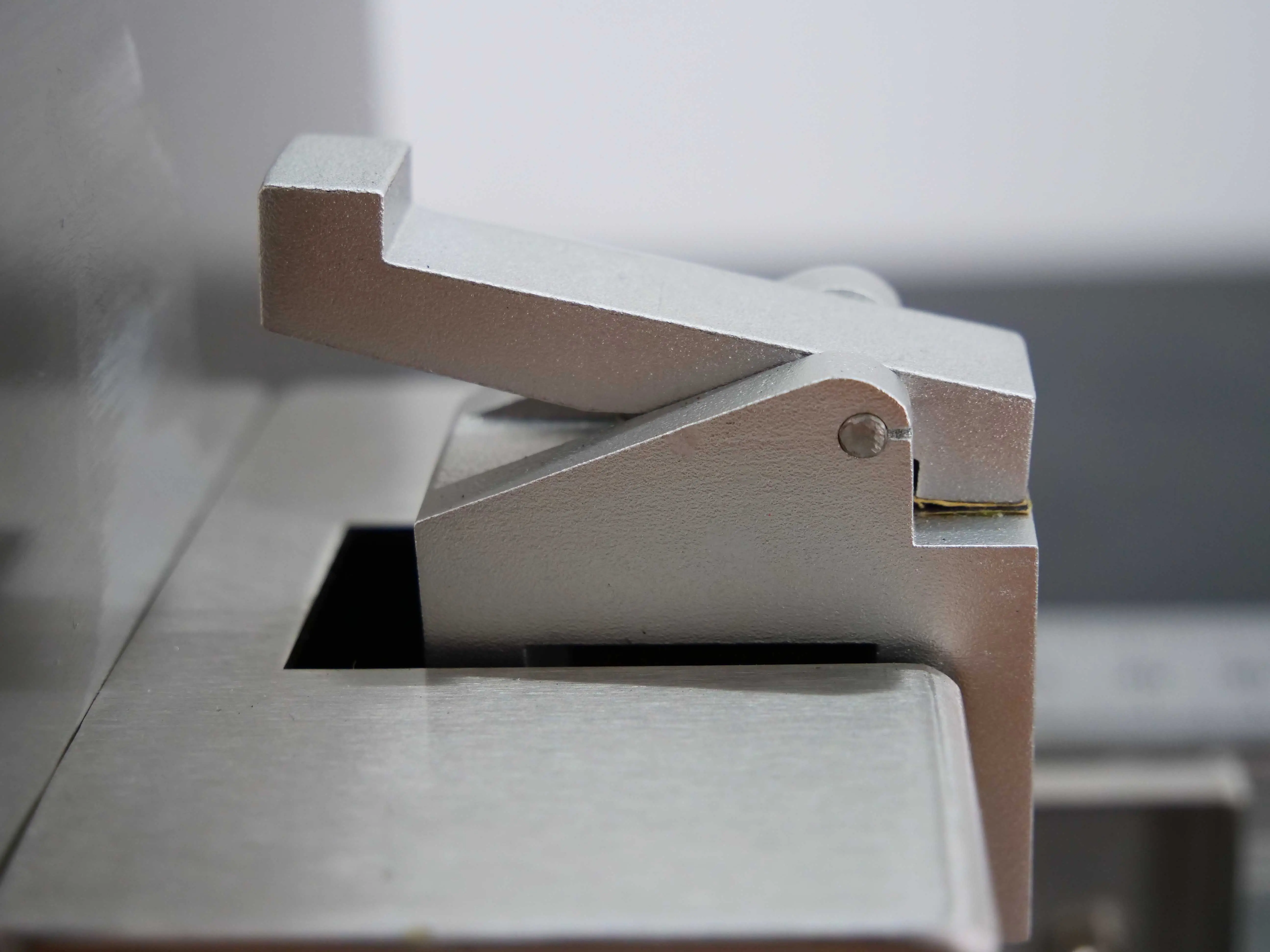

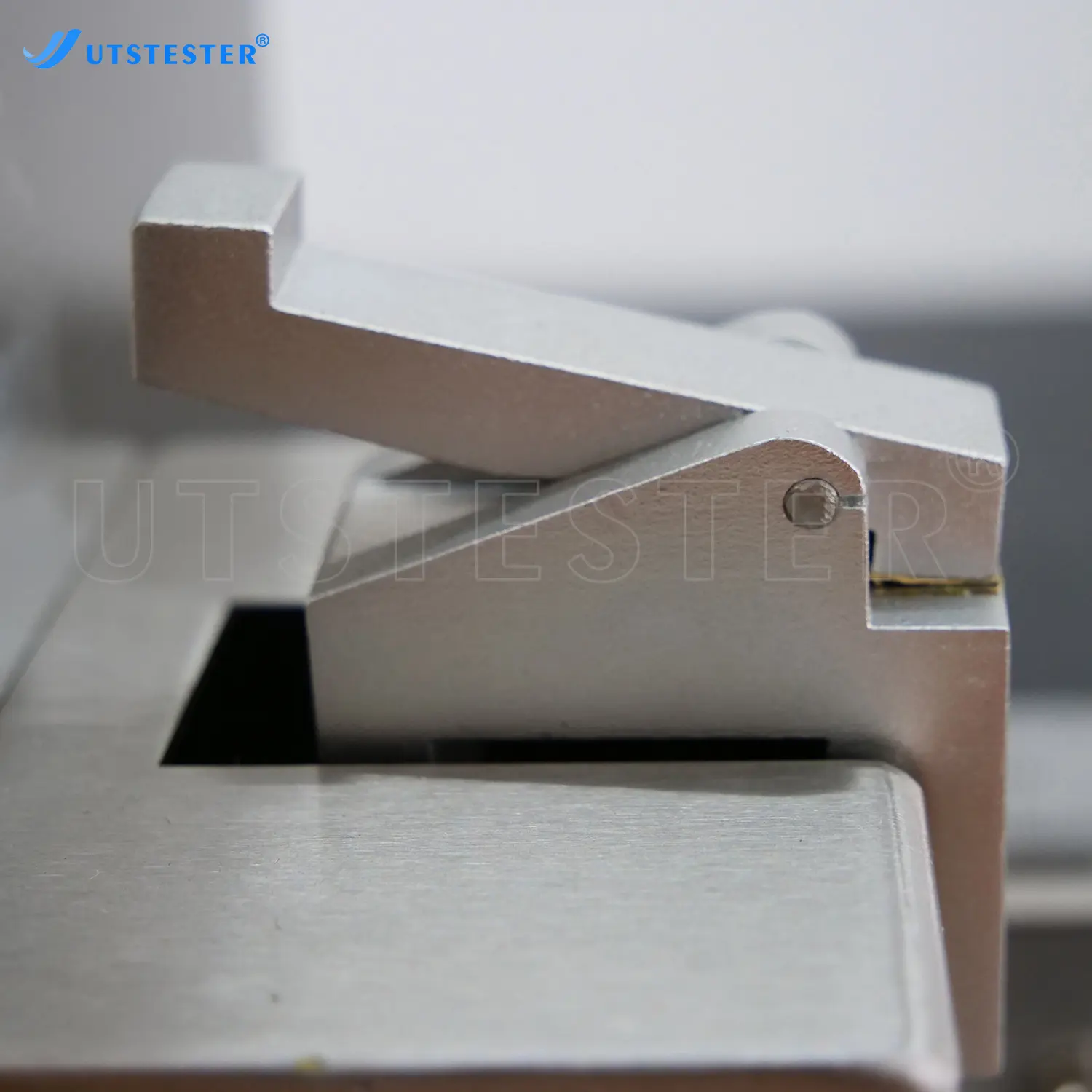

Clamp vernier
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
