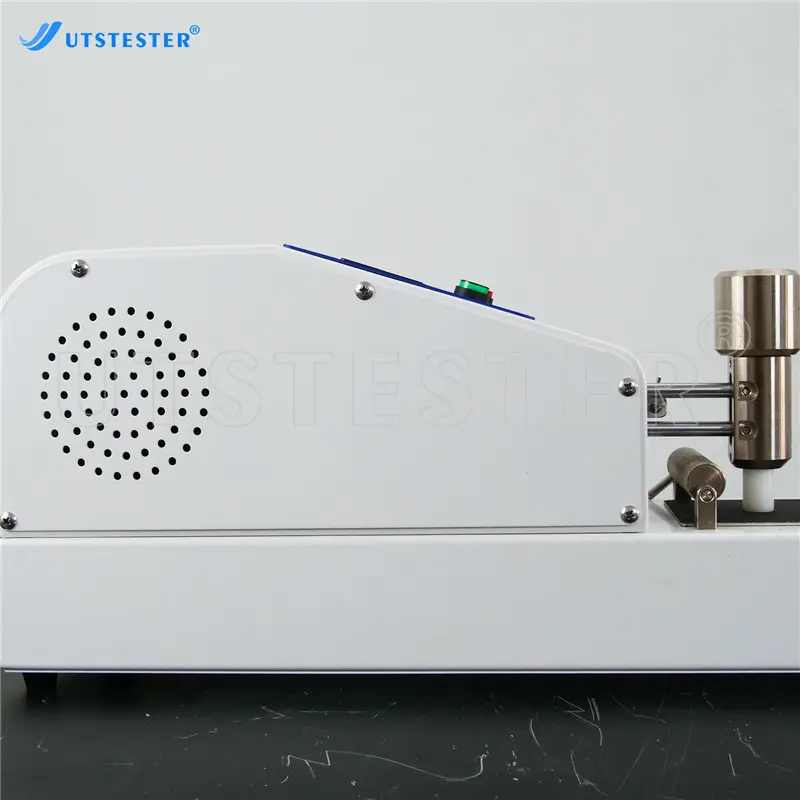

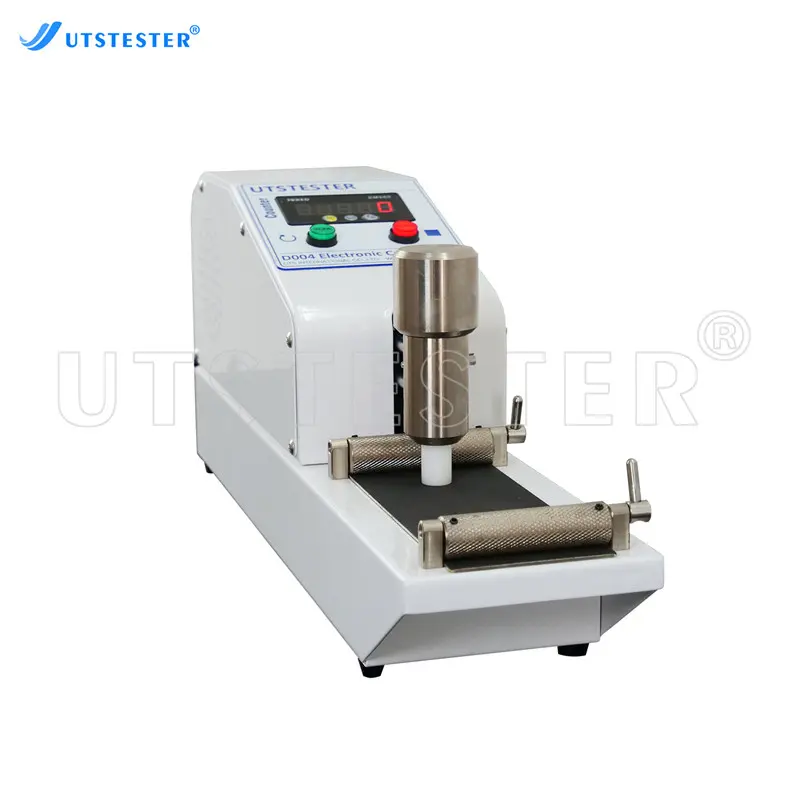

D004 Rubbing Fastness Tester Electronic Crockmeter
Overview
UTS-D004 Crockmeter is used to determine colour fastness to wet and dry rubbing. Apart from textiles, also can be applicable for carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces. Provided with a steel specimen holder and 16mm diameter test finger.
Application
Textiles
Carpets
Fabrics
Video
Standards
JIS L 0849 Type1, BS 1006- D02, ISO 105- X12/D02, AATCC 8/165, ASTM D6279.
Key Parameters
| Model | D004 |
| Rubbing head diameter | 16mm |
| Rubbing head stroke | 104 / 100mm |
| Vertical pressure | 9N±2N |
| Working platform size | 215 x 70mm |
| Test speed | 60±2 rpm |
| Power supply | AC 220V 50/60HZ |
| Dimension ( L x W x H ) | 600×230×260mm(L×W×H) |
| Weight | 10kg |

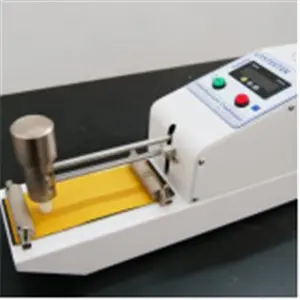

Product Details

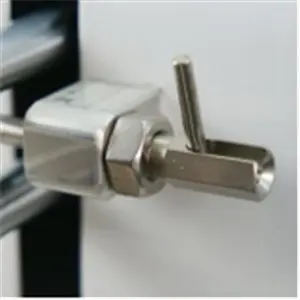

Hanging rod

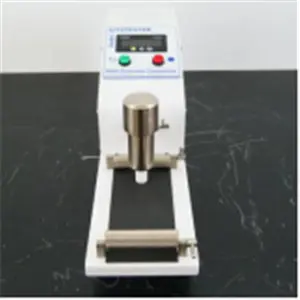

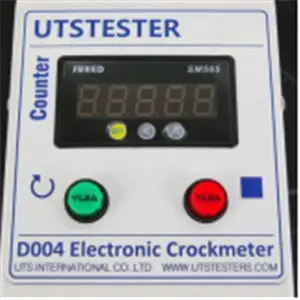

Control Panel

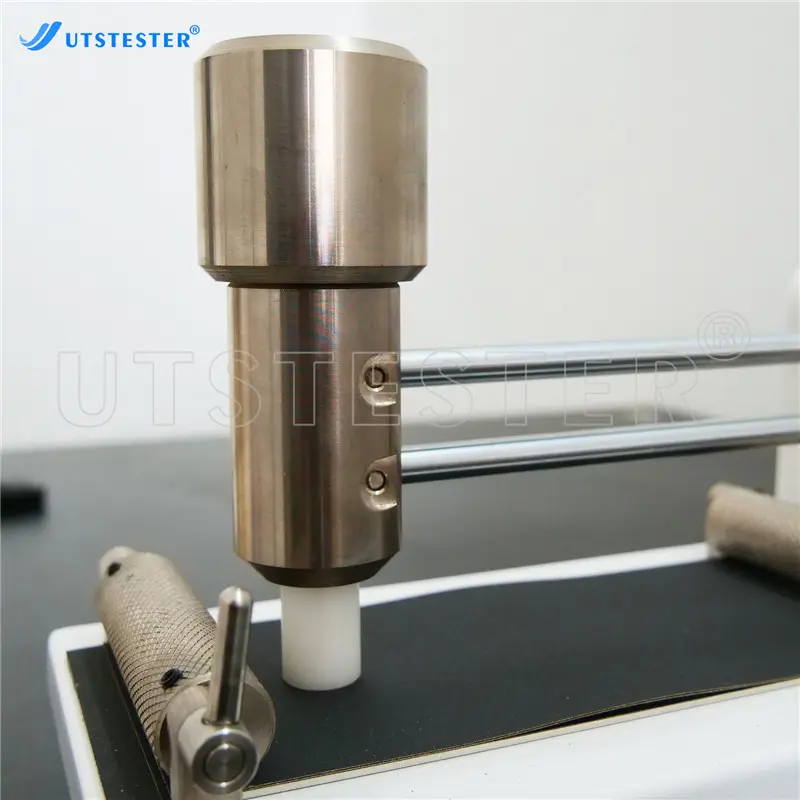

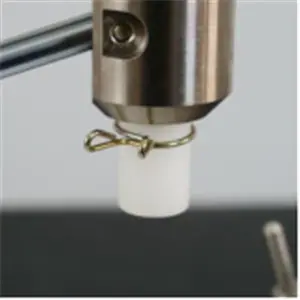

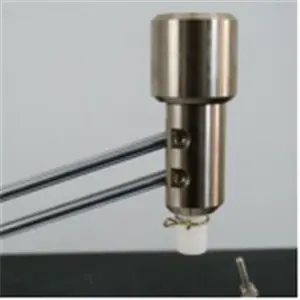

Friction head
Friction table
Weights
Weight holder

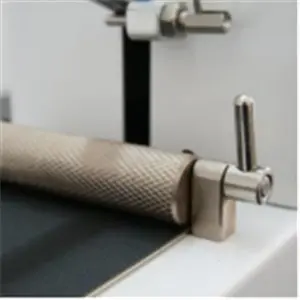

Platen

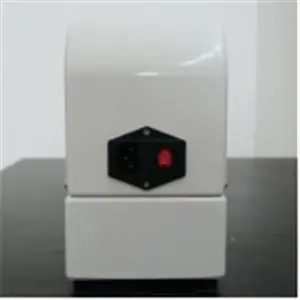

Power switch
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation

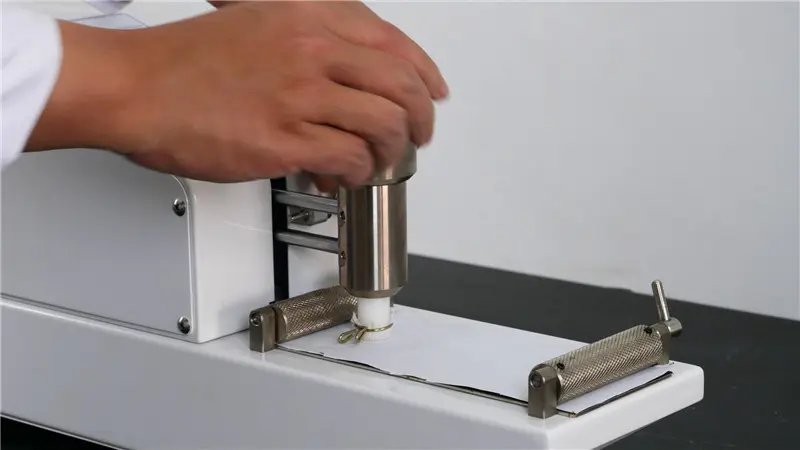

Installation sample
Mount the sample on the base plate with sandpaper, then cover it with sample press plate.

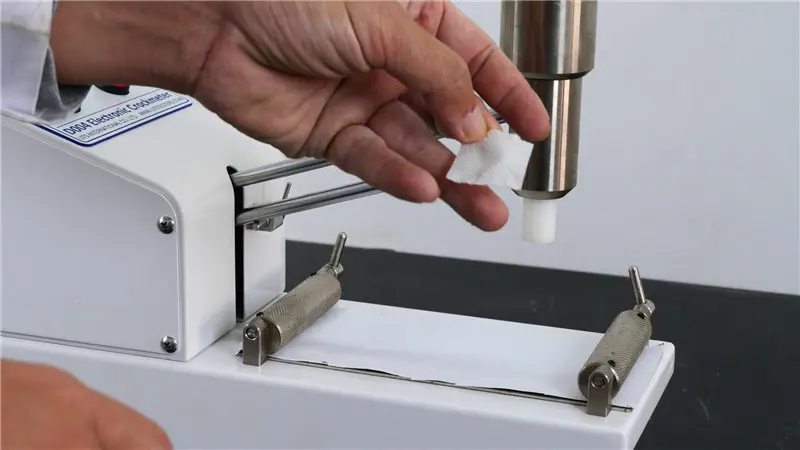

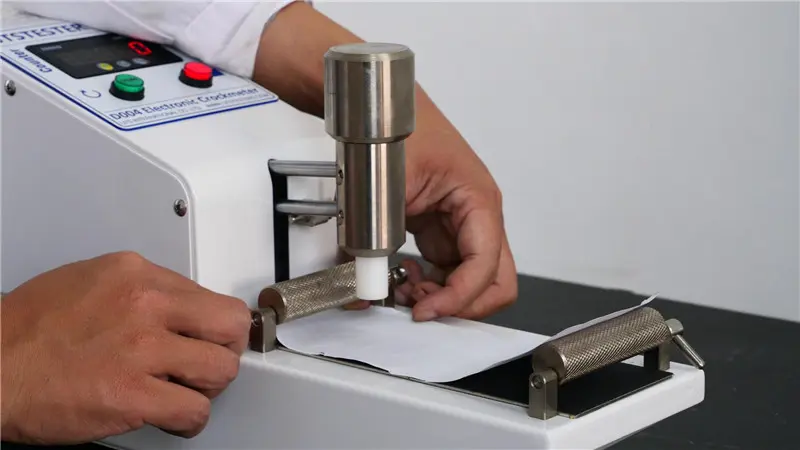

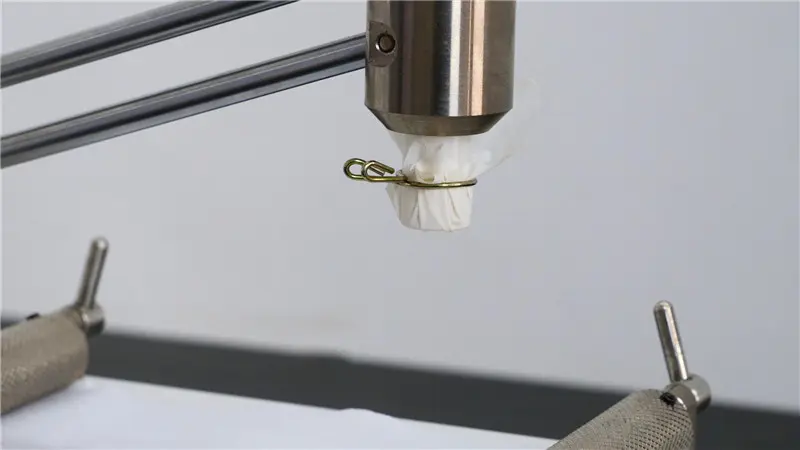

Install friction cloth
Mount one piece of AATCC rubbing cloth onto the rubbing head using the sample ring provided to fix it.
Put down the hanging rod
Lay down the rubbing head with rubbing cloth onto the surface of sample.

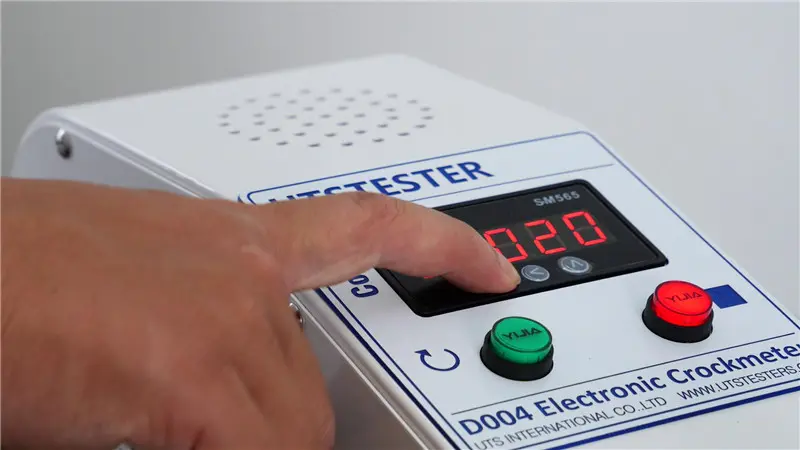

Setting times
Set the test times (e.g.,10 times) and the counter reset. After setting number and wait for a second until flicker stop, setting is immediate effect. Press RST key to zero and record value.

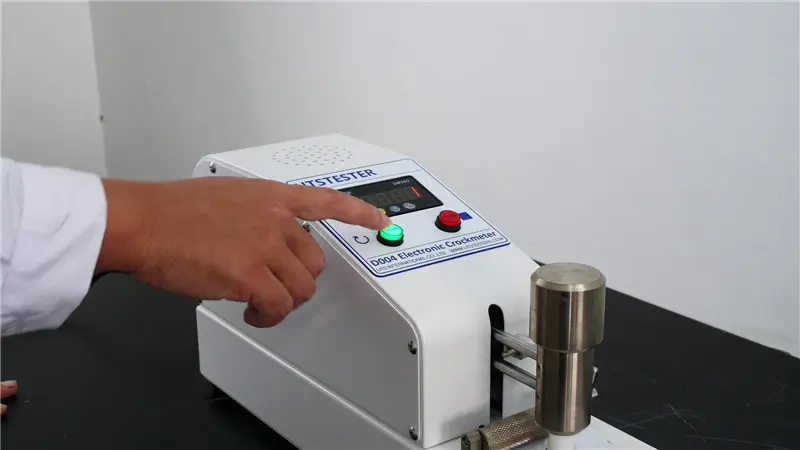

Start test
Press the START button to start testing.
End of test
The machine automatically stop after reach the test times.
Close the machine power supply, remove the sample and white cotton cloth.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
