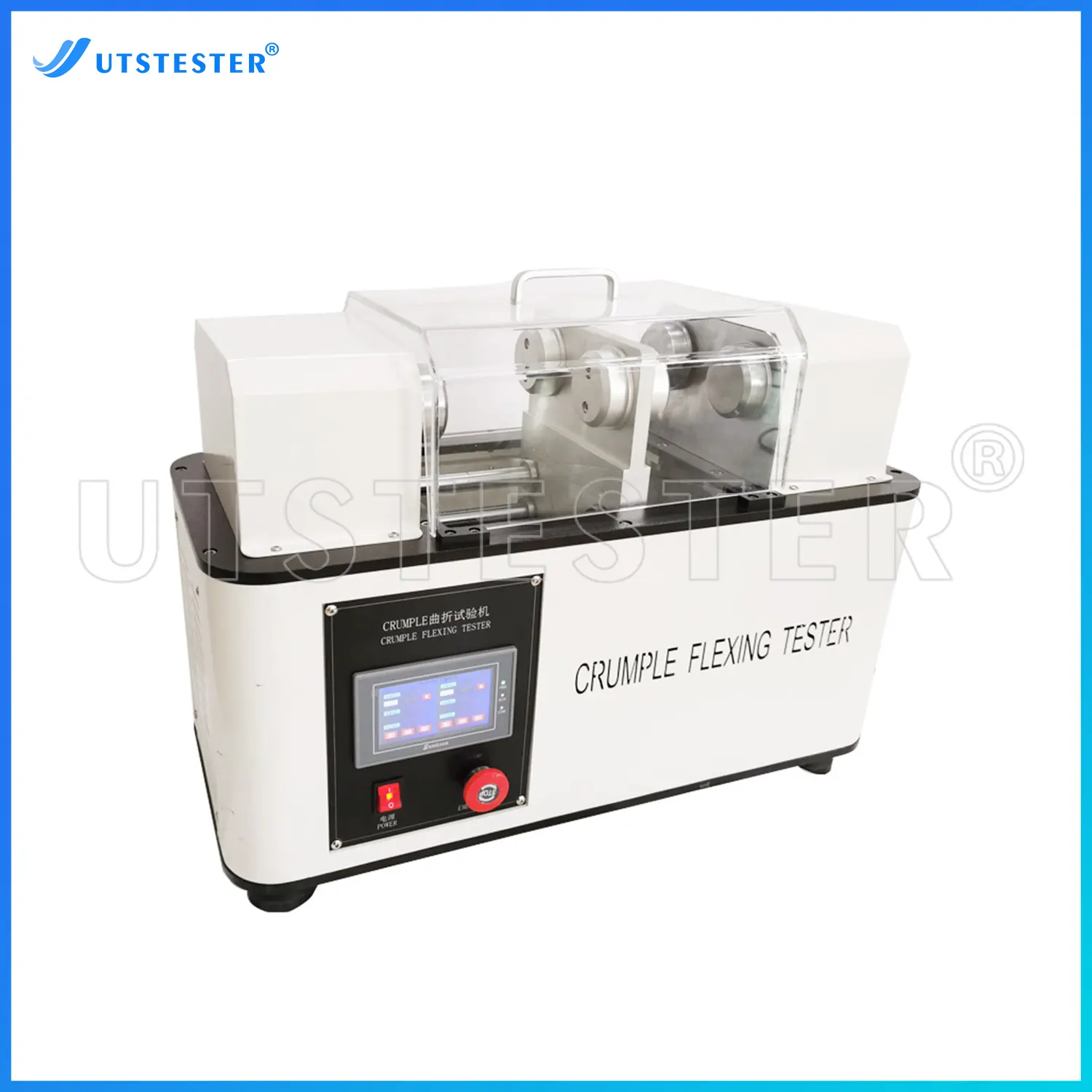

Crumpleflex Flexibility Testing Machine for Coated Fabric M104C
Overview
A rectangular sample of coated fabric is sewn into a cylinder shape. The coated fabric cylinder is placed between two disks and fixed in its position. One of them oscillates on the axis at 90°, which makes Coated fabric cylinder specimens cause distortion. At the same time, the other disk reciprocates along its axis, compressing the cylindrical sample along its length. This twisting and compression of the cylindrical sample continues until the sample undergoes significant damage for a predetermined number of cycles
Application
Shoe uppers
Clothing
Coated fabrics
Standards
GB/12586-2003, ISO 7854-1995, BS3424 FZ/T01052-1998 and other standards
Key Parameters
|
Model |
M104C |
|
Rotation speed |
(200±10) rpm |
|
Reciprocating speed |
(152±4) times/minute. |
|
Number of testable samples |
4 samples. |
|
Rotation angle |
(90±2)° |
|
Movement stroke |
(70±1) mm. |
|
Suture sample size |
190mm long, 64mm inner diameter cylinder |
|
Weight |
65kg |
|
Body size |
860*450*420mm |
|
Power supply |
AC220V, 10A |
|
Random configuration: |
1. 1 machine 2. 4 clamps 3. 1 die 4.Power cord 5. 1 screwdriver |
Product Details

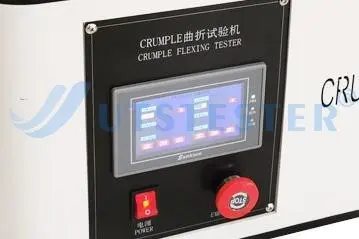

Control panel

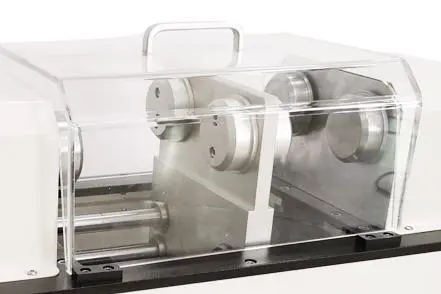

Sample testing area
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
