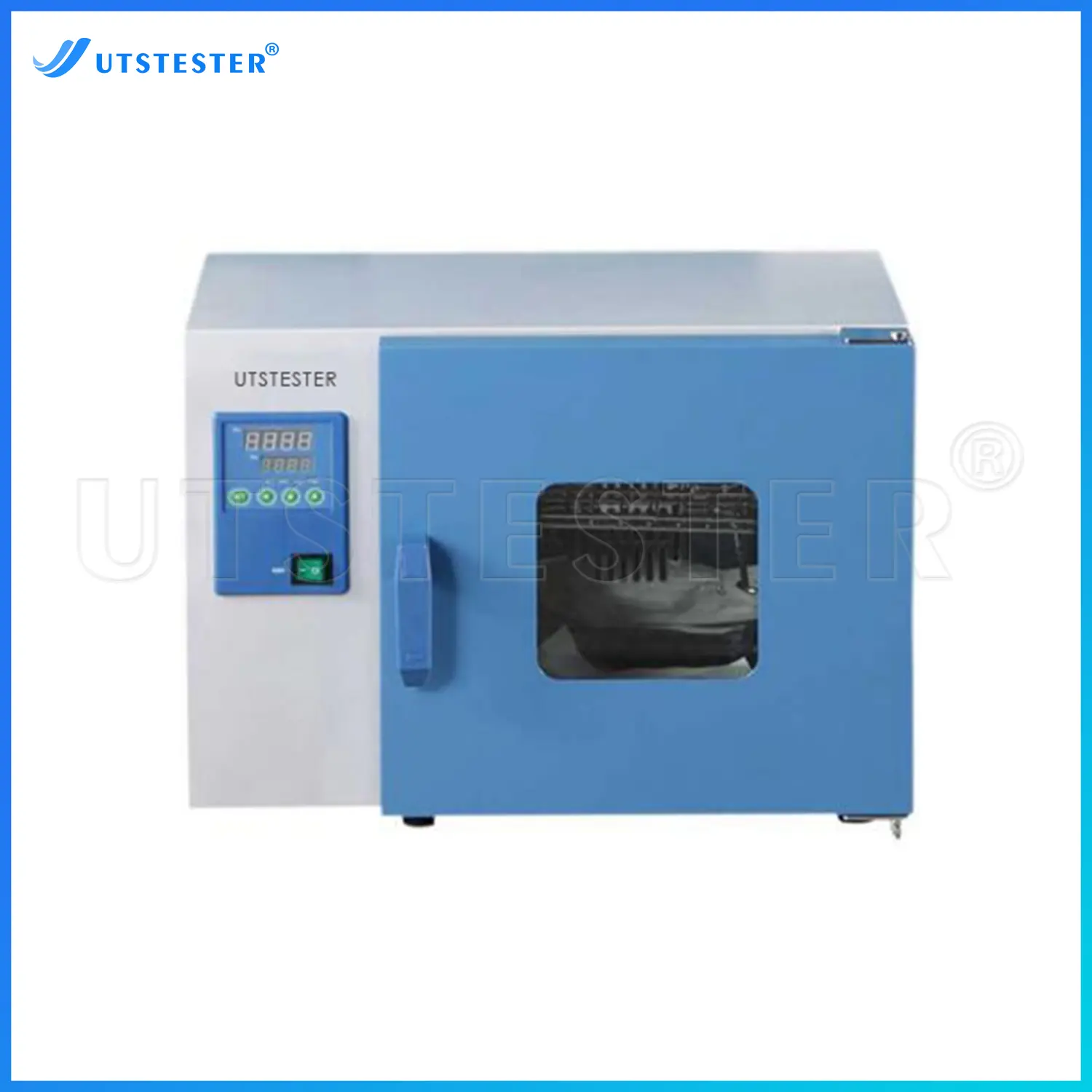

Constant Humidity Test Machine Heating Incubator Climate Chamber D010C
Textile Testing Equipment

Constant Humidity Test Machine Heating Incubator Climate Chamber D010C

1.Fuzzy PID controller, temperature control precision fluctuation is small, with timing function, maximum setting time is 99 hours 59 minutes.
2.The wind tunnel system of forced convection can improve temperature response speed, improve temperature uniformity and reduce temperature fluctuation.
3.Door interior has a glass door, easy to observe, when the glass door open, breeze circulation and heating automatically stop, no temperature overheat.
4.Mirror stainless steel liner, electric heating pipe heating mode, heating speed, so that uniform heating box.
5.Independent temperature limit alarm system, if the temperature exceeds the limit, the system will be automatically interrupted to ensure the safe operation of the experiment without accident.(optional)
6.Printer or RS485 interface for connecting to a printer or computer to record changes in temperature parameters.(optional)

    Overview

    Provided as a necessary equipment for scientific research to colleges as well as biological, agricultural and scientific research departments for storage of mould and biology cultivation.

    Application

    SILK

    SILK

    HESSIAN

    HESSIAN

    GARMENT

    GARMENT

    FABRICS

    FABRICS

    Standards

    Standards

    Key Parameters

    Model

    D010C-35

    D010C-50

    D010C-80

    D010C-160

    D010C-270

    Input power

    200W

    300W

    400W

    600W

    750W

    Volume

    35L

    50L

    80L

    160L

    270L

    Internal size

    (mm)(WXDXH)

    340x320x320

    415x360x355

    500x400x400

    500x500x650

    600x600x750

    External size

    620x490x490

    690x500x500

    780x530x560

    790x630x810

    890x740x910

    Temperature range

    RT+5 ~65

    Temperature resolution

    0.1

    Temperature  fluctuation

    ±0.5

    Temperature uniformity

    ±1.5(when 37)

    Working temperature

    +5 ~ 35

    Sample holder

    2 pieces

    Product Details

    D010C

    Sample Test Area

    D010C - 副本

    Control panel

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
