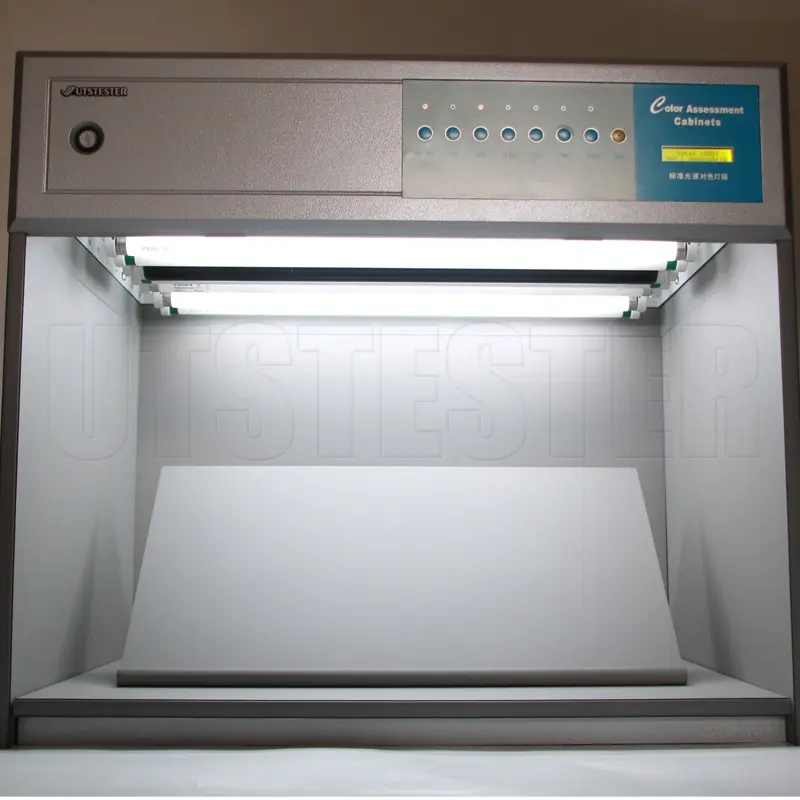

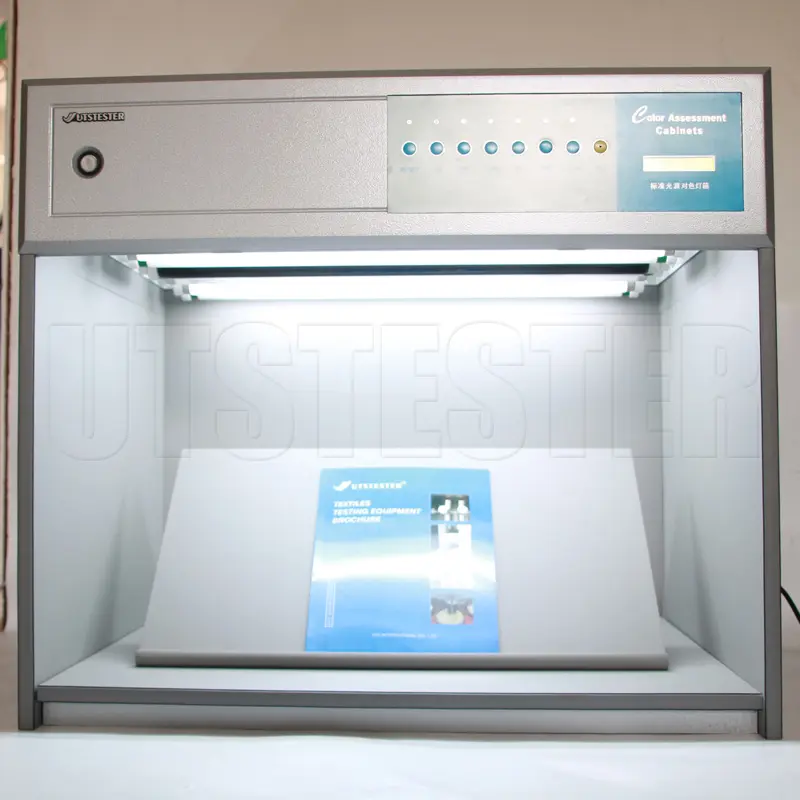

Color Assessment Cabinet Machine Match Light Box Tester D008

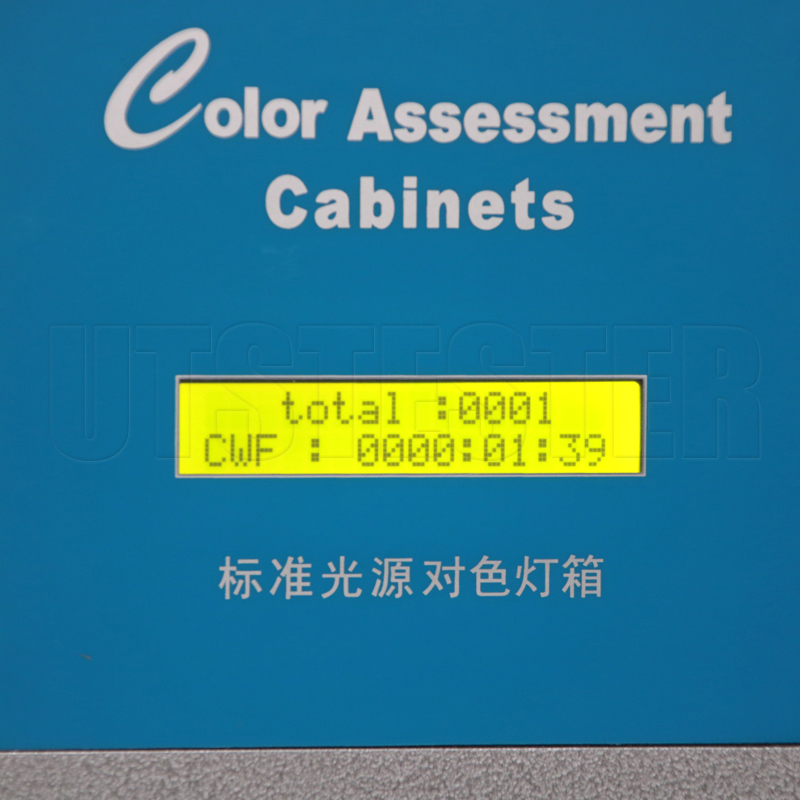

1.Display using time, name and on-off times for each light resources.
2.Light resources can be switched, with metamerism function.
3.No need to preheat and no flashing to ensure fast and reliable color assessment reference.
4.More complete EN/ASTM standard commonly used light source.

product details

Production Processes

Packing System

Overview

Color light box/Color matching cabinet, to do color matching or assessment for all industries and applications where there is a need to maintain color consistency and quality. Such as, Dyeing, Packaging, Printing, Footwear, Inks and Textile, Automotive, Ceramics, Cosmetics, Foodstuffs, Furniture, knitwear, Leather, Ophthalmic,etc.

D65, TL84, CWF, F, UV, U30 light sources are available for this light box.

Application

Ceramics

Furniture

Cosmetics

Automotive

Textile

Footwear

Standards

Key Parameters

Light	Details	Quantity	Power	Color Temperature
D65	International standard Artificial Daylight	2pcs	18W	6500K
A	American kitchen window lamp, colorimetric reference lamp.	2pcs	100W	2856K
TL84	The light source of the special store in the Europe (Marks & Spencer).	2pcs	18W	4000K
F	Family hotel use light, color reference light source.	2pcs	40W	2700K
UV	Ultra Violet light source	1pc	18W	wavelength 365nm
U30	Warm White store light source (Warm White)	2pcs	18W	3000K
CWF	Cool White Fluorescent	2pcs	18W	4200K

Models	Configured light sources	Weight	Dimensions( L x W x H)
D008(4)	D65. TL84. F/A . UV	28kg	710 x 420 x 570mm
D008(5)	D65. TL84. CWF. F/A . UV	32kg	710 x 420 x 570mm
D008(6)	D65. TL84. CWF. F/A . UV. U30	35kg	710 x 620 x 625mm
D008(7)	D65. TL84. CWF. F . UV. U30. A	35kg	710 x 620 x 625mm
D008(1200)	D65. TL84. CWF. F/A . UV. U30	65kg	1310 x 620 x 800mm

Product Details

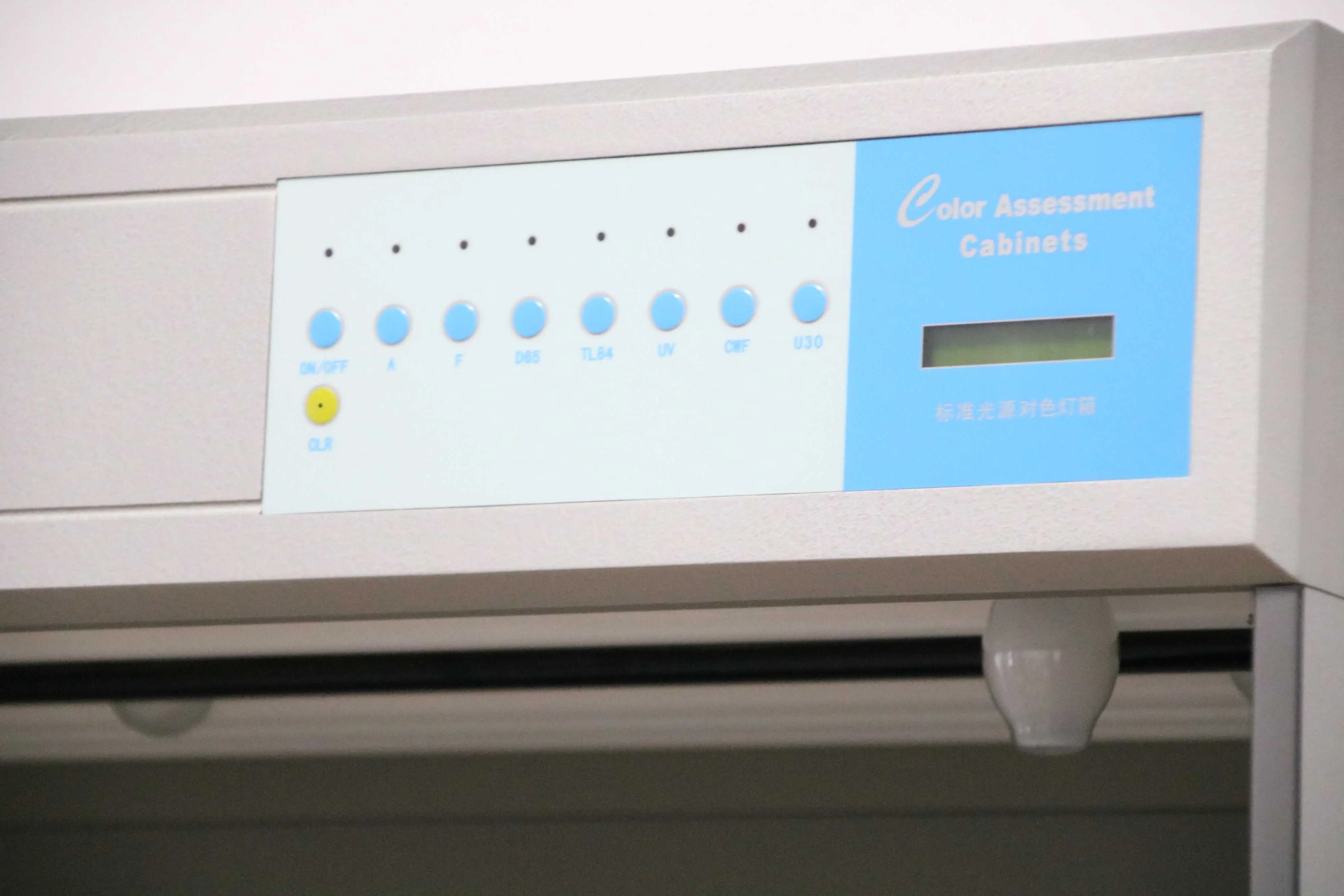

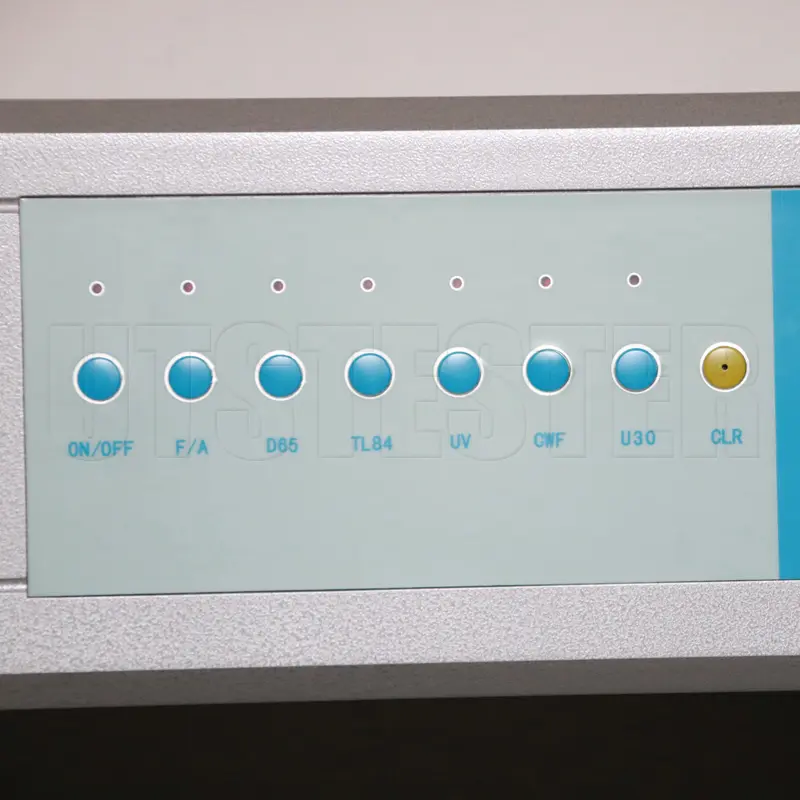

Control panel

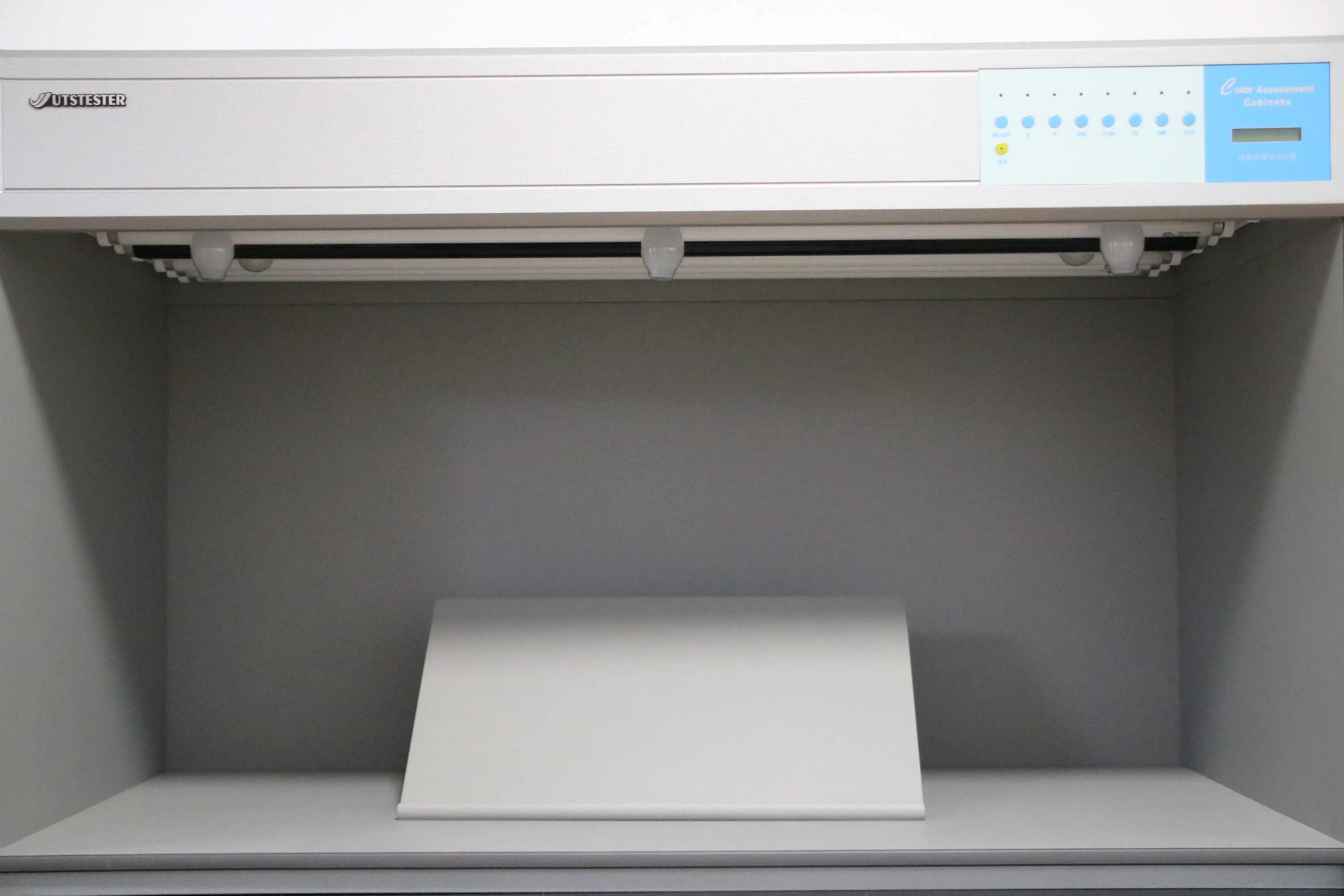

Sample Placement Table

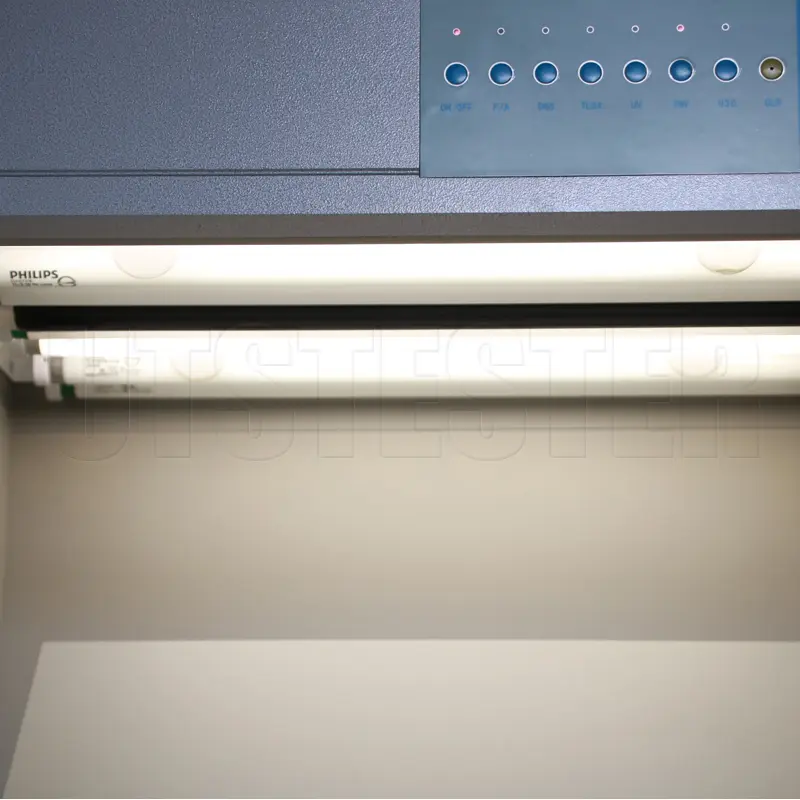

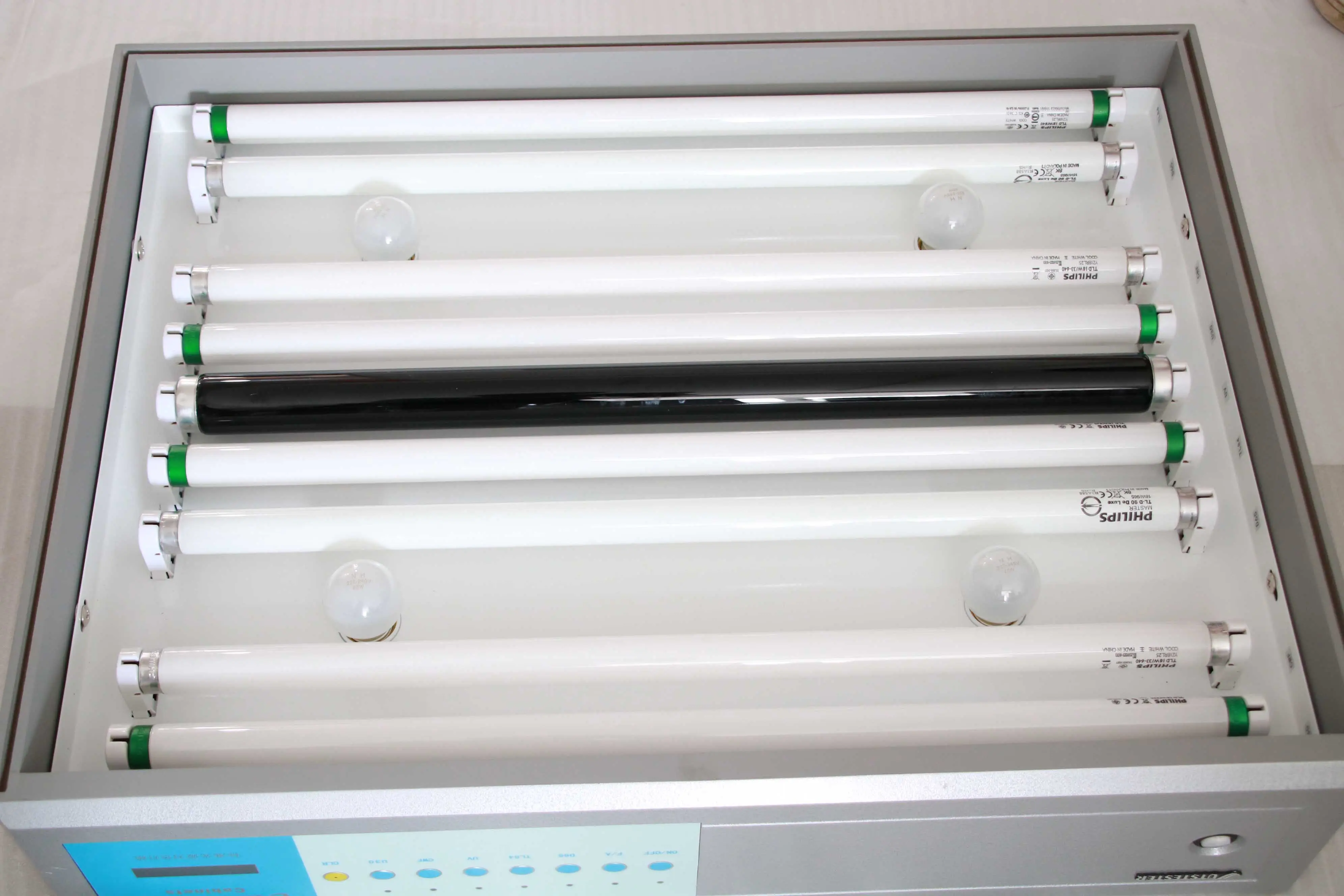

Lamp

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
