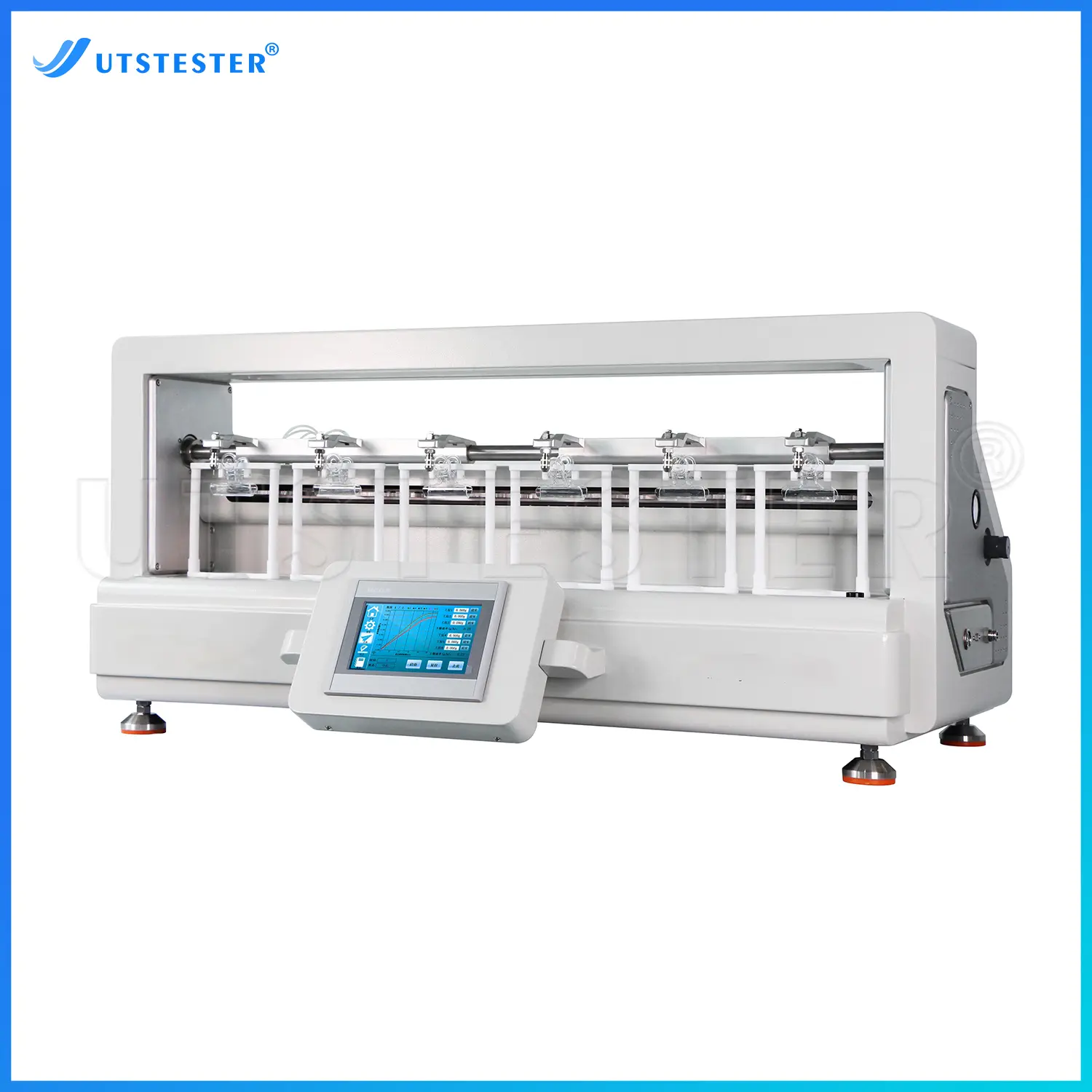

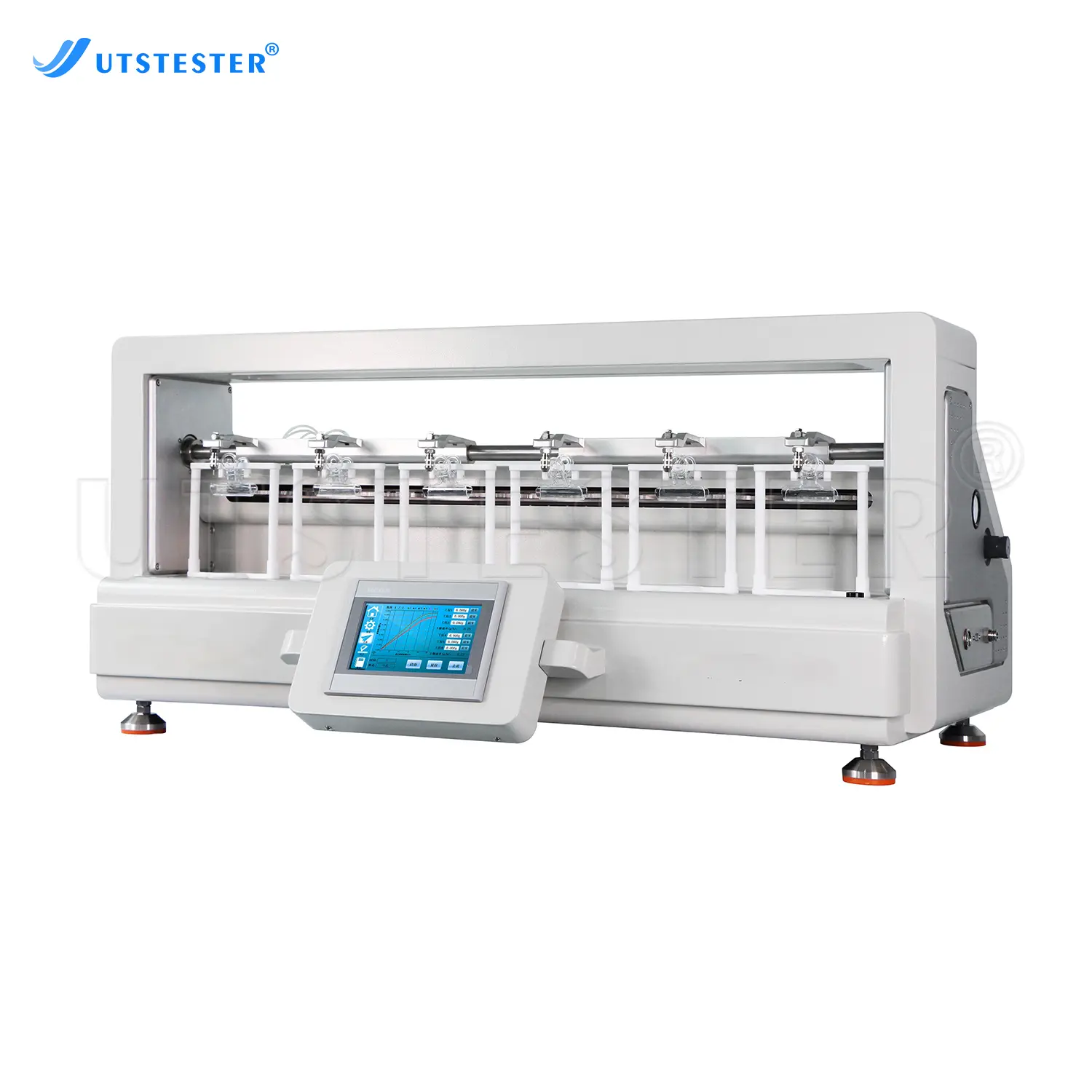

AATCC199 Drying Temperature Meter Water Vapor Permeability Tester M048D-6
Textile Testing Equipment

AATCC199 Drying Temperature Meter Water Vapor Permeability Tester M048D-6

1. High-precision mass balance module with an accuracy of 0.001g is adopted. The built-in calibration program can be used to calibrate the balance at any time.
2. The color touch screen display control is adopted, which is durable, convenient and simple to operate.
3. The test curve is displayed in real time during the experiment to better observe the quality change. The 6-station curve can be displayed simultaneously.
4. The test process can automatically weigh and display the sample weight, water evaporation, and real-time balance quality, which is convenient for observing the test process data.
5. The test weighing time interval can be set. The test will be automatically stopped when the water quality drops below 10% of the total water quality or the cumulative drying reaches the set time.
6. The 6-station balance module has independent testing, no interference with each other, and high efficiency.

    Overview

    Used to test and evaluate the moisture absorption and quick-drying properties of various textiles, and to evaluate the quick-drying properties of textiles by the water evaporation rate.

    Application

    企业微信截图_17441035182531 副本

    quick dry fabrics

    企业微信截图_17441001699623 副本

    towels

    企业微信截图_17441001377948 副本

    socks

    Standards

    AATCC199

    Key Parameters

    Model

    M048D-6

    Screen

    Color touch screen operation interface

    weighing range

    0 ~ 200g, precision 0.001g linear error ±0.002g

    Number of stations

    6 stations

    Test weighing interval time setting range

    (1 ~ 10)min

    Total test time

    1 ~ 999min

    quality change rate

    1 ~ 100%

    The end of the test

    the test will be automatically stopped if the quality change rate of water added is lower or the accumulative drying reaches the set total time.

    results

    Automatic calculation and generation of test results;

    Dimensions

    1140×580×550mm

    Weight

    85kg

    power supply

    AC220V 50Hz 600W

    test weighing interval time setting range

    (1 ~ 10)min

    Total test time

    1 ~ 999min

    Product Details

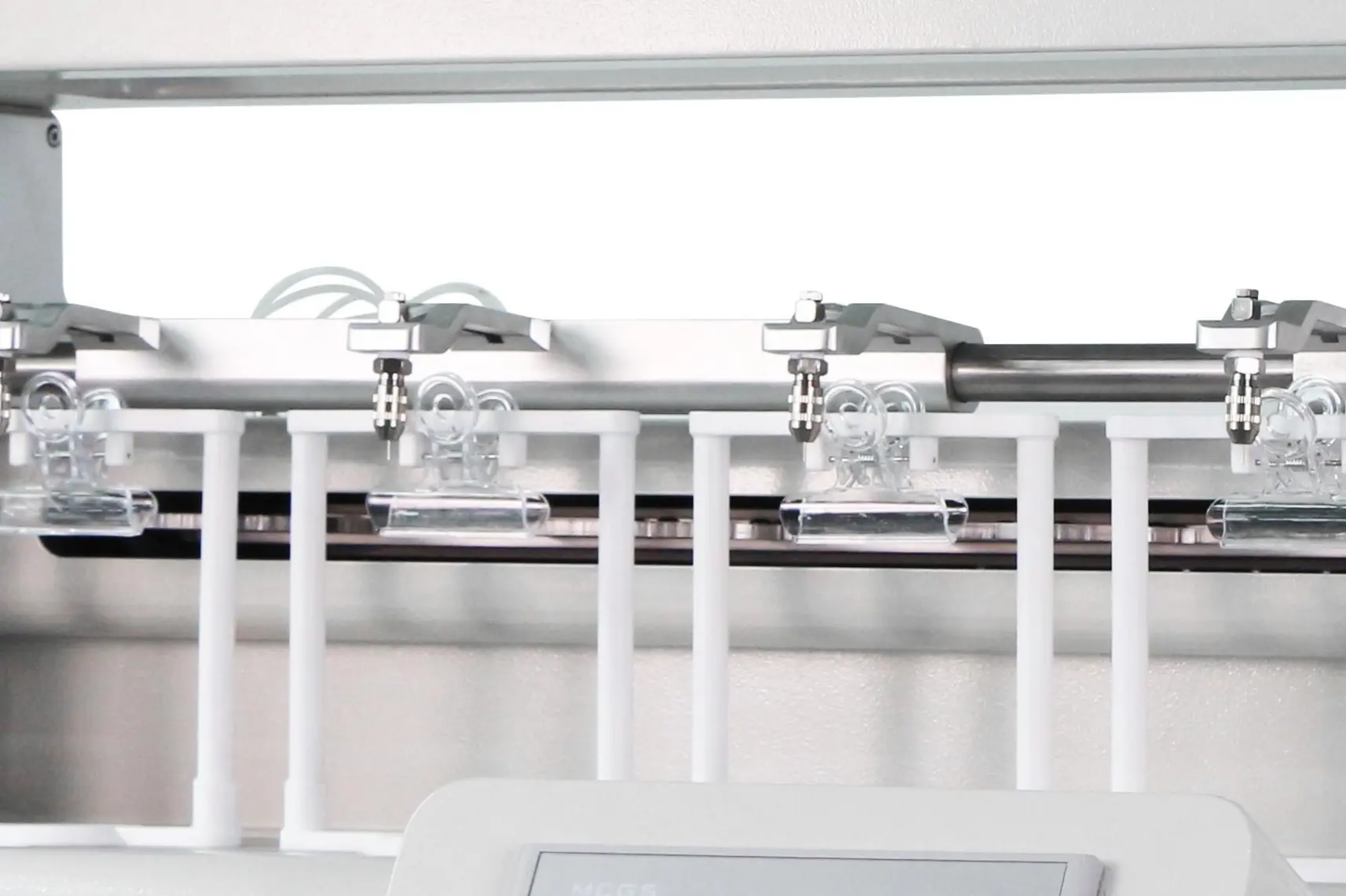

    M048D-6

    Test stand

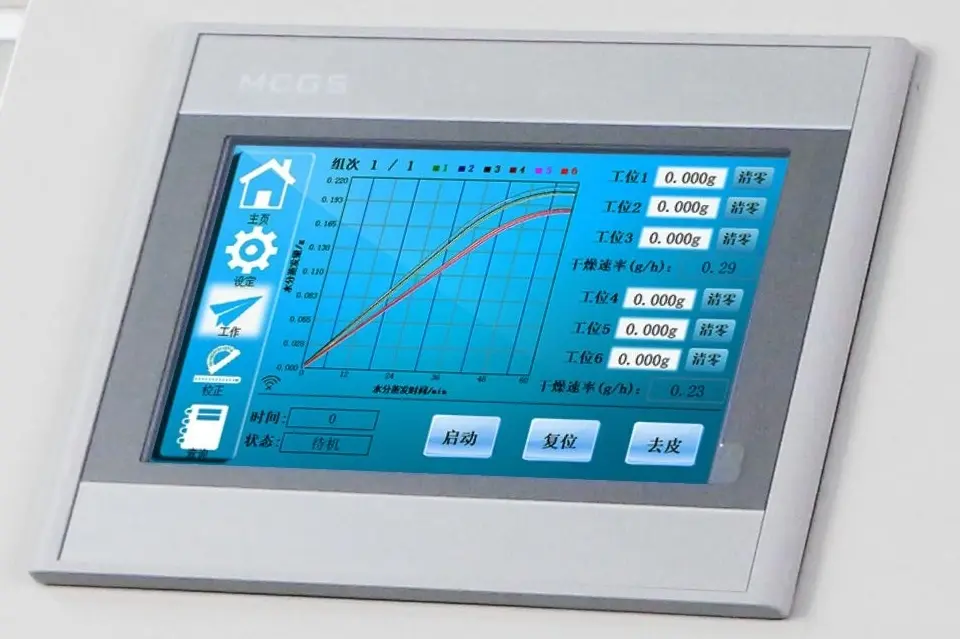

    M048D-6 - 副本

    Control panel

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
