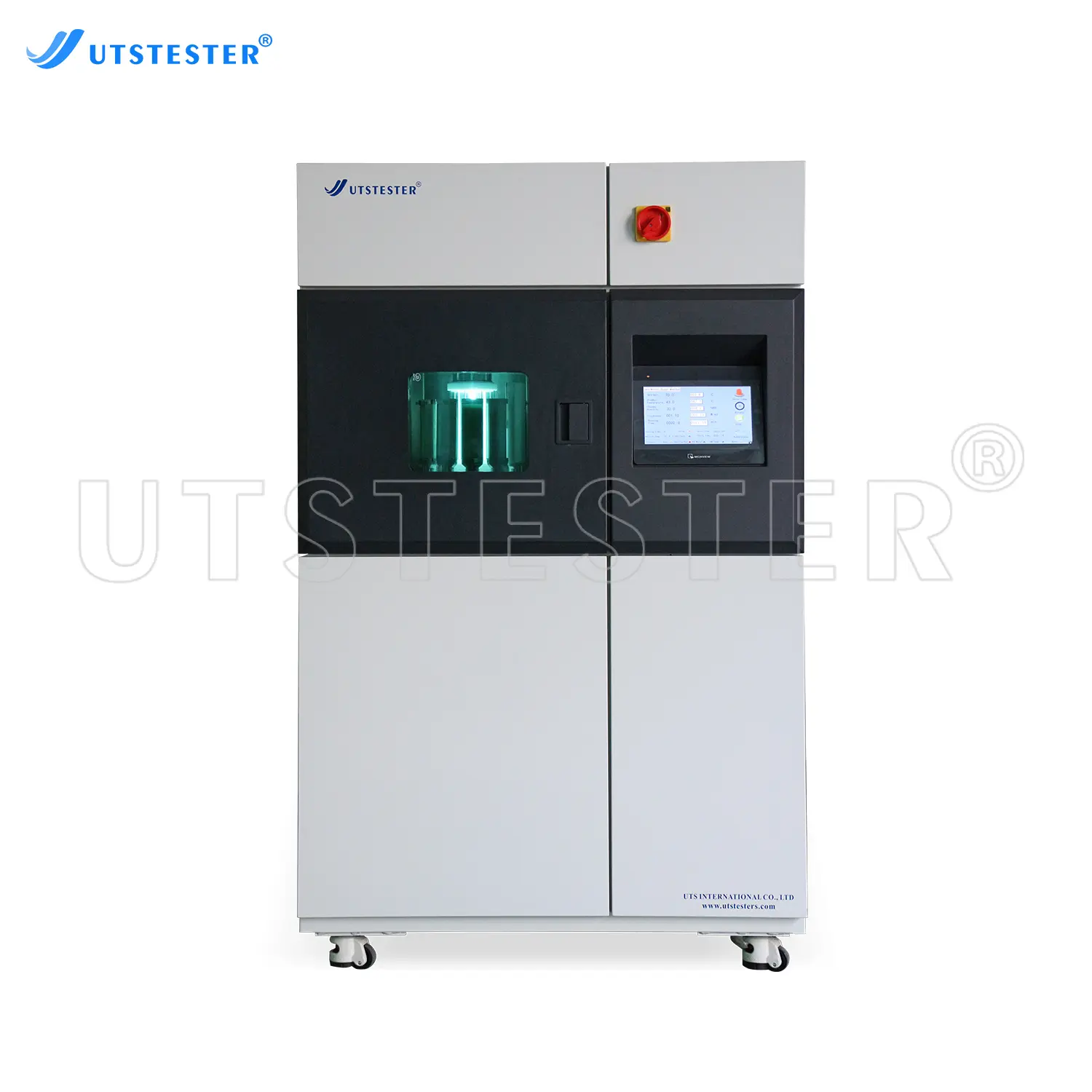

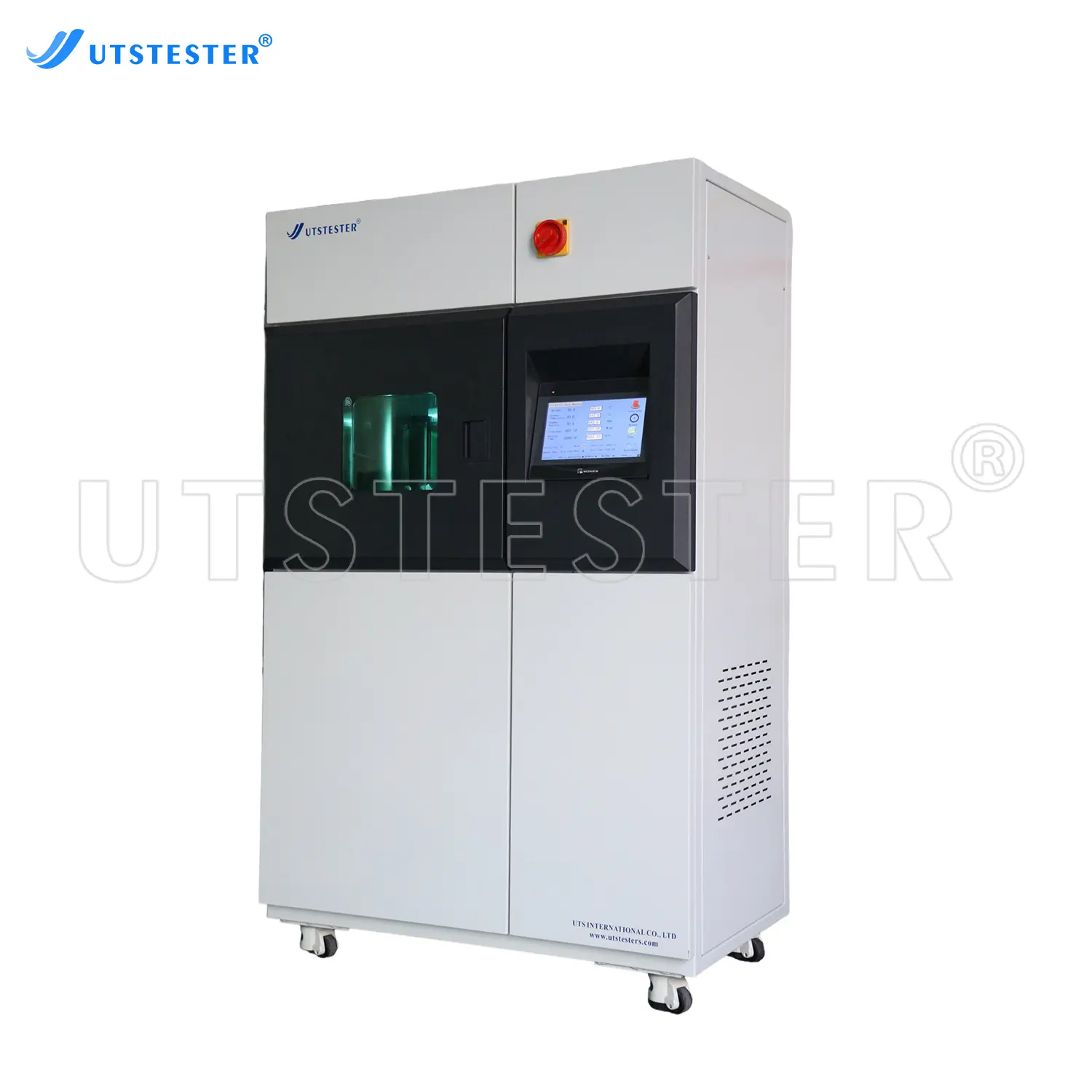

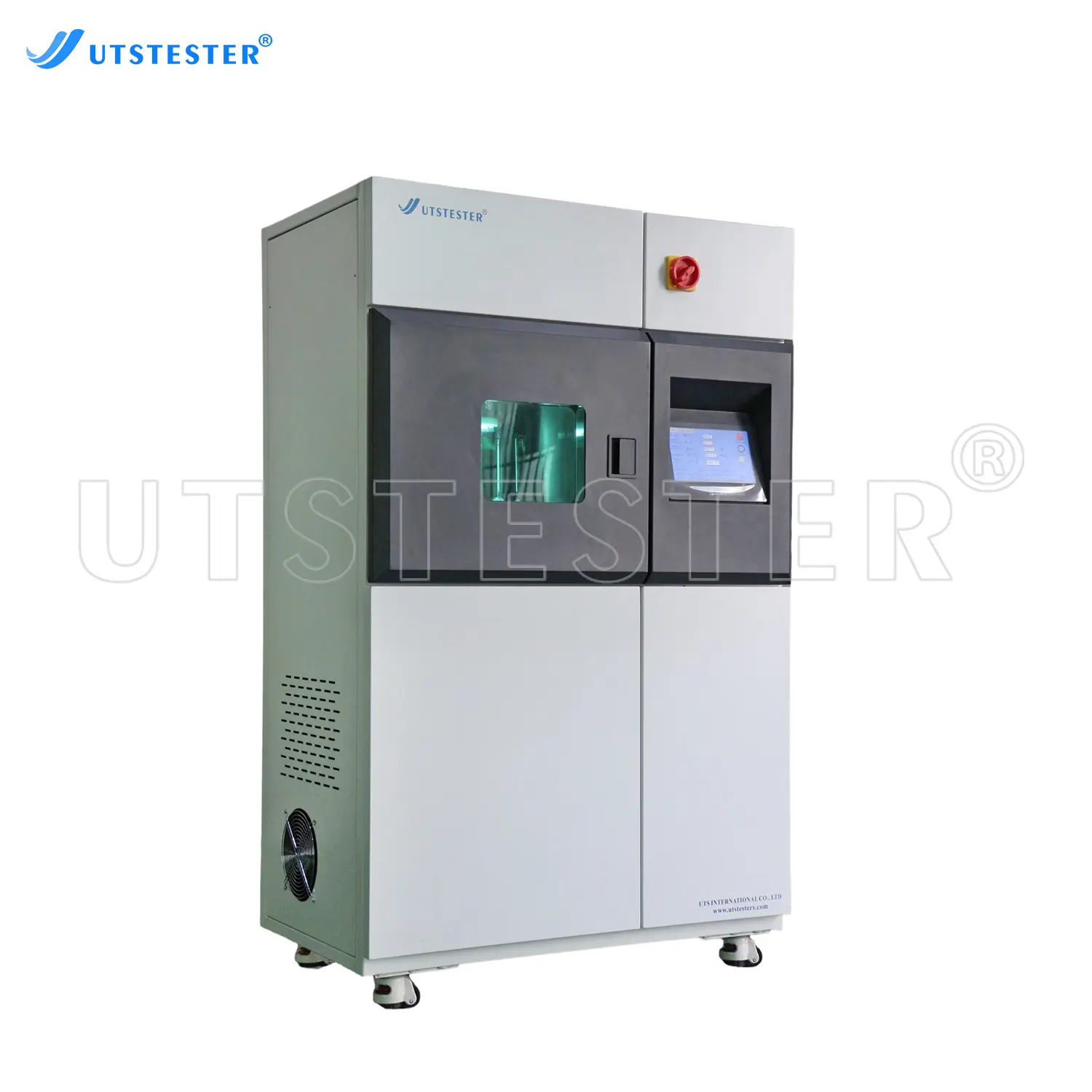

Aatcc TM 16 Xenon Light Fastness Tester Textile Color Fastness Testing Equipment D002A

Model

D002A-1

Test chamber temperature range

 25 ~ 50 ℃; Resolution: 0.1 ℃

Test chamber humidity range

Light cycle: 10 ~ 70RH%;Resolution: 0.1RH%

Dark cycle: 30 ~ 95RH%;Resolution: 0.1RH%

Standard the blackboard thermometer

40 ~ 85 ℃.Accuracy: ± 1 ℃;Resolution: 0.1 ℃

The blackboard thermometer (optional)

(40 ~ 80 ℃;Accuracy: ± 2 ℃;Resolution: 0.1 ℃

Test time control range

≤10000h

Irradiance control range

0.80 ~ 2.01W/m2@420nm ;(optional: 340nm, 420nm, 300-400nm or 300-800nm), accuracy: ±0.02W/m2@420nm

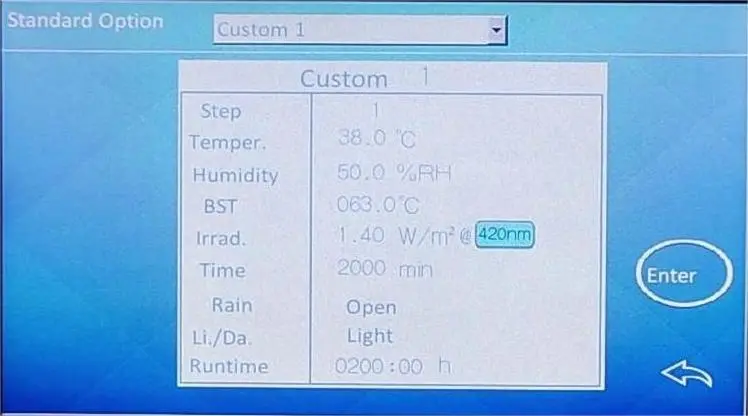

Digital setting, closed loop automatic compensation;

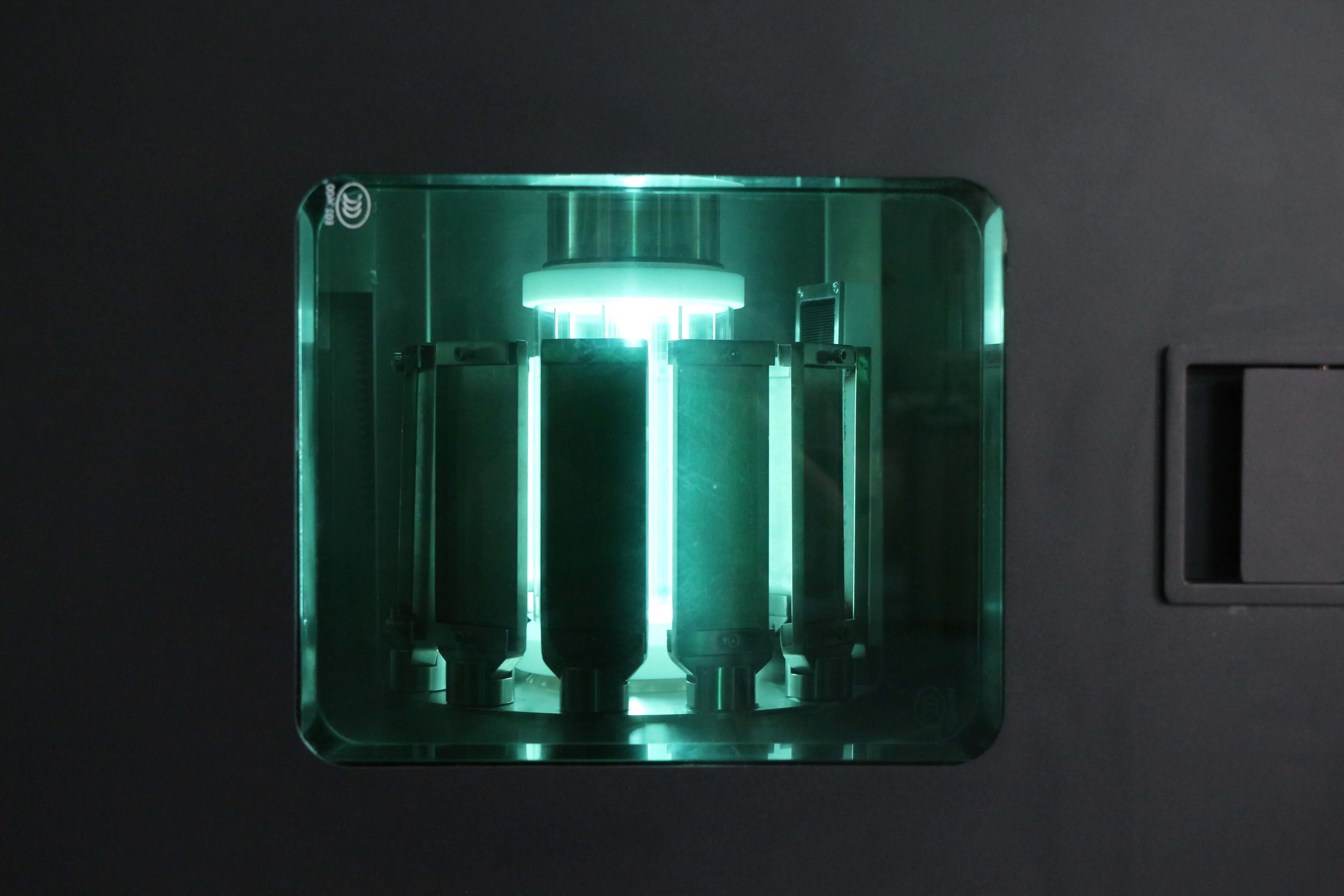

Rated power of xenon arc lamp

2500W

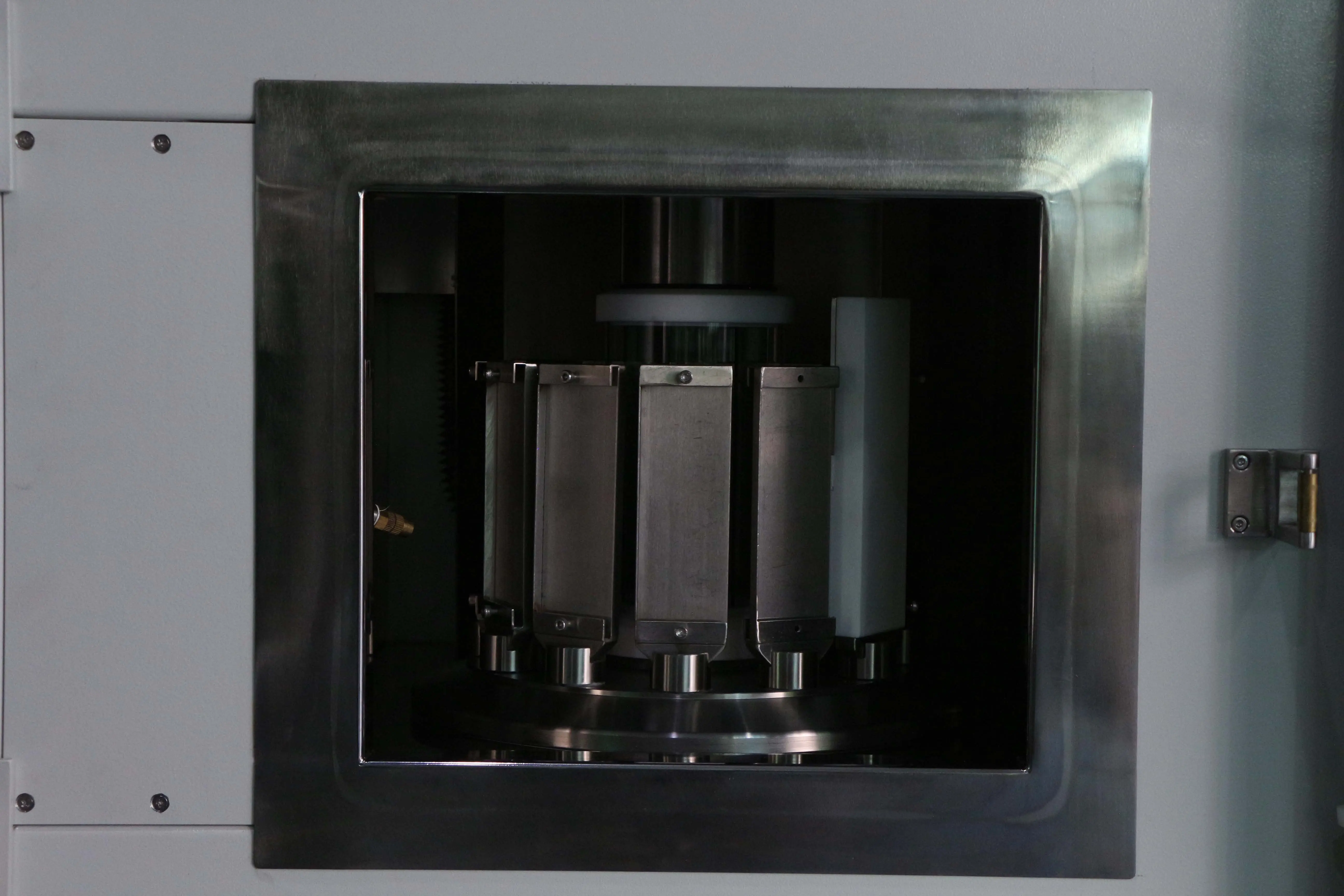

Sample frame rotation speed

Revolution: 5r/min;Rotation: 180°/ rotation (customized)

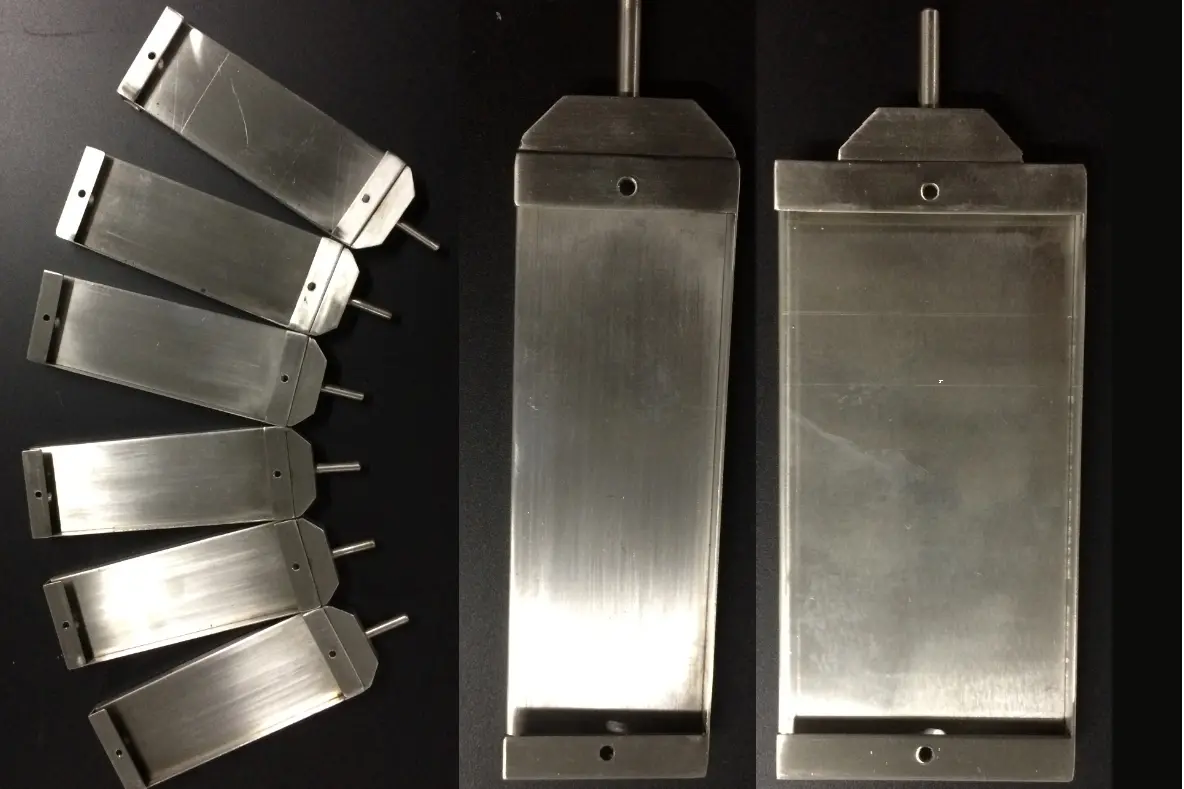

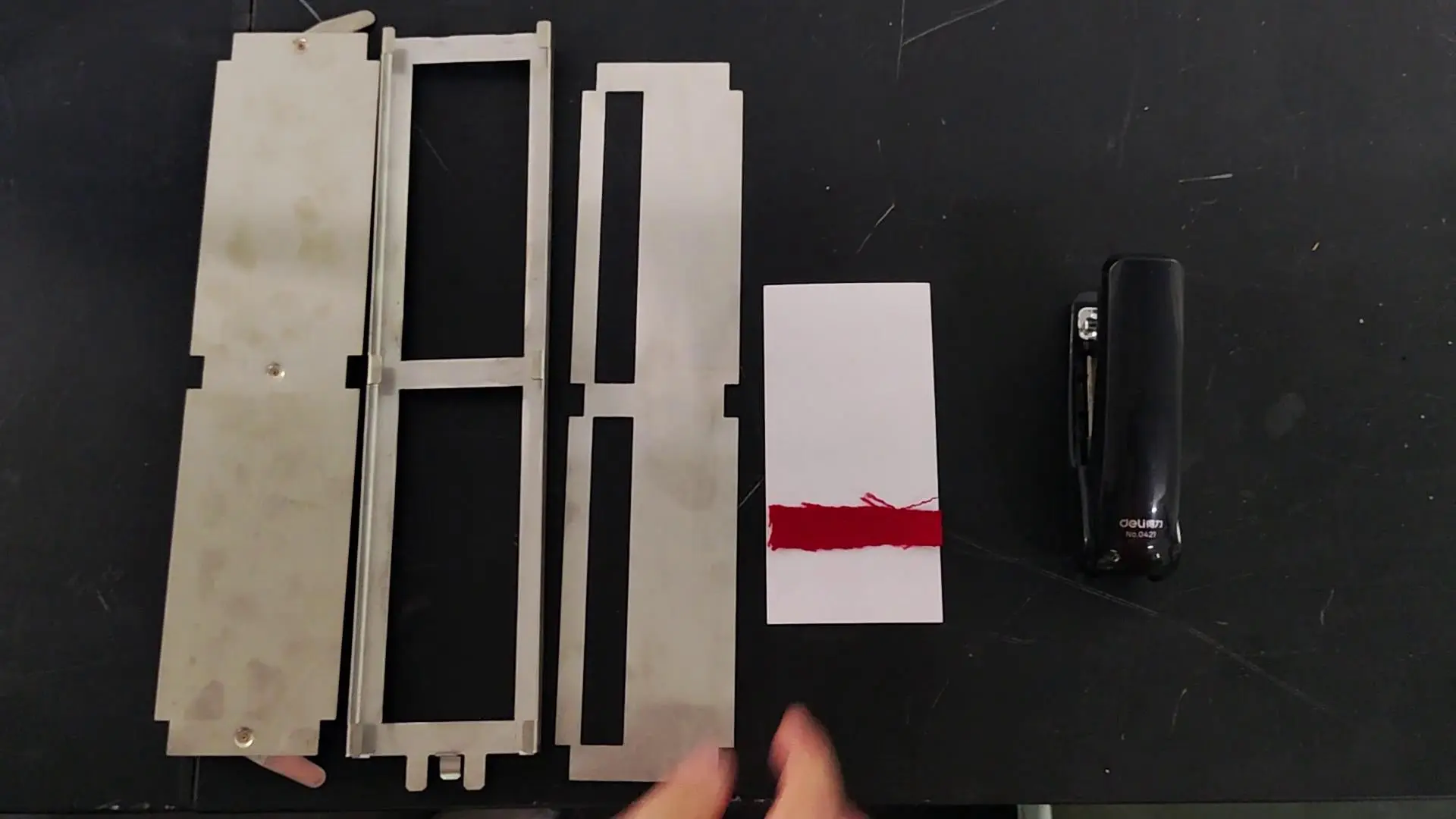

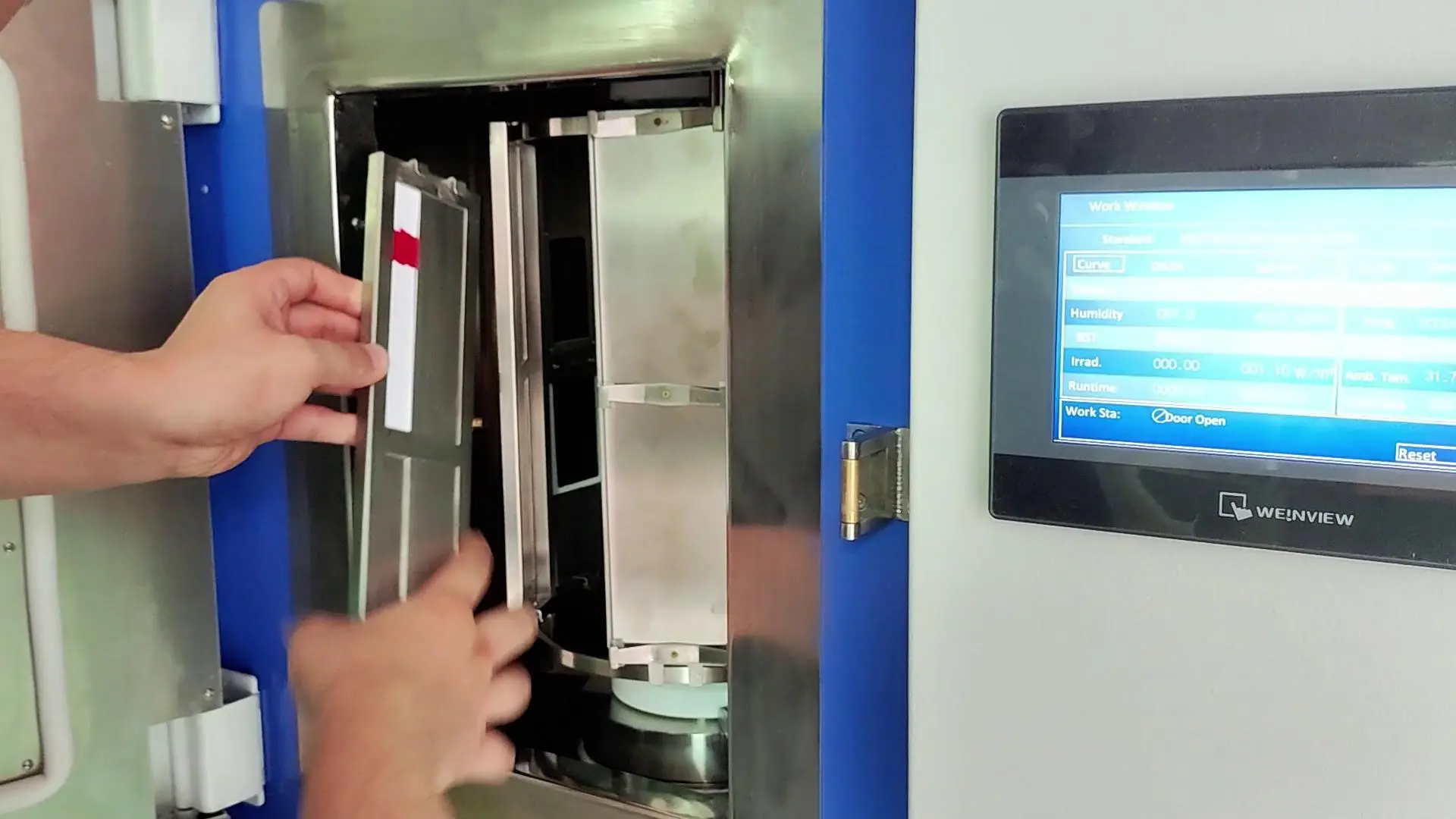

Maximum number of samples to be installed

GB: 12 PCS 135×45mm

AATCC: 100×75mm 6 PCS

When rotating, the sample can be sandwiched between two sides

Each sample clip separately timing

≤10000h

Light cycle

≤1000h

Spray cycle

≤1000h

Function

It has the functions of light, rain, alternating light and dark, revolution and rotation, among which, the test function of light and dark is strictly in accordance with AATCC4 standard, and the xenon lamp is automatically lit and automatically extinguished in a certain proportion of time (instead of the previous sample clamping 180° flip), and the temperature and humidity can be changed according to the standard

Power

 AC220V ±10% 50Hz 5kw, rated power: 2.5kw

Dimension

1000×550×1570mm

 Weight

 180kg
