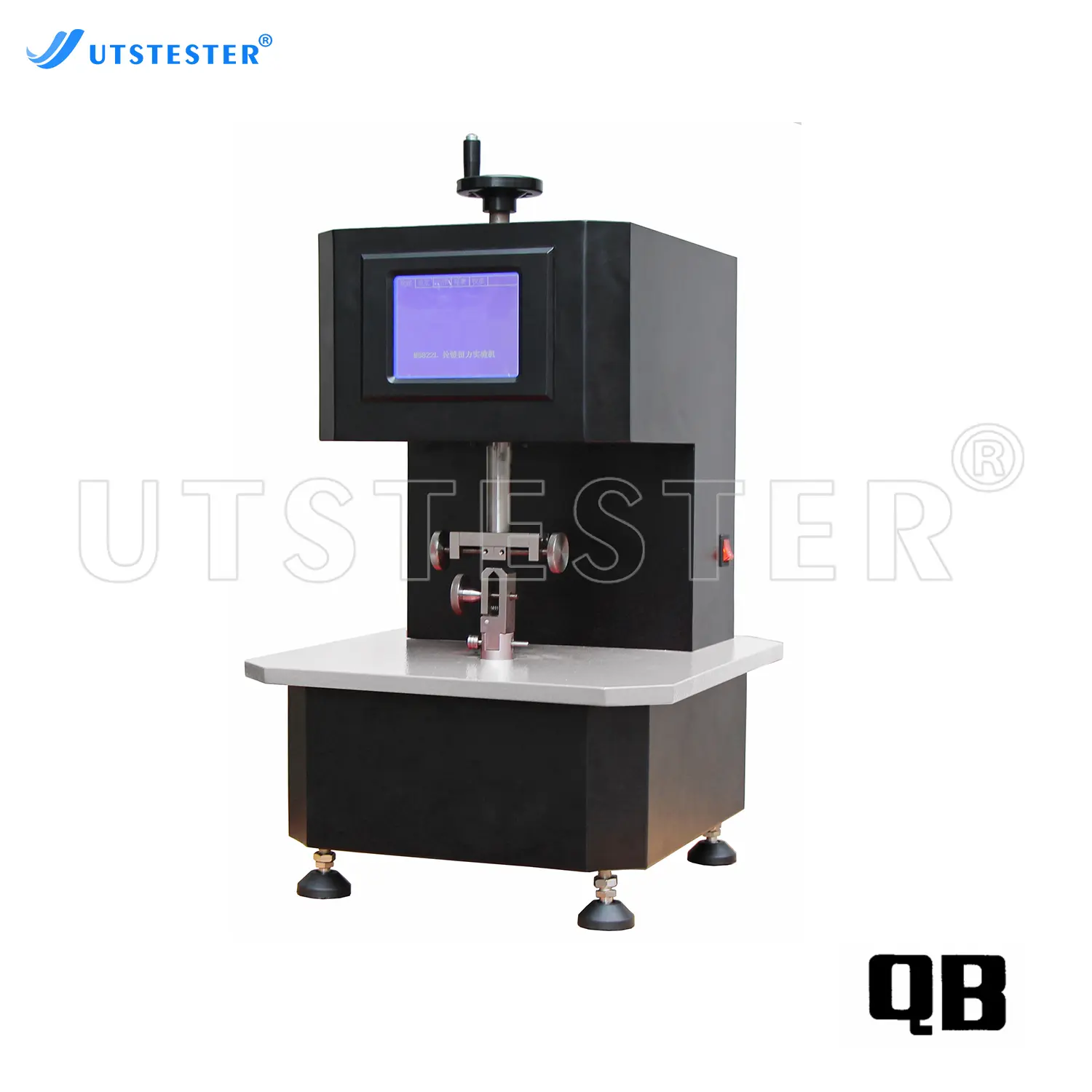

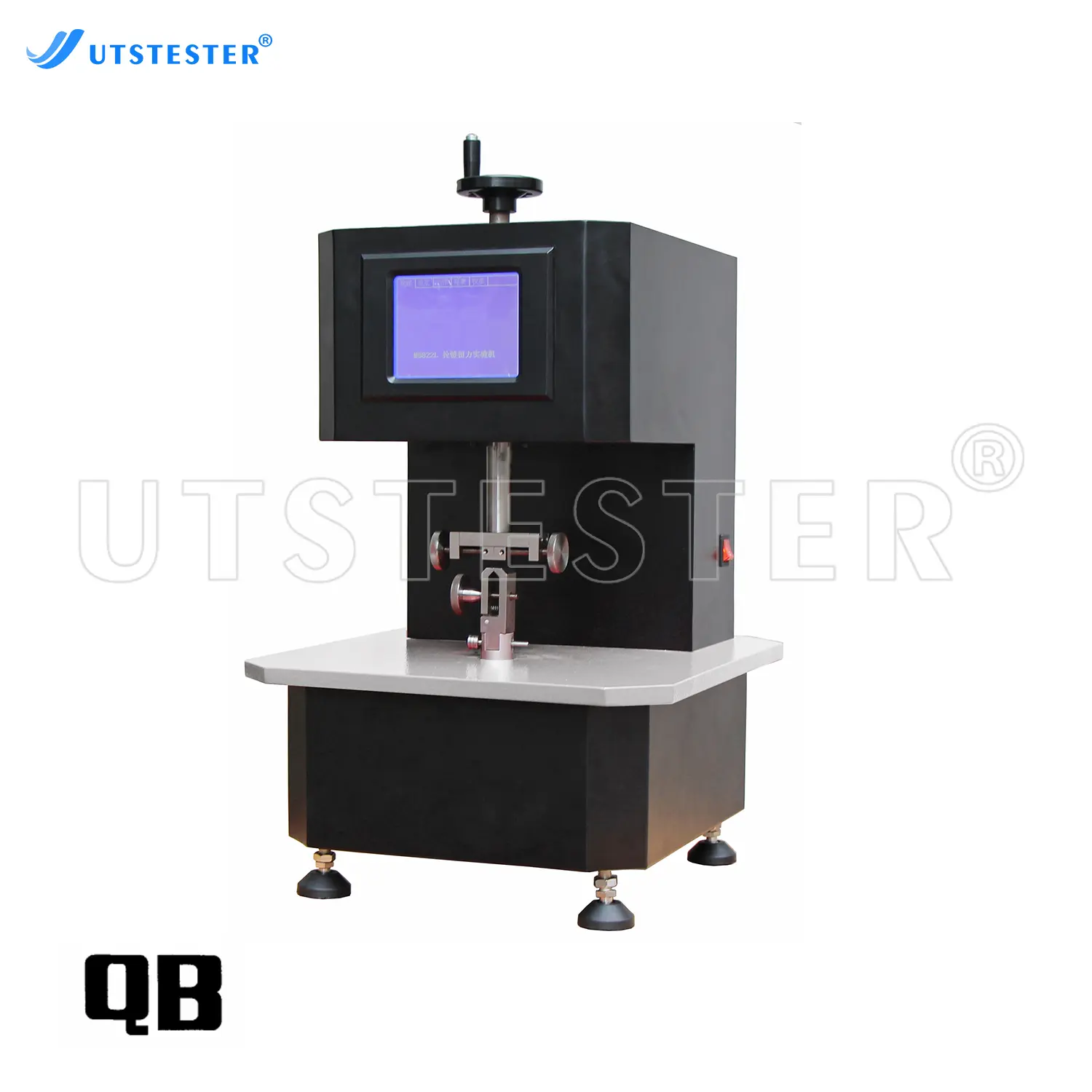

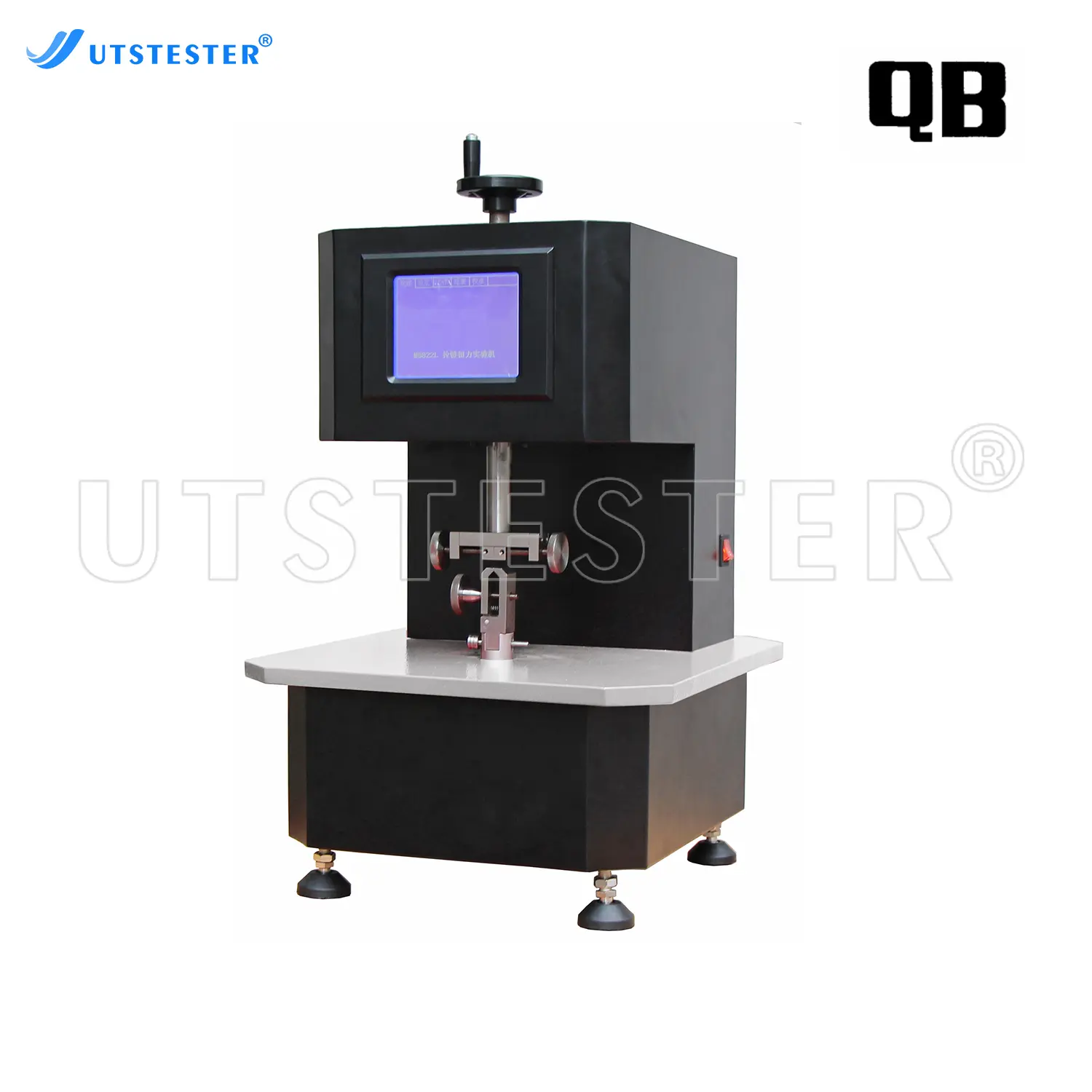

Fabric Testing Equipment Automatic Zipper Rotation Testing Machine M031B

1.Touch screen control, easy for operation.
2.Available to connect with computer and printer.
3.Test data can be reviewed at off-line condition.
4.Unit can be switched(cN.m and N.m).
5.Testing methods: twist off, constant angle, constant load.
6.Torsion part use low-noise reducer to run smoothly with low noise.
7.Torsional fixtures are made of stainless steel with Anti-Rust and Anti-corrosion advantages.
8.Microprocessor control, auto test, calculate and analyze test results, test data can be printed out.

product details

Production Processes

Packing System

Overview

Used for metal, plastic, nylon zipper pull head and anti torsion test.

Application

Zipper

Zipper

Standards

QB/T2171 QB/T2172 QB/T2173

Key Parameters

Model	M031B
Torsion test range	0.1~500 cN·m
Torsion precision	0.1cN.m
Torsion angle	±150°
Torsion angle precision	0.1°
Torsion speed	0.5 r/min - 2.0 r/min
Reduction ratio	20 times
Power	AC 220V 50HZ/60HZ 100W
Dimension (L×W×H)	460×410×550mm
Weight	50kg

Product Details

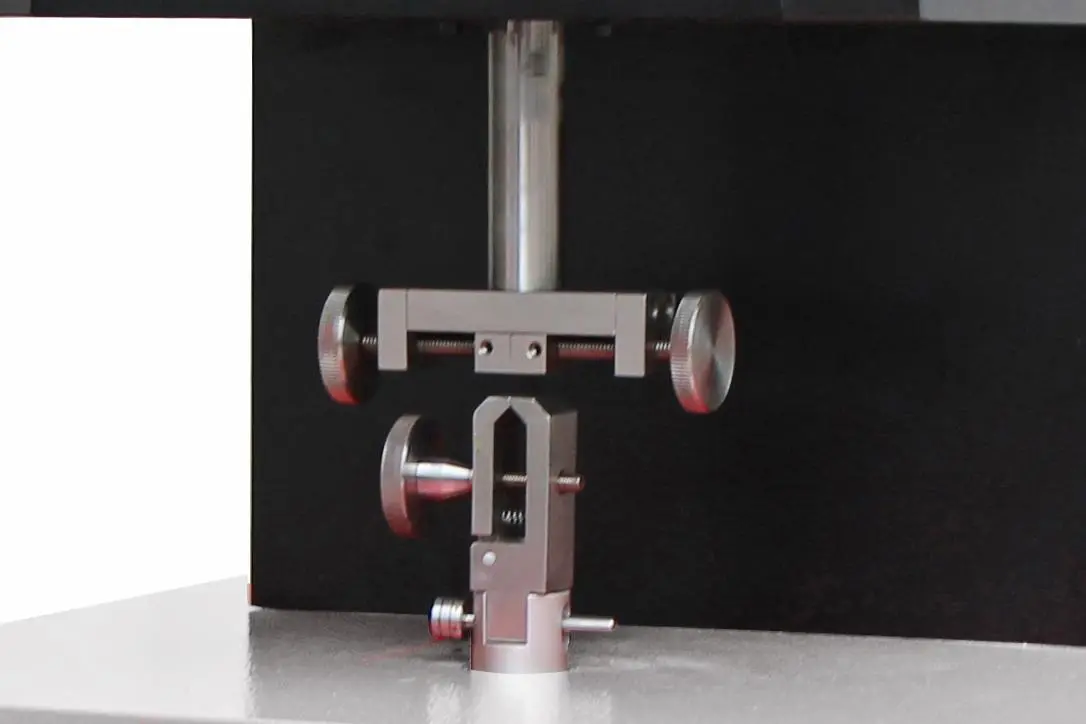

Clamping Device

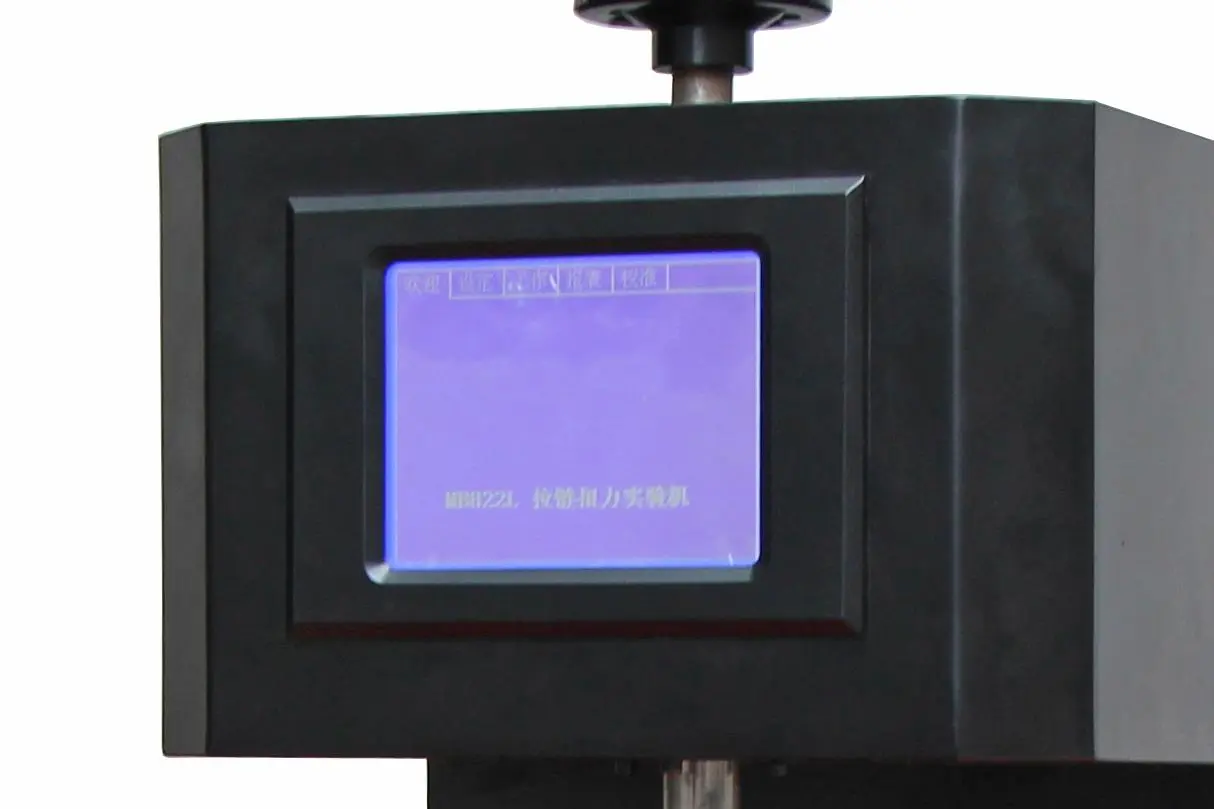

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
