Yarn and FiberTesting

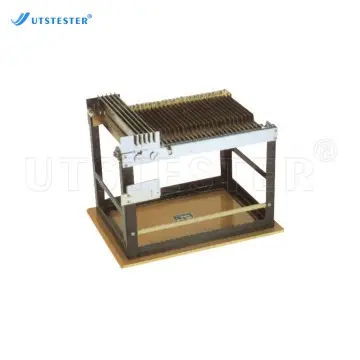

Test the wool fiber length of a single wool.

Used for various fibers to determine the length of the thread when determining the density of the fiber.

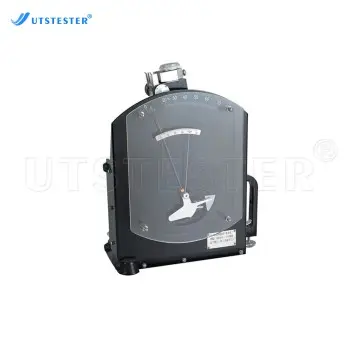

Used to measure strength and elongation of bundle fiber of cotton,wool and chemical fiber etc.Properties should be meet the requirement in GB/T13783.

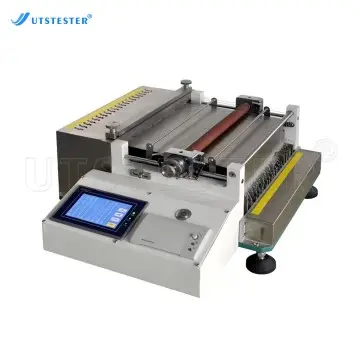

The instrument uses constant friction, twenty-head testing, and uses an ARM microcomputer for detection and data processing. Frequency conversion speed regulation, touch screen human-computer interaction can display the average number of wear resistance, coefficient of variation of wear resistance, maximum value, minimum value and the single value of twenty yarns for each batch of tested yarns.

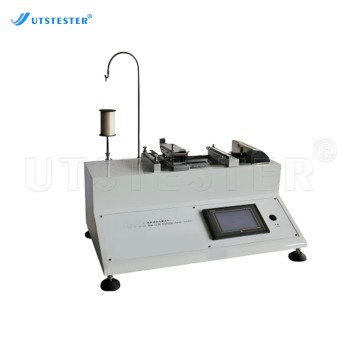

The newly designed raw silk cohesion force tester uses a precision linear guide transmission system to ensure that the friction tool holder is fully lubricated and has no resistance during the reciprocating motion, ensuring uniform friction of the sample. The instrument is equipped with an intelligent touch screen operating system, making human-machine dialogue easy to operate.

Dyeing test knitting machine is the latest generation of high efficiency knitting machine carefully developed by our factory, which has the advanced international level in the new century. The mechanical properties of this machine are stable and reliable.

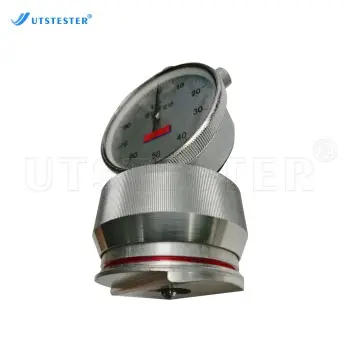

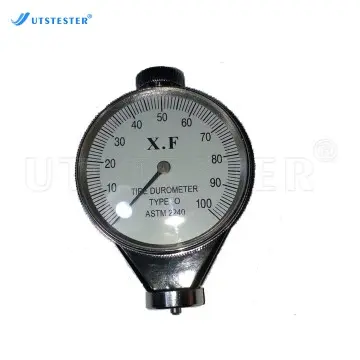

The hardness test principle is based on the pressure at the end of the pressure pin: 0.55N-8.06N (56g-822g) under a known spring pressure. The resistance of the probe when it penetrates the surface of the measured object is converted into the pointer reading on the dial of the durometer

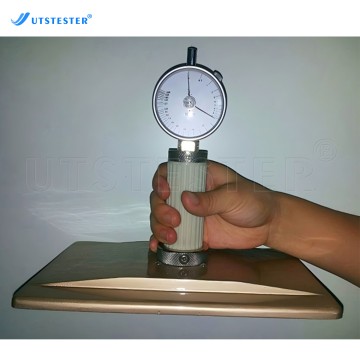

The hardness test principle is based on the pressure at the end of the pressure pin: 0.55N-8.06N (56g-822g) under a known spring pressure. The resistance of the probe when it penetrates the surface of the measured object is converted into the pointer reading on the dial of the durometer.

1.Touch screen control panel
2.Auto alarms after drawing to a predetermined tension and stop.
3.Auto or manual testing mode
4.Auto operation after setting up force value
5.Real-time display elongation and force value

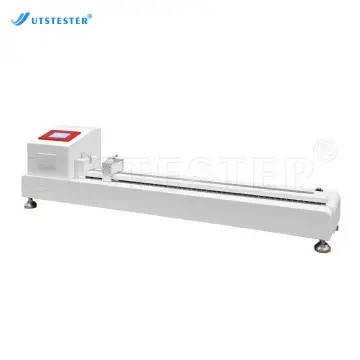

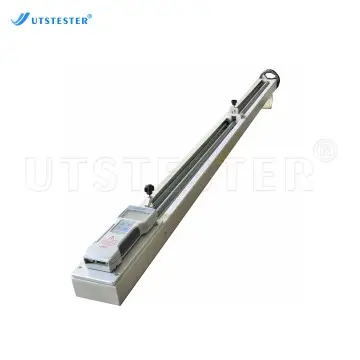

To measure the crimp degree of yarn in fabric.
Take-up of yarn in fabric.
Calculation of the count of yarns removed from fabrics
Estimation of yarn usage in the production of fabrics

Y014N fabric tension meter is used for tension measurement of various papermaking fabrics, including papermaking forming mesh copper mesh, press felt, dryer felt, dryer mesh, etc. In particular, the currently widely used polyester forming mesh has more stringent requirements on tension. Too much or too little tension will cause various accidents, resulting in deformation of the mesh pattern and reducing the performance and service life of the fabric.

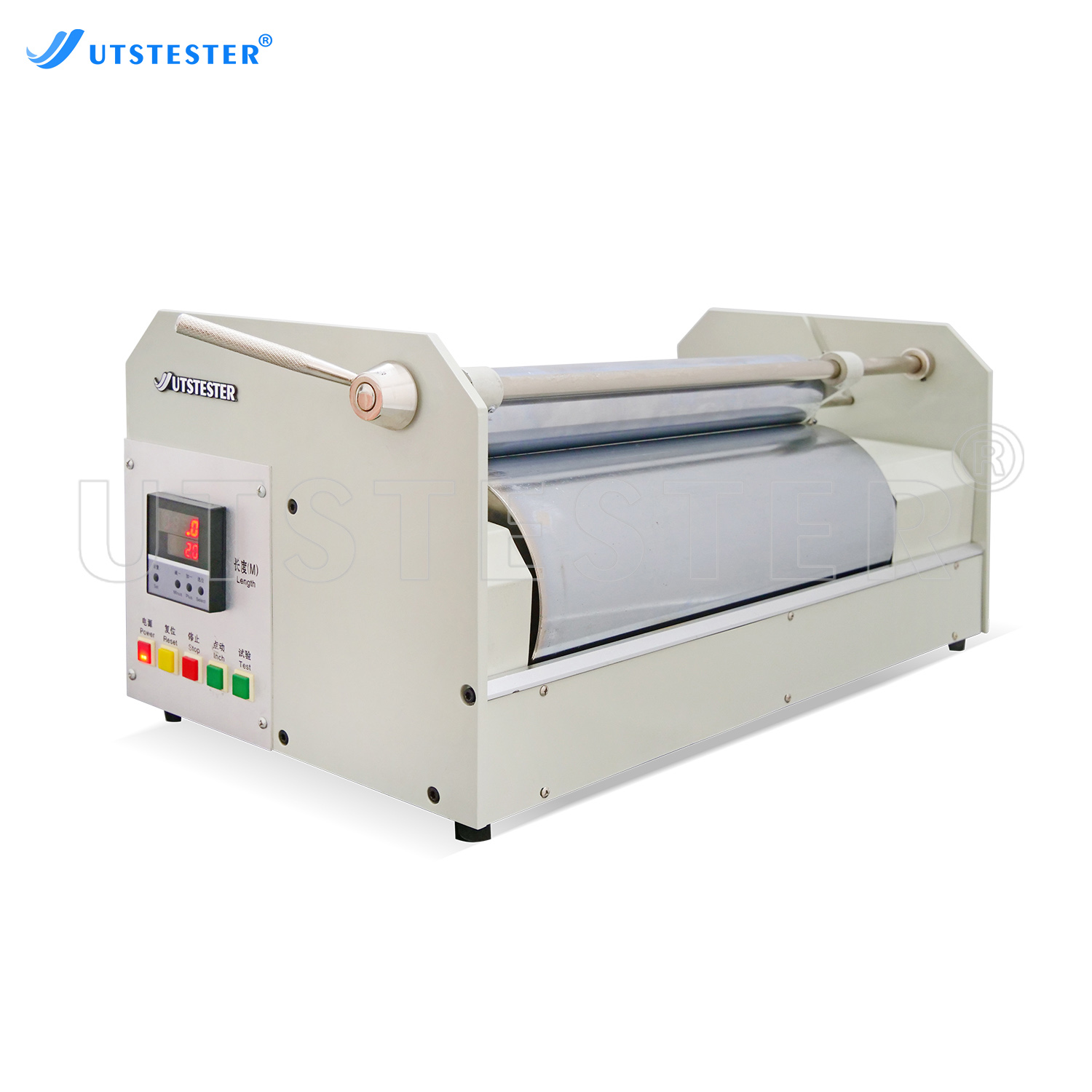

1. Can measure the unevenness of roving, sliver.
2. Automatic zero, and automatic adjust average, operation more convenient, more efficient.
3. The unevenness curve can be saved, playback, and mark defect position on the uneven curve.
4. Automatic alarm when sliver break off during testing.
5. Powerful statistical analysis, providing annual and monthly product quality analysis and quality trend in graphic , provides the basis reference for scientific management users.
6. Using a graphical interface, cooperate with control panel key board to achieve complete testing by a key operation.
