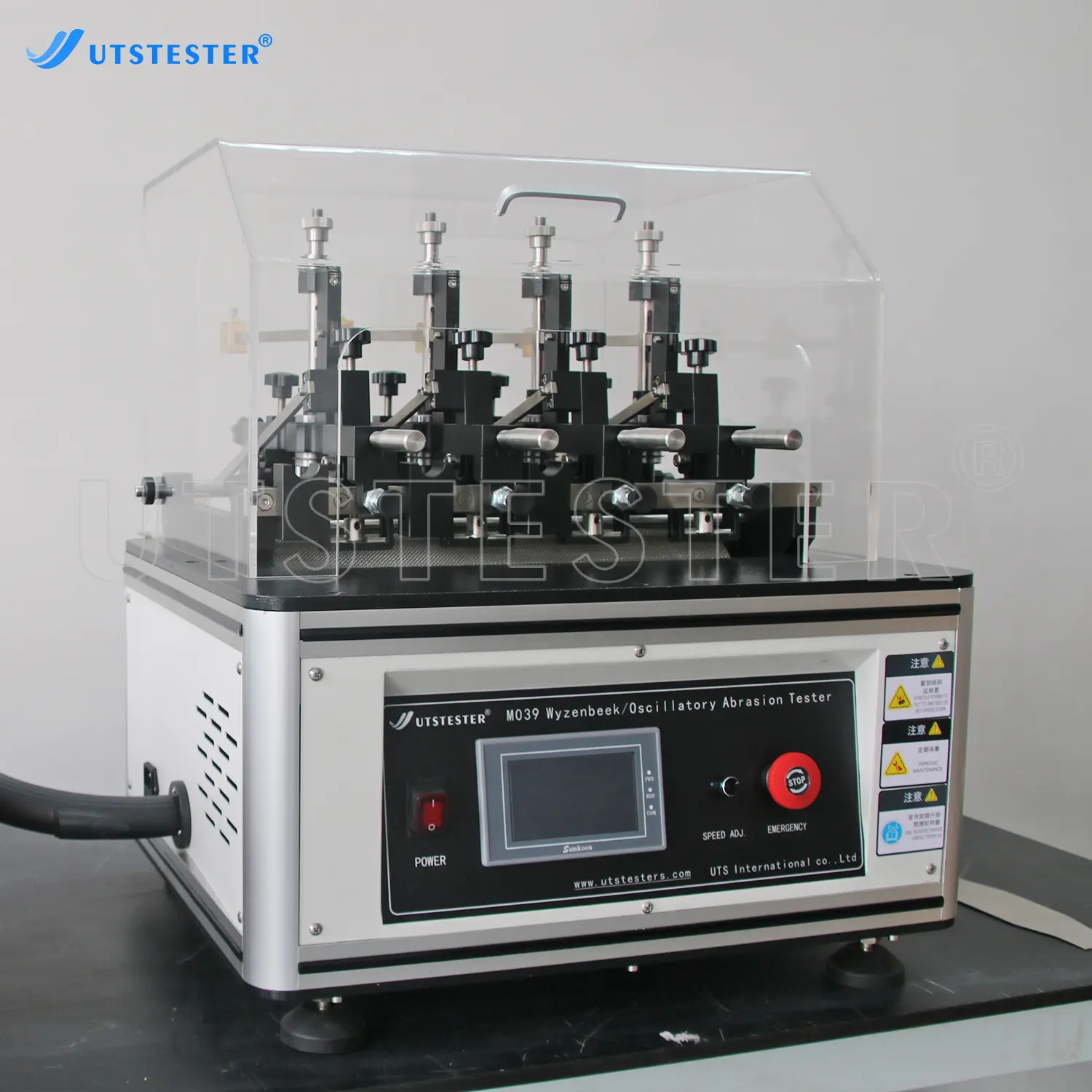

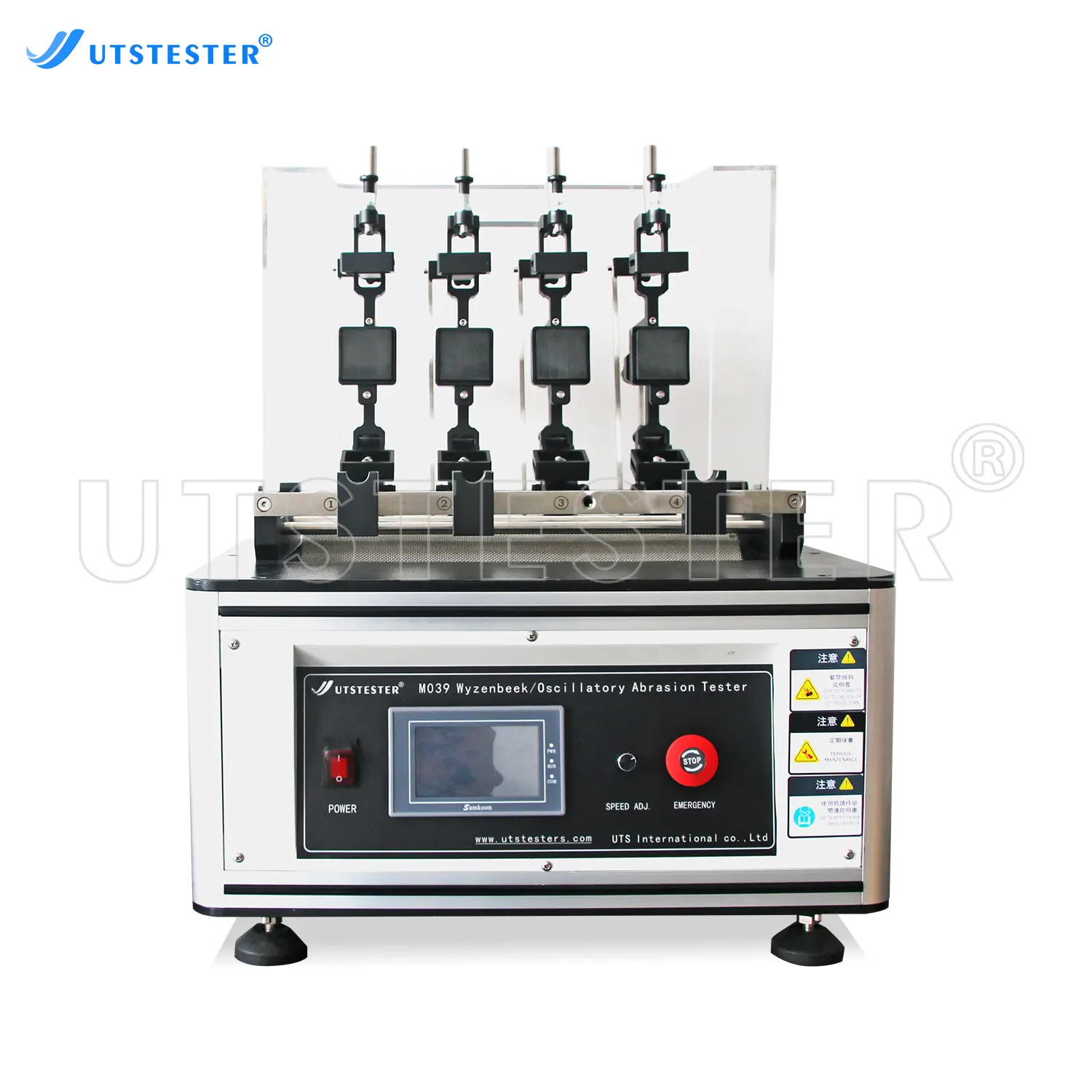

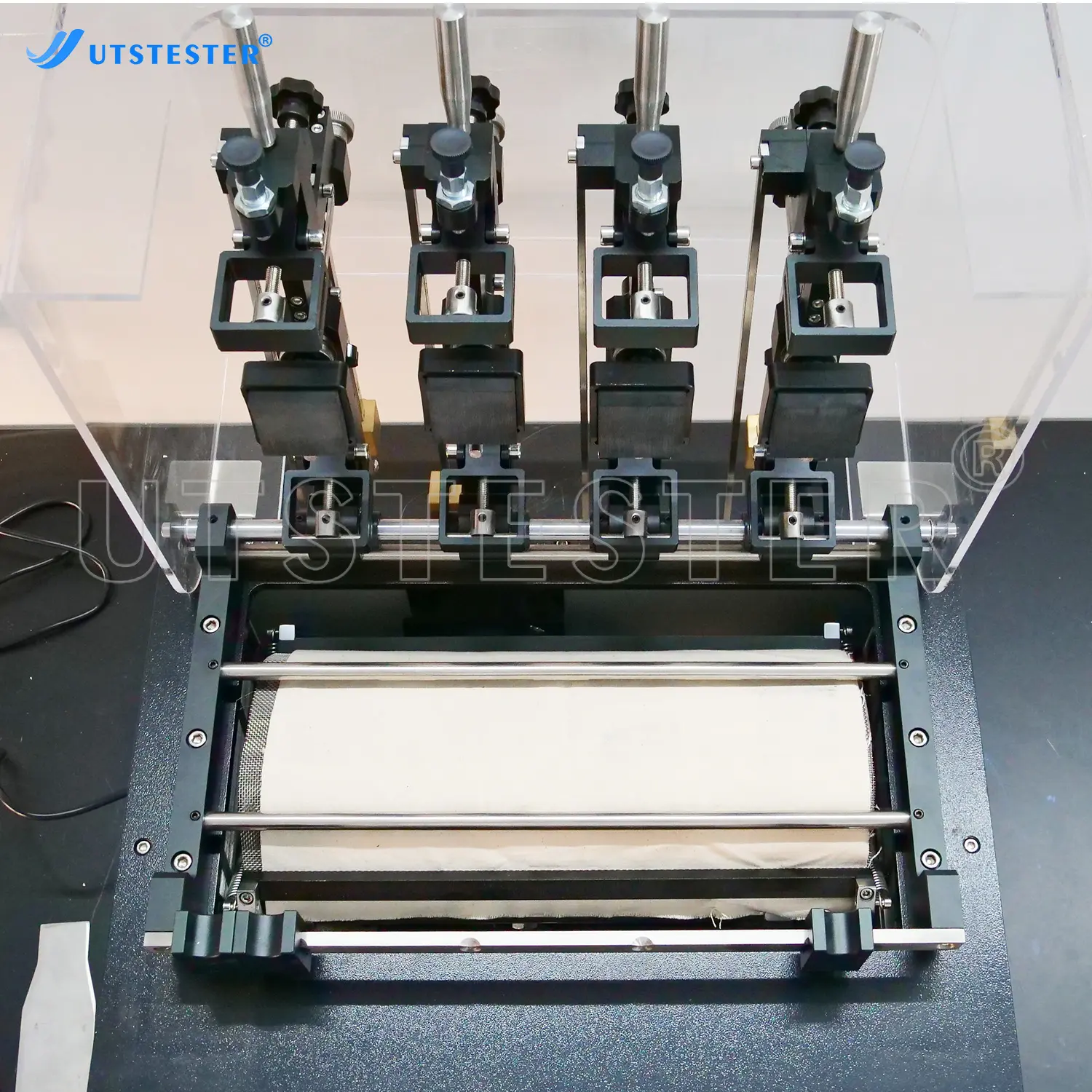

Wyzenbeek or Oscillatory Abrasion Tester to Test Abrasion Resisitance Property for Textiles M039
Overview
To determine the abrasion resisitance property for textiles, leather, leather cloak, so as to provide the reference for improving quality.
Application
Fabric
Fabric
Fabric
Standards
ASTM D4157, BS EN ISO 12402-7, FTMS 191A 5304
Key Parameters
|
Model |
M039 |
|
Working positions |
4 groups |
|
Speed |
90±1 r/min |
|
Abrasive platform |
Cambered surface: R80mm Length:300mm |
|
Abrasive stroke |
Arc length 76±2mm |
|
Abrasive head |
Bottom rubbe indenter, 50x50mm, cambered surface R80mm |
|
Sample tension force |
4 lbf(17.8N), Adjustable |
|
Tension regulation load weight |
340g |
|
Sample load |
3 lbf(13.4N), Adjustable |
|
Load regulation load weight |
150g |
|
Sample size |
73mmx245mm |
|
Sample quantity |
12 pieces, 6 pieces for each Warp and Filling |
|
≤4cfm |
|
|
Power Supply |
1∮ AC 220V 50/60Hz |
|
Dimensions ( L x W x H ) |
50x70x55cm |
|
Weight |
Approx. 60Kg |
Product Details

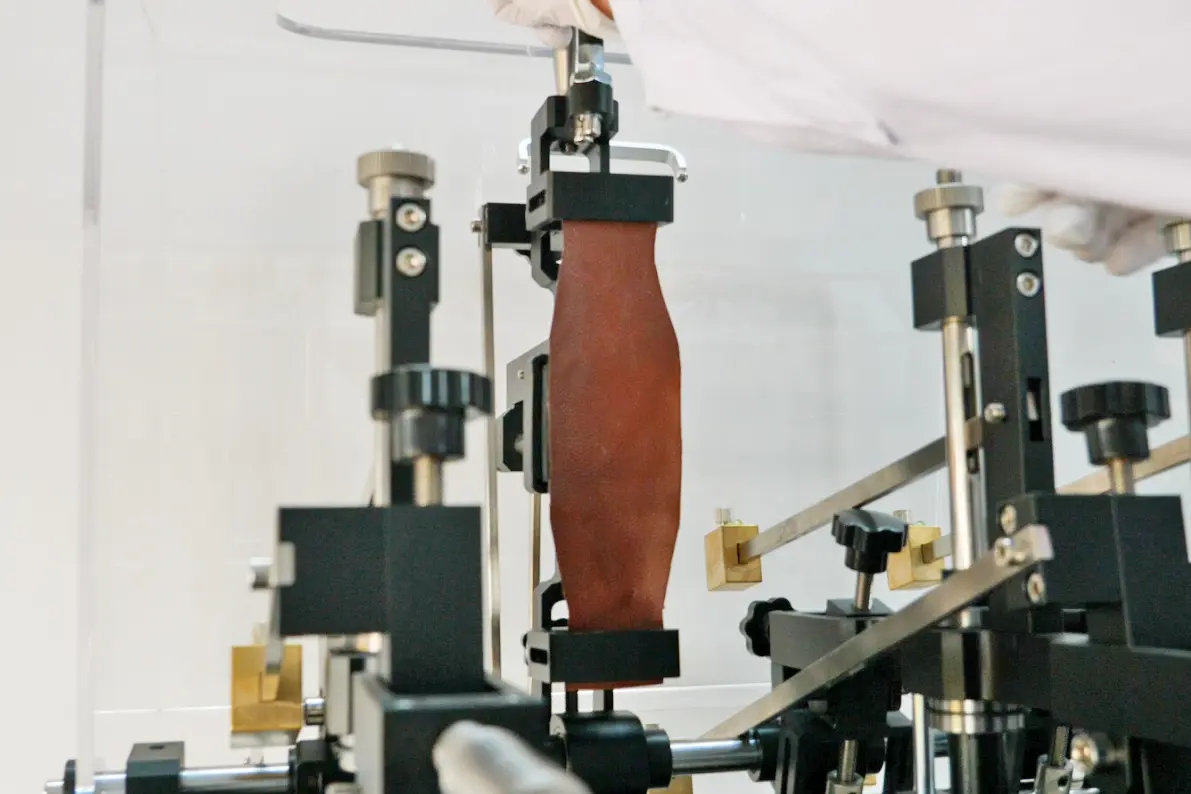

Sample’s fixture

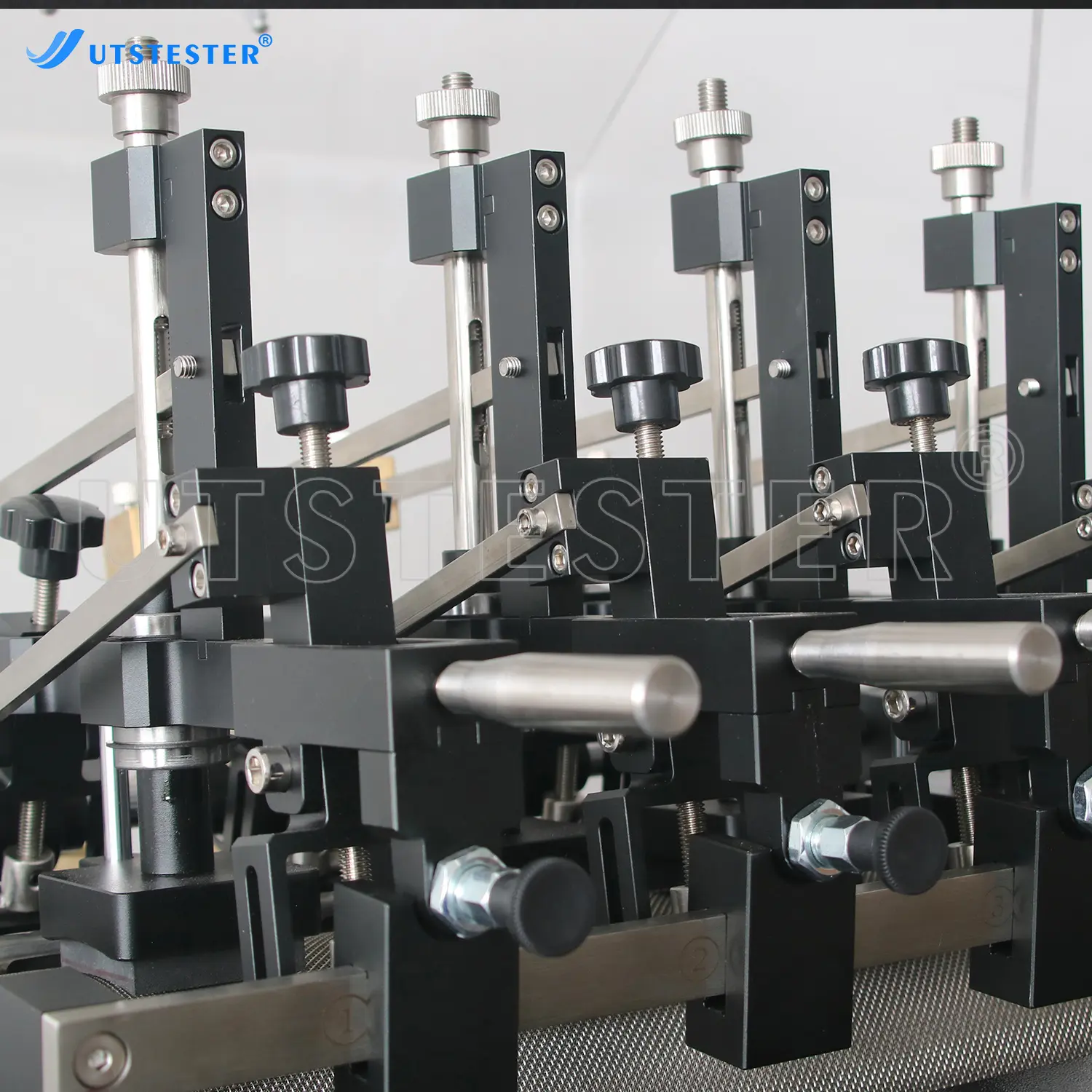

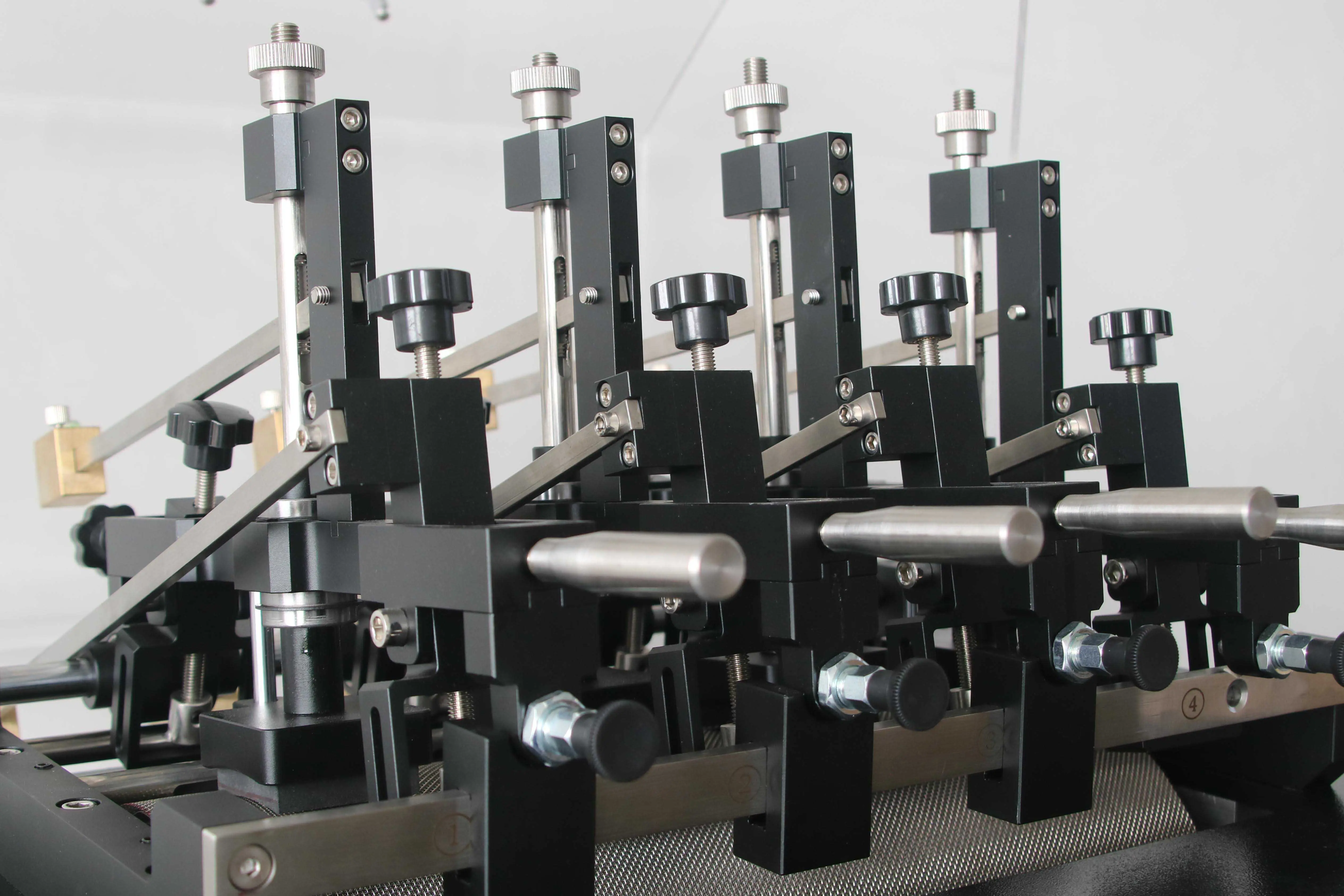

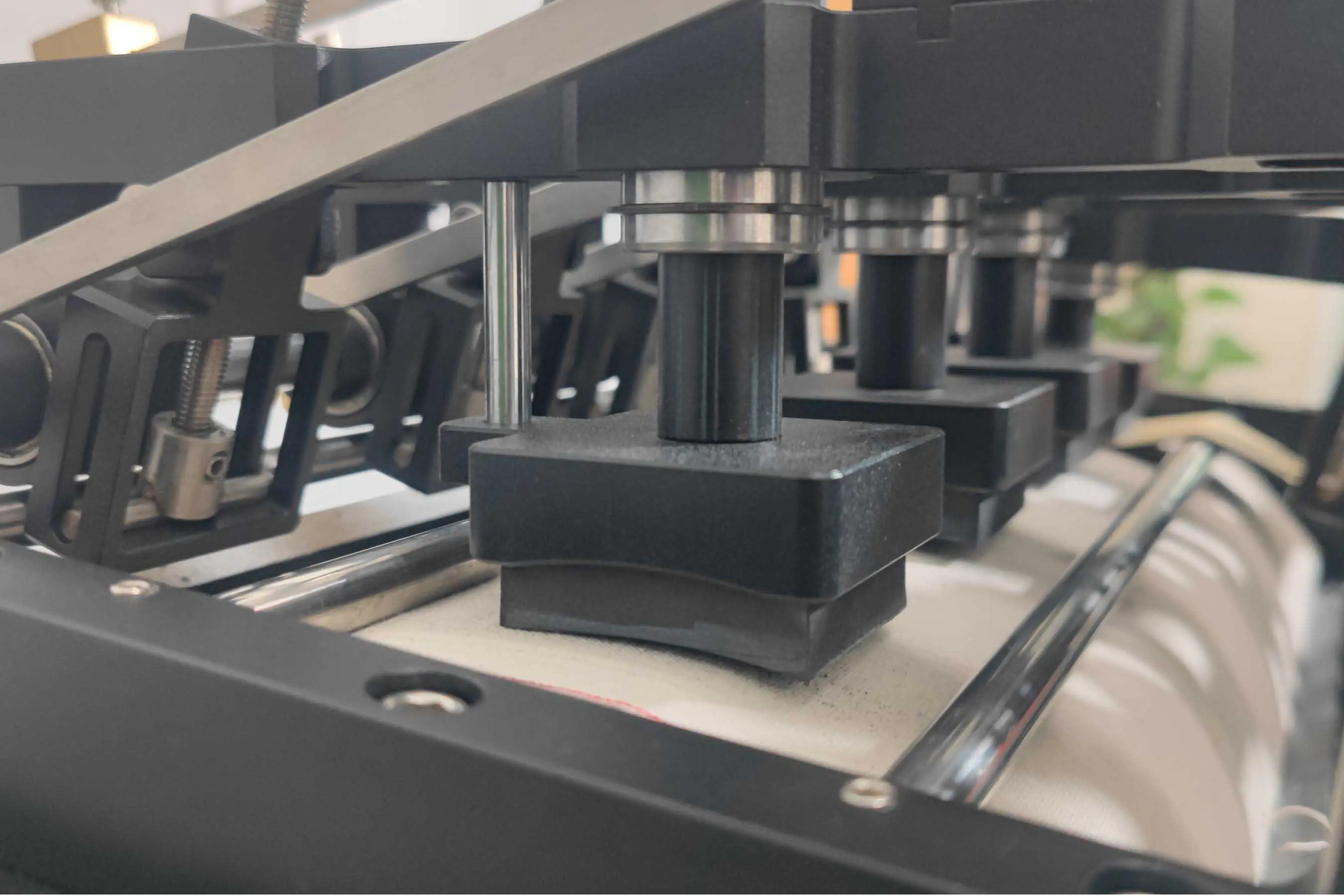

Friction head

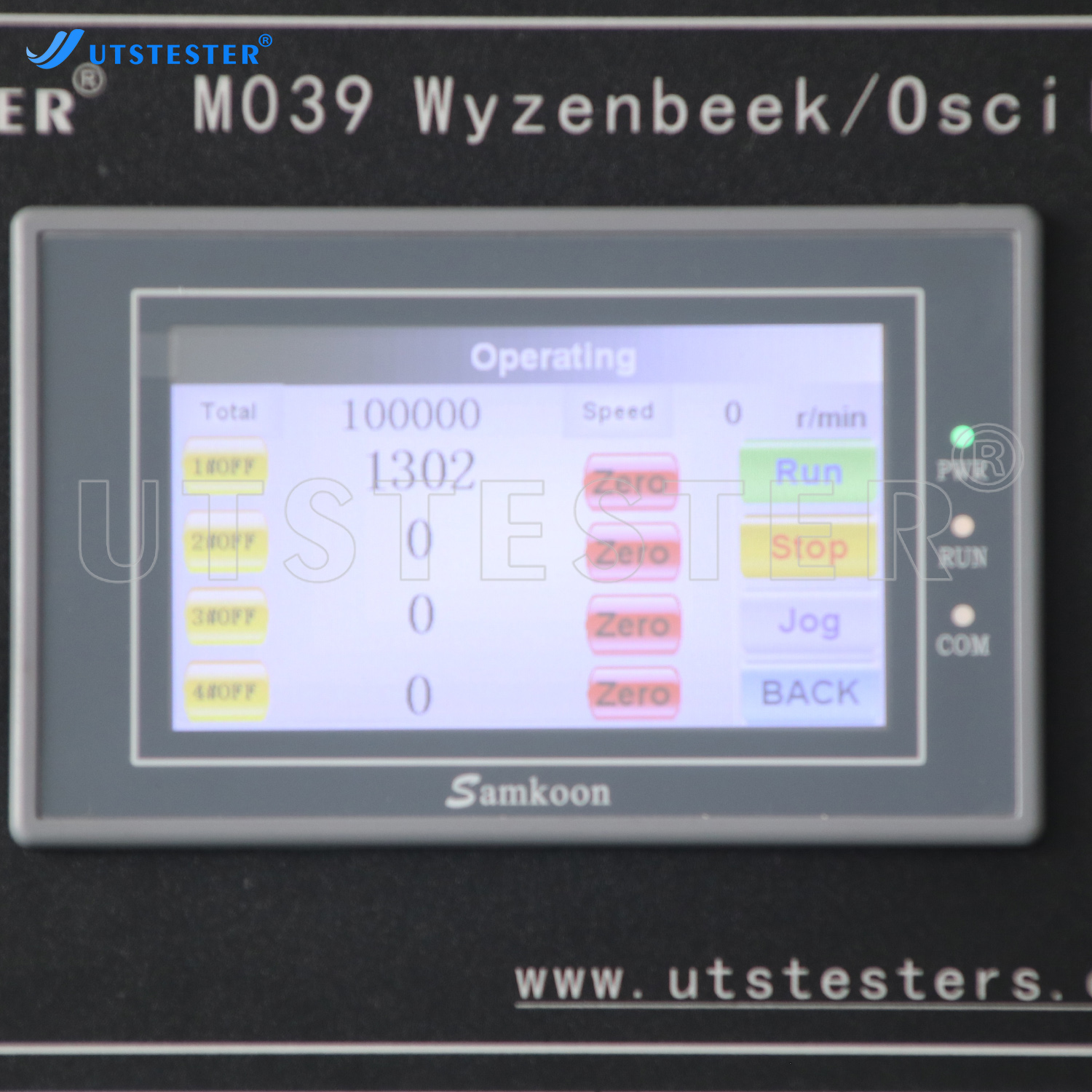

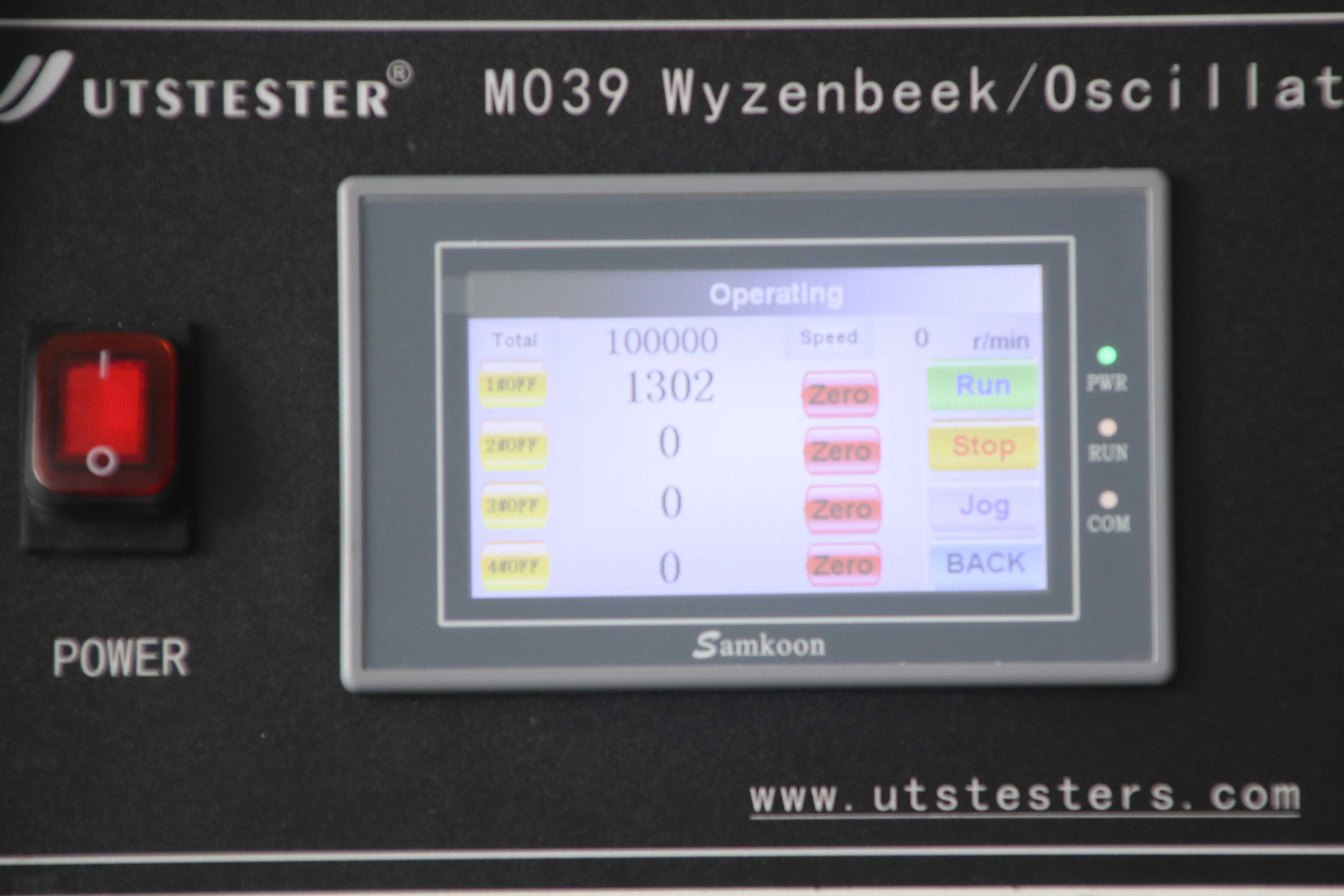

Controller
Friction head group positioning plate

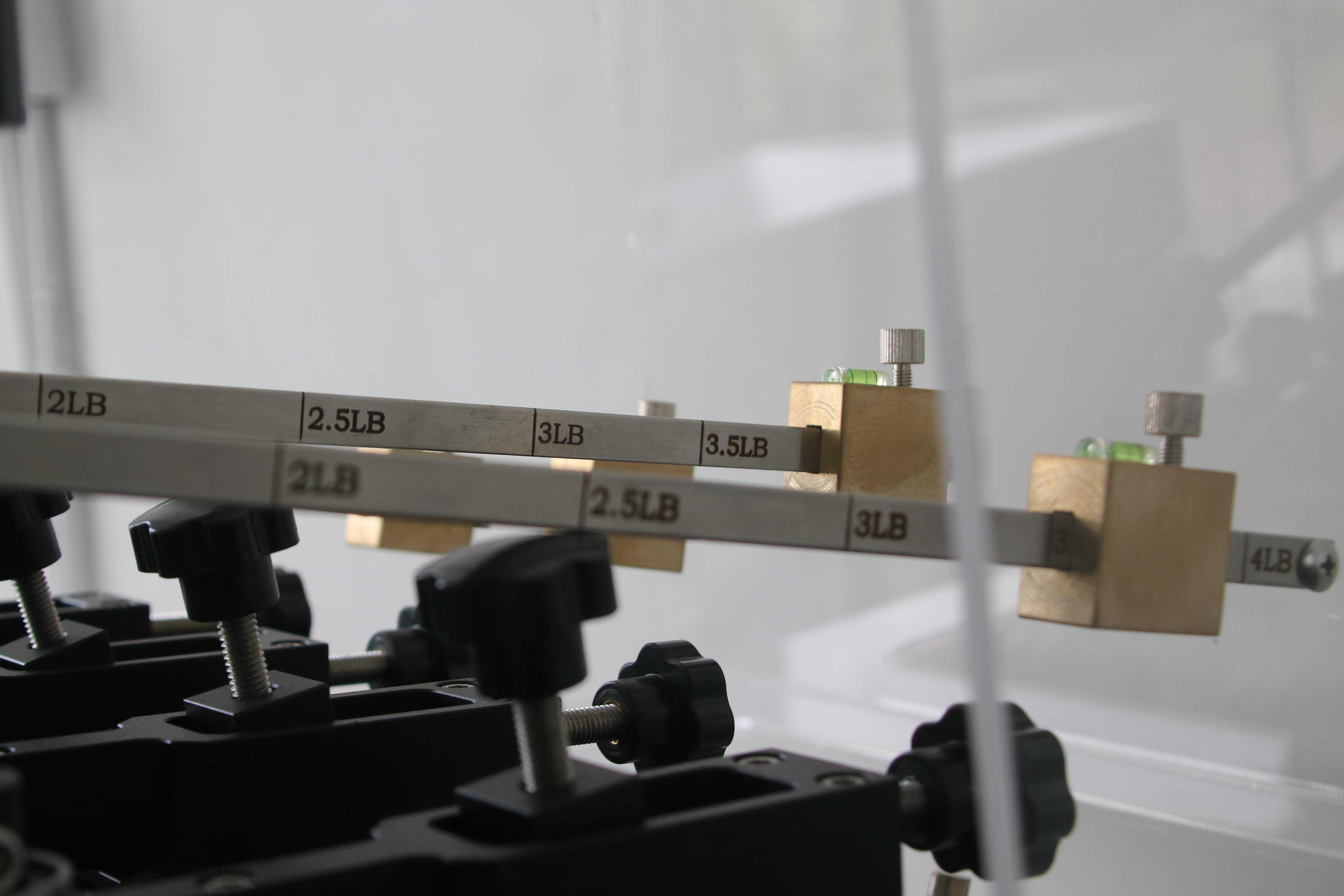

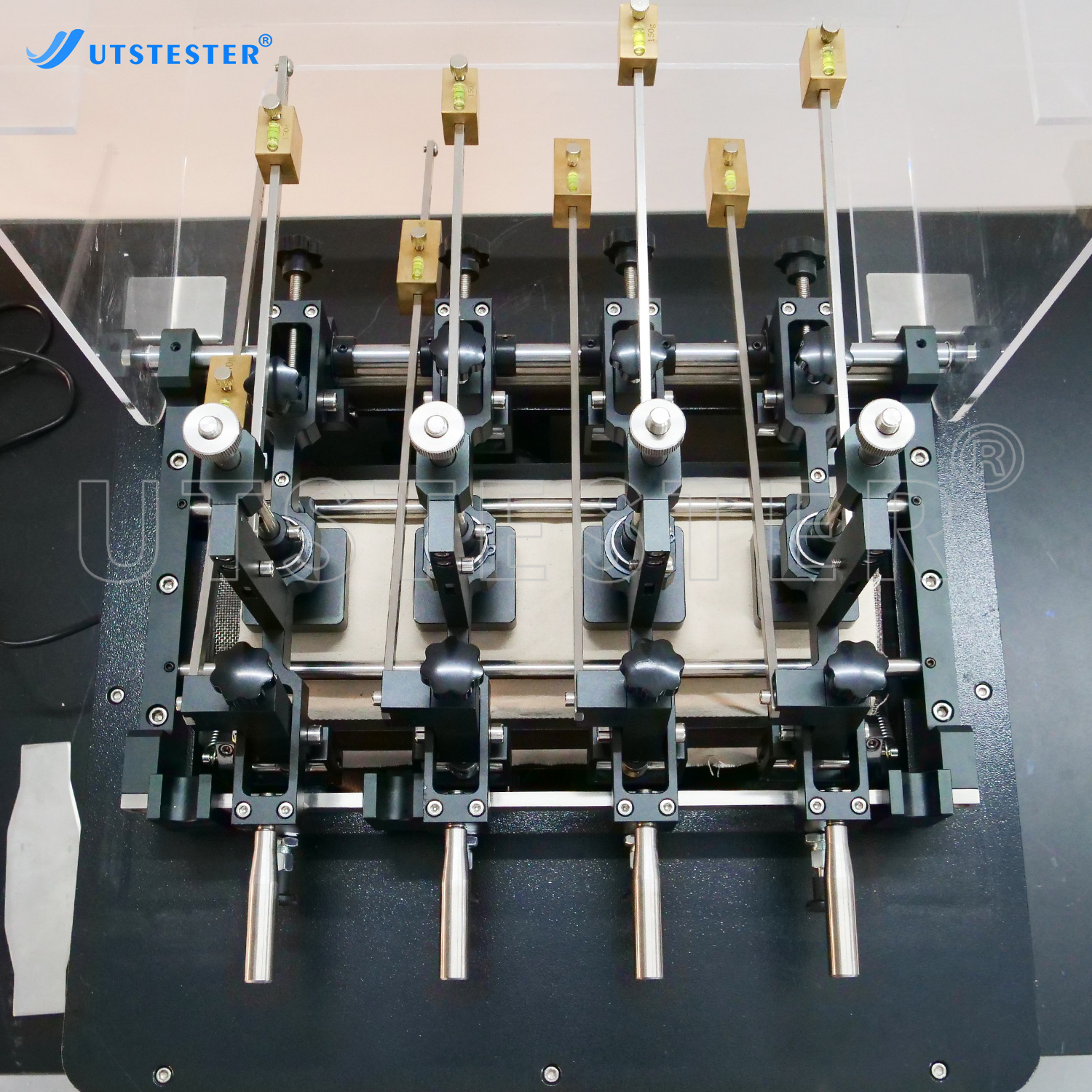

Load regulating rod

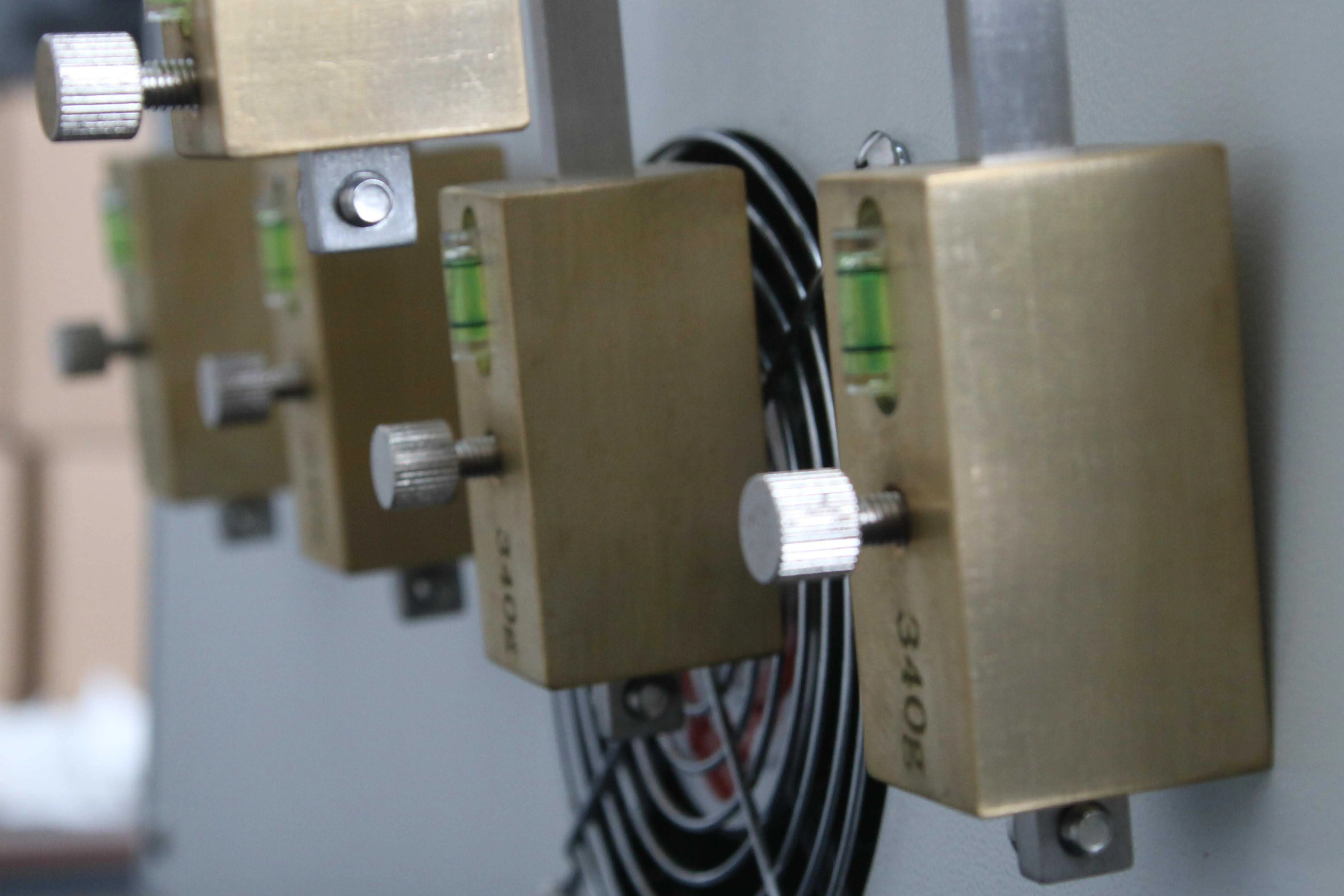

Load regulating block
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
