Whole Shoe Testing Equipment

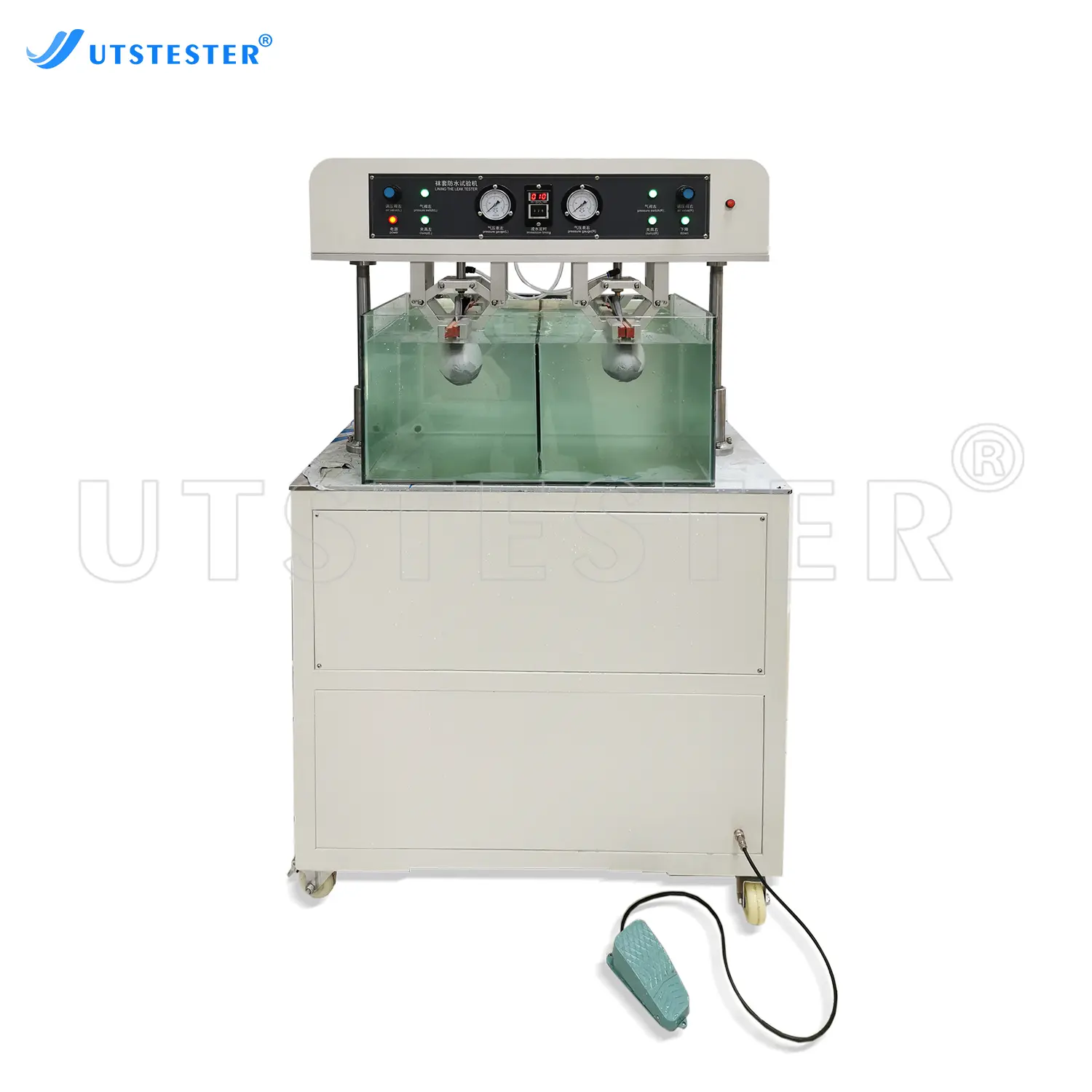

Mount the finished shoes on test machine, add a certain depth of water into tank to touch shoes. It drive forward forefoot of shoes to bend at a certain angle and frequency, so as to simulate people wear the shoes walking in the water. Test the needed bending times for water penetrate from shoes outside to inside or test water penetrate area under specified test times or bending times.

1.PLC closed-loop controller controlled.
2.AC servomotor ensures accurate and durable test results.
3.Rigid construction and advanced AC servomotor ensure quiet running without noise.
4.Transparent plastic cover ensures safe and convenient operating.

1, The sensitivity is adjustable to meet different test results
2, Displacement has a manual adjustment device, convenient clamping of the specimens.
3, Four groups of specimens respectively by four counter timing, when one or more groups of specimens sensing immersion, counter will stop count which does not affect the other groups of timing.
4, With alarm device, when all four groups induct the immersion, machine will automatically alarm immediately.

1, The sensitivity is adjustable to meet different test results
2, Displacement has a manual adjustment device, convenient clamping of the specimens.
3, Four groups of specimens respectively by four counter timing, when one or more groups of specimens sensing immersion, counter will stop count which does not affect the other groups of timing.
4, With alarm device, when all four groups induct the immersion, machine will automatically alarm immediately.

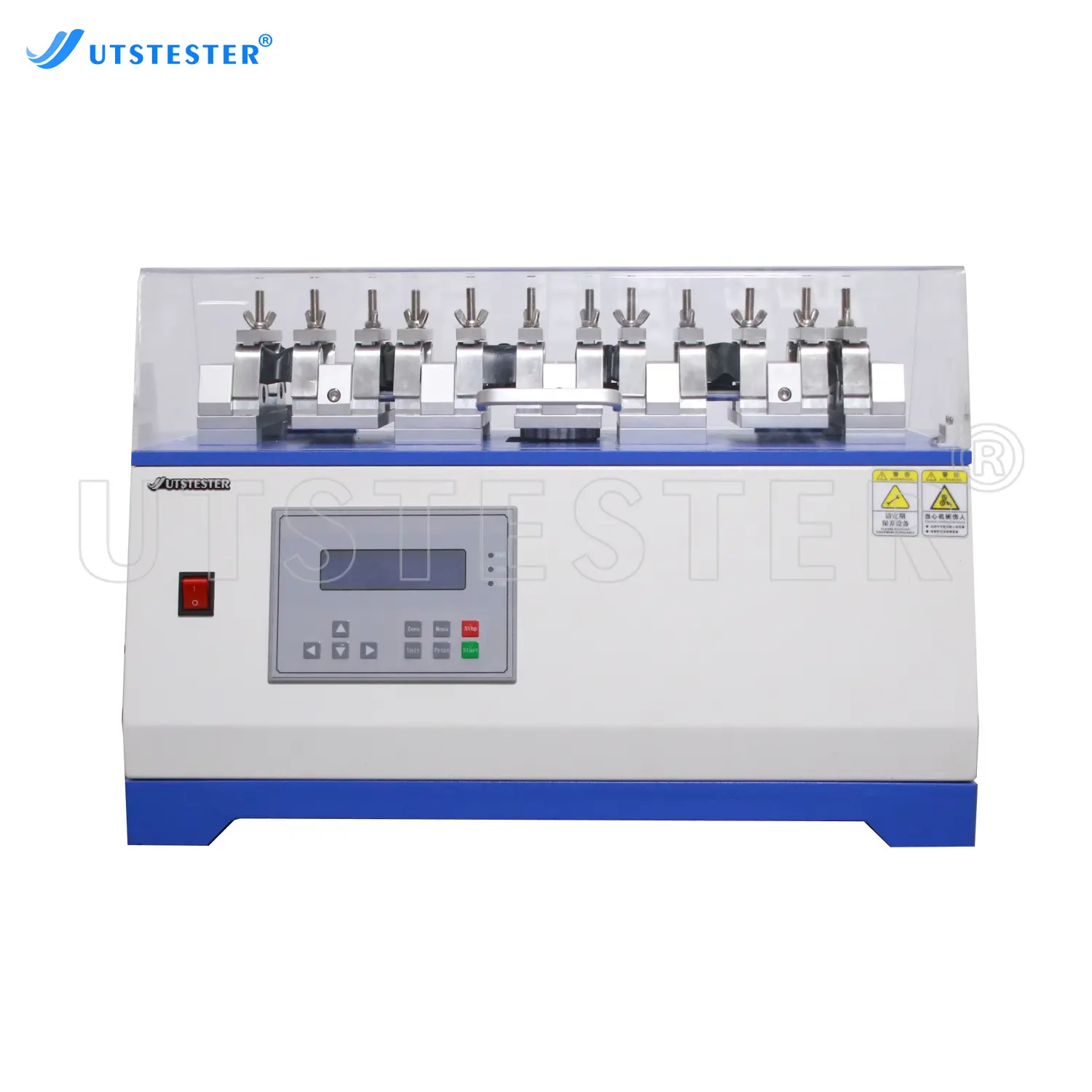

Simulating vamp flexing state during person wear shoes. Fix samples on the V shape of fixtures and fixtures do relative motion to make two fixtures close to each other and samples flex. During testing, fixture do uniform motion, samples are flexed repeatedly, evaluate sample breakage or desalination phenomenon.

1.Equipped with manual control device, which is very easy to set up, and its protective performance fully meets European health and safety requirements.
2.The machine supports the use of standard shoelaces to test shoelaces, or standard shoelaces to test shoelaces.
3.Six sets of specimens can be tested once.
4.Equipped with a separate counter for each working positions.

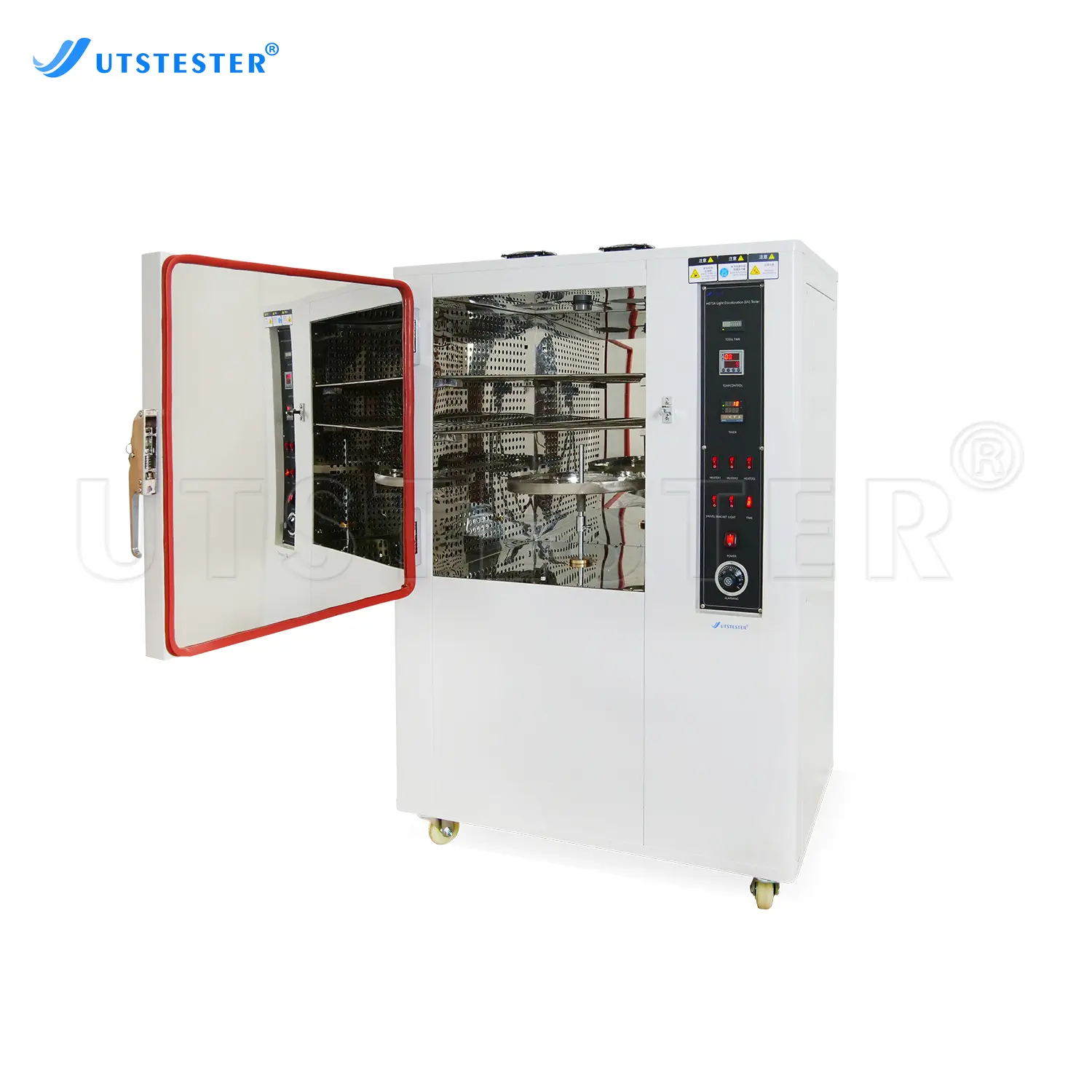

According to the principle of light and white materials or products are easy to change color, the effect of various lighting is tested. This machine is equipped with a specimen turntable, which can ensure the specimen to expose to light uniformly so that the test precision can be improved.

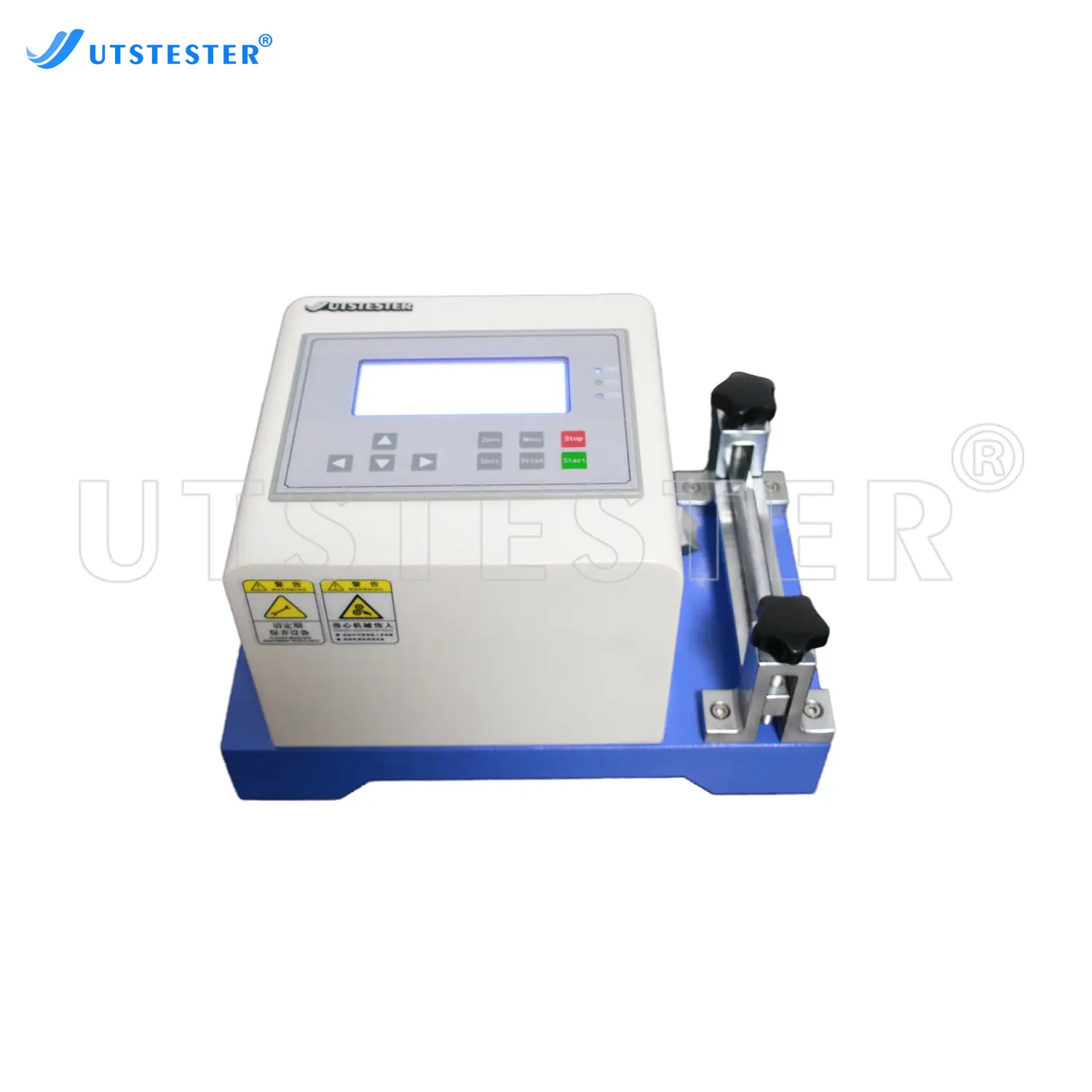

To determine bonding strength property for outsole and vamp of shoe heel and toe.

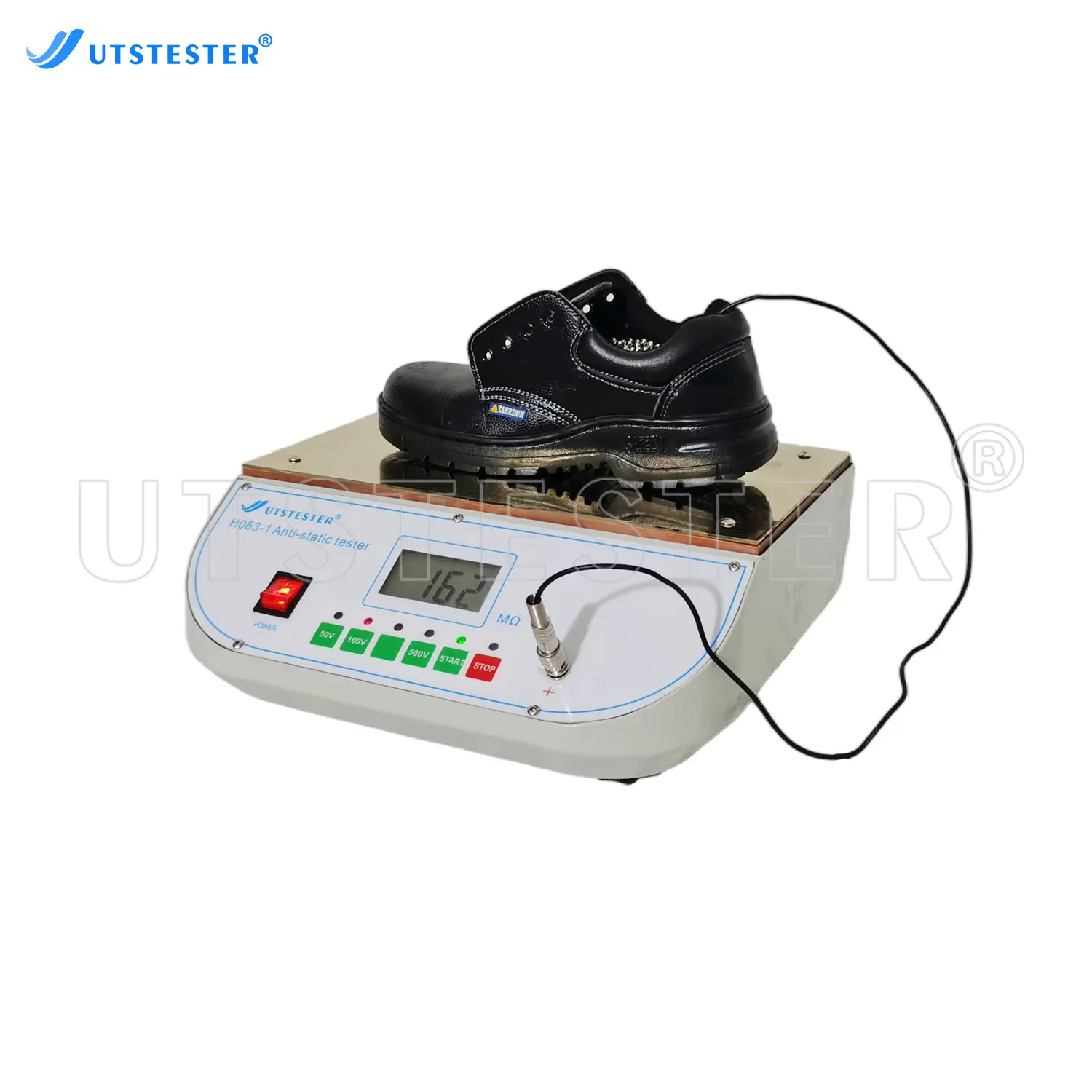

This instrument is used to measure the resistance value of footwear to understand its antistatic performance.

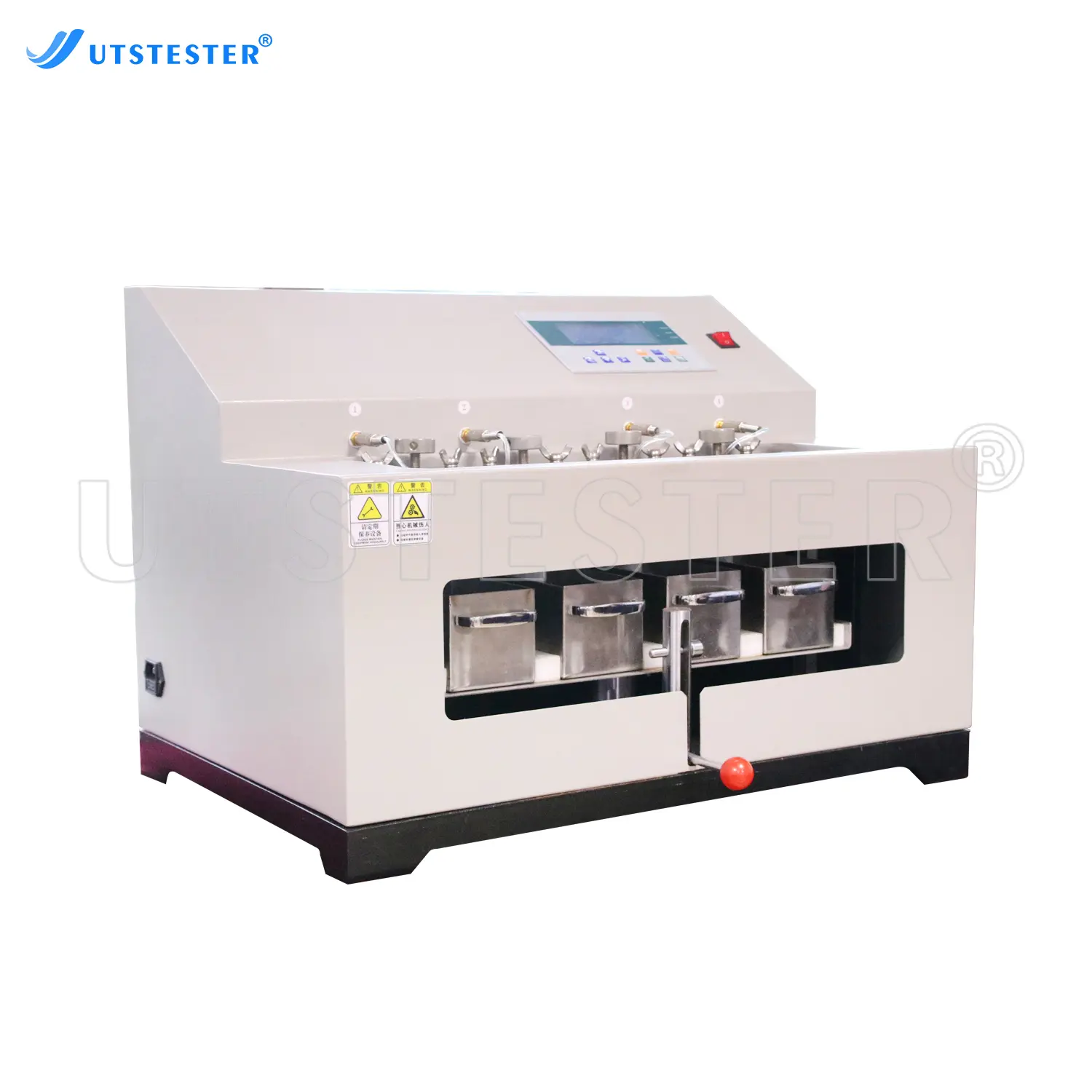

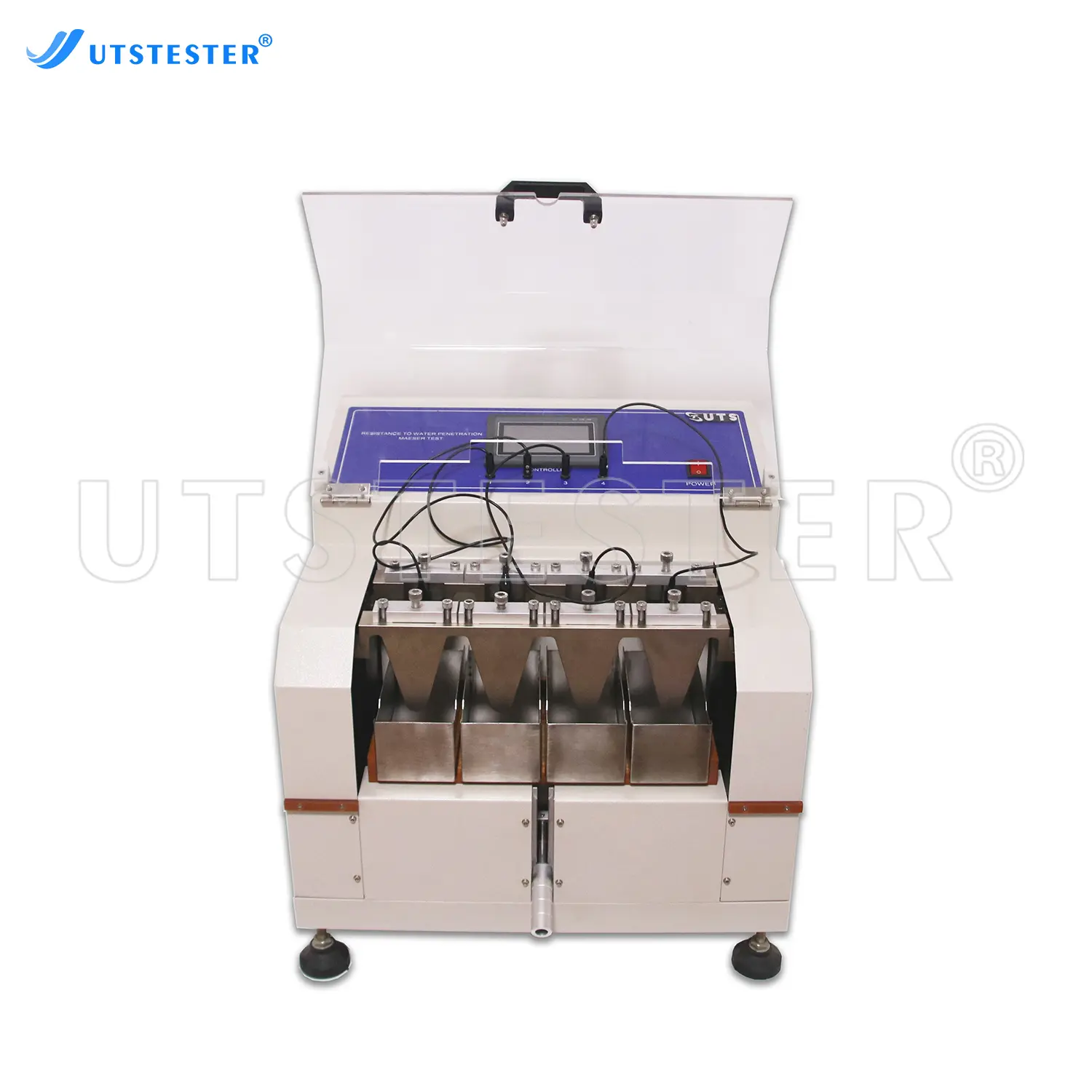

The test piece is continuously wetted on one surface and is flexed and compressed in the same manner as the sole of a shoe during walking. This enables various aspects of heavy leather water resistance to be measured with respect to time.

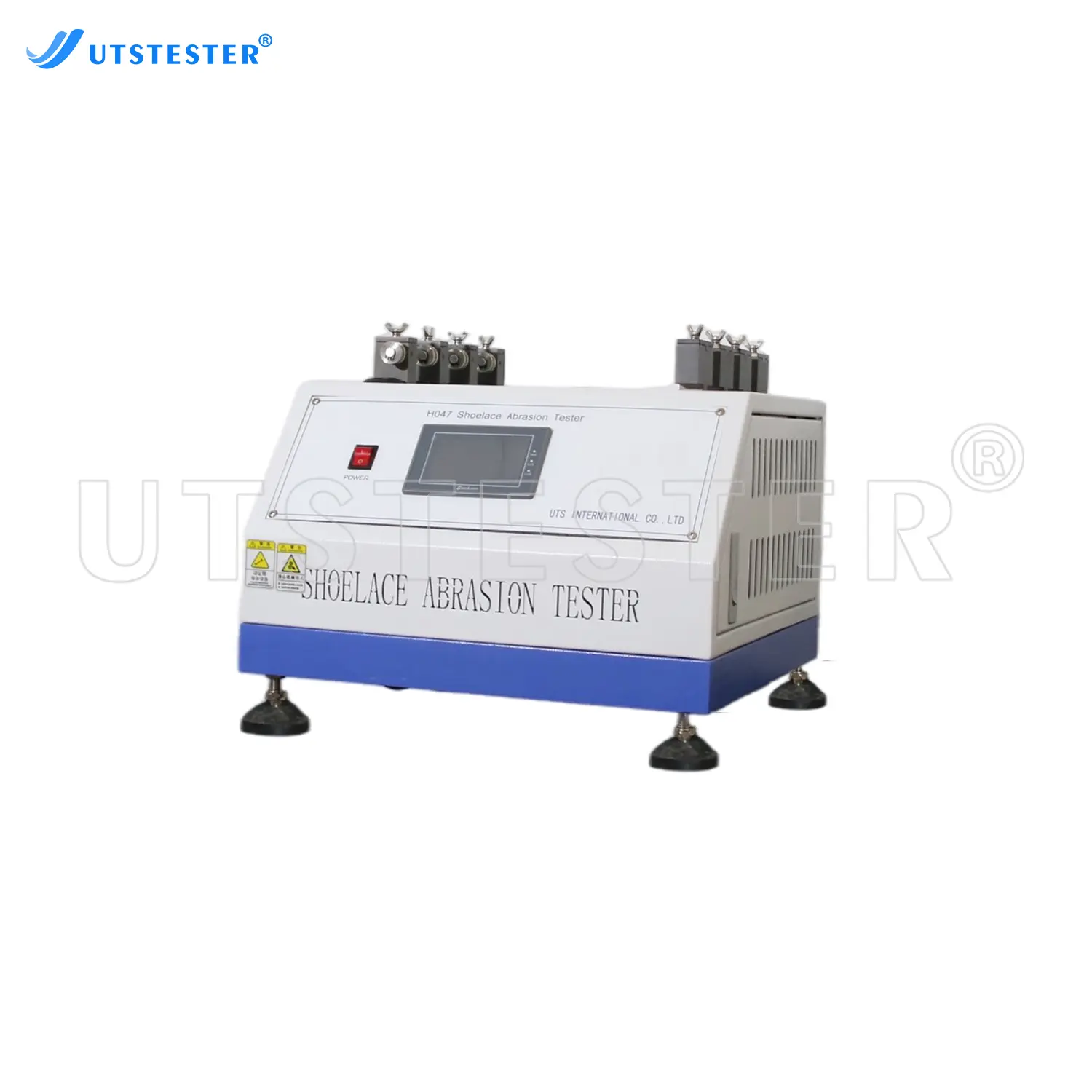

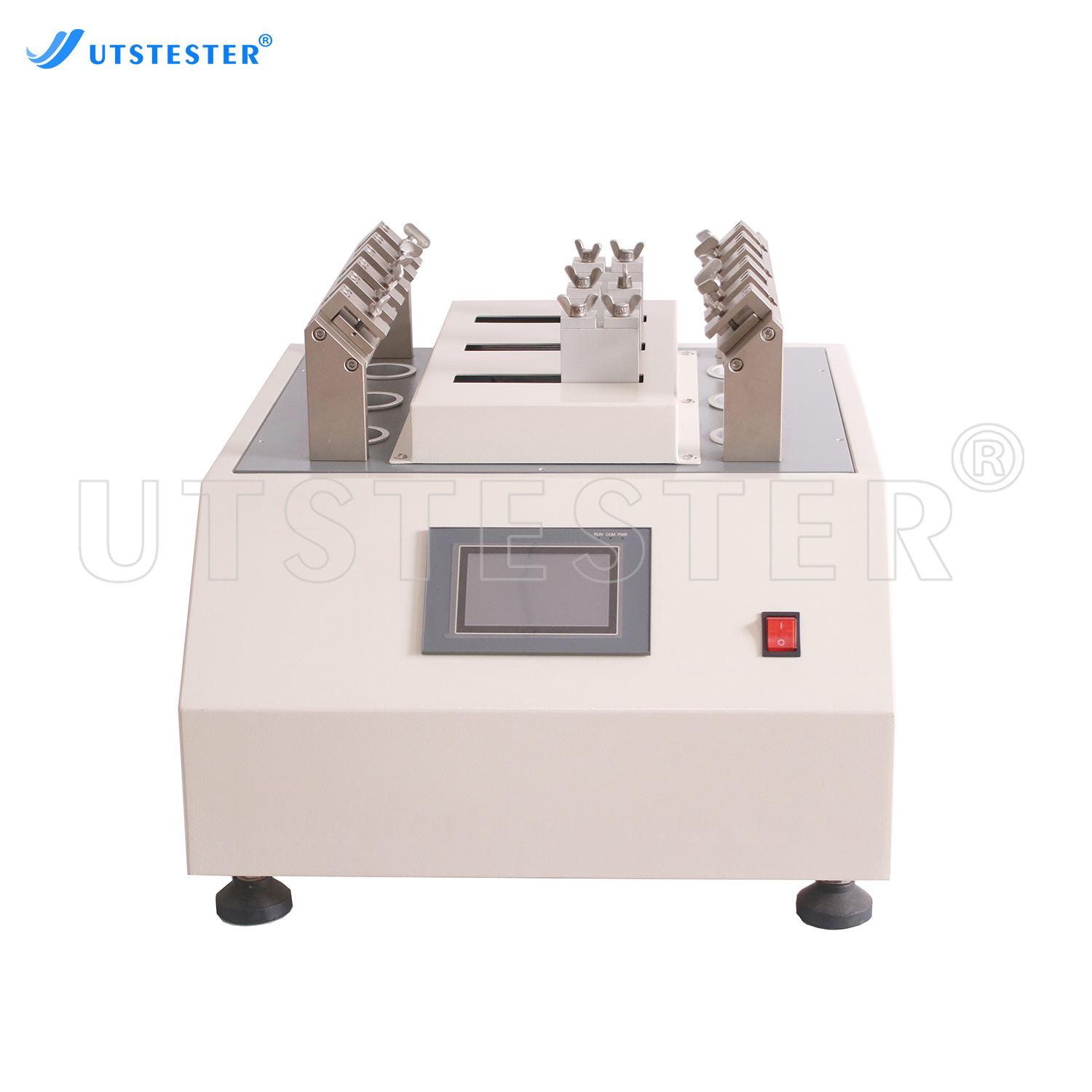

Take two shoelaces cross reciprocally. Fix the both ends of one shoelace onto the movable fixture which is able to do reciprocating linear motion. The other piece of shoelace, fix one end onto corresponding fixture, the other end is connected to a weight through the pulley. Two reciprocally crossing shoelaces rub against each other via movable fixtures’ reciprocating motion. Interval time can be set. When preset test times reached, machine stop working automatically. Interval time reaches, machine continue to work. In such reciprocal work until reaches preset test times reached or sample break, counter stop to counting, so as to be able to test sample resistance to abrasion property.

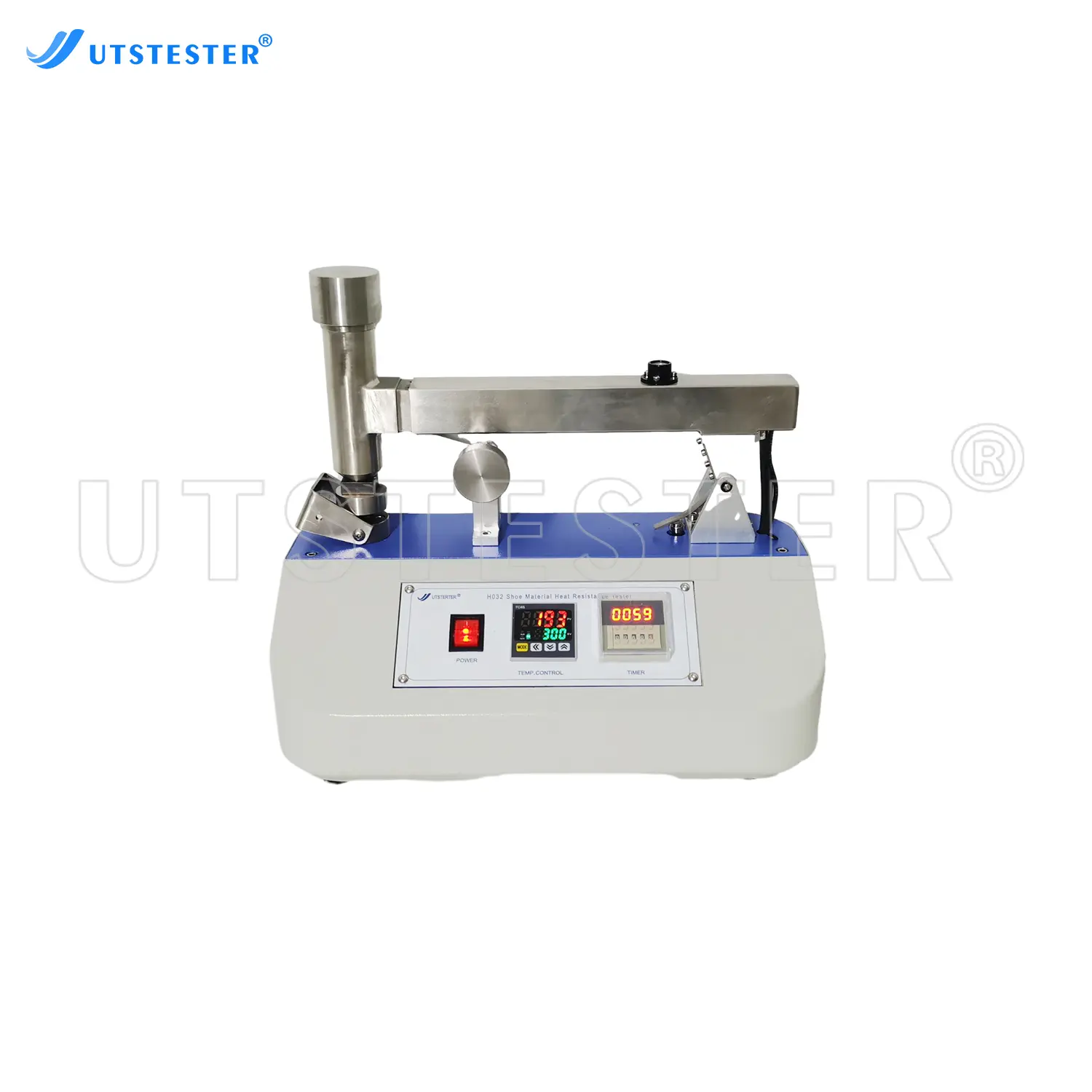

1.Strictly comply with International standards including EN ISO 20344 .

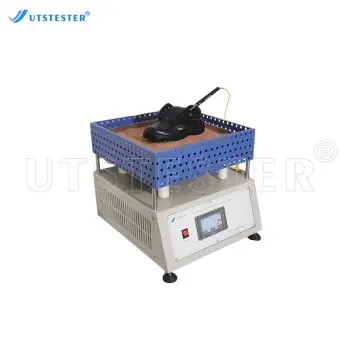

2.Support to test various safety shoes to ensure the insulation to heat property.
