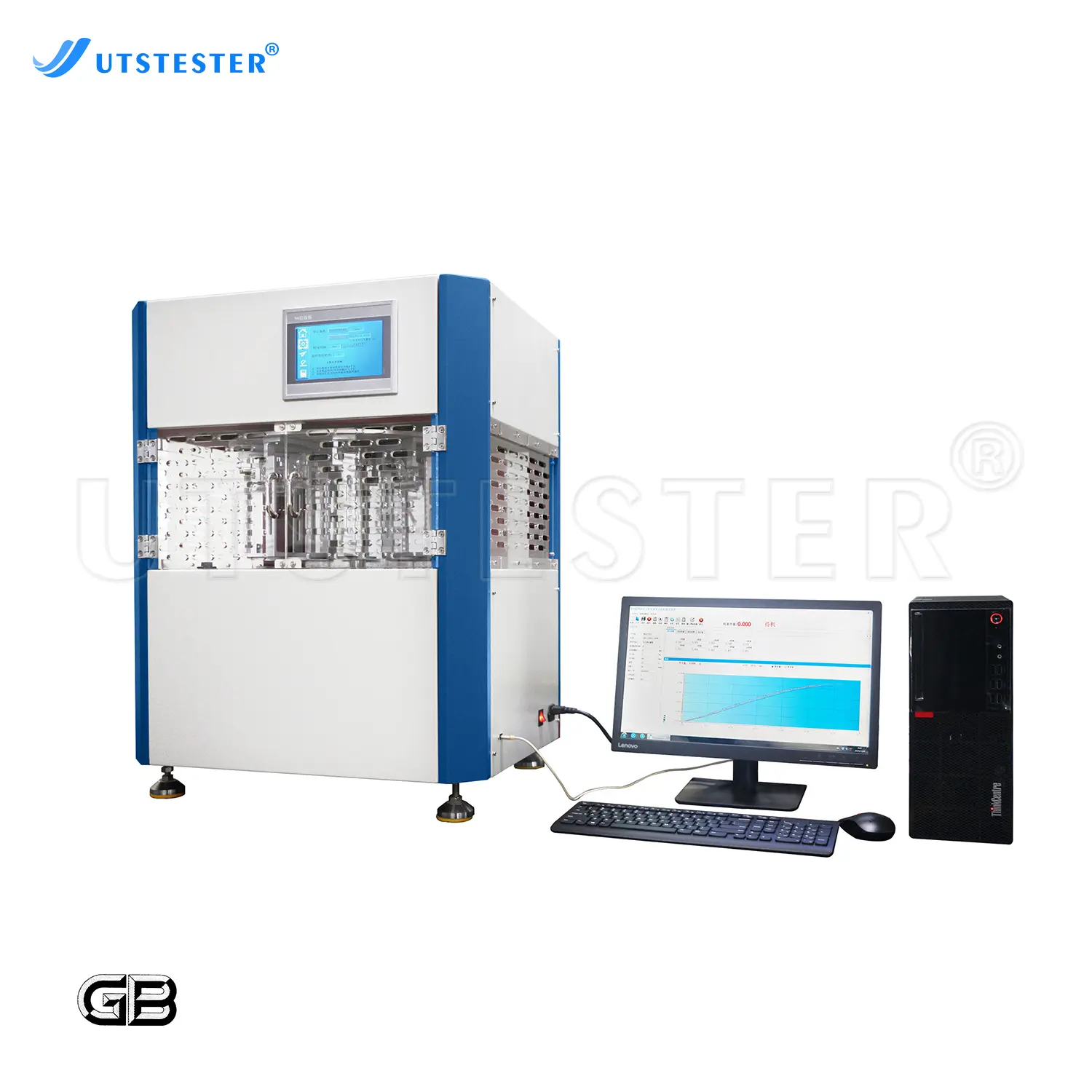

Water Evaporation Rate Testing Machine Water Vapor Transmission Test Instrument M048C
Textile Testing Equipment

Water Evaporation Rate Testing Machine Water Vapor Transmission Test Instrument M048C

1. Imported high-precision mass weighing system with accuracy of 0.001g.
2. It adopts industrial color touch screen display control, durable, convenient and simple to operate.
3. The key parts are made of aluminum material to prevent deformation.
4. Using stepping motor, the whole machine rotates, rises and falls smoothly, and has low noise.
5. Real-time curve display of experimental state data, better observation of quality changes, 10-station curves can be displayed at the same time.
6. The test weighing time interval can be set, and there are two termination methods: mass change rate and test time.
7. The test data is accurate, and the evaporation rate can be calculated manually or automatically for query.
8. It can be connected to a computer for operation and can store all test data and curves for easy query and printing.

    Overview

    Used for testing and evaluating the moisture absorption and quick-drying performance of various textiles.

    Application

    企业微信截图_17441035182531

    Quick-drying clothes

    企业微信截图_17441001699623

    Towels

    企业微信截图_17441001377948

    Socks

    Standards

    GB/T 21655.1 Textiles. Evaluation of moisture absorption and quick-drying. Part 1: Single combined test method

    Key Parameters

    Model

    M048C

    Station

    10

    Weighing range

    0~320g, accuracy 0.001g

    Time interval range

    3~20min (computer software 3~999min)

    Total time range

    3~180min (computer software 3~999min)

    Work termination method

    quality change rate, test time

    Dimensions

    AC 220V 50Hz 300W

    Weight

    200×670×840mm

    Power source

    75kg

    Product Details

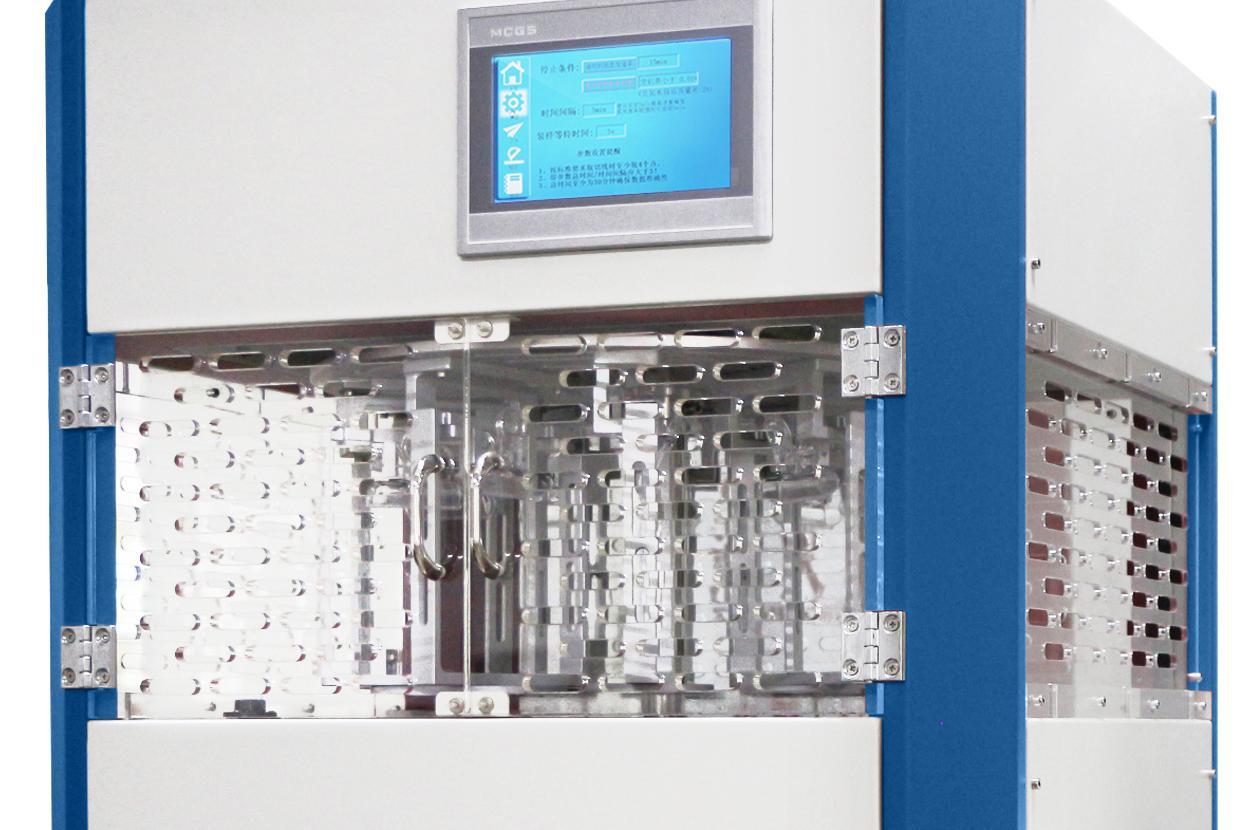

    M048C Water Evaporation Rate Testing Machine

    Sample testing area

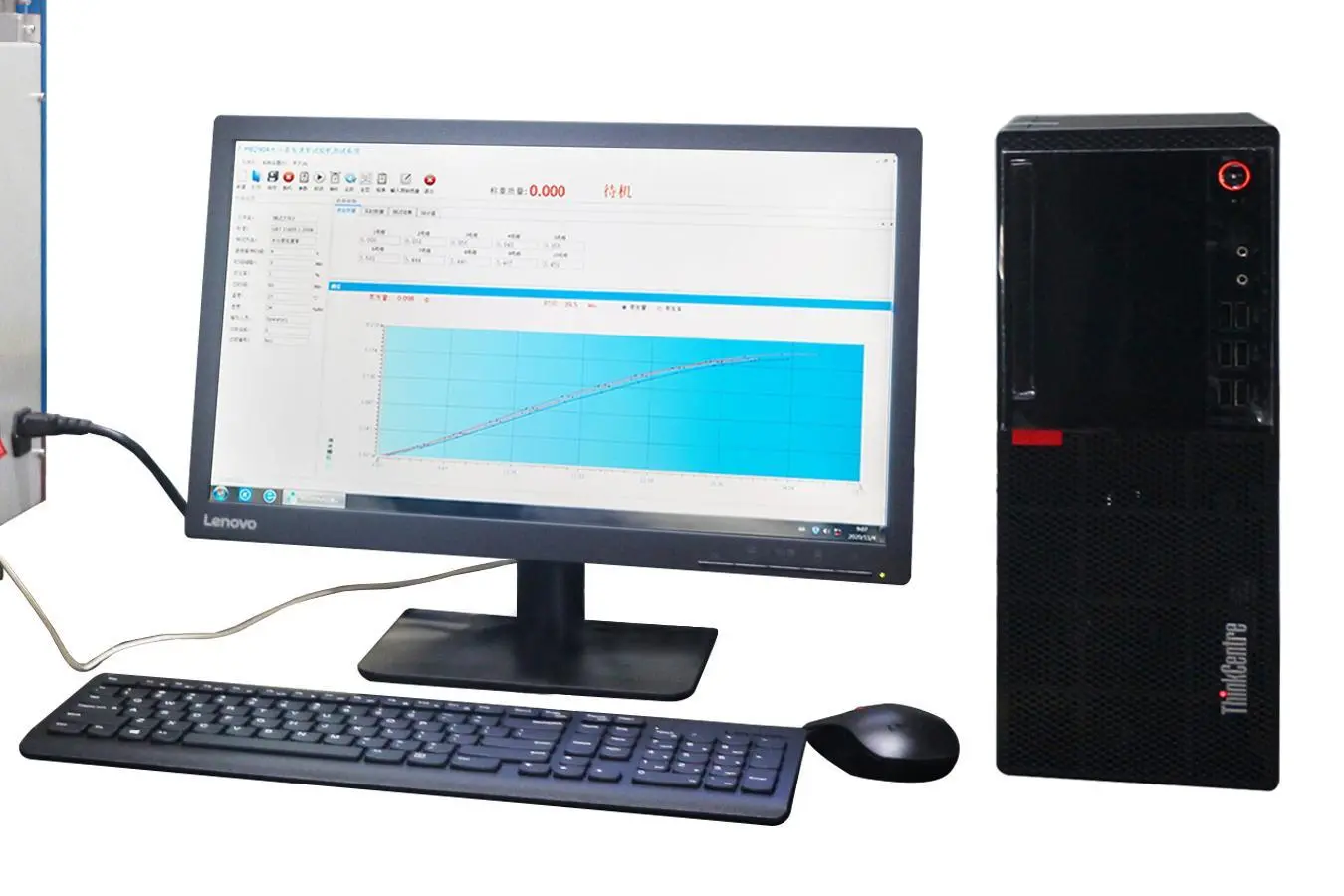

    M048C Water Evaporation Rate Testing Machine - 副本

    Control panel

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

    Transportation

    image071evh

    Packing System

    1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
    2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
    3. Packing materials selected accorded with economic and safety requirements
    4. Compliance with environmental requirements.
