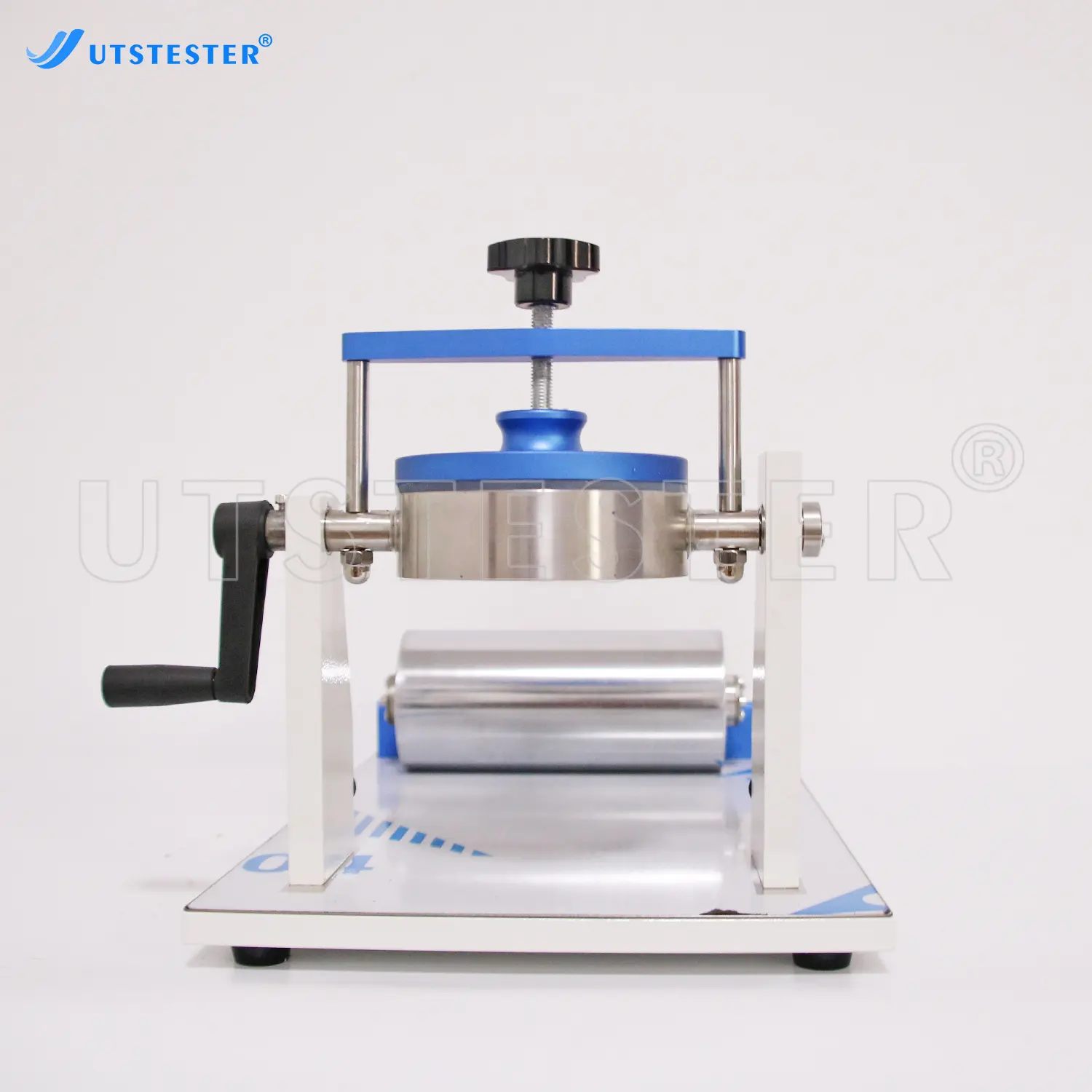

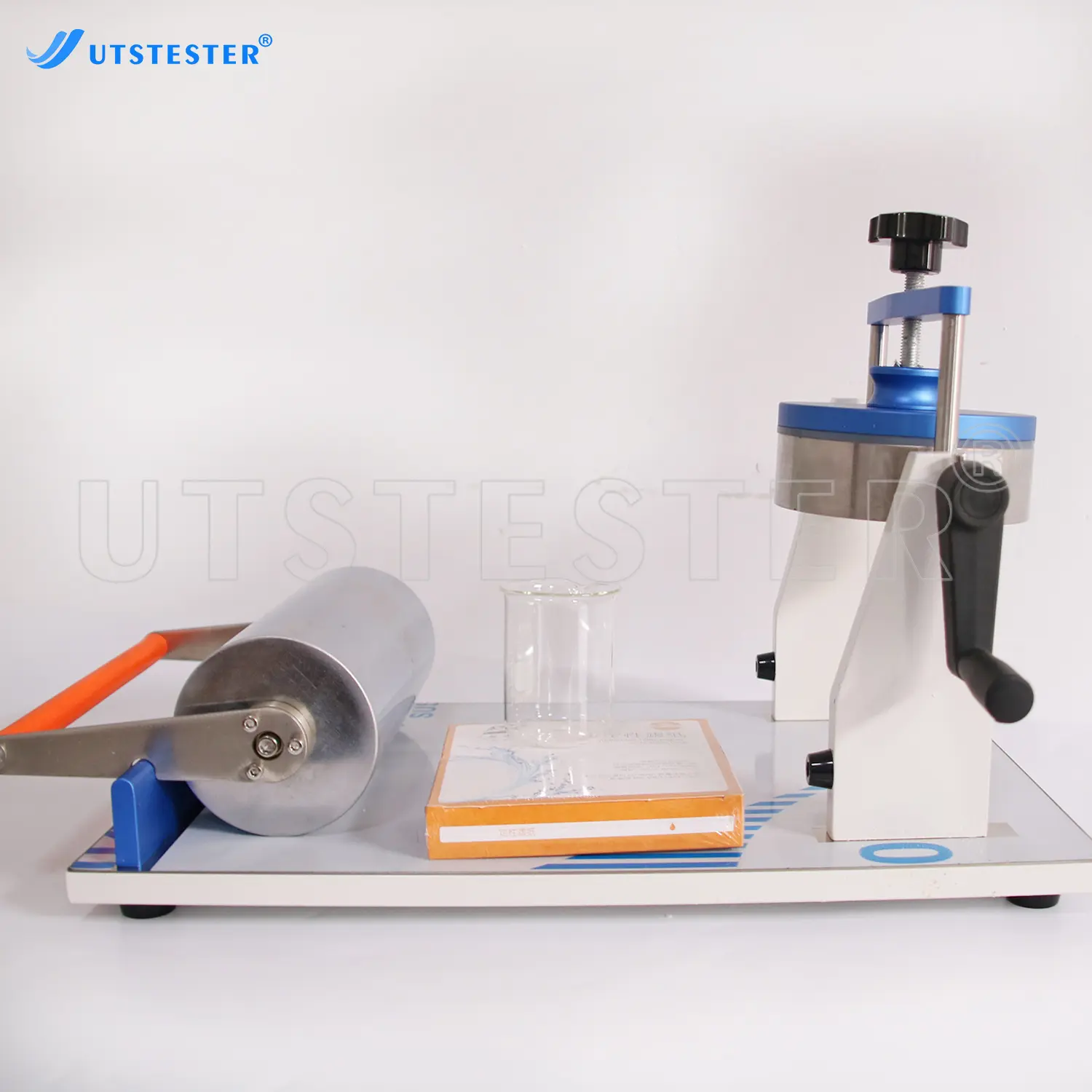

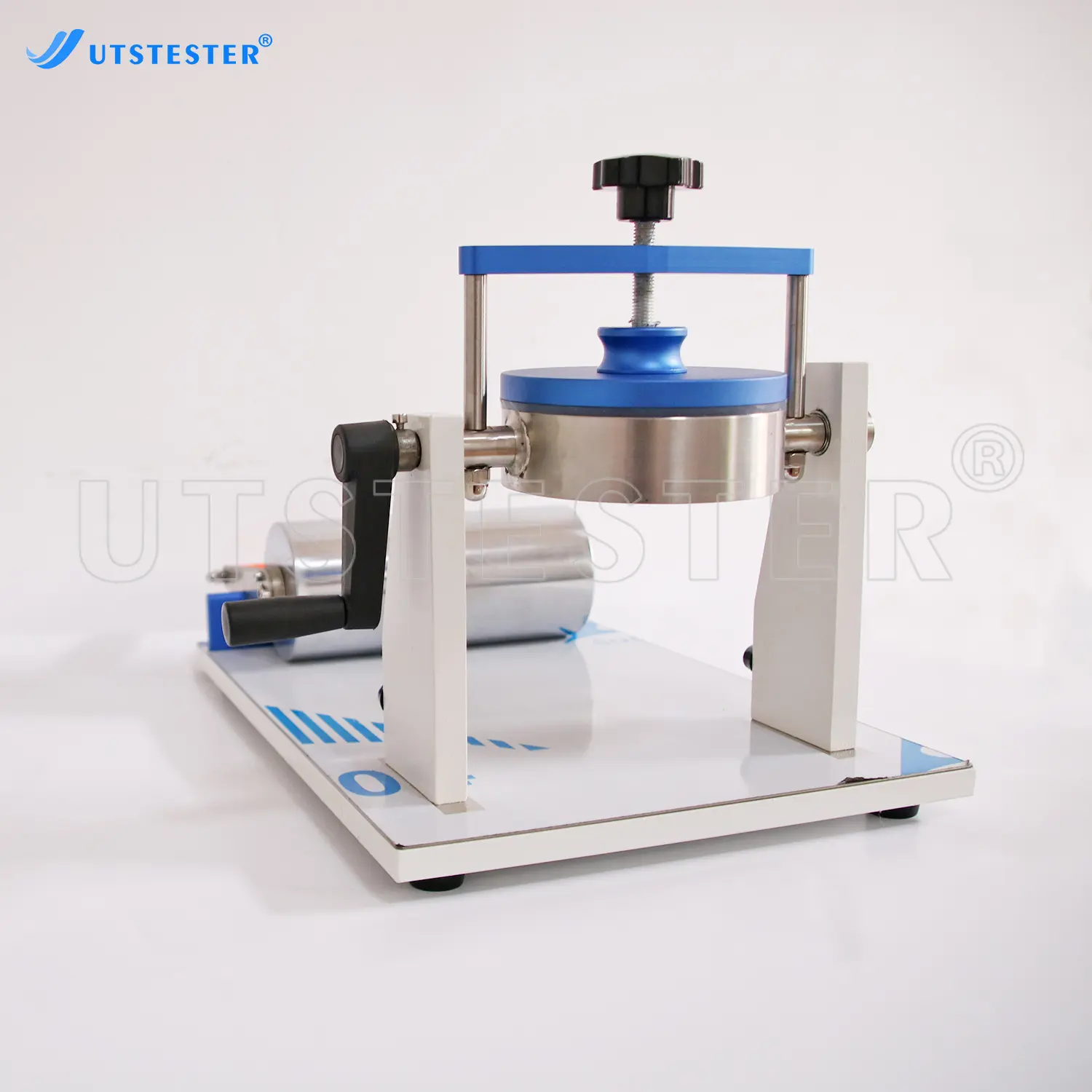

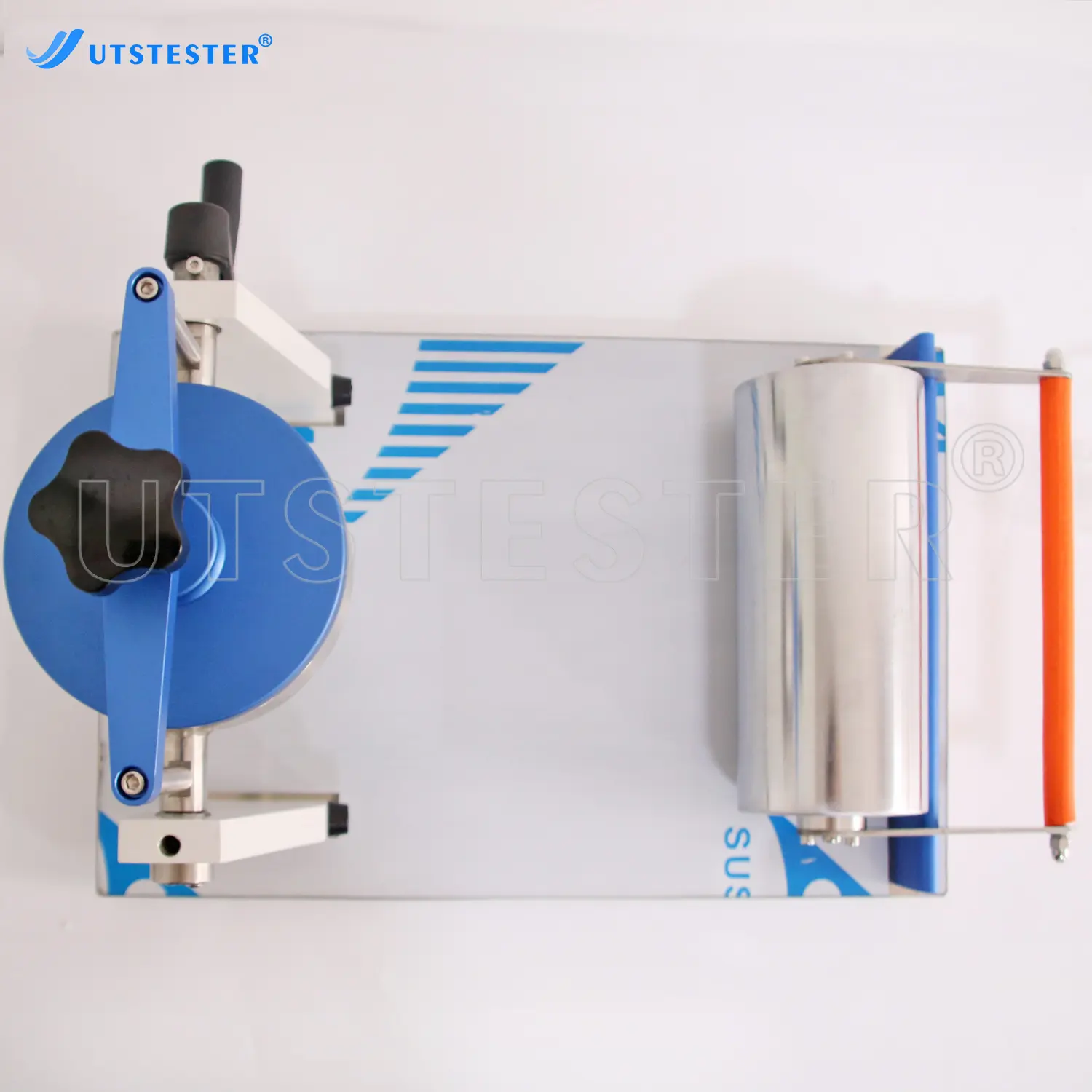

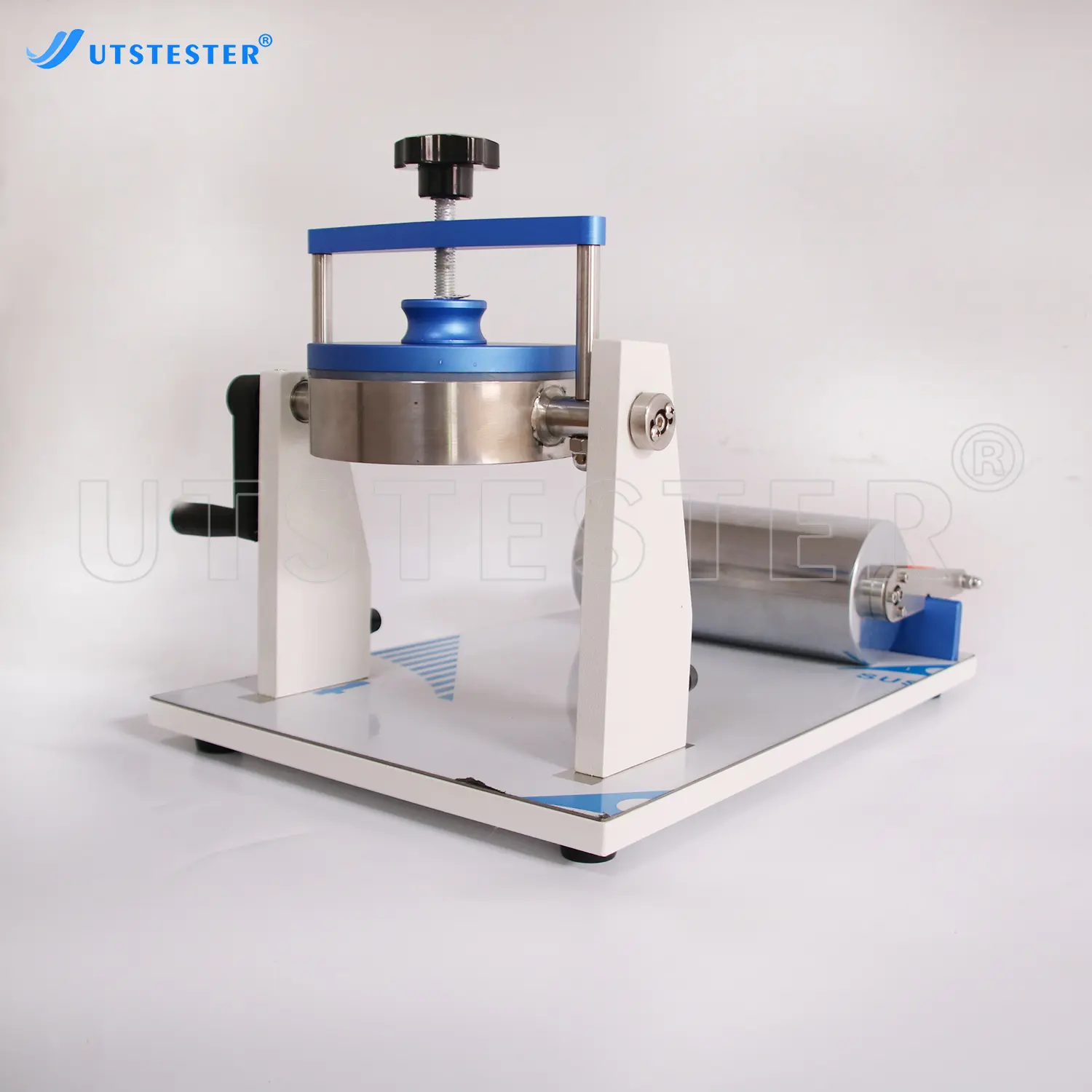

Water Absorptiveness of Paper and Board Test Machine Cobb Cobb Absorption Tester A003A
Overview
To determine the water absorptiveness of sized paper and board, including corrugated fiberboard, under standard conditions.
This instrument is only capable of testing surface water absorption of paper and board. It is not applicable to exactly evaluate the writing performance of paper and board.
Application
Paper
Board
Standards
ISO535 《Paper and board-Determination of water absorption-Cobb method》
GB/T1668 《Paper and board-Determination of water absorption-Cobb method》
GB/T1540 《Paper and board-Determination of water absorption-Cobb method》
TAPPI T441 《Water absorptiveness of sized(non-bibulous) paper, paperbaord, and corrugated fiberboard(Cobb test)》
Key Parameters
|
Model |
A003A |
|
Test area |
100cm2±0.2cm2 |
|
Test water volume |
100ml±5ml |
|
Roller length |
200mm±0.5mm |
|
Roller diameter |
90±10mm |
|
Roll mass |
10kg±0.5kg |
|
Dimensions |
396×315×300mm |
|
Net weight |
Approx.32 kg |
Product Details

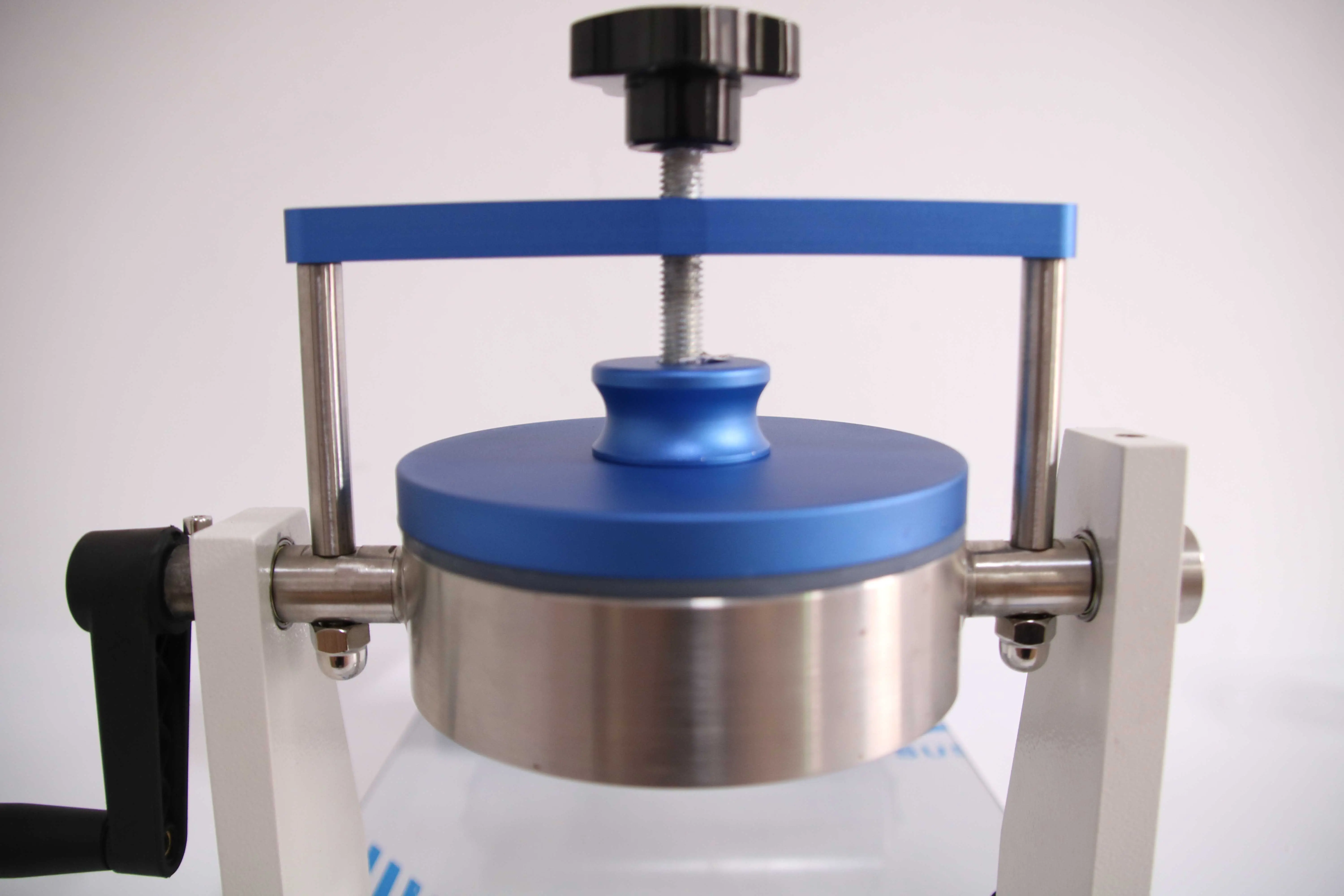

Cup lid and Cup

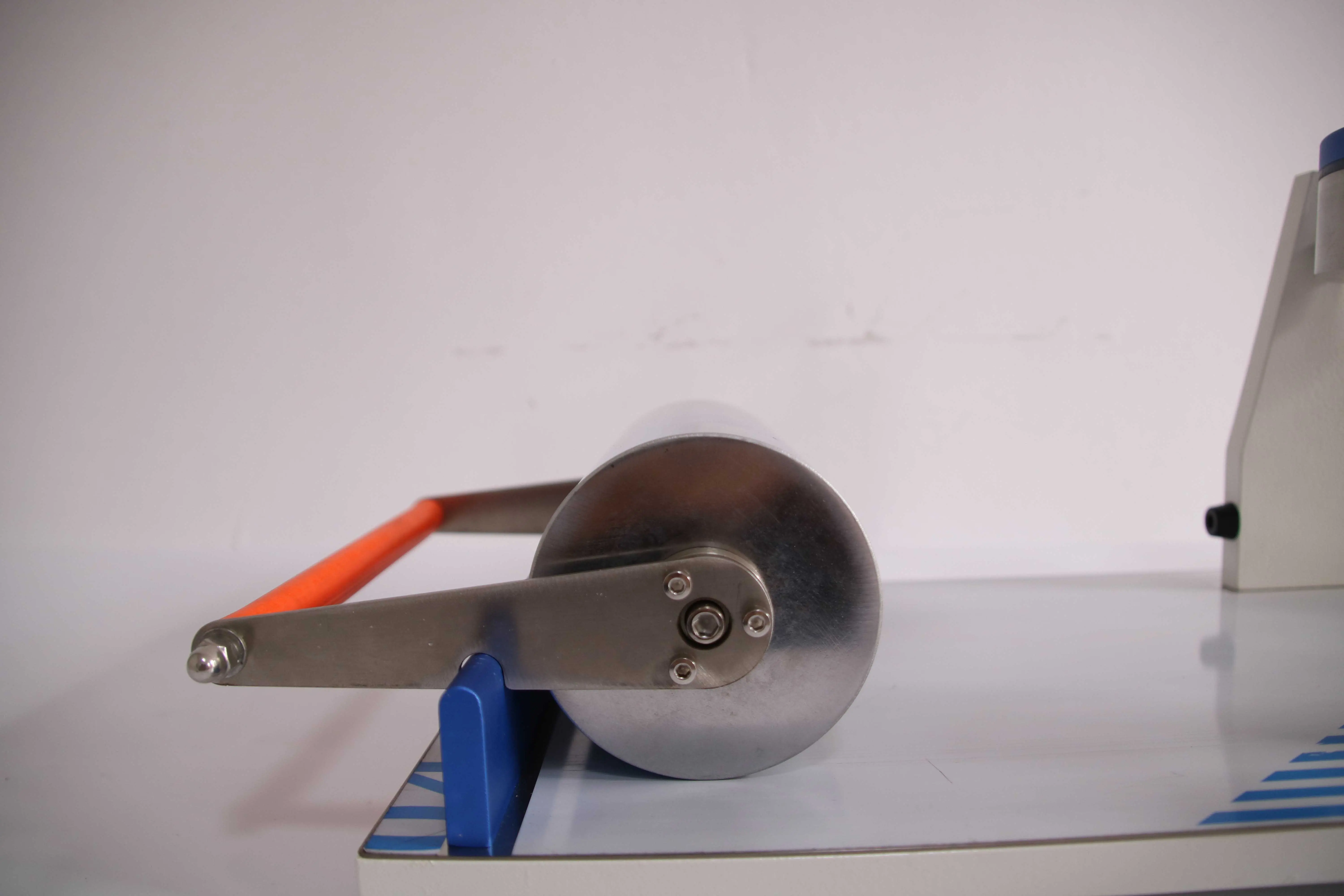

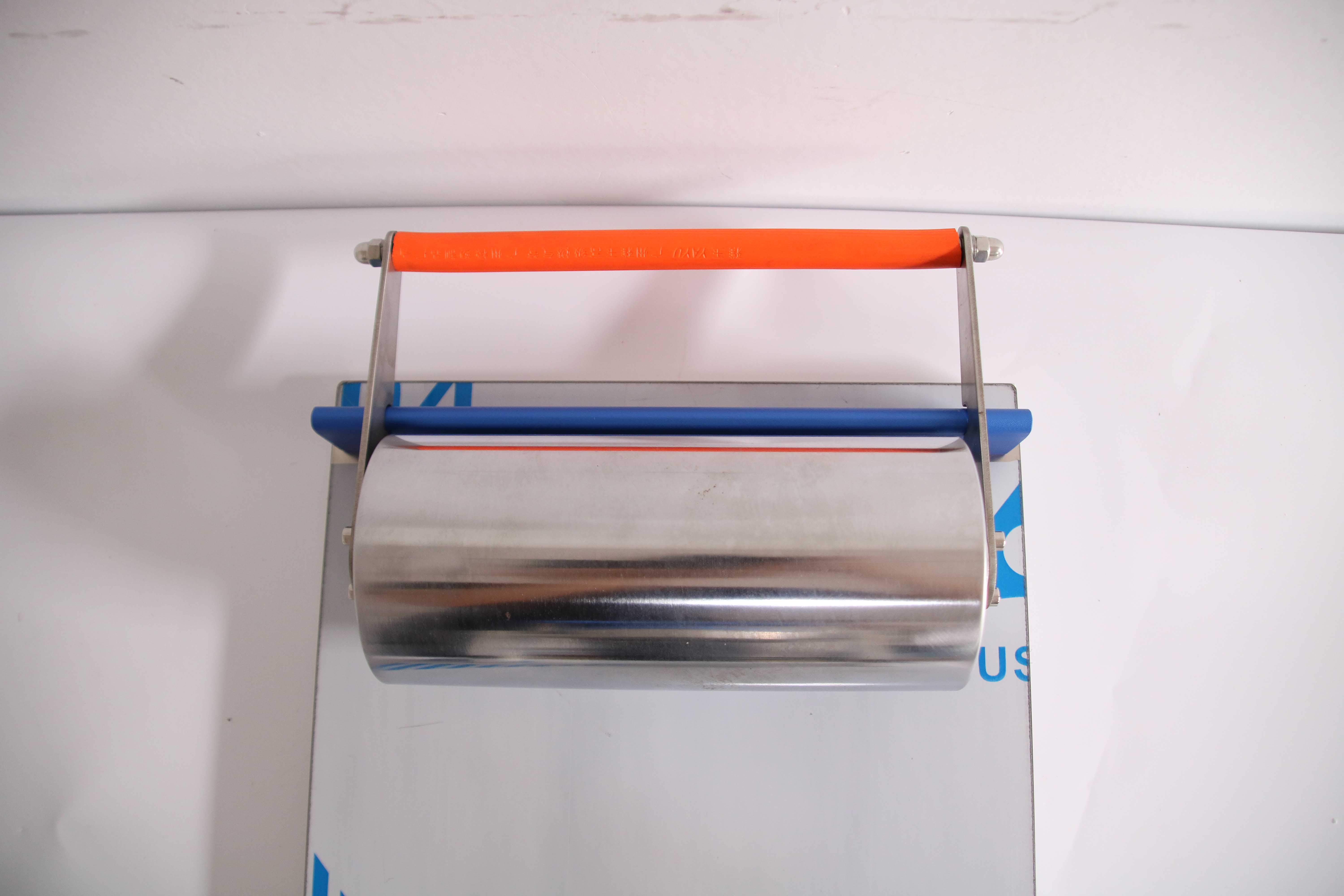

Compression roll
Baffle
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
