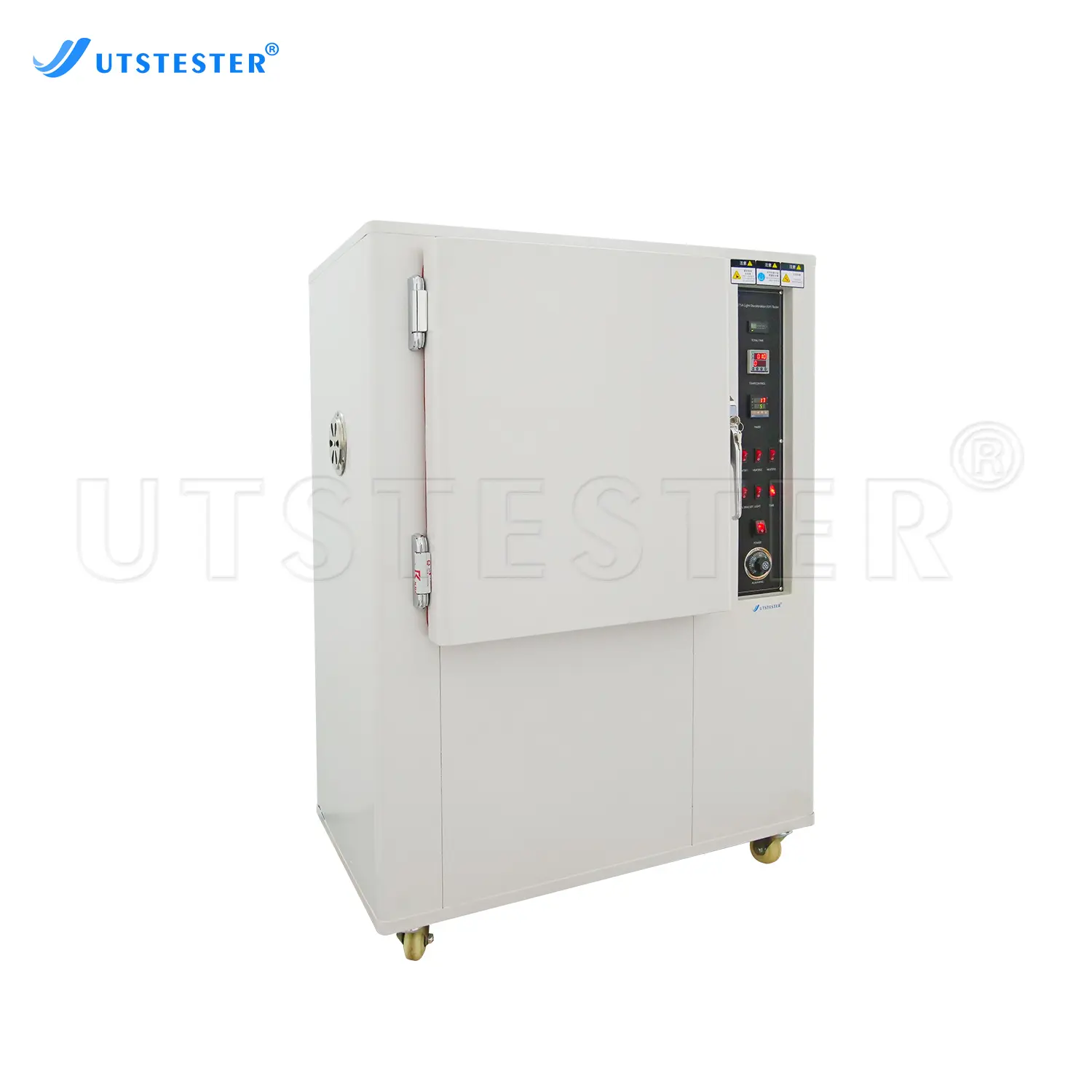

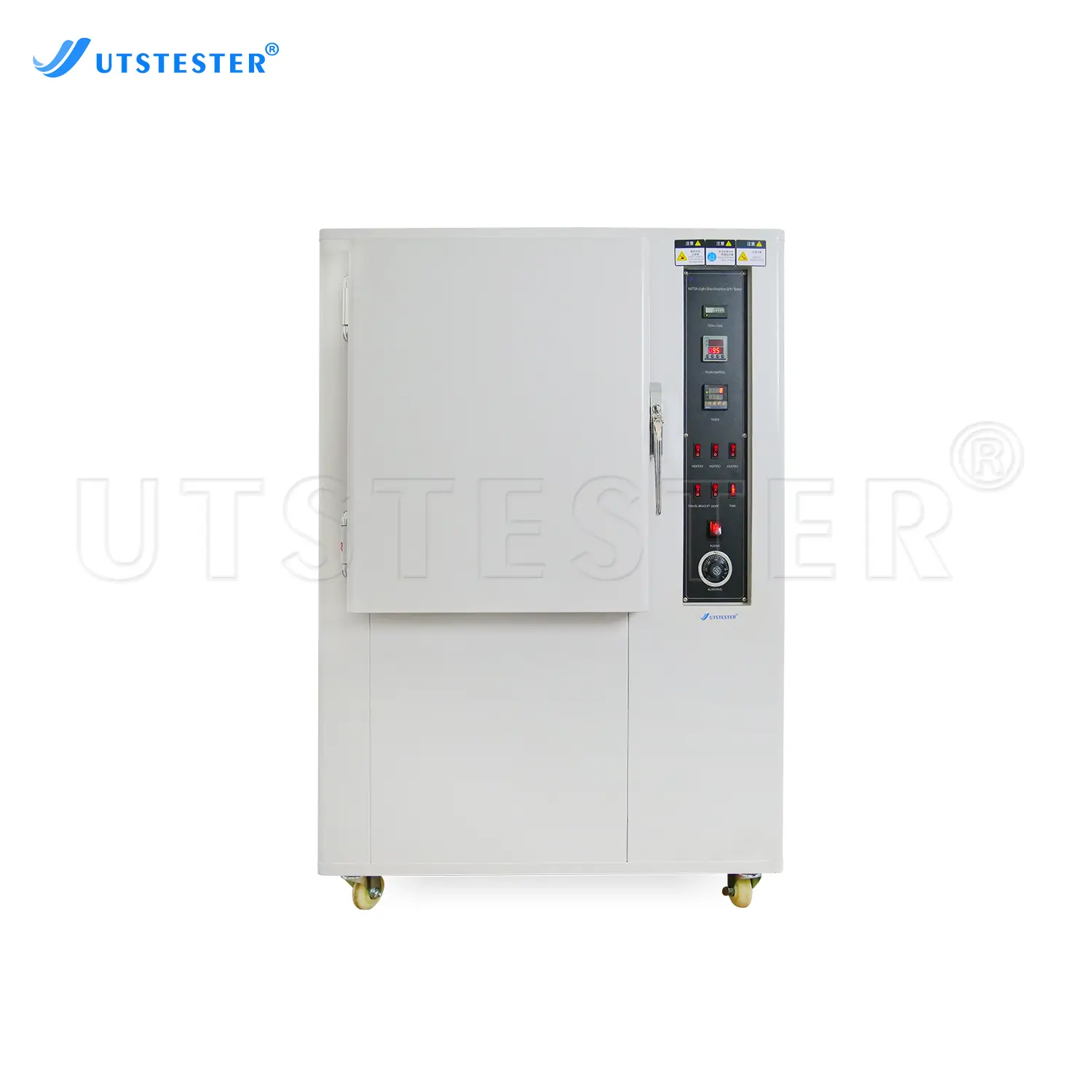

UV Light Discoloration Tester for Accurate Color Assessment Light Discoloration (UV) Tester H075A
Overview

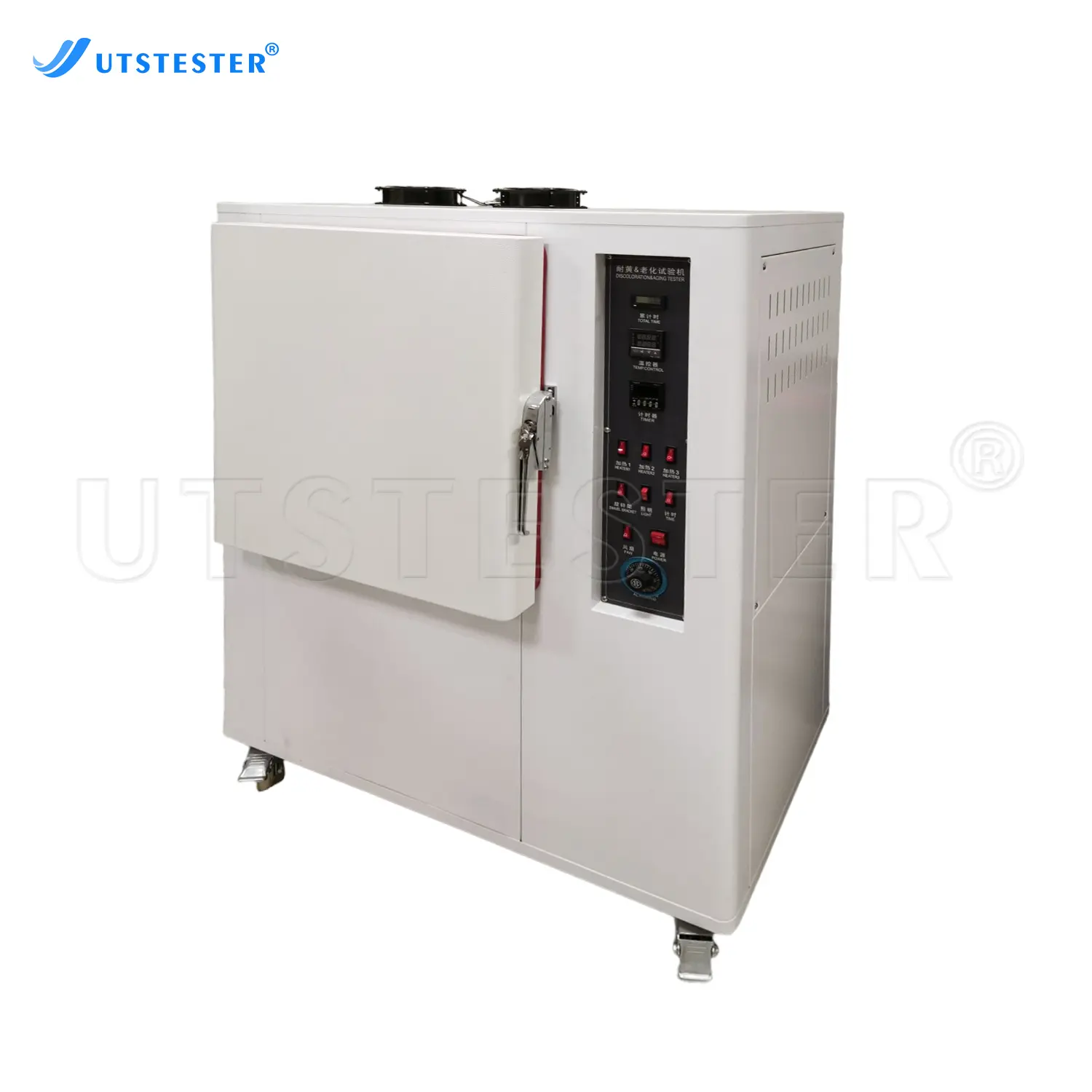

H075A Light Discoloration (UV) Tester is to determine the discoloration of white or light color upper materials or sole materials exposed to light with a specified wavelength.

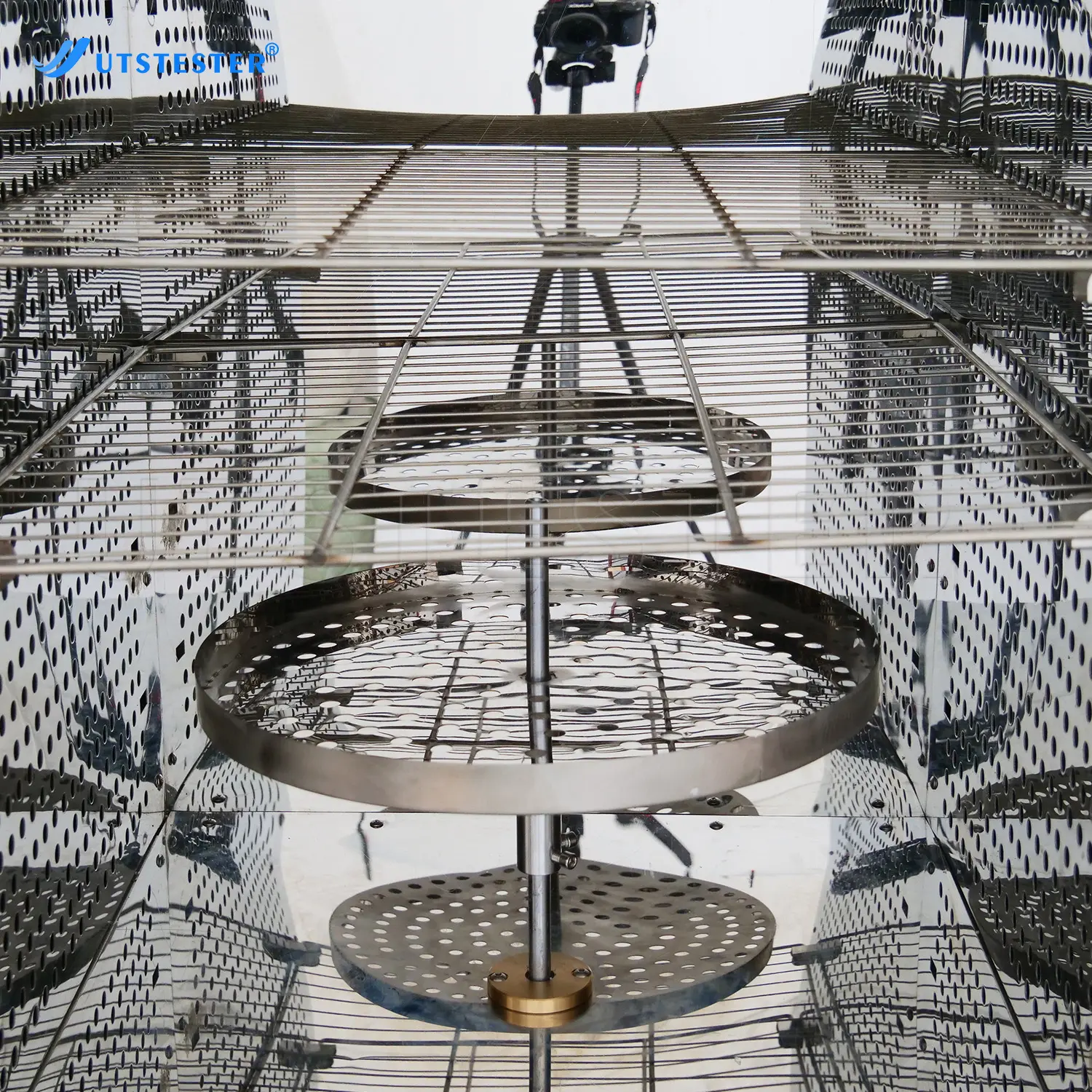

According to the principle of light and white materials or products are easy to change color, the effect of various lighting is tested. This machine is equipped with a specimen turntable, which can ensure the specimen to expose to light uniformly so that the test precision can be improved.
Application
Shoes

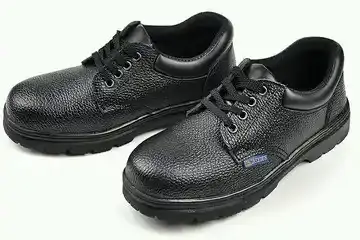

Finished shoes
Standards
ASTM-D1148 HG/T 3689 ISO 188
Key Parameters
|
Model |
H075A |
|
|
Temperature |
RT ~ 200℃ |
|
|
Temperature resolution |
0.1 ℃ |
|
|
Heating Method |
hot-air circulation |
|
|
Interior Chamber |
50 x 50 x 60 cm |
|
|
Light Source |
Sunlamp 1pcs |
|
|
Lamp Power |
300W |
|
|
Rotating speed |
3-5 rpm |
|
|
Lamp Irradiance |
( 25 ± 0.4) W/m2 |
|
|
Lamp Service Life |
1000h |
|
|
Timer |
LED, 0 - 999 hr |
|
|
Turntable size |
Diameter. 45 cm |
|
|
Power supply |
1∮AC 220V 50/60HZ |
|
|
Dimensions(W x D x H) |
85 x 70 x 155 cm |
|
|
Weight |
140 kg |
|
|
Standard accessory |
UV lamp |
1 unit |
|
Turntable |
1 unit |
|
|
Tray |
2 units |
|
|
Power wire |
1 unit |
|
Product Details

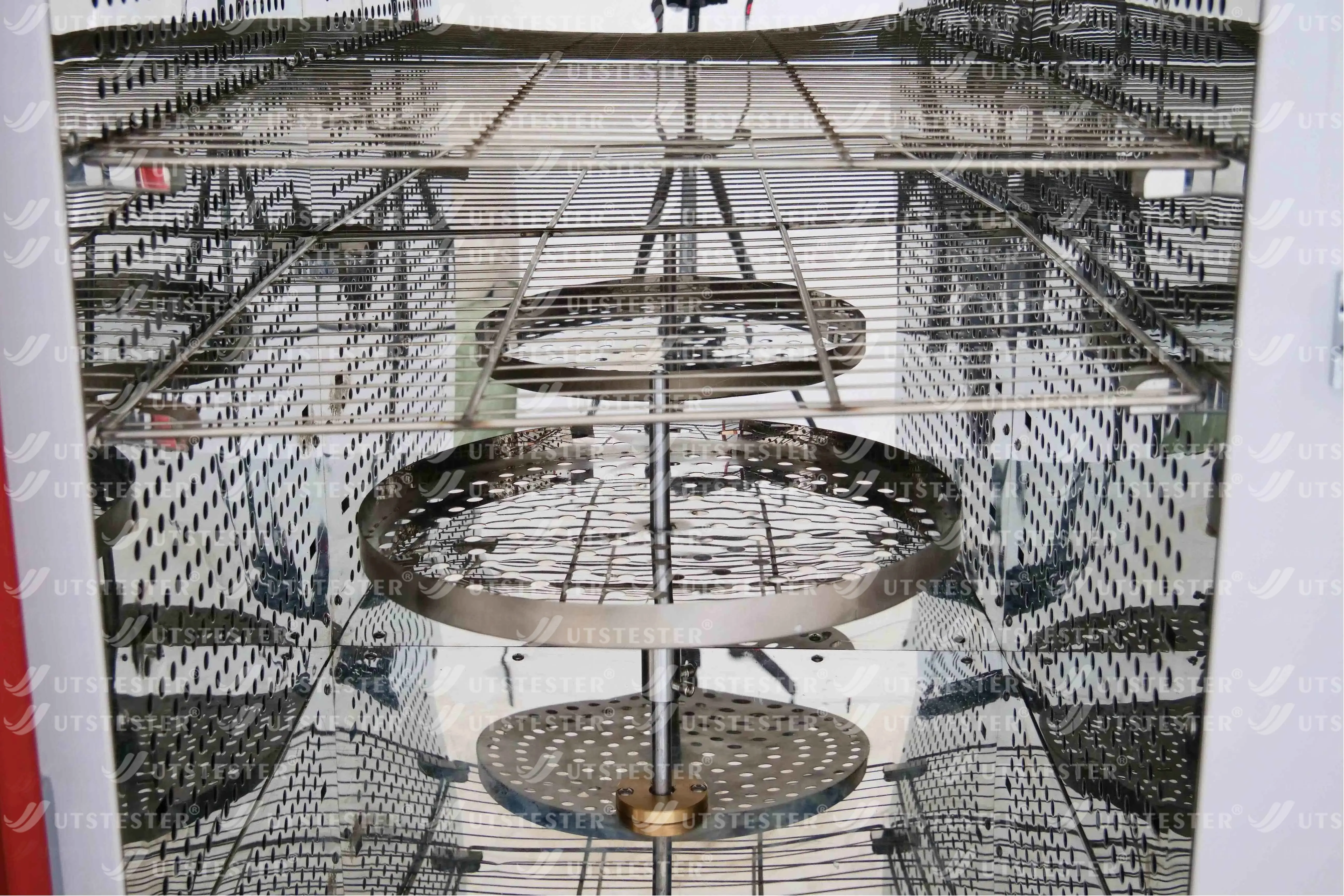

Tray

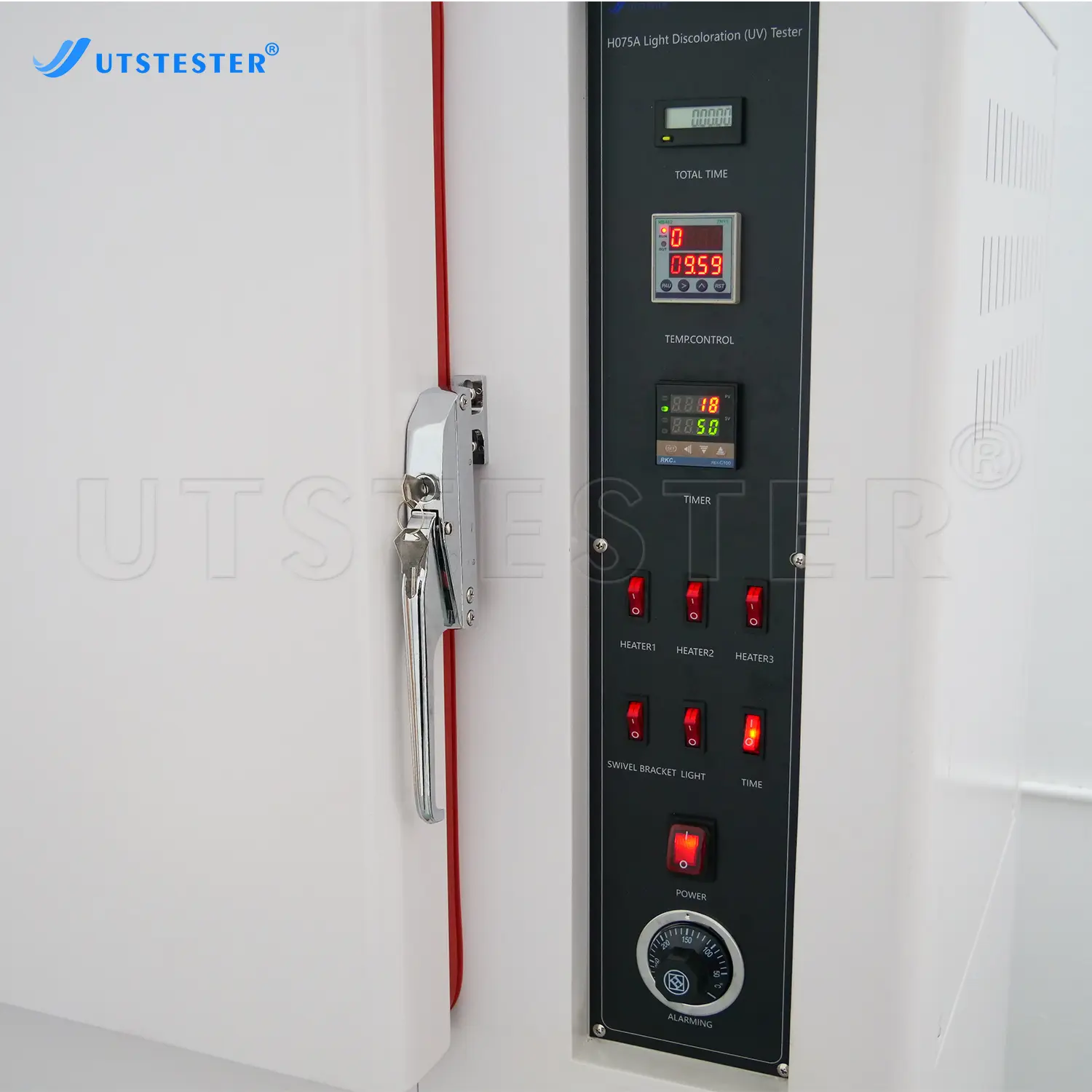

Control panel
Accessories
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
