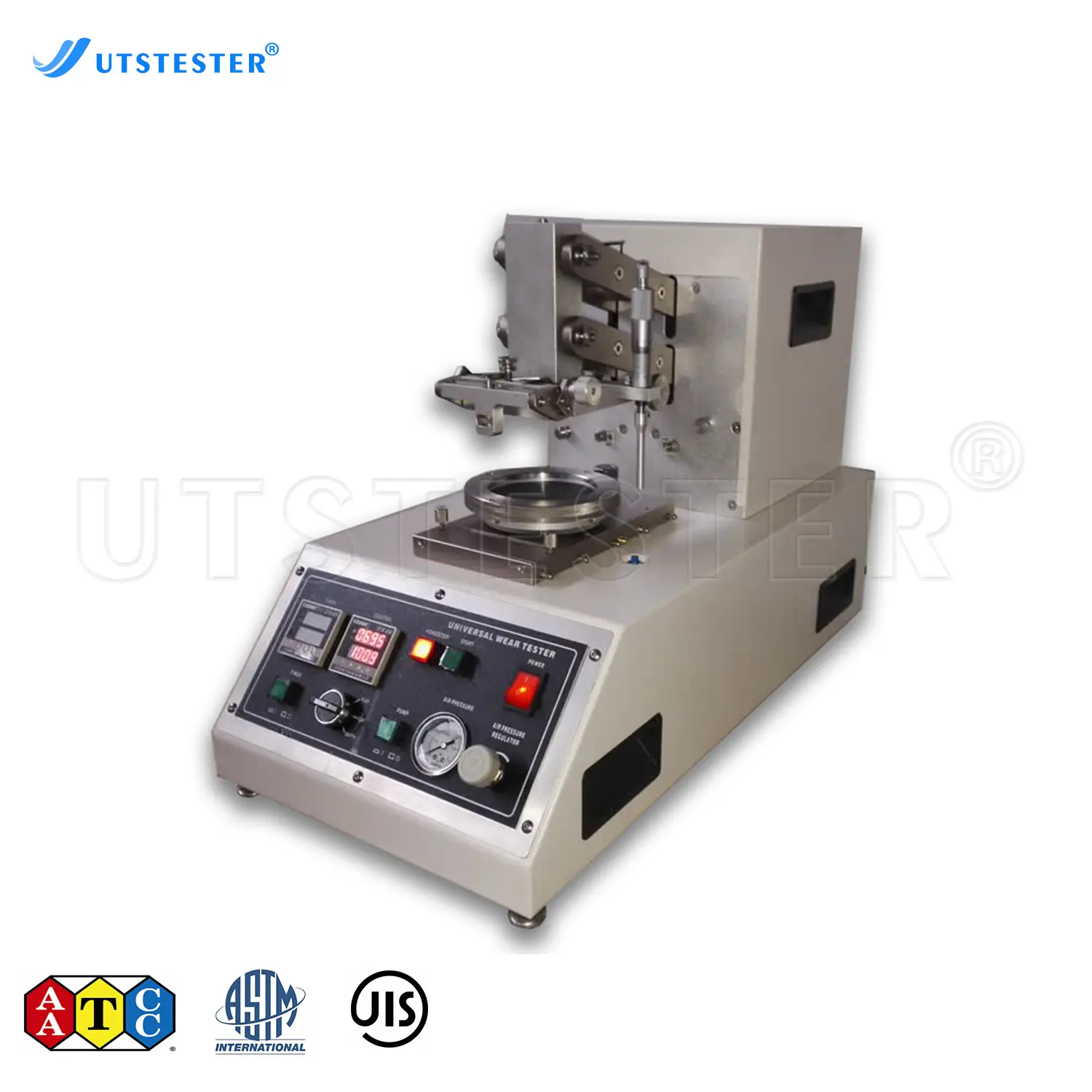

Universal Wear Tester Uwt Tester Stoll Quartermaster M013

Mount sample and abrasion material on the fixture of machine, add specified load and test sample at specified stoke and speed. Inspect abrasion condition after testing a certain of times, or test the times of sample rubbing off to assess sample abrasion resistance property and surface pilling situation, so as to provide reference for improving fabric craft.
Install sample on fixture of instrument with adding a certain of load, and under predetermined stroke and speed, use standard abrasion materials(such as wire mesh, carborundum, etc) to rub sample at specified times so as to check its color changing situation.

product details

Production Processes

Packing System

Overview

This is a multipurpose Instrument for measuring resistance to laboratory wear and abrasion of such materials as woven and knitted fabrics, footwear, napped and pile fabrics, hosiery, felt, non-woven and coated fabrics, yarns, threads and cordage, plastic films, rubber sheeting, leather, paper and, many other materials.

It is a self-contained instrument which gives direct evaluation of quantitative parameters for resistance to surface abrasion; edge, fold and projection abrasion; roll and fold testing; flex abrasion. Automatic end points which can be provided for all test procedures secure definite results.

Application

Napped fabric

Knitted fabrics

Leather

Rubber sheeting

Standards

ASTM D3514, D3885, D3886 ；AATCC 119, 120；JIS L1096; JIS L 1075 Part 7.2 (Test standards needed to be confirmed with user)

Key Parameters

Model	M013
Testing stroke	1in(25.4mm)
Testing speed	120r/min
Loading weight	0.5Lb(2pcs),1Lb(2pcs),2Lb(1pc)
Tension weight	0.5Lb(2pcs),1Lb(2pcs),2Lb(1pc)
Bottom fixture rotary speed	Approx, 100 times / cycle
Counter	0-999,999 times, adjustable
Timing	0~9 999min
Dimensions	34 x 66 x 47cm ( L x W x H )
Weight	80kg
Power supply	1∮ AC 220V 5A

Product Details

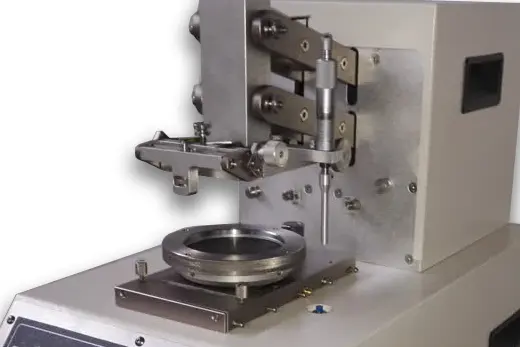

Fixture

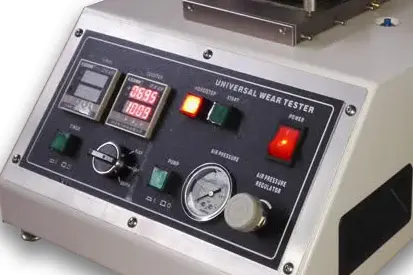

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
