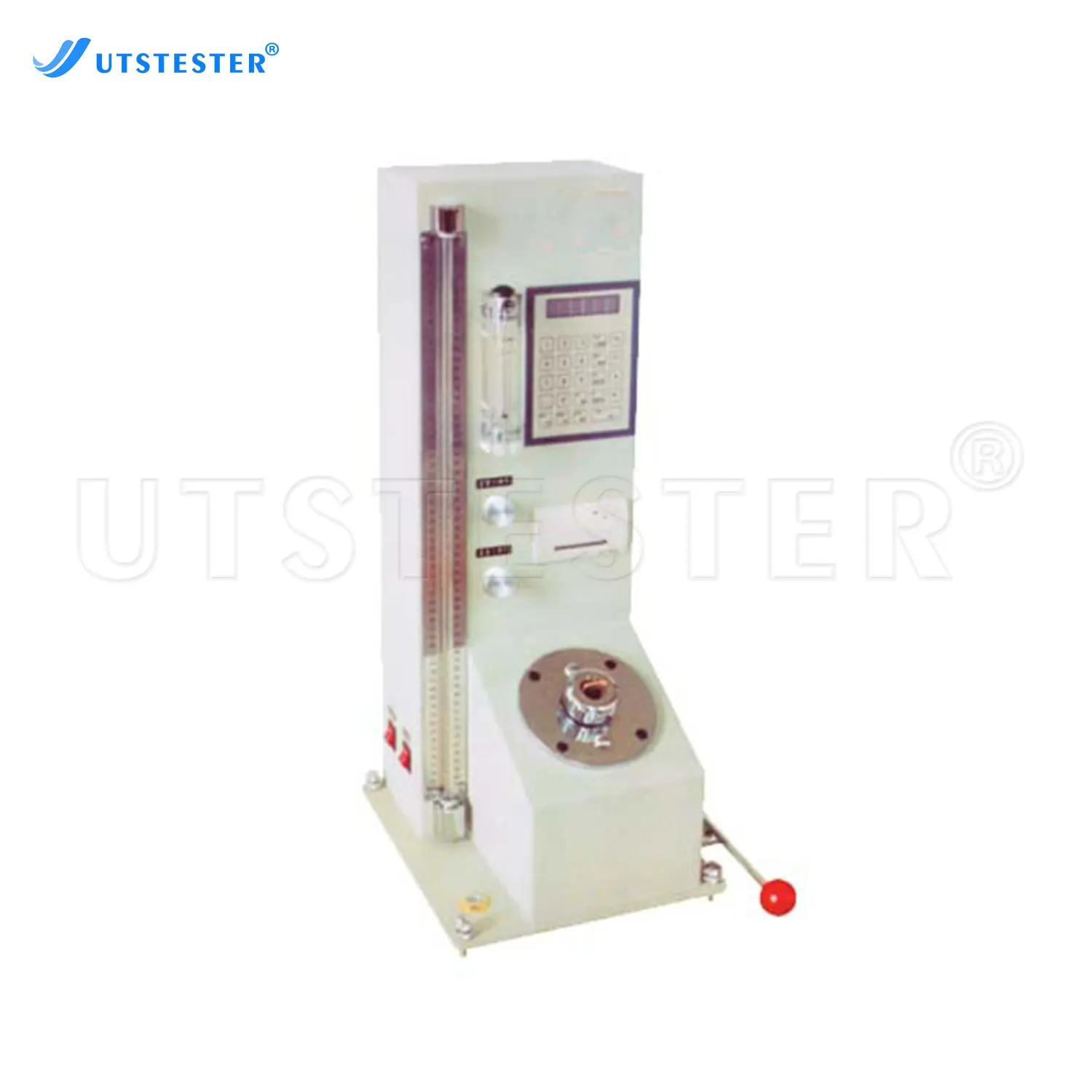

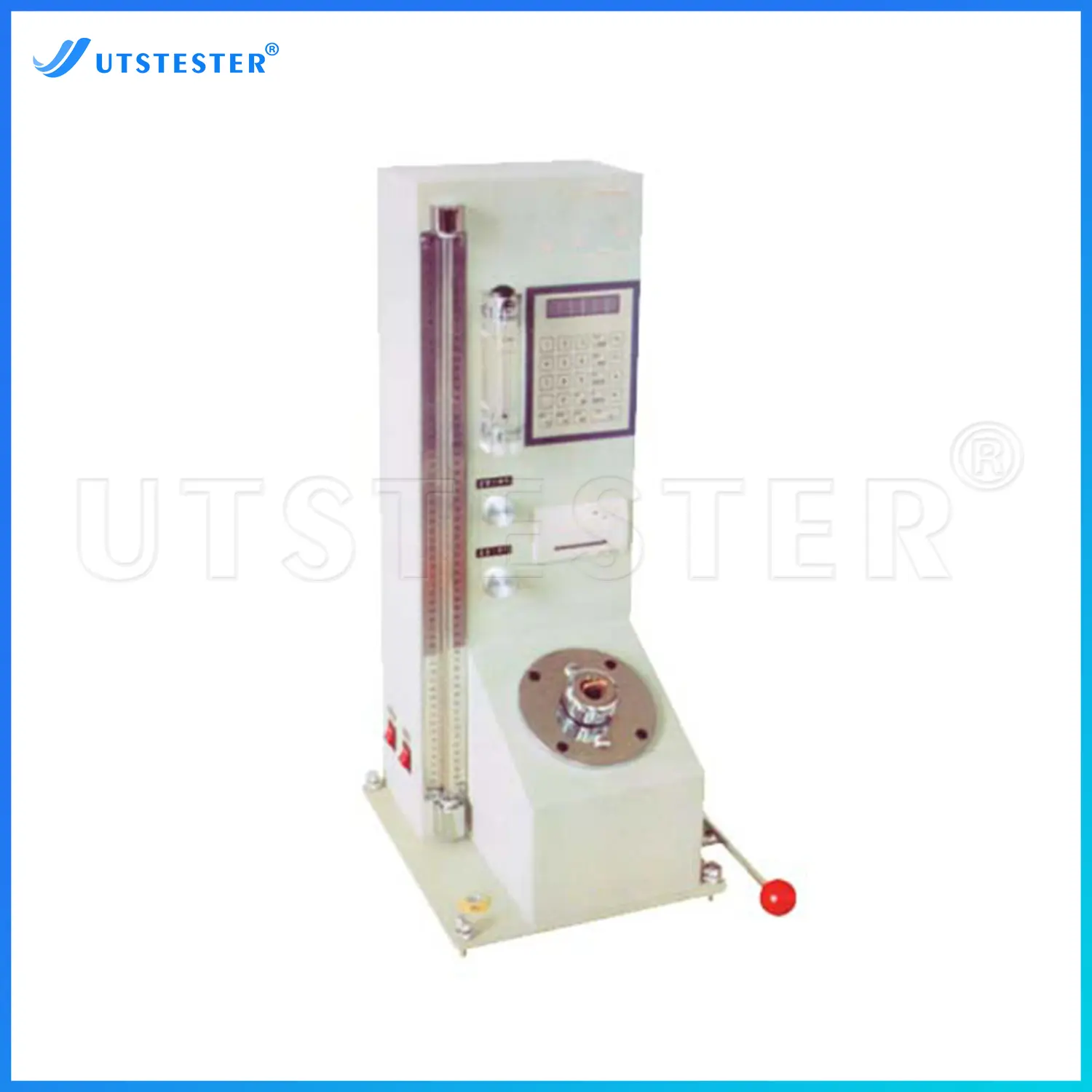

Twice Air Flow Cotton Fibre Fineness and Maturity Tester F011
Overview
Instruments meet the GB/T 13778-1992 the act of cotton fiber maturity test airflow, ISO 10360:1993 - cotton fiber for textile products - determination of maturity method (air), ASTM, 3818:1984 cotton fiber density and maturity index determination method, BS 3181:1987 "the act of cotton fiber fineness determination method, the air flow meter, such as the provisions of the standard applicable to the fine cotton and long-stape cotton, raw cotton and other kinds of cotton and cotton varieties.
Application
Cotton fiber
Fibers
Standards
GB/T13778-1992,ISO10360:1993,ASTM3818:1984,BS 3181:1987
Key Parameters
|
Model |
F011 |
|
|
Item |
Capacity |
Accuracy |
|
The macron value |
2.0 ~ 8.0 |
±0.1 |
|
Linear density |
350 ~ 100 |
±7.0mtex |
|
Maturity ratio |
0.6 ~ 1.2 |
±0.1 |
|
The percentage of mature fiber |
40 ~ 100 |
±5.0％ |
|
Rotameter |
upper scale value 4L/min lower scale value 1L/min |
|
|
Liquid pressure gauge |
The reading accuracy is 5pa and the measuring range is 60hpa |
|
|
Sample weight |
4±0.01g |
|
|
Sample size (fiber plug) |
28 mm diameter |
|
Product Details
Control panel
Rotameter
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
