M111 Moisture Management Tester (MMT).jpg

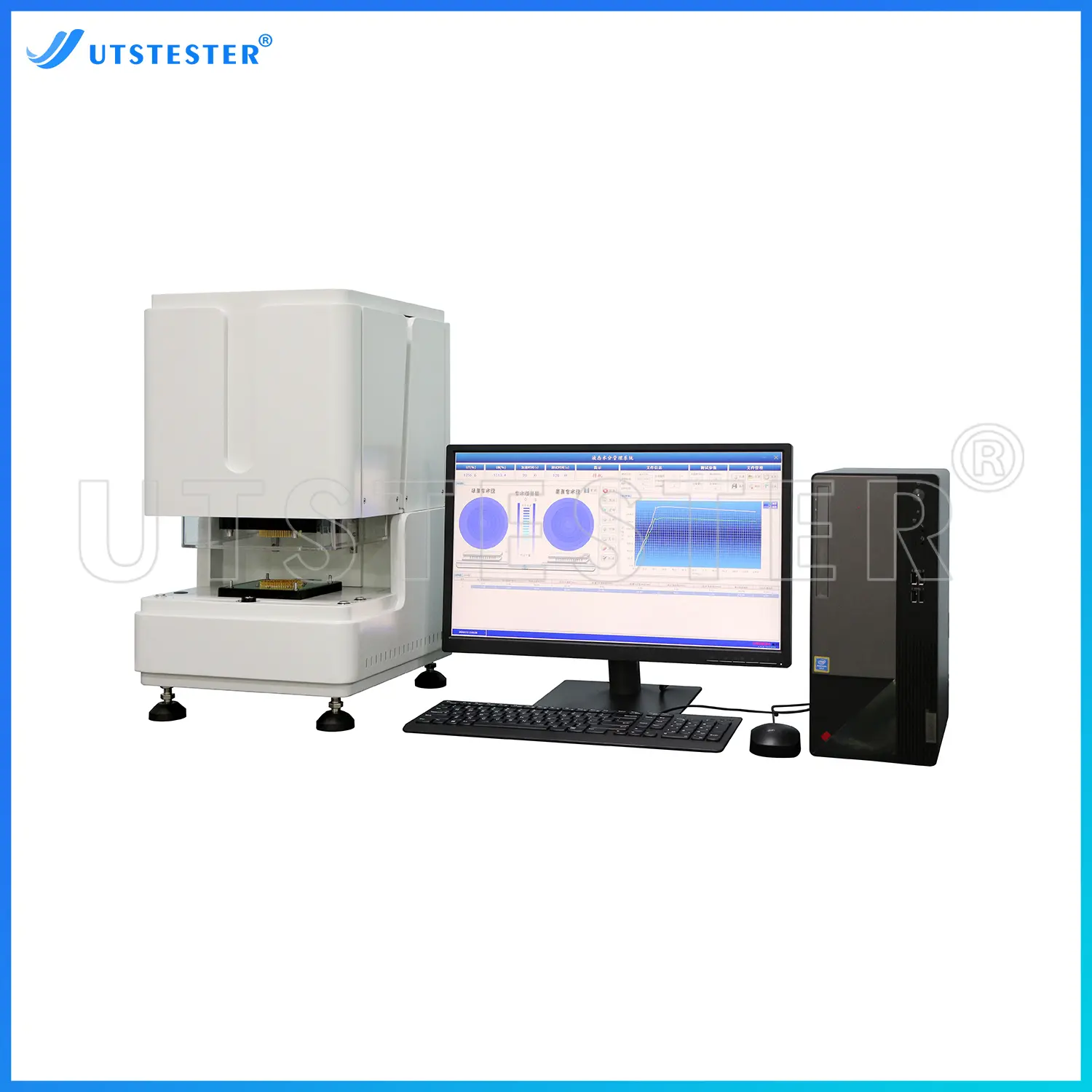

Textile Water Absorption Quick-Drying Tester Moisture Management Tester (MMT) M111

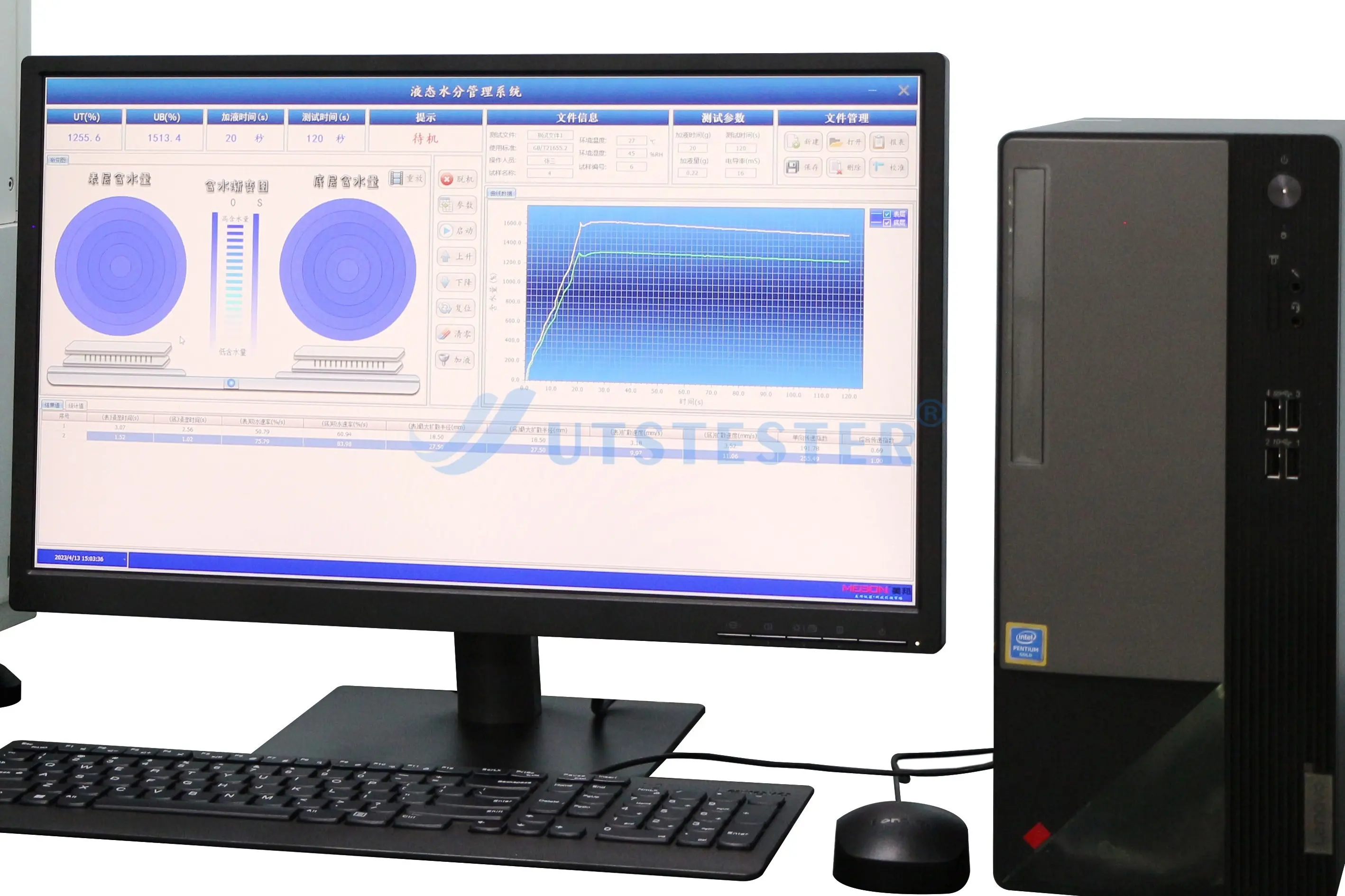

1. Computer software control, real-time display of moisture dynamics for easy observation.
2.High-quality peristaltic pump, accurate transmission of the amount of liquid, can be calibrated to fine-tune the amount of liquid.
3.The instrument adopts the silent rotation system, so that the pressure block smoothly down and accurate positioning.
4.The computer software is powerful, testing the wetting time, expanding radius, diffusion speed, one-way transfer ability.
5.Automatic process, one key to start to complete the entire test steps, and automatic return to calculate the results.
6.Individually add liquid function, avoid pipeline air or blockage affect the test results.
7. Multiple probes in the test electrode disk, positioning holes to ensure top and bottom concentricity.
8. Transparent protective cover, easy to observe the test process.

product details

Production Processes

Packing System

Overview

Used to measure the overall dynamic performance of liquid in three-dimensional space in knitted and woven fabrics, and measure the water absorption, penetration and penetration time of fabrics.

Application

FABRICS

FABRICS

FABRICS

Standards

AATCC 195, GB/T 21655.2

Key Parameters

Model	M111
Communication interface	USB
Test pressure	1000g
Test environment	18°C to 40°C, 20%to80%(non ~ condensing)
Pumping time	20s
Test liquid throughput	0.2g+/-0.01g(fine tuning)
Test liquid conductivity	16mS+/- 0.2ms
Power source	AC220V 50Hz 200W
Overall size	340×400×580mm
Weight	45kg

Product Details

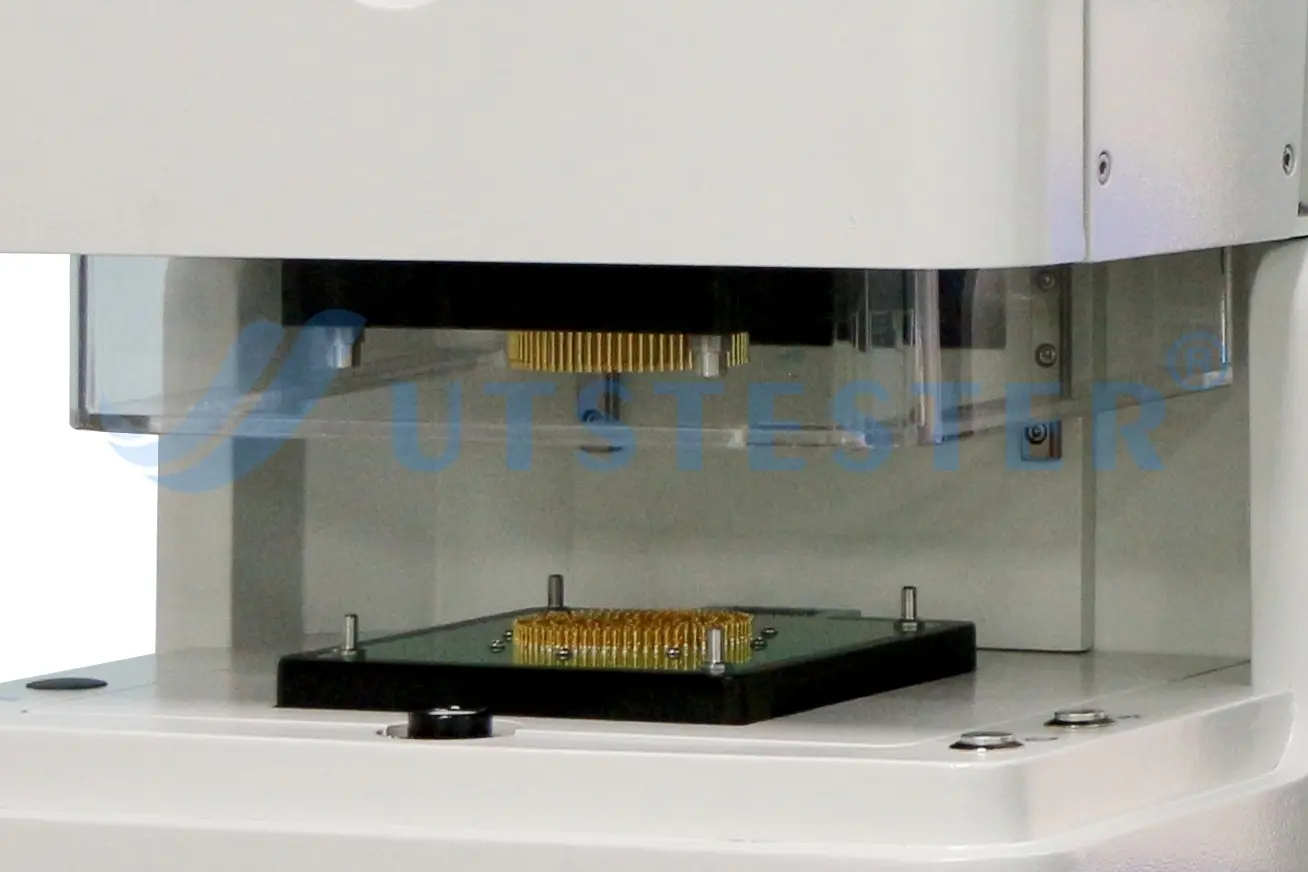

Sample plate

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
