Textile Testing Instruments Manufacturers Auto Numbering Machine M135
Gloves & Socks Tester

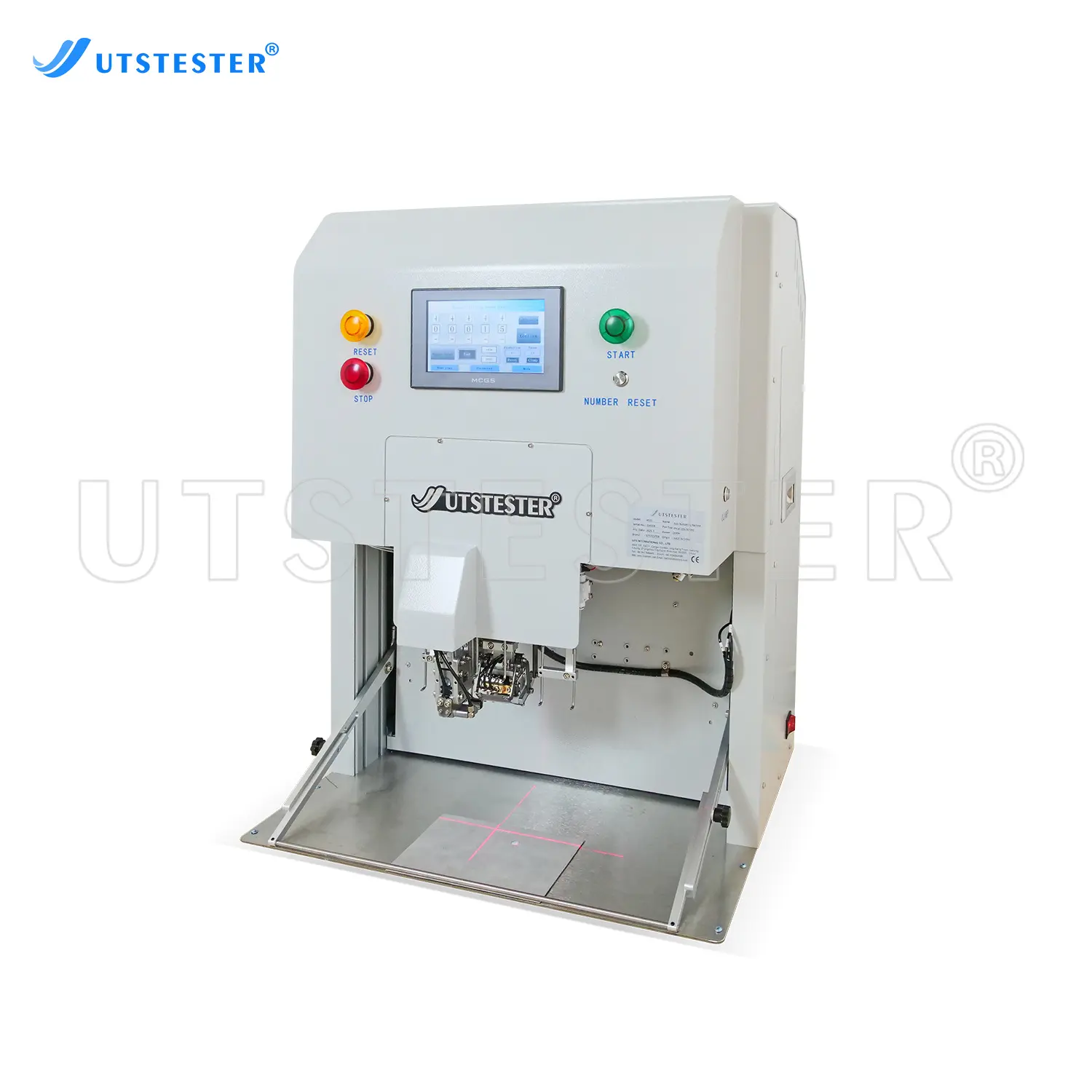

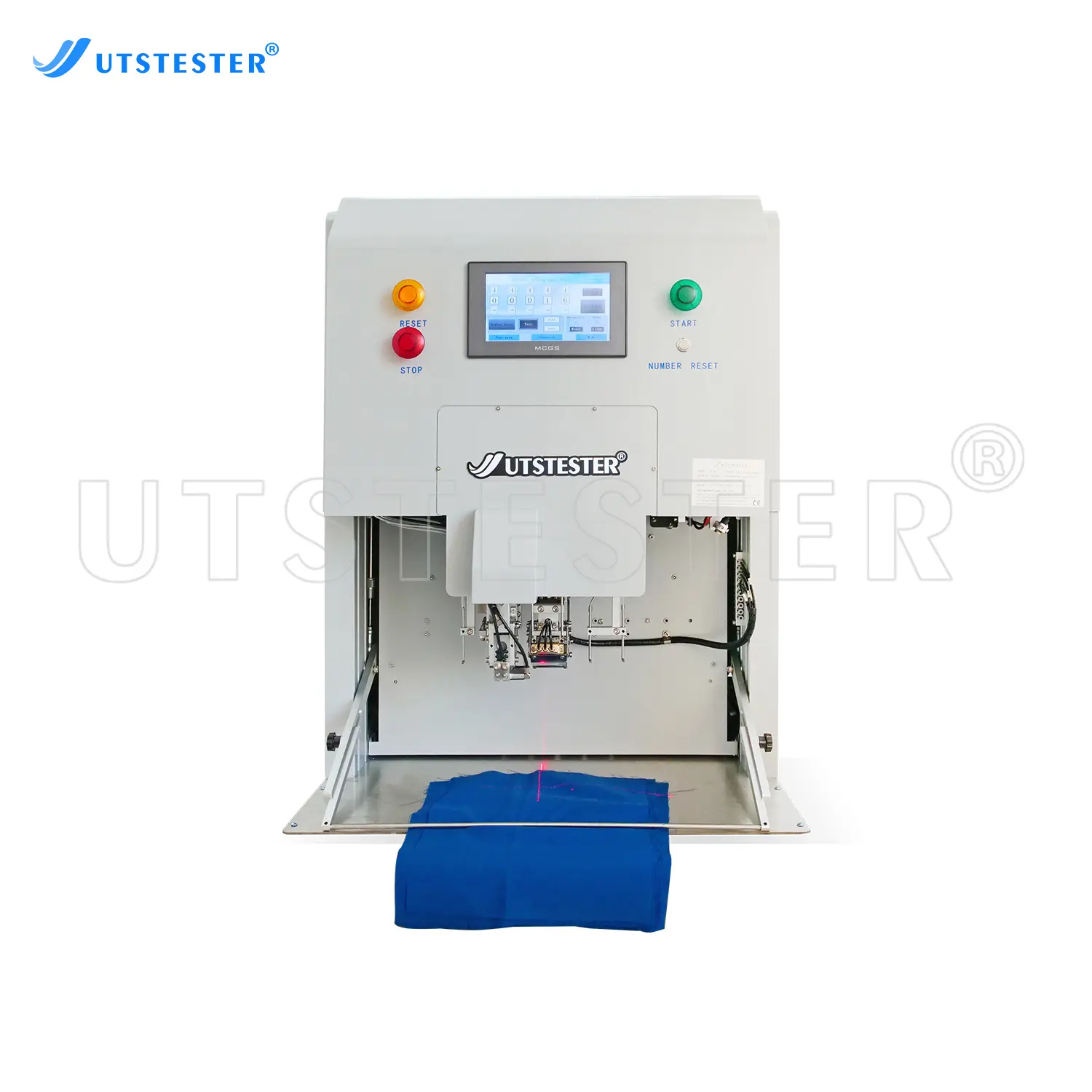

Textile Testing Instruments Manufacturers Auto Numbering Machine M135

1.Efficient numbering Click the screen to set the starting number and skip step value to realize fully automatic numbering, no need for manual dialing and adjustment;
2.Automatic reset By clicking the reset button, the number wheel can automatically jump to the set starting number without manual dialling and setting;
3.Automatic Ink Filling The number wheel is automatically filled with ink every time the number is punched, and the ink cartridge can be filled with ink for 4000-6000 times(for 5 digit), 8000 times(for 3 digit). so there is no need to manually refill the ink frequently;
4.The latest upgraded scratching algorithm can automatically collect the characteristics of the fabric and adjust the parameters according to the scratching situation to improve the scratching performance, eliminating the need to set the parameters manually based on
experience.
5.The latest upgraded gripping algorithm can automatically collect the fabric characteristics and adjust the parameters according to the gripping situation during the work to improve the gripping performance;
6.Grabbing judgement Each grabbing has judgement to ensure the reliability of single-layer grabbing, preventing the wrong number from being reworked when grabbing multi-layers or zero-layers;

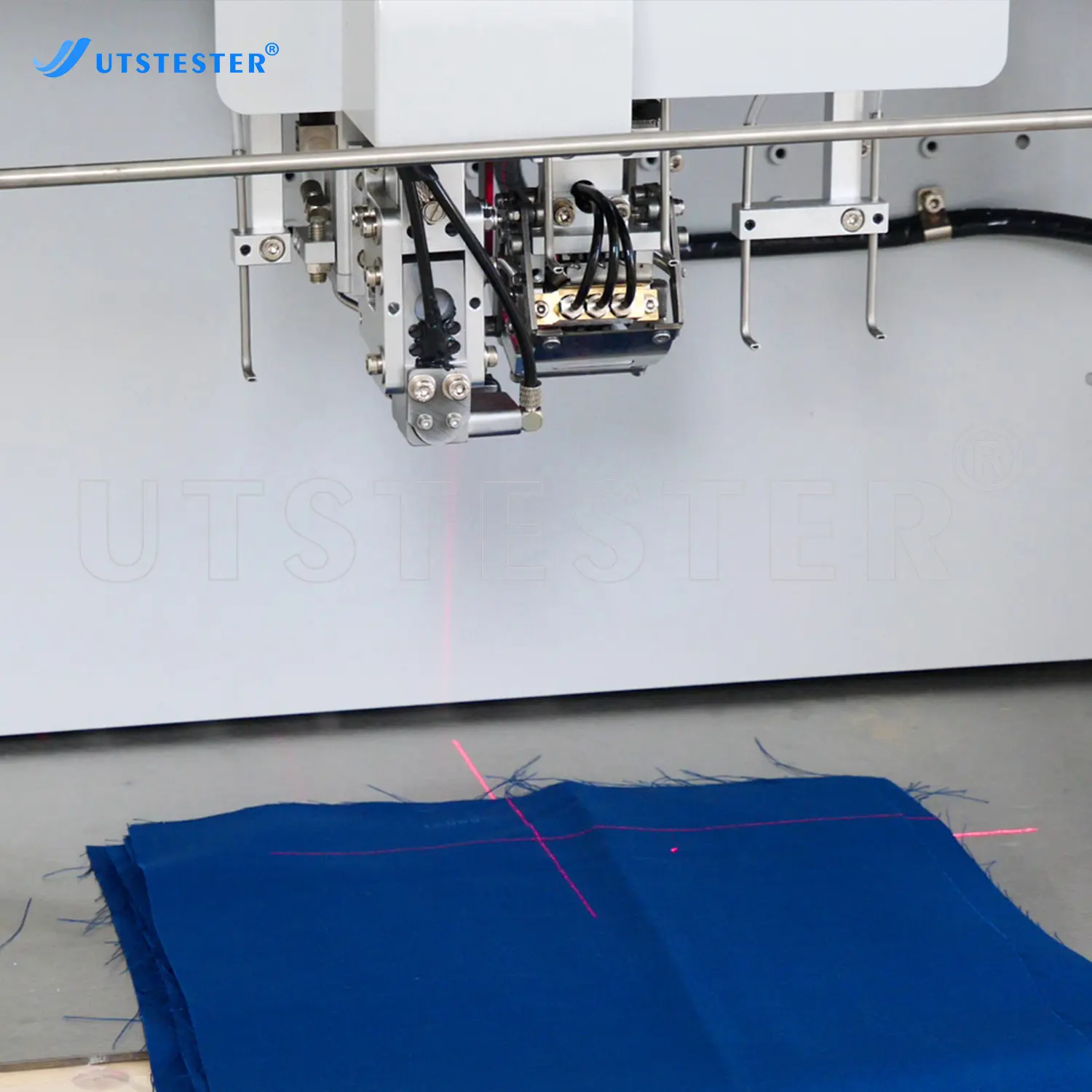

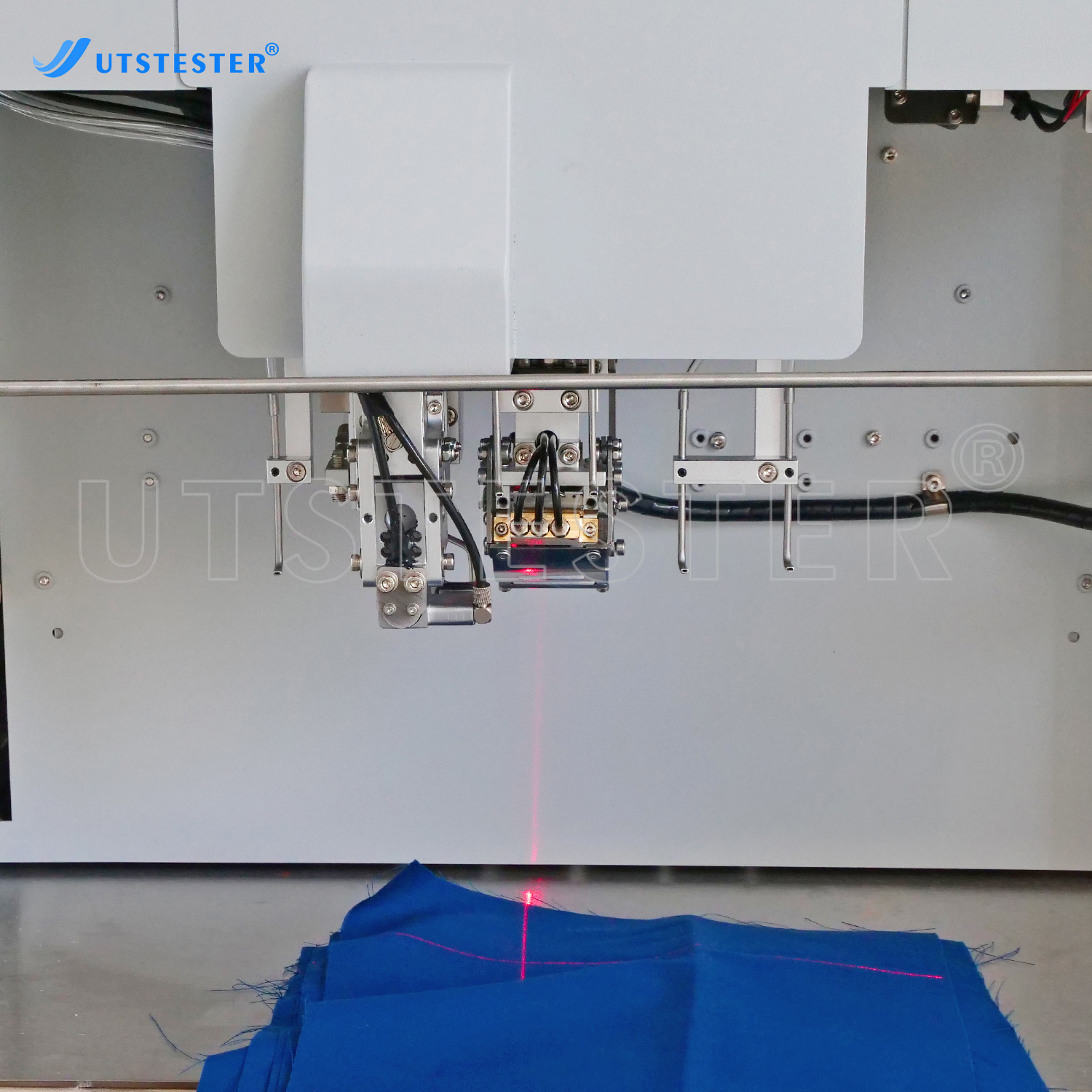

7.Accurate alignment Laser line assisted positioning, clear visual alignment accuracy.

    Overview

    It is suitable for the numbering process of the cut pieces to achieve automatic numbering,which greatly reduces the requirement of personnel skills and labour intensity.Applicable fabrics: shirts, work clothes, down and other cut pieces of thin fabrics with less adhesion.

    Application

    HESSIAN

    Textile

    Standards

    standards

    Key Parameters

    Model M135-4 M135-6
    Applicable

    thickness
    Total thickness of

    stacked fabrics

    <4cm
    6-8cm(Depend on the

    fabric material type)

    Applicable fabric size
    50cm > marking edge length >7.5cm,

    neighbouring edge length >15cm.
    Marking speed Maximum 80times/min
    Working gas source 0.5Mpa
    Auto measuring thickness Yes
    Auto grasp fabric Yes
    Working power supply 1PH AC 220V 50/60Hz
    Overall size(L * W *H) 50*65* 72 cm
    Weight 38kg 43kg
    17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb

    Model M135-4 M135-6
    Applicable

    thickness
    Total thickness of

    stacked fabrics

    <4cm
    6-8cm(Depend on the

    fabric material type)

    Applicable fabric size
    50cm > marking edge length >7.5cm,

    neighbouring edge length >15cm.
    Marking speed Maximum 80times/min
    Working gas source 0.5Mpa
    Auto measuring thickness Yes
    Auto grasp fabric Yes
    Working power supply 1PH AC 220V 50/60Hz
    Overall size(L * W *H) 50*65* 72 cm
    Weight 38kg 43kg
    17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb17ba102da60ff1f17defd4c67f2716bb

    Product Details

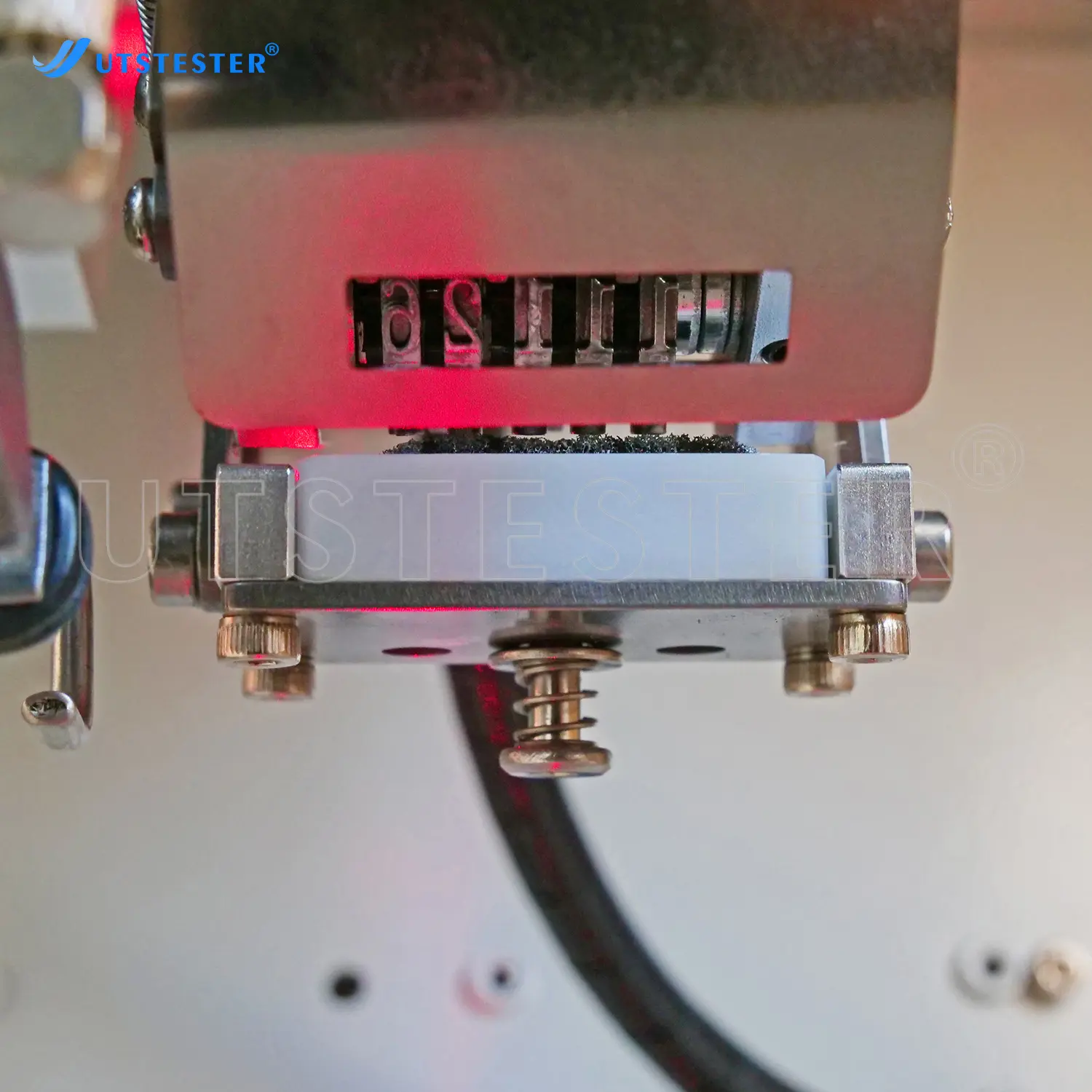

    P1041514

    Code printer

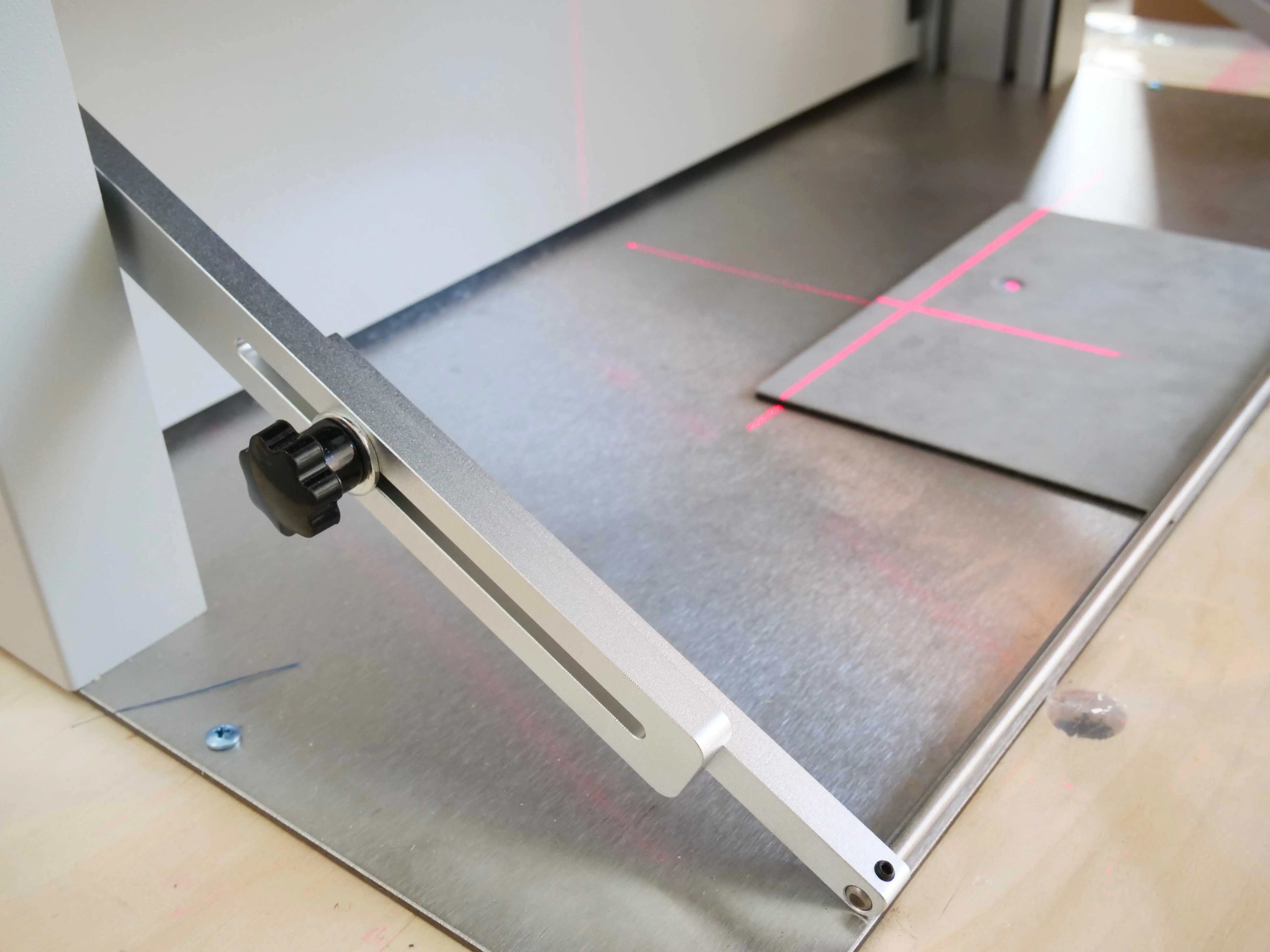

    P1041506

    Press rod

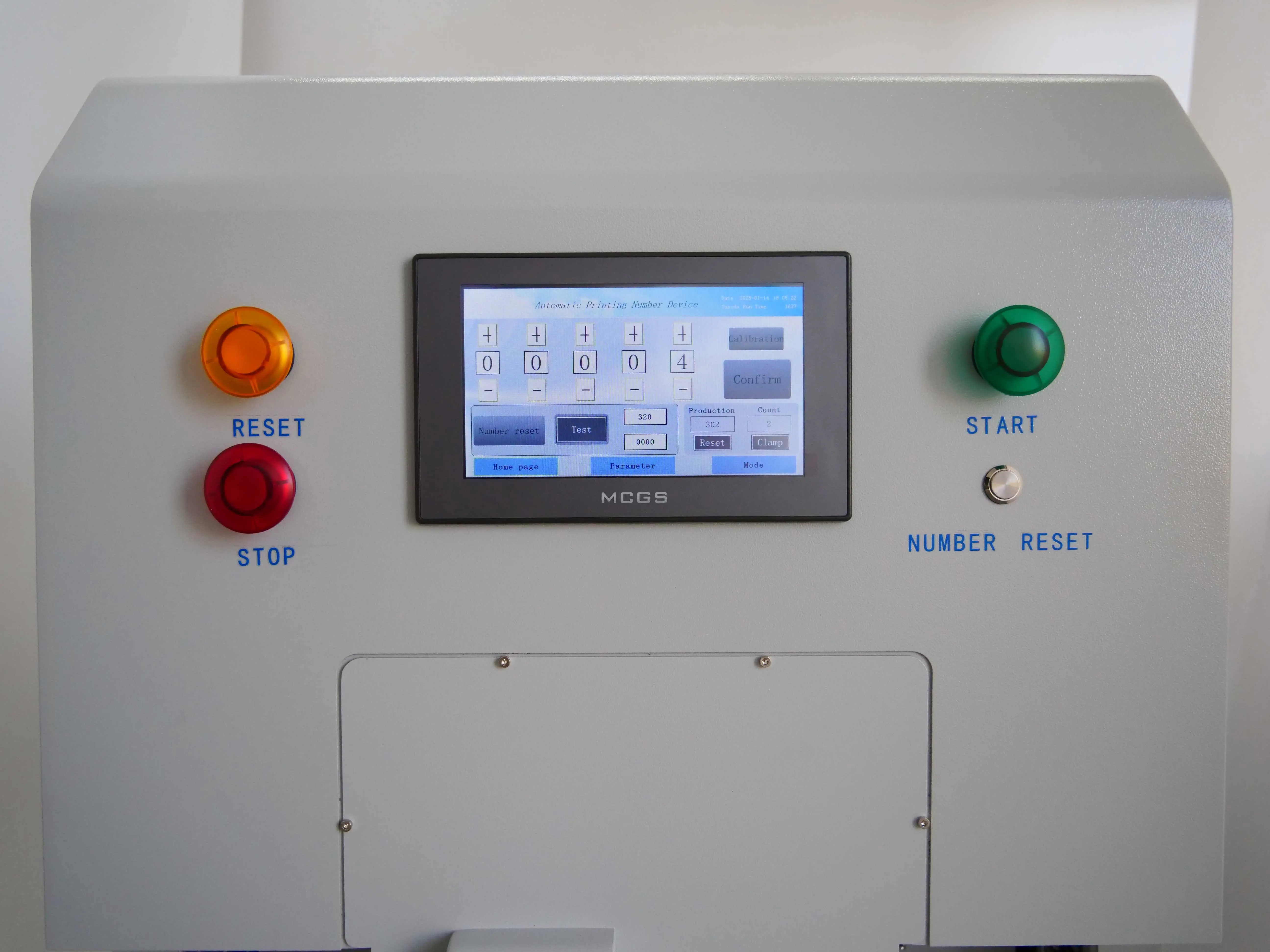

    P1041312

    Display screen

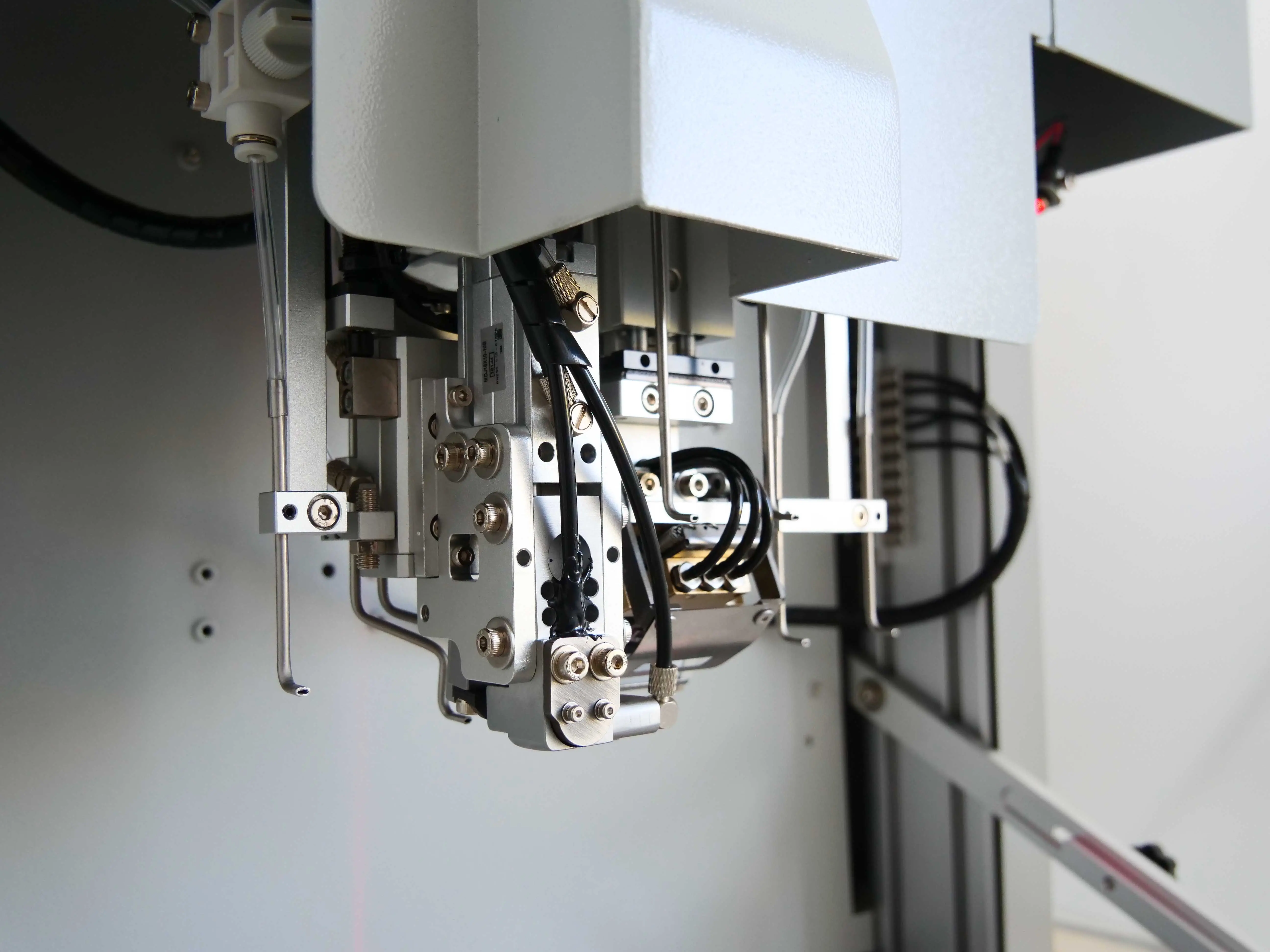

    P1041306

    Single-layer separator

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
