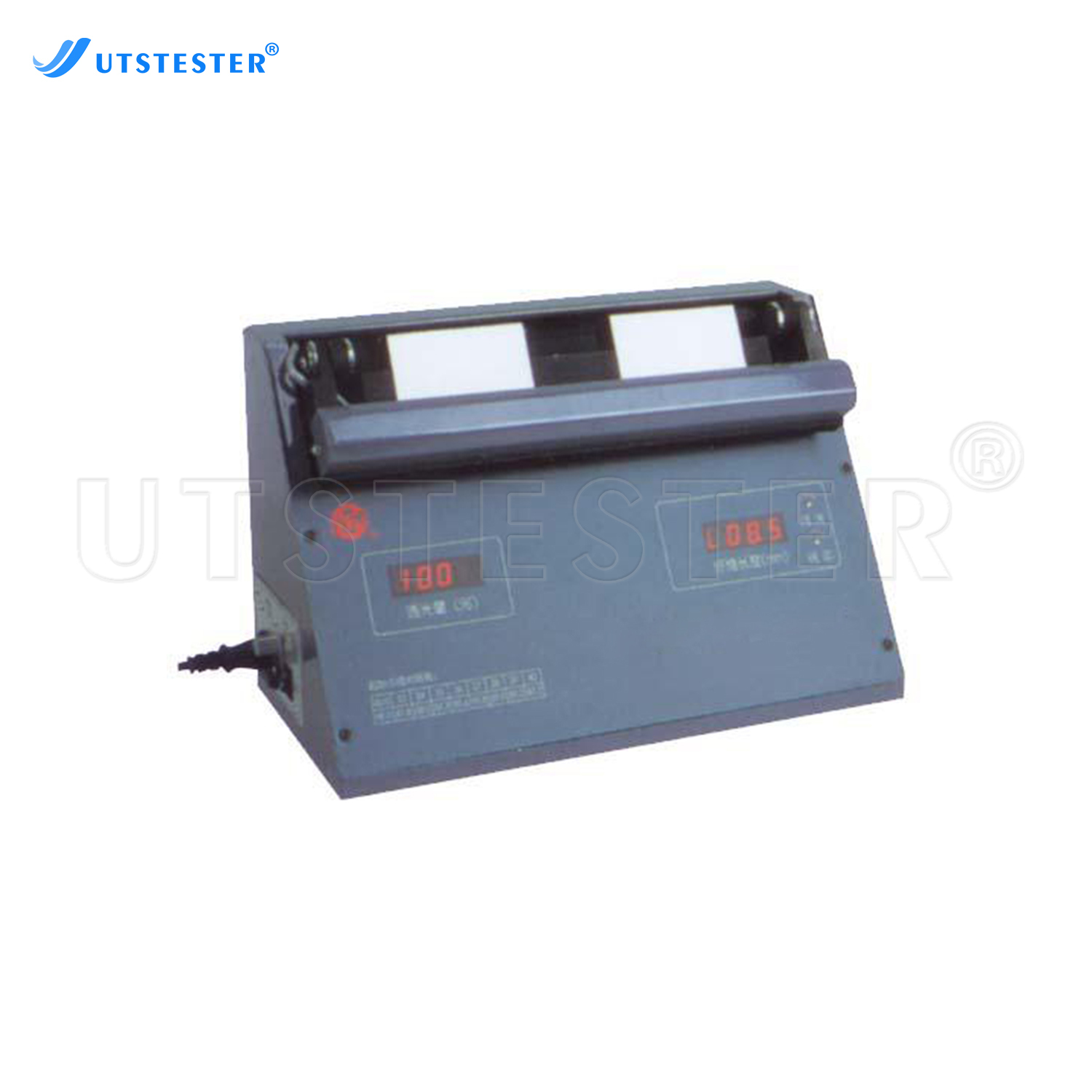

Textile Testing Instruments Fiber Length Tester Fibrograph F009
Overview
Measures length and length uniformity by digital method
Capability for cotton, long staple natural, wool, cashmere, and staple synthetics
0-80mm capability
Results by computer-short fiber, mean length, etc
Application
Chemical fiber
Fibers
Standards
GB/T14338-2008
Key Parameters
|
Model |
F009 |
|
Cotton fiber length range |
25 mm~31mm, It is also used for testing long wool |
|
Cotton fiber length error |
±0.5mm |
|
Sample cotton fiber quantity |
About 250mg( Equal to Fibrograph reading 33% - 40%) |
|
Power supply |
220V±10％, 50Hz |
|
Dimension |
387×192×255mm |
Product Details

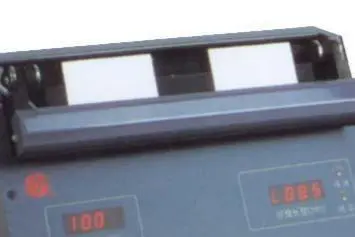

Fixture

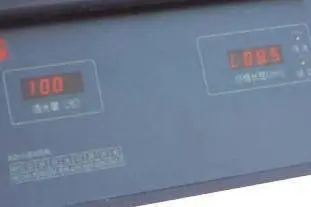

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
