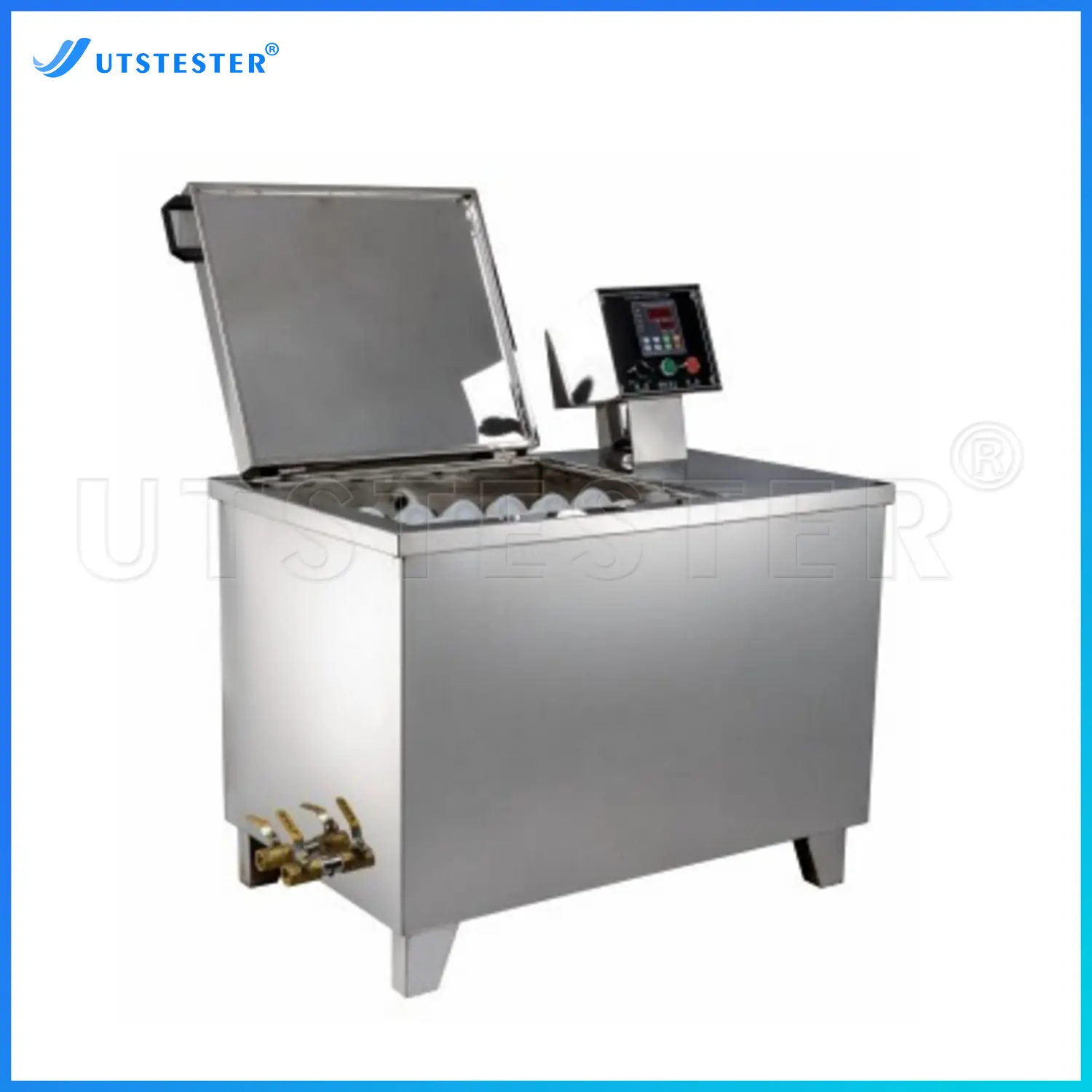

Textile Testing Equipment Sample Rotary Dyeing Machine D012
Overview
Widely used in textile, printing and dyeing, chemical and scientific research institutions and other industries.It is mainly used for testing dyeing and color fastness of various natural fabrics, chemical fiber fabrics, cotton fabrics and blended fabrics at room temperature.
Application
Dyeing and finishing
Garment

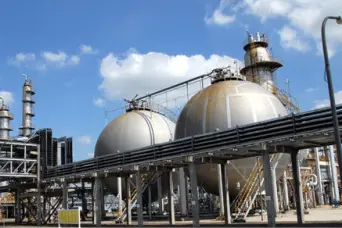

Chemical industry
Printing and dyeing
Key Parameters
|
Model |
D012A |
D012B |
|
Beakers |
24 |
24 |
|
Beaker material |
250cc plastic beaker |
300cc stainless steel beaker |
|
Heating power |
3 x 3KW |
|
|
Heating medium |
Water |
|
|
Maximum temperature |
Room temp. To 99℃ |
|
|
Running mode |
Sample beakers vertically rotate beaker gasket speed is 40 rpm |
|
|
Temperature controlling accuracy |
0.1℃ |
|
|
Liquor ratio |
1:5-1:20 |
|
|
Heating mode |
Electric heating tube |
|
|
Cups volume |
150㏄, 250㏄, 300㏄, 450㏄, 500㏄, Optional |
|
|
Drive system |
Smooth start, light load, low noise.Equipped with aluminum motor and reducer to achieve good heat dissipation effect |
|
|
Power supply |
AC, 380V, 50HZ |
|
|
960*590*940mm (L x W x H) |
||
|
Weight |
136kg |
|
Product Details

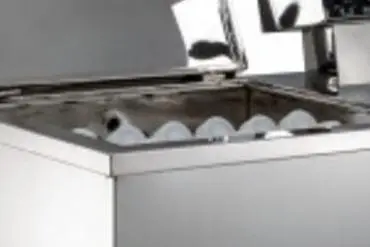

Sample Testing Area

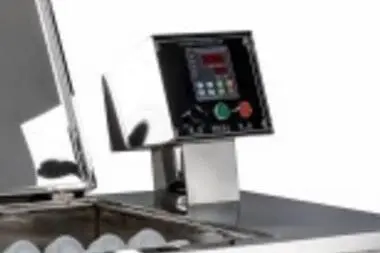

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory

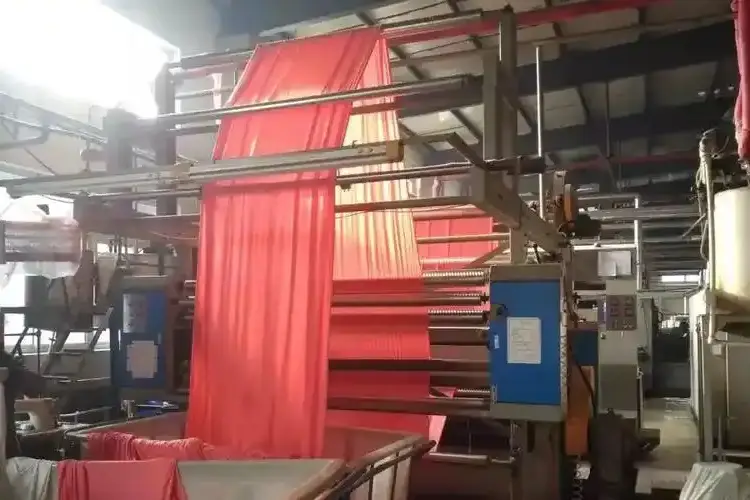

Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
