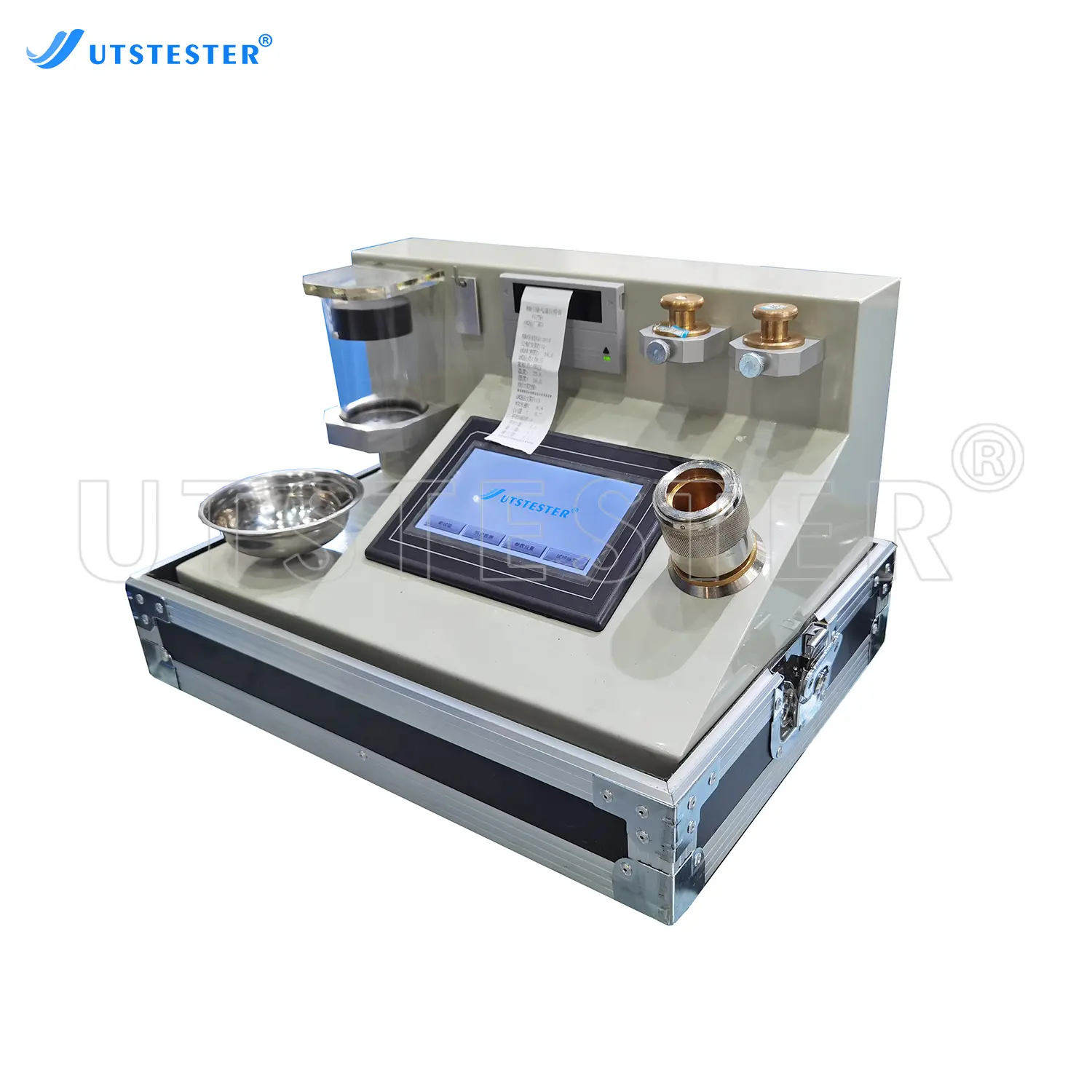

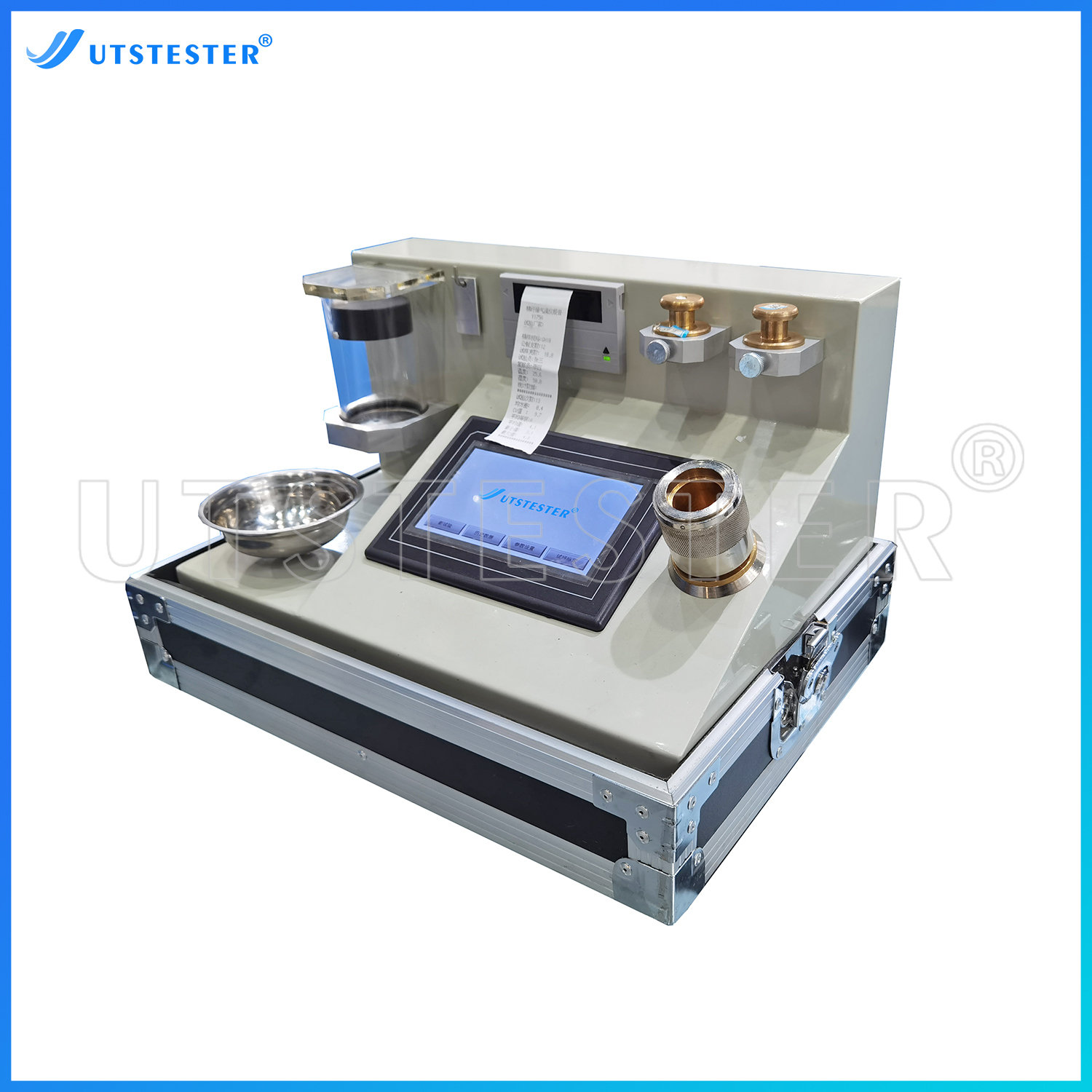

Textile Machinery Parts Cotton Fiber Airflow Meter (Micronaire Meter) F015C
Overview
This instrument is suitable for measuring the Macron value of loose and disordered cotton fibers.
micronaire is defined as a measure of the air permeability of a given amount of cotton fiber under specified conditions, expressed as Micronaire. The Micronaire scale is based on a set of "Internationally Calibrated Cotton Standards" whose Micronaire values have been determined by international agreement.
Application
Cotton fiber
Fibers
Standards
GB1103, GB/T6498, GB/T13778, ISO2403, BS3181, ASTM D1448
Key Parameters
|
Model |
F015C |
|
Sample mass |
Based on 8g, and the microcomputer automatically corrects the Macron value within the range of 7.5-8.5g. |
|
weighing accuracy |
±0.01g |
|
Unit weight |
0.26g/ cm 2 |
|
Measuring range |
2.5 ~ 6.5 Macron units. Accuracy: ±0.1 Macron units. |
|
Operating environment |
5℃ ~ 40℃, relative humidity below 90%. |
|
Power supply |
220V±10%, 50Hz. |
|
Size |
470㎜ * 315㎜ * 305㎜ |
Product Details

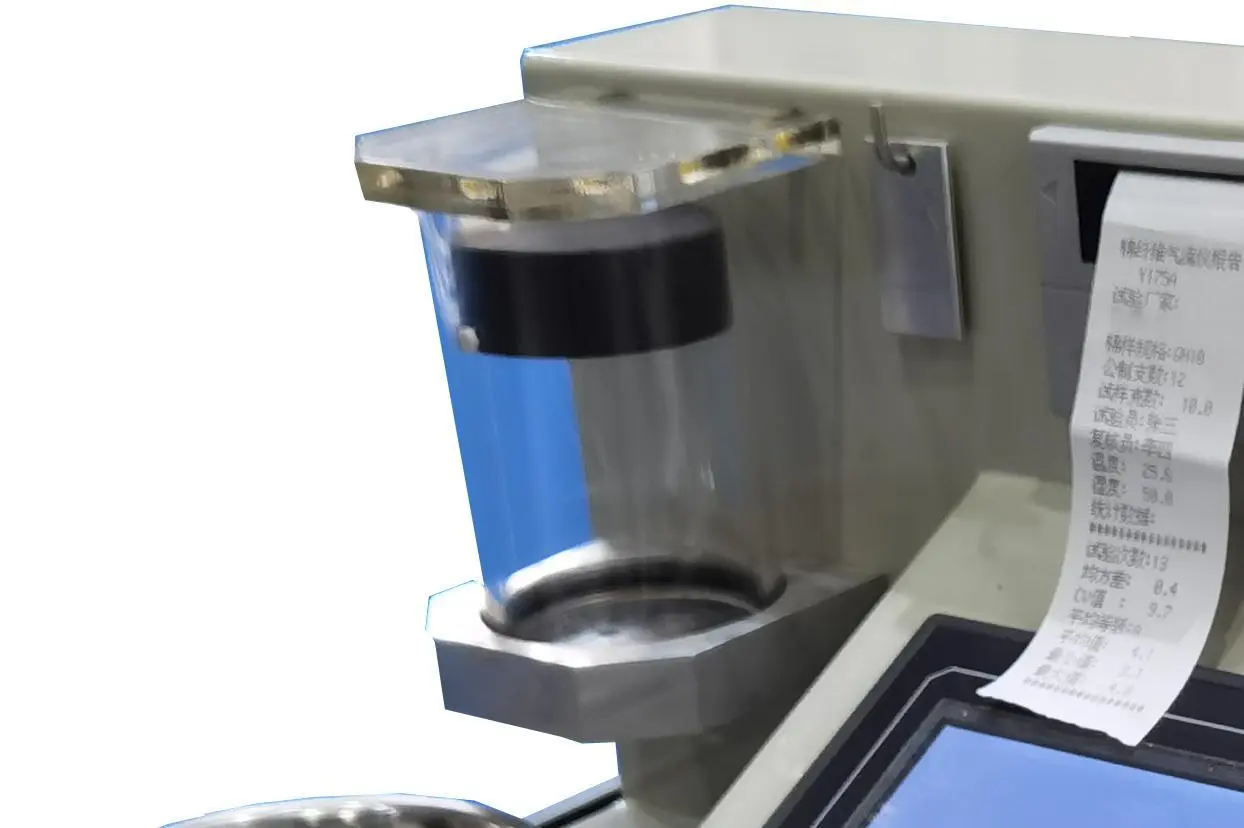

Sample test area

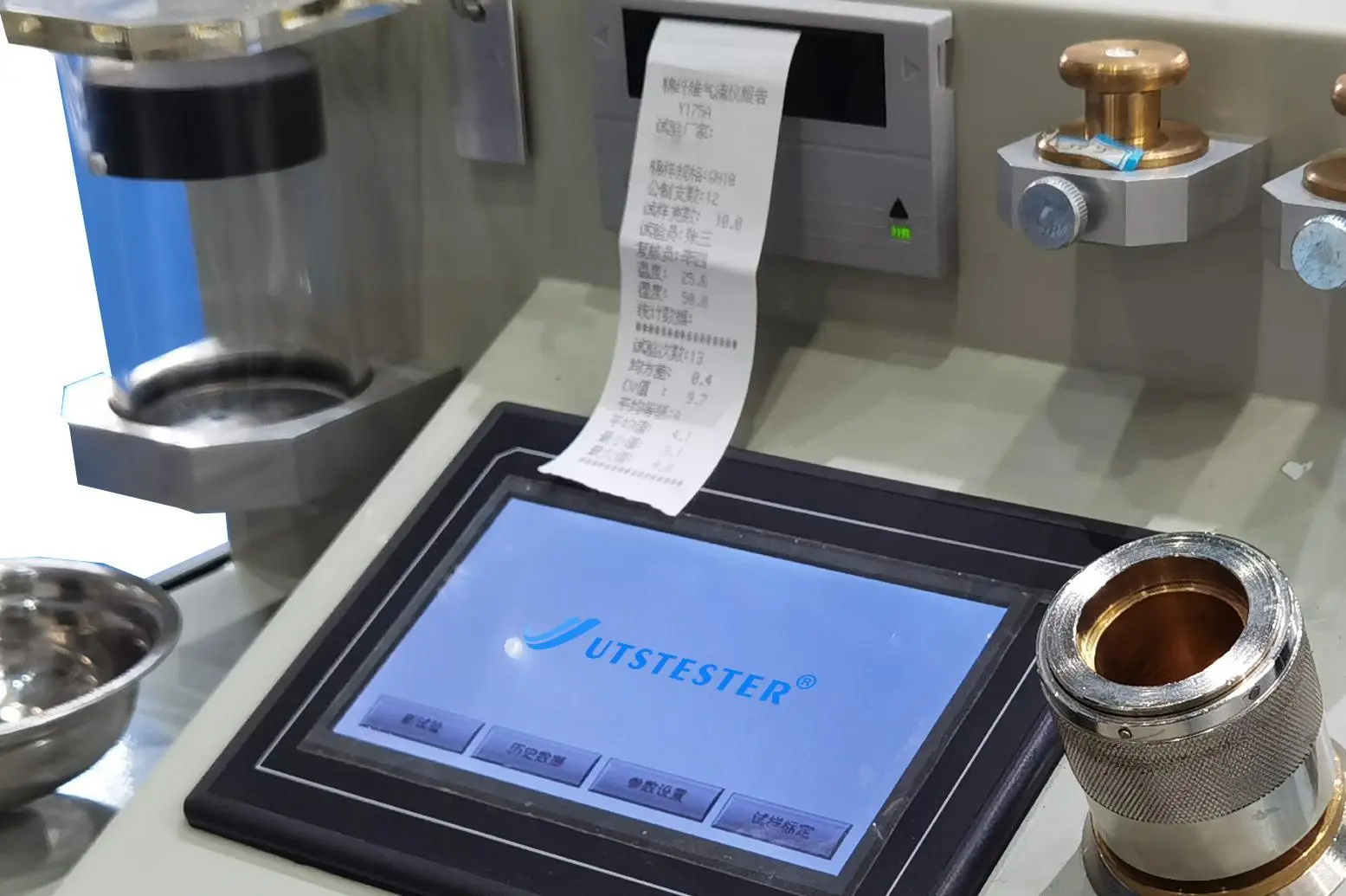

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
