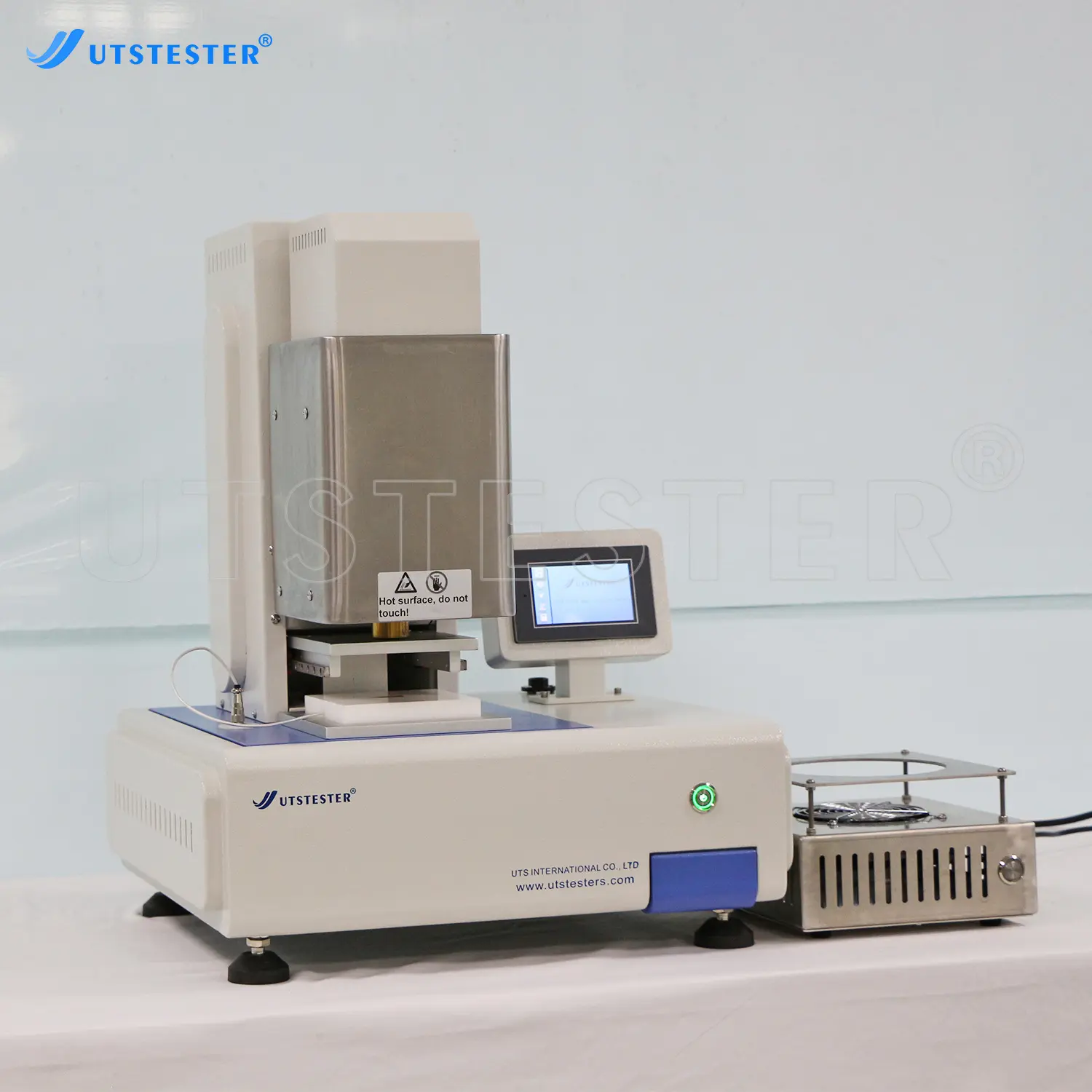

Textile Machinery BS 6526 Glove Heat Insulation Tester H109

1. Color touch screen display, control, Chinese and English interface, menu operation mode.
2. Servo motor, servo controller drive.
3. Online computer automatically display curve.
4. Generate test report automatically.
5. Brass cylinder release: free gravity pressure sample.
6. Brass cylinder return: automatic return.
7.Heat insulation protection plate: automatic movement,automatic return.
8. Use omega imported sensors and transmitters.

product details

Production Processes

Packing System

Overview

Used to test the heat insulation performance of heat insulation materials at the moment of contact with high temperature.

Application

Insulation Gloves

Insulation Gloves

Standards

BS 6526

Key Parameters

Model	H109
The sample size	Φ70mm
Temperature range	indoor temperature +5℃～180℃
The temperature precision	±0.5℃
Temperature resolution	0.1℃
Polyethylene sample mounting plate	12012025mm
Sample sensor range	0 ~ 260 degrees accuracy ±0.1%
Heating block sensor range	0 ~ 260 degrees accuracy ±0.1%
Brass cylinder weight	3000±10g
Brass cylinder size	Small head diameterΦ32±0.02mm height 20mm±0.05mm Big head diameter Φ76±0.02mm height 74mm±0.05mm
Brass cylinder sensor detection point, distance from brass cylinder bottom surface	2.5mm±0.05mm
Brass cylinder release speed	25mm/s(Speed is adjustable 1～60mm/s)
Return speed of brass cylinder	25mm/s(Speed is adjustable 1～60mm/s)
Distance between brass cylinder and sample surface	100mm±0.5mm
Polyethylene protective plate	200×250×15mm
Distance between polyethylene protective plate and the upper surface of the sample	50mm
Speed of movement of polyethylene protective plate	80mm/s
Time measuring range	0～99999.9S
The power supply	AC 220V 50Hz
Overall dimensions	540×380×500mm（L×W×H）
Total weight	40kg

Product Details

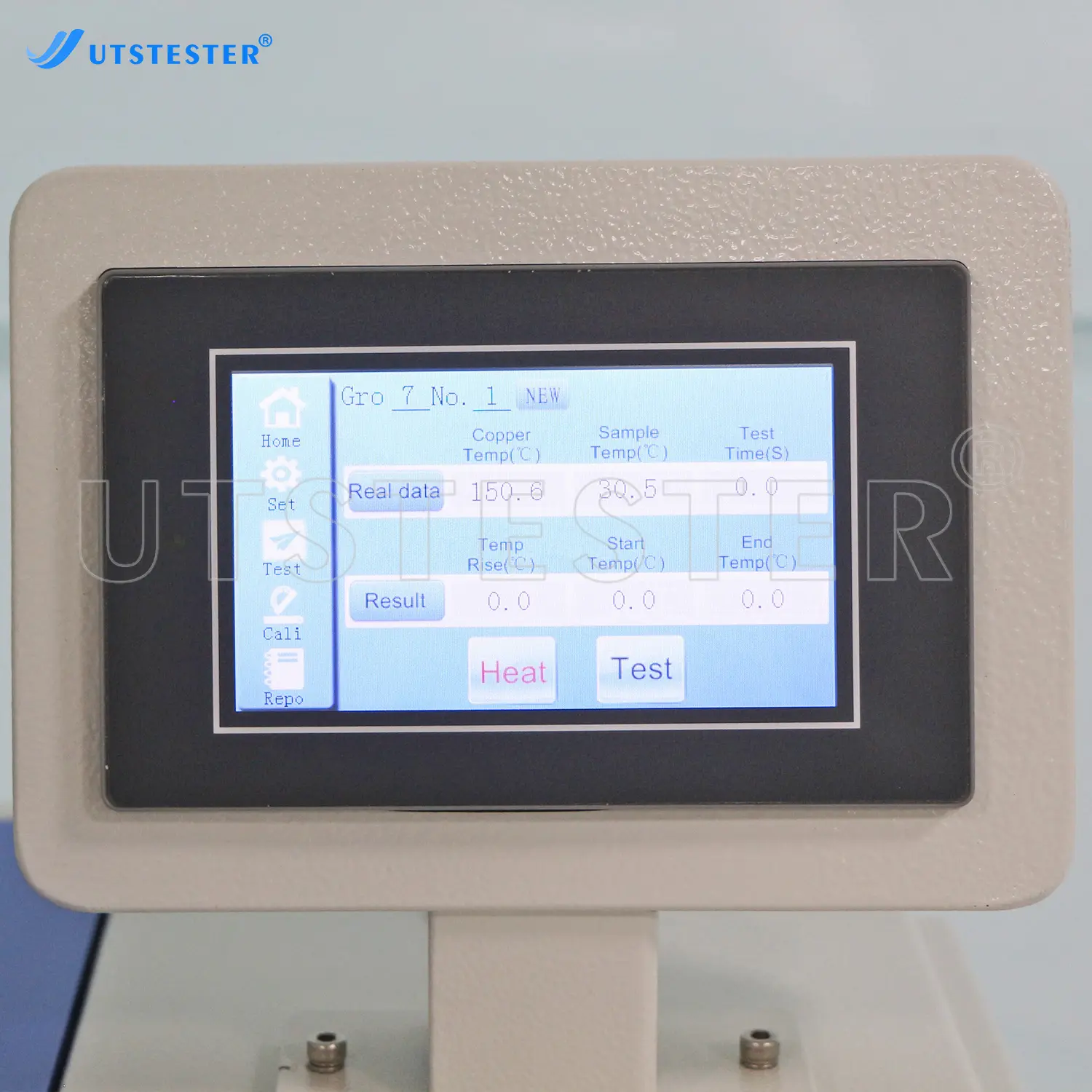

Control panel

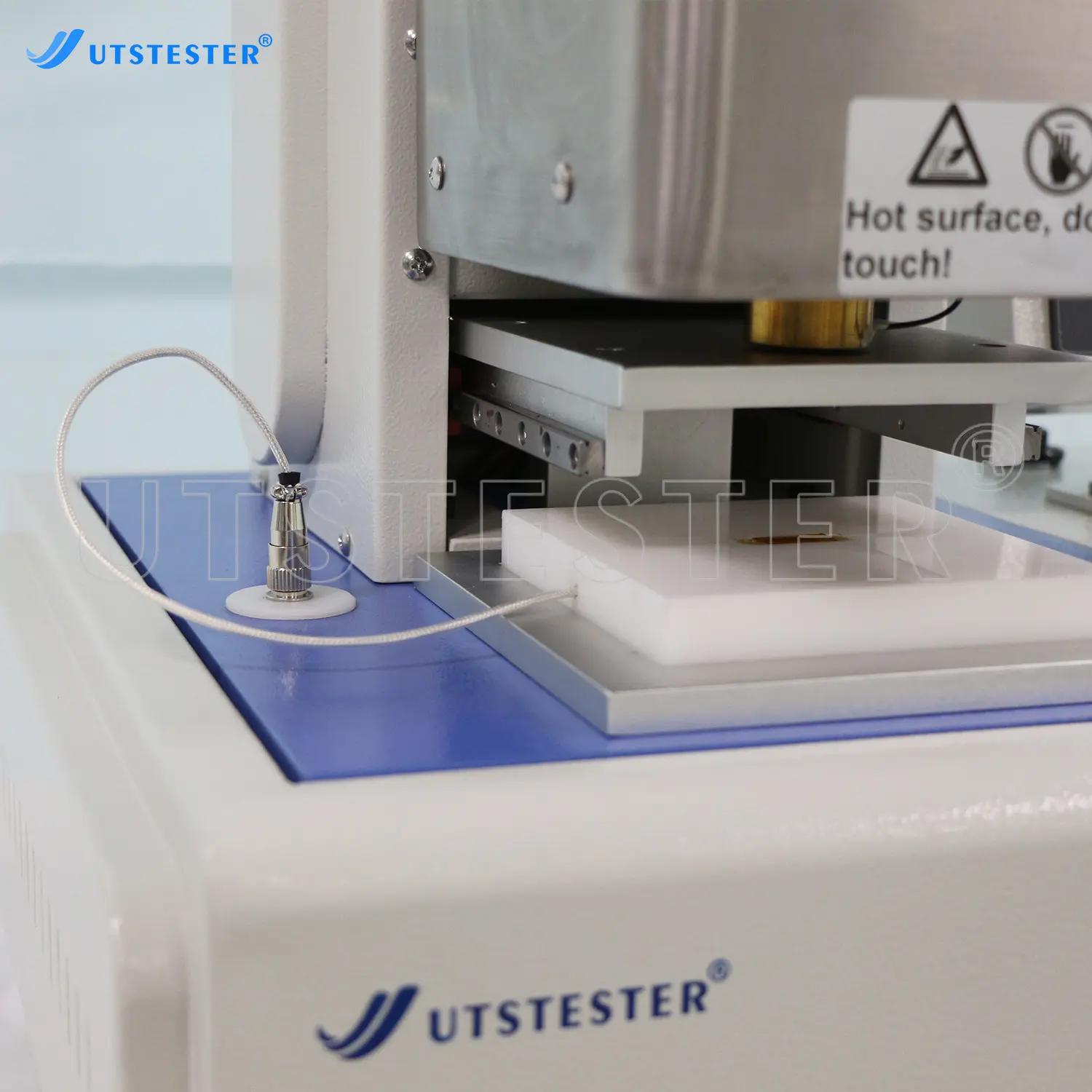

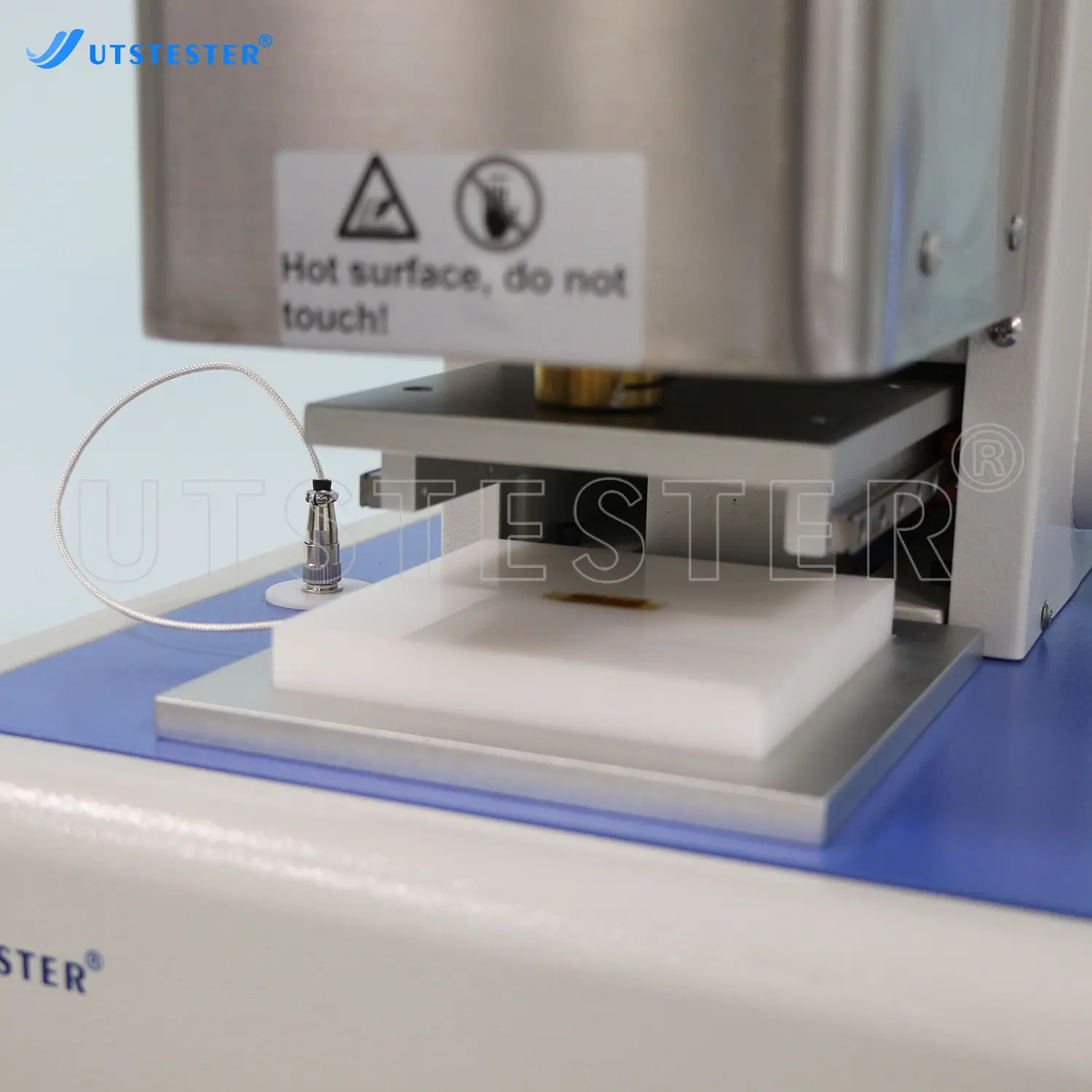

Test bench

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
