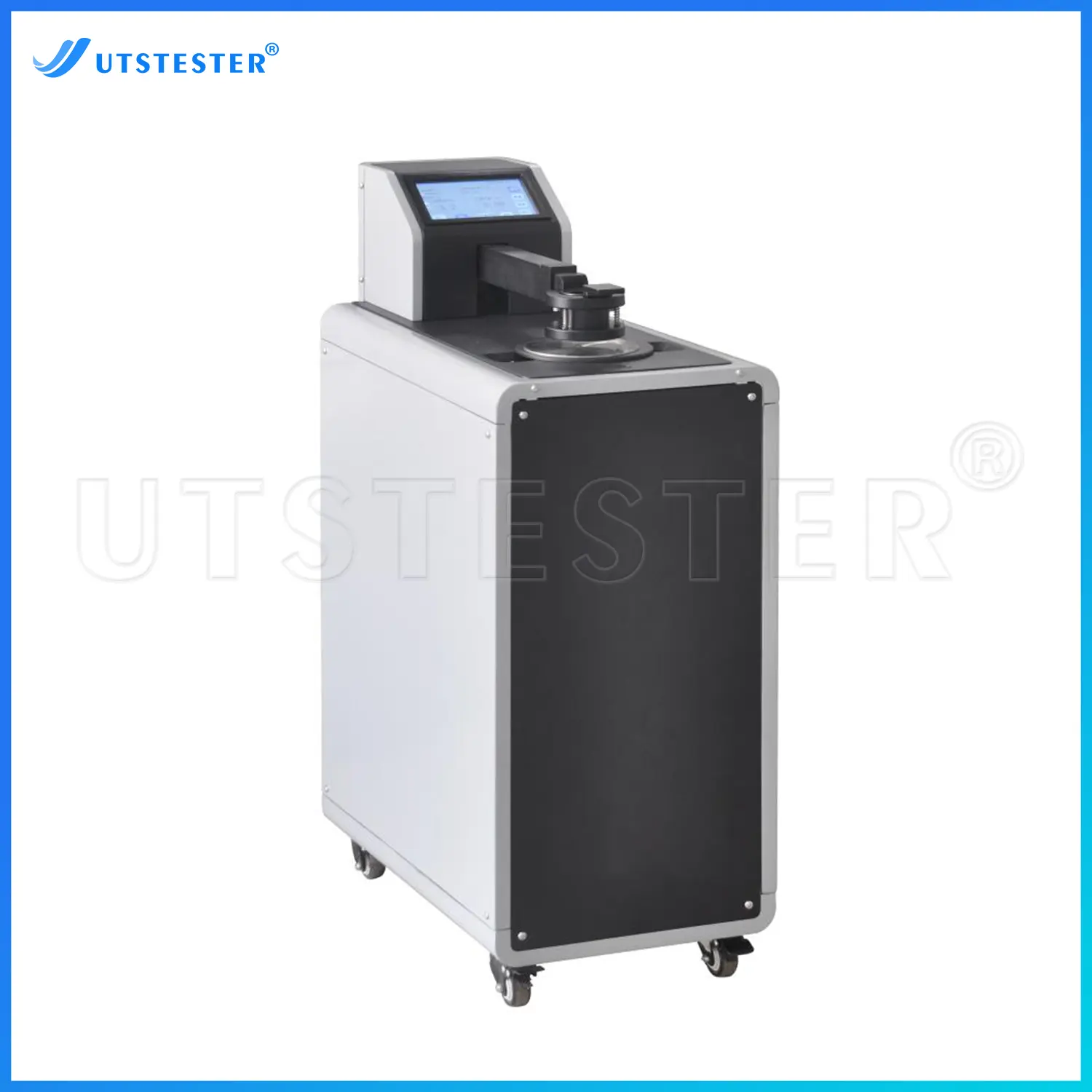

Textile Machinery ASTM D4491 Geotextiles Water Permeability Tester MA05C
Geotextile Tester

Textile Machinery ASTM D4491 Geotextiles Water Permeability Tester MA05C

1, By the large screen color touch screen separate control test, can also be used for computer control test, the computer can display real-time differential pressure - dynamic curve;
2, The use of high-precision imported micro pressure differential sensor, accurate measurement results, good repeatability;
3, Fully realize the automatic measurement, the sample to the specified position, the instrument automatically find the appropriate measurement range, automatic adjustment, accurate measurement.
4, Pneumatic clamping sample, fully meet the clamping requirements of various materials;
5, The use of long arm clamping handle, can measure large samples, and do not have to cut large samples small, greatly improve the work efficiency;

    Overview

    Used for water permeability test of geotextile.

    Application

    Geotextile

    Geotextile

    Geotextile (3)

    Geotextile

    Geotextile (2)

    Geotextile

    Standards

    ASTM D4491 Method C and other standards.

    Key Parameters

    Model

    MA05C

    Sample holding mode

    Pneumatic holding, hand press the fixture automatic start test

    Sample pressure difference range

    1 ~ 2400Pa

    Breathability measurement range and index value14000)mm/s (20cm2), 0.1mm/s;

    (0.8 ~ 14000)mm/s (20cm2), 0.1mm/s

    Measurement error

    ≤± 1%

    Measurable fabric thickness

    8mm

    Suction air volume adjustment

    Data feedback dynamic adjustment

    Sample area setting ring

    20cm2

    Data processing capacity

    Up to 3200 times for each batch

    Data output

    Touch screen, computer display, Chinese and English printing, reports;

    Power supply

    1PH AC 220V, 50Hz, 1500W

    Overall size

    550mm×900mm×1200mm (L×W×H)

    Weight

    105Kg

    Product Details

    Production Processes


    Process design and design and manufacture of specialized process equipment

    image0316kf

    Machining of components

    Assembly of products

    Assembly of products

    image0267we

    Comprehensive testing of machines

    Scenarios of Use

    image030cct

    Laboratory

    image027i5g

    Textile factory

    Operation

    1

    Connecting the air supply

    Connect the air supply to the instrument.
    2

    Add distilled water

    Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
    3

    Put in filte

    Unscrew the screws and remove the top plate,Take away the reflector.
    Put in filter.
    4

    Install the xenon lamp

    Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
    5

    Mount the sample

    Mount the sample on the sample clamp.
    6

    BPT Sampling

    Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
