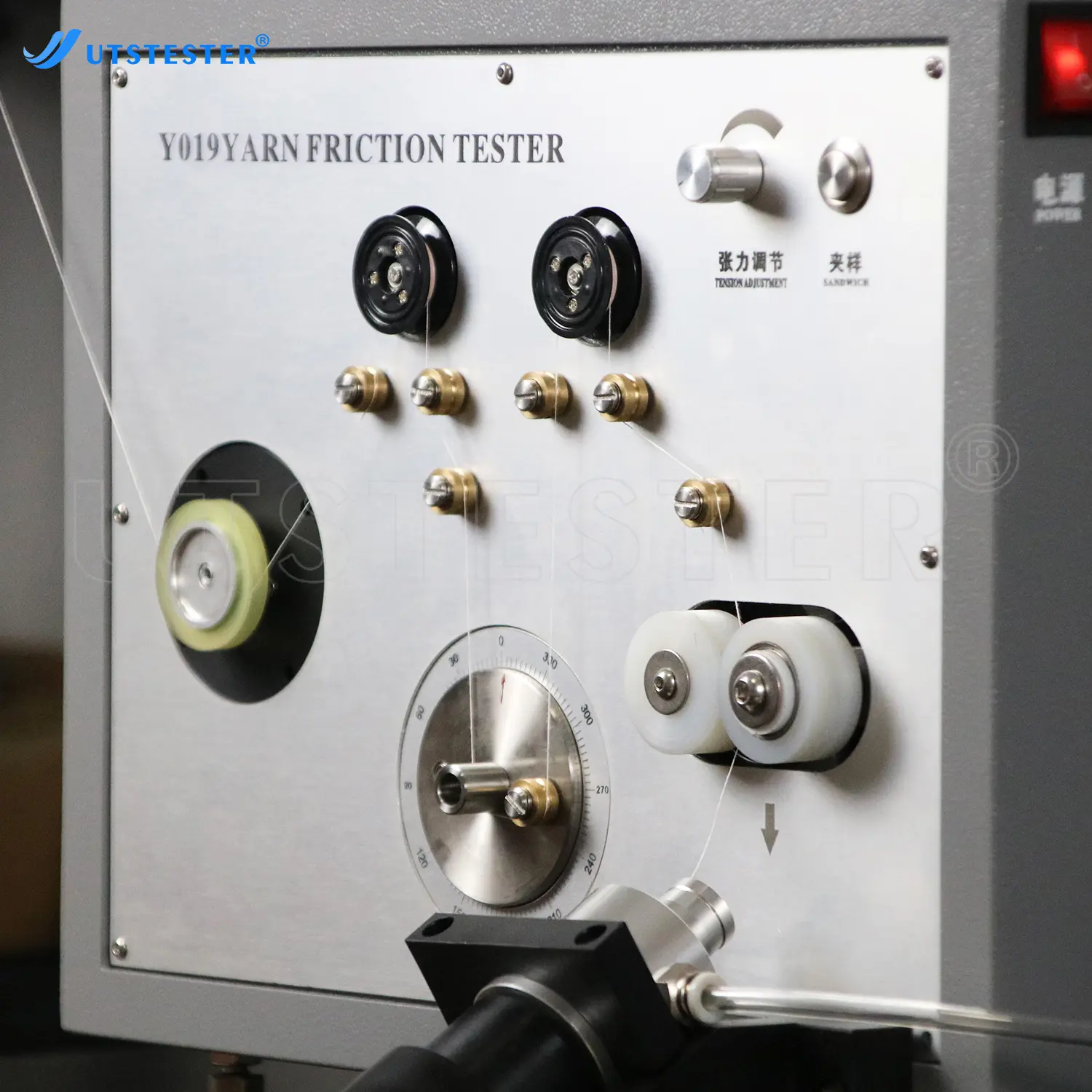

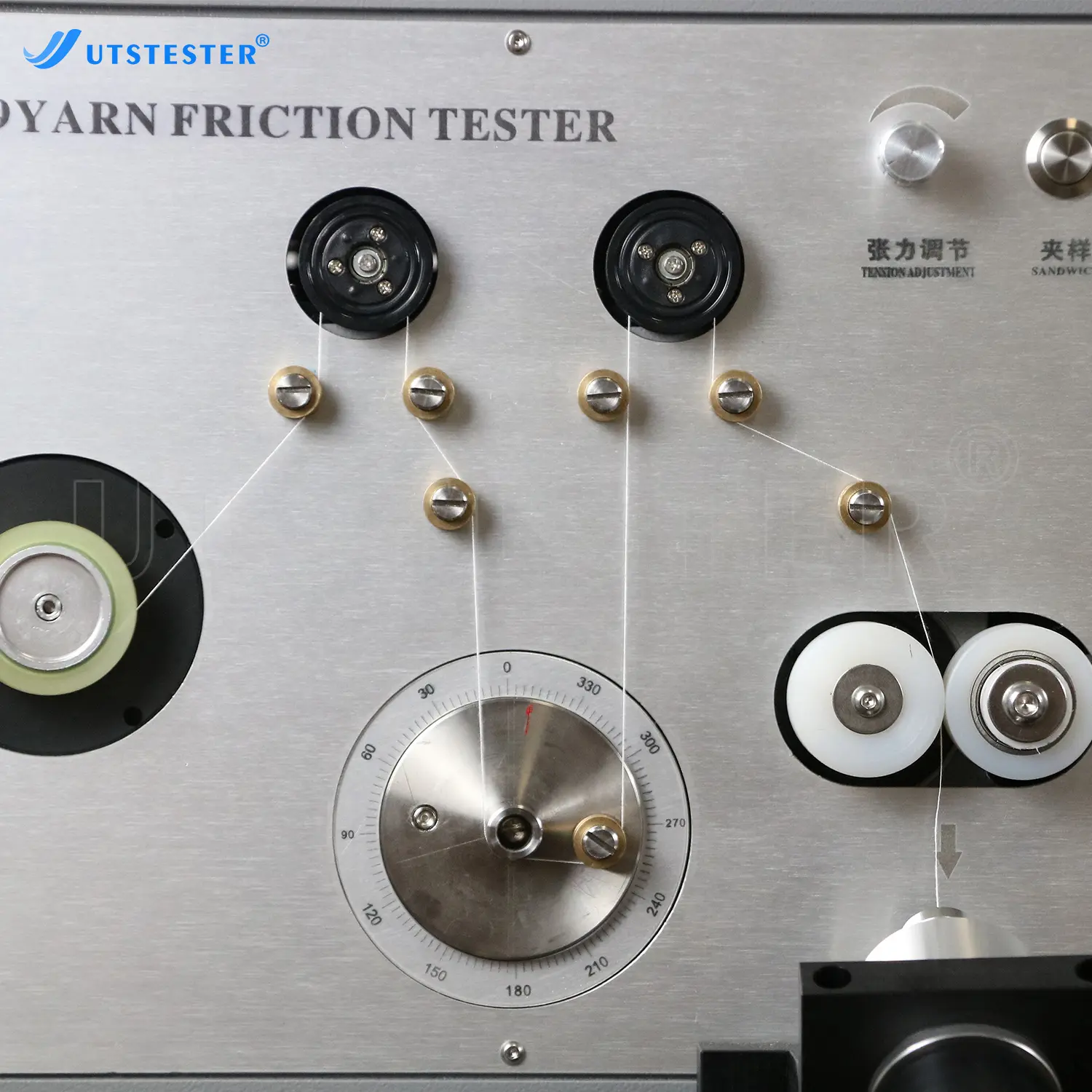

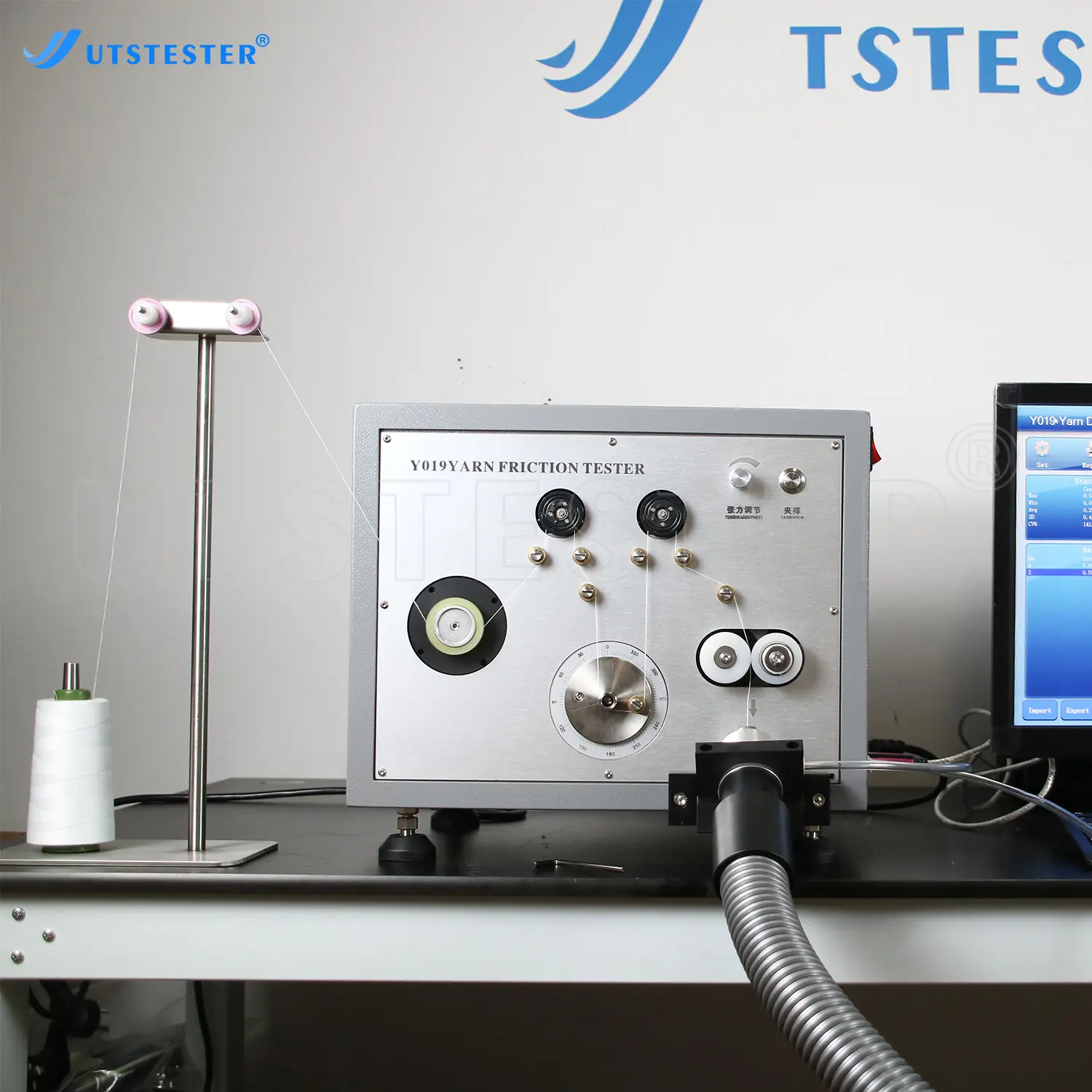

Textile Machine Yarn Friction Tester Yarn Coefficient Tester Friction Machine Y019AB
Overview
It is used to determine the friction characteristics of yarns. It is suitable for the determination of the dynamic friction coefficient of chemical fiber filaments and other materials. It can also be used for the determination of the friction coefficient of textile equipment such as leather rollers. It is necessary for evaluating the friction coefficient of filaments and textile equipment. Indispensable testing equipment.
Application
yarn
yarn
Standards
standards
Key Parameters
|
Model |
Y019A |
Y019B |
|
Yarn testing speed |
100m／min |
200m/min |
|
Standards |
ASTM D 3108, T/CNTAC 4-2017 |
ASTM D 3108, T/CNTAC 4-2017, JIS L 1095, ASTM D 3412 |
|
Force measurement range and accuracy |
0~500CN±1％ |
|
|
Friction coefficient |
0＜u＜1 |
|
|
Friction angle adjustable range |
0 ~360 degree |
|
|
Pretension range |
0~24CN |
|
|
Display content |

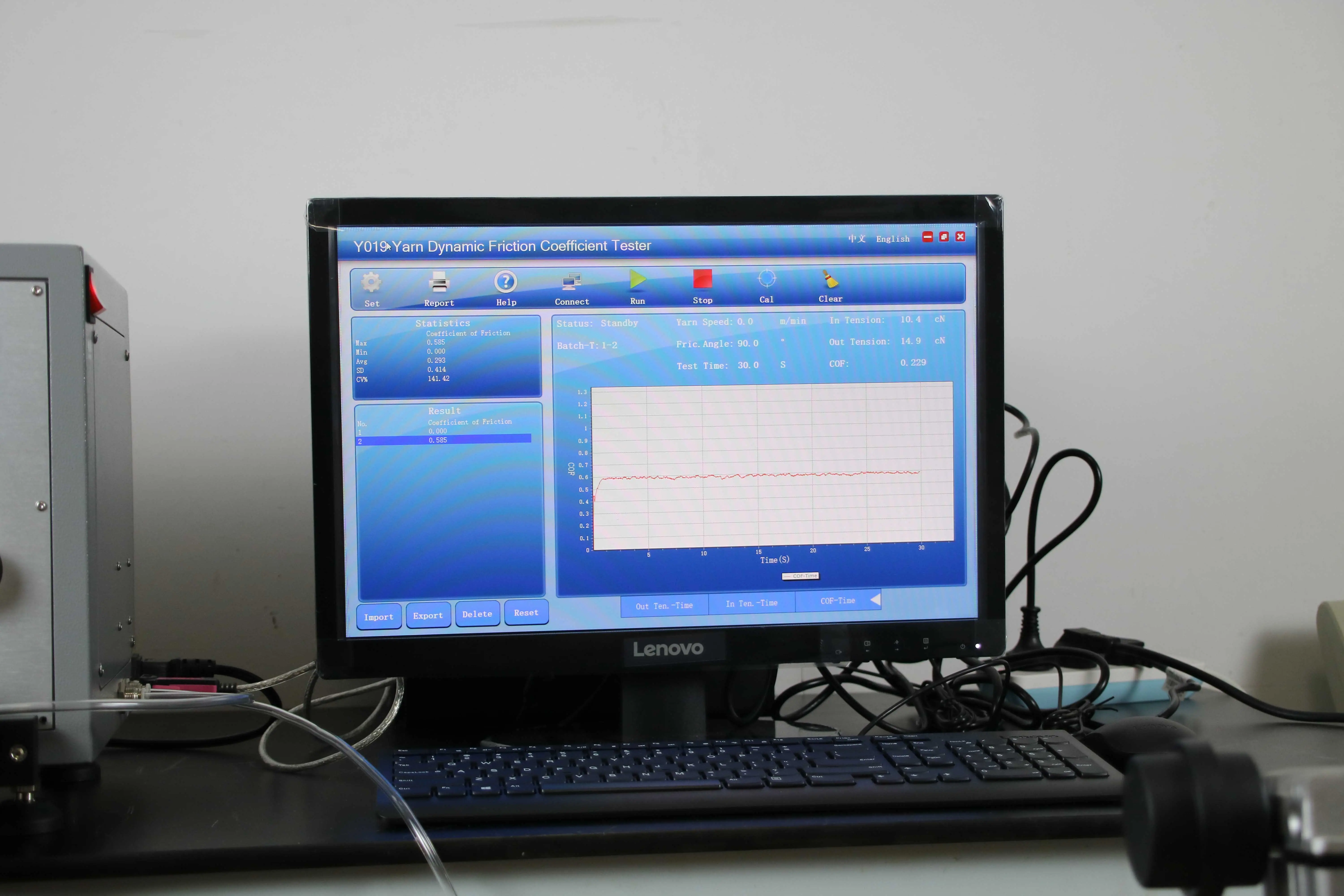

Speed, friction coefficient |
|
|
Power supply |
AC 220V 50Hz 300W |
|
|
Dimension (WxDxH) |
430mm*450mm*470mm (LxWxH) |
|
|
Weight |
35kg |
|
Product Details

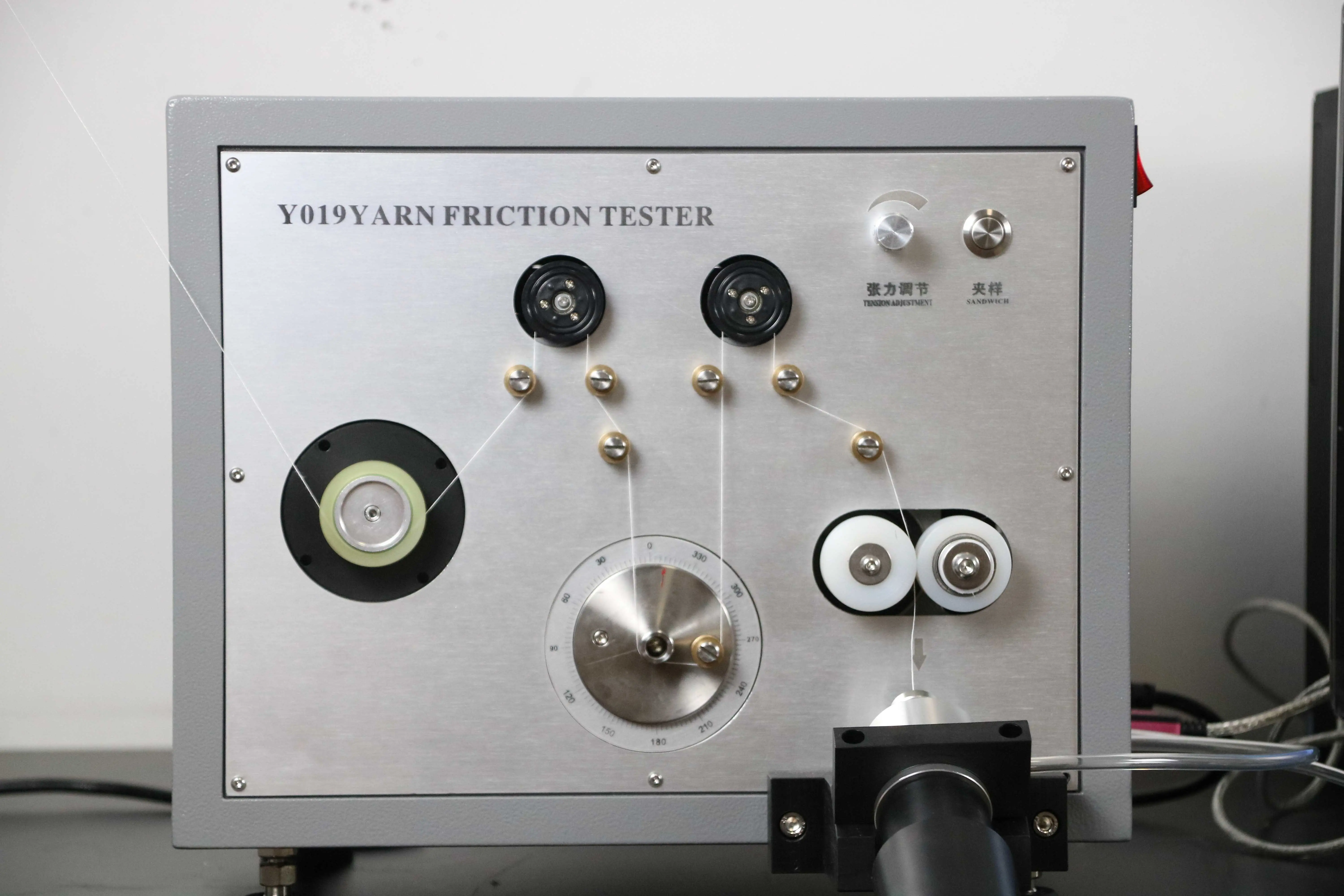

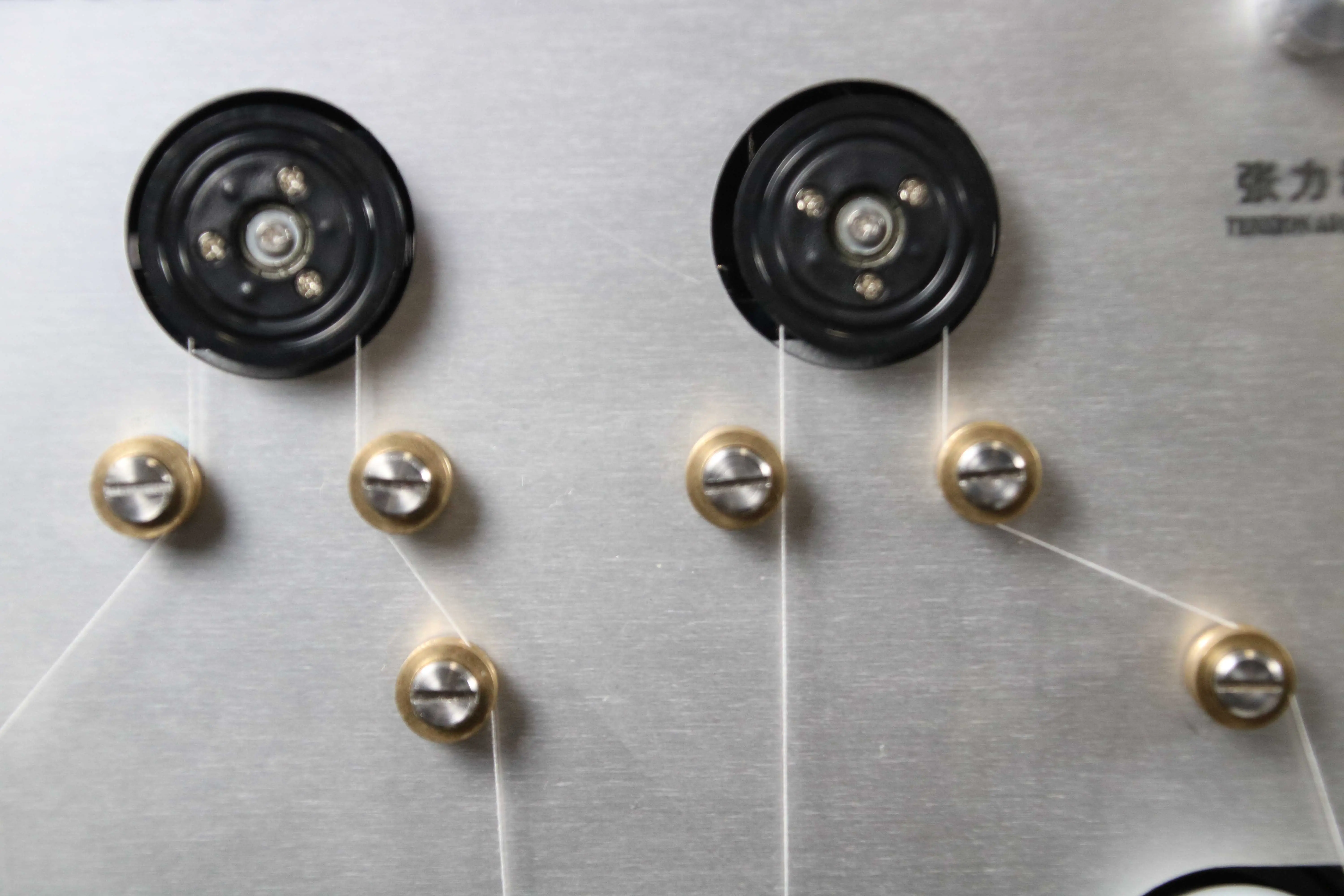

Host

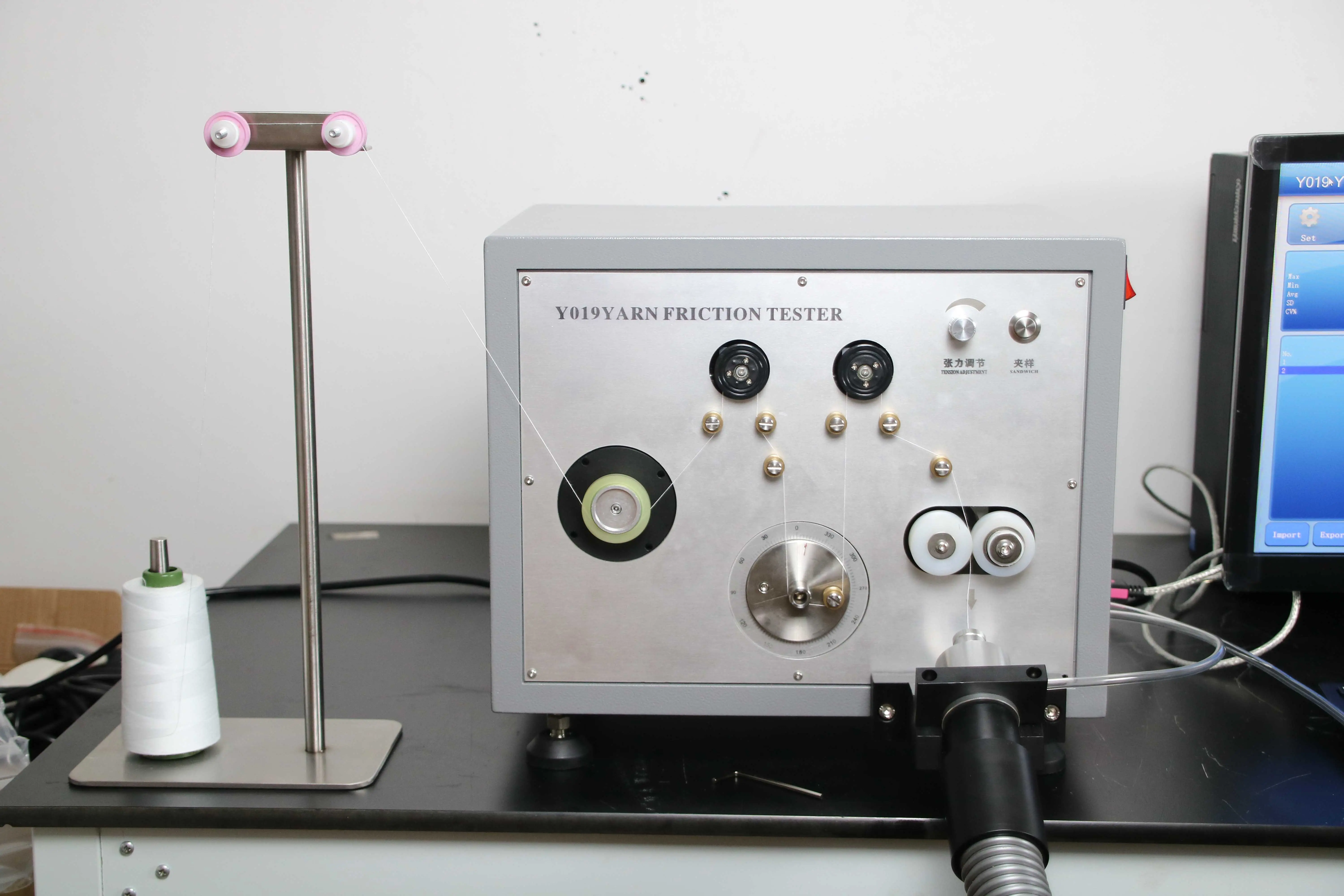

Wire rack
Clamp
Sensor

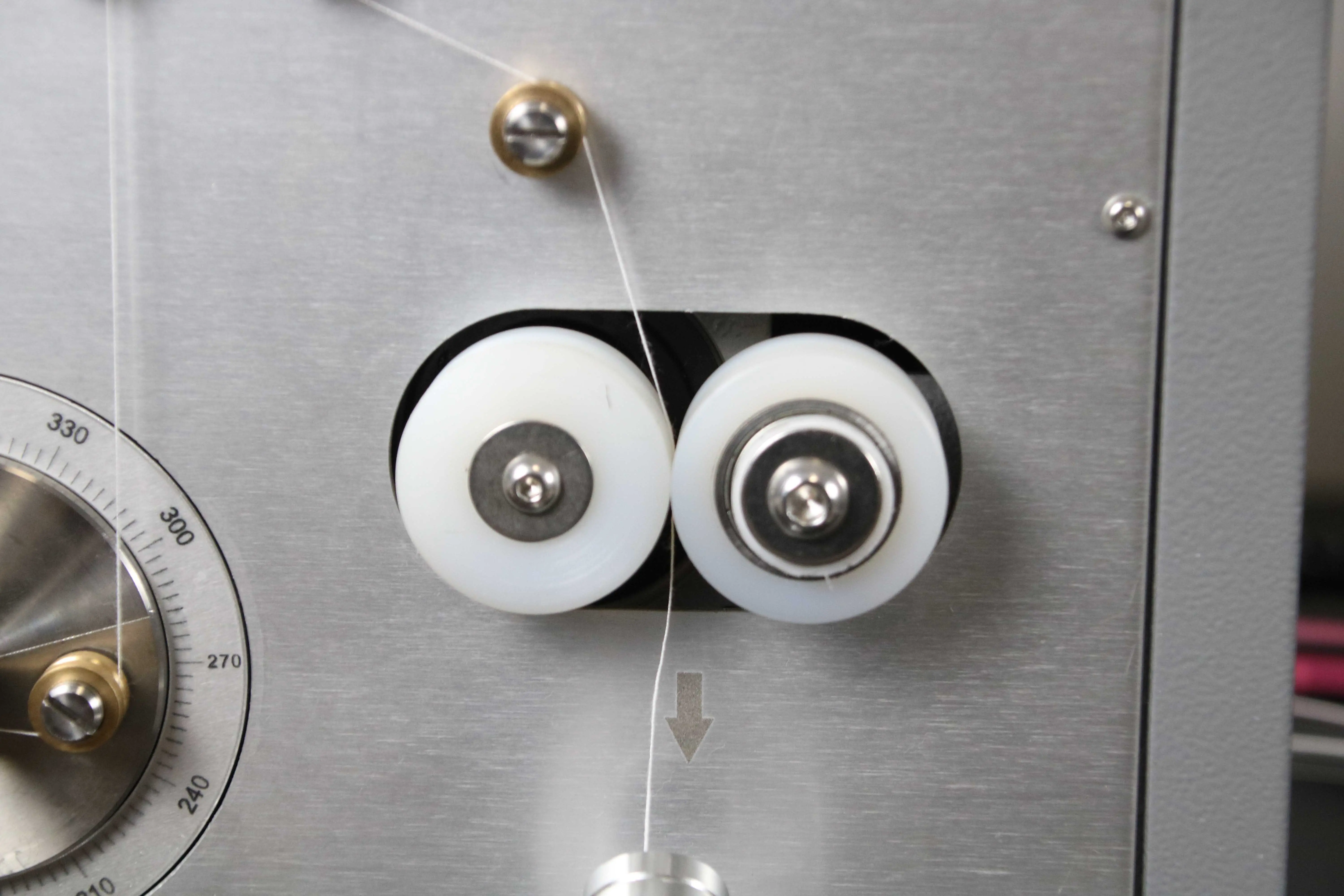

Conveyor wheel

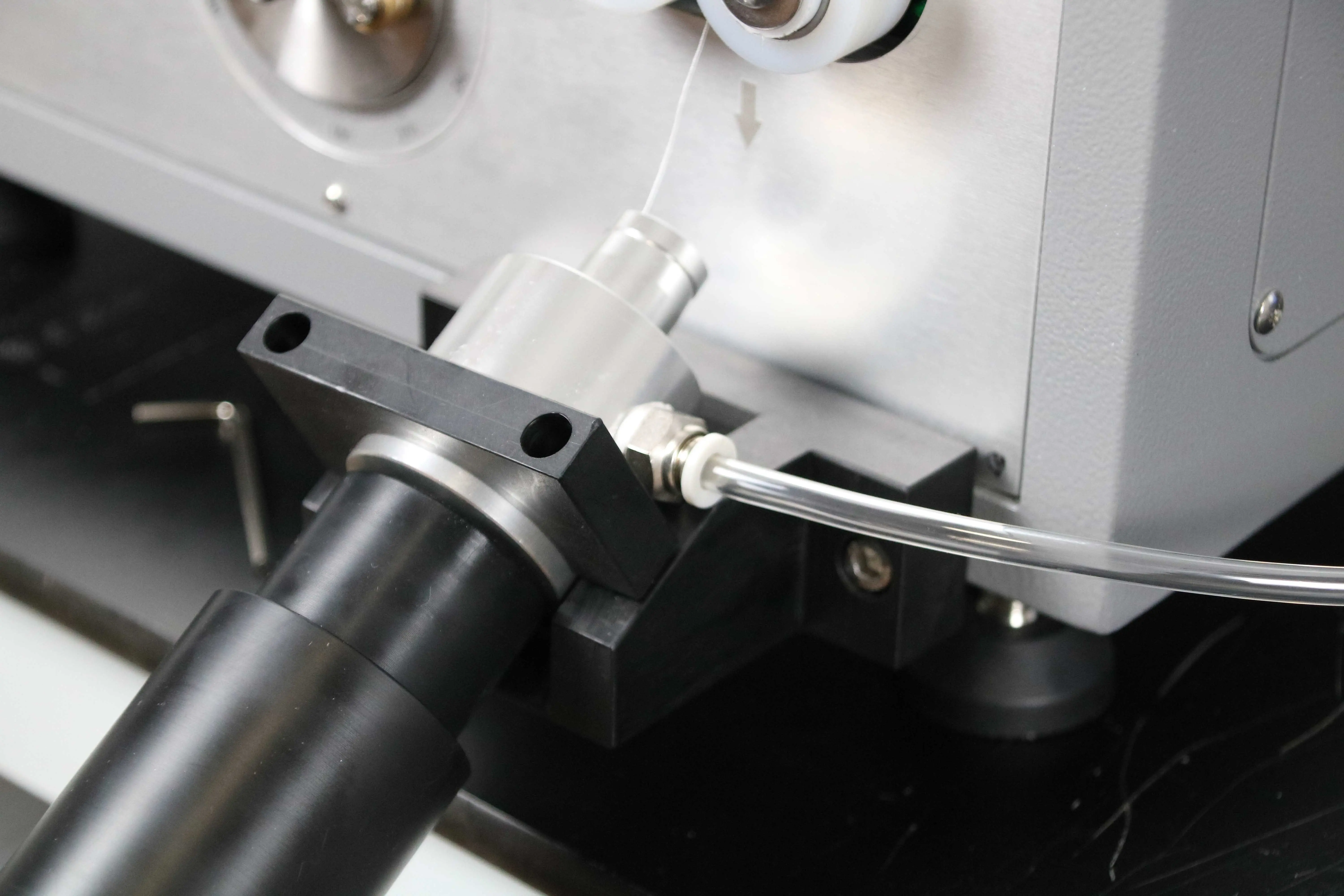

Yarn suction device
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
