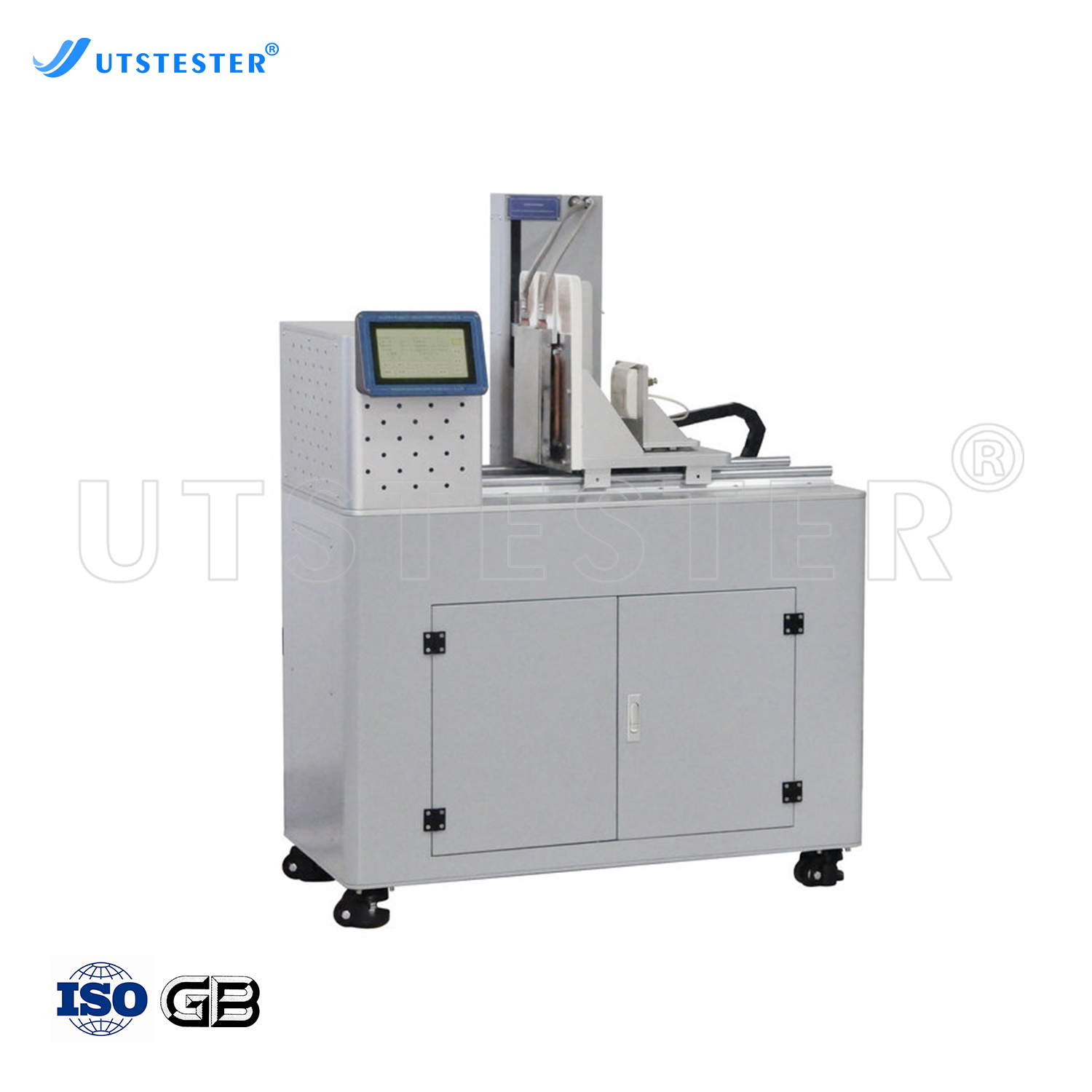

Textile Machine Price Heat Radiation (Thermal Protection) Tester M051

Model

M051

Radiant heat source

Consists of 6 silicon carbon heating tubes, length (356±2) mm, heating zone length (178±2) mm, diameter (7.9±0.1) mm, resistance (3.6±0.36) Ω.

Range of heat flux of heat source

≤30kW/m² , standard requirement 20kW/m2, precision: ±2%;

Sample size

230mm×80mm

Thermocouple

Constantan alloy thermocouple, wire diameter ≤ 0.26mm

Copper calorimeter measuring range

0 ℃ ~ 300 ℃, resolution 0.1 ℃, precision 0.2 ℃

Arc copper calorimeter

99% purity, thickness 1.6mm, weight 35.9-36.0g, size 50mmX50.3mm, bending along the long side, bending radius of 130mm, chord length of 50mm.

Heat insulation board

90mmX90mm, thickness 25mm, the density of the material is (750 ± 50) kg / m3, thermal conductivity 0.18X (1 ± 10%) W / (mK).

Computer display and processing

Real-time curve, the results printed

Timing range and accuracy

0 ~ 999999.9s ,accuracy 0.1s

Computer on-line

Automated data acquisition, acquisition frequency ≥ 10 Hz, including heat flow data software

Requirement

Based on the use of the actual situation of customized ventilation equipment;

Power supply

AC220/50Hz power: ≤ 9KW;

External dimension

1500mm × 650mm × 1200mm(L × W × H )

Total weight

200kg
