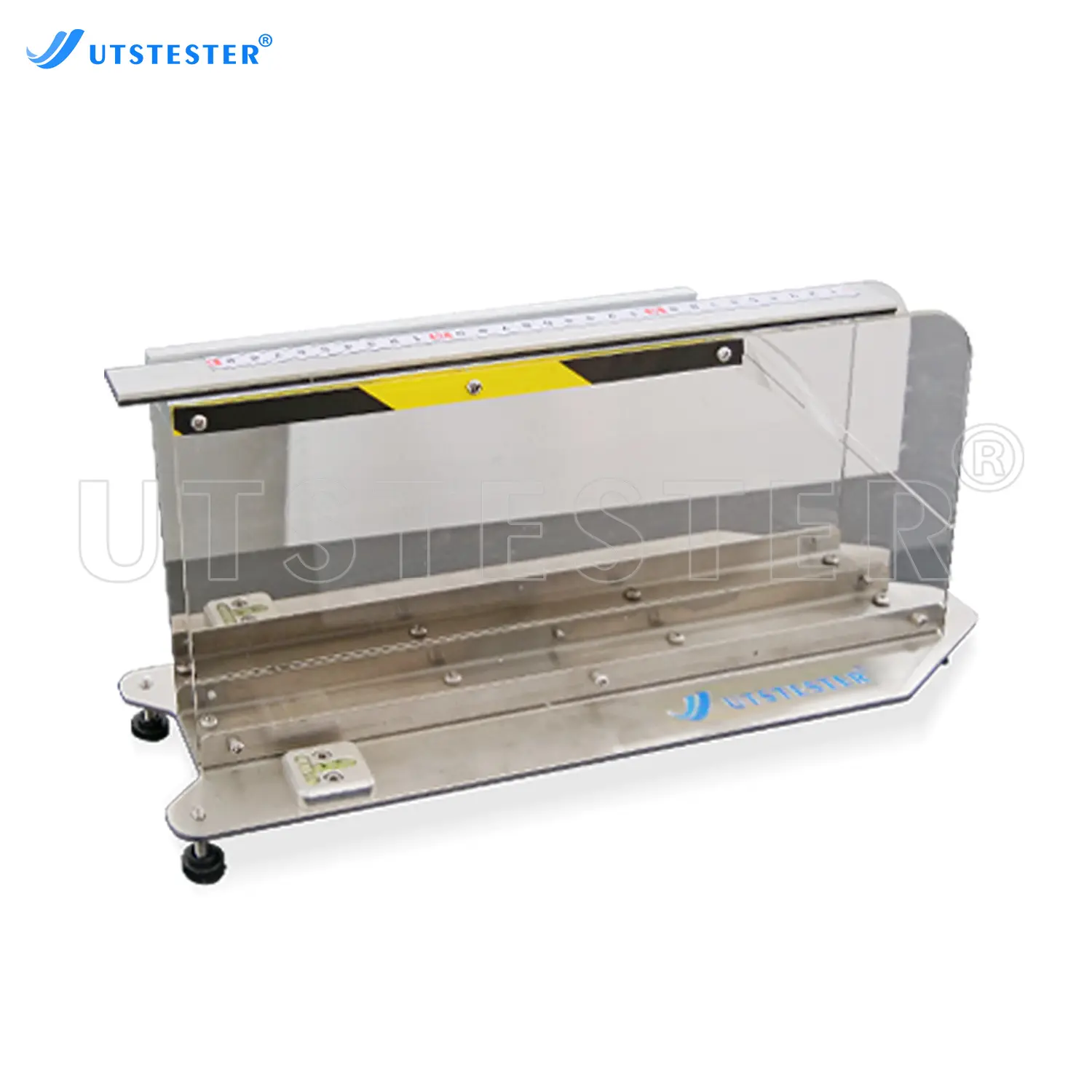

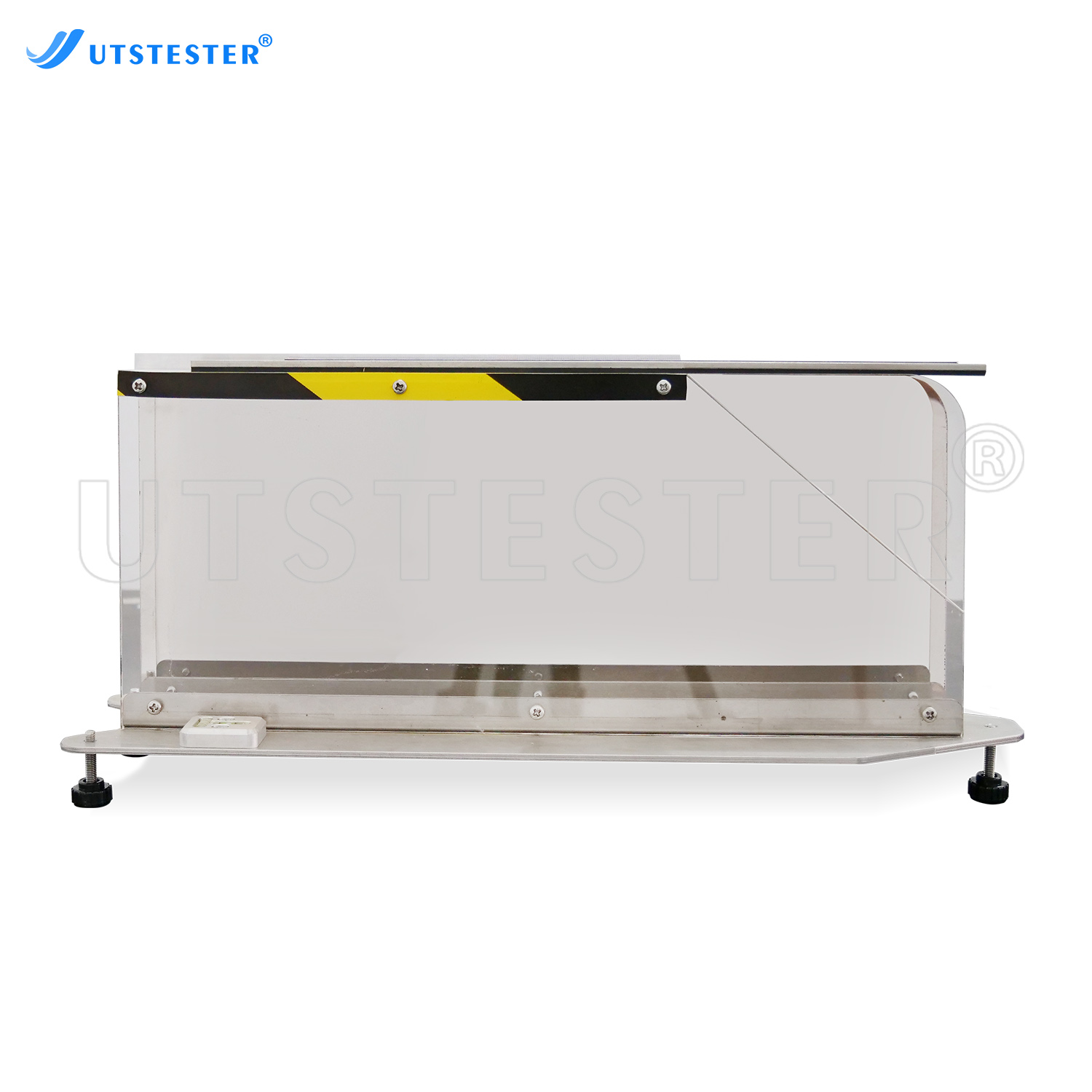

Textile Machine Manual Fabric Stiffness Tester Textile Fabric Testing Stiffness Testing Machine M038A-1
Overview
This instrument is suitable for measuring the bending length and bending stiffness of fabrics by means of inclined surface method.
This test instrument is suitable for rigid and flexible test of cotton, wool, silk, linen, chemical fiber and other woven fabrics, knitted fabrics, general non-woven fabrics, coated fabrics and other textiles, and also suitable for rigid and flexible test of paper, leather, film and other flexible materials.
Application
coated fabrics
chemical fiber
hemp
silk
cotton
nonwovens
Standards
ISO 9073-7, ASTM D1388, BS 3356, BS EN 22313, DIN 53362, ERT 50-2
Key Parameters
|
Model |
M038A-1 |
|
Measurement Angle |
41.5° |
|
Width of pressing ruler |
25±1mm |
|
Weight of pressing ruler |
250±10g |
|
Mark line position |
10±1mm from the leading edge of the platform |
|
Sample size |
width 25±1mm, length 250±1mm |
|
Sample quantity |
12 pieces, 6 pieces meridional, 6 pieces zonal |
|
Dimensions |
46 x 12 x 18 cm |
|
Weight |
≈6Kg |
Product Details

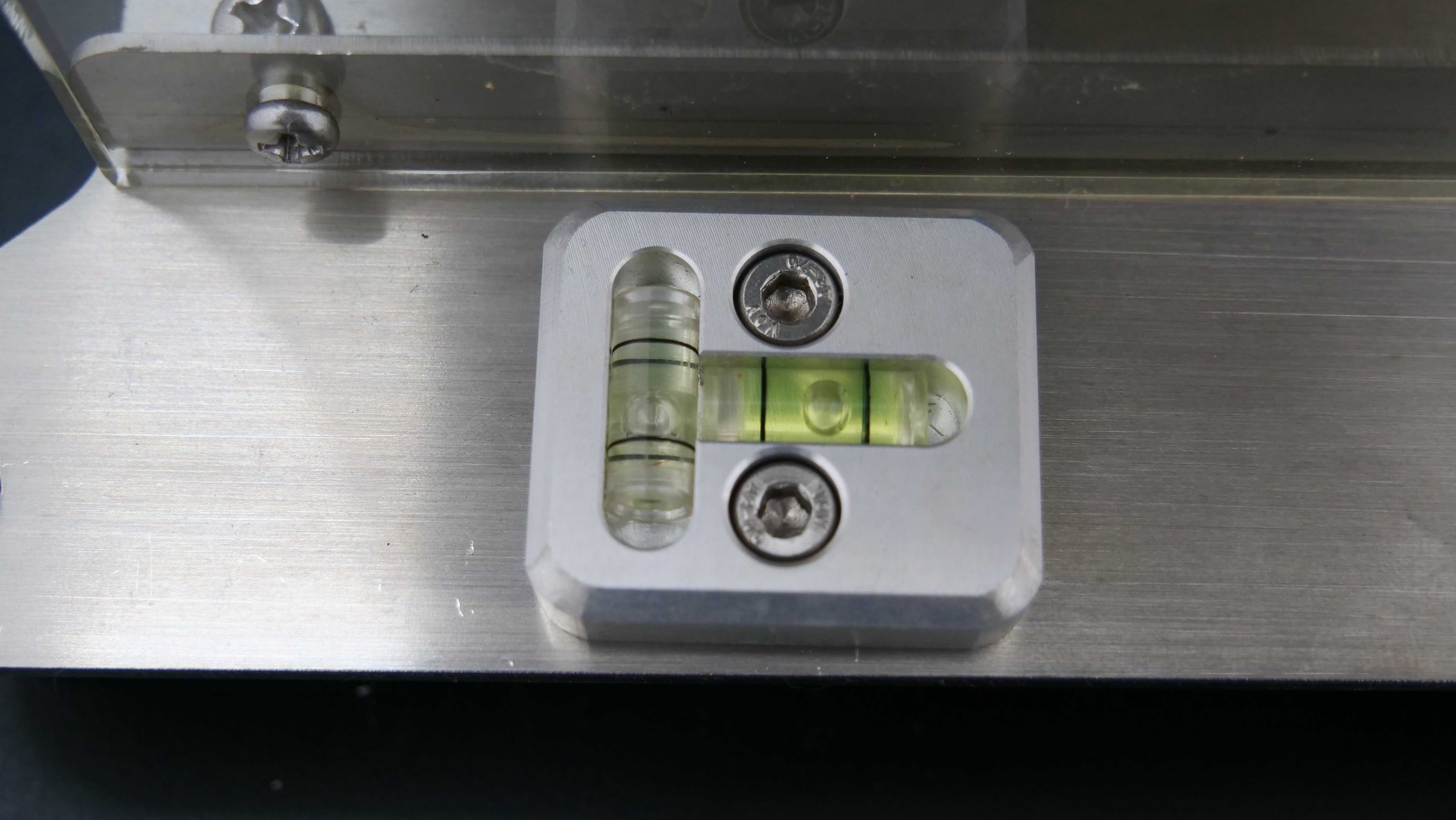

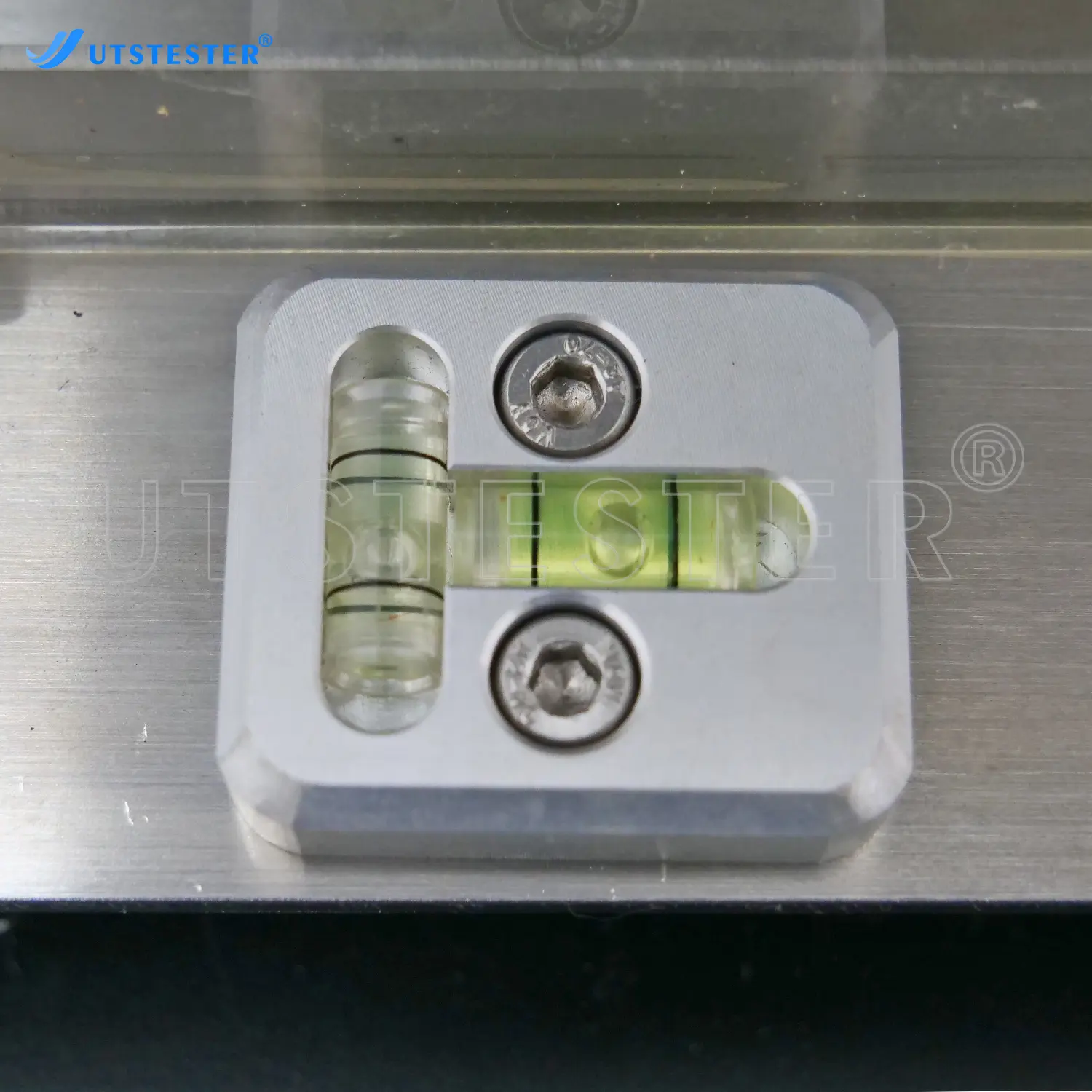

The level of bubble

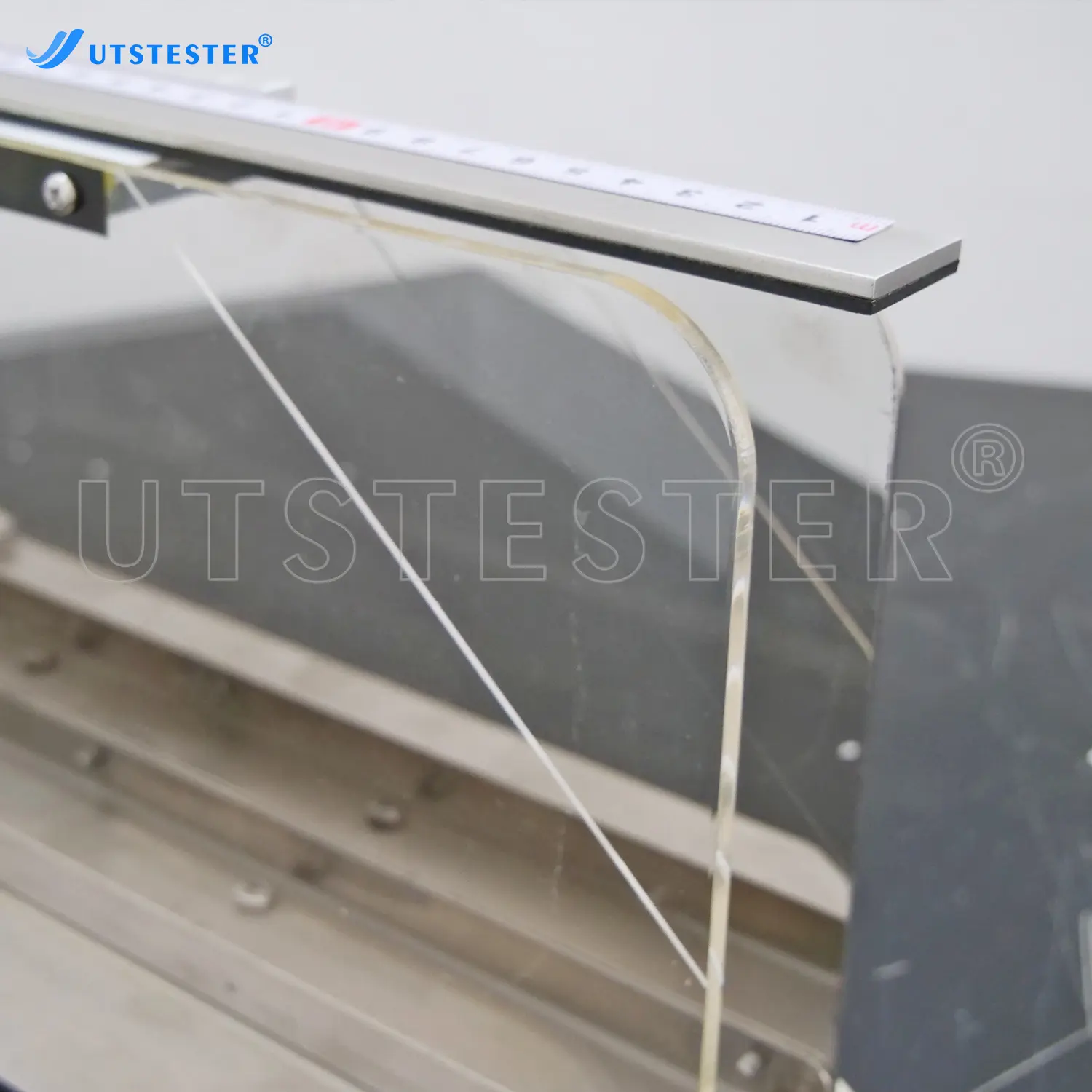

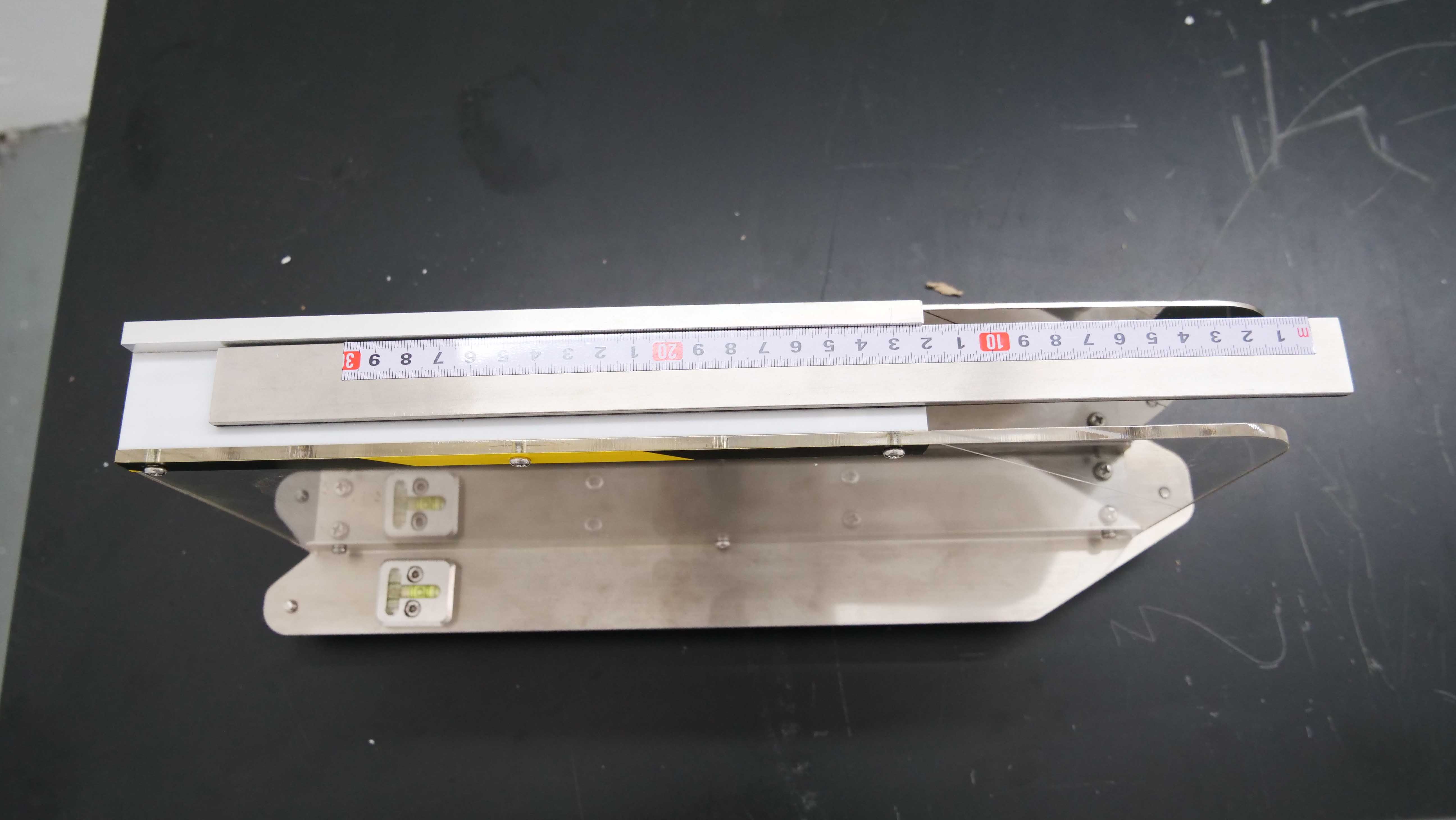

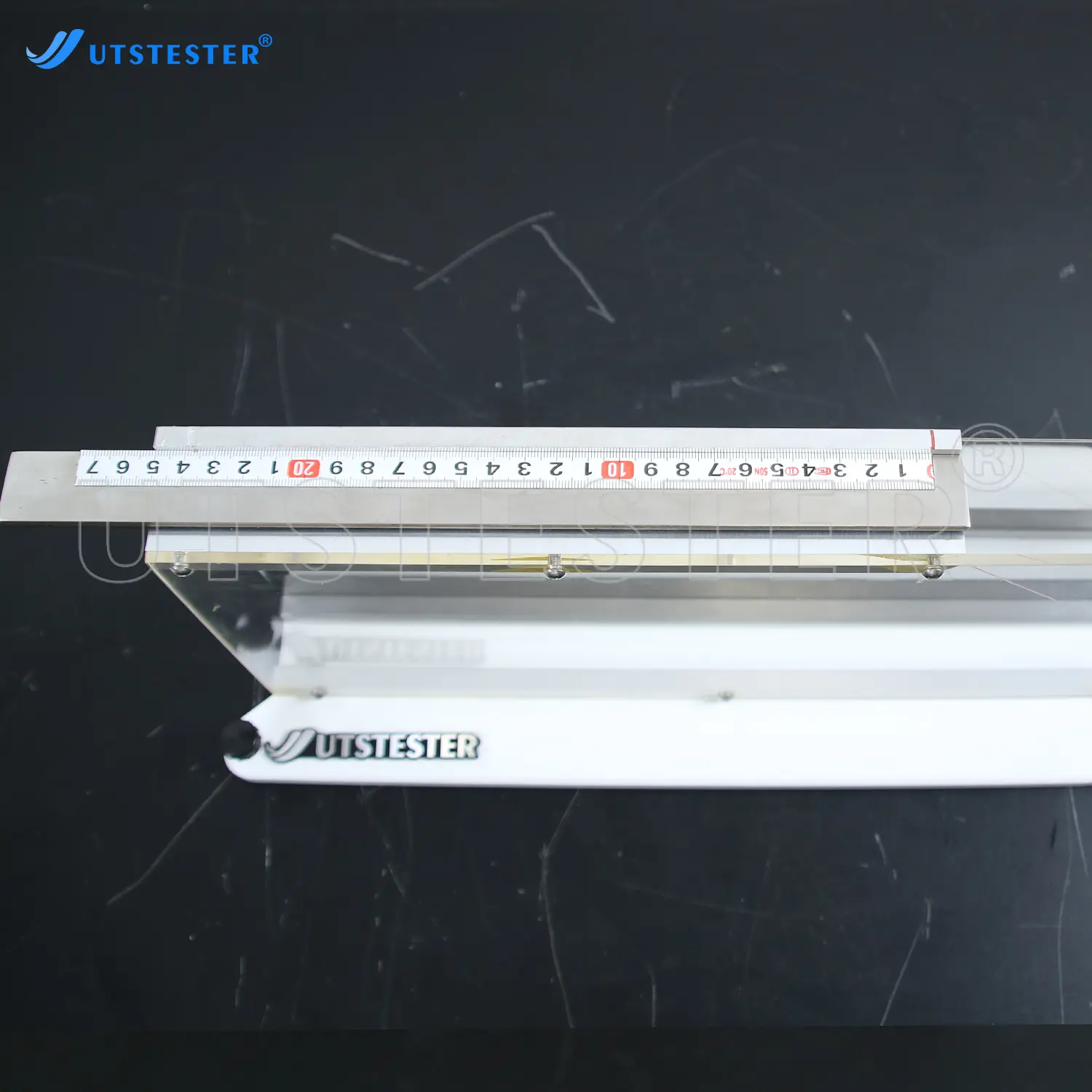

Ruler pressing plate

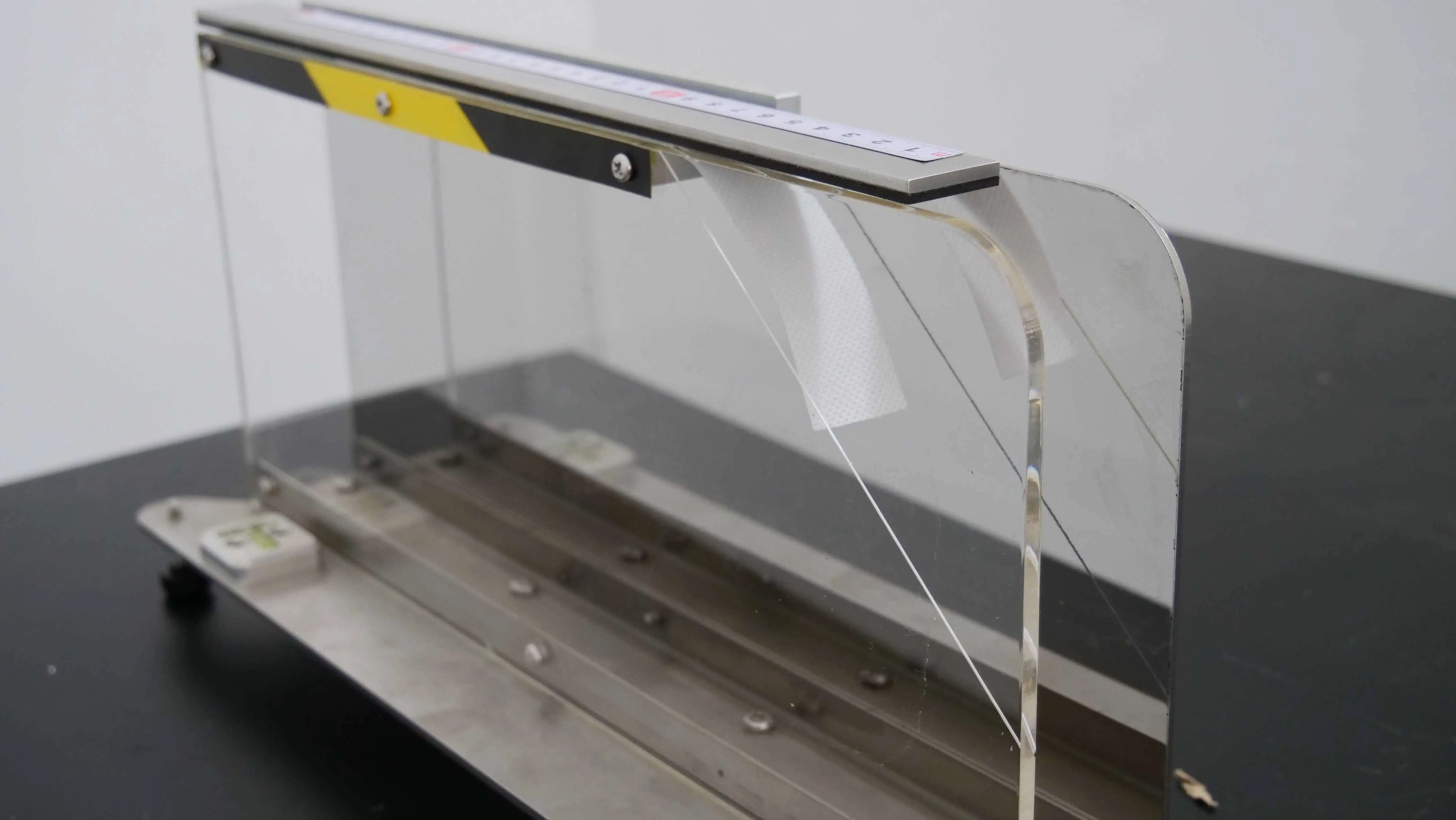

The tag line
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
