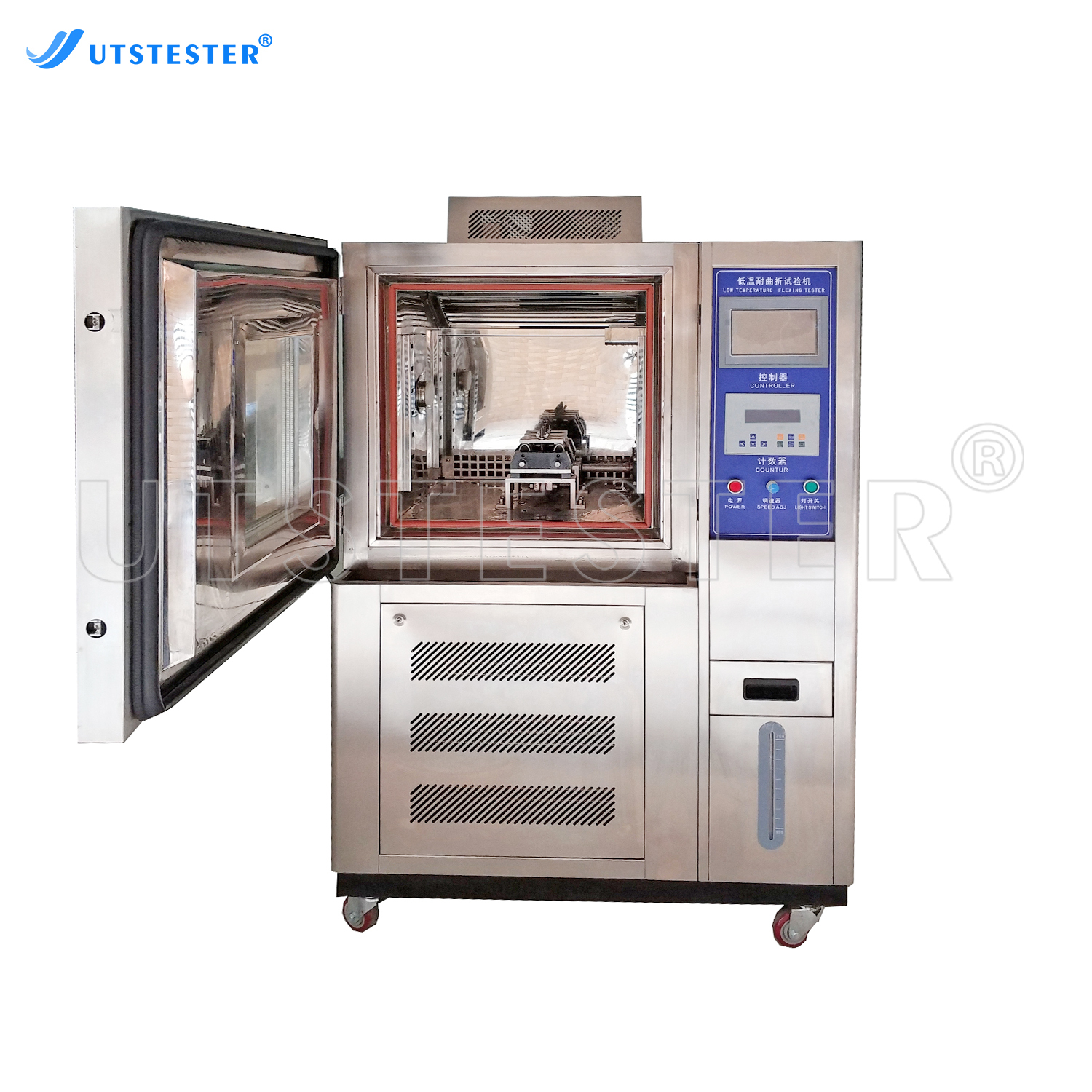

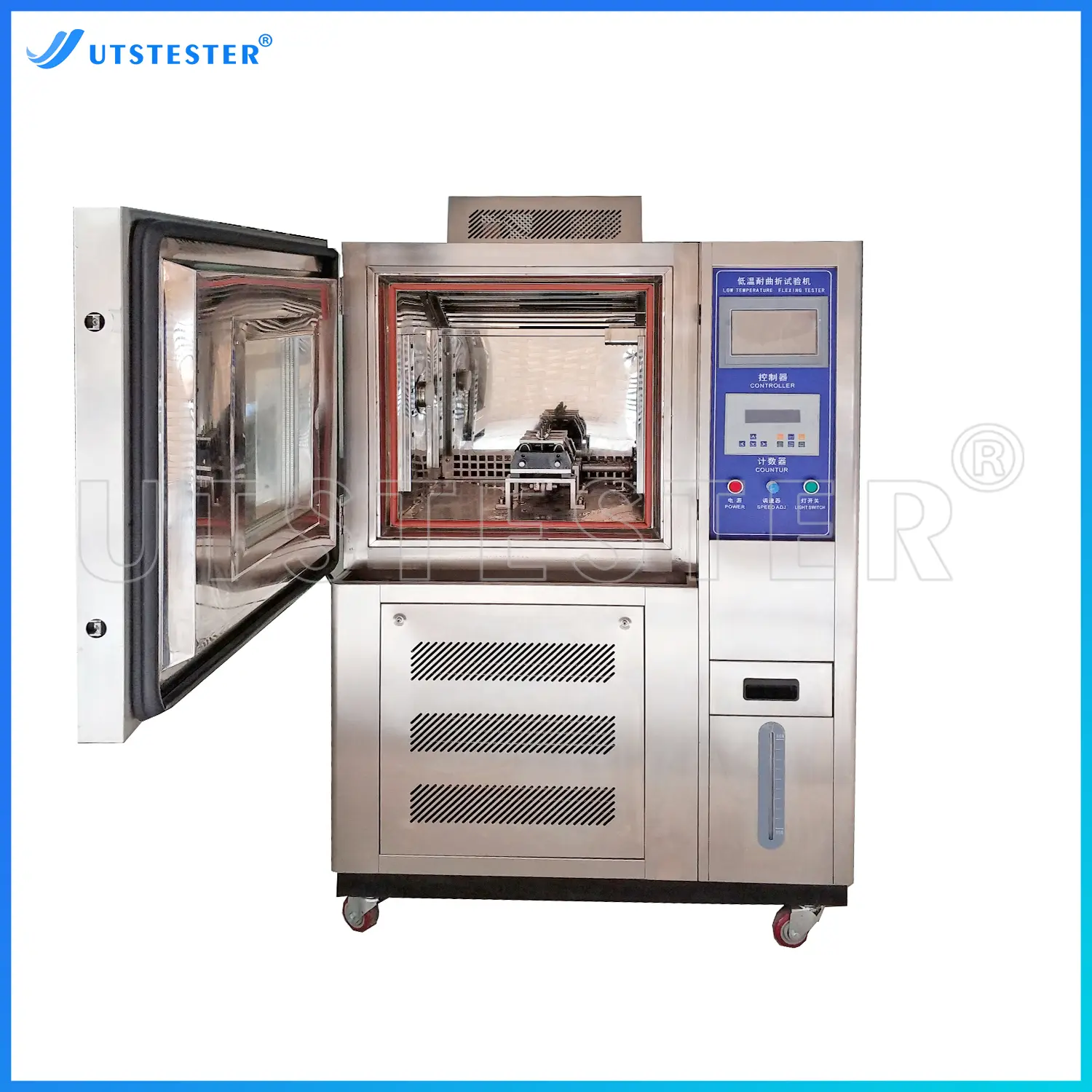

Textile Laboratory Equipment Low Temperature Ross Flexing Tester H017B
Overview
Flexing tests are sometimes required to be carried out at low temperatures below 0°C.
This low temperature version of the Ross flex test is built into a low temperature cabinet. It is used for the flex testing of sole unit samples(including rubber products, shoe soles, PVC, PU, TPR foam and other materials) to assess the effect of flexing under low temperature conditions. After repeatedly flexing and bending, check its degree of damage, crack and deterioration. It has 12 stations for small samples but can also accommodate larger samples by adjusting the mechanism.
Application
Rubber
Shoe sole
Standards
EN ISO 20344 Part 8.5, ASTM D1052, SATRA TM60, ISO 5423, ISO4643; BS5131 : 2.1, GB 20265 section 4.2, HG/T2411
Key Parameters
|
Model |
H017B |
|
Fixtures |
6 sets, can test 12pcs samples |
|
Counter |
LCD, 0~99,999,999 |
|
Temperature range |
|
|
Bending speed |
100±5times/min (adjustable) |
|
Bending angle |
90±2° |
|
Specimen dimension |
W 25±1mm, L 153mm, T 6.35±0.03mm(Standard) |
|
Power supply |
1∮AC220V 50/60HZ |
|
Dimension(W×D×H) |
105 x 140 x 100cm |
|
Weight (Approx) |
180 kg |
Product Details
Control panel

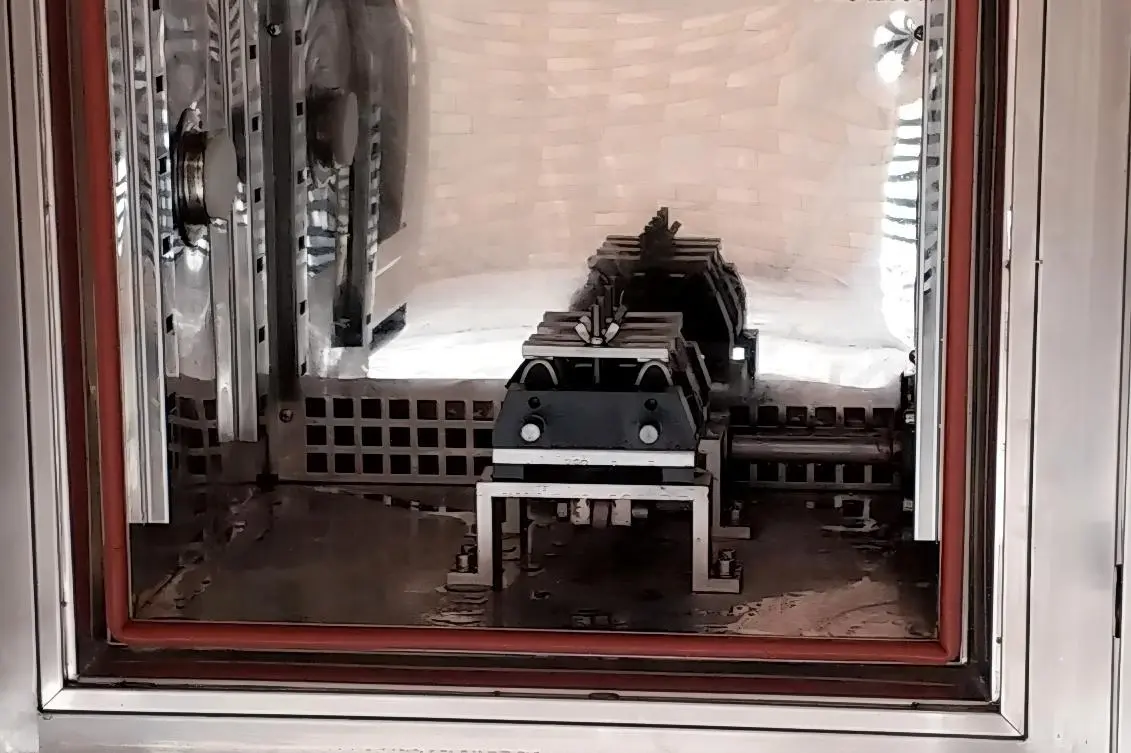

Sample Test
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
