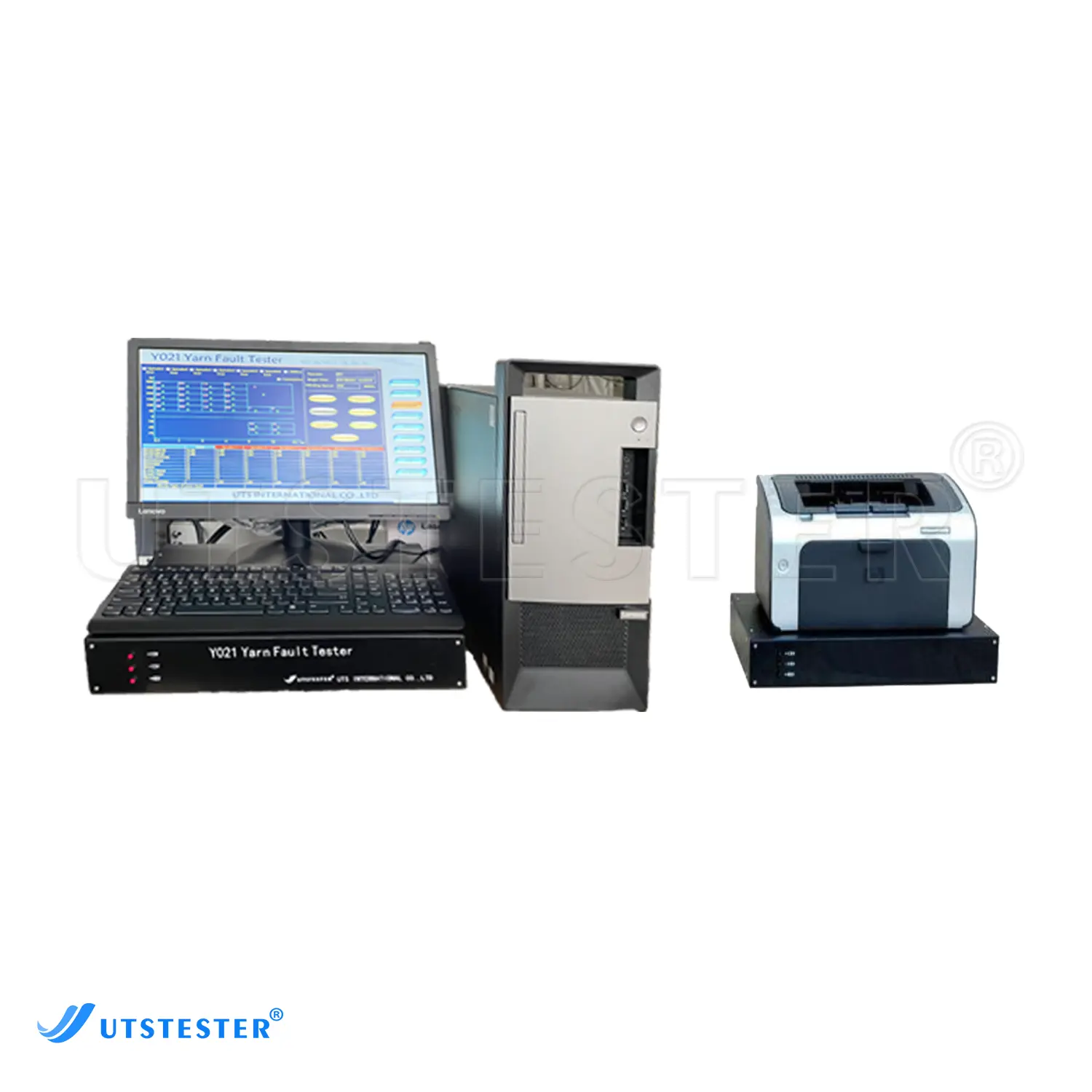

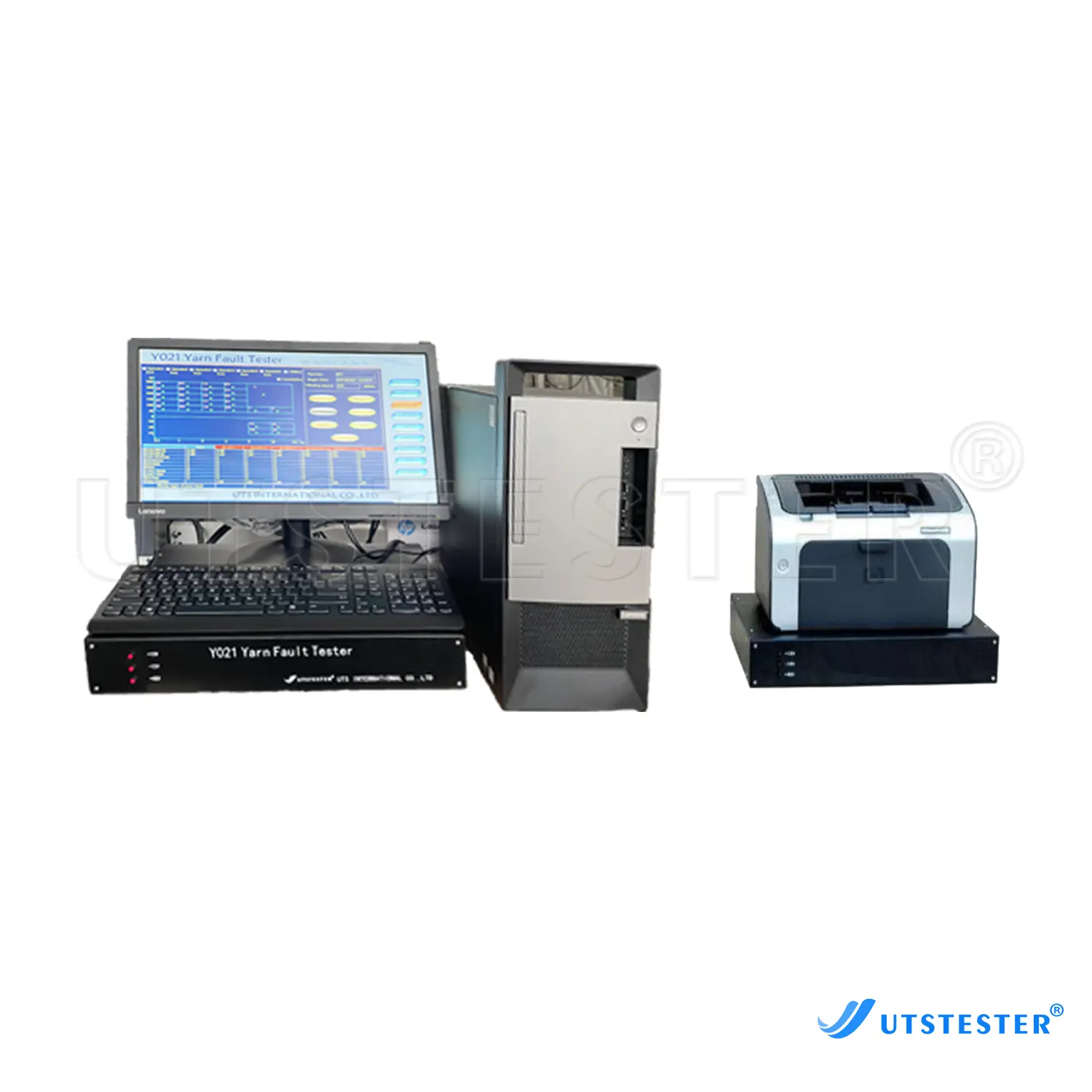

Textile Lab Equipment Yarn Fault Analyzer Y021

1.Random yarn defect detection and analysis.
2. Ending 27 levels of yarn defects grading, grading according to international standards, using foreign instruments.
3. This paper analyses the yarn clearing effect and optimizes the clearing curve.
4. Using the expert system of yarn defect analysis, it can carry out the industry comparison analysis, yarn defect distribution analysis and yarn defect change trend analysis.
5. Yarn defects can be cleared according to the specified classification.
6. The length and weight of the cylinder yarn are automatically measured.

product details

Production Processes

Packing System

Overview

Y021 Yarn Defect Classifier (Y021 for short) is a special laboratory instrument used to detect, analyze and classify occasional yarns defects.The instrument adopts advanced digital processing technology, computer and automatic control technology, with high test efficiency and accuracy, good stability and consistency.

Application

Yarn

Standards

Key Parameters

Model	Y021
Measurement method	Capacitive detection
Applicable fiber types	Cone yarn, cotton, wool, hemp, silk, pure spinning of various chemical fibers and short fiber yarn blended
Yarn count	4-112 Tex / 8-200 Tex
Winding speed	300 ~ 1200m/min
Maximum number of ingot	6 ingot
Clear yarn passage	cotton knot, short thick, long thick, long thin
Power supply	voltage 220V plus or minus 10% 50 Hz + / - 5 Hz
Power consumption	< 300 va

Product Details

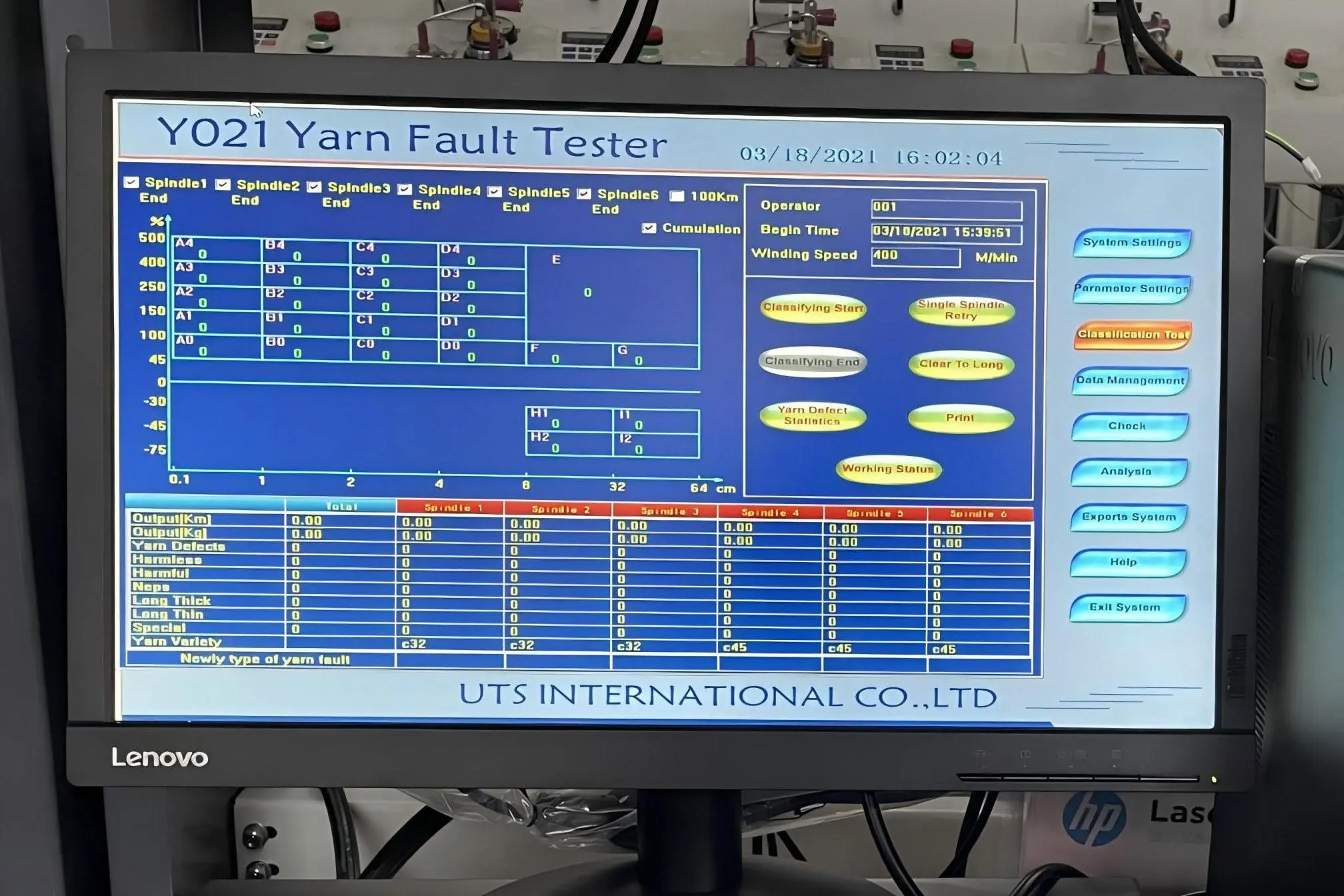

Control panel

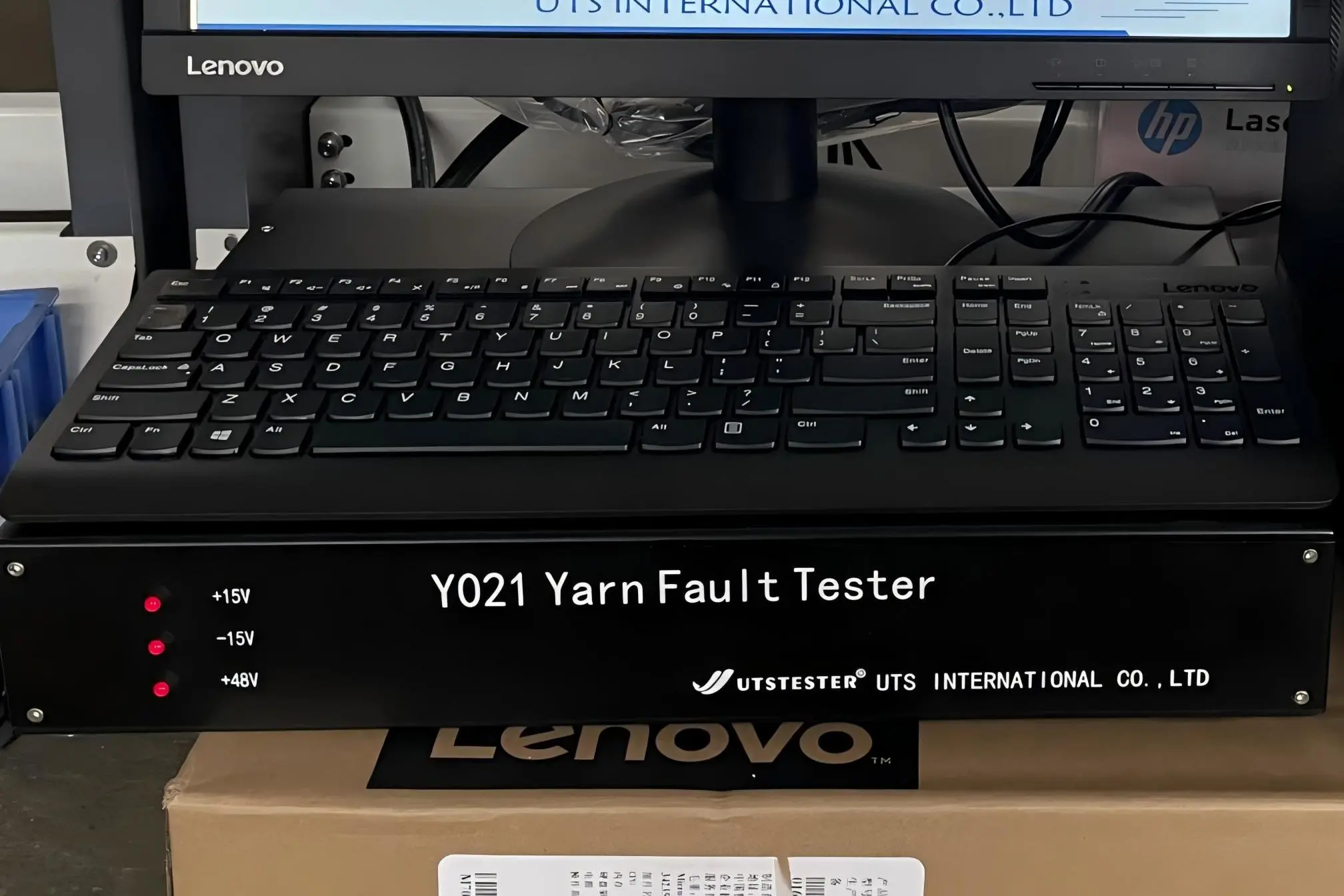

Test Host

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
