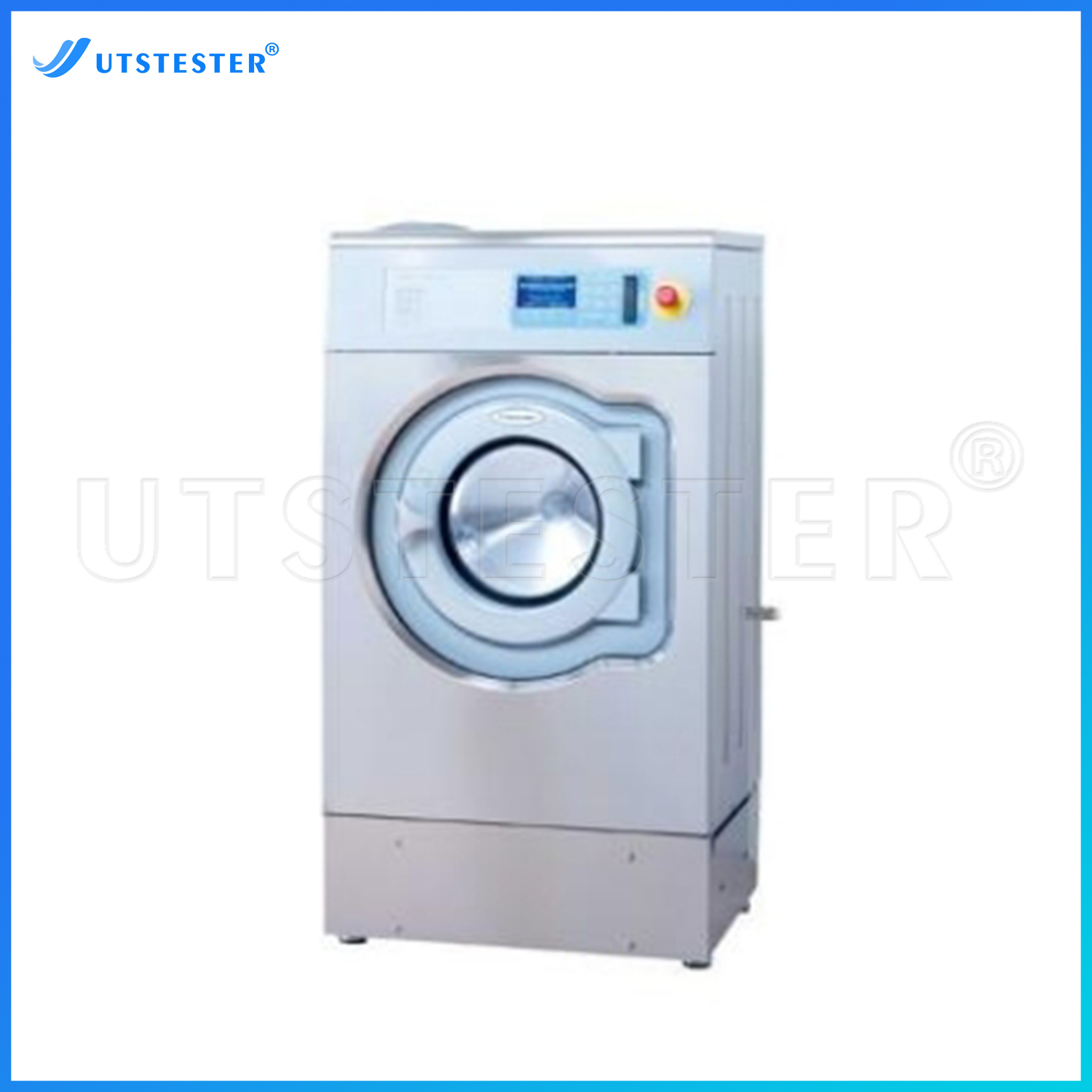

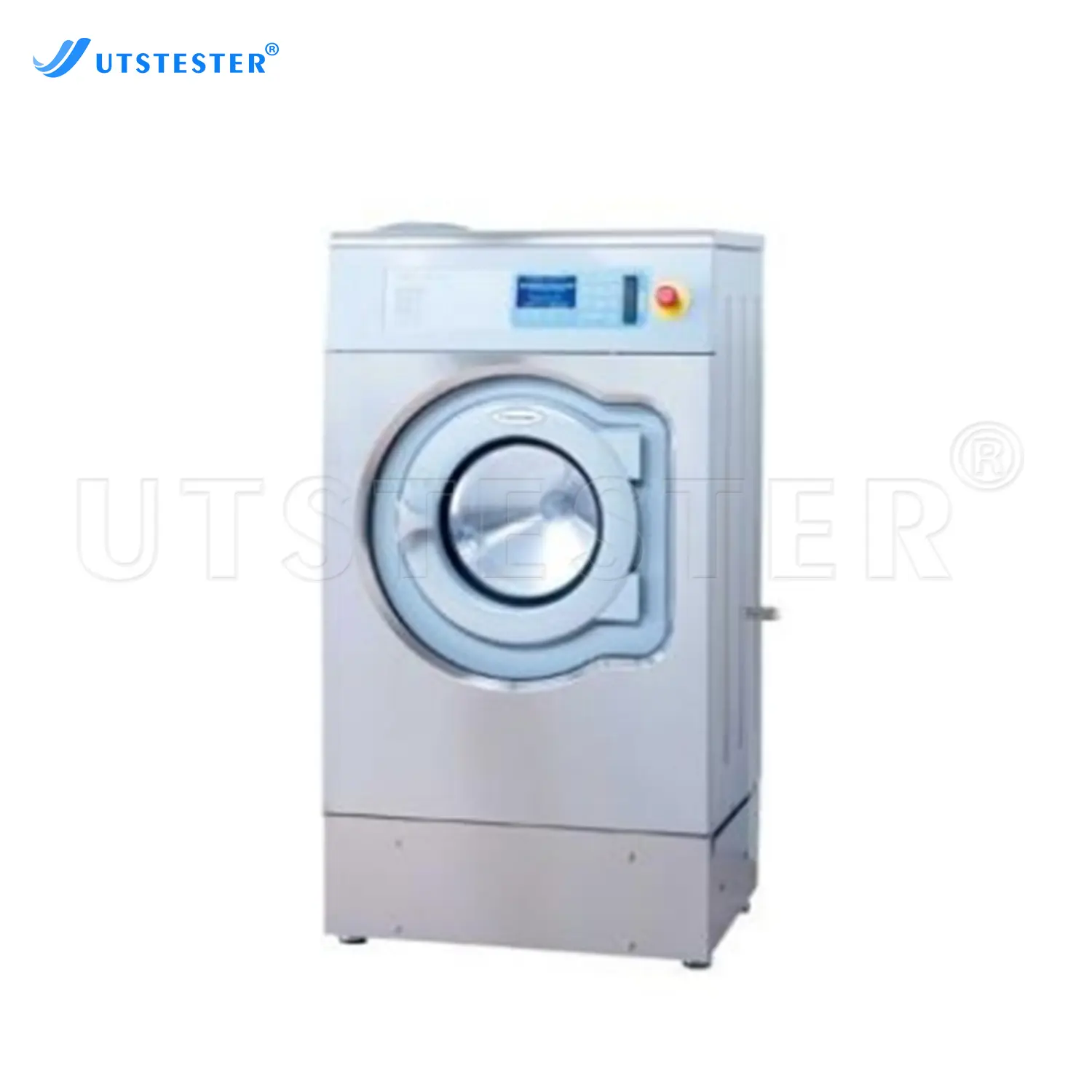

Textile Lab Equipment Wascator Fom71 Cls Washer (Electrolux)

1.Suspended drum construction allows a high extraction force. No foundation required
2.Small space between outer/inner drum for efficient use of water and detergent
3.Dual water control of volume (weight) and level
4.Built in scale for precise volume control.
5.Equipped with Clarus Control® - a fully programmable electronic timer
6.Frequency controlled motor system for flexibility in programming and precise speed
7.Test tap for water samples
8.Stainless steel drum assembly, front, side and top panel

product details

Production Processes

Packing System

Overview

Suitable for testing washing effects of detergents and chemicals and for textile quality control

Application

quick dry fabrics

towels

socks

Standards

Meets I EC and ISO international standards

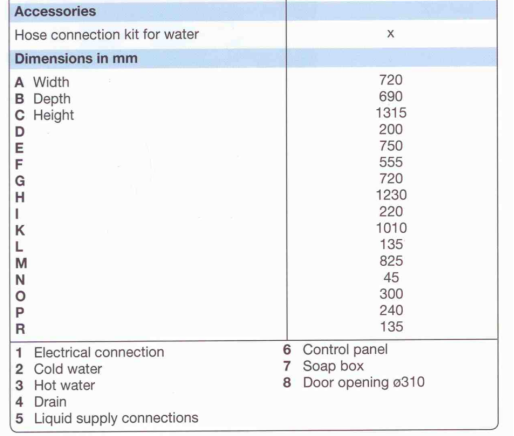

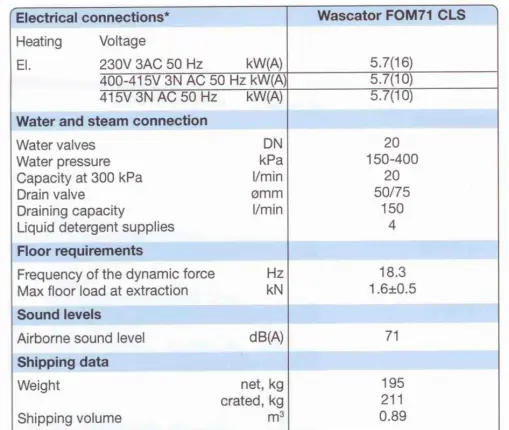

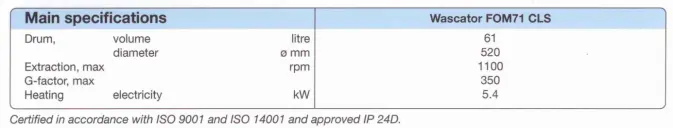

Key Parameters

enterprise-wechat-screenshot_17573833606243

enterprise-wechat-screenshot_17573833727799

enterprise-wechat-screenshot_17573834733384

Product Details

Test stand

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
