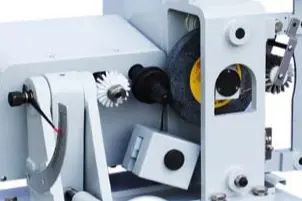

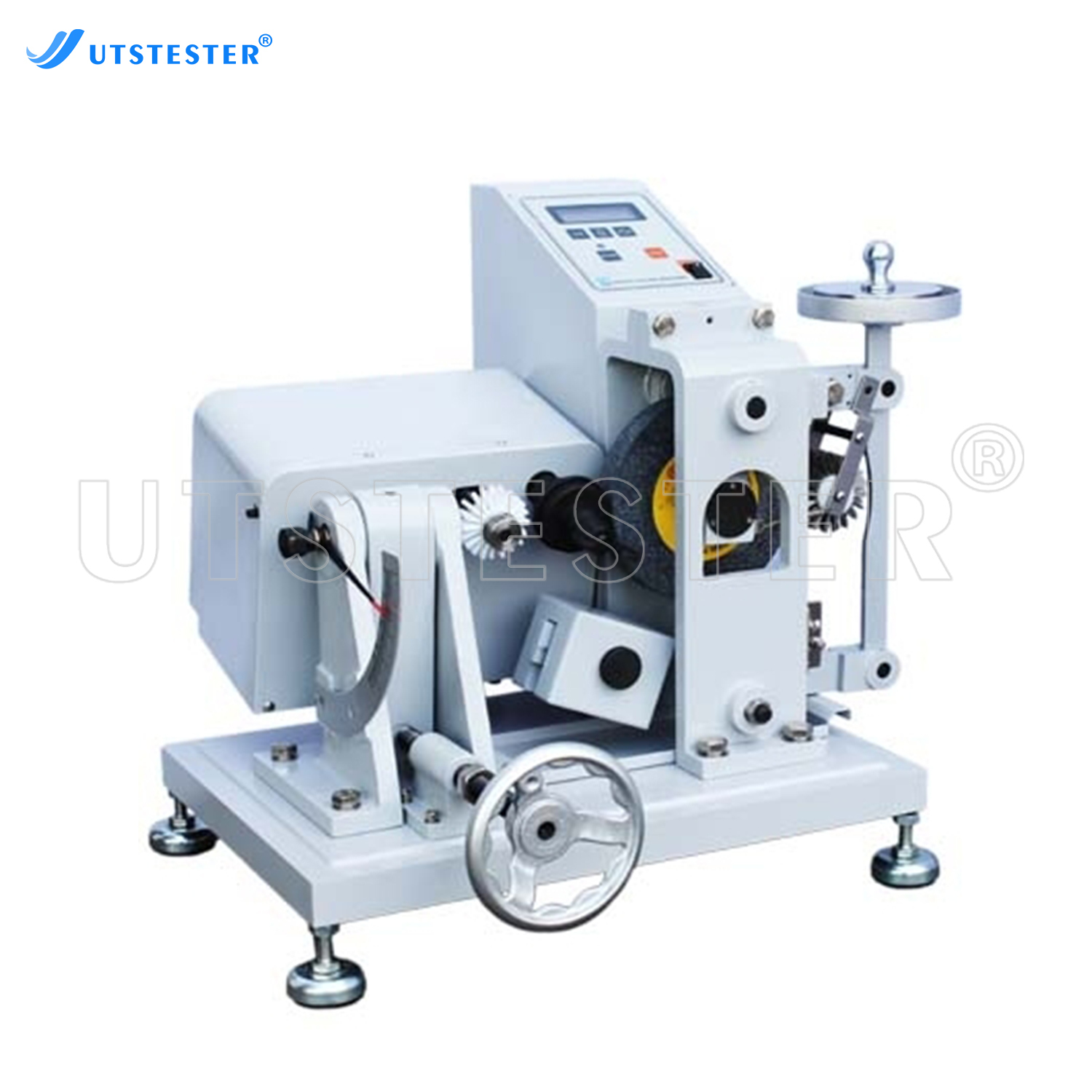

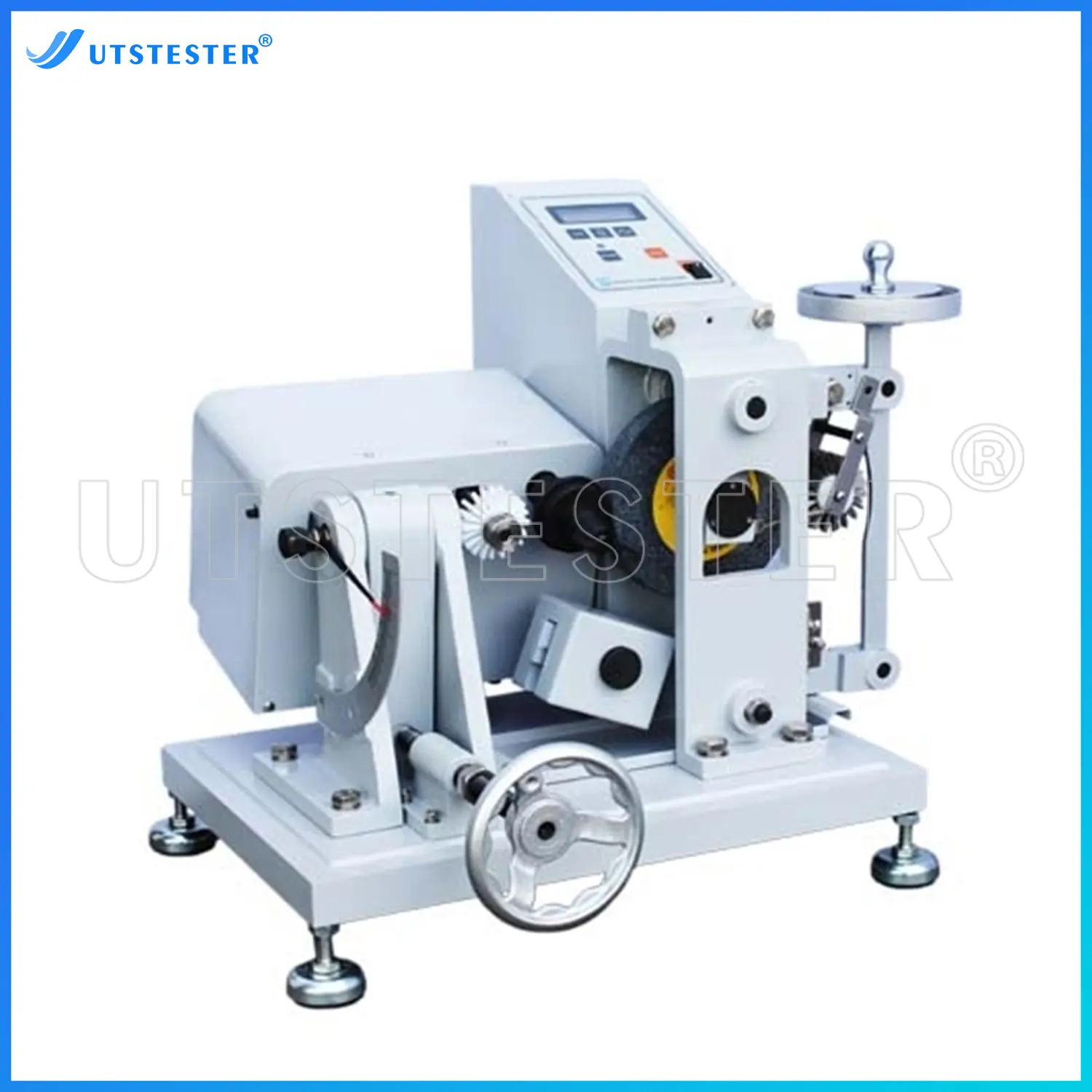

Textile Lab Equipment From China Akron Abrasion Tester H016
Overview
UTS H016 Akron Abrasion Tester combines with balance to use. Designed to test the abrasion resistance property of shoe sole, tire which is made of rubber and elastic materials. Counter adopts electronic automatic type, able to set abrasion revolution, machine stop automatically after reach preset revolution. It is to determine abrasion resistance property via measure the abrasion volume after sample wear grinding wheel.
Application
Rubber
Leather
Synthetic leather
Shoe sole
Standards
GB/T 1689
Key Parameters
|
Model |
H016 |
|
Diameter Φ150mm, thickness 25mm, center hole diameter Φ 32mm, granularity 36#, |
|
|
Grinding wheel rotating speed |
34±1 r.p.m. |
|
Rubber wheel rotating speed |
76±2 r.p.m |
|
Test load |
26.7±0.2 N |
|
Sample slope angle |
0°~ 35°Adjustable |
|
Counter |
LCD, 0~99,999,999 times settable |
|
Power supply |
1∮ AC 220V 50 / 60Hz (Specified by user) |
|
Dimensions |
570 x 520 x 45mm (L x W x H) |
|
Weight |
60kg |
Product Details
Control panel
Sample Test
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
