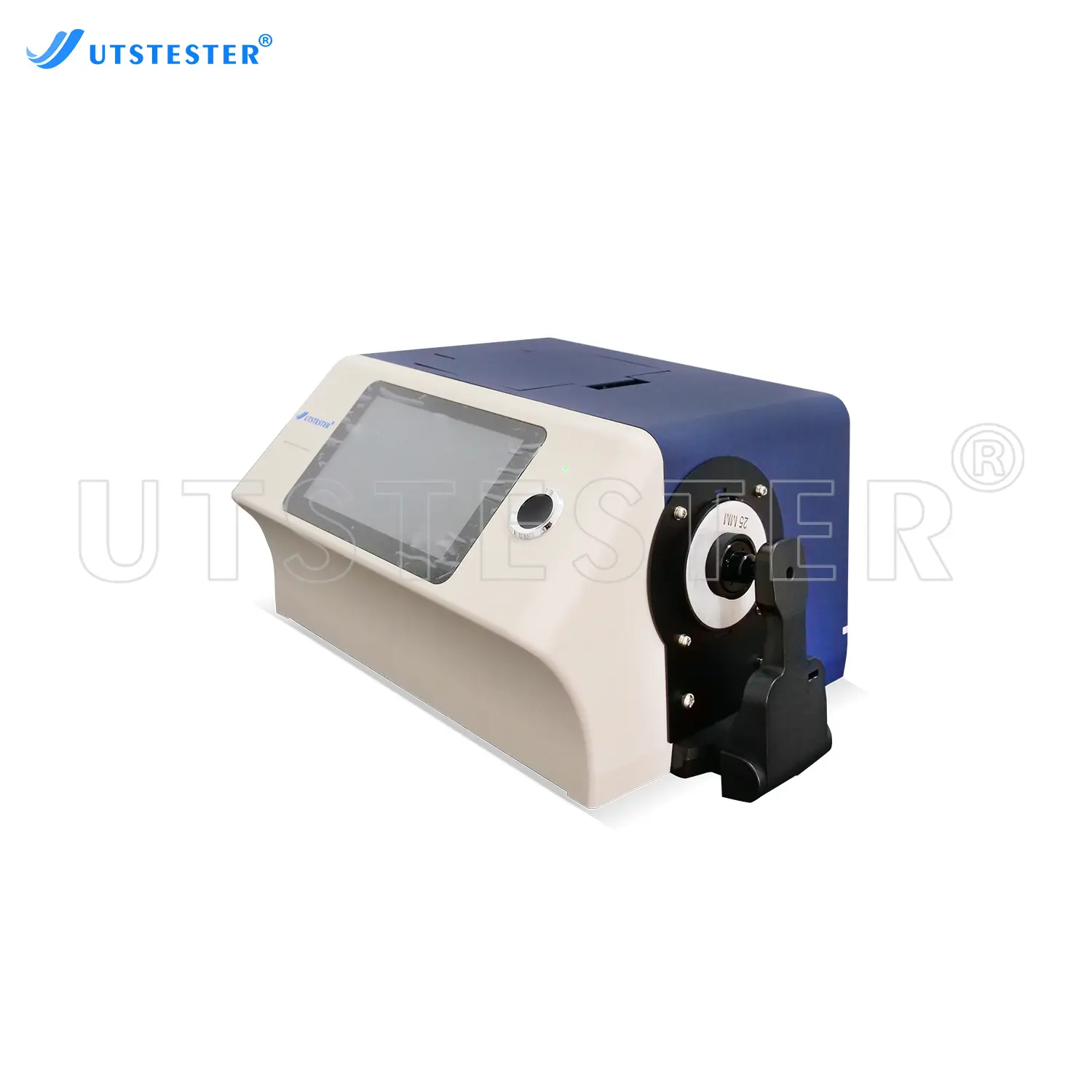

Textile Lab Equipment Benchtop Grating Spetrophotometer Color Analysis Photometer MF6060

Optical Geometry

Reflectance: d/8 (SCI⪰ Include UV/Exclude UV) Transmittance: d/0 (SCI⪰ Include UV/Exclude UV)

Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1,

ASTM E1164, DIN5033 Teil7

Specular Component

Reflectance: SCI&SCE

Transmittance: SCI&SCE

Integrating Sphere Size

Φ 154mm

Sensor

256 Image Element Double Array CMOS Image Sensor

Light Source Device

360nm-780nm Combined LED Lamp, 400nm cut-off, 420nm cut-off,

UV Lamp

Illuminants

D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11,

F12

Spectrophotometric Mode

Concave Grating

Observer Angle

2° & 10°

Repeatability

Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%)

Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab

1.1 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)

Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab

1.2 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

Φ25.4mm/SCI, Within ΔE*ab 0.15

(Average for 12 BCRA Series II color tiles)

Wavelength Range

360-780nm

Wavelength Pitch

10nm

Semiband Width

10nm
