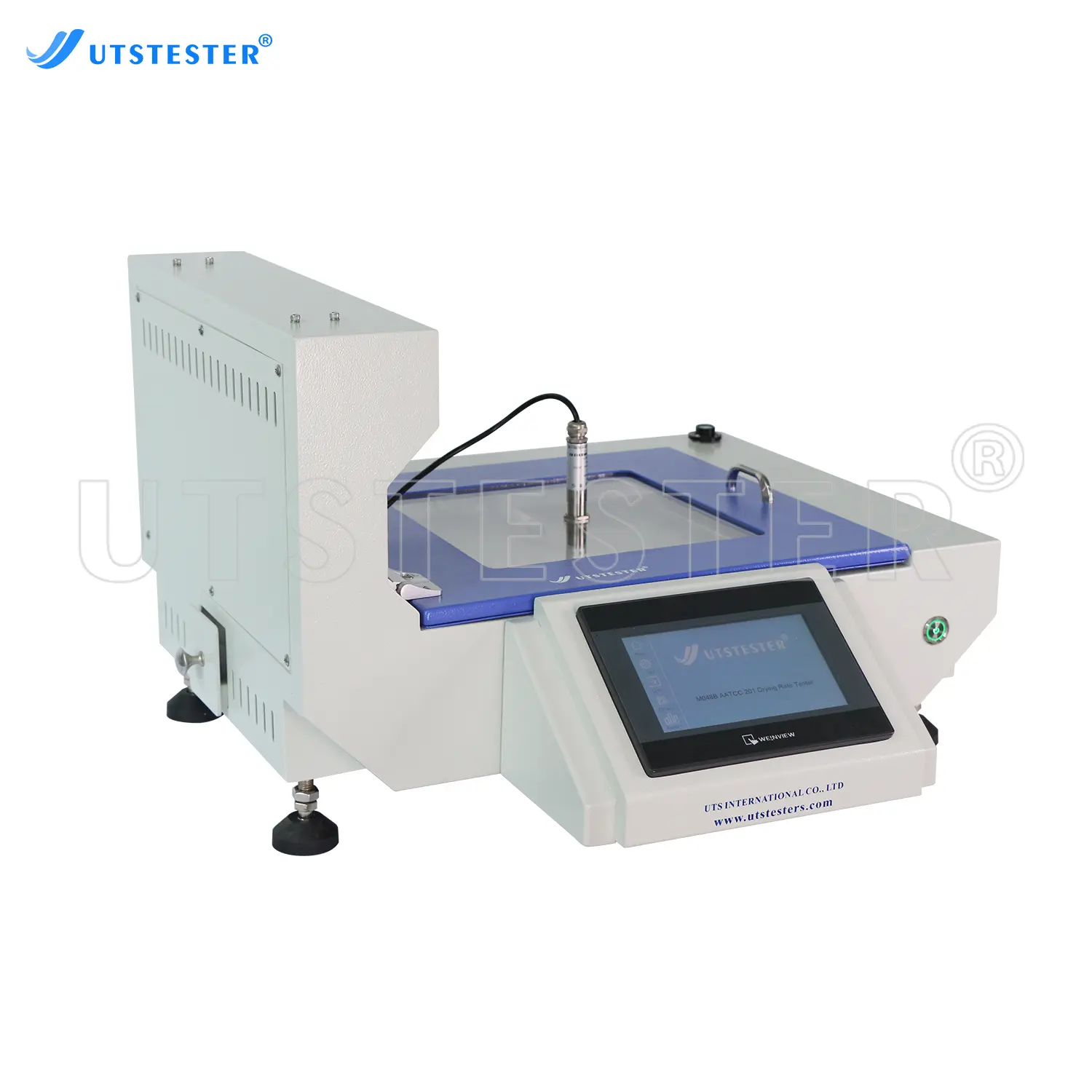

Textile Equipment From China AATCC 201 Drying Rate Tester (Heated Plate Method) M048B
Overview
M048B AATCC 201 Drying Rate Tester (Heated Plate Method), It is a fabric automatic drying rate testing instrument designed according to the requirements of American AATCC 201 test standard. It uses high-precision infrared temperature sensor, wind speed sensor and precision dripping device to automatically complete the testing of fabric drying time and drying rate.
Application
quick dry fabrics
towels
socks
Standards
AATCC 201
Key Parameters
|
Model |
M048B |
|
Heated plate |
305mm x 305mm |
|
Metallic pressing board |
150mm x 40mm x 2mm |
|
Heating plate temperature |
37 ± 0.1 ºC |
|
Display Resolution of temperature |
0.1 ºC |
|
Wind speed |
1.5m/s ± 0.1m/s |
|
Infrared temperature sensor |
15~50ºC ± 0.1 ºC |
|
Test fabric thickness |
0~10mm |
|
Drops of water |
0.2ml ± 0.001mL adjustable |
|
Wireless WIFI |
|
|
Power supply |
C220V±10%,100W OR AC110V±10%,100W |
|
Dimension |
520(L)×400(W)×260(H)mm |
|
Weight |
30kg |
Product Details
![干燥速率操作视频[00-01-54][20241024-115226580]](https://ecdn6.globalso.com/upload/p/256/image_other/2025-07/de1d90018270591a8c15003bc544e6a3.JPG)

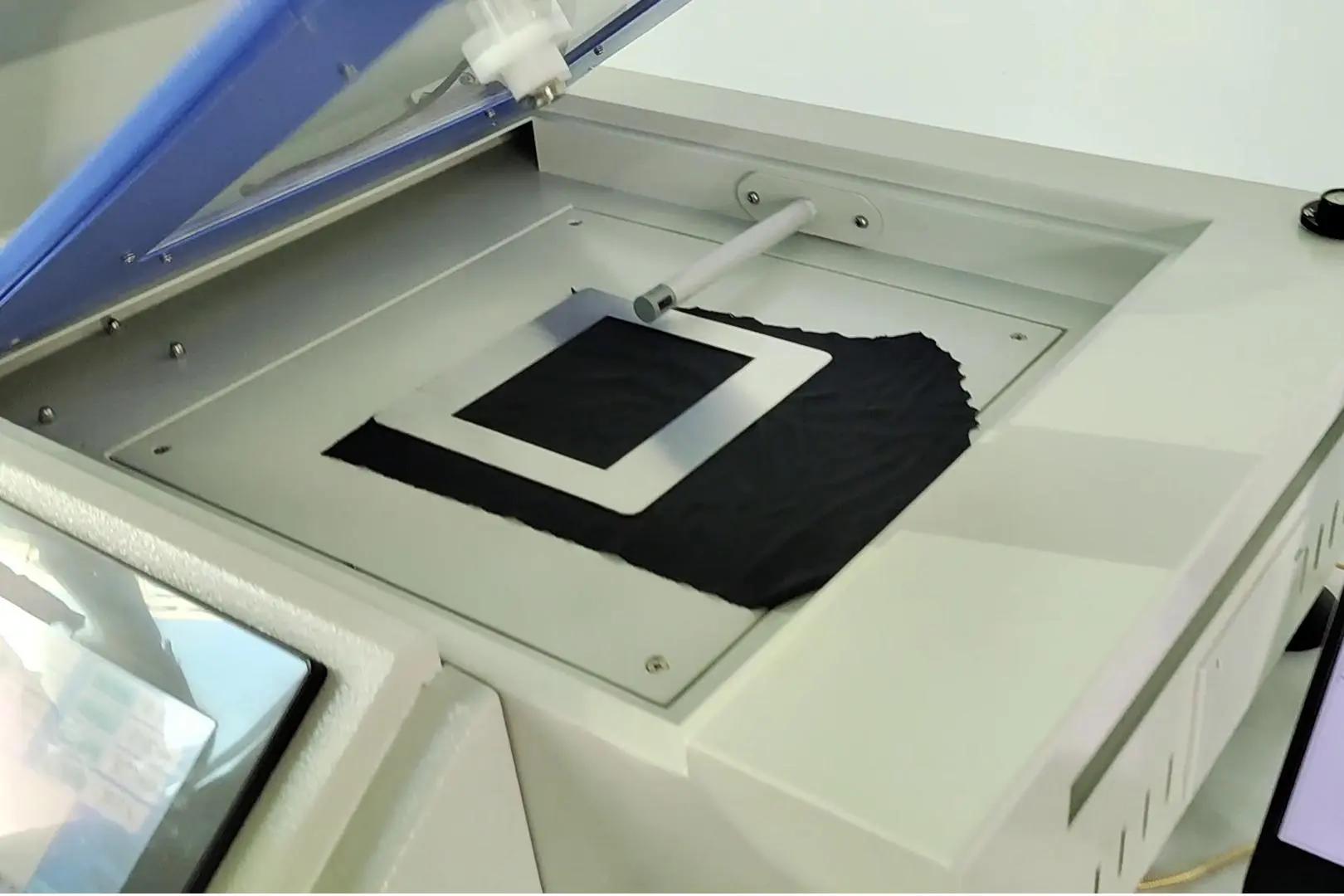

Test stand

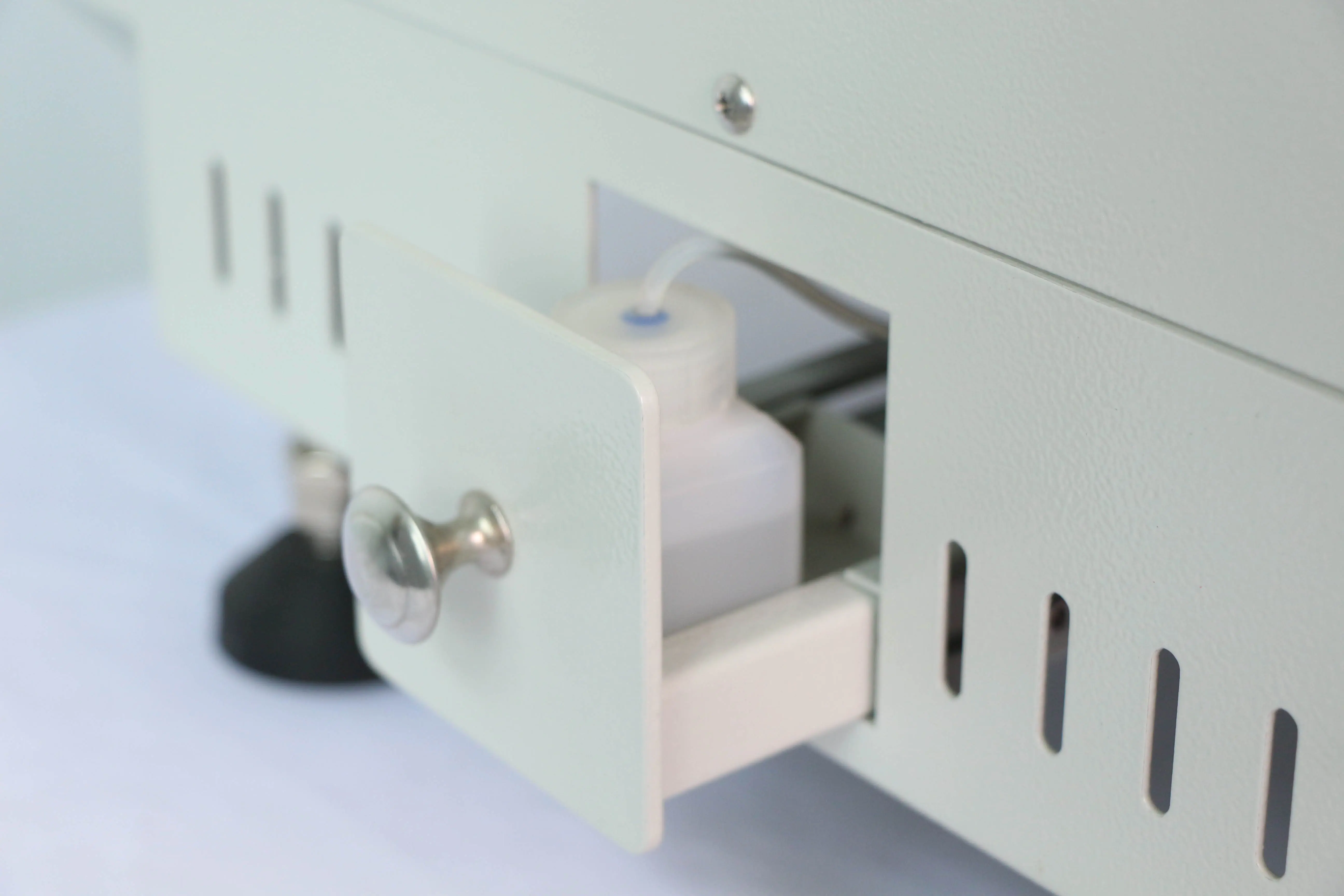

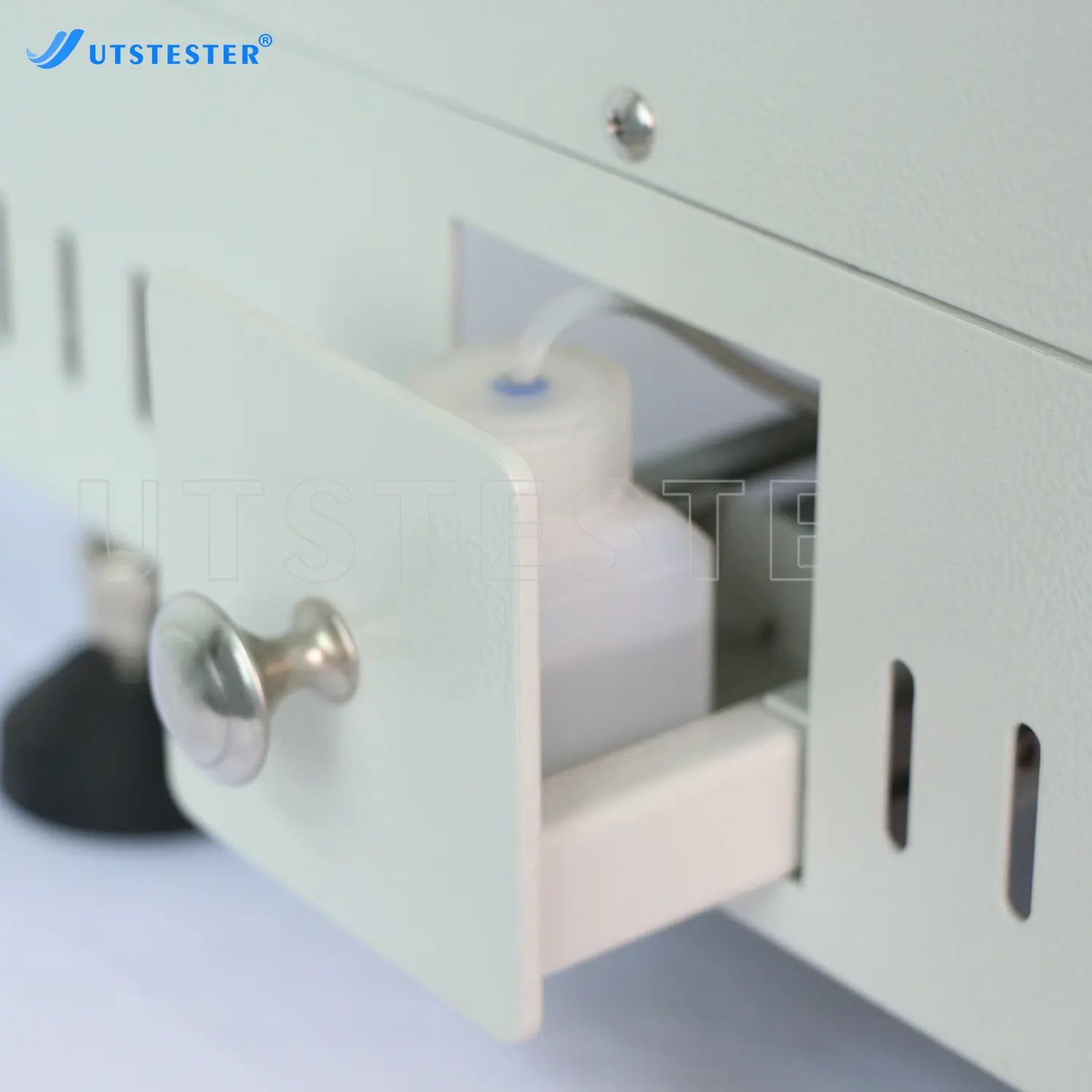

Liquid storage tank

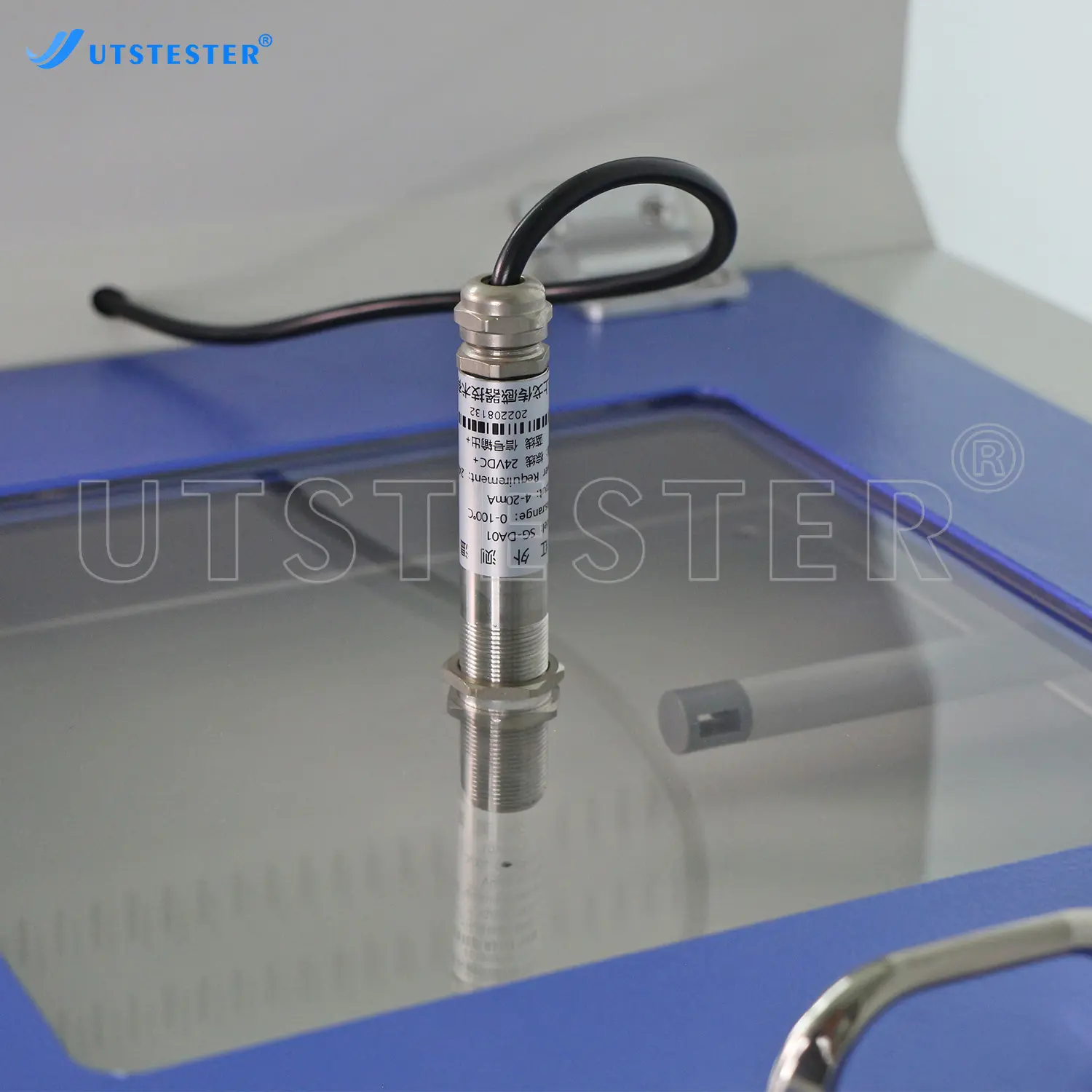

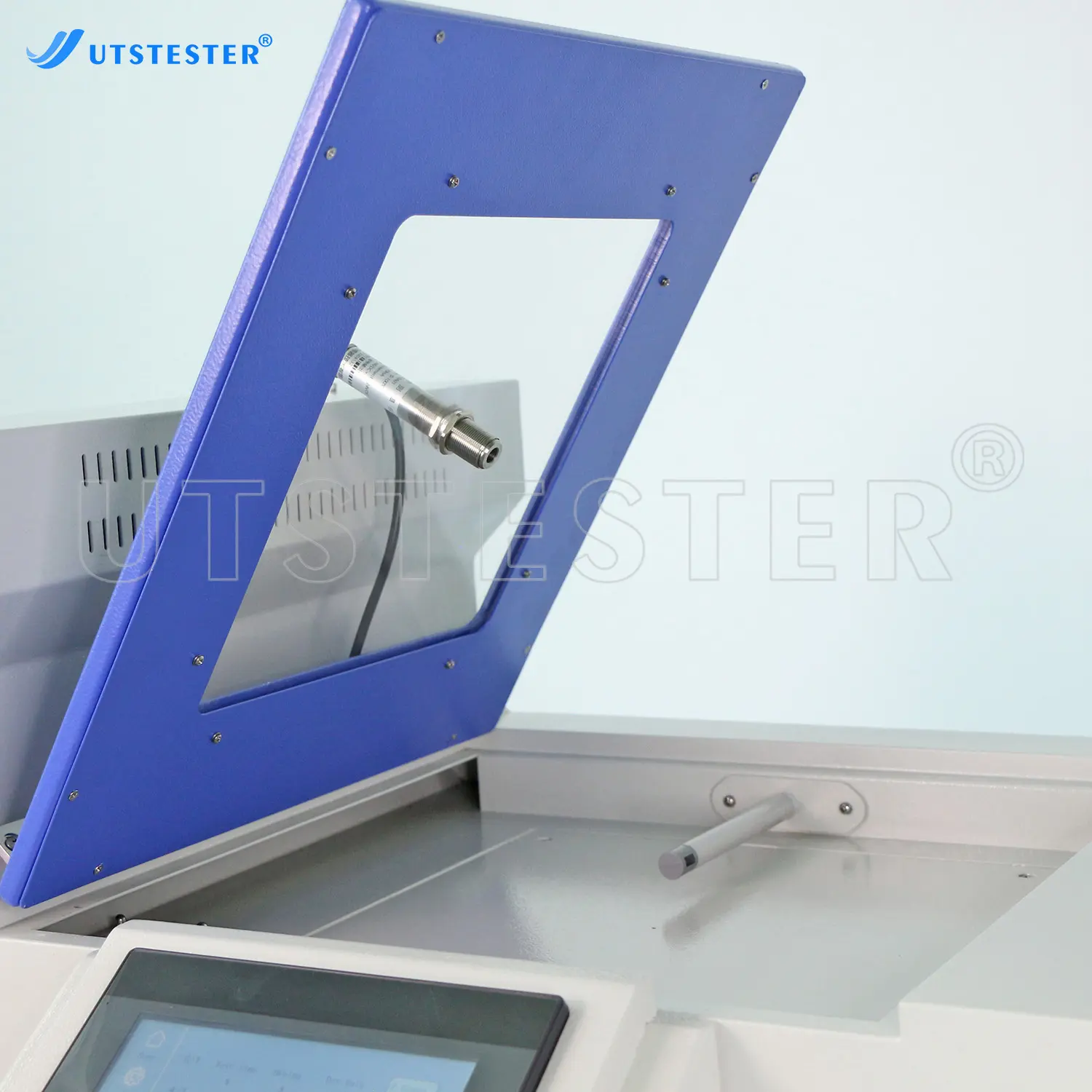

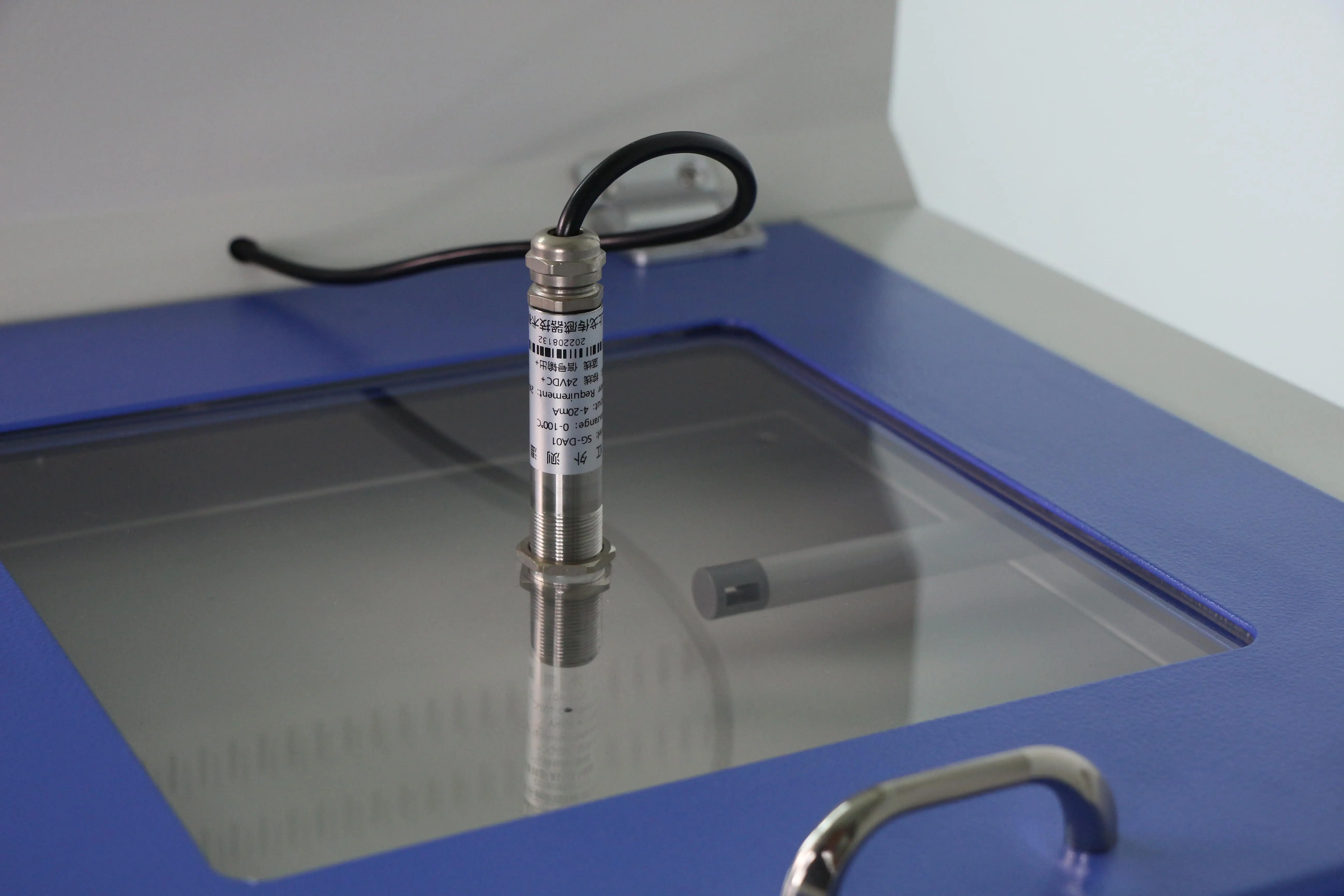

Infrared temperature sensor
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
