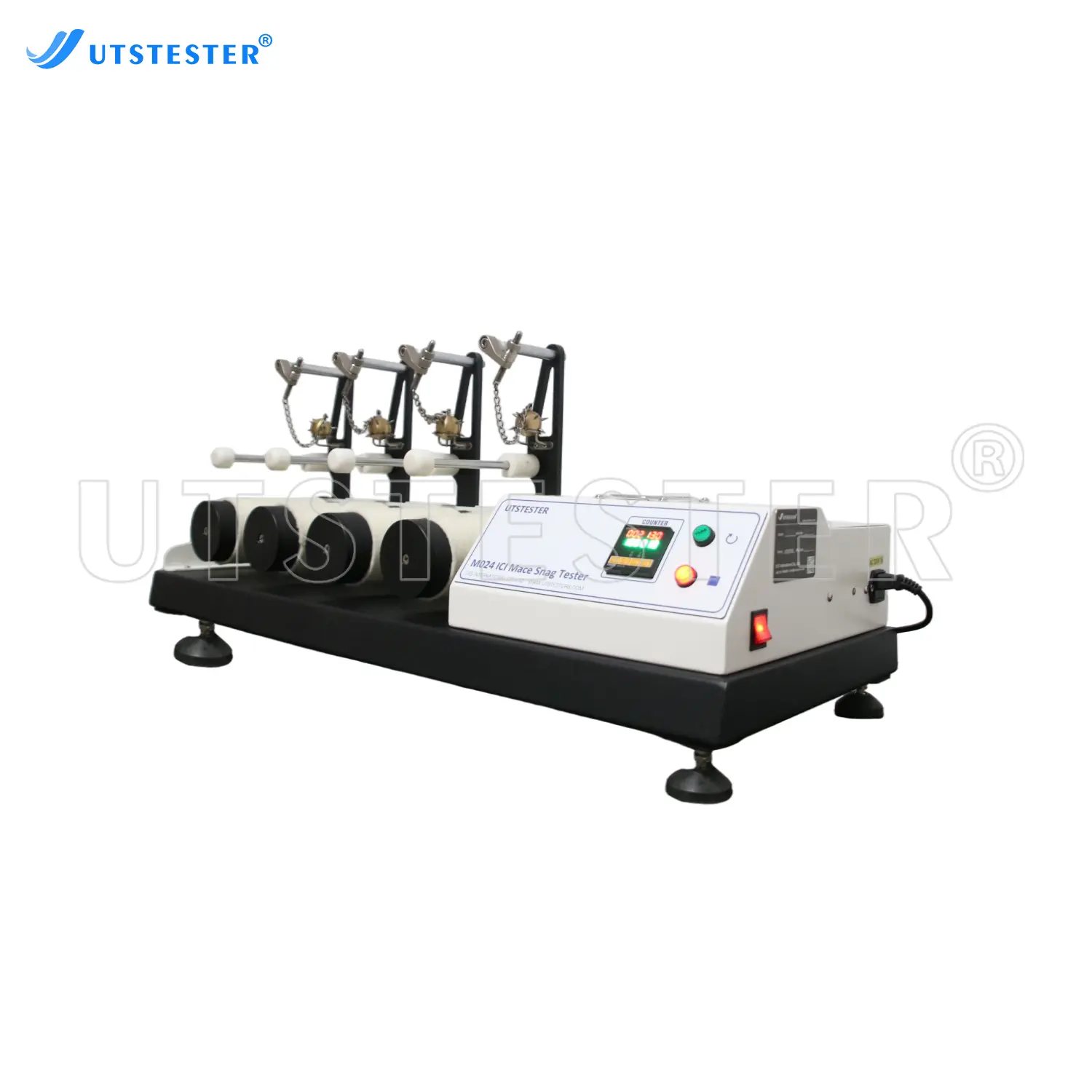

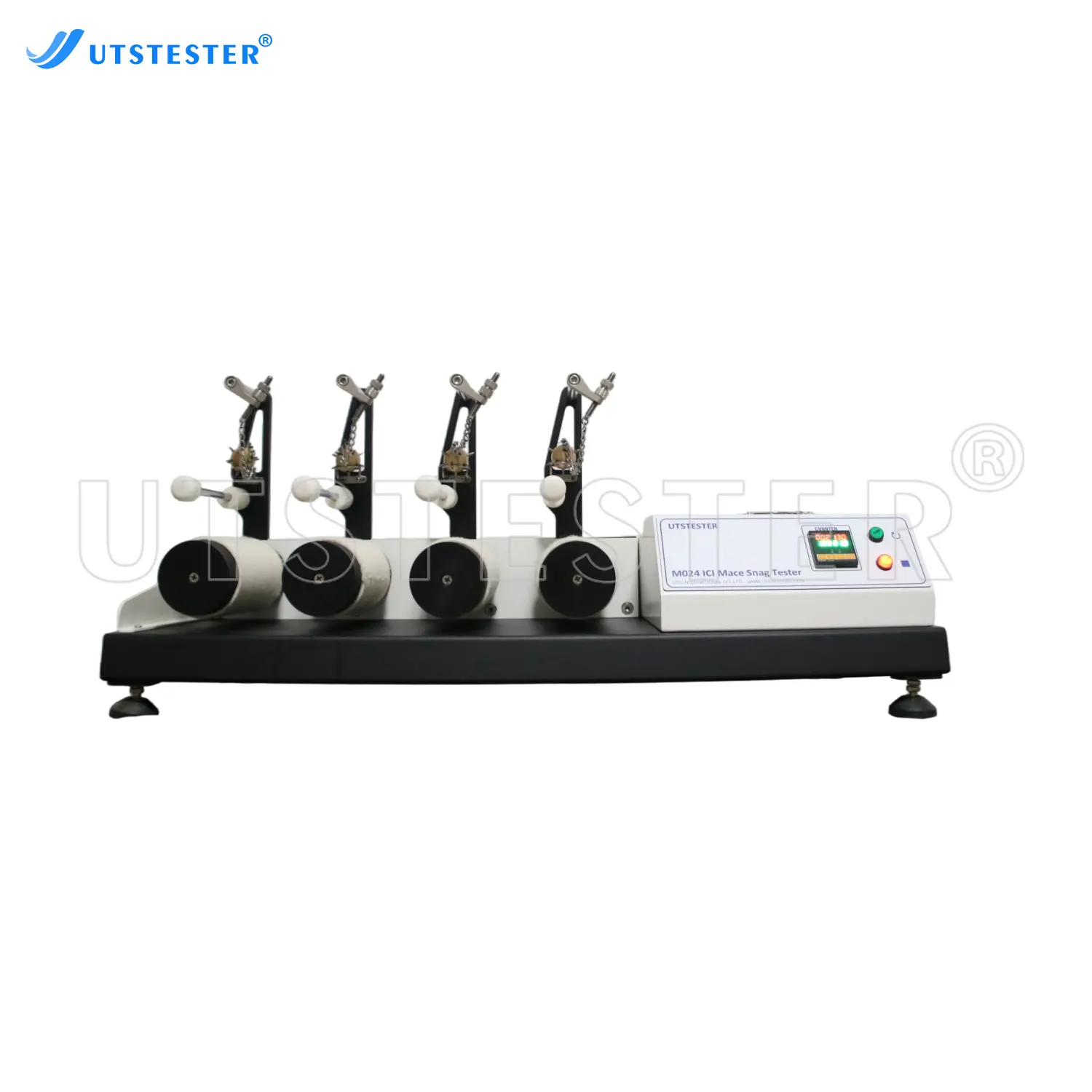

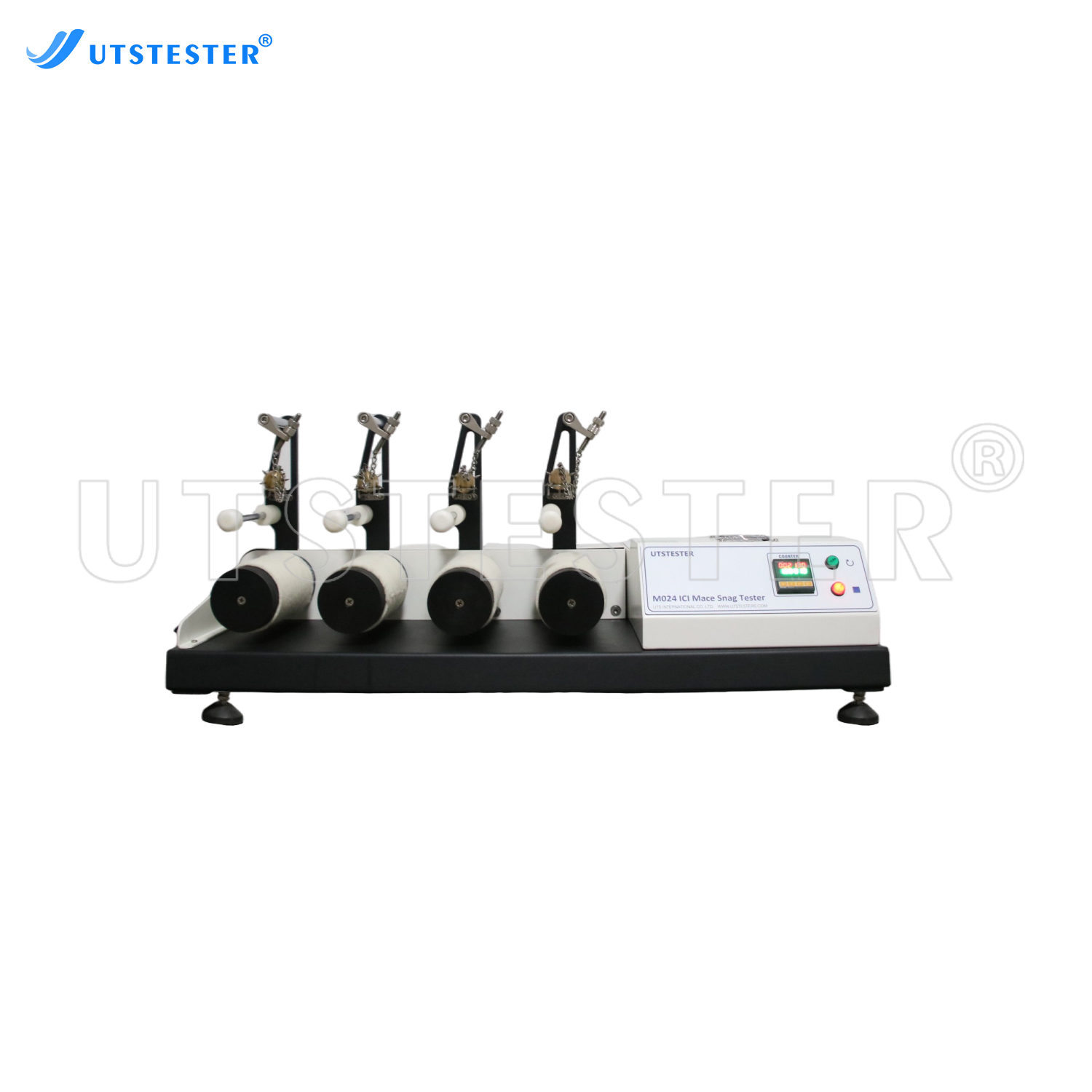

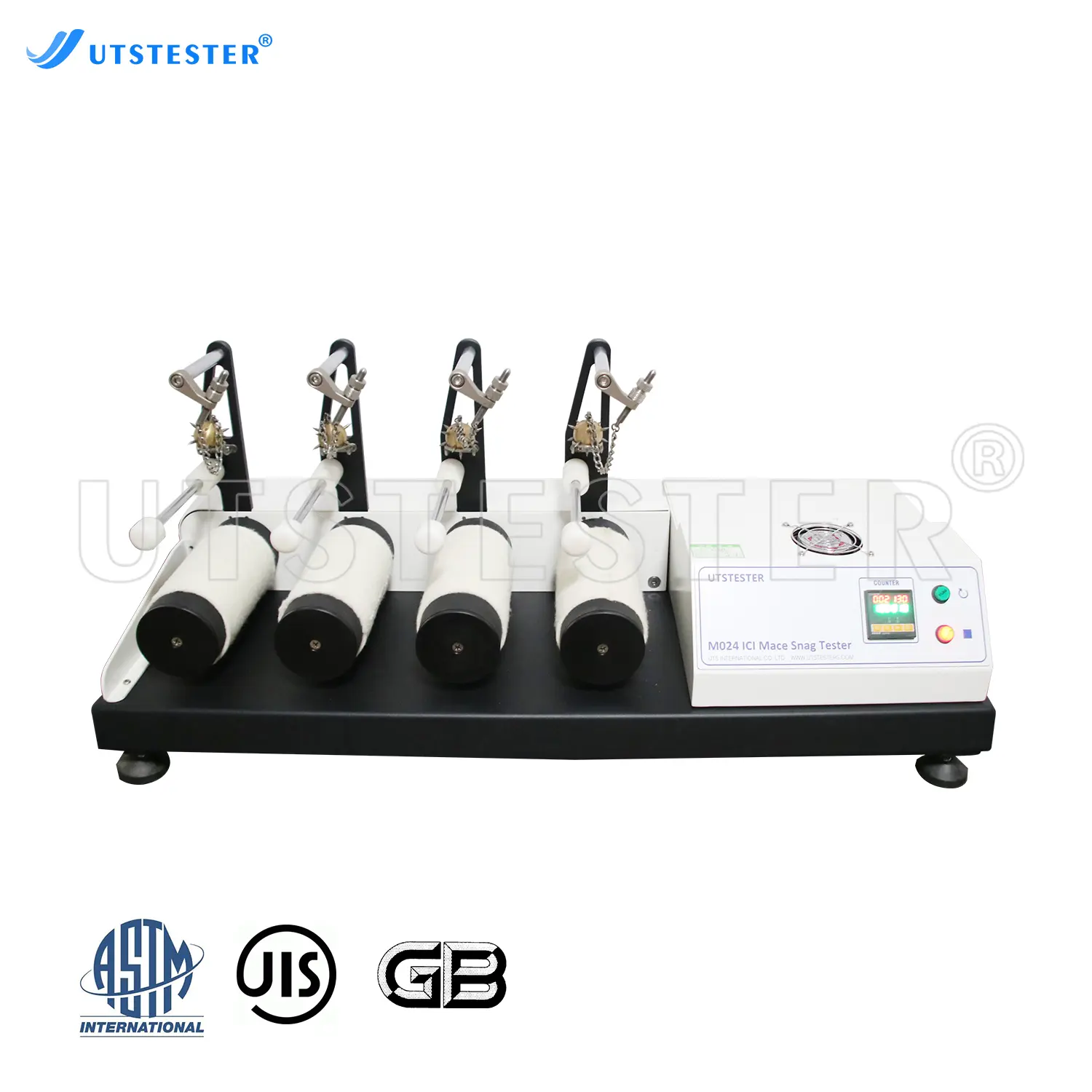

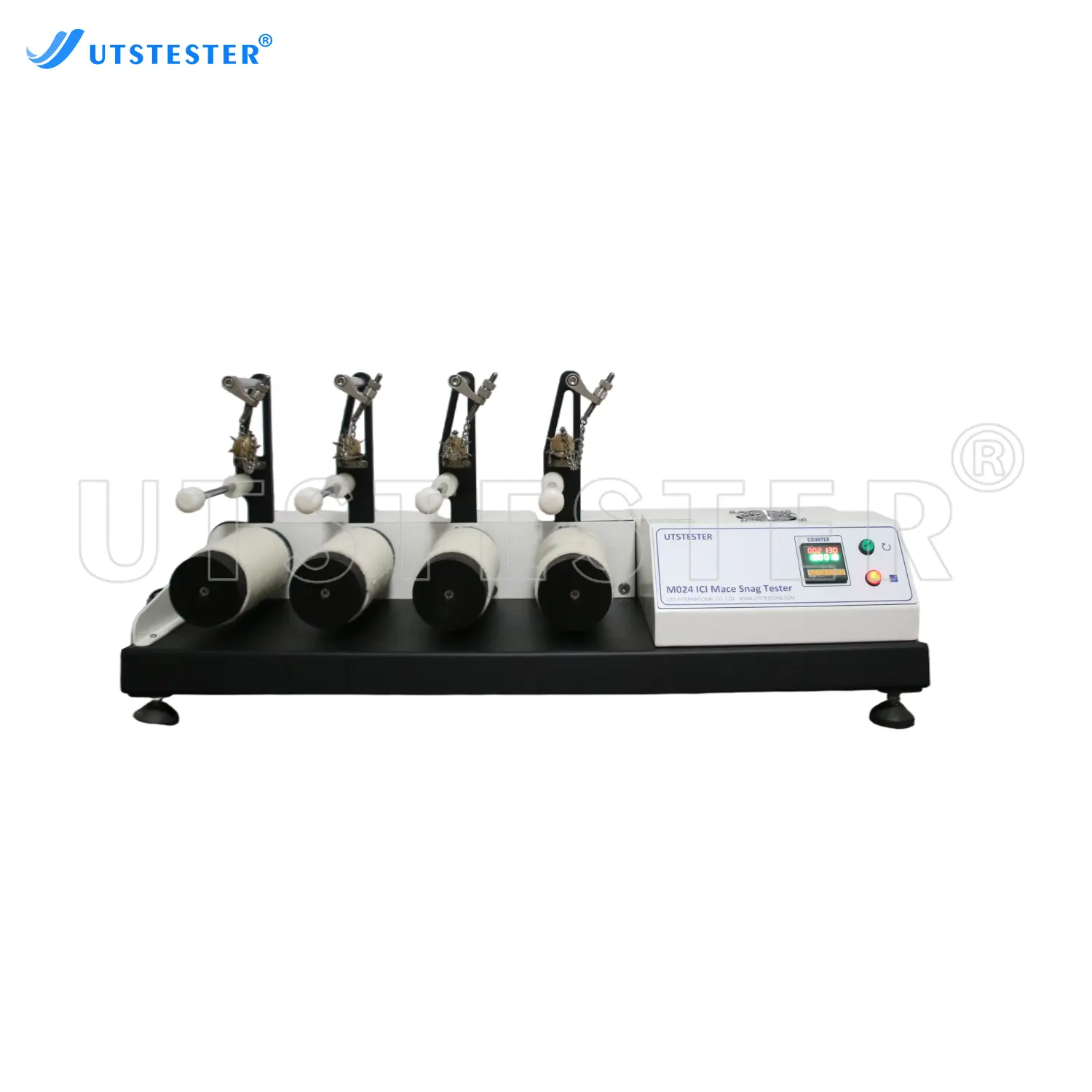

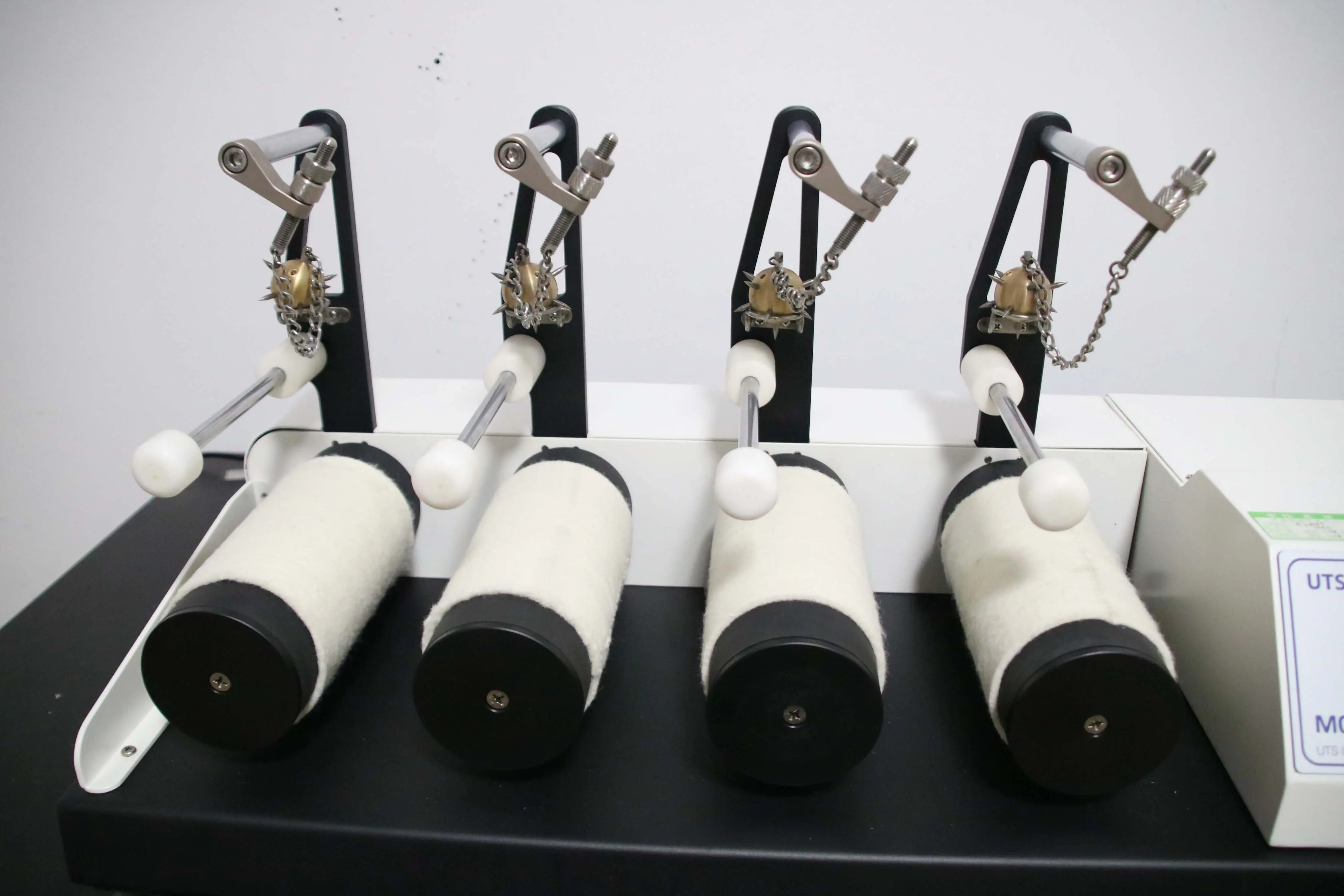

Textile ASTM D3939 Ici Mace Snag Tester Hammer Fabrics Mace Snagging Tester M024
Overview
The ICI Mace Snag Tester is designed to test the snagging resistance property for knitted fabric and other easy to be snagged textiles. The instrument should comes with a pilling assessment cabinet and standard photographs.
.Application
WOVEN FABRIC
KNITTED FABRIC
FLEECE FABRIC
Standards
ASTM D3939, GB 11047, JIS L 1058, VDA 230-220
Key Parameters
|
Model |
M024A |
M024B |
|
Working position |
2 |
4 |
|
Testing Speed |
60rpm±2rpm |
|
|
Testing cylinder |
External diameter Φ82mm, Length: 210mm |
|
|
Nail hammer |
Weight: 160±10g / piece |
|
|
Mace |
Leakage length: 10mm, 11pcs / nail hammer |
|
|
Guide rod |
Diameter: 10mm, interval distance: 12mm |
|
|
Distance between nail hammer and guide rod |
45mm |
|
|
Testing times |
600 times |
|
|
Sample size |
200 x 330mm |
|
|
Power supply |
1∮ AC 220V 50/60HZ 3A |
|
Product Details

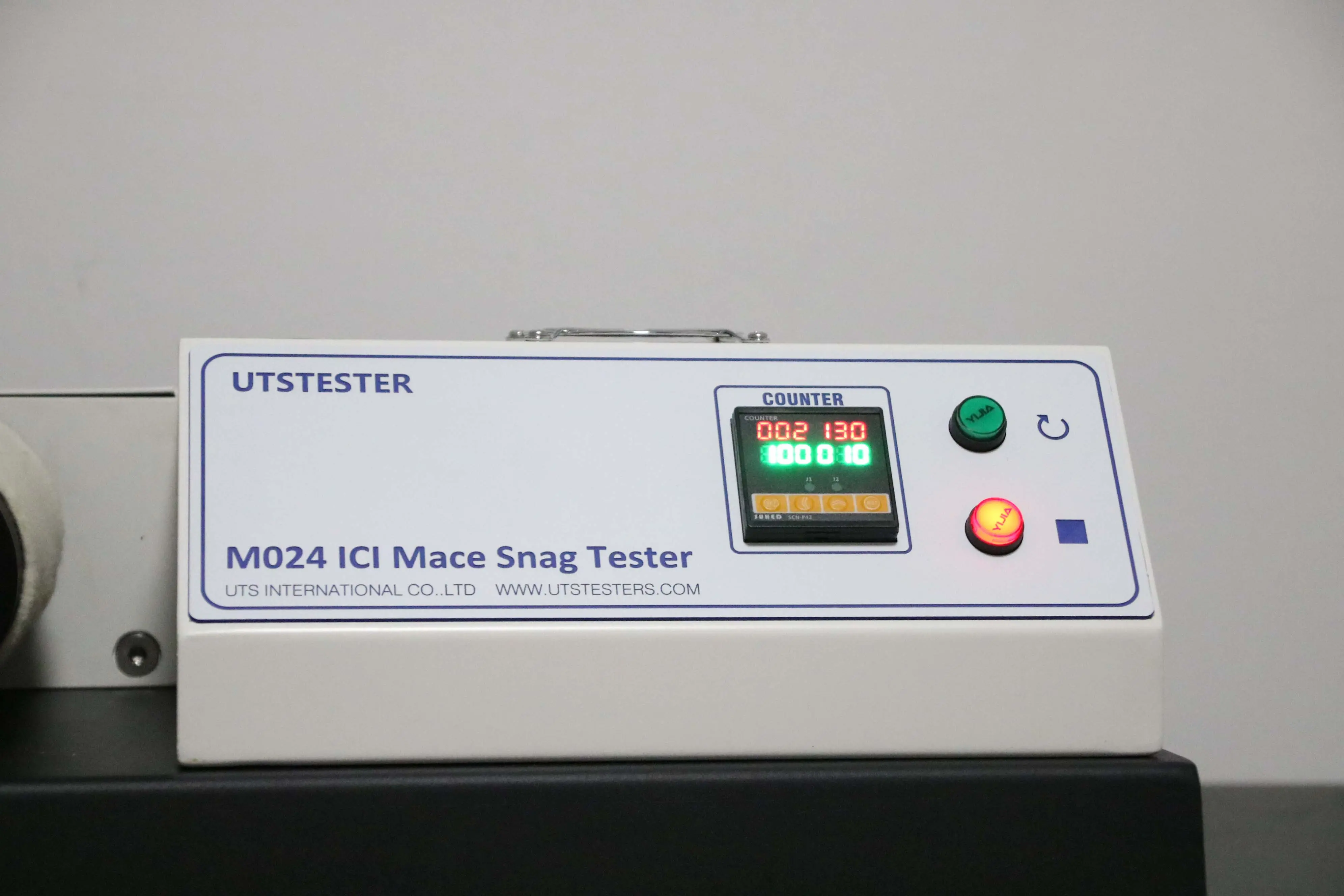

Control Panel

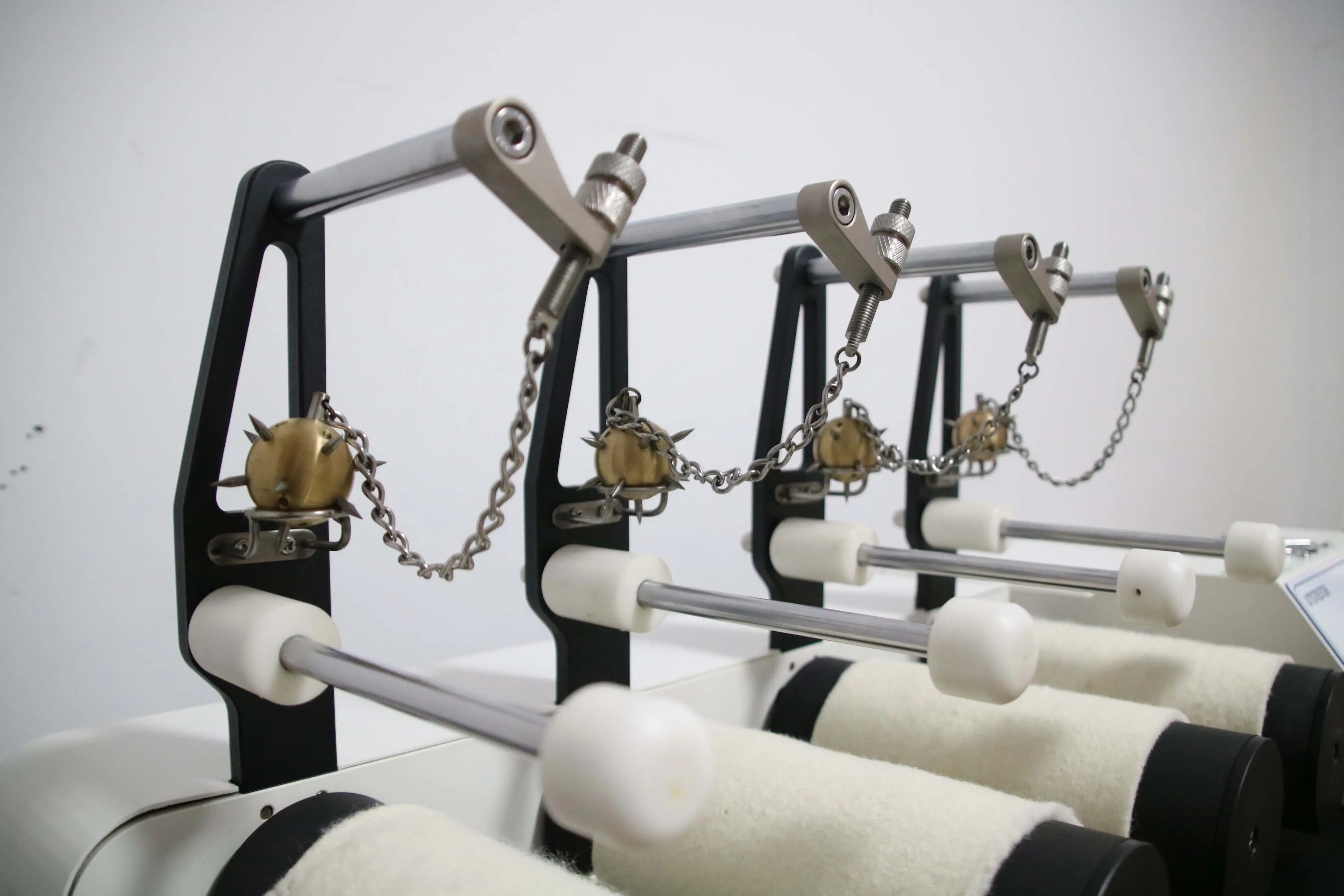

Hammer
Drum
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
