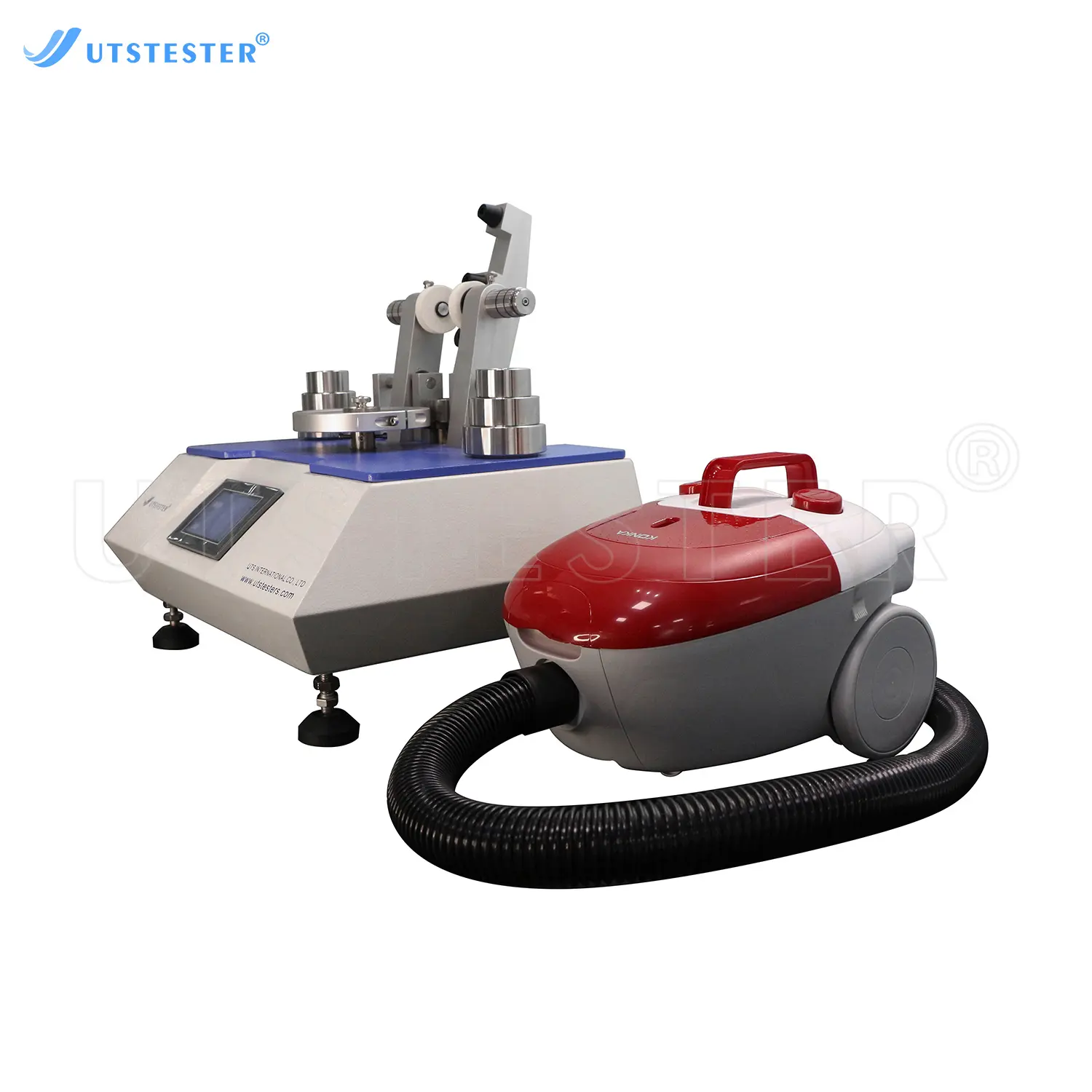

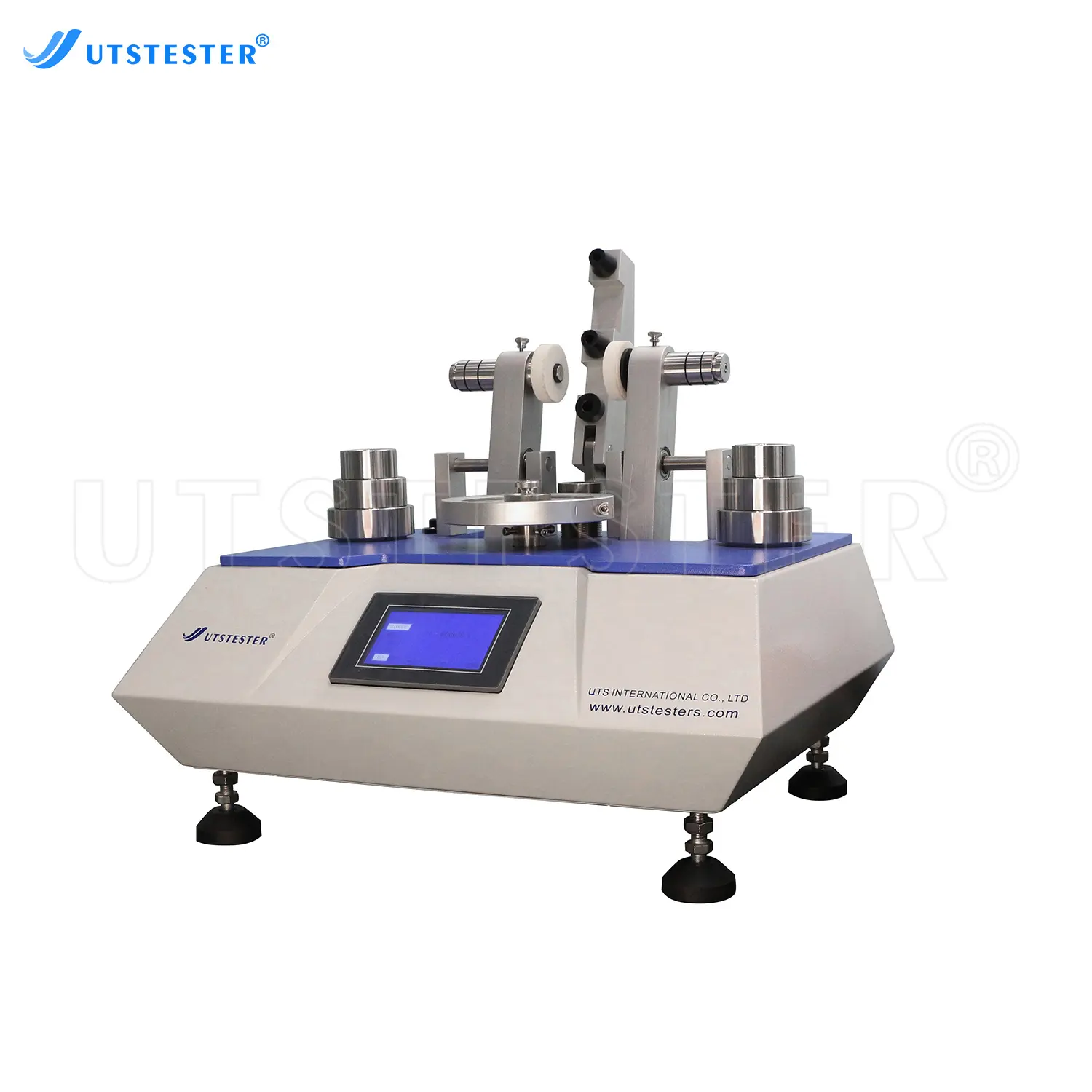

Taber Abrasion Resistance Test Taber Abrasion Test ASTM Taber Scratch Machine M009A
Overview
To determine the wear resistance(including mass loss, thickness loss, and transmittance etc.) of all kinds of structures including textiles, paper, glass, metals, paints, plated surfaces, coated materials, leather and rubber.
Application
textiles
paper
glass
metals
paints
rubber
leather
Standards
ASTM D3884, D4060, ISO 5470-1, ISO 7784-2, DIN 53754, ANSI INCITS 332, QC/T 236, GB/T 1768
Key Parameters
|
Model |
M009A |
|
Test position |
1 |
|
working plate diameter |
Φ115mm |
|
working plate speed |
40 ~ 90r/min, can be arbitrary speed regulation, can be positive and negative |
|
Grinding wheel external dimension |
Diameter Φ50mm, thickness 13mm |
|
counting mode |
electronic counting 1 ~ 999999 times arbitrary setting, plus or minus two counting modes |
|
pressure mode |
rely on the weight of the pressure sleeve 250CN or increase the weight combination |
|
load weight |
Load Weight (1) : 750CN (according to unit weight) Load Weight (2) : 250CN Load Weight (3) : 125CN |
|
sample thickness |
20mm |
|
Dust absorber |
air volume can be adjusted |
|
Power supply |
AC220V 50Hz 300W |
|
Dimensions ( L x W x H ) |
380×370×360mm (excluding vacuum cleaner) |
|
Weight |
30kg |
Product Details

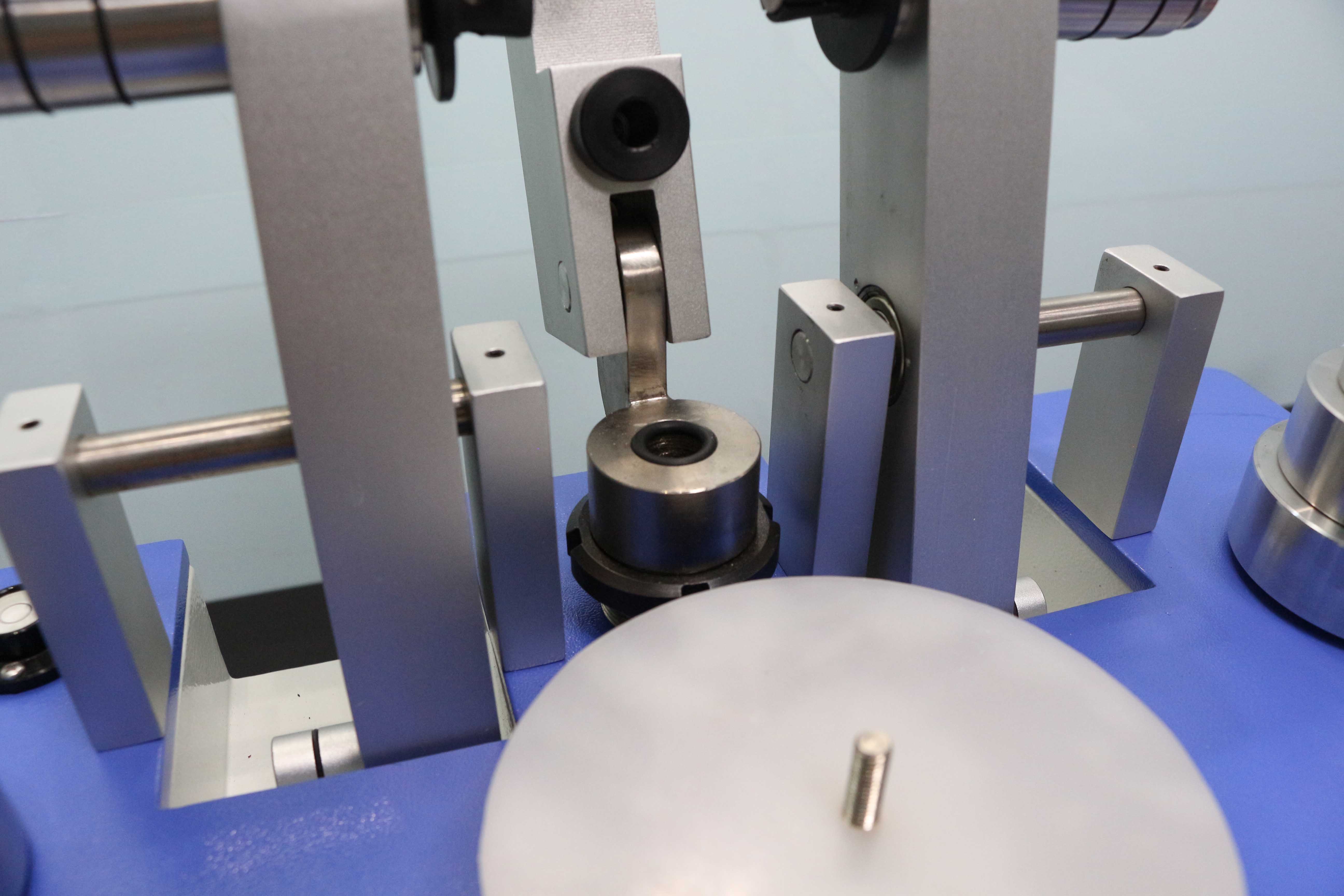

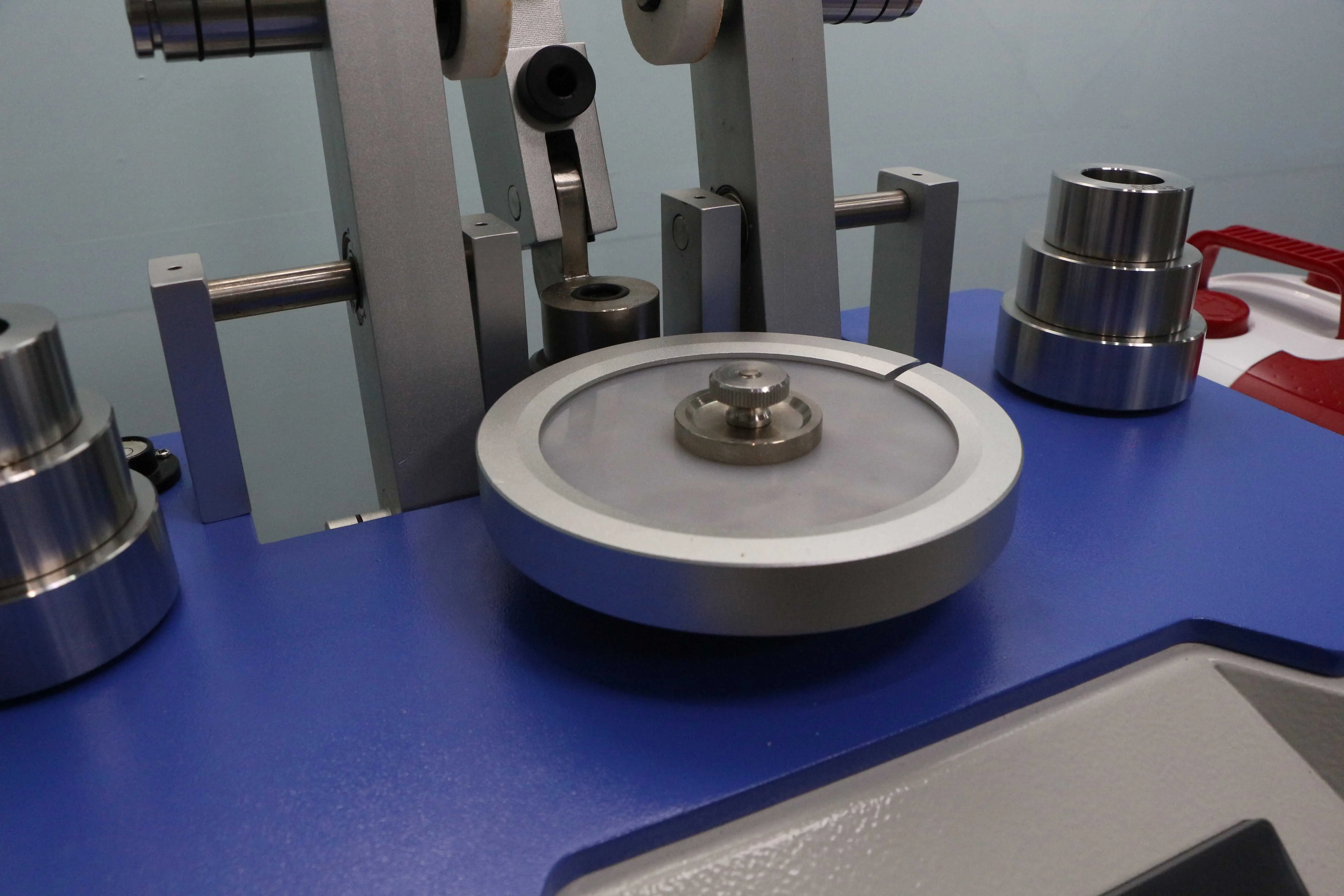

Test bench
Weight Holder

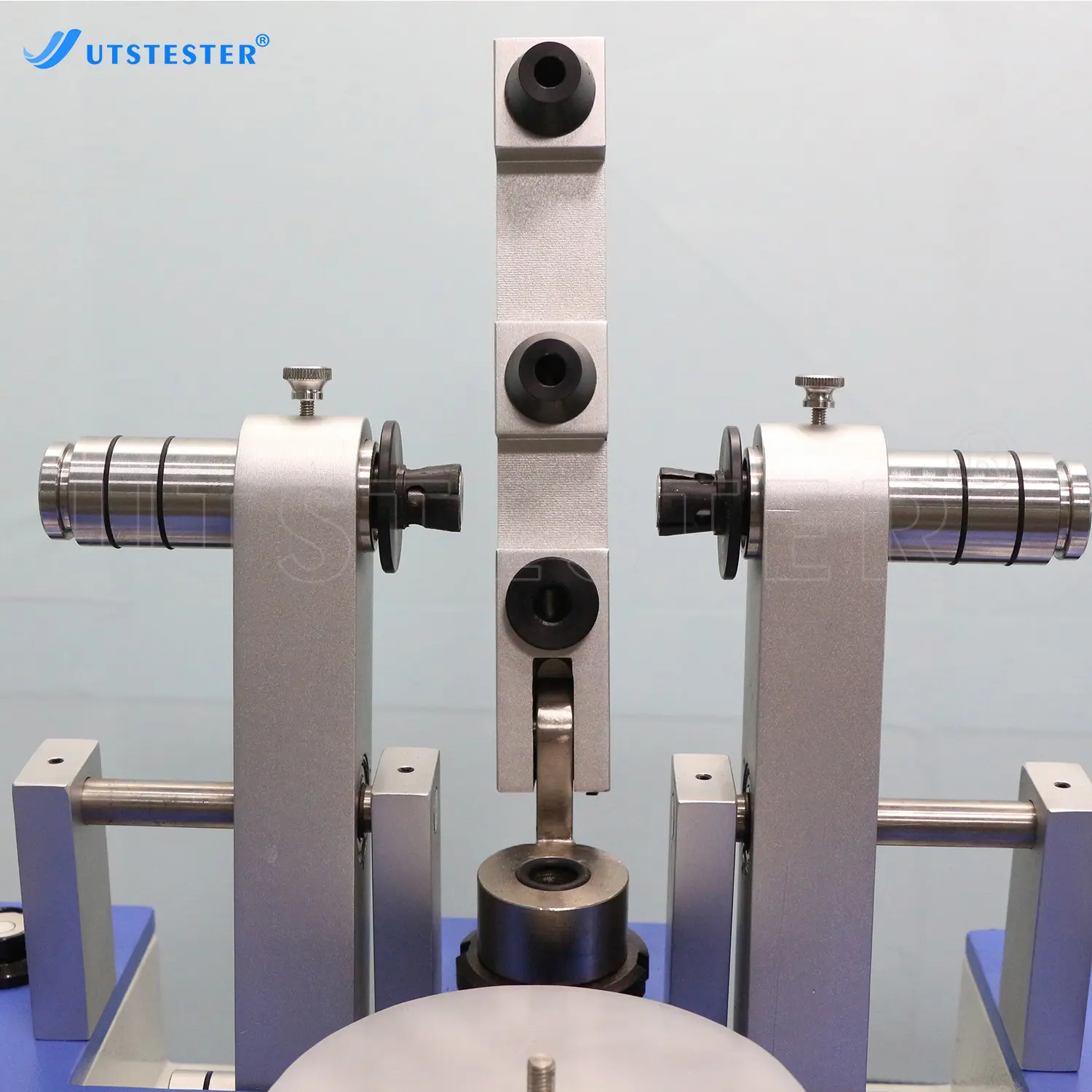

Vacuum Rocker arm

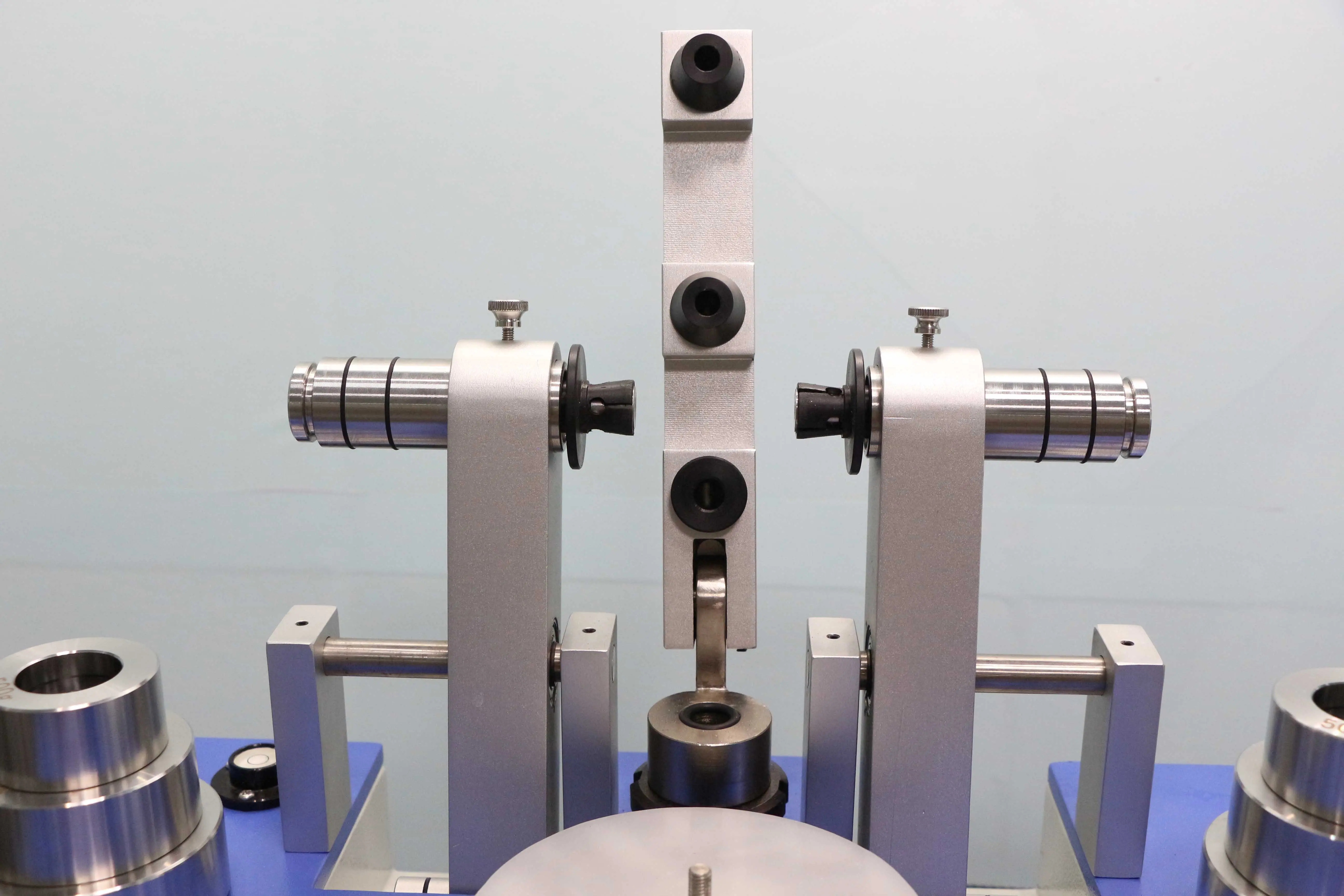

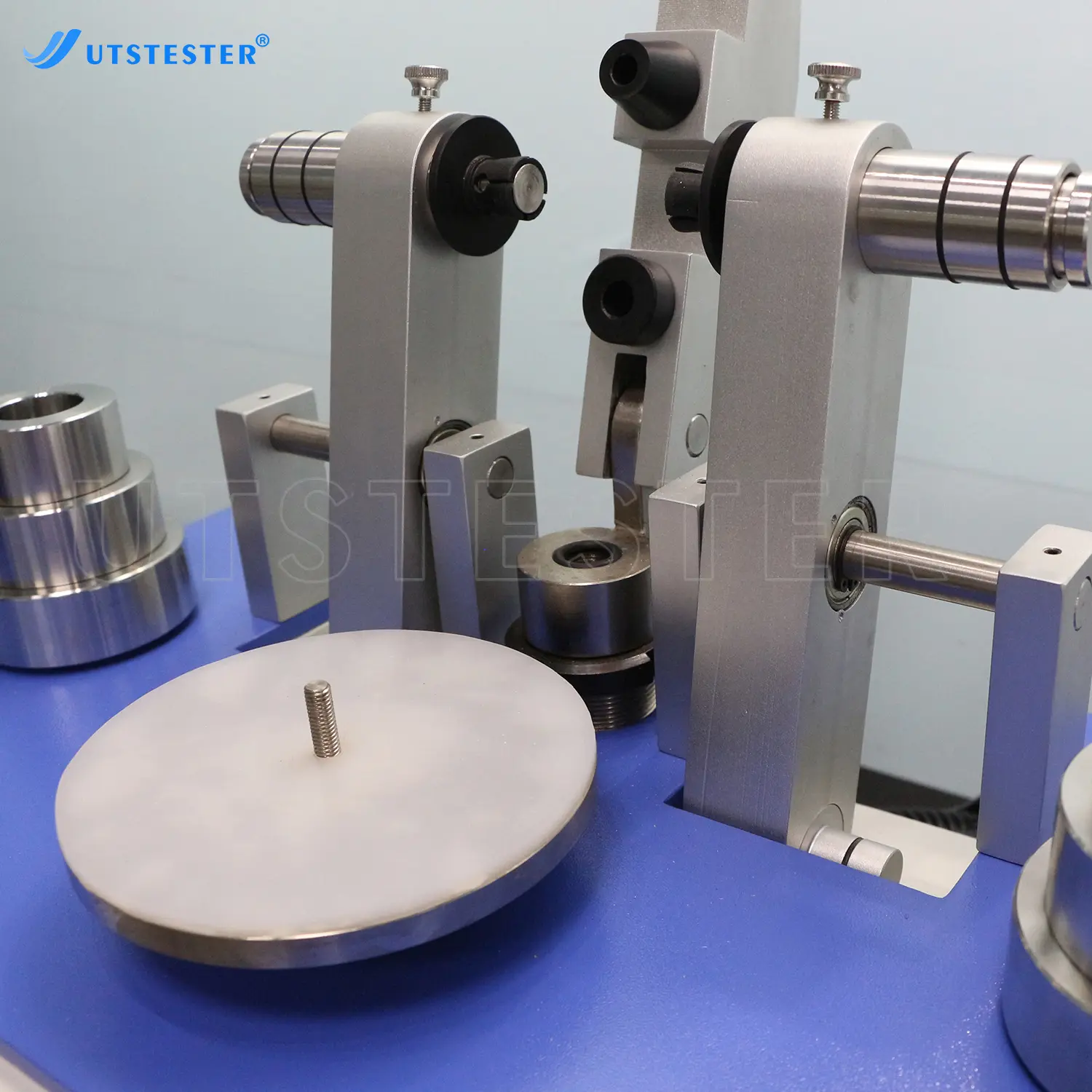

Grinding Wheel device

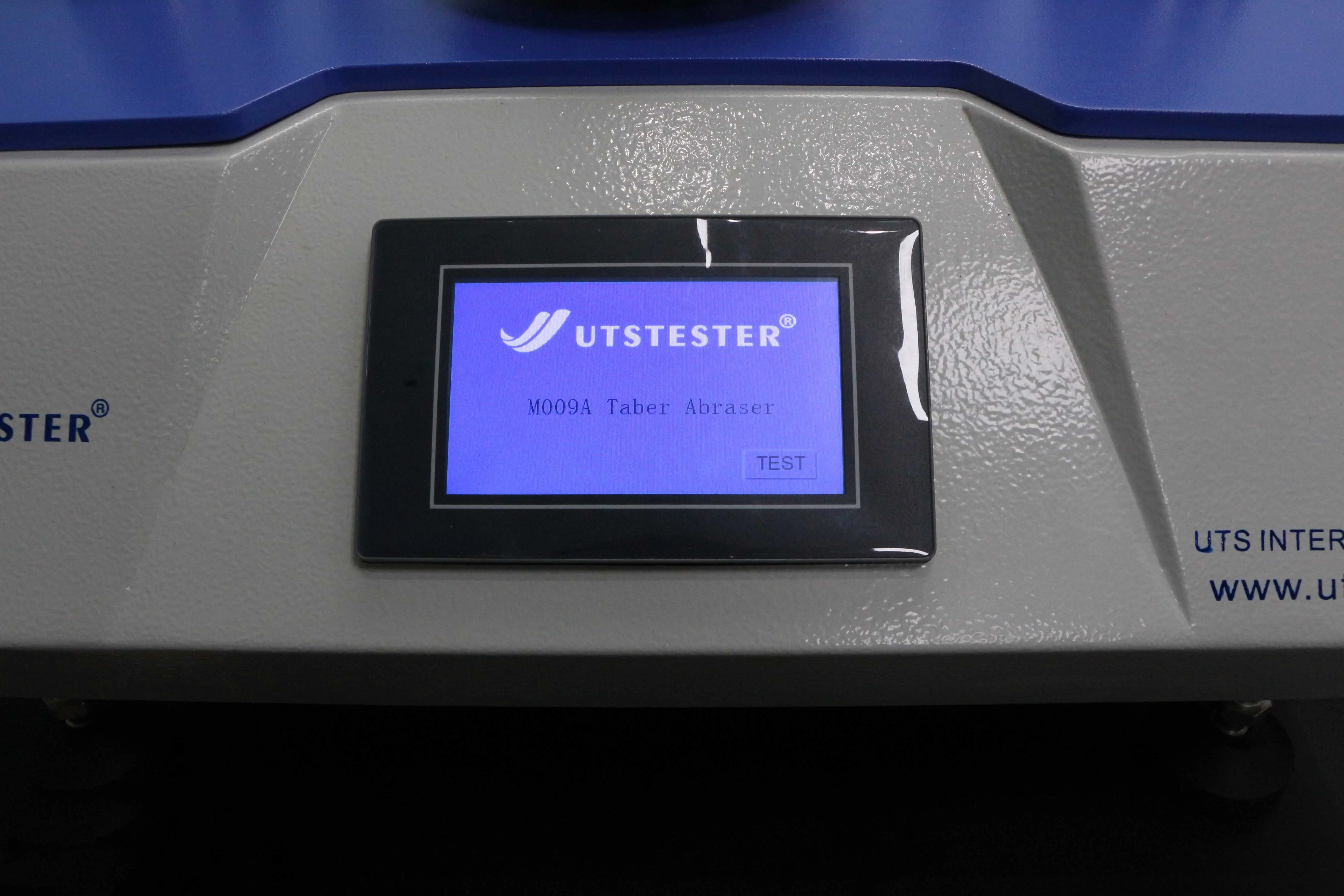

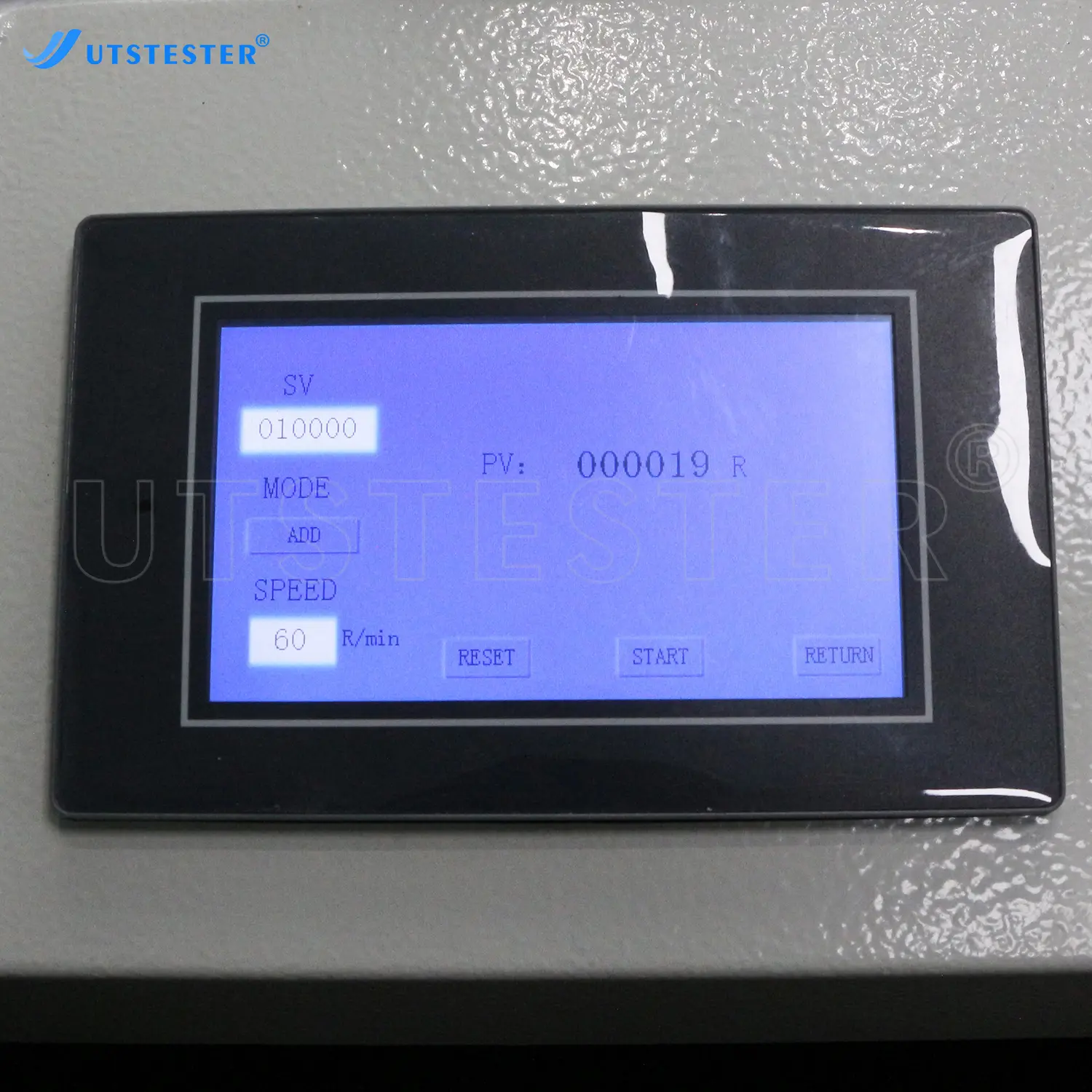

Color touch screen

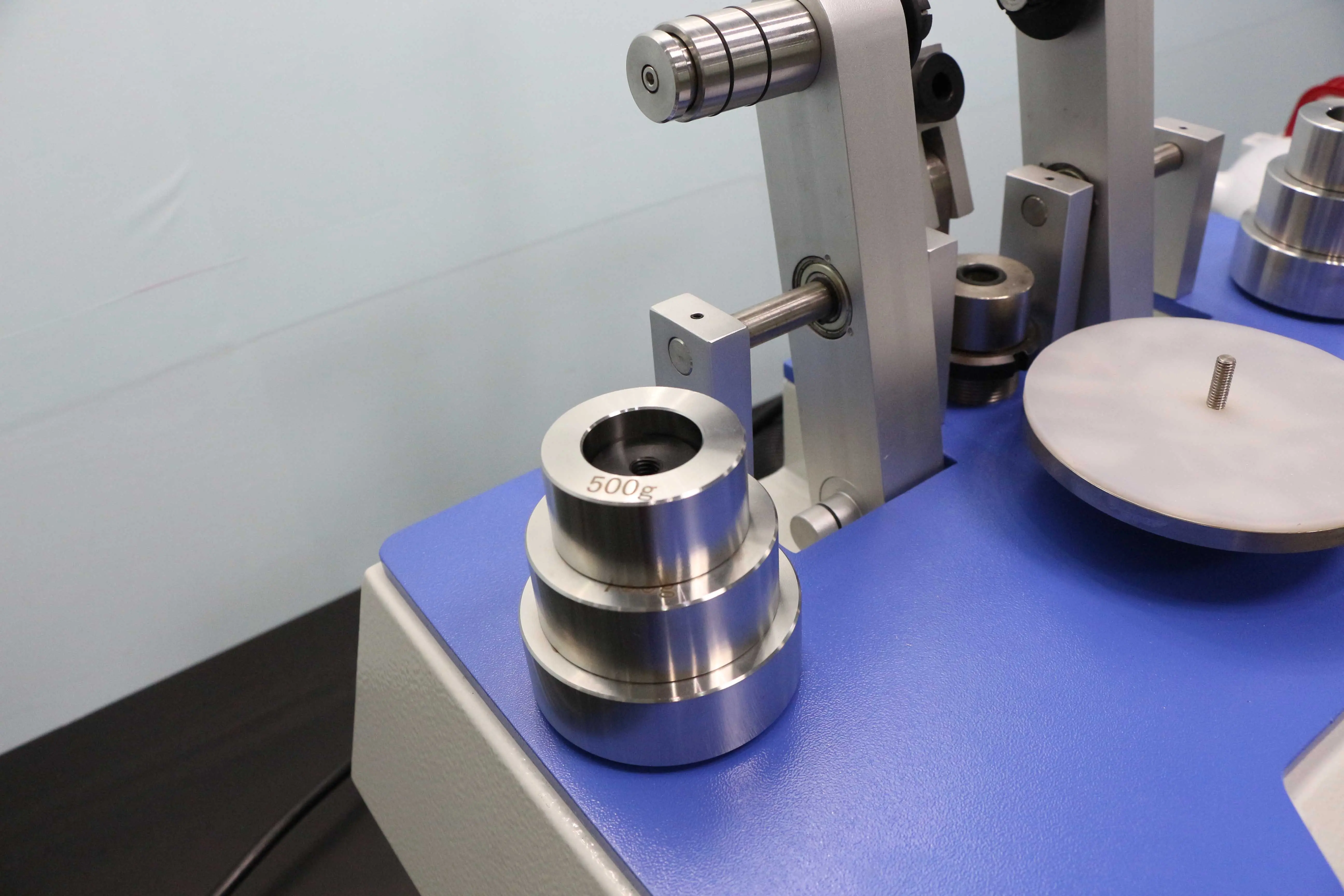

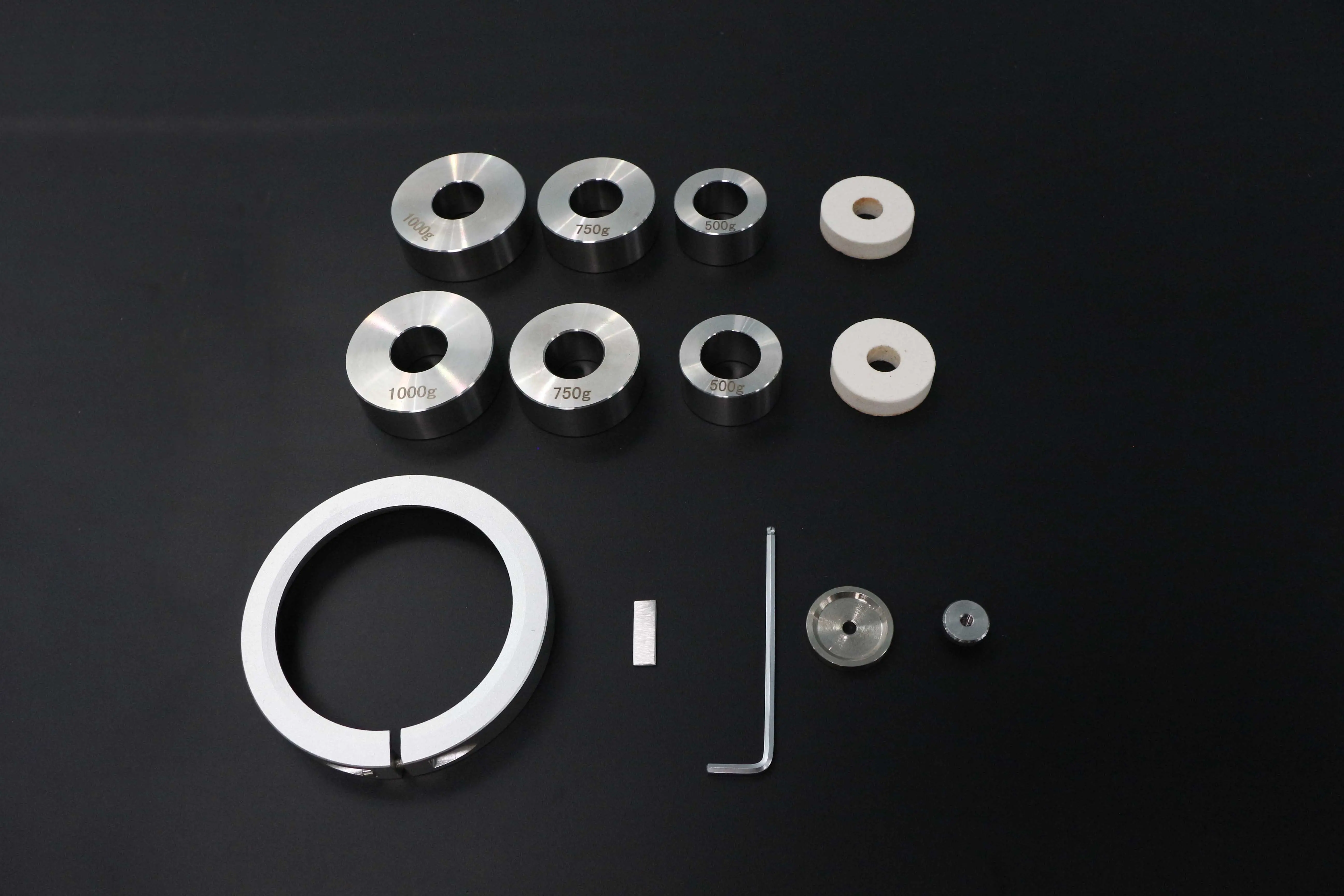

Load Weight
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
