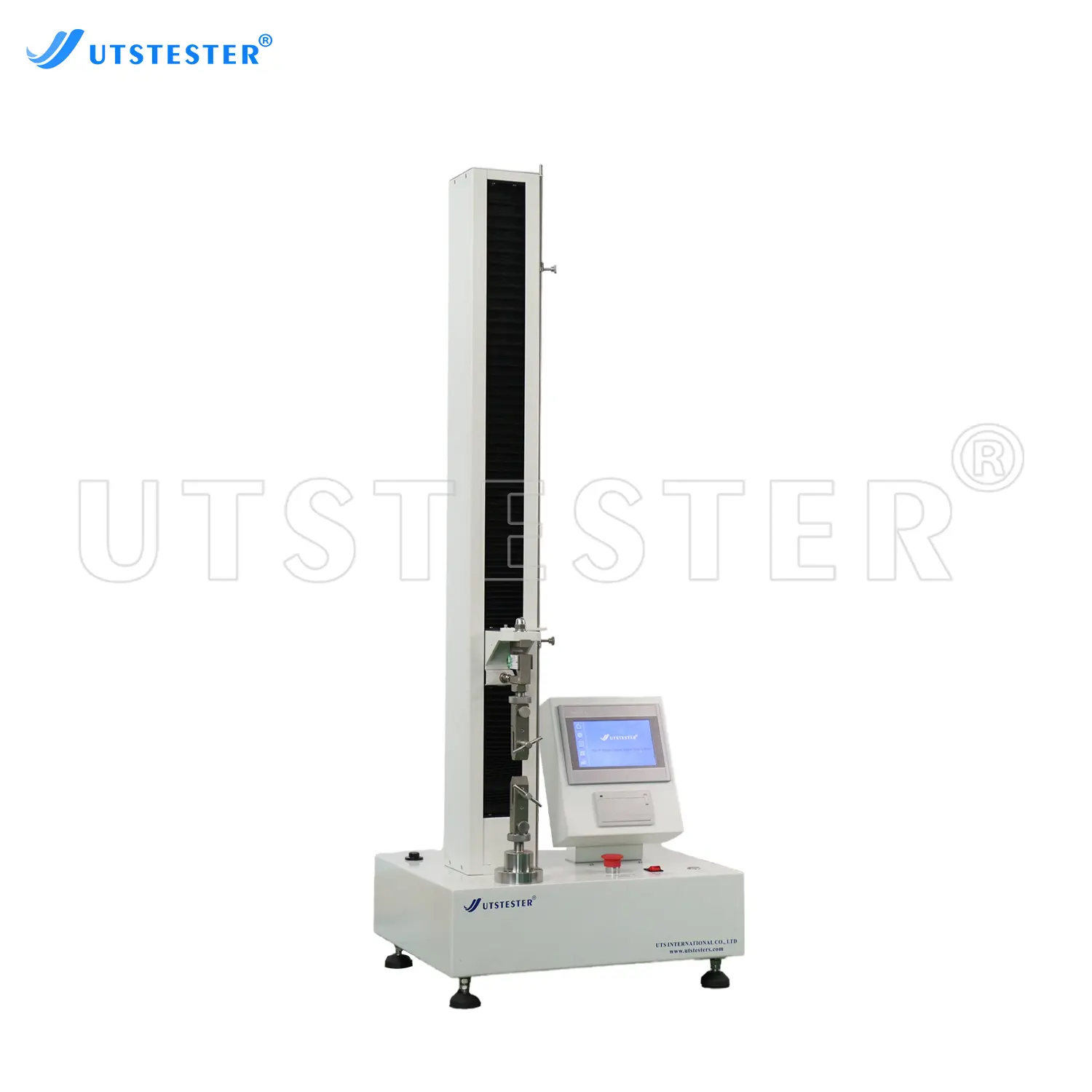

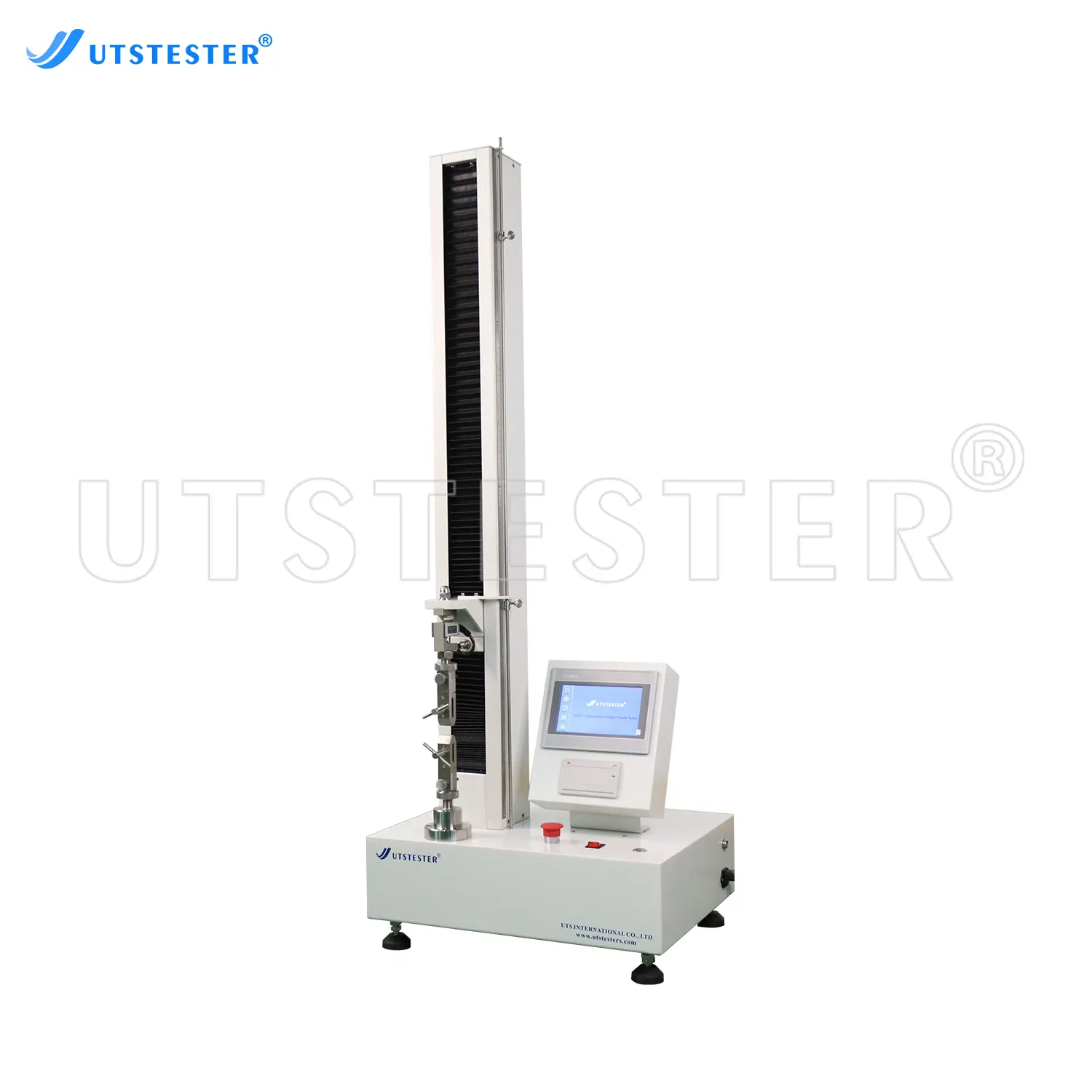

Strength Testing Machine Single Column Zipper Tensile Tester M031F
Overview
Used for zipper flat pull, up stop, down stop, open tail flat pull, socket shift, pull head pull piece combination, pull head self-lock and other tests, and can be added to the machine tensile head, pull head torsion resistance and other strength tests.
Application
Zipper
Zipper
Standards
QB/T 2171-2014 metal zipper, QB/T 2172-2014 injection zipper, QB/T 2173-2014 nylon zipper
Key Parameters
|
Model |
M031F |
|
Working mode
|
CRE principle, microcomputer control, touch screen English & Chinese display, support online communication |
|
Measuring range |
50N, 100N, 500N, 1000N, 2500N (optional) |
|
Force measuring range |
1~100% of full scale |
|
Force measuring accuracy |
≤±0.2%F·S |
|
Collection frequency |
2000 times/sec |
|
Graduation value |
0.01N (100N range, according to range) |
|
Optional units |
cN, N, kN, gf, kgf, lbf |
|
Displacement speed |
0.1~500mm/min digital speed regulation, error ≤±1% |
|
Displacement resolution |
0.01mm |
|
Clamping mode |
Manual |
|
Stroke range of beam |
600mm (without fixture) |
|
Gantry width |
400mm |
|
Power source |
AC 220V 50Hz 500W |
|
Dimensions |
540×370×1500mm |
|
Weight |
70kg |
Product Details

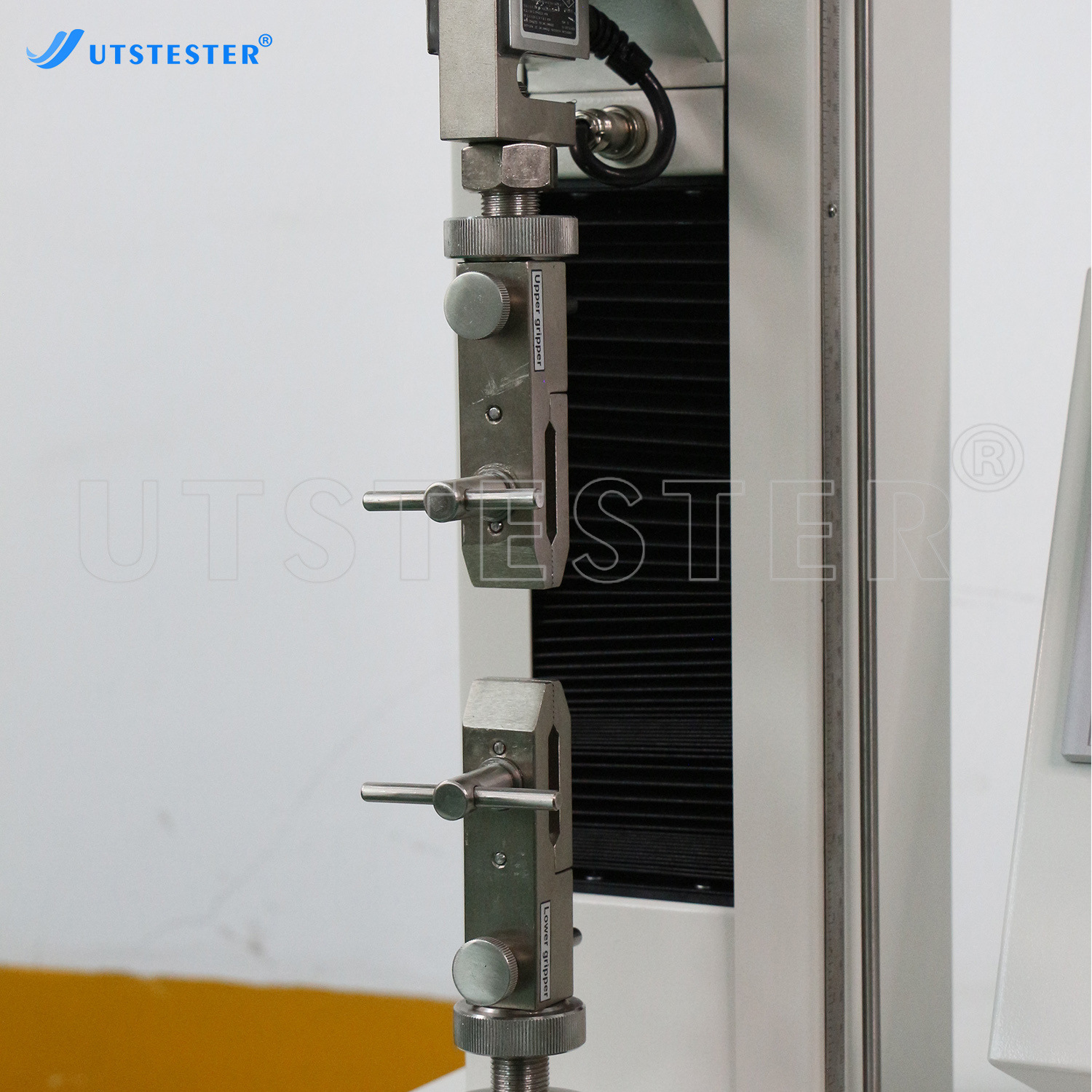

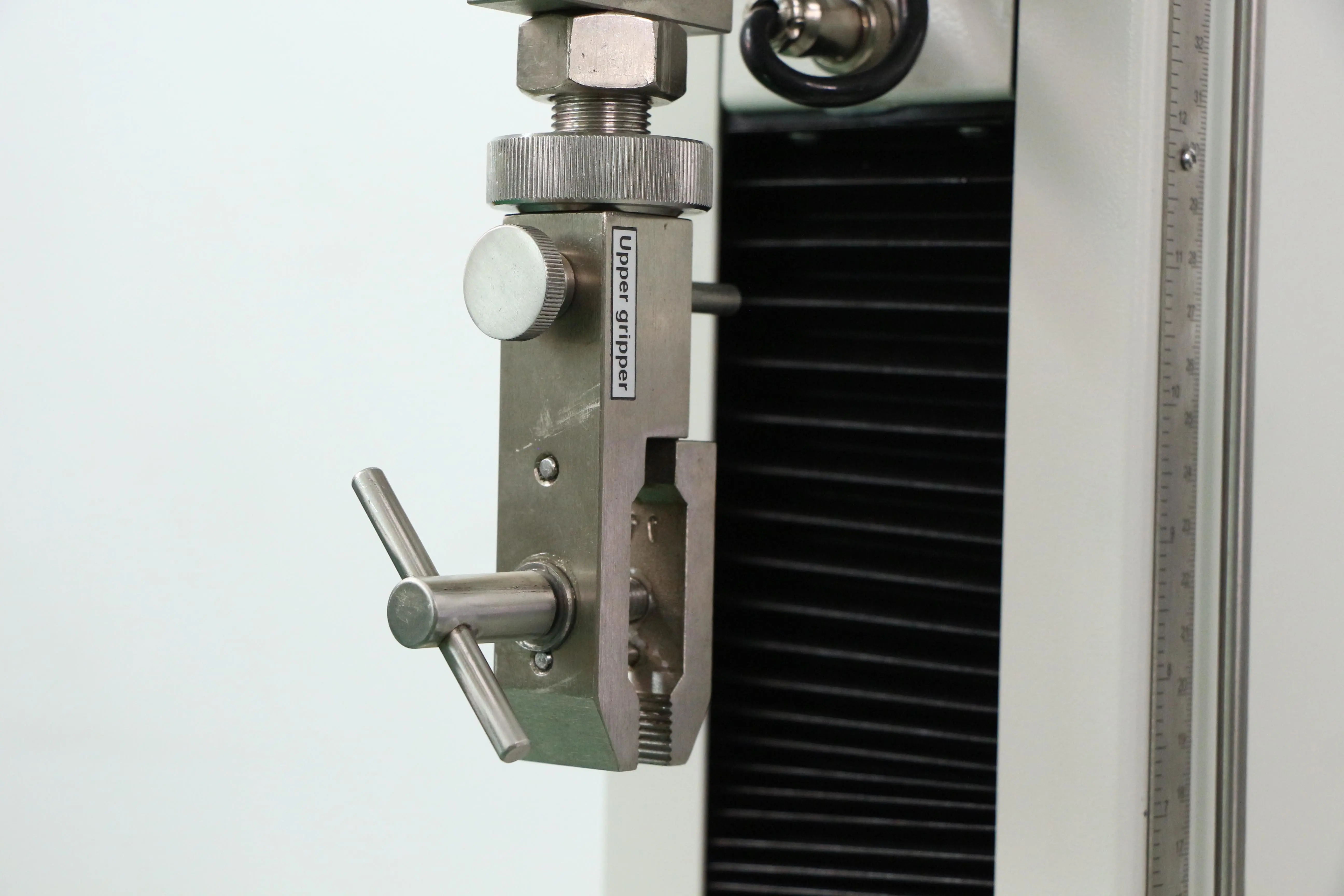

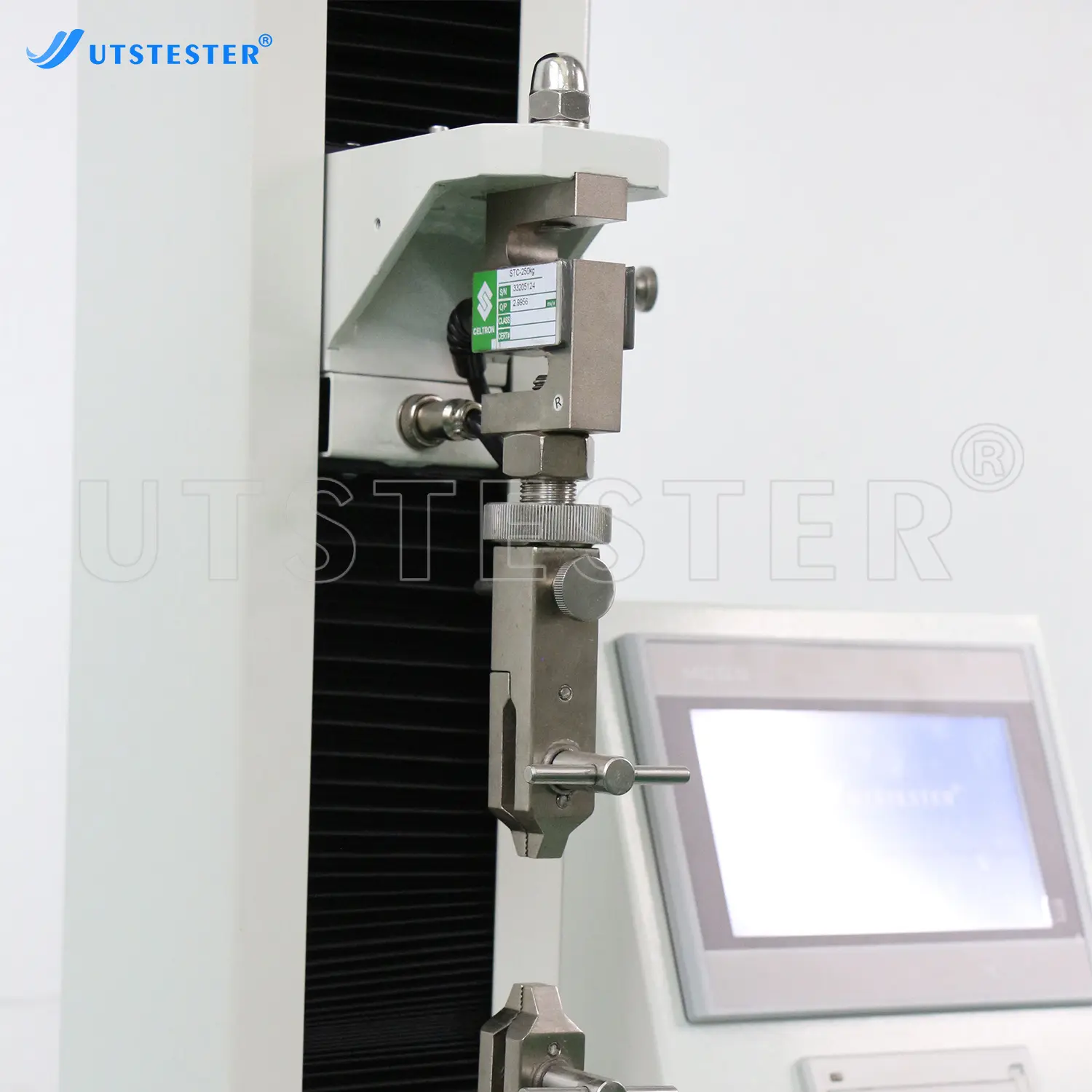

Clamping Device

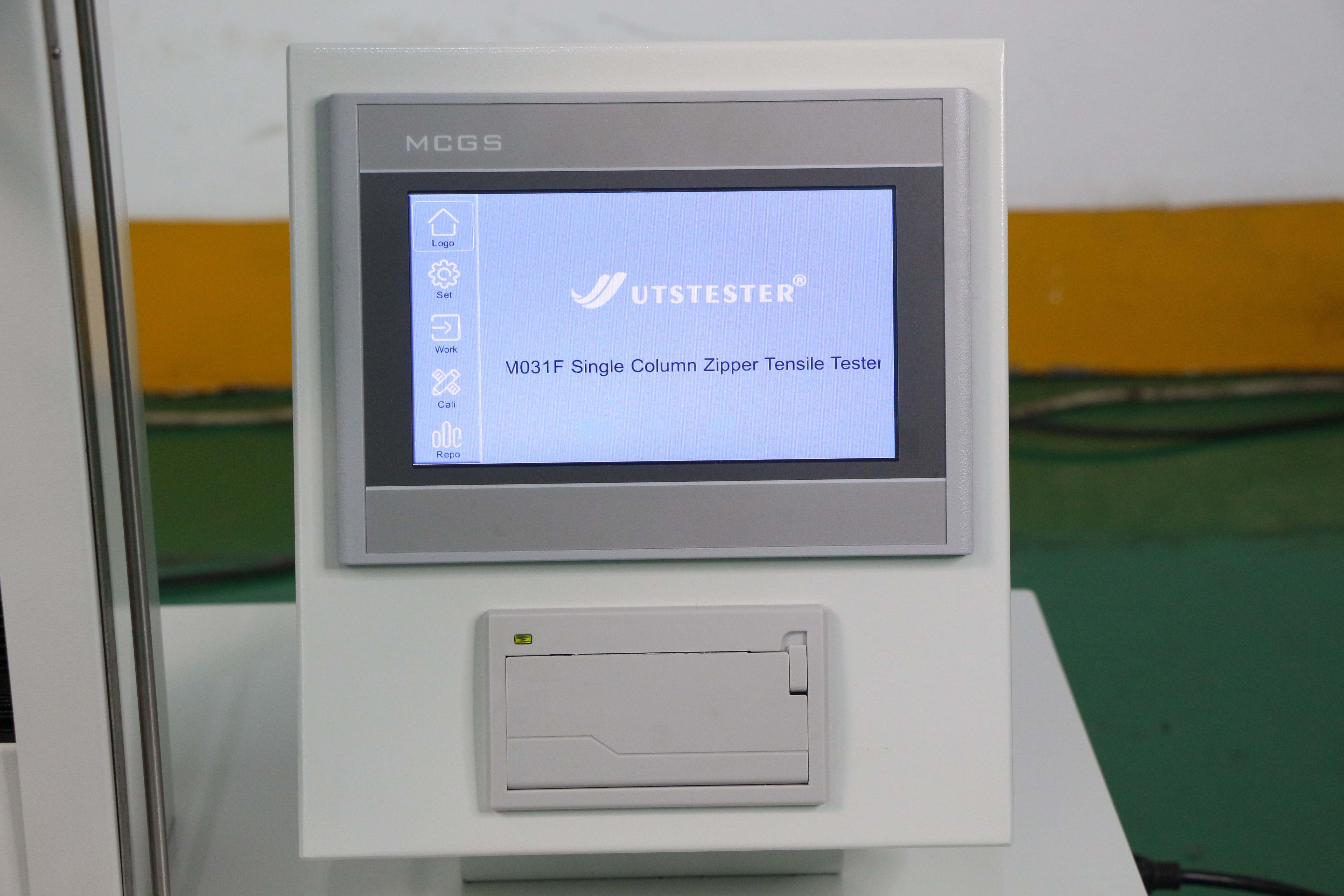

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
